Kaiana - Toilet Blumfeldt - Free user manual and instructions

Product Type	Toilet Seat
Brand	Blumfeldt
Model	Kaiana
Main Material	Duroplast (urea-formaldehyde resin)
Duroplast Composition	69% UF resin, 28% cellulose, 3% minerals, pigments, lubricants, water
Special Features	Soft Close System with hydraulic dampers
Hinge Type	Stainless steel/plastic with damping
Mounting Methods	Mounting with expansion anchors or screw mounting
Delivery Contents	Toilet seat (1x), expansion anchors (2x), hinges (2x), anti-slip washers (2x), screws (2x), hinge covers (2x)
Required Tools	Screwdriver
Recommended Cleaning	Mild soapy solution with neutral pH
Prohibited Products	Abrasives, chlorine, acids
Care After Cleaning	Wipe with a soft cloth
Environmental Safety	Free of environmentally harmful substances
Manufacturer	Chal-Tec GmbH, Germany

Frequently Asked Questions - Kaiana Blumfeldt

How to install the Kaiana toilet seat?

Two methods are possible: mounting with expansion anchors or screw mounting. Follow the detailed steps in the manual: place the anchors or brackets, fix the hinges, align the seat, tighten the screws and put on the covers.

How to clean the toilet seat?

Use a mild soapy solution with neutral pH and a soft cloth. Avoid abrasive, chlorine-based or acidic products that could damage the surface and cause discoloration.

What to do if the seat comes into contact with an aggressive cleaner?

Rinse immediately with clear water to avoid any damage. Then wipe with a soft cloth.

How to remove the seat from the toilet?

Press the button on the hinge once, then remove the seat with both hands. The manual illustrates this operation.

Is the toilet seat compatible with all bowls?

The Kaiana seat is designed to fit most standard bowls thanks to its adjustable mounting system. Check the dimensions of your bowl before purchase.

How to adjust the seat position after installation?

During installation, do not fully tighten the screws immediately. Place the seat, adjust its position, then tighten the screws. You can also loosen slightly for realignment.

What tools are required for installation?

A simple screwdriver is enough. All necessary parts (anchors, screws, hinges, etc.) are supplied.

Is the Kaiana seat guaranteed?

The manual does not mention a specific warranty. Contact the manufacturer Chal-Tec GmbH for any warranty-related questions.

Can I use chlorine-based cleaning products?

No, chlorine-based or acidic products are not recommended as they can damage the duroplast surface and cause yellow discoloration.

Where can I download the complete manual?

The manual is available free of charge in PDF format on sites like notice-facile.com. Scan the QR code on the product for the latest version.

USER MANUAL Kaiana Blumfeldt

INHALTSVERZEICHNIS

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Mounting with Dowels 8

Mounting with Screws 9

Care Instructions 10

Manufacturer & Importer (UK) 10

MATERIAL COMPOSITION

Hinges Stainless steel/plastic
Soft Close damper set Hydraulic dampers made of plastic
Damper fluid Sliding fluid
Buffer Polyethylene
Note: The material of the toilet seat is made of duroplast (UF A 10, urea formaldehyde resin) dyed through, which is free from environmentally harmful substances. Thermoset is produced from 69% urea formaldehyde resin, 28% cellulose, 3% minerals, pigments, lubricants and moisture.

MOUNTING WITH DOWELS

1	2
Place the expansion dowels in the recess of the toilet.	Attach the anti-slip washer to the bottom of the black hinge and place both on the recess of the toilet.Insert the screws through the slot of the hinges into the inserted expansion anchors. Do not tighten the screws completely and then place the toilet seat on the hinges.Now you can align the toilet seat.
	4

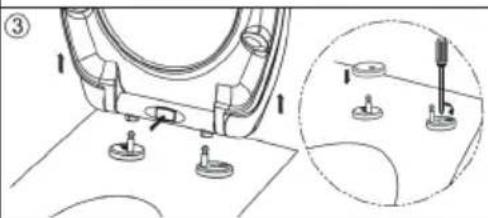

Remove the toilet seat again. Tighten the screws and place the stainless steel cover on the hinges.	Place the toilet seat back on the hinges.
	Required for installation:
	ScrewdriverToilet seat (1x)Expansion dowels (2x)Hinges (2x)Anti-slip washers (2x)Screws (2x)Hinge covers (2x)

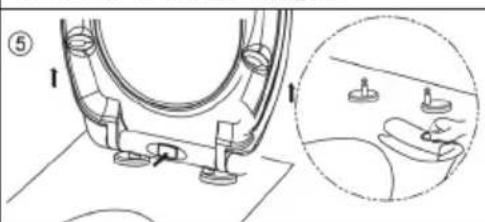

If you press the button 1x, you can remove the toilet seat with both hands afterwards.

MOUNTING WITH SCREWS

1
Place the anti-slip washer on the black hinge, then insert the screw through the slot of the hinge. Place the U-shaped metal bracket on the screw and attach the nut. Place everything into the recess of the toilet bowl. Hold the hinge firmly and tighten the screw so that it can still be moved tightly.	Place the toilet seat on the hinge base to fit the seat to the toilet bowl. Adjust the position of the seat until it fits properly and tighten the screw.
Remove the toilet seat again. Tighten the screws and place the stainless steel cover on the hinges.	Place the toilet seat back on the hinges.
	Required for installation:
	Screwdriver Toilet seat (1x) Metal brackets (2x) Hinges (2x) Anti-slip washers (2x) Screws (2x) Hinge covers (2x) Nuts (2x)

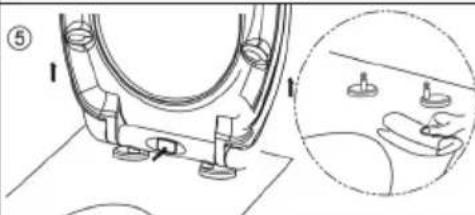

If you press the button 1x, you can remove the toilet seat with both hands afterwards.

CARE INSTRUCTIONS

This toilet seat was made with care. If you follow a few simple cleaning instructions, it will delight you with its beauty, comfort and quality every day.

• The surface of the toilet seat is closed and non-porous, which helps to ensure optimal hygiene. Do not use abrasive, chlorine or acidic detergents, as they can damage the surface and cause yellowish discoloration.
• Use only a mild, PH-neutral soap solution for cleaning.
• If the toilet seat or hinges have come into contact with toilet cleaner or other aggressive cleaning agents, rinse them immediately with clean water.
• After cleaning, wipe off any remaining moisture on the seat and hinges with a soft cloth.
• When cleaning, make sure that the toilet seat and lid are open or removed until the cleaning agent in the bowl is completely flushed away.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
