USER MANUAL GHJ12V-20 Professional BOSCH
Call Toll Free for Consumer Information & Service Locations
BOSCH
| Safety Symbols The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols. | |
| ! | This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow the symbol to avoid possible injury or death. |
| DANGER | DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. |
| WARNING | WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. |
| CAUTION | CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. |
General Product SafetyWarnings
△WARNING
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or
serious injury.
SAVE ALL WARNING AND INSTRUCTIONS FOR FUTURE REFERENCE
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when using the heated jacket/hoddie/vest. Do not use while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention may result in serious personal injury.
Do not abuse the power cable. Never use the cord for carrying, pulling, or unplugging the heated jacket/hoddie/vest. Keep cord away from heat, oil, sharp edges or moving parts.
Do not plug power source to USB port or heating elements port on the portable power adapter. The portable power adapter is not designed as a charger to charge the battery pack. Charging the battery pack through the portable power adapter creates a risk of injury and fire.
Do not wear any outer wear with this jacket/hoddie/vest. Discomfort may occur. The jacket/hoddie/vest reaches temperatures that could result in a burn.
Do not use as a blanket. The heating elements could touch bare skin.
Jacket/hoddie/vest misuse can result in personal injury and property damage hazards.
PRODUCT USE AND CARE
Do not use the heated jacket/hoddie/vest if the power button does not turn it on and off. The user must be able to easily change the heat setting to keep the jacket/hoddie/vest temperature at a comfortable level.
Disconnect the battery pack from the heated jacket/hoddie/vest when not in use. Such preventative safety measures reduce the risk of starting the heated jacket/hoddie/vest accidentally.
Store out of reach of children and do not allow persons unfamiliar with these instructions to operate the heated jacket/hoddie/vest. Jacket/hoddie/vest misuse can result in personal injury and property damage hazards.
General Product SafetyWarnings
Periodically check heated jacket/ hoddie/vest for wear and damage to parts. If damage or excessive wear is discovered, have the heated jacket/ hoddie/vest repaired before use.
PRODUCT USE AND CARE
Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
If battery release tabs are cracked or otherwise damaged, do not insert into tool. Battery can fall out during operation.
Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
SERVICE
Have your heated jacket/hoddie/vest serviced by a qualified Bosch repair person using only identical replacement parts. This will ensure that the safety of the heated jacket/hoddie/vest is maintained.
Safety Rules for Heated Jacket/ Hoodie /Vest
Do not touch heating elements with bare skin. Burns can result from improper use.
Use only with BAT414 or the batteries listed in the battery/charger list. Use of any other battery packs may create a risk of jacket/hoddie/vest malfunctions, injury and fire.
Disconnect battery when not in use or when battery is moist or wet. Moisture could damage the battery pack and create a risk of fire.
Do not use on an infant, children, an invalid, a sleeping or unconscious person, or a person with poor blood circulation. User must be immediately aware of jacket/hoddie/vest temperature and their comfort level to avoid overheating and possible burns.
If you have a medical condition making you sensitive to overheating, or if you use any personal medical devices, consult the device manufacturer and/or your physician to determine if use of this product is appropriate.
If any discomfort occurs, remove battery pack from the jacket/hoddie/ vest immediately. The jacket/hoddie/ vest reaches temperatures that could result in a burn.
Do not use pins or other fastening devices. They may damage the electric wiring causing jacket/hoddie/vest malfunction and increase the risk of shock and burns.
Do not use while submersed in water or if inner liner is saturated. Excessive moisture may result in jacket/hoddie/vest malfunction and increase the risk of burns and battery damage.
Do not use heated jacket/hoddie/vest in temperatures below -4F (-20C). Extreme low temperatures may damage the battery cells.
Do not allow the cords to become pinched. Pinched wires increase the risk of shock and burns.
For warnings and instructions regarding care and maintenance, refer to "Jacket/ hoddie/vest Care & Maintenance".
Symbols
IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
| Symbol Designation/Explanation | |
| V | Volts (voltage) |
| A | Amperes (current) |
| Hz | Hertz (frequency, cycles per second) |
| W | Watt (power) |
| kg | Kilograms (weight) |
| min | Minutes (time) |
| s | Seconds (time) |
| ∅ | Diameter (size of drill bits, grinding wheels, etc.) |
| n0 | No load speed (rotational speed at no load) |
| n | Rated speed (maximum attainable speed) |
| .../min | Revolutions or reciprocation per minute (revolutions, strokes, surface speed, orbits etc. per minute) |
| 0 | Off position (zero speed, zero torque...) |
| 1, 2, 3, ... I, II, III, | Selector settings (speed, torque or position settings. Higher number means greater speed) |
| 0 | Infinitely variable selector with off (speed is increasing from 0 setting) |
| → | Arrow (action in the direction of arrow) |
| ~ | Alternating current (type or a characteristic of current) |
| == | Direct current (type or a characteristic of current) |
| ~ | Alternating or direct current (type or a characteristic of current) |
| □ | Class II construction (designates double insulated construction tools) |
| ⊕ | Earthing terminal (grounding terminal) |
Symbols (continued)
IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
| Symbol Designation / Explanation | |
| DESIGNATION | Designates Li-ion battery recycling program |
| DESIGNATION | Designates Ni-Cad battery recycling program |
| Alerts user to read manual | |
| Alerts user to wear eye protection | |
| UL | This symbol designates that this tool is listed by Underwriters Laboratories. |
| RJ | This symbol designates that this component is recognized by Underwriters Laboratories. |
| CULUS | This symbol designates that this tool is listed by Underwriters Laboratories, to United States and Canadian Standards. |
| SA | This symbol designates that this tool is listed by the Canadian Standards Association. |
| CSA US | This symbol designates that this tool is listed by the Canadian Standards Association, to United States and Canadian Standards. |
| CTLUS Intertek | This symbol designates that this tool is listed by the Intertek Testing Services, to United States and Canadian Standards. |
| NOM-ANCE | This symbol designates that this tool complies to NOM Mexican Standards. |
Functional Description and Specifications

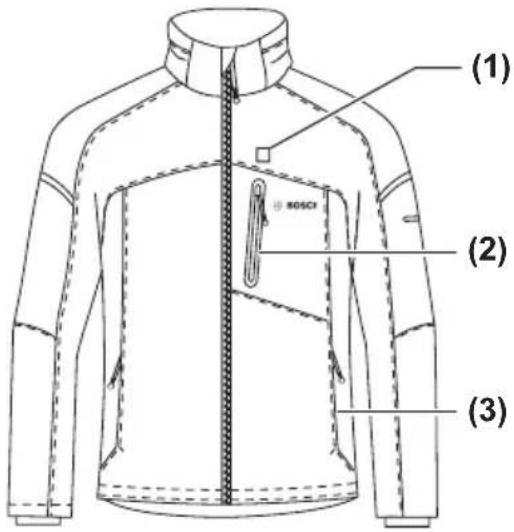

GHJ12V-20 Jacket

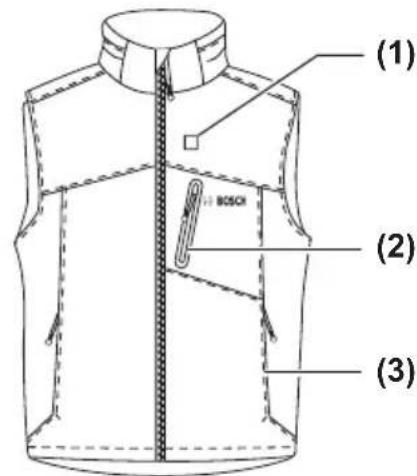

GHV12V-20 Vest
- Power Button and Heat Level Controller (Red: High; Green: Medium; Blue: Low)
2.Chest Pocket - Outer Pockets
- Inner Pocket for large documents
- Portable power adapter pocket

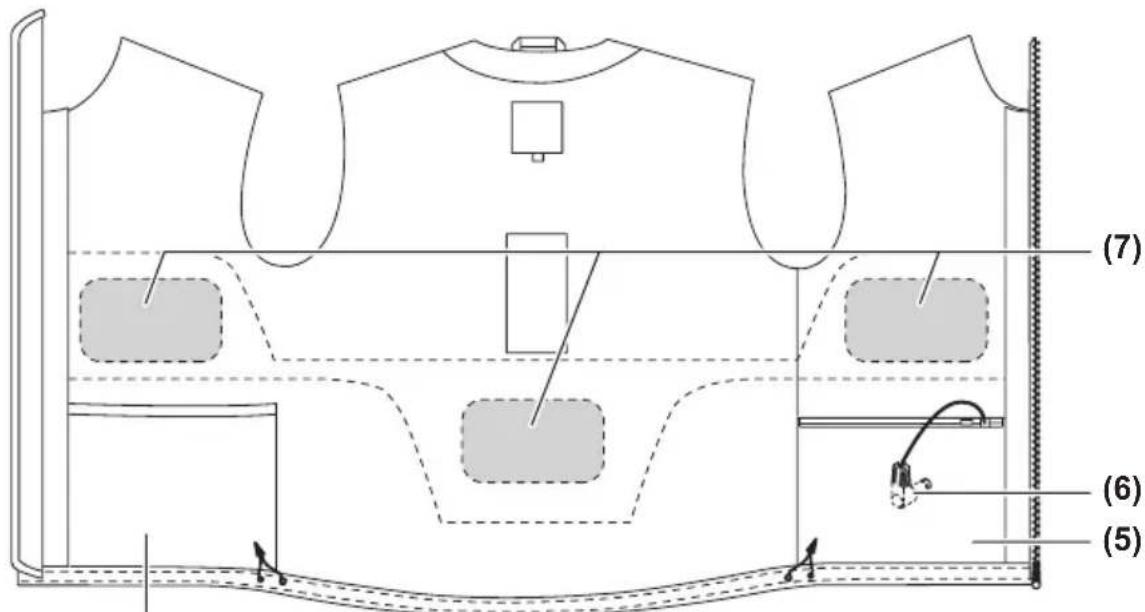

- Heating elements power cable
- Heating pads

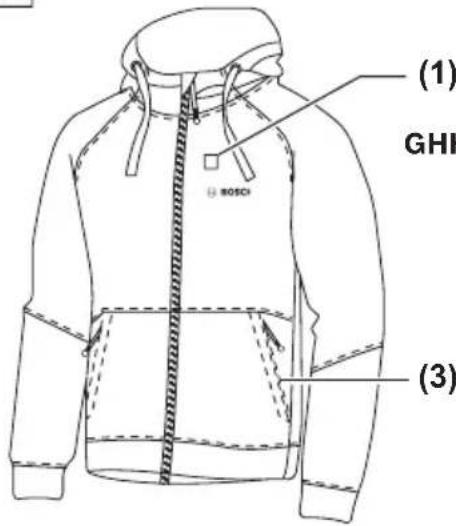

GHH12V-20 Hoddie
(3)
(4)
Functional Description and Specifications

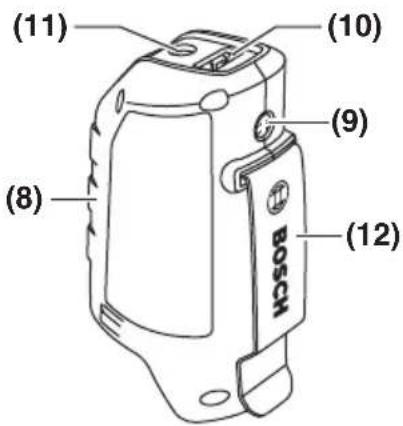

- Portable power adapter (optional)
- USB Port Wake-up button
- USB port
- Heating elements power port
- Belt Clip

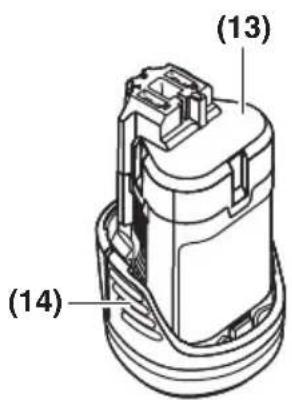

- Bosch 12V max battery (optional)
- Battery release tabs
Voltage rating: 10.8V/12V MAX
Battery packs/Chargers
Please refer to the Battery/Charger List included with your tool.
Operating Instructions
The USB port battery backup functionality provides users with the ability to obtain extra power from their Bosch 12V max battery, in the event a mobile phone, mp3 player or tablet PC runs low on power.
Operation with Battery Pack
Use only with BAT414 or the batteries listed in the
battery/charger list. Use of any other battery packs may create a risk of jacket/hoddie/vest malfunctions, injury and fire.
INSERTING AND RELEASING BATTERY PACK
To insert the battery, align battery and slide battery pack 13 into the Portable power adapter 8 until it locks into position. Do not force.
Release battery pack from the portable power adapter unit by pressing on both sides of the Battery release tabs 14 and pull downward.
If battery release tabs are cracked or otherwise
damaged, do not insert into portable power adapter. Battery can fall out during operation.
Connecting Heating Elements Power Cable
Locate the Heating elements power cable 6 inside the Portable power adapter pocket 5, and plug it into the Portable power adapter's Heating elements power port 11. With a charged battery, the Power button and heat level controller 1 will temporarily light up, indicating the system is powered and ready to be turned on.
To ensure maximum runtime, unplug the holster from the jacket/hoddie/vest and remove the battery from the Portable power adapter 8 when not in use.
Do not allow the cords to become pinched. Pinched
wires increase the risk of shock and burns. Store the portable power adapter into it designated pocket during usage of the jacket/hoddie/vest.
Jacket/Hoddie/Vest Operation
To turn the jacket/hoddie/vest's heating elements on, first make sure a charged battery pack is installed.
To turn the jacket/hoddie/vest on, hold the Power button 1 until the LED lights up "RED." Note that when initially turned on, the jacket/hoddie/vest will be in the "High Heat" level.
Do not touch heating elements with bare skin.
Burns can result from improper use.
To turn the jacket/hoddie/vest off, hold the Power button 1 until the LED light goes off. If the heated jacket/hoddie/vest turns off unexpectedly, check connections and charge the battery pack.
Do not use the heated jacket/hoddie/vest if the
power button does not turn it on and off. The user must be able to easily change the heat setting to keep the jacket/hoddie/vest temperature at a comfortable level.
Adjusting the Heat Level
To adjust the heat level, press the Power button and Heat level controller 1 once for each level. The following LED light colors represent the three heat levels.
RED - high heat
GREEN - medium heat
BLUE - low heat (recommended for continuous use)
△WARNING
Temperature sufficiently high to cause burns may
occur regardless of control setting. If any discomfort occurs, shut off jacket/ hoddie/vest power immediately.
USB Port Battery Backup Operation
The USB port battery backup functionality provides users with the ability to obtain extra power from their Bosch 12V max battery, in the event a cell phone, mp3 player or tablet PC runs low on power.
△WARNING
Do not connect any device that is not
compatible with 5VDC, 1A power source to the USB port on the portable power adapter. Charging of non-compatible devices may create a risk of portable power adapter malfunction.
The Portable power adapter 8 can be placed within the Portable power adapter pocket 5 or can be attached to the user's belt with the convenient Belt clip 12.
To use the USB cord supplied with your personal device, plug the USB cable into the USB port 10 and the other end into your device. To activate or wake-up the USB power port, press the USB Port wake-up button 9 for 3 seconds (see page 6).
When pressed, the USB port will determine if a device is plugged in. If so, the USB port will remain on as long as the device is attached for a maximum of 2 hours. If after 60 seconds, the port does not detect a device initially connected, it will deactivate, or go to sleep, conserving battery power.
WARNING
To reduce the risk of injury, always unplug the
portable power adapter and remove the battery pack from the heated jacket/ hoddie/vest before performing any maintenance. Never disassemble the heated jacket/hoddie/vest, battery pack or portable power adapter. Contact a Bosch service facility for all repairs.
Never immerse the portable power adapter, battery pack or charger in liquid or allow liquid to flow inside them. A risk of an electric shock or fire may result.
Do not crease heated clothing by placing items on top of it when storing. Do not crush the heated jacket/hoddie/vest and avoid sharp folds. This may damage the electric wiring increasing the risk of shock and burns.
Cleaning Heated Jacket/Hoddie/Vest
Remove all items from pockets, including the portable power adapter 8, battery 13 and USB cable before washing.
Disconnect and remove portable power adapter from jacket/hoddie/vest pocket before washing. Wetting of the portable power adapter can result in product damage.
Do not use dry cleaning fluid or other cleaning solvents. Do not dry clean. Do not bleach. Cleaning fluids may have a deteriorating effect on the insulation of the heating element. A risk of an electric shock, burns or fire may result.
Do not iron. Ironing may damage wire insulation leading to risk of shock and burns.
Machine washer using gentle cycle with warm water.
Tymble-dry on a low temperature setting (60^ / 140^ max).
Do not wring out.
| Symbol Designation / Explanation |
| Machine wash using gentle cycle with warm water. |
| Do not bleach |
| Tumble-dry on low temperature setting (60°C/140°F max). |
| Do not iron |
| Do not wring out |
| Do not dry clean |
| Do not insert pins |
Trouble Shooting Guide
Robert Bosch Tool Corporation ("Seller") warrants to the original purchaser only, that all BOSCH portable and benchtop power tools will be free from defects in material or workmanship for a period of one year from date of purchase. SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are effective in material or workmanship and which have not been misused, carelessly handled, or misrepaired by persons other than Seller or Authorized Service Station. To make a claim under this Limited Warranty, you must return the complete portable or benchtop power tool product, transportation prepaid, to any BOSCH Factory Service Center or Authorized Service Station. For Authorized BOSCH Power Tool Service Stations, please refer to your phone directory.
THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS CIRCULAR SAW BLADES, DRILL BITS, ROUTER BITS, JIGSAW BLADES, SANDING BELTS, GRINDING WHEELS AND OTHER RELATED ITEMS.
ANY IMplied Warranties SHALL BE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE. SOME STATES IN THE U.S., SOME CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ASING FROM THE SALE OR USE OF THIS PRODUCT. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO PORTABLE AND BENCHTOP ELECTRIC TOOLS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL BOSCH DEALER OR IMPORTER.
