Safety SymbolsThe definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.
	This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
	WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
	CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, will result in minor or moderate injury.

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

Keep work area clean and well lit. Cluttered or dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and / or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools. Check for misalignmer or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Rules for Routers

Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.

If cutting into existing walls or other blind areas where electrical wiring may exist is unavoidable, disconnect all fuses or circuit breakers feeding this worksite.

Always make sure the work surface is free from nails and other foreign objects. Cutting into a nail can cause the bit and the tool to jump and damage the bit.

Never hold the workpiece in one hand and the tool in the other hand when in use.

Never place hands near or below cutting surface. Clamping the material and guiding the tool with both hands is safer.

Never lay workpiece on top of hard surfaces, like concrete, stone, etc...

Protruding cutting bit may cause tool to jump.

Always wear safety goggles and dust mask. Use only in well ventilated area. Using personal safety devices and working in safe environment reduces risk of injury.

After changing the bits or making any adjustments, make sure the collet nut and any other adjustment devices are securely tightened. Loose adjustment device can unexpectedly shift, causing loss of control, loose rotating components will be violently thrown.

Never start the tool when the bit is engaged in the material. The bit cutting edge may grab the material causing loss of control of the cutter.

The direction of feeding the bit into the material is very important and it relates to the direction of bit rotation. When viewing the tool from the top, the bit rotates clockwise. Feed direction of cutting must be counter-clockwise. NOTE: inside and outside cuts will require different feed direction, refer to section on feeding the router. Feeding the tool in the wrong direction, causes the cutting edge of the bit to climb out of the work and pull the tool in the direction of this feed.

Never use dull or damaged bits. Sharp bits must be handled with care. Damaged bits can snap during use. Dull bits require more force to push the tool, possibly causing the bit to break.

Never touch the bit during or immediately after the use. After use the bit is too hot to be touched by bare hands.

Never lay the tool down until the motor has come to a complete standstill. The spinning bit can grab the surface and pull the tool out of your control.

Cutter diameter must be at least 1/4" smaller than opening for the bit and cutter.

Additional Safety Warnings

Use this tool with Bosch recommended batteries only. Use of any other battery pack may create a risk of injury and fire.

Use only router bits with rated speed at least equal to the maximum no load speed marked on the router. Router bits running faster than their rated speed can break and fly apart.

Do not use AC only rated tools with a DC power supply. While the tool may appear to work, the electrical components of the AC rated tool are likely to fail and create a hazard to the operator.

Keep handles dry, clean and free from oil and grease. Slippery hands cannot safely control the power tool.

Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

Develop a periodic maintenance schedule for your tool. When cleaning a tool be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched or safety guard return springs may be improperly mounted.

Certain cleaning agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.

Risk of injury to user. The power cord must only be serviced by a Bosch Factory Service Center or Autho rized Bosch Service Station.

WARNING

Some dust created by power sanding, sawing,

grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Symbols

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol Designation / Explanation
V Volts (voltage)
A Amperes (current)
Ah Amp-hour (measurement of battery capacity)
Hz Hertz (frequency, cycles per second)
W Watt (power)
kg Kilograms (weight)
min Minutes (time)
s Seconds (time)
∅	Diameter (size of drill bits, grinding wheels, etc.)
n0	No load speed (rotational speed at no load)
n Rated speed (maximum attainable speed)
.../min	Revolutions or reciprocation per minute (revolutions, strokes, surface speed, orbits etc. per minute)
0 Off position (zero speed, zero torque...)
1, 2, 3, ...I, II, III,	Selector settings (speed, torque or position settings. Higher number means greater speed)
0	Infinitely variable selector with off (speed is increasing from 0 setting)
→	Arrow (action in the direction of arrow)
~	Alternating current (type or a characteristic of current)
---	Direct current (type or a characteristic of current)
~	Alternating or direct current (type or a characteristic of current)
☐	Class II construction (designates double insulated construction tools)
⊕	Earthing terminal (grounding terminal)

Symbols (continued)

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol Designation / Explanation
	Designates Li-ion battery recycling program
	Designates Ni-Cad battery recycling program
	Alerts user to read manual
	Alerts user to wear eye protection
	This symbol designates that this tool is listed by Underwriters Laboratories.
	This symbol designates that this component is recognized by Underwriters Laboratories.
	This symbol designates that this tool is listed by Underwriters Laboratories, to United States and Canadian Standards.
	This symbol designates that this tool is listed by the Canadian Standards Association.
	This symbol designates that this tool is listed by the Canadian Standards Association, to United States and Canadian Standards.
Intertek	This symbol designates that this tool is listed by the Intertek Testing Services, to United States and Canadian Standards.
	This symbol designates that this tool complies to NOM Mexican Standards.

Functional Description and Specifications

WARNING

Disconnect battery pack from tool before making any assembly, adjustments or changing accessories. Such preventive safety measures

reduce the risk of starting the tool accidentally.

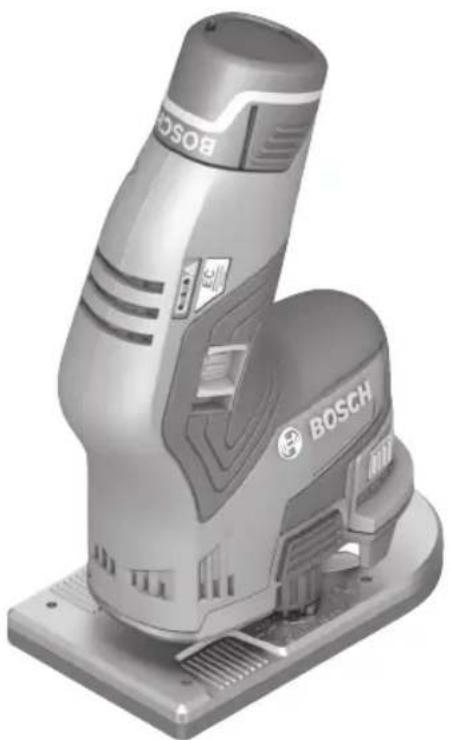

Cordless Palm Router

Model Number ....GKF12V-25

Bit Capacity ....1/4" shank

Max. Router Bit / Cutter Diameter ....1-5/16"

NOTE: For tool specifications refer to the nameplate on your tool.

Battery Packs/Chargers

WARNING

Use this tool with Bosch recommended batteries only. Use

of any other batteries may create a risk of injury and fire.

Please refer to the Charger Manual included with your tool for Bosch recommended battery packs.

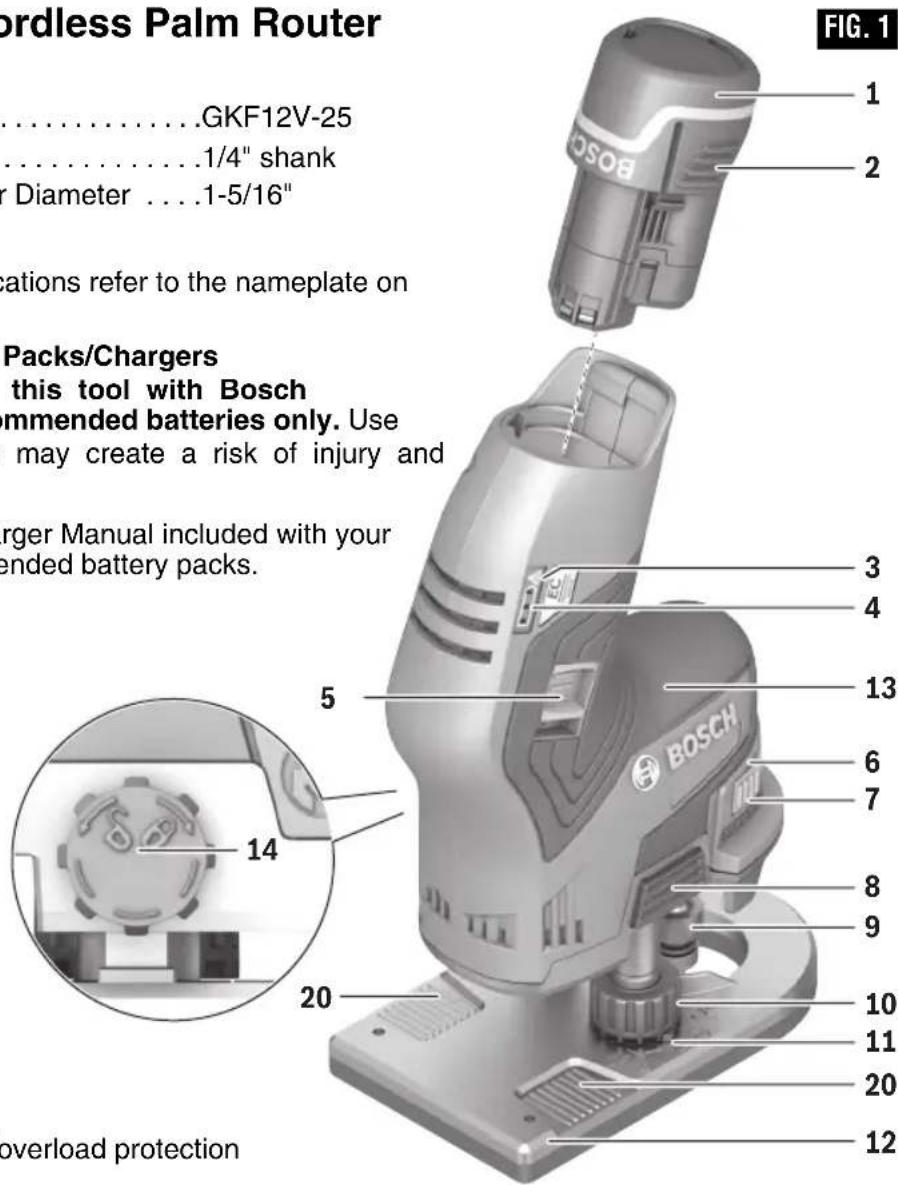

Nordless Palm Router GKF12V-25 1/4" shank Diameter ....1-5/16" Fig. 1 1 2 Packs/Chargers this tool with Bosch mmended batteries only. Use may create a risk of injury and arger Manual included with your ended battery packs. 3 4 5 6 7 8 9 10 11 20 12 overload protection

1 Battery pack*

2 Battery release tabs

3 Temperature control/overload protection indicator

4 Battery charge condition indicator

5 On/Off switch

6 Marking arrow for spindle lock

7 Spindle lock bar

8 Depth-of-cut adjustment button

9 Collet nut with collet

10 Depth-of-cut adjustment thumbwheel

11 Depth-of-cut adjustment fixing screw

12 Base plate

13 Rubberized gripping area

14 Depth-of-cut locking wheel

15 Collet**

16 Spindle**

17 Router bit* **

18 Open-end wrench (17 mm)**

19 Smooth guide column**

20 Finger support pockets

* Sold separately

** Not shown in this picture

Assembly

WARNING

Disconnect battery pack from tool before making any assembly, adjustments or changing accessories. Such preventive safety measures

reduce the risk of starting the tool accidentally.

INSERTING AND RELEASING BATTERY PACK

- Release battery pack from tool by pressing on both sides of the battery release tabs 2 and pull the battery out (Fig. 1).

WARNING

If battery release tabs are cracked or otherwise

damaged, do not insert into tool. Battery can fall out during operation.

WARNING

Make sure the tool is in the OFF position before

inserting the battery pack. Inserting the battery pack into power tool that has the switch ON invites accidents.

- To insert battery, align battery and slide battery pack into tool until it locks into position. Do not force.

SELECTING BITS

Your Bosch palm router is designed for a wide variety of routing applications that use 1/4" shank bits. These include woodworking applications such as edge forming, grooving, and sign making. This router is also ideal for trimming laminates, phenolics, and other materials that have been bonded to a substrate overhang the substrate typically by about 1/8" (3 mm).

A wide assortment of router bits with different profiles are available as accessories. Only use good quality bits.

WARNING

Use only router bits with rated speed at least equal

to the maximum no load speed marked on the router. Router bits running faster than their rated speed can break and fly apart.

NOTE: The bit shank and chuck should be clean and free of dust, wood, residue, and grease before assembling.

WARNING

To prevent personal injury, always remove

battery pack from the tool before removing or installing bits or accessories.

INSTALLING A ROUTER BIT

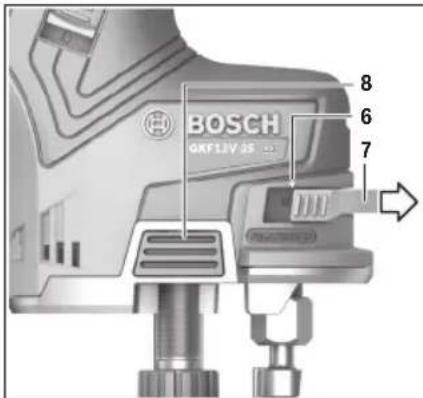

1. Press and hold the button 8 to raise the router unit as high as possible from the base.

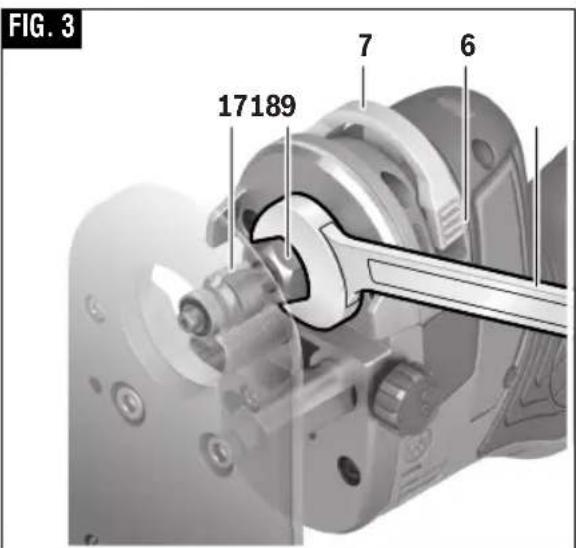

2. Pull out the spindle locking bar 7 up to the marking arrow 6 on the housing. If necessary, turn the spindle manually until it is locked in place. There are six lock positions offset by 60° (Fig. 2).

3. Next, use the collet wrench 18 to loosen the collet nut 9 in a counter-clockwise direction as viewed from bottom of router (Fig. 3).

4. Insert the shank of the router bit 17 into the collet chuck assembly as far as it will go, then back the shank out until the cutters are approximately 1/8" to 1/4" away from the collet nut 9 face (Fig. 3).

5. With the router bit 17 inserted and the spindle lock engaged, use the collet wrench 18 to firmly tighten the collet nut 9 in a

BOSCH GRF11V 35 8 6 7

FIG. 2

FIG. 3 17189 7 6

clockwise direction as viewed from bottom of router (Fig. 3).

1. Push the spindle locking bar 7 back into disengaged position.

To ensure proper gripping of the router bit and minimize run-out, the shank of the router bit must be inserted at least 5/8".

CAUTION

To prevent damage to tool, do not tighten collet

without a bit.

REMOVING THE ROUTER BIT

1. Pull out the spindle locking bar 7 up to the marking arrow 6 on the housing. If necessary, turn the spindle manually until it is locked in place. There are six lock positions offset by 60^ (Fig. 2).
2. Next, use the collet wrench 18 to loosen the collet nut 9 in a counter-clockwise direction as viewed from bottom of router. (Fig. 3).
3. Continue to turn the collet chuck assembly 9 until it pulls the collet 15 free from the spindle 16, and the router bit 17 can be removed.

NOTE: The collet chuck is self-extracting; it is NOT necessary to strike the collet chuck to free the router bit.

COLLET CHUCK CARE

To assure a firm grip, occasionally blow out the collet chuck with compressed air, and clean the taper in the spindle assembly shaft with a tissue or fine brush.

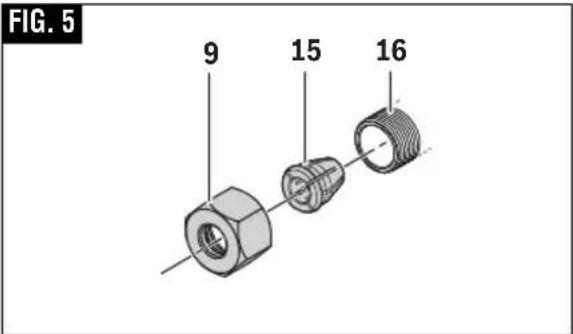

The collet chuck is made up of two component parts that snap together (Fig. 5); check to see that the collet 15 is properly seated in the collet chuck nut 9 and lightly thread the collet chuck back onto the spindle.

Replace worn or damaged collet chucks immediately.

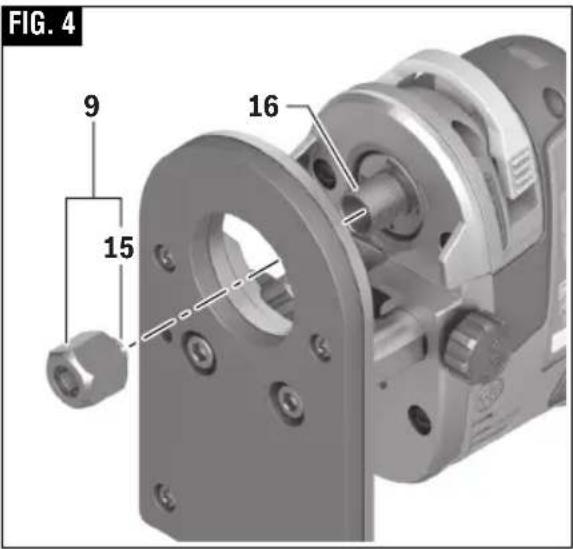

FIG. 4 9 15 16

FIG. 5 9 15 16

Operating Instructions

WARNING

Disconnect battery pack from tool before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally.

TURNING TOOL ON AND OFF

Make sure that the spindle locking bar 7 is pressed into disengaged position.

To switch the power tool ON, slide the On/Off switch 5 down so that "I" appears on the switch.

To switch the power tool OFF, slide the On/Off switch 5 up so that "O" appears on the switch (Fig. 1).

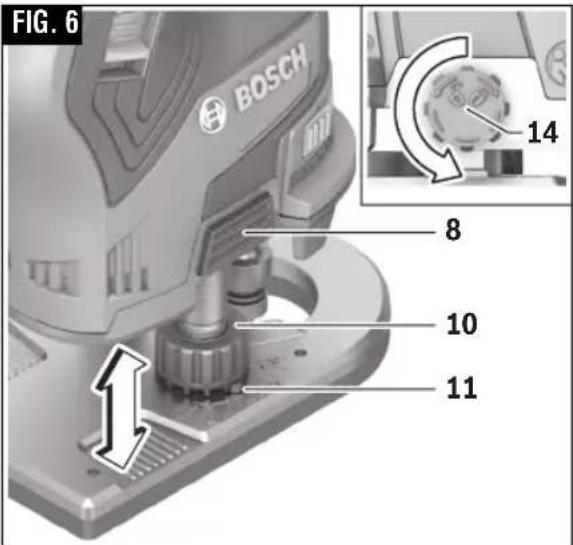

SETTING THE DEPTH OF CUT

Adjust the depth-of-cut only when the motor is switched off.

Remove the battery pack and make sure the switch 5 is in the "O" (off) position.

1. Install desired router bit according to the instructions on page 8.
2. Place the router on the workpiece.
3. Turn the depth-of-cut locking wheel 14 counterclockwise (towards) approximately half a revolution to unlock depth-of-cut adjustment (Fig. 6).
4. Press depth-of-cut adjustment button 8 and slowly lower the router to approximately desired depth of cut. Release the button 8 (Fig. 6).
5. Use the thumbwheel 10 to set the exact cutting depth required. Each revolution of the thumbwheel changes the cutting depth by 0.04 in (1 mm).
6. Turn the locking wheel 14 clockwise (towards to securely lock the depth-of-cut adjustment.
7. Insert the battery pack. Check the adjusted depth with a trial cut. If necessary, remove the battery pack and re-adjust the depth of cut.

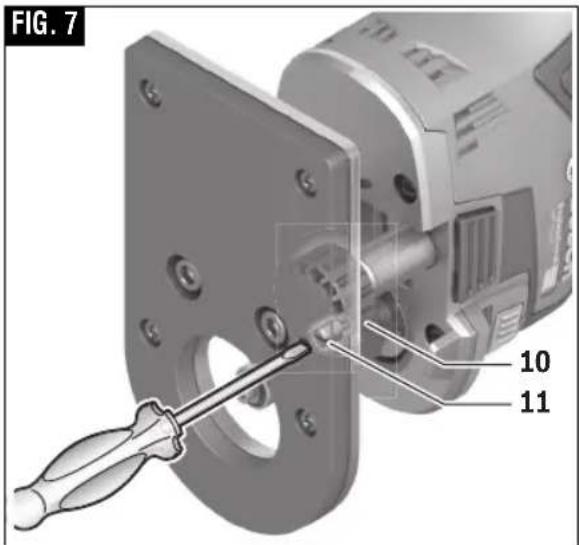

8. If you want to keep the tool fixed at the cutting depth you have set, you can screw the fixing screw 11 into the depth-of-cut adjustment thumbwheel 10. You will need a flat head screwdriver (not included) with 5/32" (4mm) maximum width (Fig. 7).

FIG. 6 BOSCH 8 10 11 14

FIG. 7 10 11

BATTERY CHARGE CONDITION INDICATOR

Your tool is equipped with charge condition indicator lights 4 (Fig. 1). The indicator lights show the charge condition of the battery for a few seconds the tool activation.

LED Capacity
3 continuous green lights > 2/3
2 continuous green lights > 1/3
1 continuous green light < 1/3
1 flashing green light reserve

TEMPERATURE CONTROL / OVERLOAD PROTECTION INDICATOR

The red LED indicator 3 helps you to protect the battery against overheating and the drive against overheating and overload (Fig. 1).

If the LED indicator 3 is lit up permanently in red, the temperature of the battery or drive unit is too high. The power tool switches off automatically. When this happens:

- Turn switch the switch 5 to "O" (OFF) position.

- Allow the battery and power tool to cool down before you resume working.

The LED indicator 3 flashes red, the power tool is jammed and switches off automatically. When this happens:

• Turn Switch the switch 5 to "O" (OFF) position.
• Remove the power tool from the workpiece.
• Unlock the spindle locking bar 7 if necessary.

As soon as the jam has been cleared and the motor spindle is able to turn freely again, you can switch the power tool back on.

FEEDING THE ROUTER

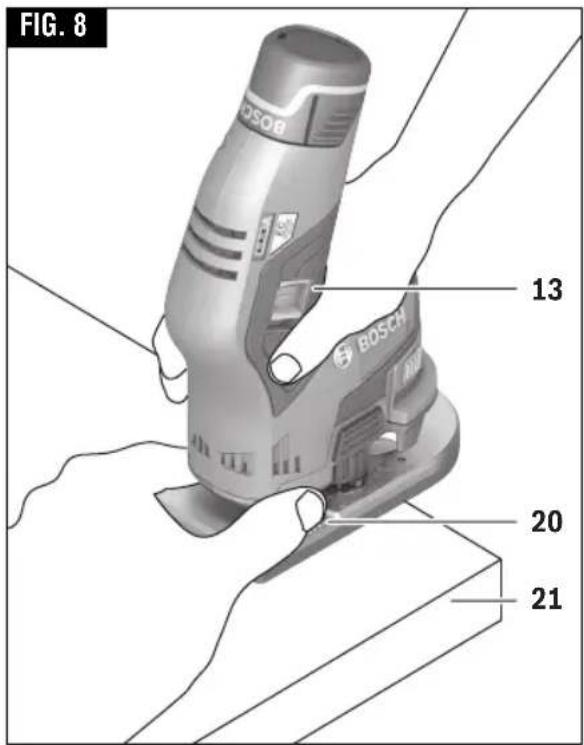

In addition to the main gripping area 13, the base has Bosch-exclusive finger support pockets 20 to provide additional stability for the router (Fig. 8).

WARNING

Always hold the router with both hands. Keep

fingers away from router bits and cutters. Hands contacting with rotating router bit can cause serious personal injury.

WARNING

Always place both finger pockets over the

workpiece and always hold the router in a way that allows you to see your fingers and thumb.

WARNING

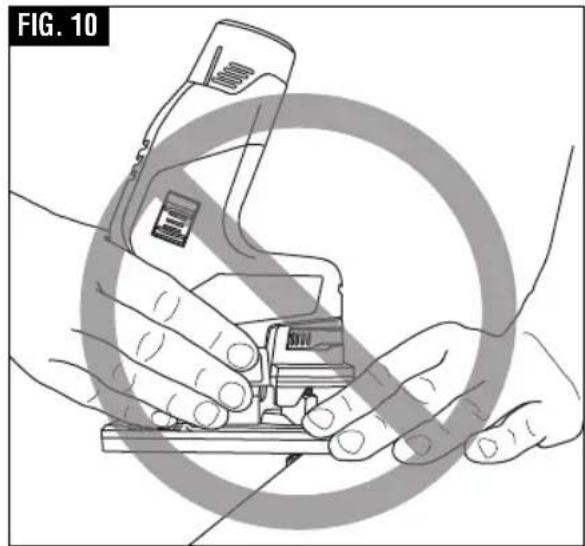

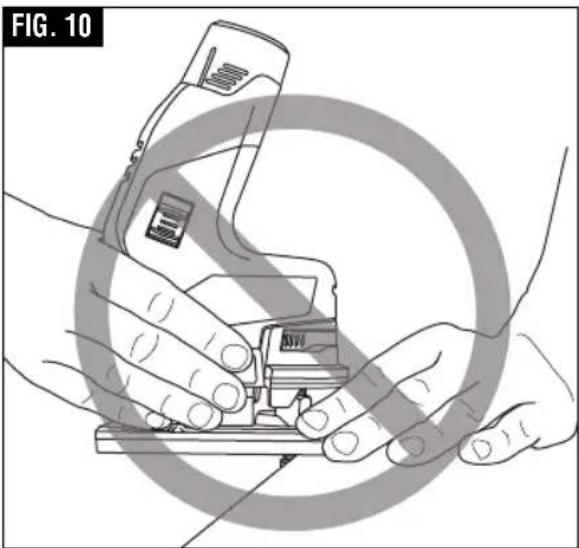

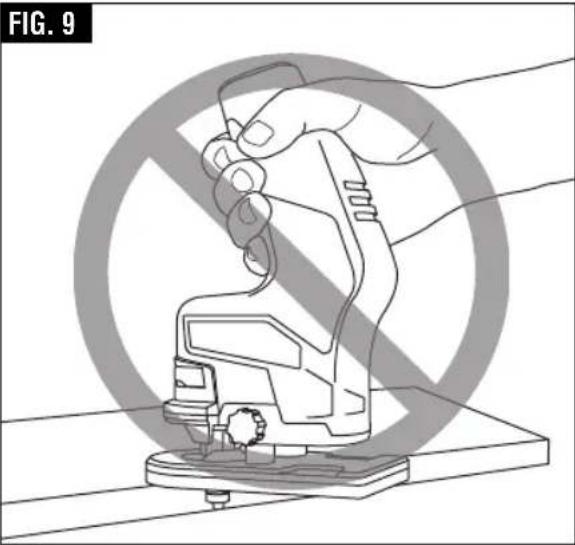

Never hold the tool in other ways, such as

those shown in figures 9 and 10.

FIG. 8 BOSOB 13 BOSCH 20 21

Illustration of a hand holding a device with a prohibition symbol overlay (no text or symbols present)

Illustration of hands assembling a mechanical component with a magnified circular background (no text or symbols)

FIG. 11 23 22 21 17

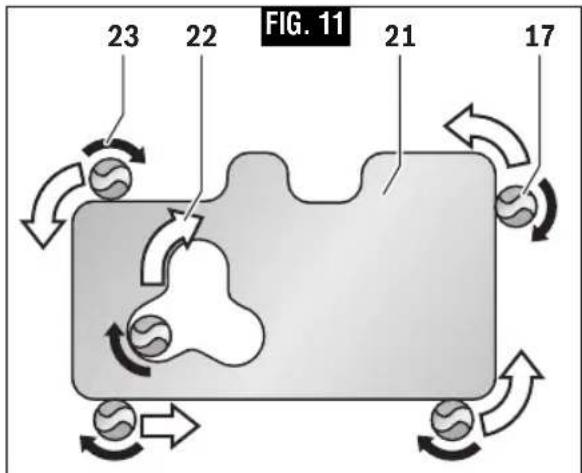

As seen from the top of the router, the bit 17 turns clockwise (23) and the bit's cutting edges are positioned to best cut into the workpiece 21. Therefore, the most efficient cut is made by feeding (22) the router so that the bit turns into the workpiece, not away. Figure 11 shows proper feed for various cuts. How fast you feed depends on the hardness of the material and the size of the cut. For some materials, it best to make several cuts of increasing depth. If the router is hard to control, heats up, runs very slowly or leaves an imperfect cut, consider these causes:

1. Wrong direction of feed — hard to control.
2. Feeding too fast — overloads motor.
3. Dull bit — overloads motor.

4. Cut is too large for one pass — overloads motor.

5. Feeding too slow — leaves friction burns on work.

Feed smoothly and steadily (do not force). You will soon learn how the router sounds and feels when it is working best.

Always hold the router off the workpiece 21 when turning the switch on or off. Contact the workpiece with the router after the router has reached full speed, and remove it from the workpiece before turning the switch off. Operating in this manner will prolong switch and motor life and will greatly increase the quality of your work.

RATE OF FEED

When routing or doing related work in wood and plastics, the best finishes will result if the depth of cut and feed rate are regulated to keep the motor operating at high speed. Feed the router at a moderate rate. Soft materials require a faster feed rate than hard materials. The router may stall if improperly used or overloaded. Reduce the feed rate to prevent possible damage to the tool. Always be sure the collet chuck is tightened securely before use. Always use router bits with the shortest cutting length necessary to produce the desired cut. This will minimize router bit run-out and chatter.

It may be necessary to make the cut in more than one pass with progressively deeper settings to avoid overloading the motor. If the bit cuts freely and the motor does not slow down, the cutting depth is generally correct.

Mechanical assembly diagram showing a tool interacting with a workpiece (no visible text or symbols)

USING SELF-PILOTED BITS

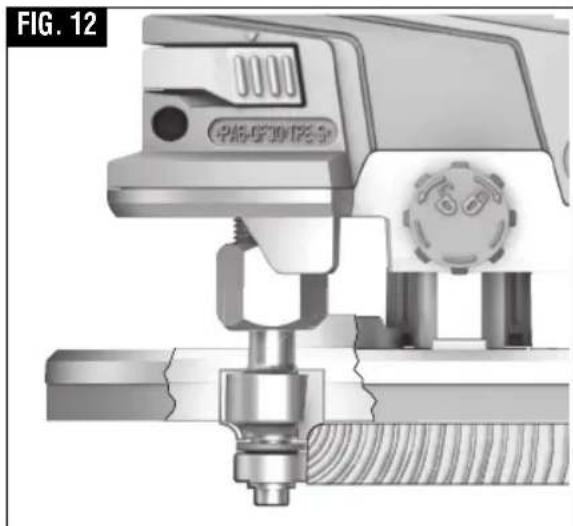

Self-piloted bits have an integral round tip or ball bearing which rides against the work surface above or below the cutter to control horizontal cutting depth (Fig. 12). When using

these bits, neither the roller guide or the straight guide is required. When guiding against a laminated surface, use wax or other lubricant and do not apply excess pressure or the piloted end may mar the work. Bearing pilots must be kept clean and free of adhesive or other residue. Router bit bearings are sealed and permanently lubricated, and should be replaced when they no longer turn freely to avoid damaging the work surface.

The following maximum workpiece dimensions apply for edge and profile routing operations:

Material Radius Chamfer
Hardwood 3/8” /	10mm 1/4” /	6mm
Softwood 1/2” /	12mm 3/8” /	10mm
MDF sheets 1/2” /	12mm 3/8”	/ 10mm
Plastic 1/2” / 12mm 3/8” / 10mm
Plywood sheets	3/8” / 10mm	1/4” / 6mm

Maintenance

SERVICE

WARNING Preventive maintenance performed by unauthorized personnel may result in misplacing of internal wires and components which could cause serious hazard. We recommend that all tool service be performed by a Bosch Factory Service Center or Authorized Bosch Service Station.

BEARINGS

Bearings which become noisy (due to heavy load or very abrasive material cutting) should be replaced at once to avoid overheating or motor failure.

BATTERIES

Be alert for battery packs that are nearing their end of life. If you notice decreased tool xqperformance or significantly shorter running time between charges then it is time to replace the battery pack. Failure to do so can cause the tool to operate improperly or damage the charger.

MOTORS

The motor in your tool has been engineered for many hours of dependable service. To maintain peak efficiency of the motor, we recommend it be examined every six months. Only a genuine Bosch replacement motor specially designed for your tool should be used.

CLEANING

WARNING To avoid accidents always dis connect the

battery from the tool before cleaning or performing any main tenance.

Ventilation openings and switch levers must be kept clean and free of foreign matter. Do

not at tempt to clean by inserting pointed objects through openings.

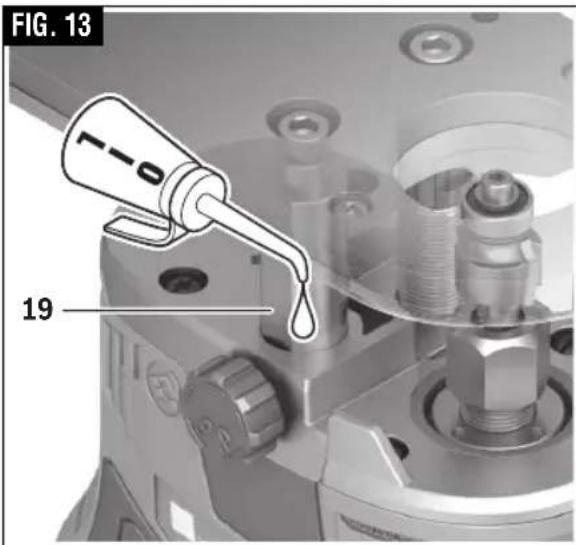

Clean the power tool with a vacuum cleaner, paintbrush or hand brush after use. Ensure that the guide columns are free of wood dust. Apply a drop of lubricant to the smooth guide column 19 (Fig. 13).

FIG. 13 19

CAUTION Certain cleaning agents and sol vents damage

plastic parts. Some of these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents, ammonia and house hold detergents that contain ammonia.

Accessories and Attachments

⚠ WARNING The use of other acces sories and attach ments not specified in this manual may create a hazard.

BOSCH GKF1.2V 3S 8 6 7 FIG. 2

FIG. 3 17189 7 6

Illustration of a hand holding a device with a prohibition symbol overlay (no text or symbols present)

Illustration of hands assembling a mechanical component with a circular target (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a workpiece (no text or symbols visible)

USAGE DE FERS AUTOGUIDES

Illustration of a hand using a microscope to stop a device, with no visible text or symbols.

Illustration of hands assembling a mechanical component with a magnified circular background (no text or symbols)

Mechanical assembly diagram showing a cutting tool interacting with a workpiece (no text or symbols visible)

UTILIZACION DE BROCAS AUTOPILOTADAS

Robert Bosch Tool Corporation ("Seller") warrants to the original purchaser only, that all BOSCH portable and benchtop power tools will be free from defects in material or workmanship for a period of one year from date of purchase. SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or misrepaired by persons other than Seller or Authorized Service Station. To make a claim under this Limited Warranty, you must return the complete portable or benchtop power tool product, transportation prepaid, to any BOSCH Factory Service Center or Authorized Service Station. For Authorized BOSCH Power Tool Service Stations, please refer to your phone directory.

THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS CIRCULAR SAW BLADES, DRILL BITS, ROUTER BITS, JIGSAW BLADES, SANDING BELTS, GRINDING WHEELS AND OTHER RELATED ITEMS.

ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE. SOME STATES IN THE U.S., SOME CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.

THIS LIMITED WARRANTY APPLIES ONLY TO PORTABLE AND BENCHTOP ELECTRIC TOOLS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL BOSCH DEALER OR IMPORTER.

GARANTIE LIMITÉE DES OUTILS ÉLECTRIQUES PORTATIFS ET D'ÉTABLI BOSCH

© Robert Bosch Tool Corporation 1800 W. Central Road Mt. Prospect, IL 60056-2230

Exportado por: Robert Bosch Tool Corporation Mt. Prospect, IL 60056-2230, E.U.A.
