USER MANUAL RWC177B4TPNP BERTAZZONI

BERTAZZO ITALIA

EN	INSTALLATION MANUALUSER AND MAINTENANCE MANUALWINE COLUMN RWC177B4TPNP	3
IT	MANUALE D'INSTALLAZIONEMANUALE D'USO E MANUTENZIONECANTINA VINI RWC177B4TPNP	35
FR	MANUEL D'INSTALLATIONMANUEL D'UTILISATION ET D'ENTRETIENCOLONNE RANGE BOUTEILLES RWC177B4TPNP	67
NL	INSTALLATIEHANDLEIDINGGEBRUIKS- EN ONDERHOUDSHANDLEIDINGWIJNKOELER RWC177B4TPNP	99
SV	INSTALLATIONSHANDBOKBRUKS- OCH UNDERHÅLLSHANDBOKVINKYL RWC177B4TPNP	131

FROM THE DESK OF OUR PRESIDENT

Dear new owner of a Bertazzoni appliance,

I want to thank you for choosing one of our beautiful products for your home.

My family started manufacturing kitchen appliances in Italy in 1882, building a reputation for quality of engineering and passion for good food.

Today, our products stand out because of their unique blend of authentic Italian design and superior appliance technology. It is our mission to make products that function perfectly and bring joy to their owners.

By making beautiful products we respond to our customers' flair for good design. By making them versatile and easy-to-use, cooking with Bertazzoni becomes a real pleasure.

This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come.

Enjoy!

Paolo Bertazzoni

President

Polo Sectorzou

USER MANUAL VALIDITY

The following manual is valid only for RWC177B4TPNP product code.

IMPORTANT SAFETY AND ENVIRONMENTAL INFORMATION 7

GENERAL INFORMATION 7

MANUAL INFORMATION 7

SAFETY INFORMATION 8

CARING FOR THE ENVIRONMENT 10

CONFORMITY 10

ENERGY SAVING 10

MOVING THE APPLIANCE 11

SPECIFICATIONS 12

APPLIANCE DESCRIPTION 12

TECHNICAL SPECIFICATIONS 12

ROOM TEMPERATURE 12

INSTALLATION 13

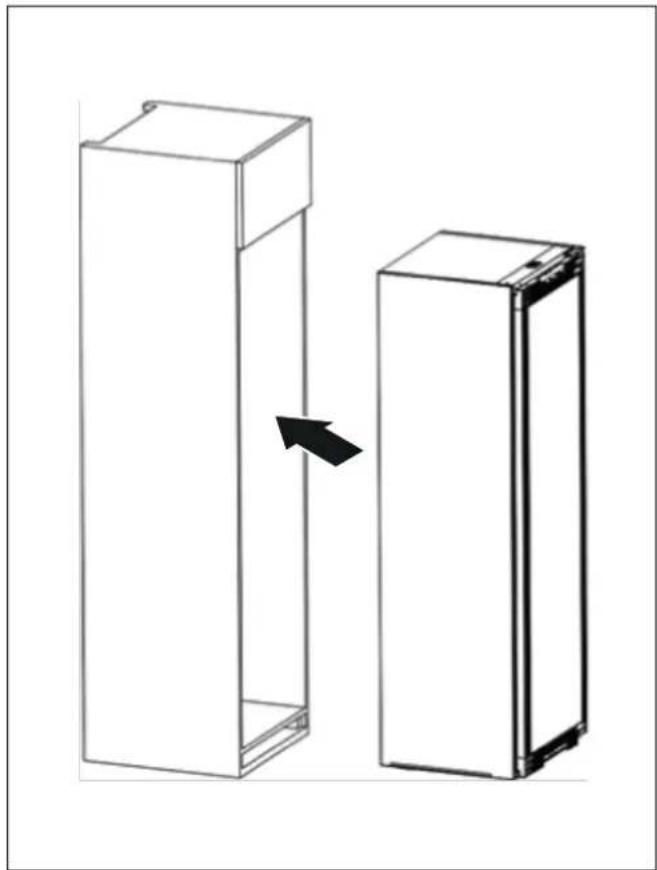

INSTALLATION INSTRUCTIONS 13

PREPARING FOR INSTALLATION 13

ELECTRICAL REQUIREMENTS 13

VENTILATION 14

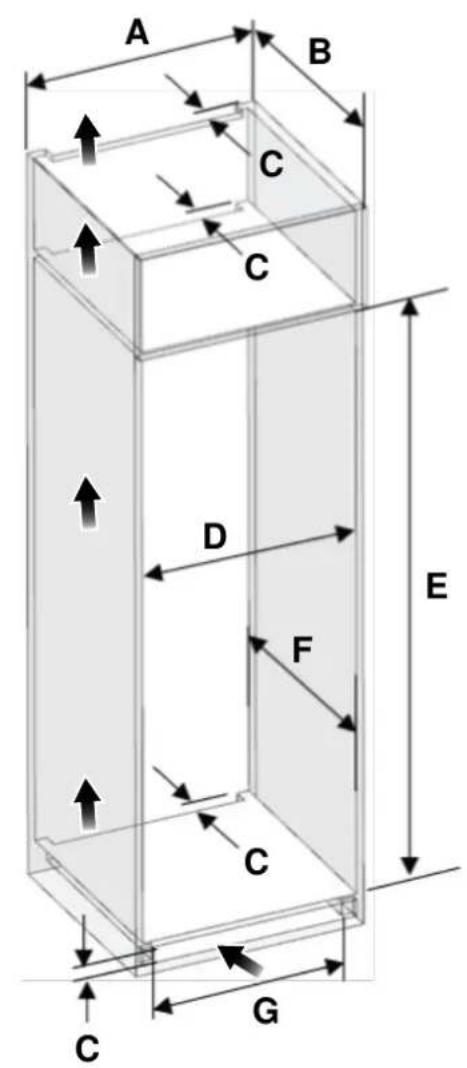

CABINET DIMENSIONS 15

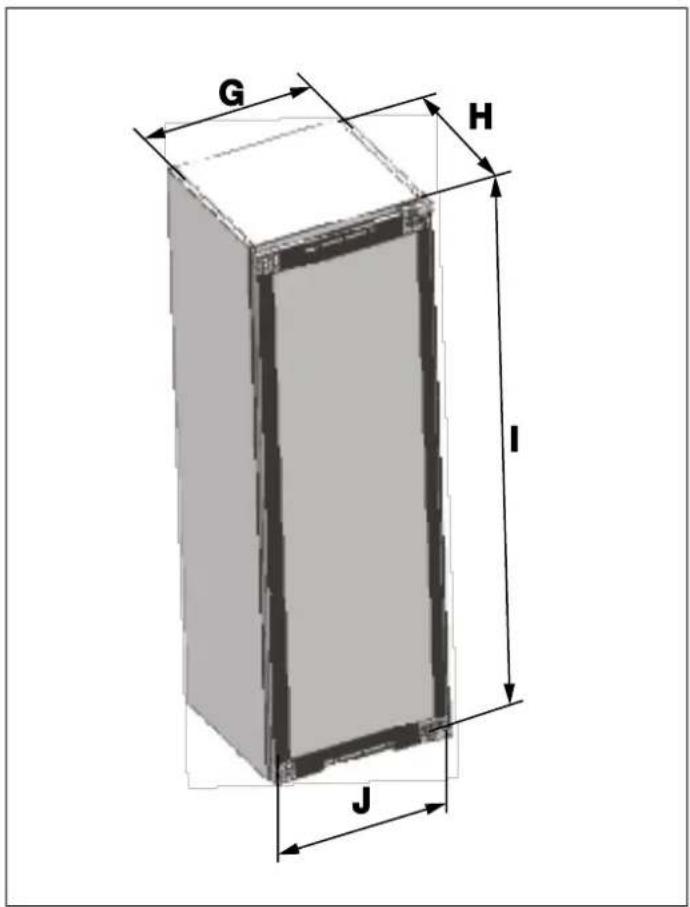

PRODUCT DIMENSIONS 16

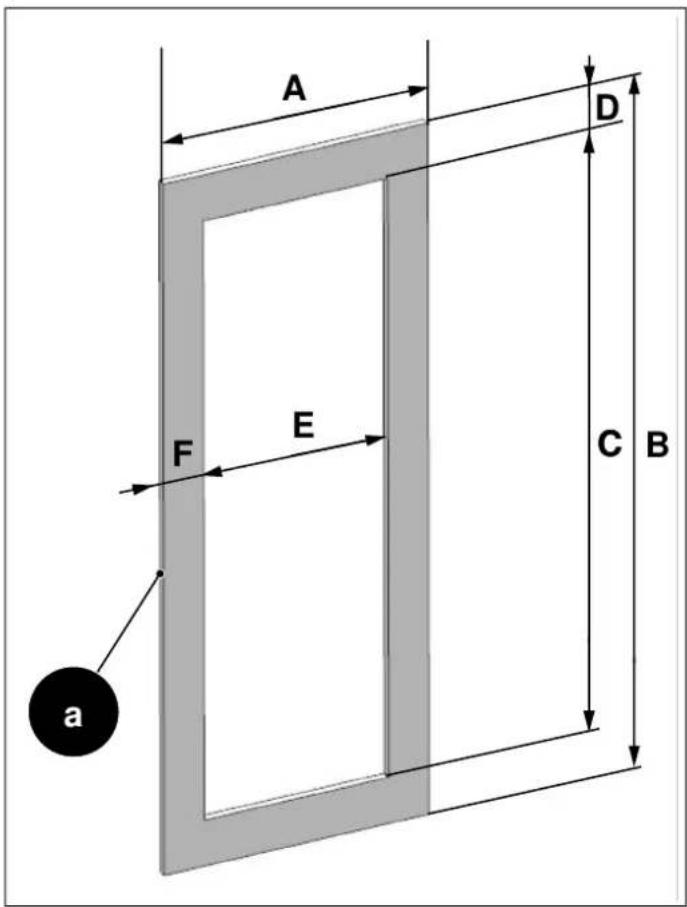

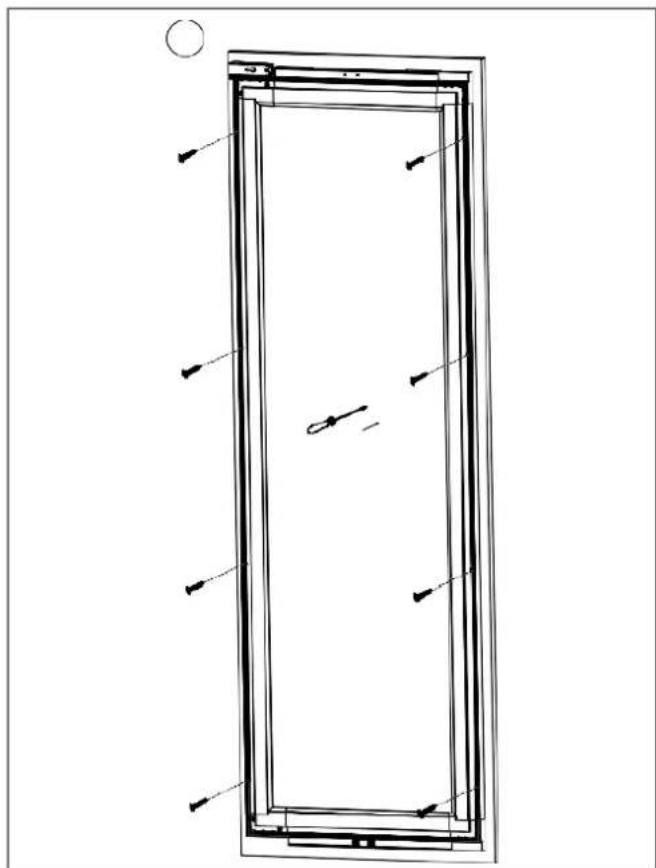

CUSTOM DOOR PANEL 16

REVERSING THE DOOR 17

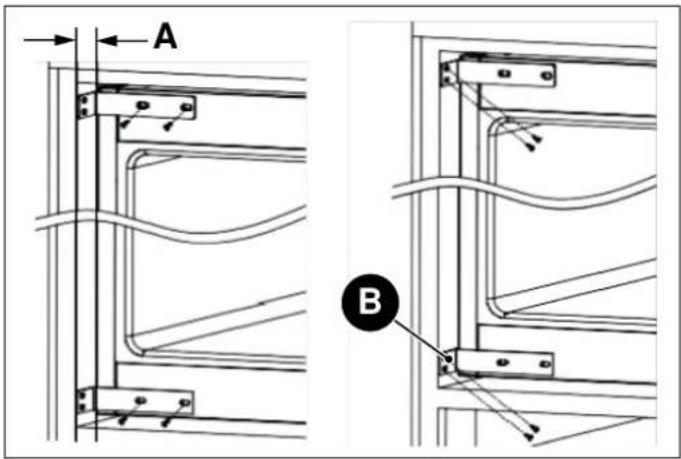

INSTALLATION INSTRUCTION (DOOR ON DOOR HINGE) 18

REMOVING THE SHELVES 21

ENSURING THE DOOR SEALS CORRECTLY 22

USER AND MAINTENANCE 23

USE 23

BEFORE FIRST USE 23

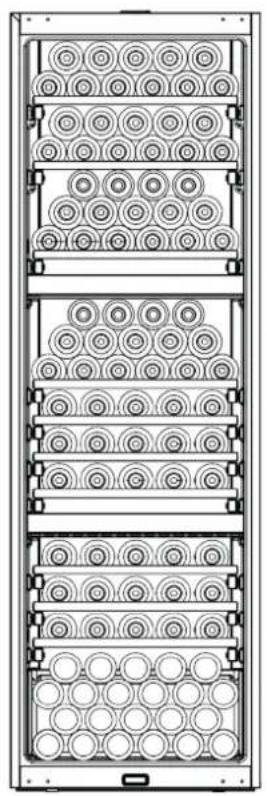

INTERNAL STORAGE 24

RECOMMENDATIONS FOR STORING AND SERVING WINE 26

CONTROL PANEL 28

CARE AND MAINTENANCE 30

LED LIGHT REPLACEMENT INSTRUCTIONS 30

CLEANING THE INTERIOR SURFACES 30

DEFROSTING 30

NOISES AND MEANING 30

POWER FAILURE 30

TROUBLESHOOTING 31

ERROR CODES 32

WARRANTY 33

WARRANTY AND SERVICE 33

GENERAL INFORMATION

MANUAL INFORMATION

These instructions are suitable for different types of appliances, so they may contain descriptions of functions which your appliance may not include or support.

The images and illustrations in this document refer to various models and may differ slightly from the product purchased.

The manufacturer does not accept any liability for personal injury or damage to property arising from incorrect installation or misuse of the appliance.

The manufacturer reserves the right to modify the various models as required to comply with the technical regulations in force.

In the event of complaints, please contact customer service. Read the instructions provided in this manual thoroughly before installing and/or using the appliance. This will help you get to know your new appliance. Keep this document at hand so that you can consult it at any moment, and pass it on to any subsequent owners.

Read the safety messages provided in the introduction to this manual and give due consideration to the safety notes, such as: "Attention", "Warning" and "Danger" which appear in the text.

DANGER

This symbol indicates a situation that is a danger to you and others. Read it carefully and make sure that you have perfectly understood the causes of potential dangerous or fatal accidents.

WARNING

This symbol indicates safety information. Read it carefully and make sure that you have perfectly understood the causes of potentially dangerous accidents.

CAUTION

This symbol indicates a procedure which could put the appliance's structure or components at risk. Take particular care over these procedures.

NOTE

This symbol highlights methods or procedures for correct use of the appliance.

The Model, Sales Code and Serial Number are printed on the nameplate. Refer to the Specifications section of this manual for nameplate location.

NOTE

You are advised to make a note of the appliance's data and serial numbers so they are immediately available if required.

NOTE

State the information provided on the nameplate to improve the efficiency of the after-sales and parts services. For warranty purposes, you will also need the date of installation and name of your authorized Bertazzoni dealer.

WARNING

When using your appliance, follow basic precautions. Read all instructions before using the appliance. Save these instructions and pass them on to any future user.

SAFETY INFORMATION

This appliance is intended to be used in residential and other similar applications, such as:

• Staff kitchen areas in shops, offices and other working environments;
  • In farm houses and by guests at hotels, motels and other residential type environments;
  • Bed and breakfast type environments;
  • Catering and similar non-retail applications.

It must not be used in any way other than that which it is intended. It must be used only for storing wine.

The manufacturer shall not be held liable for any damages resulting from improper use or transport.

Original spare parts will be available for 10 years following the product's purchase date.

AVOIDING PLACING CHILDREN AND VULNERABLE PEOPLE AT RISK

This appliance is not intended for use by individuals (including children) with reduced physical or sensory capabilities or lack of experience and knowledge unless they are supervised or have been given instruction concerning the use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Cleaning and care should not be performed by children unless they are supervised by an adult.

Keep the appliance and its cord out of reach of children who are less than 8 years old.

RISK OF ELECTRIC SHOCK

• Make sure the appliance is unplugged during installation, maintenance, cleaning, and repairs.
- When installing the appliance, ensure that the mains cable is not trapped or damaged.
- If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.
- Plug the appliance into a grounded socket that is protected by a fuse and that corresponds to the value the product's nameplate. The appliance should not be plugged into a GFCI protected outlet.

Have a qualified electrician ground the appliance. Our company cannot be held responsible for damages resulting from a failure to use the appliance with a grounded socket pursuant to local regulations.

- Do not use an adapter. Do not use an extension cord.

• Do not plug in the refrigerator if the wall socket is loose. Do not pull on the cable to unplug the appliance.
• Unplug the appliance if you encounter a malfunction during use. If the unit malfunctions, it must not be used until it has been repaired by an Authorized Service Provider. The manufacturer cannot be held responsible for damages arising from procedures performed by unauthorized persons.
• Never wash the appliance by pouring, daubing, or spraying water onto it. Never touch the plug with wet hands.
  Never use steam or steam cleaners to clean or defrost the refrigerator. Steam can cause a short circuit or electric shock if it comes into contact with your refrigerator's electrical components.
• Never connect your refrigerator to an energy saving device. Such systems are harmful to your appliance.

RISK OF EXPLOSION

• Do not use electrical appliances of any kind inside of the food storage compartments.
• Do not use mechanical devices or other means to accelerate the defrosting process; use only those recommended by the manufacturer.
• Do not store explosive substances, such as aerosol cans with a flammable propellant, inside this appliance.
• Bottles containing beverages with a high alcohol content must be tightly closed and stored vertically.

RISK OF INJURY

• Do not put carbonated beverages or liquids in tins or glass containers in the freezer compartment. They may burst.
• Never use refrigerator components such as the door or drawers as means of support or as steps. This may cause the appliance to tip over or damage it.
• Do not sit on the appliance and do not place heavy objects on top of the appliance.
• Do not sit or lean on the door or on any open drawers. Do not put pressure on the door or use it to move the appliance.
• Do not overload the refrigerator. Objects in the refrigerator may fall when the door is opened, causing injury or property damage.
• Do not place your hands or any other body part in the moving parts of the refrigerator (i. e., automatic ice on maker).

RISK OF SUFFOCATION

• Packaging materials can be hazardous to children. Do not allow children to play with plastic bags, plastic film, or polystyrene.
• If there is a lock on the door of the appliance, the key should be kept out of reach of children.

RISK OF FOOD POISONING

• Store raw meat and fish in the refrigerator in appropriate containers so that it does not come into contact with or drip onto other foods.
• Avoid leaving the door open for long periods of time, as this can cause the temperature inside the appliance compartments to rise significantly.
• Regularly clean surfaces that may come in contact with food and accessible drainage systems.
• If the refrigerator is to be left unused for an extended period of time, turn it off, defrost, clean, dry, and leave the door open to prevent mold from growing inside the appliance.

FIRE HAZARD / ISOBUTANE WARNING

The refrigerant circuit of the appliance contains isobutane (R600a), a natural gas with a high level of environmental friendliness, but which is nevertheless flammable.

During transport and installation of the appliance, take care not to damage any of the components of the refrigerant circuit.

If the refrigerant circuit should become damaged:

• avoid naked flames and sources of ignition.
  • thoroughly ventilate the room in which the appliance is located.

NOTE

If the appliance is damaged or if you see a gas leak, please keep away from the gas. It may cause ice burn if it comes into contact with the skin.

NOTE

The type of gas used in the product is listed on the rating label, which is located on the left interior wall of the refrigerator.

CAUTION

• Do not damage areas where refrigerant is circulating with drilling or cutting tools. If the gas ducts in the evaporator, the tubing extensions or the surface coatings are punctured, the refrigerant could blow out, causing skin irritation and eye injuries. Do not use pointed or sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
• Never attempt to extinguish a flame/fire with water: turn off the appliance and cover the flame with a fireproof blanket.
• Do not cover or allow any object to block the ventilation openings in your refrigerator.

CARING FOR THE ENVIRONMENT

This appliance complies with European directive 2012/19/EU (RoHS).

This appliance is tagged in accordance with European directive 2012/19/EC regarding waste electrical and electronic equipment (WEEE).

This directive contains the regulations governing the collection and recycling of decommissioned appliances throughout the European Union.

appliance does not contain hazardous substances for the atmospheric ozone layer, neither in the refrigeration circuit nor in the insulation.

Our appliances are packaged in non-polluting and recyclable materials in accordance with National Environmental Regulations:

• Dispose of packaging in an environmentally friendly manner.
• Please ask your dealer to inquire at your local authority about current means of disposal.

For Ecodesign tests, the installation and set-up of the appliance must comply with standard EN 62552.

The symbol of a waste bin with a cross of it which appears on the product indicates that Waste Electrical and Electronic Equipment (WEEE) must not be thrown away with ordinary urban waste but must be disposed of separately, so it can undergo special processing to enable its reuse or specific treatment for safe removal and disposal of any substances harmful to the environment and extraction of raw materials which can be recycled.

Therefore, WEEE must be delivered to Recycling Centres run by Municipal Authorities or Waste Management Companies. What's more, when a new appliance is purchased WEEE can be consigned to the retailer, who is obliged to take it back free of charge ("1:1" take-back "Very small" WEEE (with no dimension exceeding 25 cm) can be consigned to retailers free of charge even when no purchase is made ("0:1" take-back - which however is only compulsory for stores with sales area of over 400 m

• Ventilation requirements, dimensions and minimum over space from the rear wall are provided in the Installation Manual.
• Contact the manufacturer for additional information.

e CONFORMITY

By placing the CE mark on this product, we are confirming compliance with all relevant European safety, health and environmental requirements which are applicable to this product by law.

ENERGY SAVING

For optimal energy saving, we recommend the following:

• Install the appliance away from heat sources, out of direct sunlight and in a well-ventilated room.
- Do not overfill the compartments, as this prevents air from circulating properly.
- In the event of an electrical power failure, it is advisable to keep the refrigerator door closed.
- Open the appliance doors as infrequently and for the briefest amounts of time possible.

Pay special attention to correct disposal procedures for all the packaging materials. Before disposal:

• Disconnect the mains power supply.
  • Unplug the appliance and cut the power cord.

• Avoid damaging the refrigeration circuit during disposal.

• Ensure that the unit is adequately ventilated. Never cover air vents.

• Never cover shelves with aluminum foil or any other shelf material which may prevent air circulation.

Should the appliance be left empty for long periods of time, it is advisable to unplug it and, after thorough cleaning, to leave the door ajar to allow air to circulate inside the cabinet in order to prevent the formation of condensation, mould or odours.

WARNING

Please ensure that old and worn-out appliances are rendered unusable before disposal by removing the plug, cutting the power cord and removing or destroying the clips or snap bolts. This will prevent children from locking themselves in the appliance during play (risk of suffocation) or endangering their lives in any other way.

The unit you have purchased conforms to the EU RoHS Directive (2011/65/EU). It does not contain materials specified in the Directive as harmful or prohibited. This

MOVING THE APPLIANCE

Should you need to relocate your appliance, take the following precautions:

• Remove all items from the unit.
• Securely tape down all loose items (e.g. shelves) inside the appliance.
• Turn the adjustable feet at the base clockwise until they are fully raised to avoid damaging them.
• Tape the door shut.
• Ensure the appliance remains in an upright position during transport.
• Protect the outer glass door with a blanket or similar during transport.

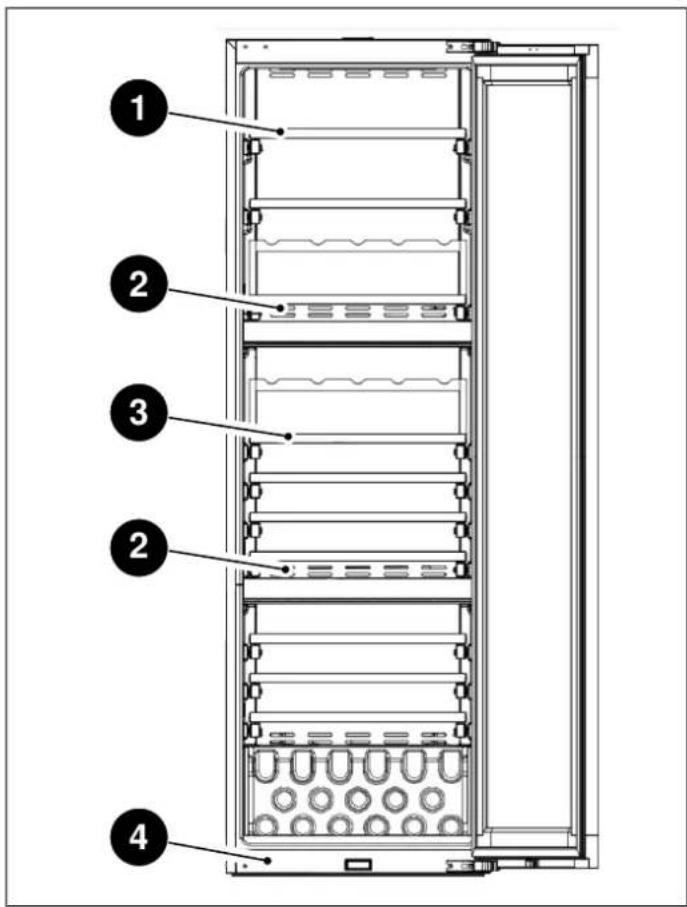

APPLIANCE DESCRIPTION

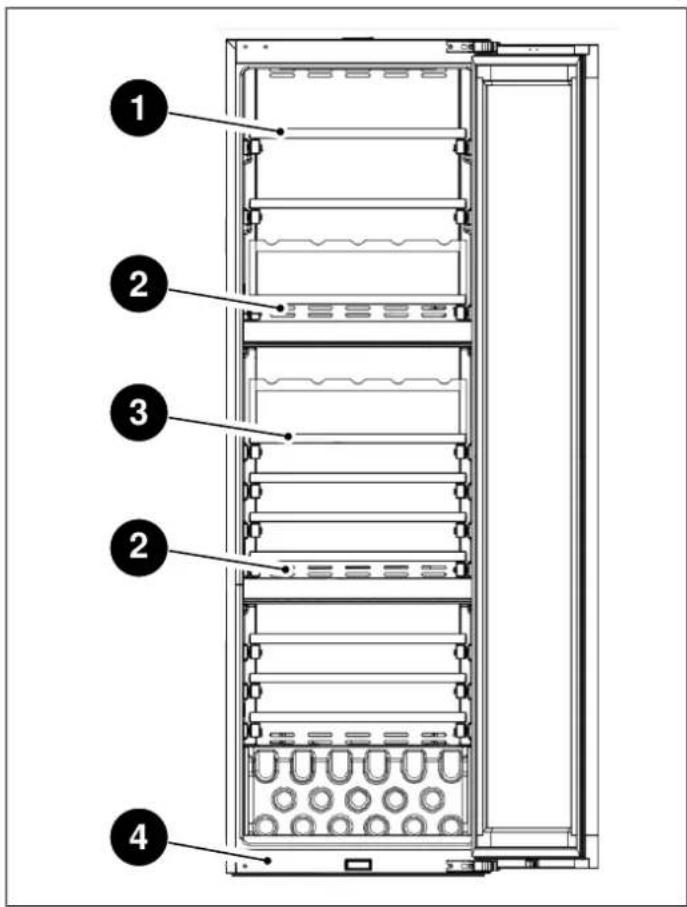

Technical diagram of a multi-level refrigerator with numbered components for identification

Fig. 1

1) Wine Shelf A

3) Wine Shelf B

2) Control Panel and Temperature Zone Divider

4) Electromagnetic Switch

TECHNICAL SPECIFICATIONS

ELEMENT	DESCRIPTION
Plug type	SCHUKO
Voltage 220 V – 240 V
Frequency 50 Hz
Fuse 15 A
Amperage 0.8 A
Capacity	88 Bordeaux bottles

Refrigerant, volume and further technical specifications can be found on the rating plate.

ROOM TEMPERATURE

The permitted room temperature depends on the climate class:

CLIMATE CLASS PERMITTED ROOM TEMPERATURE
SN (Sub Normal) + 10 °C to + 32 °C
N (Normal) + 16 °C to + 32 °C
ST (Sub Tropical) + 16 °C to + 38 °C
T (Tropical)	+ 16 °C to + 43 °C

Information on the climate class can be found on the rating plate.

NOTE

The figures in this user manual are schematic and may not match the product exactly. If your product does not have the parts described, the information applies to other models.

PREPARING FOR INSTALLATION

This appliance must not be installed close to heat sources, e. g. heating elements or cookers, or in a damp location.

Seek the help of one or two other individuals when installing this appliance. This appliance may have sharp edges. Wear PPE appropriate to the task and environment.

• Use the height-adjustable feet at the front of the appliance to ensure that the appliance is level.
• The cooling system on the back of the appliance must not touch the rear wall. The larger the gap, the better.
• The appliance must be installed with adequate ventilation. Ensure that there is clearance above the appliance to allow air to escape and that there is space between the rear of the appliance and the wall.

Plug the appliance into an exclusive, easily accessible electrical socket.

Any questions concerning power and/or electrical connection should be directed towards a qualified electrician or an authorized products service center.

ELECTRICAL REQUIREMENTS

The appliance must be installed to all electrical connections in accordance with state and local codes.

CAUTION

Do not use extension cords or two-prong adapters and do not remove the ground terminal of the grounding cable.

CAUTION

A qualified electrician must ensure that the poles of the socket are connected correctly.

Verify that the grounding of the socket is correct.

WARNING

Do not connect the appliance to electronic energy saver plugs.

The socket must comply with the following data:

	ELECTRICAL REQUIREMENTS
Plug type	SCHUKO
Outlet	2-prong
Voltage	220 V – 240 V
Frequency	50 Hz
Fuse	15 A

After installation, wait at least 3 hours before connecting the appliance to the electrical power to avoid damaging the compressor.

IMPORTANT

Do not use extension cords and/or multiple adapters for the power supply connection.

If the electrical wiring or the electric power supply of the house requires alteration, the necessary procedures must be performed by a qualified electrician.

Please heed the following rules:

• The electrical outlet or panel must be easily accessible in case of an emergency; it must not be hidden behind the product.
• Neither the plug nor the cable may touch the back surface of the appliance. Otherwise, it may be damaged by the appliance's vibrations.
  • To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or dangling.

- Do not connect other equipment plugs behind this appliance. If the humidity level is high where the appliance is being used, its exterior surfaces may become corroded. To prevent corrosion, keep the installation room dry and well-cleaned.

To prevent the risk of electric shock:

• Connect the plug to a grounded outlet.
• Do not remove plug's grounding prong.
• Do not use adapters.
• Do not use extension cords.

CAUTION

Do not connect the grounding cable to the gas line. Please have the grounding checked by a qualified electrician if you are not sure about the grounding of the appliance. Do not install a fuse on the neutral line or on the grounding circuit.

CAUTION

Failure to follow these instructions may result in fire, electric shock or death. Connecting the appliance's grounding conductor in the wrong place may lead to electric shock. Please have the grounding checked by a qualified electrician or service technician if you have any doubt about the proper grounding of the appliance. Installation, repairs and other procedures performed by unqualified persons may give rise to hazards. Before installing the appliance, make sure that the voltage, load and circuit current parameters on the data plate are in compliance with the power supply in your house.

VENTILATION

The heat removed from the cooling compartment needs to be dissipated into the air around the appliance. Incorrect ventilation can lead to premature compressor failure, excessive power consumption and total system failure, and it may invalidate the warranty provided with the appliance.

There should be an air intake somewhere inside the cabinet to allow air into flow freely in.

A cut-out should be made in the base beneath the appliance and this finished neatly around the air vent grille.

Alternatively, a thin section of the base can be removed to allow air into the unit (600 x 10 mm).

The top of the cabinet needs to be vented into the room.

If the cabinet does not allow air to flow freely into the room then a base vent or other means of ventilation needs to be provided to ensure a natural flow of air.

There should be space at the rear of the cabinet to allow cool air to be drawn over the condenser.

Recommended: 500 x 50 mm.

The clearance at the rear of the appliance is clearly shown.

In order for the appliance to operate properly, it is important that the top of the housing cabinet not be blocked off. A channel depth of 40-50 mm is normal for most units.

A ventilation hole is required in the base of the cabinet; this allows for air to be drawn over the compressor and for heat exchange.

As a rule, the more air can get in and out, the better more efficiently the product operates.

NOTE

The air vent at the front of the appliance must never be covered or blocked in any way.

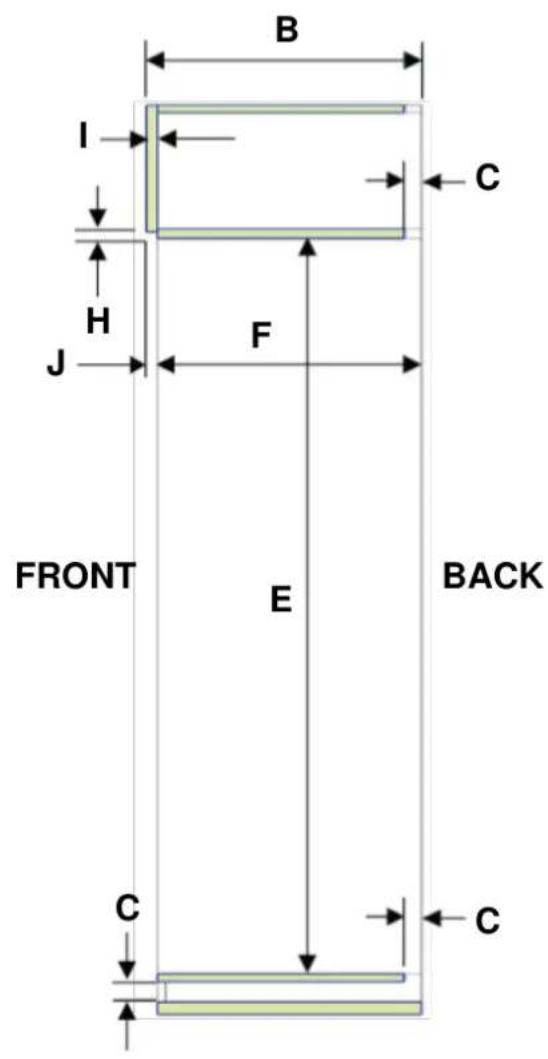

CABINET DIMENSIONS

A B C C D E F C G C

B I C H J F FRONT E BACK C C

Fig. 2

A. 600 mm
B. 600 ~mm
C. 50 mm
D. 562 mm
E. 1779 mm

F. 581 mm
G. 500 ~mm
H. 15.5 ~mm
I. 18 mm
J. 19 mm

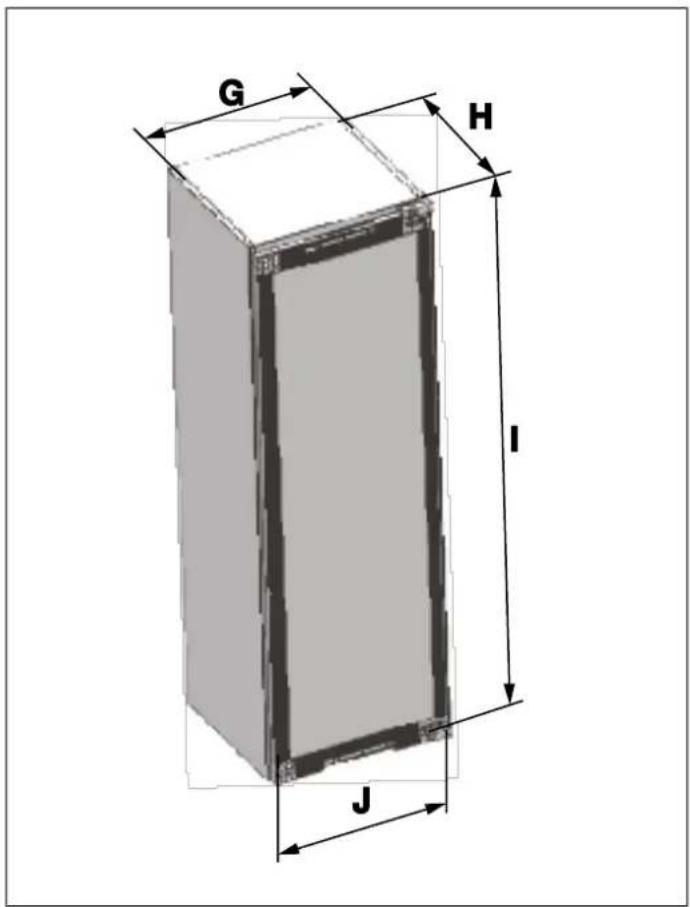

PRODUCT DIMENSIONS

G H I J

Fig. 3

G 556 mm
H 550 mm
I 1771 mm
J 549 mm

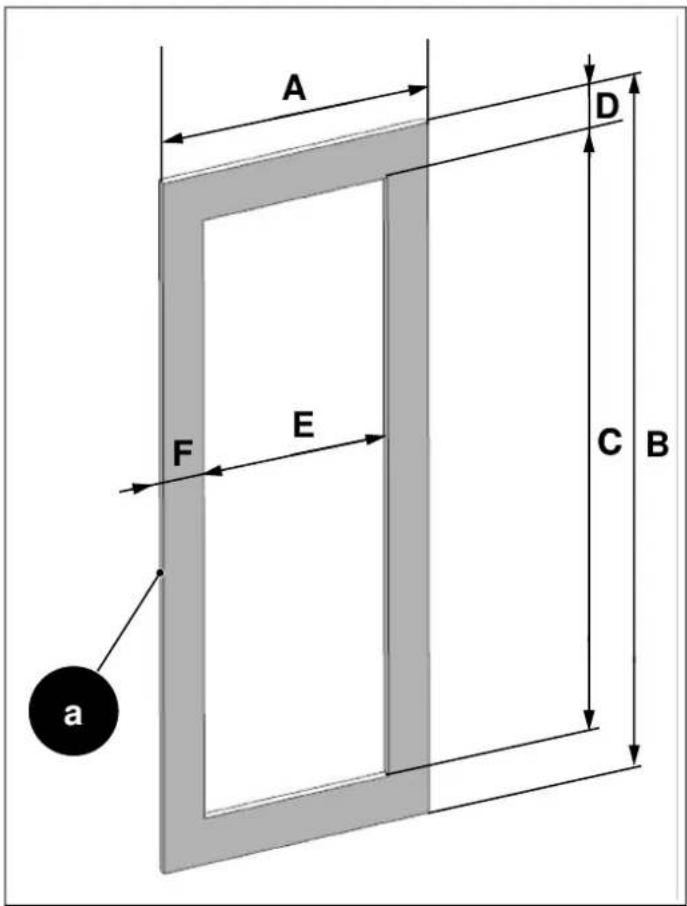

CUSTOM DOOR PANEL

A D F E C B a

Fig. 4

a. 18 ~mm thickness
A 596 mm
B 1800 mm
C 1560 mm
D 120 mm
E 416 mm
F 90 mm
Max weight of custom door panel: 20 kg.

REVERSING THE DOOR

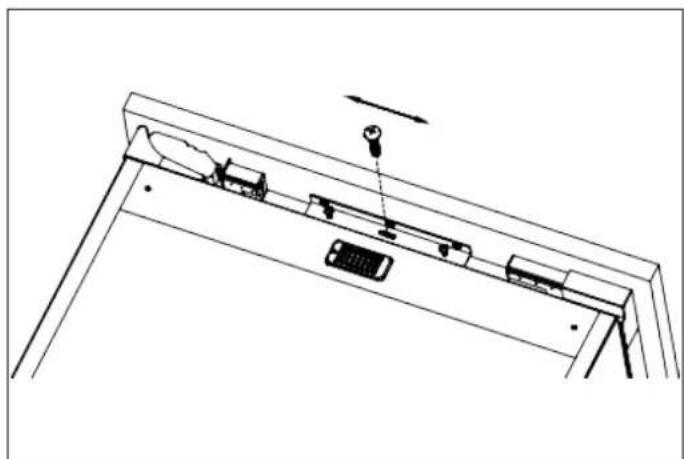

4) Fix the magnet box to the opposite side of the frame.

We recommend you seek the help of another individual to support the door while you perform this operation.

Depending on the installation position, the opening of the wine cabinet can be switched. If necessary, do so before loading the wine cooler into the cabinet.

Tilt the wine cooler slightly towards the back and support in a reliable way to ensure that it does not fall over.

1) Provide the necessary tools and unplug the power cord.
2) Remove the two screws from both upper and lower hinges with a screwdriver and remove the metal frame.

( ) →

Technical line drawing showing a cabinet open with internal components and a mechanical assembly with hanging weights (no text or symbols)

Fig. 5

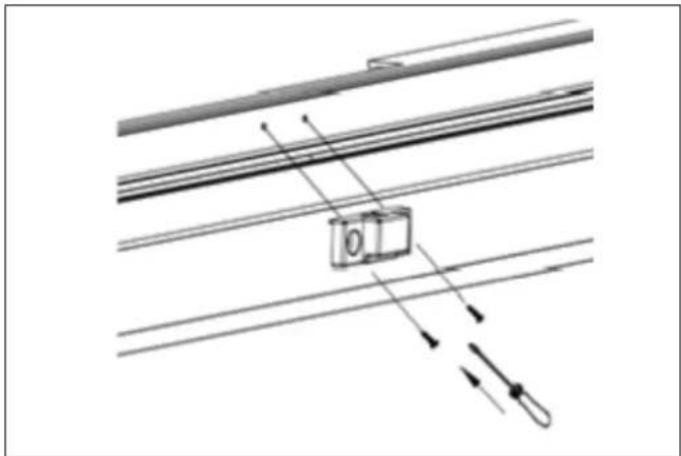

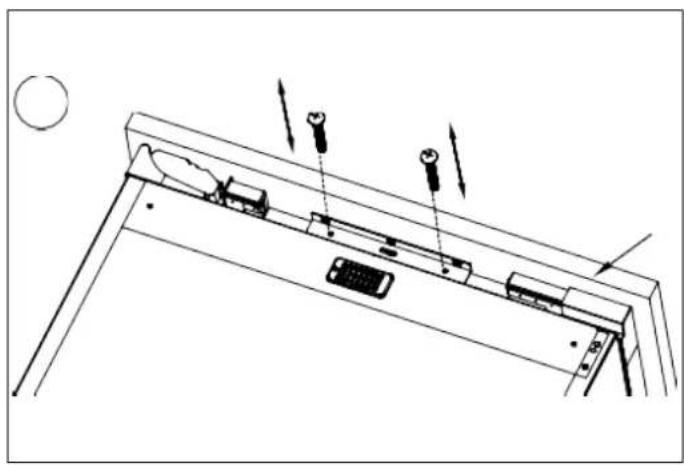

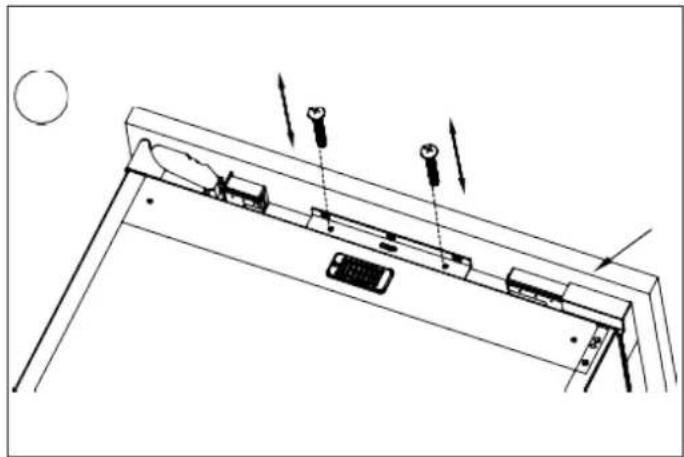

3) Remove the 2 screws from the magnet box.

Pure electrical circuit lines without any symbols

Fig. 6
Fig. 7

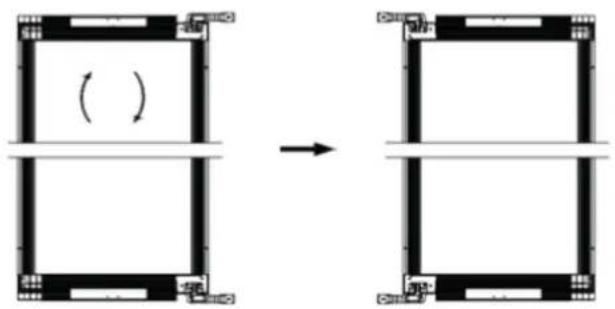

5) Rotate the door 180^ and secure it to the case.

Technical line drawing of a closed refrigerator with open door and internal compartments (no text or symbols)

Fig. 8

WARNING

Be careful to secure the arm during the replacement process to prevent damage to your fingers and the wine cooler if the arm falls when the screw is loosened.

All of the above operations must be performed with the wine cooler powered off, so unplug the wine cooler from the electrical outlet first.

INSTALLATION INSTRUCTION (DOOR ON DOOR HINGE)

	DESCRIPTION	QUANTITY
	Bracket 2
	Bracket cover 2
	Sealing strip	1
	Bottom angle adjustment wrench	1
	M5x13 flange face bolts	4
	ST3.9x16 wood screws 11
	M5x16 round-headed bolts with washers	1
	M5x30 bolts	2
	ST 4x35 countersunk head black screws	8
	Door bracket 1
	User manual	1

NOTE

The appliance must be plugged in before installation.

1) Push the appliance into the wooden cabinet with the hinges against the cabinet.

Diagram showing two rectangular storage units with one moving right and the other in a larger container (no text or symbols)

Fig. 9

2) Open the door and keep a 40,5 mm distance between the front of the wine column and the outer edge of the cabinet niche, as shown in Fig. 2. Attach the connection pins with M5x13 flange face bolts to the appliance.

A B

Fig. 10

A 40.5 mm

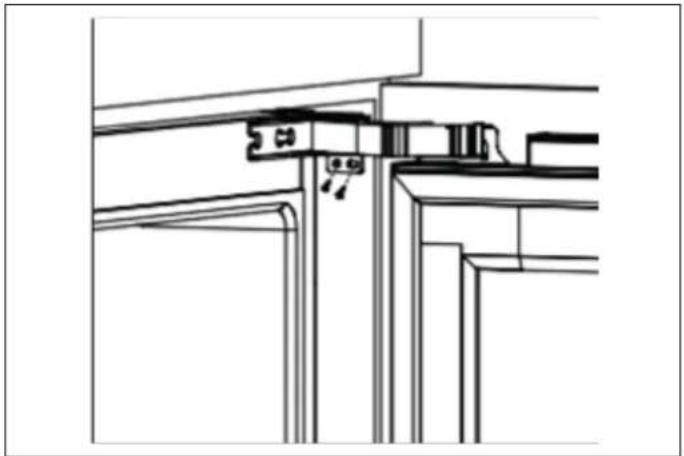

3) Secure the brackets to the inside wall of the cabinet with ST3.9x16 screws and install the bracket covers.

4) Secure the hinges to the other inside wall of the cabinet with ST3.9x16 screws.

Fix the door bracket to the custom door panel in advance using ST3.9x16 wood screws, following the dimensions shown in Fig. 6.

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 11

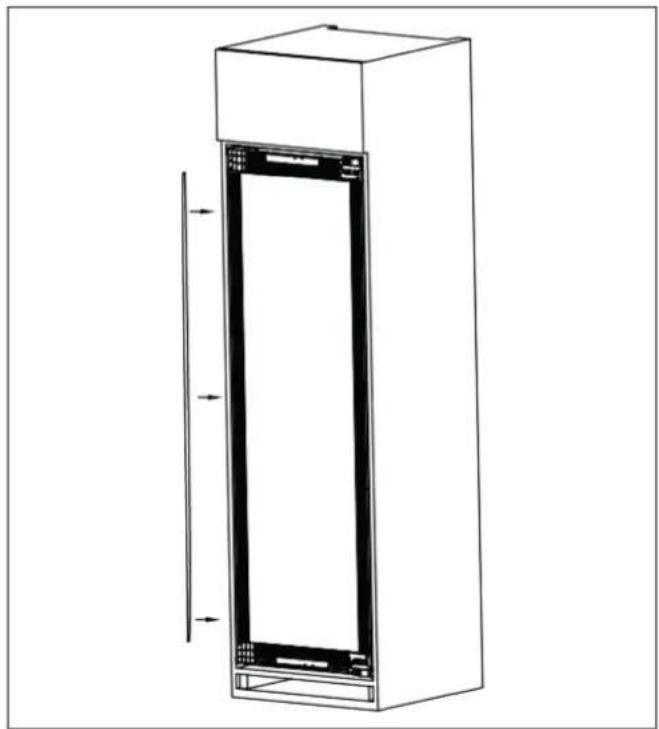

5) Press the sealing strip into the gap between the side of the appliance where the brackets have been installed and the cabinet.

Technical line drawing of a rectangular enclosure with a vertical dimension line and internal panel (no text or symbols)

Fig. 12

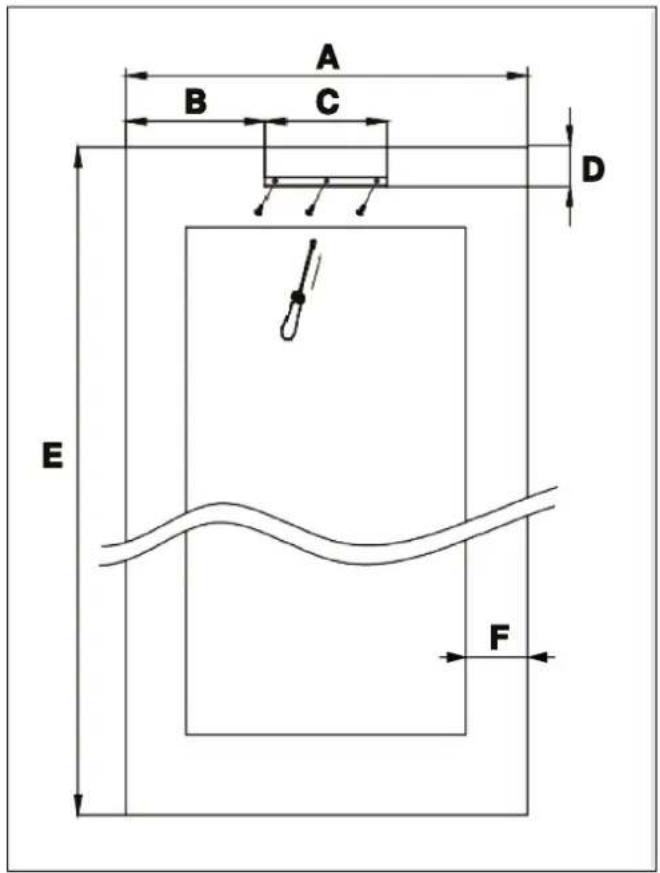

A B C D E F

Fig. 13

A 596 mm
B 208 mm
C 180 mm
D 59 mm
E 1800 mm
F 90 mm

WARNING

Be careful to install the bracket in the correct direction.

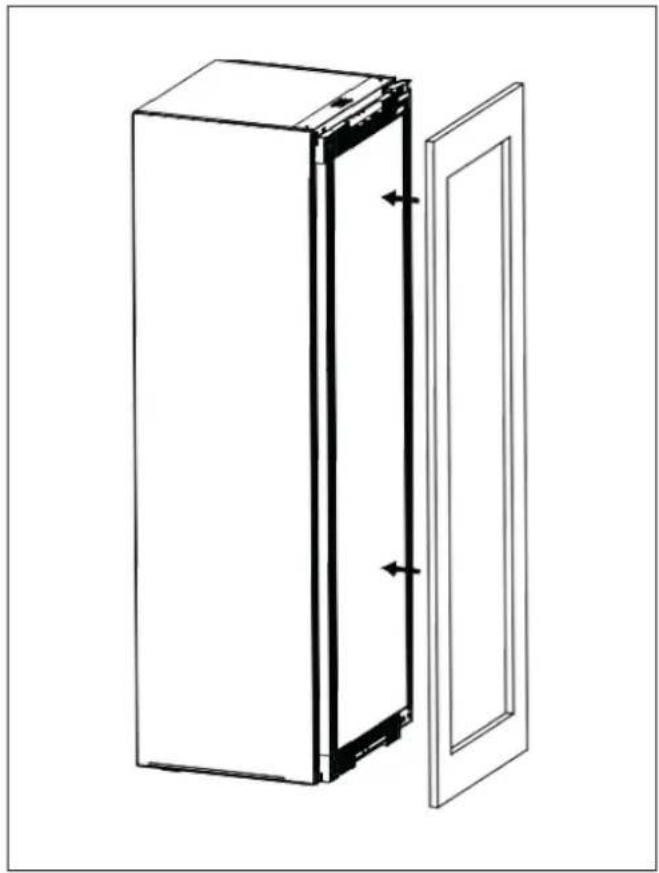

7) Hang the custom door panel with the door bracket installed on the glass door of the wine column.

Line drawing of a refrigerator with open door and side panel, showing internal structure (no text or symbols)

Fig. 14

8) Join the custom door panel and the glass door using the M5x30 bolts. Screwing the M5x30 bolts up or down allows to adjust the gap between the wooden door and the top of the cabinet. Install the M5x16 mm round-headed bolts with washers until they are not completely screwed in; then adjust the position of the panel by moving it to the right or left to center the panel on the cabinet. Once the correct position has been determined, tighten the bolts.

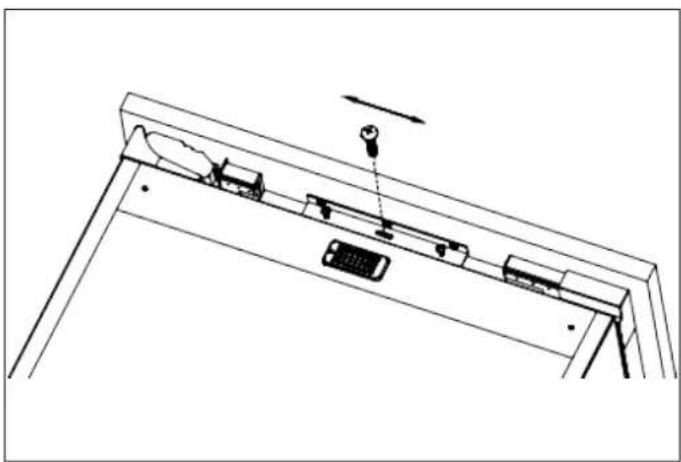

Technical line drawing of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Fig. 15

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 16

9) Gently detach the door seal from the inside of the glass REMOVING THE SHELVES

door, fix the ST4x35 countersunk head black screws to completely join the glass door to the door panel. Refit the door seal.

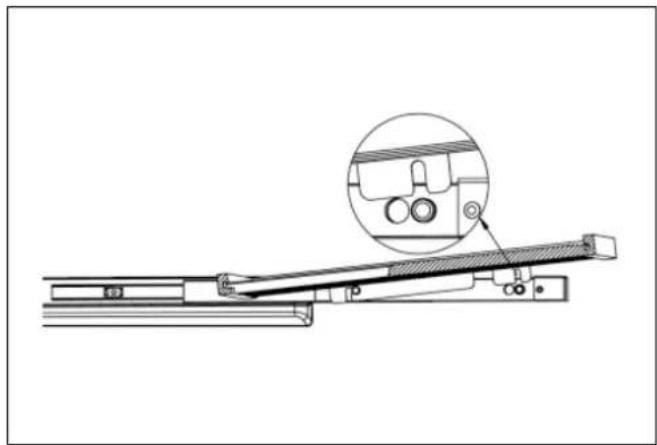

1) Pull the wine shelf out of the telescopic glides at the front.

Technical line drawing of a rectangular frame with internal components and directional arrows, no text or symbols present

Fig. 17

Technical line drawing of a mechanical assembly with an inset close-up showing a component (no text or symbols)

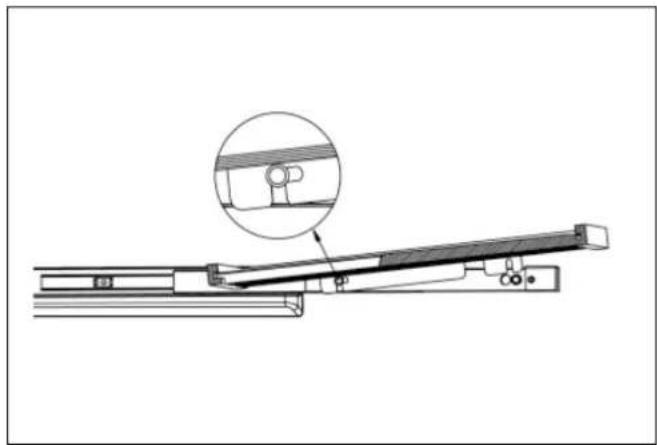

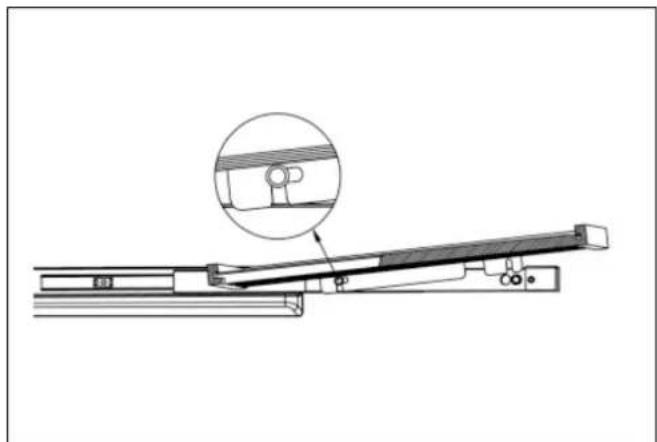

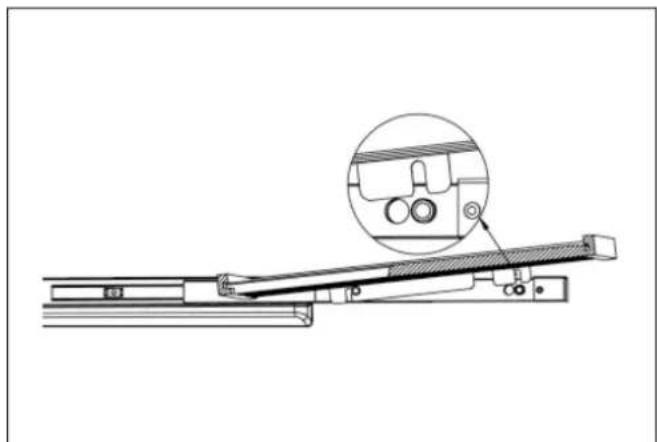

2) Pull the wine shelf forward. The telescopic glides fixing post is locked at the back in the position shown in the figure.

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

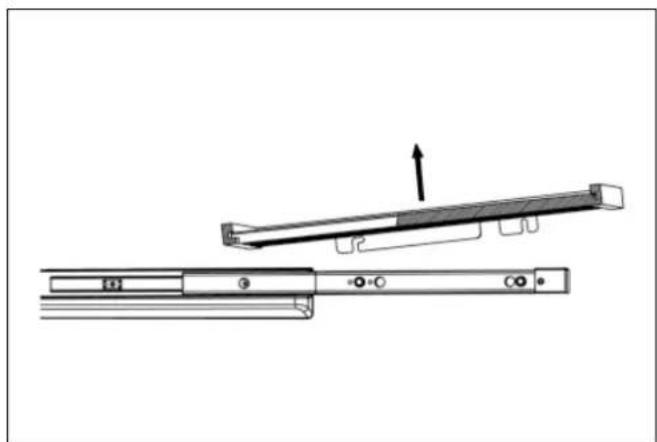

3) Pull up the shelf to remove it.

Technical line drawing of a mechanical assembly with no visible text or symbols

ENSURING THE DOOR SEALS CORRECTLY

It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take care not to hold the hair dryer too close to the appliance, which could damage the seal.

A distance of approximately 10 cm should be suitable. When completed, allow the seal and door to cool before touching them. Once done, the seal should remain in position.

BEFORE FIRST USE

Remove all exterior and interior packaging. Allow the appliance to stand upright for at least two hours prior to switching the power on.

This will reduce the possibility of a malfunction in the cooling system caused by handling during transportation.

• Clean the interior of the refrigerator as recommended the CLEANING AND CARE section. Before you turn on the appliance, make sure that the interior is dry.
• Plug the appliance into a grounded socket. The interior lighting comes on when the door is opened.
• Run the wine column for 6 hours before placing any bottle in it and do not open its door unless it is necessary.

During operation, you may hear some absolutely normal noises:

Buzzing: The refrigerator is running. The fan of the air recirculation system is running.

• Bubbling, humming or gurgling noises: refrigerant is flowing through the pipes.
• Clicking: motor is turning on or off.

The door on this appliance can be opened from either the left or the right side. The unit is delivered with the door opening on the left side. Should you wish to open the door from the right, follow the instructions included in this manual in the REVERSING THE DOOR section.

If you have received a damaged product, immediately contact the dealer or distributor from which you purchased the product.

NOTE

You will hear a noise when the compressor starts up. The liquids and gases sealed within the refrigeration system may also cause noise, even if the compressor is not running. This is quite normal.

Carefully read and follow these instructions for the installation, use and maintenance of the appliance.

Read the troubleshooting section of this manual, which will help you diagnose and solve the most common problems.

NOTE

The front edges of the appliance may feel warm. This is normal. These areas are designed to be warm in order to prevent condensation.

INTERNAL STORAGE

This wine column features 3 independent temperature zones, each adjustable from 5 to 20 °C.

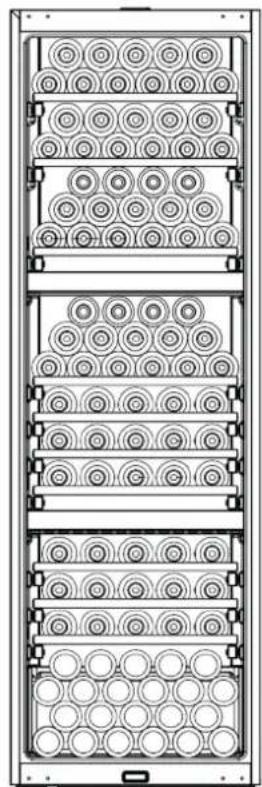

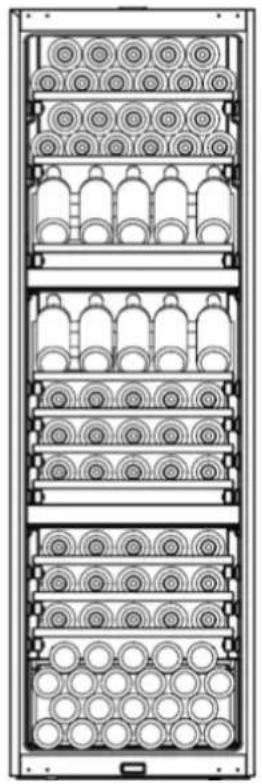

The figures in this section show two different loading patterns. Follow the one best suited to your needs.

The wooden shelves can be removed to increase the load capacity, but make the appliance less practical for everyday use. To remove a shelf, see the REMOVING THE SHELVES paragraph.

The most energy-saving configuration requires the shelves to be installed in the appliance; please see the pictures above.

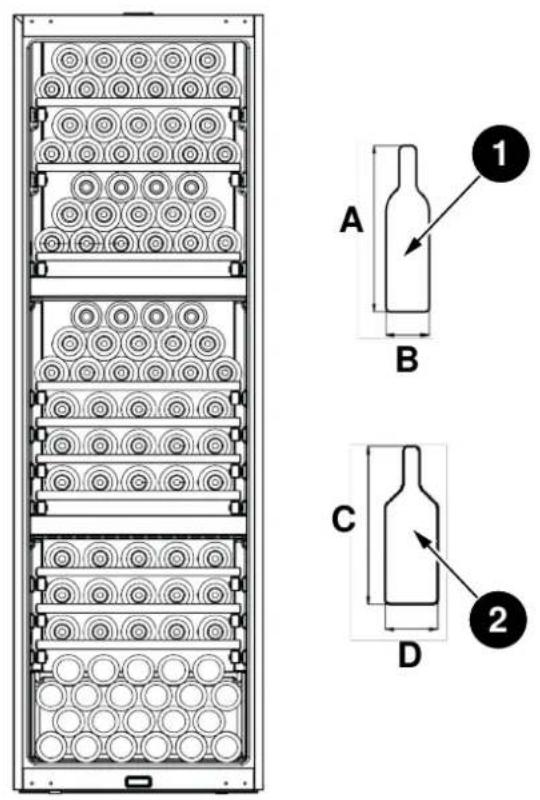

Technical line drawing of a multi-tiered rack-mounted device with circular components (no text or symbols)

A B 1

C D 2

Fig. 18

A. 300 ~mm

C. 300 mm

B. 76 ~mm

D. 96 ~mm

LOAD CAPACITY		BOTTLE STORAGE(BOTTLE - BORDEAUX TYPE)	BOTTLE STORAGE(BOTTLE 2 - BURGUNDY TYPE)
Upper zone	1 11 \
	2 11 \
	3 7 \
Middle zone	1 7 \
	2	5	\
	3	5	\
	4	5	\
Lower zone	1	5	\
	2	5	\
	3	5	\
	4 \ 22
Total 66 22

Fig. 19

A. 300 ~mm

C. 300 mm

B. 76 ~mm

D. 96 ~mm

LOAD CAPACITY		BOTTLE STORAGE(BOTTLE 1 - BORDEAUX TYPE) (BOTTLE 2 - BURGUNDY TYPE)
Upper zone	1 11 \
	2 11 \
	3 11 4
Middle zone	1 11 4
	2	5	\
	3	5	\
	4	5	\
Lower zone	1	5	\
	2	5	\
	3	5	\
	4 \ 22
Total 74 30

RECOMMENDATIONS FOR STORING AND SERVING WINE

The following table summarises the most suitable storage temperature for each type of wine. It is recommended, particularly for more valuable bottles, to appropriately follow

To best appreciate the organoleptic qualities of each wine, the instructions provided by the producer. it is necessary that storage and consumption be carried out at certain temperatures.

TYPE OF WINE STORAGE TEMPERATURE (°C°C)

Young and light white wines	10 - 12
Mature and structured white wines	12 - 14
Aromatic white wines 8 - 10
Young and light rosé wines	10 - 12
Mature, full-bodied rosé wines	12 - 14
Young red wines	10 - 14
Young, slightly tannic and light red wines	14 - 16
Mature, tannic and full-bodied red wines	16 - 18
Very mature, tannic and full-bodied red wines	16 - 18
Sweet and aromatic sparkling wines	8 - 10
Sweet and aromatic red sparkling wines	10 - 12
Charmat method sparkling wines	8 - 10
Long Charmat method sparkling wines	10 - 12
Classic method sparkling wines	8 - 10
Classic “Millesimato” method sparkling wines	10 - 12
Dry and semi-dry sparkling wines	8 - 10
Semi-sparkling wines	10 - 12
Superior sweet sparkling wines	10 - 12
Fortified, dessert or straw wines	10 - 18

White wines

Classic or Charmat method sparkling wines

White wines are normally not served at high temperatures. Given the high variety of existing sparkling wines, it is since they are generally more acidic that red wines and difficult to give valid recommendations for all.

very tannic, which is why they are more enjoyable at low temperatures.

These wines should preferably be stored and served between 10 °C and 14 °C (50 °F and 57 °F). Young, fresh and aromatic wines can also be served at 10 °C (50 °F while less aromatic ones are recommended at 12 °C (54 °F). Temperatures between 12 °C and 14 °C (54 °F and 57 °F) are suitable for soft, mature white wines aged for few years in the bottle. Higher temperatures would favour the enhancement of the sweet character of the wine, to detriment of the acidity and flavour that are considered pleasant and desirable characteristics for this type of wine

In general, sweeter and more aromatic sparkling wines should be served at lower temperatures, up to 8 °C (46 °F due to their aromaticity. More tannic sparkling wines can be served at higher temperatures, up to 14 °C (57 °F).

Dry Charmat or Martinotti method sparkling wines, such as some Proseccos, should generally be served between 8 and 10 °C (46 and 50 °F). Classic method sparkling wines and 'méthode Champenoise' such as Champagne are also normally served at these temperatures but, for sparkling wines aged for some time such as Millesimati, one can go up to 12 °C (54 °F) to favour the development of complex aromas.

Rosé wines

Rosé wines are generally served at the same temperature as white wines. However, it should be noted that these wines may contain a certain amount of tannins and it may

therefore be preferable to taste them at higher temperatures so as not to make them too astringent.

Consequently, they are served between 10 and 12 °C and 54 °F) if young and fresh and between 12 and 14 (54 and 57 °F) if more robust and mature.

Red wines

Containing more tannins and being less acidic, red wines are usually served at higher temperatures.

Younger and less tannic wines are generally served between 14 and 16 °C (57 and 61 °F), while fuller-bodied and tannic wines can be served at 16 °C (64 °F), and exceptionally even at 18 °C (64 °F). Some wines aged for years in the bottle, still full-bodied and tannic, can be served at 18 °C (64 °F) or even at 20 °C (68 °F). Young red wines that are low in tannins and less structured can be enjoyed at lower temperatures, between 12 and 14 °C (5 and 57 °F).

However, it is advisable, especially for the finest wines, to follow the producer's recommendations, which are printed on the bottle.

Sparkling wines

For semi-sparkling wines, the same temperature indications apply as for Classic or Charmat method sparkling wines and are generally served between 10 and 12 °C (50 and 54 °F). For dry and semi-dry sparkling wine: a slightly lower serving temperature of between 8 and 10 °C (46 and 50 °F) is recommended.

Fortified, dessert or straw wines

This type of wine can be served at temperatures between 14 and 18 ^ (61 and 64 ^ ) depending on personal taste and, to attenuate the sweet taste and high alcohol content, _f can also be served at 10 ^ ( 50 ^ ).

Dry liqueur wines, such as Marsala for example, contain so much sugar that they are not perceived on the palate. For these wines, the serving temperature should be set according to what you want to emphasise. If you prefer to accentuate the sweetness of the wine, the complexity of its bouquet and its austerity, it is best to serve it at a high temperature, between 14 °C and 18 °C, remembering that this will also enhance the alcohol component. If you want to enhance their freshness more, they should be served at a lower temperature of between 10 °C and 14 °C. Dry, fresh, young liqueur wines can also be served at a cooler temperature of less than 10 °C in order to significantly reduce the perception of alcohol. However, the lower the serving temperature, the lower the perception of aromas will be. The pleasantness and complexity of aromas typical of these wines is a welcome and interesting characteristic: serving them too cold means sacrificing this important aspect.

CONTROL PANEL

Fig. 20

1) On/Off Button
2) Sabbath Mode
3) Upper Zone Temperature
4) Upper Zone Temperature Increase Button
5) Upper Zone Temperature Decrease Button
6) Middle Zone Temperature
7) Middle Zone Temperature Increase Button

8) Middle Zone Temperature Decrease Button
9) Lower Zone Temperature
10) Lower Zone Temperature Increase Button
11) Lower Zone Temperature Decrease Button
12) Light Button
13) Celsius and Fahrenheit Selection

ON/OFF BUTTON

Serves to switch the whole appliance On or Off. Press for 3 seconds to switch the appliance on/off. When switched off, the appliance disconnects from all external power sources and switches to standby status.

ENABLING/DISABLING THE CHILD LOCK

The child lock is a feature for preventing children from changing the appliance's settings. Press buttons [12] + [13] simultaneously to lock/unlock the control panel.

When the child lock is enabled, the temperature values in the digital displays will flash simultaneously for 3 seconds, accompanied by an acoustic signal to indicate that the display is locked. Deactivate the child lock to change any settings.

TEMPERATURE ADJUSTMENT BUTTONS

[1]Press buttons [4], [7], [10] to increase the temperature value by 1 degree with each press. Press buttons [5], [8] [11] to decrease the temperature value by 1 degree with each press. The temperature can be set from 5^(41^) to 20^ (68°F) in each temperature zone.

NOTE

When changing the temperature of the three zones, the displays will immediately show the selected temperatures on of the three zones. The actual temperatures inside the zones will gradually change until the desired set temperatures are reached. The appliance will take some time to reach the new set temperatures; this is normal.

LIGHT COLOR SELECTION, LIGHT BRIGHTNESS SELECTION AND ENTERTAINMENT MODE

The switching on/off of the LED lights depends on the door opening/closing. When the door is opened, the lights switch on automatically. When the door is closed, the lights switch off to save energy.

For selecting the light color, press button [12] to change color of the LED illumination between amber, blue or white

Press the [12] button for 3 seconds to activate the entertainment mode and keep the light constantly on even when the door is closed. The displays of the three temperature zones will show 'ON' for 5 seconds. After 5 seconds, the digital displays will show again the set temperatures in the 3 zones.

To adjust the brightness of the lights, press [12] until all time. digital displays of the three temperature zones show "ON". Within 5 seconds, press [4], [5], [7], [8], [10], [11] to adjust the brightness of the LED lights among seven levels, in brightness increments from L1 to L7.

CELSIUS AND FAHRENHEIT SELECTION

To switch between Celsius and Fahrenheit, press button [13]. Each press makes a switch. Celsius is set as the factory default.

SHOWROOM MODE

Press [1] + [2] buttons simultaneously for 3 seconds to enable the function.

This mode is used when the refrigerator is on display in a retail store or if you want to turn the cooling off and ^1 deactivate all other functions except interior lighting. When enabled, the digital displays of the 3 temperature zones will all show “Sn”. If no button is pressed for 72 hours, the mode will deactivate automatically. Press [1] + [2] simultaneously to deactivate the showroom mode at any time.

NOTE

Do not store any item while in showroom mode, because the appliance then remains at room temperature.

SHABBAT MODE

Press [2] to enable/disable the function. When the Shabbat Mode function is enabled, all lights, buzzers and digital displays will be switched off. The compressor and fan will continue to operate normally. The mode is automatically deactivated after 96 hours of operation. If the device is switched off, the status is maintained. Press [2] to deactivate Sabbath mode at any time.

WARNING

Always disconnect the appliance from the mains power before performing any cleaning or maintenance.

LED LIGHT REPLACEMENT INSTRUCTIONS

To provide optimum interior lighting, LED strips illuminate the appliance from the top and sets of LED lights directly illuminate different areas.

In case of malfunction and/or wearing out of the lighting system, repairs should be carried out by a qualified Service technician.

CLEANING THE INTERIOR SURFACES

To clean the inside of the wine column, open the door and remove the shelves. Wipe the inside of the unit with a clear cloth and a mild detergent, or with a soft sponge and a solution of bicarbonate of soda and lukewarm water. Do not use abrasive products or detergents. After washing, rinse and dry thoroughly.

Clean the wooden shelves with a soft, slightly damp cloth. Avoid using soaps, detergents and/or sponges that can damage both wooden and steel surfaces. Dry the shelves carefully before placing them back in the wine column.

WARNING

Do not use vinegar, rubbing alcohol or any alcohol-based cleaning agent on any of the interior surfaces.

If the appliance is not going to be used for an extended period of time, unplug and clean the appliance. The doors should be left slightly ajar to prevent the formation of mildew and unpleasant odours.

DEFROSTING

The wine column is designed with an automatic defrost system. However, on colder settings, some frost may build up. Additionally, the more humid the ambient conditions, the more frost may build up. Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost build-up.

If frost is preventing the door from closing properly, you may need to power the unit off until the frost melts (possibly up to 24 hours). Use a soft absorbent towel to dry the unit.

WARNING

Do not harm refrigerant tubing.

NOISES AND MEANING

This wine column may emit some normal sounds during operation.

Hard surfaces such as the floor or walls may make the sounds seem louder than they actually are.

In the list below you will find the most common sounds and their causes:

- rattling: due to the flow of refrigerant or objects placed on top of the appliance.

ce loud or high-pitched sounds: the high-efficiency compressor may emit sounds due to normal operation.

- splashing sound: due to water flowing from the evaporator to the water container.

- gurgling sound: refrigerant flowing into the appliance. - air noise: air can be heard being pushed over the condenser by the condenser fan.

POWER FAILURE

Most power failures are resolved within a few hours and should not affect the temperature of the appliance if the number of times the door is opened is minimised. If the power outage continues for a longer period of time, appropriate measures must be taken to protect the contents of your appliance.

If you have any problems with your appliance, please check this troubleshooting section prior to calling Customer Care.

If the appliance is not working, check that:

• The appliance is receiving electrical power.
- The fuses in the home are intact and the fuse in the plug has not blown.
• The appliance has not been turned off.
- The electrical outlet is functioning properly. To check this, plug another electrical appliance into it to see if outlet is faulty.

If the appliance is working, but not very well, check that:

• The appliance is not overloaded.
• The thermostat is set to an appropriate temperature.
• The doors are closing properly.
- The cooling system on the back of the appliance is clean and free of dust and is not touching the rear wall.
- There is enough ventilation around the side and rear walls.

If the appliance is not cold enough, check that:

• Temperature is not set too high.
- The appliance is not installed next to a heat source.
- The door is not opened too frequently or for long periods of time.
• The door gasket seals properly.
• The appliance is not set on demo mode.
- The appliance has sufficient ventilation and ensure it is installed according to the installation requirements specified in this manual.

If the appliance is noisy, check that:

• The appliance is level and stable.
- The shelves are positioned correctly inside the appliance.
• The room temperature is hotter than normal.
• The door gasket is properly sealed.
- The door is not opened too frequently or for long periods of time.
- The appliance has sufficient ventilation and ensure it is installed according to the installation requirements specified in this manual.

NOTE

The coolant gas in the refrigerator may make a slight bubbling or gurgling noise, even when the compressor is not running.

NOTE

Some popping or cracking noises are normal. They are caused by expansion and contraction of the inside walls due to temperature changes.

If the appliance is beeping, check that:

- The doors are closed. An alarm will sound after a door has been open for 60 seconds.

If frost has formed in the appliance:

• The environment is too humid.
• The room temperature is too low.
• The door is being opened too frequently.
- The unit has an auto-defrost system but, under certain conditions, manual defrosting may be required. If frost periodically forms, try to run the refrigerator at a warmer temperature setting, minimising the number of door openings or unplugging the unit to allow the frost to melt
- Check the door seal for any kinks, debris or damage. If you notice any, and are unable to resolve the issue yourself, contact Customer Care so that the seal can be replaced.
- This can be due to the cabinet door(s) not being properly fitted. If you are at all unsure, ask your installer to check the cabinet doors.

If one or more of the LED units inside the appliance not working:

- Contact Customer Care to arrange a service visit.

If the body of the appliance is electrified:

- The unit is not properly grounded. Contact your electrician to test your electrical grounding system.

When a malfunction occurs, contact a service technician for repairs

EXPLANATION OPEN CIRCUIT CODE SHORT CIRCUIT CODE
Upper Zone In-cabinet probes	E1 E2
Upper Zone Frosting probe	E3 E4
Middle Zone In-cabinet probe	E5	E6
Middle Zone Frosting probe	E7 E8
Upper Zone In-cabinet probes	E9 E10
Lower Zone Frosting probe	E11 E12

NOTE

1) In the presence of a fault code, the buzzer will sound an alarm 'Tic' 'Tic' 'Tic' three times in a row. The fault code will flash on the display every 10 seconds, and the alarm will activate.

If you want to release the alarm sound, press the on/off key.

2) Whenever a key is pressed, the buzzer sounds "Tick".

E. BERTAZZO ITALIA

Bertazzoni is committed to providing the highest quality service to our customers. In the unlikely event that your product should have a manufacturing defect, please contact our service team at:

https://uk.bertazzoni.com/more/care-service

You will be requested to provide product information, proof of purchase, a photo of the silver data label and a description of the issue. Please have this information ready.

DALLA SCRIVANIA DEL PRESIDENTE

Gentile Cliente,

Technical diagram of a multi-level refrigerator with numbered components for identification

Fig. 1

1) Ripiano vino A

3) Ripiano vino B

Technical line drawing of a refrigerator with internal compartments and hanging cables, showing structural details (no text or symbols)

Fig. 5

Pure electrical circuit lines without any symbols

Fig. 6

Technical line drawing of a refrigerator with open door and internal compartments (no text or symbols)

Fig. 8

AVVERTENZA

Diagram showing two rectangular storage units with one being shifted by an arrow (no text or symbols)

Fig. 9

Technical line drawing of a mechanical assembly or bracket assembly (no text or symbols)

Fig. 11

Technical line drawing of a rectangular enclosure with a vertical dimension line and internal panel (no text or symbols)

Fig. 12

A B C D E F

Fig. 13

A 596 mm
B 208 mm
C 180 mm
D 59 mm
E 1800 mm
f 90 mm

AVVERTENZA

Line drawing of a refrigerator with open door and side panel, showing internal structure (no text or symbols)

Fig. 14

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Fig. 15

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 16

Technical line drawing of a rectangular frame with internal components and directional arrows, no text or symbols present

Fig. 17

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ASSICURARSI CHE LE PORTE CHIUDANO ERMETICAMENTE

Diagram of a multi-tiered rack-mounted storage unit with circular compartments (no text or labels)

A B 1

C D 2

Fig. 18

A. 300 mm

C. 300 mm

B. 76 mm

D. 96 mm

CAPACITÀ DI CARICO		CONSERVAZIONE BOTTIGLIE(BOTTIGLIA - TIPO BORDEAUX)	CONSERVAZIONE BOTTIGLIE(BOTTIGLIA 2 - TIPOBORGOGNA)
Zona superiore	1 11 \
	2 11 \
	3 7 \
Zona centrale	1 7 \
	2	5	\
	3	5	\
	4	5	\
Zona inferiore	1	5	\
	2	5	\
	3	5	\
	4 \ 22
Totale		66	22

Technical line drawing of a multi-tiered mechanical or electrical component with circular components (no text or symbols)

A B 1

C D 2

Fig. 19

A. 300 ~mm

C. 300 mm

B. 76 ~mm

D. 96 ~mm

CAPACITÀ DI CARICO		CONSERVAZIONE BOTTIGLIE(BOTTIGLIA - TIPO BORDEAUX)	CONSERVAZIONE BOTTIGLIE(BOTTIGLIA 2 - TIPOBORGOGNA)
Zona superiore	1 11 \
	2 11 \
	3 11 4
Zona centrale	1 11 4
	2	5	\
	3	5	\
	4	5	\
Zona inferiore	1	5	\
	2	5	\
	3	5	\
	4 \ 22
Totale 74 30

TEMPERATURE ADJUSTMENT BUTTONS

DIMENSIONS DU MEUBLE 79

DIMENSIONS DU PRODUIT 80

PANNEAU DE PORTE PERSONNALISÉ 80

INVERSEMENT DE LA PORTE 81

INSTRUCTION D'INSTALLATION (PORTE SUR CHARNIÈRE DE PORTE) 82

RISQUE DE SUFFOCATION

Technical diagram of a multi-level refrigerator with numbered components for identification

Fig. 1

1) Étagère à vin A

3) Étagère à vin B

DIMENSIONS DU MEUBLE

A B C C D E F C G C

B I C H J F FRONT E BACK C C

Fig. 2

A. 600 ~mm
B. 600 ~mm
C. 50 mm
D. 562 mm
E. 1779 mm

F. 581 ~mm
G. 500 ~mm
H. 15.5 mm
I. 18 mm
J. 19 mm

DIMENSIONS DU PRODUIT

G H I J

Fig. 3

G 556 mm
H 550 mm
I 1771 mm
J 549 mm

PANNEAU DE PORTE PERSONNALISÉ

A D F E C B a

Fig. 4

Technical line drawing showing a door opening and hanging cable with adjustment arrows (no text or symbols)

Fig. 5

Pure electrical circuit lines without any symbols

Fig. 6

Technical line drawing of a closed industrial refrigerator with open door and internal compartments (no text or symbols)

Fig. 8

MISE EN GARDE

Diagram showing two rectangular storage units with one moving right and the other in a closed position, no text or symbols present.

Fig. 9

Technical line drawing of a mechanical assembly with mounting brackets and clamps (no text or symbols)

Fig. 11

Technical line drawing of a vertical cabinet or enclosure with internal compartments and a vertical dimension line (no text or symbols)

Fig. 12

A B C D E F

Fig. 13

A 596 mm
B 208 mm
C 180 mm
D 59 mm
E 1800 mm
F 90 mm

MISE EN GARDE

Line drawing of a refrigerator with open door and side panel, showing internal components (no text or symbols)

Fig. 14

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Fig. 15

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 16

Technical line drawing of a rectangular frame with internal components and directional arrows, no text or symbols present

Fig. 17

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical lever system with an inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ASSURER LA BONNE ÉTANCHÉITÉ DE LA PORTE

Diagram of a multi-tiered rack-mounted storage unit with circular compartments (no text or labels)

A B 1

C D 2

Fig. 18

A. 300 ~mm

C. 300 ~mm

B. 76 ~mm

D. 96 ~mm

CAPACITÉ DE CHARGE		ENTREPOSAGE DE BOUTEILLES (BOUTEILLE - TYPE BORDEAUX)	ENTREPOSAGE DE BOUTEILLES (BOUTEILLE 2 - TYPE BOURGOGNE)
Zone supérieure	1 11 \
	2 11 \
	3 7 \
Zone intermédiaire	1 7 \
	2	5	\
	3	5	\
	4	5	\
Zone inférieure	1	5	\
	2	5	\
	3	5	\
	4 \ 22
Total 66		22

Technical line drawing of a multi-tiered mechanical or electrical component with circular components (no text or symbols)

A B 1

C D 2

Fig. 19

A. 300 ~mm

C. 300 mm

B. 76 ~mm

D. 96 ~mm

CAPACITÉ DE CHARGE		ENTREPOSAGE DE BOUTEILLES (BOUTEILLE - TYPE BORDEAUX)	ENTREPOSAGE DE BOUTEILLES (BOUTEILLE 2 - TYPE BOURGOGNE)
Zone supérieure	1 11 \
	2 11 \
	3 11 4
Zone intermédiaire	1 11 4
	2	5	\
	3	5	\
	4	5	\
Zone inférieure	1	5	\
	2	5	\
	3	5	\
	4 \ 22
Total 74 30

RECOMMANDATIONS POUR LA CONSERVATION ET LE SERVICE DU VIN

BOUTON MARCHE/ARRÊT (ON/OFF)

HET APPARAAT VERPLAATSEN 107

SPECIFICATIONS 108

BESCHRIJVING VAN HET APPARAAT 108

TECHNISCHE SPECIFICATIES 108

HET APPARAAT VERPLAATSEN

BESCHRIJVING VAN HET APPARAAT

Technical diagram of a multi-level refrigerator with numbered components for identification

Afb. 1

1) Wijnrek A

3) Wijnrek B

Technical line drawing of a cabinet with internal components and a close-up view showing internal structure and hanging parts (no text or symbols)

Afb. 5

Technical line drawing of a closed refrigerator with open door and internal compartments (no text or symbols)

Afb. 8

Pure electrical circuit lines without any symbols

Afb. 6

WAARSCHUWING

Diagram showing two rectangular storage units with one being shifted by an arrow (no text or symbols present)

Afb. 9

Technical line drawing of a mechanical assembly with mounting brackets and clamps (no text or symbols)

Afb. 11

Technical line drawing of a vertical cabinet or enclosure with internal frame and side panel (no text or symbols)

Afb. 12

Line drawing of a refrigerator with open door and side panel, showing internal structure (no text or symbols)

Afb. 14

Technical line drawing of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Afb. 15

Technical line drawing of a mechanical assembly with labeled components (no text or symbols)

Afb. 16

Technical line drawing of a rectangular frame with internal components and directional arrows, no text or symbols present

Afb. 17

Technical line drawing of a mechanical assembly with an inset close-up showing a component (no text or symbols)

Technical line drawing of a mechanical lever system with an inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

CONTROLEER OF DE DEUR GOED AFSLUIT

Technical line drawing of a multi-tiered rack-mounted device with circular components (no text or symbols)

A B 1

C D 2

Afb. 18

A. 300 ~mm

C. 300 mm

B. 76 ~mm

D. 96 ~mm

CAPACITEIT		AANTAL FLESSEN(FLES - BORDEAUX TYPE)	AANTAL FLESSEN(FLES 2 - BURGUNDY TYPE)
Bovenste zone	1 11 \
	2 11 \
	3 7 \
Middelste zone	1 7 \
	2	5	\
	3	5	\
	4	5	\
Onderste zone	1	5	\
	2	5	\
	3	5	\
	4	\ 22
Totaal		66	22

Technical diagram of a multi-tiered rack-mounted device with circular components (no text or symbols)

A B 1

C D 2

Afb. 19

A. 300 ~mm

C. 300 mm

B. 76 mm

D. 96 mm

CAPACITEIT		AANTAL FLESSEN(FLES - BORDEAUX TYPE)	AANTAL FLESSEN(FLES 2 - BURGUNDY TYPE)
Bovenste zone	1 11 \
	2 11 \
	3 11 4
Middelste zone	1 11 4
	2	5	\
	3	5	\
	4	5	\
Onderste zone	1	5	\
	2	5	\
	3	5	\
	4 \ 22
Totaal 74 30

AANBEVELINGEN VOOR HET BEWAREN EN SERVEREN VAN WIJN

AVLÄGSNA HYLLORNA 148

KONTROLL AV DÖRRARNAS TÄTNING 149

ANVÄNDNING OCH UNDERHÅLL 150

ANVÄNDNING 150

FÖRE FÖRSTA ANVÄNDNING 150

INVÄNDIG FÖRVARING 151

REKOMMENDATIONER FÖR FÖRVARING OCH SERVERING AV VIN 153

KONTROLLPANEL 155

SKÖTSEL OCH UNDERHÅLL 157

UTBYTE AV LYSDIODER - INSTRUKTIONER 157

RENGÖRING AV INRE YTOR 157

UPPTINING 157

BULLER OCH INNEBÖRD 157

STRÖMAVBROTT 157

FELSÖKNING 158

FELKODER 159

GARANTI 160

GARANTI OCH SERVICE 160

ALLMÄN INFORMATION

INFORMATION OM HANDBOKEN

Technical diagram of a multi-level refrigerator with numbered components for identification

TEKNISKA SPECIFIKATIONER

ELEMENT	BESKRIVNING
Typ av kontakt	SCHUKO
Spänning	220 – 240 V
Frekvens 50 Hz
Säkring	15 A
Amperage 0.8 A
Capacity	88 Bordeaux bottles

Technical line drawing showing a cabinet with internal components and a close-up of a mechanical assembly with hanging weights (no text or symbols)

Fig. 5

Pure electrical circuit lines without any symbols

Fig. 6

Technical line drawing of a closed industrial refrigerator with open door and internal compartments (no text or symbols)

Fig. 8

WARNING

Diagram showing two rectangular storage units with one being shifted by an arrow (no text or symbols)

Fig. 9

Technical line drawing of a mechanical assembly with mounting brackets and clamps (no text or symbols)

Fig. 11

Technical line drawing of a vertical cabinet or enclosure with internal compartments and a vertical dimension line (no text or symbols)

Fig. 12

Line drawing of a refrigerator with open door and side panel, showing internal structure (no text or symbols)

Fig. 14

Technical line drawing of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Fig. 15

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 16

Technical line drawing of a rectangular frame with internal components and directional arrows, no text or symbols present

Fig. 17

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

2) Dra vinhyllan framåt. Teleskopskenornas fixeringspunkt läses baktill i positionen som visas i figuren.

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

KONTROLL AV DÖRRARNAS TÄTNING

Diagram of a multi-tiered rack-mounted storage unit with circular compartments (no text or labels)

A B 1

C D 2

Fig. 18

A. 300 ~mm

C. 300 mm

B. 76 mm

D. 96 mm

LASTKAPACITET		FLASKFÖRVARING(FLASKA - BORDEAUX-TYP)	FLASKFÖRVARING(FLASKA 2 - BURGOGNE-TYP)
Övre zon	1 11 \
	2 11 \
	3 7 \
Mittzon	1 7 \
	2	5	\
	3	5	\
	4	5	\
Nedre zon	1	5	\
	2	5	\
	3	5	\
	4 \ 22
Totalt		66	22

Technical diagram of a multi-tiered rack-mounted device with circular components (no text or symbols)

A B 1

C D 2

Fig. 19

A. 300 mm

C. 300 mm

B. 76 ~mm

D. 96 mm

LASTKAPACITET		FLASKFÖRVARING(FLASKA - BORDEAUX-TYP)	FLASKFÖRVARING(FLASKA 2 - BURGOGNE-TYP)
Övre zon	1 11 \
	2 11 \
	3 11 4
Mittzon	1 11 4
	2	5	\
	3	5	\
	4	5	\
Nedre zon	1	5	\
	2	5	\
	3	5	\
	4 \ 22
Totalt 74 30

REKOMMENDATIONER FÖR FÖRVARING OCH SERVERING AV VIN

https://SE.bertazzoni.com/more/care-service
