USER MANUAL FPM-215W Advantech

Illustration of three kitchen appliances in green outline style (no text or symbols)

FPM-200W Series

15.6" or 21.5" Industrial LED Monitor with Capacitive Touchscreen and Direct HDMI or VGA Port

顯示器

申請商：研華股份有限公司

Declaration of the Presence Condition of the Restricted Sustances Marking

PLM MDR NO: MDR-007701

設備名稱:顯示器 型號 (型式): FPM-215WEquipment name Type designation (Type)
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	鎘Cadmium(Cd)	六價鉻Hexavalent chromium( Cr^+6 )	多溴聯苯Polybrominated biphenyls(PBB)	多溴二苯醚Polybrominated diphenyl ethers(PBDE)
電路板-	○ ○ ○	○ ○
觸控面板-	○ ○	○ ○ ○
內外殼(外殼、內部框架...等)	○	○		○	○	○
其它固定組件(螺絲、夾具、卡榫)	-	○		○	○	○
配件(排線、傳輸線、網路線...等)	-	○		○	○	○
電源供應器	-	○		○	○	○
備考1.“超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。Note 1.“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2.“○”indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3.“-”係指該項限用物質為排除項目。Note 3.The “-” indicates that the restricted substance corresponds to the exemption.

限用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Sustances Marking

PLM MDR NO: MDR-003688

設備名稱:顯示器 型號 (型式): FPM-221WEquipment name Type designation (Type)
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	鎘Cadmium(Cd)	六價鉻Hexavalent chromium( Cr^+6 )	多溴聯苯Polybrominated biphenyls(PBB)	多溴二苯醚Polybrominated diphenyl ethers(PBDE)
電路板-	○ ○ ○	○ ○
內外殼○	○ ○ ○	○ ○
線材-○	○ ○ ○	○
其它固定組件(螺絲、螺柱)	-	○		○	○	○
電源供應器	-	○		○	○	○
分離式電源線組	○	○		○	○	○
觸控模組	- ○	○ ○ ○		○
液晶面板	- ○	○ ○ ○		○
備考1.“超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1.“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2.“○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2.“○”indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3.“-”係指該項限用物質為排除項目。Note 3.The “-” indicates that the restricted substance corresponds to the exemption.

Copyright

The documentation and the software included with this product are copyrighted 2025 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties that may result from its use.

Acknowledgment

Intel and Pentium are trademarks of Intel Corporation.

Microsoft Windows® are registered trademarks of Microsoft Corp.

All other product names or trademarks are properties of their respective owners.

This manual includes the following products:

FPM-215W

FPM-215W-P4AE

FPM215WP4A2101-T; FPM215WP4A2102-T; FPM215WP4A2201-T;

FPM215WP4A2501-T; FPM215WP4A2502-T; FPM215WP4A2503-T

FPM215WP4A2504-T; FPM215WP4A2505-T; FPM215WP4A2506-T

FPM-215W-P4BE

FPM215WP4B2501-T; FPM215WP4B2502-T; FPM215WP4B2503-T;

FPM215WP4B2504-T; FPM215WP4B2505-T; FPM215WP4B2506-T;

FPM215WP4B2601-T; FPM215WP4B2602-T; FPM215WP4B2603-T;

FPM215WP4B2604-T; FPM215WP4B2605-T; FPM215WP4B2606-T;

FPM215WP4B2701-T; FPM215WP4B2702-T; FPM215WP4B2703-T;

FPM215WP4B2704-T; FPM215WP4B2705-T; FPM215WP4B2706-T;

FPM215WP4B2801-T; FPM215WP4B2802-T; FPM215WP4B2803-T;

FPM215WP4B2804-T; FPM215WP4B2805-T; FPM215WP4B2806-T;

FPM215WP4B2901-T; FPM215WP4B2902-T; FPM215WP4B2903-T;

FPM215WP4B2904-T; FPM215WP4B2905-T; FPM215WP4B2906-T;

FPM215WP4B3001-T; FPM215WP4B3002-T; FPM215WP4B3003-T;

FPM215WP4B3004-T; FPM215WP4B3005-T; FPM215WP4B3006-T;

FPM215WP4B3101-T; FPM215WP4B3102-T; FPM215WP4B3103-T;

FPM215WP4B3104-T; FPM215WP4B3105-T; FPM215WP4B3106-T

FPM-215W-P4BU

FPM215WP4BU2501-T; FPM215WP4BU2502-T; FPM215WP4BU2503-T;

FPM215WP4BU2504-T; FPM215WP4BU2505-T; FPM215WP4BU2506-T;

FPM215WP4BU2601-T; FPM215WP4BU2602-T; FPM215WP4BU2603-T;

FPM215WP4BU2604-T; FPM215WP4BU2605-T; FPM215WP4BU2606-T;

FPM215WP4BU2701-T; FPM215WP4BU2702-T; FPM215WP4BU2703-T;

FPM215WP4BU2704-T; FPM215WP4BU2705-T; FPM215WP4BU2706-T;

FPM215WP4BU2801-T; FPM215WP4BU2802-T; FPM215WP4BU2803-T; FPM215WP4BU2804-T; FPM215WP4BU2805-T; FPM215WP4BU2806-T; FPM215WP4BU2901-T; FPM215WP4BU2902-T; FPM215WP4BU2903-T; FPM215WP4BU2904-T; FPM215WP4BU2905-T; FPM215WP4BU2906-T; FPM215WP4BU3001-T; FPM215WP4BU3002-T; FPM215WP4BU3003-T; FPM215WP4BU3004-T; FPM215WP4BU3005-T; FPM215WP4BU3006-T; FPM215WP4BU3101-T; FPM215WP4BU3102-T; FPM215WP4BU3103-T; FPM215WP4BU3104-T; FPM215WP4BU3105-T; FPM215WP4BU3106-T

FPM-221W

FPM-221W-P4AE

FPM221WP4A2301-T; FPM221WP4A2401-T; FPM221WP4A2501-T; FPM221WP4A2502-T; FPM221WP4A2503-T; FPM221WP4A2504-T; FPM221WP4A2505-T; FPM221WP4A2506-T; FPM221WP4A2601-T; FPM221WP4A2602-T; FPM221WP4A2603-T; FPM221WP4A2604-T; FPM221WP4A2605-T; FPM221WP4A2606-T; FPM221WP4A2701-T; FPM221WP4A2702-T; FPM221WP4A2703-T; FPM221WP4A2704-T; FPM221WP4A2705-T; FPM221WP4A2706-T; FPM221WP4A2801-T; FPM221WP4A2802-T; FPM221WP4A2803-T; FPM221WP4A2804-T; FPM221WP4A2805-T; FPM221WP4A2806-T; FPM221WP4A2901-T; FPM221WP4A2902-T; FPM221WP4A2903-T; FPM221WP4A2904-T; FPM221WP4A2905-T; FPM221WP4A2906-T; FPM221WP4A3001-T; FPM221WP4A3002-T; FPM221WP4A3003-T; FPM221WP4A3004-T; FPM221WP4A3005-T; FPM221WP4A3006-T; FPM221WP4A3101-T; FPM221WP4A3102-T; FPM221WP4A3103-T; FPM221WP4A3104-T; FPM221WP4A3105-T; FPM221WP4A3106-T

FPM-221W-P4AU

FPM221WP4AU2501-T; FPM221WP4AU2502-T; FPM221WP4AU2503-T; FPM221WP4AU2504-T; FPM221WP4AU2505-T; FPM221WP4AU2506-T; FPM221WP4AU2601-T; FPM221WP4AU2602-T; FPM221WP4AU2603-T; FPM221WP4AU2604-T; FPM221WP4AU2605-T; FPM221WP4AU2606-T; FPM221WP4AU2701-T; FPM221WP4AU2702-T; FPM221WP4AU2703-T; FPM221WP4AU2704-T; FPM221WP4AU2705-T; FPM221WP4AU2706-T; FPM221WP4AU2801-T; FPM221WP4AU2802-T; FPM221WP4AU2803-T; FPM221WP4AU2804-T; FPM221WP4AU2805-T; FPM221WP4AU2806-T; FPM221WP4AU2901-T; FPM221WP4AU2902-T; FPM221WP4AU2903-T; FPM221WP4AU2904-T; FPM221WP4AU2905-T; FPM221WP4AU2906-T; FPM221WP4AU3001-T; FPM221WP4AU3002-T; FPM221WP4AU3003-T; FPM221WP4AU3004-T; FPM221WP4AU3005-T; FPM221WP4AU3006-T; FPM221WP4AU3101-T; FPM221WP4AU3102-T; FPM221WP4AU3103-T; FPM221WP4AU3104-T; FPM221WP4AU3105-T; FPM221WP4AU3106-T

Part No.2001200W02 Edition 3

November 2025

Product Warranty (2 years)

Advantech warrants the original purchaser that each of its products will be free from defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or products that have been subject to misuse, abuse, accident, or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events.

Because of Advantech's high quality-control standards and rigorous testing, most customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced free of charge during the warranty period. For out-of-warranty repairs, customers will be billed according to the cost of replacement materials, service time, and freight. Please consult your dealer for more details.

If you believe your product to be defective, follow the steps outlined below.

1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages displayed when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain a return merchandise authorization (RMA) number from your dealer. This allows us to process your return more quickly.
4. Carefully pack the defective product, a completed Repair and Replacement Order Card, and a proof of purchase date (such as a photocopy of your sales receipt) into a shippable container. Products returned without a proof of purchase date are not eligible for warranty service.
5. Write the RMA number clearly on the outside of the package and ship the package prepaid to your dealer.

Declaration of Conformity

FCC Class A

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference. In this event, users are required to correct the interference at their own expense.

Technical Support and Assistance

1. Visit the Advantech website at www.advantech.com/support to obtain the latest product information.
2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before calling:
   – Product name and serial number
   – Description of your peripheral attachments
   – Description of your software (operating system, version, application software, etc.)
   – A complete description of the problem
   – The exact wording of any error messages

Safety Instructions

1. Read these safety instructions carefully.
2. Retain this user manual for future reference.
3. Disconnect the equipment from all power outlets before cleaning. Use only a damp cloth for cleaning. Do not use liquid or spray detergents.
4. For pluggable equipment, the power outlet socket must be located near the equipment and easily accessible.
5. Protect the equipment from humidity.
6. Place the equipment on a reliable surface during installation. Dropping or letting the equipment fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from overheating. Do not cover the openings.
8. Ensure that the voltage of the power source is correct before connecting the equipment to a power outlet.
9. Position the power cord away from high-traffic areas. Do not place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage from transient overvoltage.
12. Never pour liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
14. If any of the following occurs, have the equipment checked by service personnel:
    – The power cord or plug is damaged.
    – Liquid has penetrated the equipment.
    – The equipment has been exposed to moisture.

15. The equipment is malfunctioning, or does not operate according to the user manual.
    – The equipment has been dropped and damaged.
    – The equipment shows obvious signs of breakage.

16. Do not leave the equipment in an environment with a storage temperature of below 0^ C ( 32^ F) or above 50^ C ( 122^ F) as this may damage the components. The equipment should be kept in a controlled environment.

17. In accordance with IEC 704-1:1982 specifications, the sound pressure level at the operator's position does not exceed 70 dB (A).

DISCLAIMER: These instructions are provided according to IEC 704-1 standards. Advantech disclaims all responsibility for the accuracy of any statements contained herein.

Note! This product is intended to be supplied by an UL certified power supply or DC source suitable for use at minimum Tma 50 degree°C whose output meets SELV or ES1, LPS or PS2 and is rated 12Vdc, 5A, if need further assistance, please contact Advantech for further information.

Warning! If the customer user DC power by oneself for this product may cause the radio interference in which case, the customer must be to take adequate measures.

Warning! If the customer needs to use power adapter, please use the power adapter listed on the product datasheet. If the customer use the power adapter not listed on the product datasheet, it may cause the radio interference in which case, the customer must be to take adequate measures.

Warning! Avoid exposing FPM-200W to direct sunlight for long periods of time. Direct sunlight falling onto a LCD screen can cause it to become very hot and physically damage the LCD as the components are not designed to tolerate high heat, shortening the life of the LCD.

Warning! The wire of the protective bonding conductor shall be green-and-yellow, 20AWG/0.5 (mm2).

Chapter 1 General Information ....1

1.1 Introduction 2
1.2 Specifications 2

1.2.1 General 2

Table 1.1: General....2

1.2.2 Touchscreen 2

Table 1.2: Touchscreen.... 2

1.3 LCD Specification.... 2

Table 1.3: LCD Specification 2

1.4 Connectors.... 3

1.5 Dimensions 4

1.5.1 15.6" Models .... 4
1.5.2 21.5" Models 5

Chapter 2 Mounting Methods....7

2.1 Mounting the Monitor / Monter le Moniteur 8

2.1.1 Panel Mounting / Montage Sur Panneau 8
2.1.2 VESA Mounting / Montage VESA 10
2.1.3 Power Adapter Bracket Mounting (Optional) 11

Appendix A Touchscreen 13

A.1 Introduction 14
A.2 Touchscreen Specifications (15.6"/21.5") 14

A.2.1 Typical Optical Features 14

Table A.1: Typical Optical Features.... 14

A.2.2 Electrical Specifications 14
Table A.2: Electrical Specifications.... 14
A.2.3 Environment Specifications.... 14
Table A.3: Environment Specifications 14

A.3 Installing Driver for Windows OS 14

Chapter 1

General Information

Sections include:

Introduction
Specifications
LCD Specification
Connectors
Dimensions

1.1 Introduction

In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. FPM-200W series is an industrial-grade, widescreen monitor with sleek, simple lines and a true-flat touchscreen. Equipped with P-CAP 10-point multi-touch control and an IP66-rated front bezel, FPM-200W series is designed for intuitive operation in industrial environments such as smart factory and machine automation display applications.

1.2 Specifications

1.2.1 General

Table 1.1: General
Specifications FPM-200W series
Construction Die-cast aluminum
Front Panel Die-cast aluminum - IP66
Video Port HDMI
Mounting Panel Panel, VESA arm
FPM-215W Dimensions	(W x H x D) 419.7 mm x 269 mm x 56.2 mm(16.52" x 10.59" x 2.21")
FPM-221W Dimensions	(W x H x D) 550.30 x 341.8 mm x 56.2 mm(21.67" x 13.46" x 2.21")

1.2.2 Touchscreen

Table 1.2: Touchscreen

Specifications FPM-200W series

Type 10 points multi touch, projected capacitive

Resolution 1366 x 768 (15.6") / 1920 x 1080 (21.5")

Light Transmission >88%

Controller USB

1.3 LCD Specification

Table 1.3: LCD Specification
	FPM-215W-P4AE	FPM-215W-P4BE	FPM-221W-P4AE
Specifications	15" LCD(LED Backlight)	15" LCD(LED Backlight)	21" LCD(LED Backlight)
Display Type	W XGA TFT LC	Full HD TFT LCD	Full HD TFT LCD
Display Size	15.6"	15.6"	21.5"
Max. Colors	16.7M Max	16.7M Max	16.7M Max

Table 1.3: LCD Specification

Resolution 1366 x 768 1920 x 1080 1920 x 1080
View Angle (H/V°) 160°(V), 160°(H) 160°(V), 160°(H) 178°(V), 178°(H)
Luminance 300 cd/m2 350 cd/m2 250 cd/m2
Storage Temperature	-20 ~ 60°C	-20 ~ 60°C

1.4 Connectors

The following connectors are situated on the bottom side of the FPM-200W series:

HDMI

HDMI connector can be connected directly into the system via HDMI connector located on the bottom side of the system unit.

VGA Port (DB-15)

DB-15 connector can be connected to the system via the external 15-pin DB-15 connector located on the bottom side of the system unit.

■ Touchscreen Connector (USB)

This connector will be present only if a touchscreen is installed and it must be connected to the USB port of the PC. The touchscreen cable is included with all orders.

■ DC 12 V Power Input Connector

This connector must be connected to DC 12 V power supply.

Warning! Please note before connecting the monitor and PC with HDMI or VGA cable:

1. If PC has installed operating system, please confirm its portrait frequency is within the acceptable range.

2. If PC has installed operating system, users need to adjust the portrait frequency to be within the acceptable range.

1.5 Dimensions

1.5.1 15.6" Models

FPM-215W Dimensions (HDMI)

Front View

Front view of a flat-screen monitor with a labeled LED indicator (no text or symbols on the screen itself)

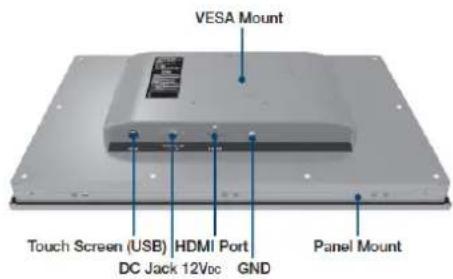

Rear View

VESA Mount Touch Screen (USB) HDMI Port DC Jack 12Voc GND Panel Mount

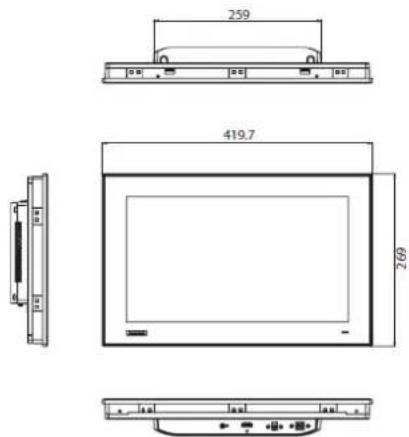

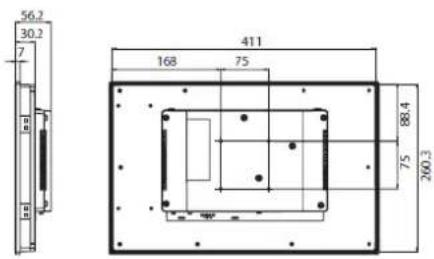

Dimensions
Unit mm

259 419.7 269

56.7 30.2 7 168 75 411 88.4 75 260.3

Cut-out Dimensions: 412 x 261.3 mm (16.22 x 10.28 in)

1.5.2 21.5" Models

FPM-221W-P4AE Dimensions (HDMI)

Front View

Front view of a flat-screen monitor with a labeled LED indicator (no other text or symbols visible)

Rear View

VESA Mount Touch Screen (USB) DC Jack 12VDD HDMI Port GND Panel Mount

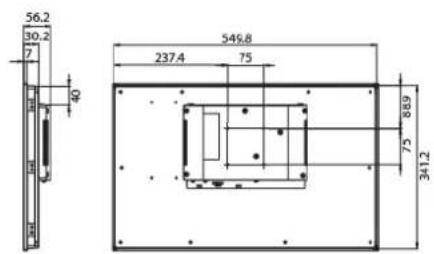

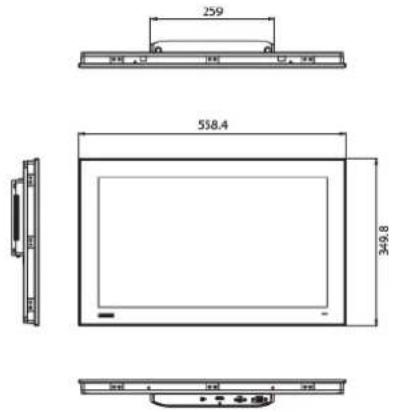

Dimensions

Unit: mm

259 558.4 346.8

56.2 30.2 7 40 545.8 237.4 75 88.9 75 341.2

Cut-out Dimensions: 550.8 x 342.2 mm (21.68 x 13.47 in)

Chapter 2

Mounting Methods

Sections include:

Wall Mounting
Panel Mounting
■ Desktop Stand Mounting

2.1 Mounting the Monitor / Monter le Moniteur

The FPM-200W series can be mounted in many different ways. The versatility of the FPM-200W enables it to be mounted on your desk or anywhere else.

If you need to install the FPM-200W series in a panel, release the mounting brackets by detaching 4 screws on rear side and fix them on the top and bottom with screws. To implement the panel mount completely, it requires 10 clampers with M6 * 21mm screws.

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

Technical line drawing of a door frame with a bracket and mounting bracket (no text or symbols)

1. Secure the clamp to the panel using the included screws. Fixez la pince au panneau à l'aide des vis fournies.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a rectangular electronic enclosure with mounting holes and internal compartments (no text or symbols)

2.1.2 VESA Mounting / Montage VESA

If VESA mounting is preferred, FPM-200W is a VESA MIS-D, 100/75, C compliant display equipped with 75 x 75 mm square hole pattern, use M4 screws for attachment of the mount to the FPM-200W.

Warning! Use suitable mounting apparatus to avoid risk of injury.

Warning! VESA screw mounting specifications: M4. Depth of the screw hole: 6 mm (Max.).

2.1.3 Power Adapter Bracket Mounting (Optional)

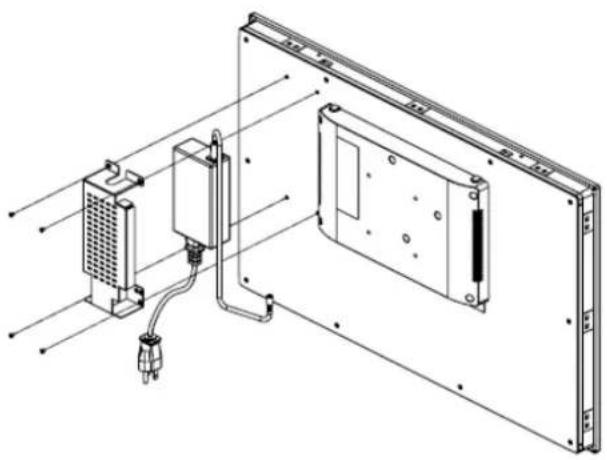

To secure and avoid power adaptor from hanging, a metal bracket is offered as an optional accessory for FPM-200W. This metal bracket can be mounted on the back of the monitor in 2 simple steps:

1. Place the metal bracket on top of the power adapter and position it against the dedicated holes.

Technical line drawing of an electrical enclosure with wiring and components (no text or symbols)

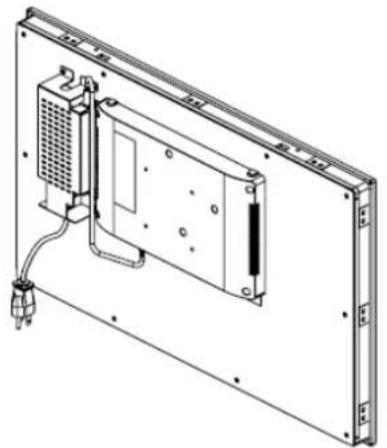

1. Secure the metal bracket with the included screws and metal bracket installation is complete.

Technical line drawing of an electronic device mounted on a rectangular panel, showing internal components and wiring (no text or symbols)

Appendix A

Touchscreen

A.1 Introduction

The FPM-200W series touchscreen uses 10 points advanced projected capacitive touch technology to provide convenience and accurate sensing capacity. The touchscreen was specially designed for tough industrial environments, and has been approved by FCC Class A standards.

A.2 Touchscreen Specifications (15.6"/21.5")

A.2.1 Typical Optical Features

Table A.1: Typical Optical Features
Specification	15.6" 21.5"
Light Transmission	≥88% ≥88%
Haze	< 11% < 1%

A.2.2 Electrical Specifications

Table A.2: Electrical Specifications
Specification	15.6" 21.5"
Operation Voltage	5.5 V or below 5.5 V or below
Contact Current	70 mA (Maximum) 70 mA (Maximum)

A.2.3 Environment Specifications

Table A.3: Environment Specifications
Specification	15.6" 21.5"
Operating Temperature	0°C ~ +50°C 0°C ~ +50°C
Storage Temperature	-20°C~ +60°C -20°C~ +60°C
Humidity	10%~95%, non-condensing 10%~95%, non-condensing

A.3 Installing Driver for Windows OS

Drivers are not needed for Windows 7/8/10 users, however if your system operating system is Windows XP, you will need to install FPM-200W driver. FPM-200W drivers can be found and downloaded from Advantech website using the link below.

http://support.advantech.com/Support/DownloadSRDetail_New.aspx?SR_ID=1-WQR-PJM&Doc_Source=Download

www.advantech.com

Please verify specifications before quoting. This guide is intended for reference purposes only.

All product specifications are subject to change without notice.

No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher.

All brand and product names are trademarks or registered trademarks of their respective companies.

© Advantech Co., Ltd. 2025
