USER MANUAL Jacky Deryan

Line drawing of a baby靜簧 chair with a baby on top, showing seat, legs, and decorative elements (no text or symbols)

IMPORTANT FOR FUTURE REFERENCE.

Read the following instructions carefully before use.

IMPORTANT ! À CONSERVER POUR TOUTE RÉFÉRENCE ULTÉRIEURE.

Clean and store (EN + NL) 21

• This product must only be assembled by adults.
- Keep the unassembled toy components out of the reach of children.
- To assemble the toy, please refer to the diagram, checking that each component is assembled correctly.
- This product not applicable to babies who cannot support their head unaided.
- Read the instructions carefully before use and save them for future use. The child may get hurt if you do not follow these instructions.
- Before use, remove plastic bags and other packaging (e.g. closures, fastening straps, etc.) and keep them out of the reach of children.
- To secure safe use of this product, follow the warnings, guidelines and recommendations from the instruction manual. This product should be fully assembled prior to use.
• Adult assembly required.
- Never leave the child unattended in the product.
- Stop using the product once your child is able to sit unaided or weighs more than 9 kg.
• This product is not intended for long periods of use and sleep.
- Never leave this product on elevated, sloped or soft surfaces.
• Always use the safety harness.
- To avoid injury, make sure that the child is at safe distance while making adjustments, unfolding, folding and storing the product.
- Do not move the product or lift the product while there is a child in it.
- Do not allow children to play with this product.
- Set the sound volume low to avoid damage to the child's hearing.
- Keep the product away from fire.
- Use for babies aged around up to 6 months with maximum weight 9 kg.
- Do not use the product for more than one child.
- The product is not a substitute for a cot or bed. If the child needs sleep, you must put it in a suitable bed or cot.
- Do not use the product if there are missing or damaged parts.
- Do not use spare parts or other components, which are not supplied by the company.
- Do not make changes or modifications to the structure.
- Do not tie strings or cords to the product to avoid risk of suffocation/strangulation.
• Use the product only for its purpose.

• All settings regarding the power supply: turning on/off, replacing or charging of batteries is to be done only by adults.
  • Use only the supplied adaptor.
• Regularly check the good working order of the adaptor. Discontinue usage in case of damage.
• Do not allow the presence of children under 3 years before assembly is complete to avoid their access to small or disassembled parts.

Battery warning

• Only use 4 pieces of 'c' type batteries.
• Always secure the battery compartment cover after having inserted the batteries.
• Do not let children have access to the batteries or play with them.
• Insert batteries only of the designated type and voltage.
• Do not use batteries of different types.
• Do not mix used and new batteries.
• Follow the designated polarity in the battery compartment.
• Remove the damaged or worn-out batteries.
• Remove the batteries when you are not using the product.
• Do not throw the batteries in an open fire. Do not break the batteries apart.
  • Manufactured and tested in accordance with EN 12790-1:2023.

WAARSCHUWINGEN

1. Plastic base x2
2. Engine machine

3. Seat frame base

4. Seat frame

5. Connection tube x2

6. Backrest tube

7. Toy bar

8. Seat
   9 Remote control
9. Adaptor

ASSEMBLY

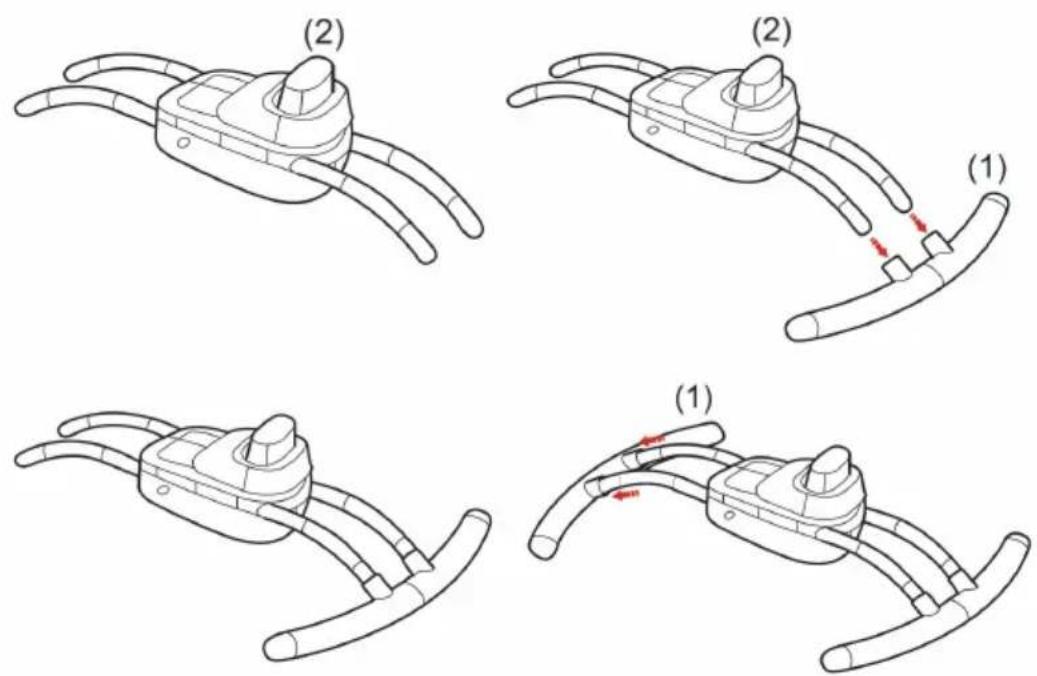

1. Installation of the plastic base to the engine machine

Place the parts of the swing on a soft surface prior to assembly.

As shown in the illustration, align the slots on the plastic base (1) with the tubes on the engine machine (2).

Place the tubes in the slots on the plastic base and fix firmly.

(3) (4)

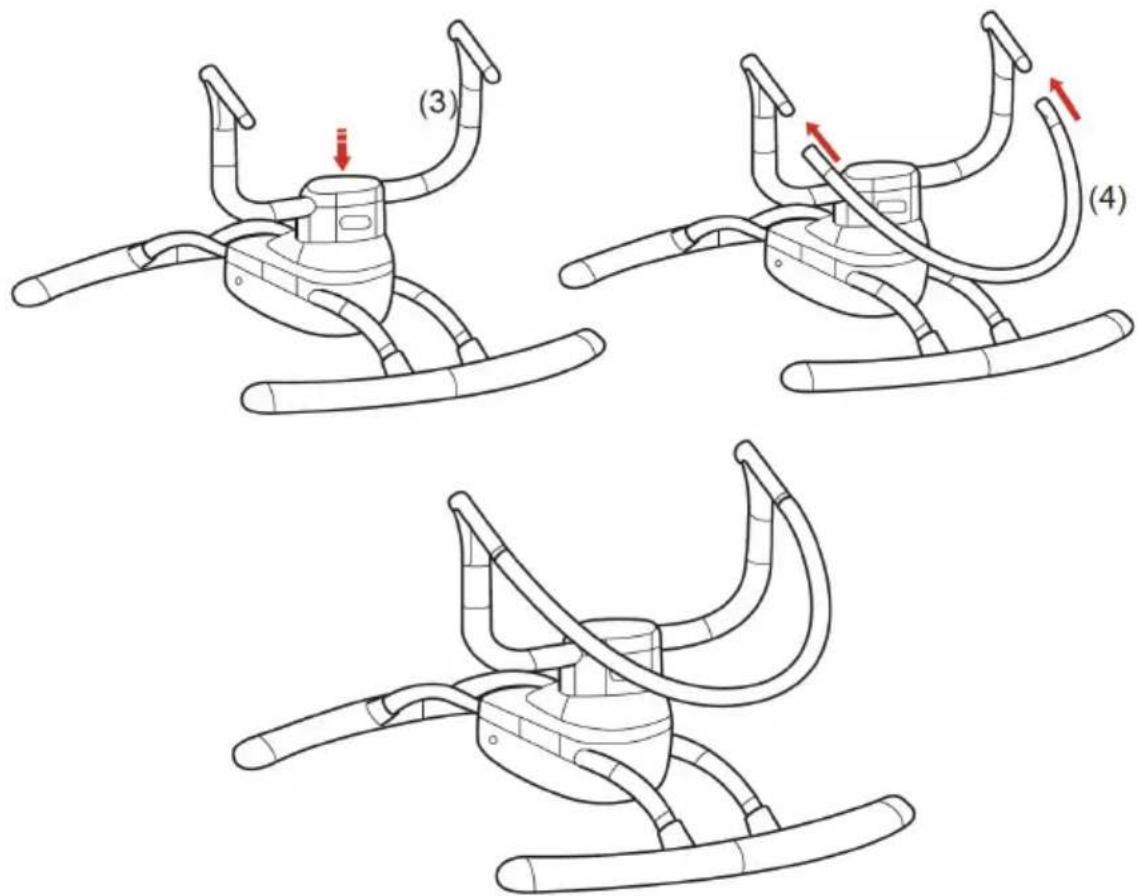

2. Installation of the seat frame base and the seat frame.

Align the seat frame base (3) to the engine machine (2) as shown in the illustration.

Pay attention to the front and rear direction of the seat frame base. It has an anti-dump design which doesn't allow the wrong direction to be set in.

Install the seat frame base onto the engine machine and once you hear a click, the assembly is complete.

Align the seat frame (4) parallel to the handles of the seat frame base.

Insert the handles of the seat frame base into the seat frame until you hear a click indicating the seat frame is securely fixed.

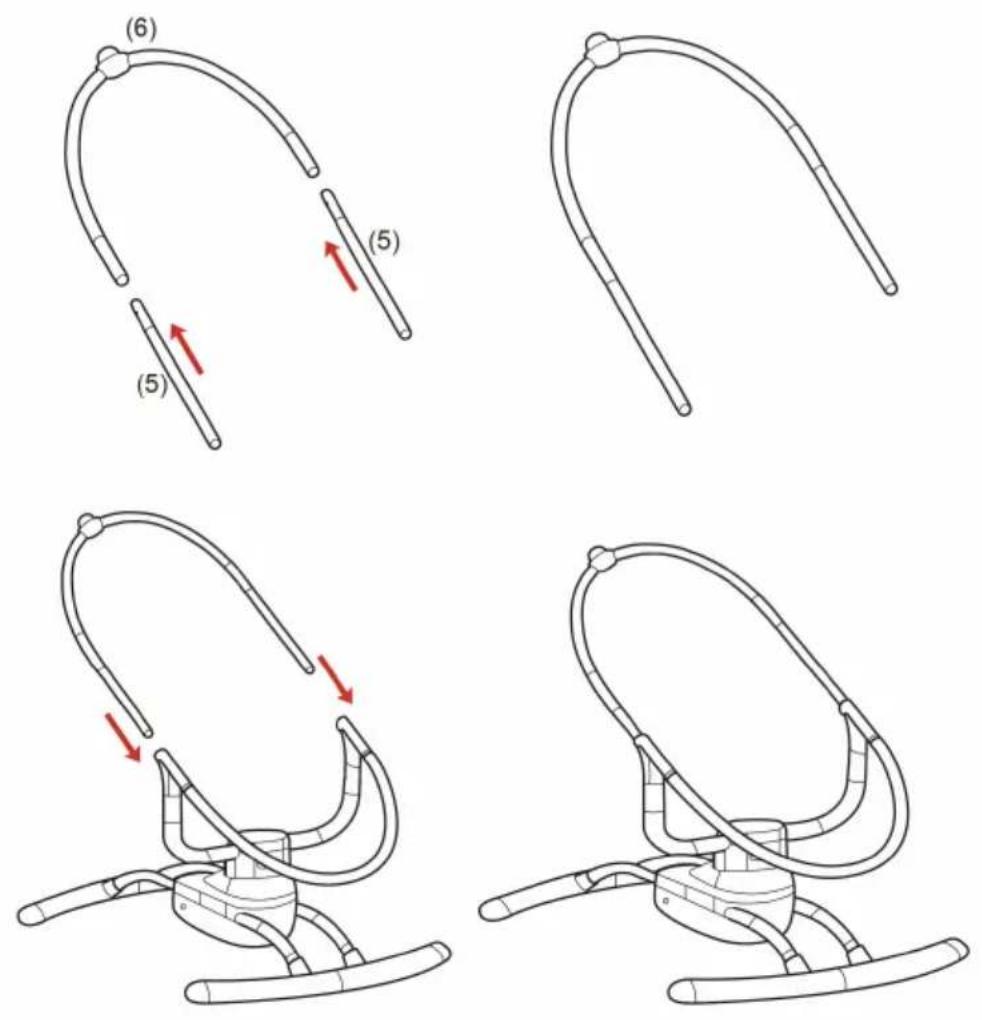

2. Installation of the connection tube and the backrest tube.

Align the connection tube (5) to the backrest tube (6) as shown in the illustration.

Insert the connection tube into the backrest tube until you hear a click indicating the connection tube is firmly fixed.

Align the assembled backrest and connection tube to the half-assembled swing as shown in the illustration.

Insert the assembled backrest and connection tube into the seat frame until you hear a click.

Line drawings of a baby's seat and backrest assembly, showing structural changes with red arrows indicating motion (no text or symbols)

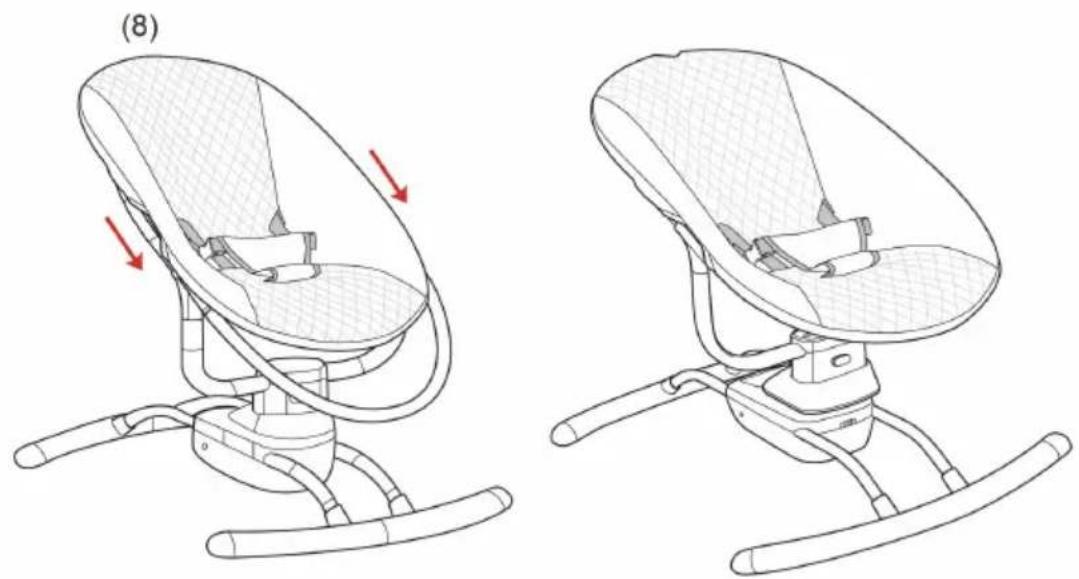

4. Installation of the seat

Gently pull the seat (8) onto the backrest tube. The portion of the tube onto which the toy bar is to be attached should be left exposed. Arrange the fabric onto both sides of the tube smoothly

Pull the lower right corner of the seat fabric towards the right of the seat tube first, then pull the seat fabric into the seat frame tube from right to left until it is fully inserted as shown in the illustration.

Line drawings of a baby's twin-heeling baby seat assembly, showing front and side views with no text or symbols

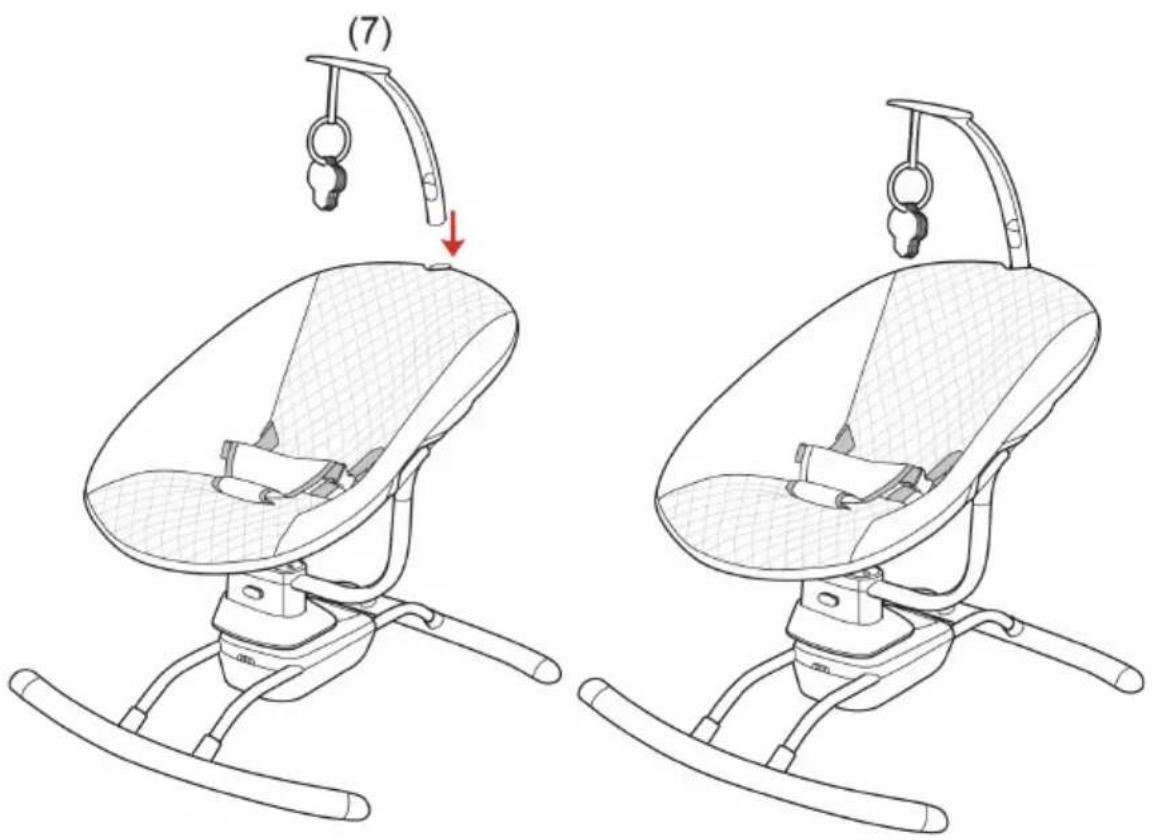

5. Installation of the toy bar

Insert the toy bar (7) directly in the toy bar base on the backrest tube.

Please ensure that the toy bar is firmly fixed, so that the toy bar does not come off when pulled out.

HOW TO USE

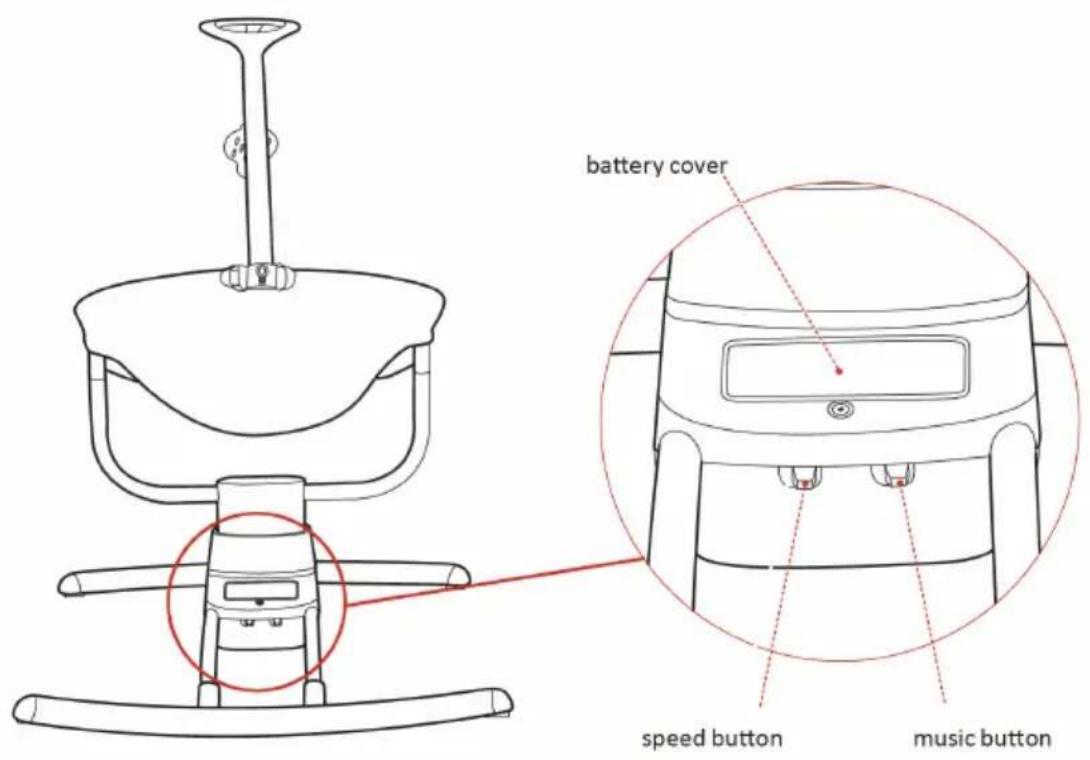

battery cover speed button music button

1. Batteries

To install/change batteries, use a cross screwdriver (not provided) to open the battery cover on the back of the music box as shown in the illustration.

Load four 'C' batteries into the battery box and fix back the cover. Use the swing with batteries when you are not in the room.

2. Control panel

When you press the speed button once, the chair will swing at the first speed. When you press the button for the second time, the chair will swing at the second speed. When you press the button for the third time, the chair will swing at the third speed. When you press the button for the fourth time, the chair will stop swinging.

When you press the music button, the music will play. You can increase or decrease the volume when the music is played by holding down the music button.

Line drawing of a baby seat with a red arrow pointing to the seat area detail (no text or symbols present)

3. Adaptor

The power supply with adapter - Input: AC 100 to 240V - 50 to 60Hz, Output: DC 5.8\~6.0V/1A.

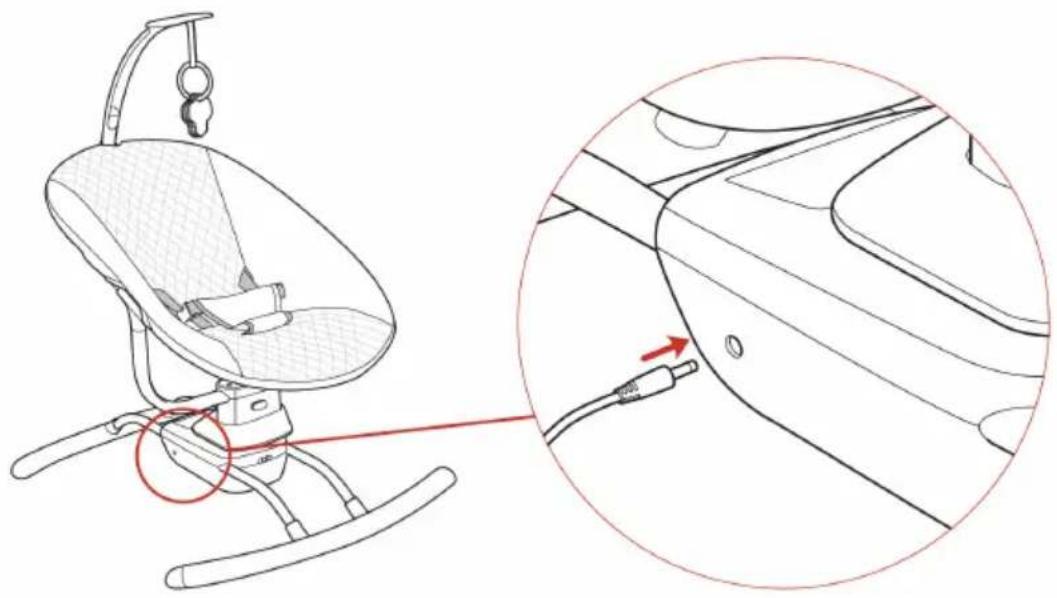

Insert the adapter in the control panel as shown in the illustration. The plug must be inserted in the wall outlet (230V). Use the swing with the adapter when you are in the room.

Three technical line drawings of a snowmobile device with internal components and directional arrows (no text or symbols)

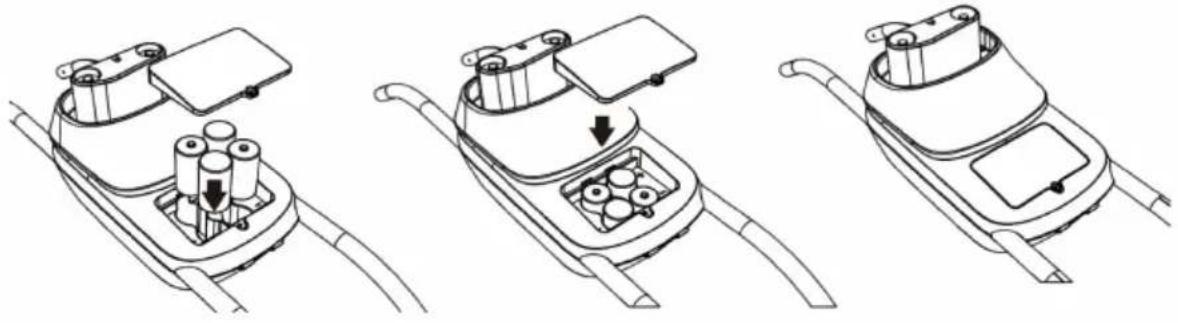

Battery installation instructions:

Loosen the screws as shown in the figure and open the battery box cover. Install 4 cells of C batteries according to the spring contact with the negative pole (please pay attention to placing the batteries correctly). Replace the battery box cover and lock the screws.

Three line drawings of a snowmobile device with internal components and directional arrows indicating movement (no text or symbols)

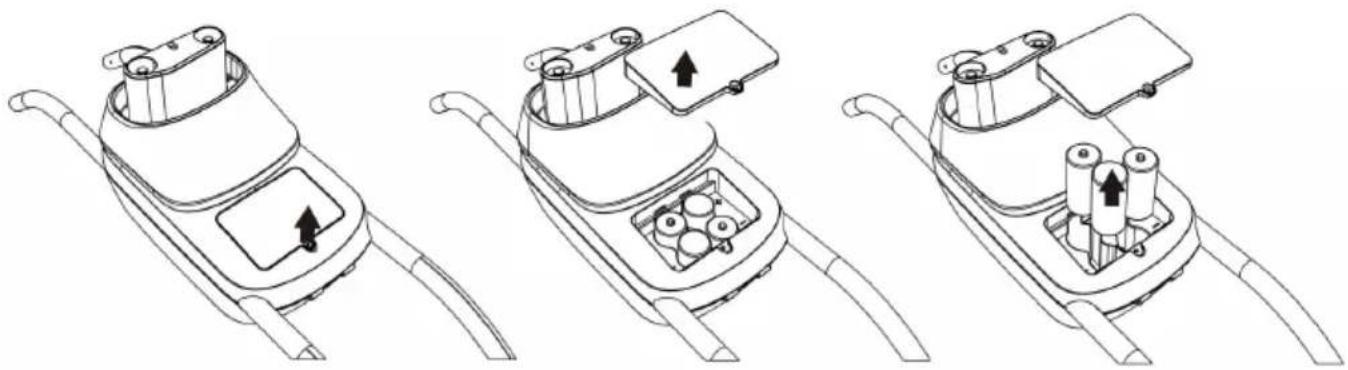

Battery removal instructions:

Loosen the screws as shown in the figure (please note that the screw cannot be removed from the cover) and open the battery box cover. Take out the batteries, and lock the screw on the battery box cover.

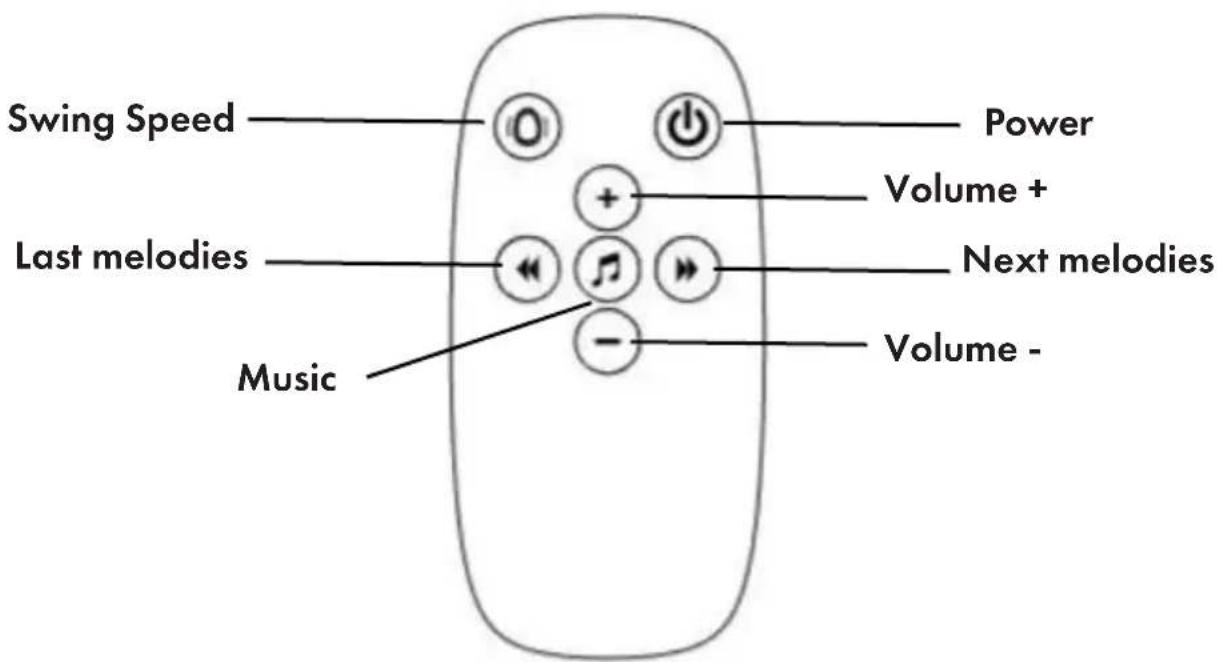

4. Remote control

Power: Press the button to power on the swing. Press the button again to turn off the power.

Swing speed: Press the button when power is on, the chair swings at the first speed. Press for a second time to swing at the second speed. Press for a third time to swing at the third speed. Press for a fourth time to stop the swing.

Music: Press the button in order to start or stop playing melodies.

Last melodies: Choose the previous melodies.

Next Melodies: Choose the next melodies.

Volume +: To increase the volume of the music.

Volume -: To decrease the volume of the music.

Note: in order to control the swing with the remote control, you must point the remote control to the control panel.

Swing Speed Power Volume + Last melodies Next melodies Music Volume -

CLEANING & MAINTENANCE

• Clean the plastic and metal parts with slightly damp soft cloth with mild soap.
• Clean the swing toybar and toys with a damp towel.
• The upholstery may be hand washed.
• Do not tumble dry or machine wash.
• Do not wet the adapter, control box or remote control with water or other liquids.
• Before cleaning, remove the plug of the adaptor from the socket and turn off the power supply.
• Do not clean with abrasive detergents that contain ammonia, bleach or spirit.
• When you store or transport the product, do not place items or objects in or on it because you may damage the structure, fabric cover or control box.
  -Store the product in a clean and dry place.
• Do not subject the product to direct environmental sun, rain, moisture or harsh temperature changes.
