USER MANUAL Rocker Deryan

Line drawing of a baby crib with a spoon and apple, no text or symbols present

THE INSTRUCTIONS ARE IMPORTANT. PLEASE READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE!

LANGUAGES

Nederlands

English

Deutsch

Français

10

17

12

WAARSCHUWINGEN

Metal U-shaped object with a small black dot on top, resembling a bicycle or steering wheel (no text or symbols visible)

1. Aluminium frame

Close-up of a striped garment or cushion with a dark top (no visible text or symbols)

1. Zachte bekleding

1. Speelgoed stang

OPZETTEN VAN DE WIPSTOEL

Diagram showing a device being rotated from an open frame to a closed frame, with no visible text or symbols.

Diagram of a solar panel with rotating arrow indicating rotation (no text or symbols)

Close-up of a satellite dish antenna with a magnified inset showing a small object (no text or symbols visible)

Interior view of a vehicle cabin with striped bedding and a circular object highlighting a specific area (no visible text or symbols)

Close-up of a hand holding a white plastic connector attached to a gray surface (no text or symbols visible)

Close-up of a baby boom chair with a 'Click' button overlay (no other text or symbols)

Mechanical assembly diagram showing a shaft with two labeled parts (① and ②), no readable text or symbols present.

Never leave the child unattended!

1. Stop using the bouncer as soon as the child can sit alone without support. It is suitable for children up to 6 months and a weight of up to 9 kg.
2. This bouncer is not designed for extended sleep. It is not a substitute for a (cot) bed.
3. If your child needs to sleep, it should be placed in a suitable (cot) bed.
4. It is dangerous to place this bouncer on a raised surface or on a table.
5. Assemble and adjust the bouncer with care. Before use, check the condition of the adjustment mechanism that adjusts the position of the backrest.
6. When adjusting the position of the backrest, ensure that the mechanism is securely locked in the selected position.
7. Be careful when rocking, applying too much force or rocking too hard may hinder your child.
8. Always use the safety belt.
9. Do not change the design or assembly method of this cradle.
10. Use only accessories and suitable spare parts approved by the manufacturer.
11. Do not leave the cradle near a switched-on fan, heat sources, sharp objects and water containers.
12. Never use the toy bar to carry the reclining cradle.

MAINTENANCE

1. The bouncer cover can be removed by opening the zip at the foot end. Only suitable for hand washing at a maximum temperature of 40 degrees.
2. The metal and plastic parts can be cleaned with lukewarm water and mild soap.
3. Store in a dry and cool place in summer.

PARTS

Metal U-shaped object with black connectors and a small black dot on the side (no text or symbols visible)

1. Aluminium frame

Close-up of a mitten with striped pattern and bow (no text or symbols visible)

1. Soft cover

1. Toy bar

Diagram showing a device being processed from a left-side frame to a right-side frame, with no visible text or symbols.

1. From the lowest position to the highest position:

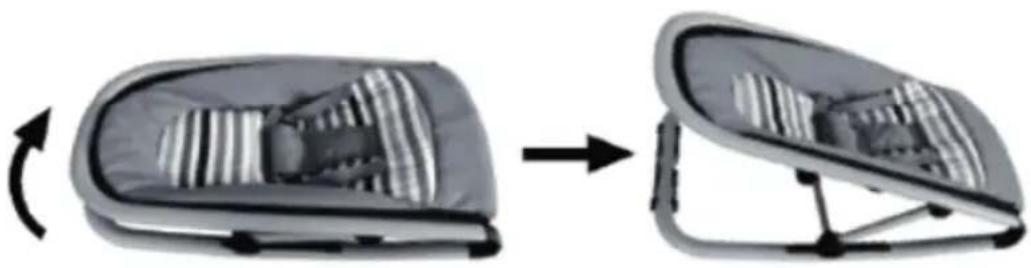

Carefully pull up the upper part of the seat and anchor the frame in one of the three possible positions with an audible click. Check the proper locking of the left and right frame holders.

Pure mechanical linkage diagram without any text, numbers, or symbols

1. Press the button on the crossbar to adjust the 3 positions of the backrest. Hold the backrest to support the child during movement, otherwise they may suffer serious head damage.

Diagram of a solar panel with rotating arrow indicating rotation (no text or symbols)

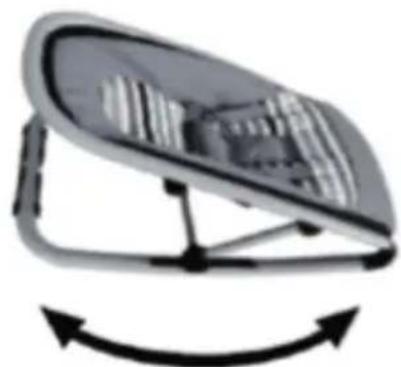

1. With the rocking function as shown

Close-up of a satellite dish antenna with a magnified inset showing a small mechanical component (no text or symbols visible)

1. Pull out the plastic to the stand position

SETTING UP THE BOUNCERCHAIR

Interior view of a person wearing a striped shirt, with a magnified inset showing a small object (no visible text or symbols)

Close-up of a hand holding a white plastic connector attached to a gray surface (no text or symbols visible)

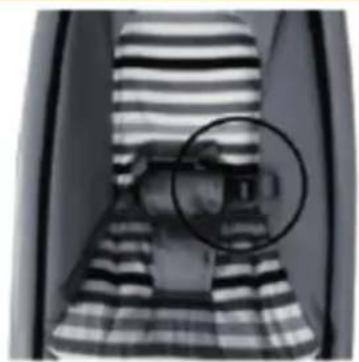

1. Harness system: place the child in the bouncer and make sure the crotch strap, with the buckle, passes between your child's legs. Now join the two lap belts together in front of the child and click the belts into the belt buckle. Make sure the waist harness is tight and comfortable around the child and that the harness is securely fastened in the buckle with a "click". To release the harness, push on the clips and pull the belts out of the buckle.

ASSEMBLE THE TOY BAR

Click

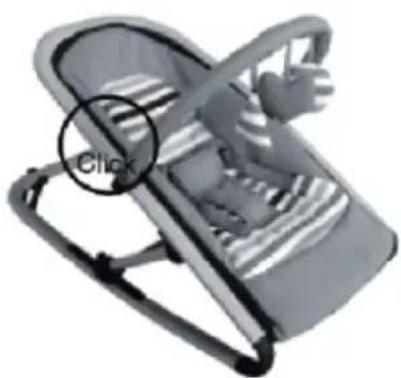

1. Click the toy bar onto the rocker, then it is ready for use.

FOLDING THE BOUNCERCHAIR

Close-up of a mechanical device with labeled parts (① and ②), showing a shaft and adjustment knobs without any readable text or symbols.

1. To fully fold the seat, return it to the lowest position 3, then press both the ① button and the ② lock to close it.

WARNUNGEN

Metal U-shaped object with a small black dot on the side (no text or symbols visible)

Illustration of a mitten with striped bedding (no text or symbols)

Diagram showing a device being converted into a flat panel, with no visible text or symbols.

Pure mechanical linkage diagram with arrows indicating movement (no text or symbols)

Diagram of a solar panel with rotating arrow indicating rotation (no text or symbols)

Close-up of a satellite dish antenna with a circular inset showing a cable (no text or symbols visible)

Close-up of a person wearing a striped shirt and plaid skirt, with a magnified inset showing a small object (no visible text or symbols)

Close-up of a hand holding a white plastic connector attached to a gray surface (no text or symbols visible)

Close-up of a baby boom chair with a circular annotation labeled 'Click' pointing to the side (no other text or symbols visible)

Close-up of a mechanical tool with labeled parts (① and ②), showing motion direction arrows (no text or symbols beyond labels)

Metal U-shaped object with horizontal bars, resembling a bicycle or vehicle (no text or symbols visible)

Close-up of a traditional mummy bag with striped pattern (no text or symbols visible)

Diagram showing a device being rotated from left to right, with no visible text or symbols.

Diagram of a solar panel with rotating arrow indicating rotation (no text or symbols)

Close-up of a satellite dish antenna with a circular inset showing a device (no text or symbols visible)

Close-up of a striped patterned object with a magnified inset showing a small object, no visible text or symbols.

Close-up of a hand holding a white plastic buckle with a gray strap, against a plain background (no text or symbols visible)

Close-up of a mechanical assembly with labeled parts (① and ②), showing directional arrows and no readable text or symbols.
