USER MANUAL CF-CN-0005 Omcan

Modern stainless steel decorative fountain with tiered glass and base (no text or symbols visible)

Revised - 01/18/2018

RoHS CE

STOP DO NOT RETURN THIS PRODUCT TO THE STORE For questions or assistance with this product call OMCAN Toll Free: 1 800 465 0234 Customer Service or Visit the Support section of www.omcan.com

Toll Free: 1-800-465-0234

Fax: [phone]

Email: [e-mail]

www.omcan.com

NEMA 5 - 15 125 VAC / 15 AMP RECEPTACLE

Table of Contents

Model CF-CN-0005

Section

Page

General Information 3 - 4

Safety and Warranty 4 - 5

Technical Specifications 5

Installation 6

Operation 6

Maintenance 7

Parts Breakdown 8 - 9

Electrical Schematics 9

Notes 10

Warranty Registration 11

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person's improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and not under the influence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modification to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety instructions.

Omcan would like to thank you for purchasing this machine. It's of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the equipment if servicing or returning of the machine is required.

1. Never move the unit when it is in use.
2. To prevent electrical shock, do not immerse cord, plug or any part of the motor base in water or any other liquids.
3. When the appliance is used by or near children, adult supervision is required.
4. Unplug from the outlet when not in use and before removing parts for cleaning.
5. To reduce the risk resulting from becoming entangled or tripping over a long cord a short power supply cord is provided, do not use an extension cord.

6. Temperature:

• Turn the heater to 80°C in order to melt the chocolate before turning on the motor.
• Turn the heater to 50\~55°C in a warm environment.
• Turn the heater to 55\~65°C in a cool environment.

The chocolate will go bad quickly if the temperature is set too high.

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

Please see www.omcan.com/warranty.html for complete info.

WARNING:

The packaging components (cardboard, polyethylene, and others) are classified as normal solid urban waste and can therefore be disposed of without difficulty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specifications

Model CF-CN-0005
Temperature Range 30 - 150°C / 86 - 302°F
Power 215 W (Heating) / 95 W (Motor)
Electrical 110V / 60Hz / 1
Chocolate Capacity 11 lbs. / 5 kgs.
Dimensions (Dia. x H) 14.6" x 31.5" / 372 x 800mm
Weight 17.6 lbs. / 8 kgs.
Item Number 40381

Installation

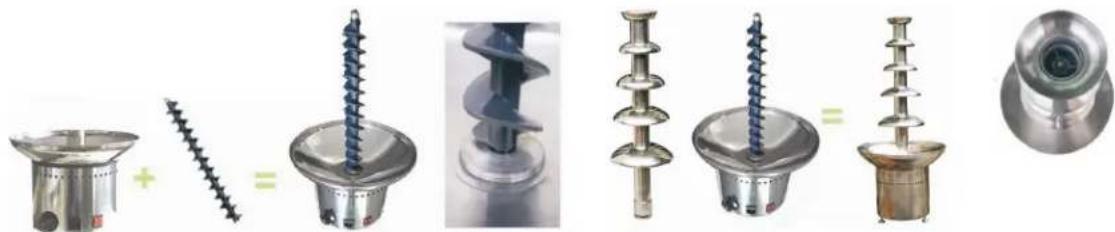

ASSEMBLY INSTRUCTIONS

1. Insert the auger in the machine body.
2. Insert the stainless steel tower on the auger and fix on tower cover.
3. Fix the auger cover on top of the fountain. Pour liquid chocolate and connect the power cord.

Product assembly diagram showing various mechanical components including a conical screw, spring, and insulator (no text or labels visible)

1. This unit should handled carefully to ensure that it is not damaged.
2. Packaging must be removed with the correct side up (the package is clearly marked).
3. Keep the outer packaging and the warranty in order to easily transport the machine for servicing.
4. Clean and dry the unit before use.
5. Check that all parts are stable before use.
6. Omcan does not recommend the use of accessory attachments other than those supplied with the unit. This may cause injuries and will void the warranty.
7. The unit must be level to operate properly.

Operation

1. Place this unit on a level surface, then connect it to an electrical outlet.
2. Never place anything other than the intended ingredients in the base bowl.
3. Turn the heater on and let the unit warm up for at least 10 minutes before adding the chocolate to melt, in this time the motor should not be turned on.
4. For the effective operation of the motor, the chocolate should be melted slowly into the base bowl.
5. If the fountain machine did not achieve the desired effect, ensure there is enough chocolate or adjust the bottom of the unit to keep the machine leveled.
6. Prevent large chunks of fruit, food or other items from falling into the base bowl. These will clog the base of the tower, causing the chocolate to not flow properly.
7. Turn off the motor every 60 minutes of operation, stir the chocolate, and restart the motor. This will ensure that the chocolate tastes fresh.
8. To extend the life of the machine, allow the machine to rest after 8-10 hours of operation.
9. Repeat the above steps each time when using the machine.

CLEANING

To ensure many years of use, it is advised that after each operation of the fountain it should be cleaned by following these steps.

1. After operation, wipe off the remaining chocolate on the tower and base bowl with paper towels.
2. Wash the tower, tower pole, and auger in warm water with a soft cloth.

TROUBLESHOOTING

Problem Cause Solution
The heater display light is not lit. The	heater switch is not on, or the unit is not plugged in.	Turn the heater on, or connect the unit to an electrical socket.
The chocolate fountain power light is not lit, even though it is connected to a power socket.	The tube has been damaged or the product has not been replaced as needed, this has caused the motor to break.	Replace the tube or replace the motor.
The chocolate is not flowing properly.	The unit is not level. Adjust the screw	at the bottom of the machine to ensure the machine is level.
	The chocolate level is too low. Add more chocolate.
	The chocolate is too thick. Thin the chocolate with vegetable oil.
	The temperature is too low. Raise the temperature.
	There is trapped air in the tower Turn the unit off, then turn it on.

REFERENCE

Item Number	Model Number Description	Manufacturer Model Number
40381 CF-CN-0005	5 Tiers Chocolate Fountain 110V/60HZ QPS	ET-37/5

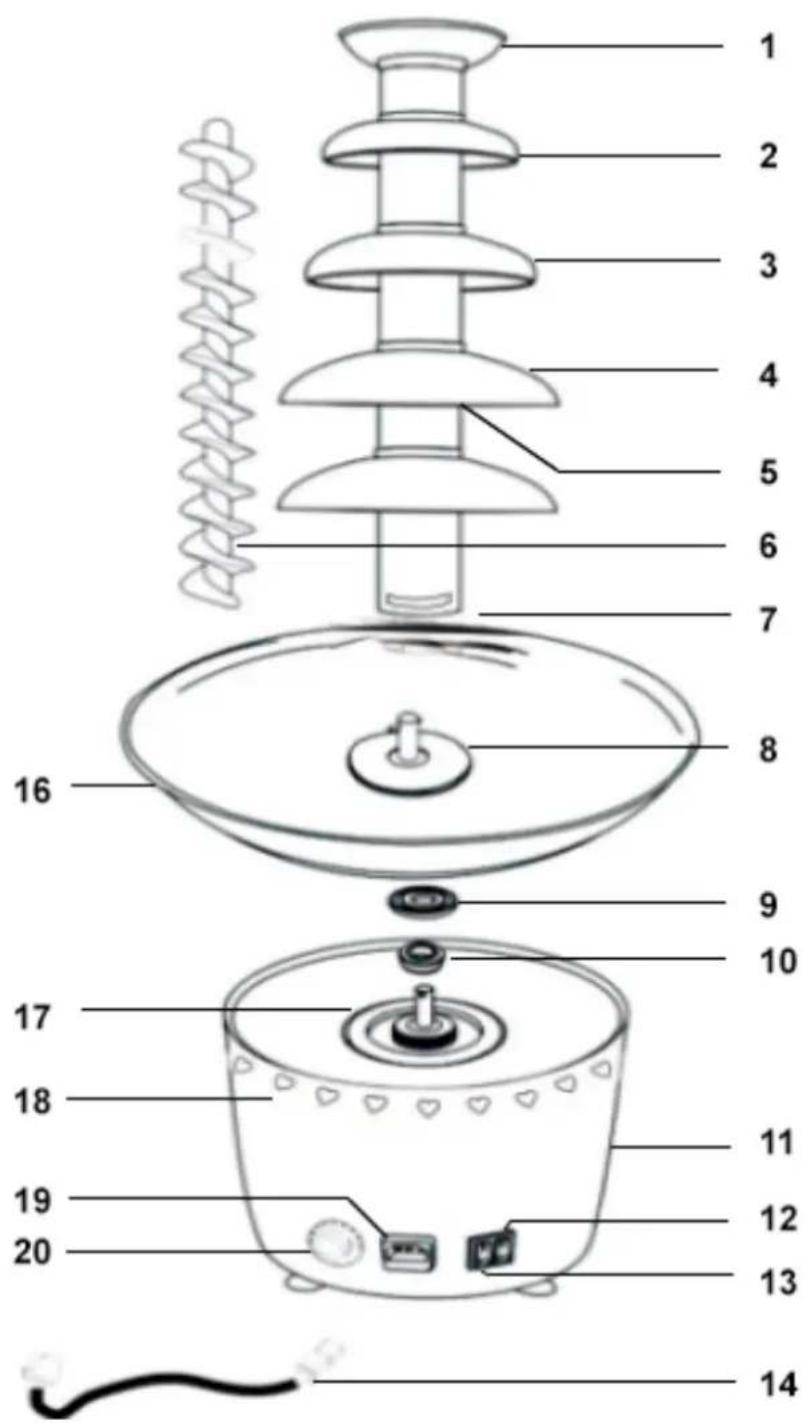

Parts Breakdown

Model CF-CN-0005 40381

Labeled diagram of an electrical insulator assembly with numbered parts for identification

Model CF-CN-0005 40381

Item No. Description Position Item No. Description Position
76535 10cm Tower for ET-37/5 1 76542 Bolt for ET-37/5 8 76549 33cm Base Bowl for ET-37/5 16
76536	12cm Tower for ET-37/5	2	76543	White Colloid for ET-37/5	9	76550	Motor Center for ET-37/5 17
76537	14cm Tower for ET-37/5	3	76544	Red Colloid for ET-37/5	10	76551	Cool Aperture for ET-37/5 18
76538	17cm Tower for ET-37/5	4	76545	Base for ET-37/5	11	76552	Electrical Outlet for ET-37/5 19
76539	Tower Pole for ET-37/5	5	76546	Motor Switch for ET-37/5	12	76553	Heat Control for ET-37/5 20
76540 Auger for ET-37/5		6 76547 Heat Switch for ET-37/5		13
76541 Collet for ET-37/5		7 76548 Cord for ET-37/5		14

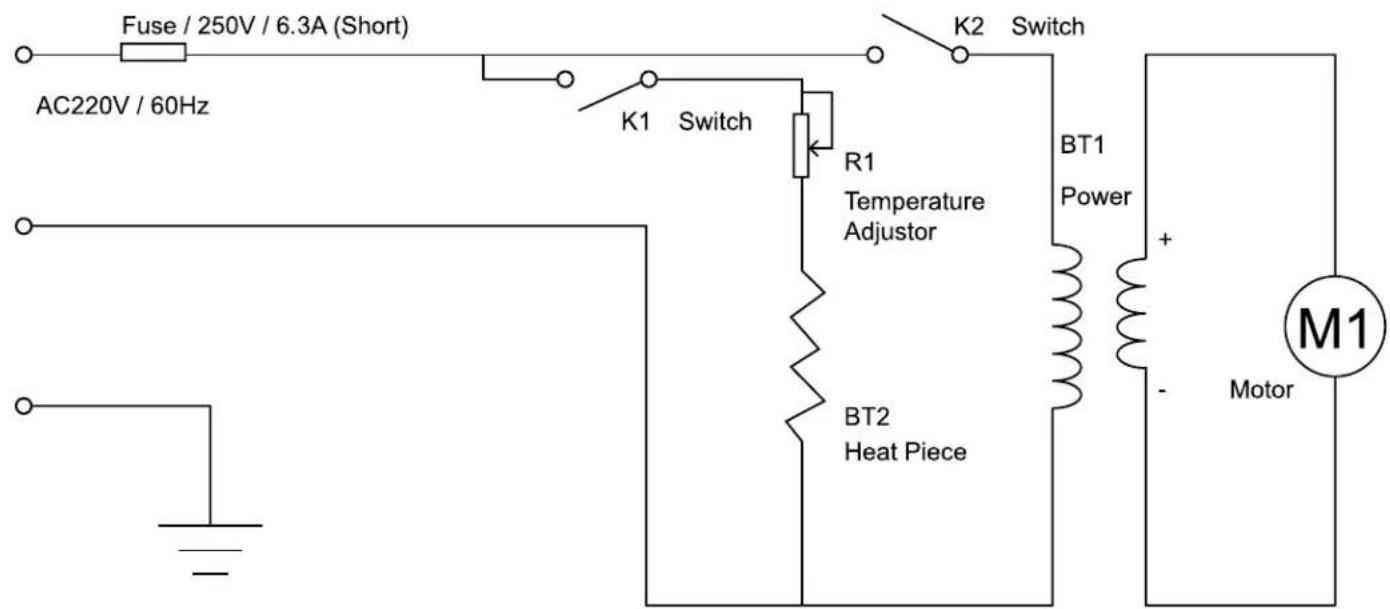

Electrical Schematics

Model CF-CN-0005 40381

Fuse / 250V / 6.3A (Short) AC220V / 60Hz K1 Switch K2 Switch R1 Temperature Adjustor BT1 Power + - BT2 Heat Piece M1 Motor

Notes

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting:

www.omcan.com/warrantyregistration.html

For mailing in Canada

For mailing in the US

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

or email to: [e-mail]

Purchaser's Information

Name: Company Name:

Address:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice:

Model Name: ____ Model Number:

Machine Description:

Date of Purchase (MM/DD/YYYY):

Would you like to extend the warranty? □ Yes □ No

Telephone:

Restaurant

Bakery

Deli

□

□

□

□

□

□ Other (specify):

Serial Number:

Date of Installation (MM/DD/YYYY):
