USER MANUAL FS-US-0246 Omcan

Mechanical device with coiled tubing and a blue housing (no visible text or symbols)

Revised - 09/11/2018

STOP DO NOT RETURN THIS PRODUCT TO THE STORE For questions or assistance with this product call OMCAN Toll Free: 1 800 465 0234 Customer Service or Visit the Support section of www.omcan.com

Toll Free: 1-800-465-0234

Fax: [phone]

Email: [e-mail]

www.omcan.com

NEMA 5 - 15 125 VAC / 15 AMP RECEPTACLE

Table of Contents

Model FS-US-0246

Section

Page

General Information 3 - 4

Safety and Warranty 4 - 5

Technical Specifications 6

Installation 6

Operation 6

Maintenance 6 - 7

Parts Breakdown 7 - 11

Electrical Schematics 12

Notes 13 - 14

Warranty Registration 15

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person's improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and not under the influence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modification to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety instructions.

Omcan would like to thank you for purchasing this machine. It's of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the equipment if servicing or returning of the machine is required.

When using fish scalers as with any electric tool basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury.

READ ALL INSTRUCTIONS

GROUNDING INSTRUCTIONS

This tool should be grounded while in use to protect the operator from electric shock. The tool is equipped with a three conductor cord and three prong grounding type plug to fit the proper grounding type receptacle. The green conductor in the cord is the grounding wire. Never connect the green wire to a live terminal.

GENERAL SAFETY PROCEDURES

• Keep work area clean. Cluttered areas invite injury.
• Keep children away. Do not let visitors contact tool or extension cord. All visitors should be kept away from work area.
• Do not use the tool for any purpose for which it is not intended.
• Dress properly, do not wear loose clothing or jewelry as they can get caught in moving parts.
• Wear safety glasses to protect against flying debris.
• Don't overreach, keep proper footing and balance at all times.
• Disconnect power cord when not in use, before servicing and when changing flexible shafts, handpieces, and tools.
• Avoid unintentional starting. Be sure switch is off (handpiece holder down) before plugging tool in.
• Stay alert, be aware of what you are doing and others around you. Do not operate the tool when you are tired.
• Check for damaged parts before use of the tool. Any part damaged such as a guard should be repaired or replaced by an authorized service center. Do not use tool if switch does not turn it on and off.

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

Please see www.omcan.com/warranty.html for complete info.

WARNING:

The packaging components are classified as normal solid urban waste and can therefore be disposed of without difficulty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specifications

Model FS-US-0246
Power 0.33 HP / 0.25 kW
RPM 3450
Electrical 110V / 60Hz / 1
Gross Weight 37 lbs. / 16,8 kgs.
Gross Dimensions 20" x 20" x 12" / 508 x 508 x 305mm
Item Number 45357

Installation

ASSEMBLY INSTRUCTIONS

BE SURE UNIT IS UNPLUGGED AND SWITCH IS IN THE OFF POSITION BEFORE PROCEEDING.

• Align and insert flexible core into motor core adapter.
• Insert outer casing into motor casing adapter until the shoulder on the coupling bottoms out.
• Tighten both socket cap screws using a 3/16" hex key.
• Insert the flexible core into the adapter on the hand piece, and then thread hand piece onto flexible shaft.
• Hang unit from a secure mounting at a height that allows the shaft to have a gradual arc while the operator is using the tool.
• The scaler is now ready for use.

Operation

Hold the hand piece securely by the knurled anti slip handle. Keep hands away from the cutter head. Lift the yellow hand piece holder to start the motor. Beginning with the tail end of the fish, slowly move the cutter head toward the head of the fish. Repeat this motion until all the scales have been removed. When you are finished scaling turn the power off by pulling the hanger down, and replacing the hand piece on the holder after it has stopped spinning.

Maintenance

The motor and the hand piece use sealed bearings which require no maintenance over their life span. The life expectancy of the flexible shaft can be increased by lubricating the inner core after every one hundred hours of use. To lubricate the inner core remove the shaft from the motor and then slide the inner flexible shaft

our of the rubber housing. Wipe the old grease off and then reinstall the core applying approximately 1/16" of Omcan food grade lubricant (Item: 31212) along the whole length.

REFERENCE

Item Number	Model Number D	Description Manufacturer Model Number
45357 FS-US-0246		Fish Scaler 0.3 HP / 246 W110V/60/1 cQPSus	EFS

Parts Breakdown

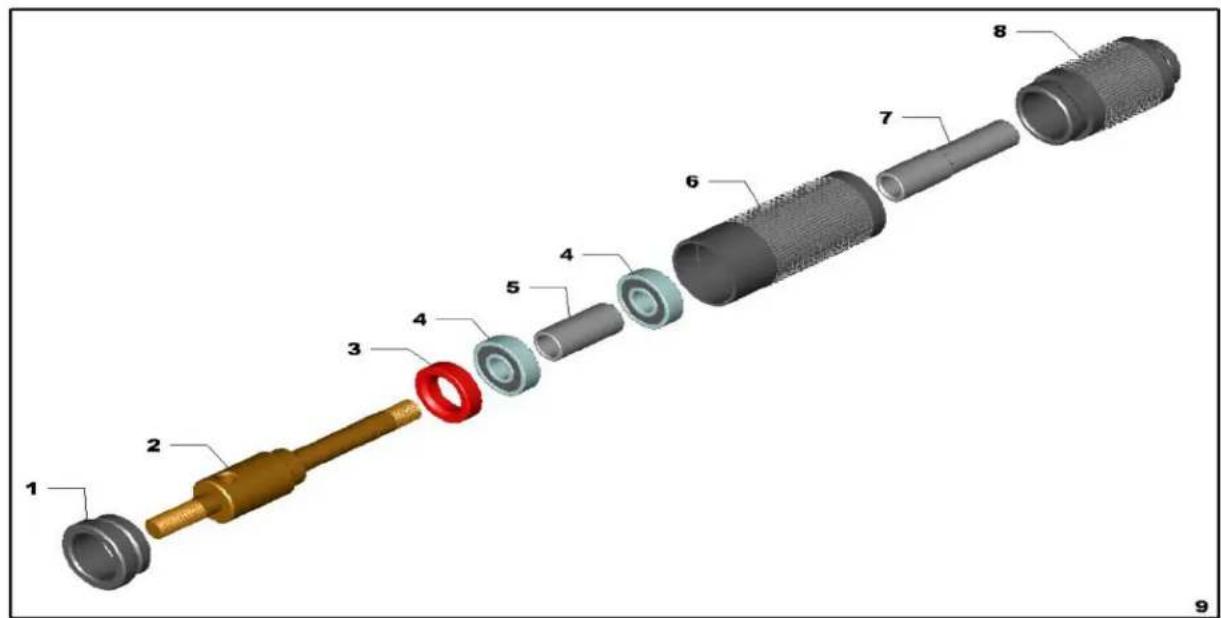

Model FS-US-0246 45357 Hand Piece

Exploded view diagram of a mechanical assembly with numbered parts for identification

Parts Breakdown

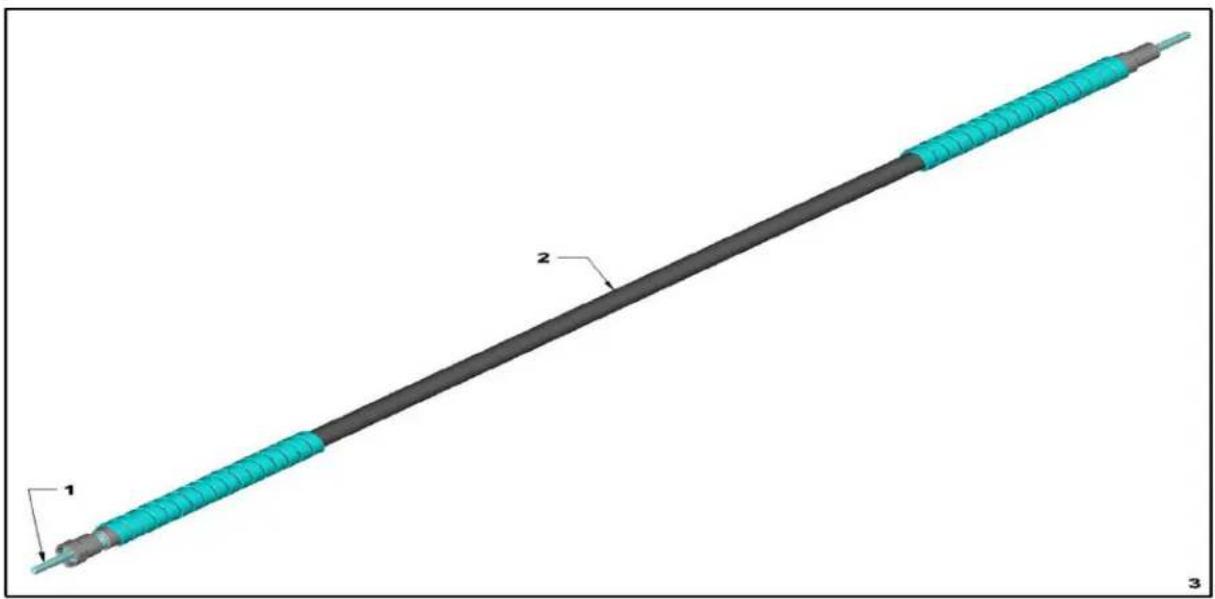

Model FS-US-0246 45357 Shaft Assembly

3D diagram of a mechanical or electrical component with labeled parts (1, 2, 3), showing no text or symbols beyond labels.

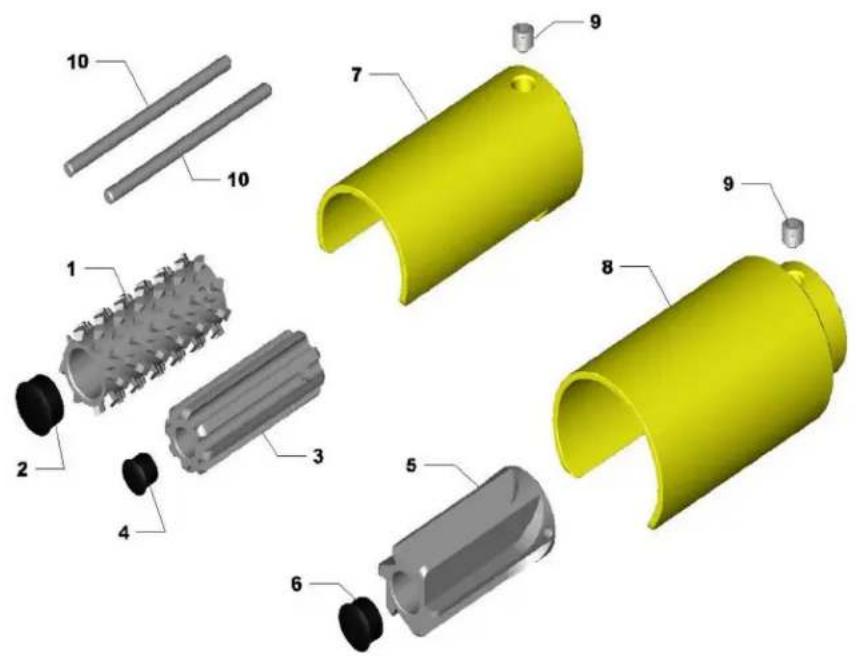

Cutters and Guards

Exploded view diagram of a mechanical assembly with numbered parts for identification

Parts Breakdown

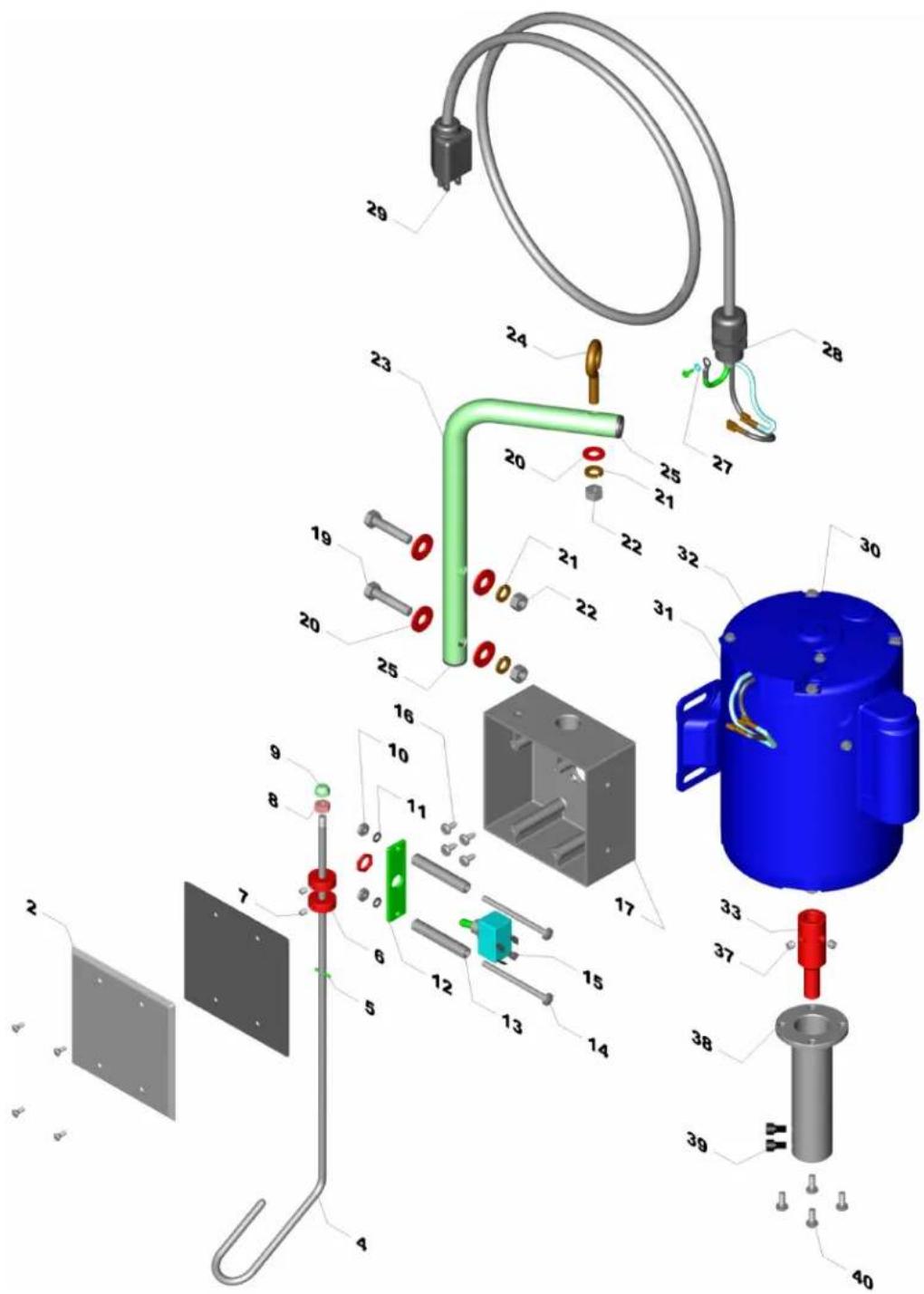

Power Unit AssemblyMod

Exploded view diagram of a mechanical assembly with numbered parts for identification

Parts Breakdown

Model FS-US-0246 45357 Hand Piece

Item No.	Description Position	Item No.	Description Position	Item No.	Description Position
67410 Cap Bearing for EFS 1 67413 Bearing for EFS 4 67416 Core Adapter for EFS 7
67411 Spindle for EFS 2 67414 Spacer for EFS 5 67417 Casing Adapter for EFS 8
67412 Oil Seal for EFS	3	67415	Housing for EFS	6	41753 Complete Hand Piece for EFS 9

Shaft Assembly

Item No.	Description Position		Item No.	Description Position		Item No.	Description Position
41751	Core for EFS	1	41752	Casing for EFS	2	67418	Complete Shaft Assembly for EFS	3

Cutters and Guards

Item No.	Description Position		Item No.	Description Position		Item No.	Description Position
67419	Diamond Pattern Cutter for EFS	1	67423	6 Flute Cutter for EFS	5	67427	Guard of 6 Flute Cutter for EFS	8
67420	Diamond Pattern End Cap for EFS	2	67424	6 Flute Cutter End Cap for EFS	6	67428	Guard of 6 Flute Cutter with Set Screw for EFS	8A
67421	8 Flute Cutter for EFS	3	67425	Guard of Diamond and 8 Flute Cutter for EFS	7	67429	Set Screw for EFS	9
67422	8 Flute Cutter End Cap for EFS	4 67426		Guard of Diamond and 8 Flute Cutter with Set Screw for EFS	7A	67430	Pin of Cutter Assembly for EFS	10

Parts Breakdown

Power Unit AssemblyMod

Item No.	Description Position		Item No.	Description Position		Item No.	Description Position
37635 Cover for EFS 2 37629 Screw for EFS 14 37624 Electric Cord for EFS			29
37636 Scaler Shaft Hanger for EFS 4 37633 Switch for EFS 15 37631 Electric Motor for EFS 30
67431	Hanger with Spring Pin, Nut and Acorn Nut for EFS	4A	67438	Screw for EFS 16 67446			Complete Power Unit without Core and Casing Adapters for EFS	30A
37637	Stainless Steel Roll Pin for EFS	5	37634	Electric Box for EFS	17	37638	Wiring Harness for EFS	31
67432	Switch Spacer for EFS	6	67439	Bolt for EFS	19	37632	Wire Nut for EFS	32
37622	Ring for EFS	6A	67440	Washer for EFS	20	67447	Core Adapter Standard Duty for EFS	33
67433	Set Screw for EFS	7	67441	Lock Washer for EFS	21	37627	Standard Core Adapter for EFS	33A
67434	Nut for EFS	8	67442	Nut for EFS	22	67448	Set Screw of Core Adapter for EFS	37
67435	Acom Nut for EFS	9	67443	Hanger for EFS	23	67449	Casing Adapter for EFS	38
67436	Nut for EFS	10	37625	Hanger Assembly for EFS	23A	37628	Casing Adapter for EFS	38A
67437	Lock Washer for EFS	11, 27	67444	Eye Bolt for EFS	24	67450	Socket Cap Screw for EFS	39
37630	Switch Mounting Plate for EFS	12	67445	End Cap for EFS	25	67451	Pan Head Screw for EFS	40
37639 Spacer for EFS		13 37623 Strain Relief for EFS		28

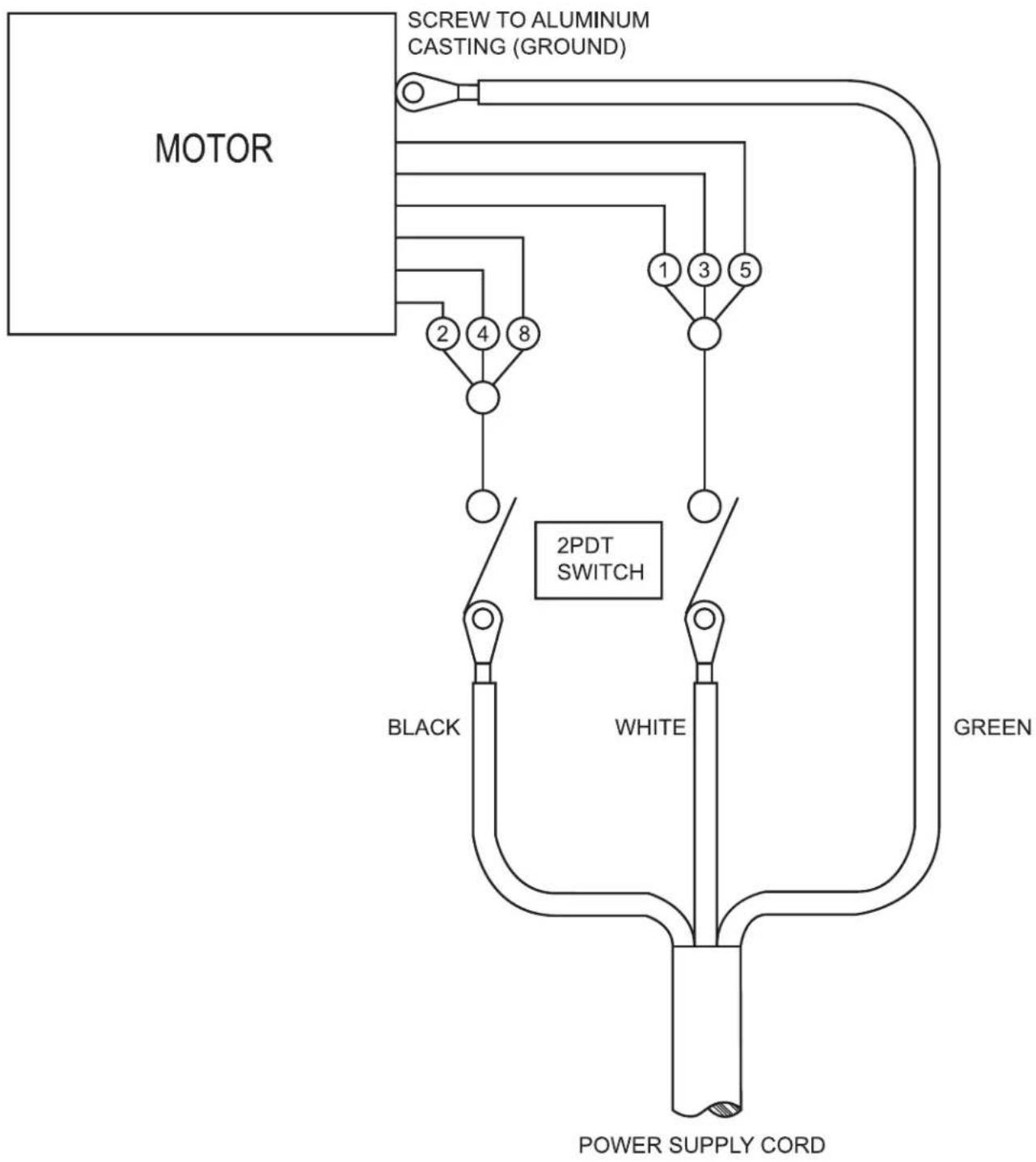

Electrical Schematics

Model FS-US-0246 45357

Notes

Notes

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting:

www.omcan.com/warrantyregistration.html

For mailing in Canada

For mailing in the US

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

or email to: [e-mail]

Purchaser's Information

Name: Company Name:

Address:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice:

Model Name: ____ Model Number:

Machine Description:

Date of Purchase (MM/DD/YYYY):

Would you like to extend the warranty? □ Yes □ No

Telephone:

Restaurant

Bakery

Deli

□

□

□

□

□

□ Other (specify):

Serial Number:

Date of Installation (MM/DD/YYYY):
