44181 - Food Warmers Omcan - Free user manual and instructions

USER MANUAL 44181 Omcan

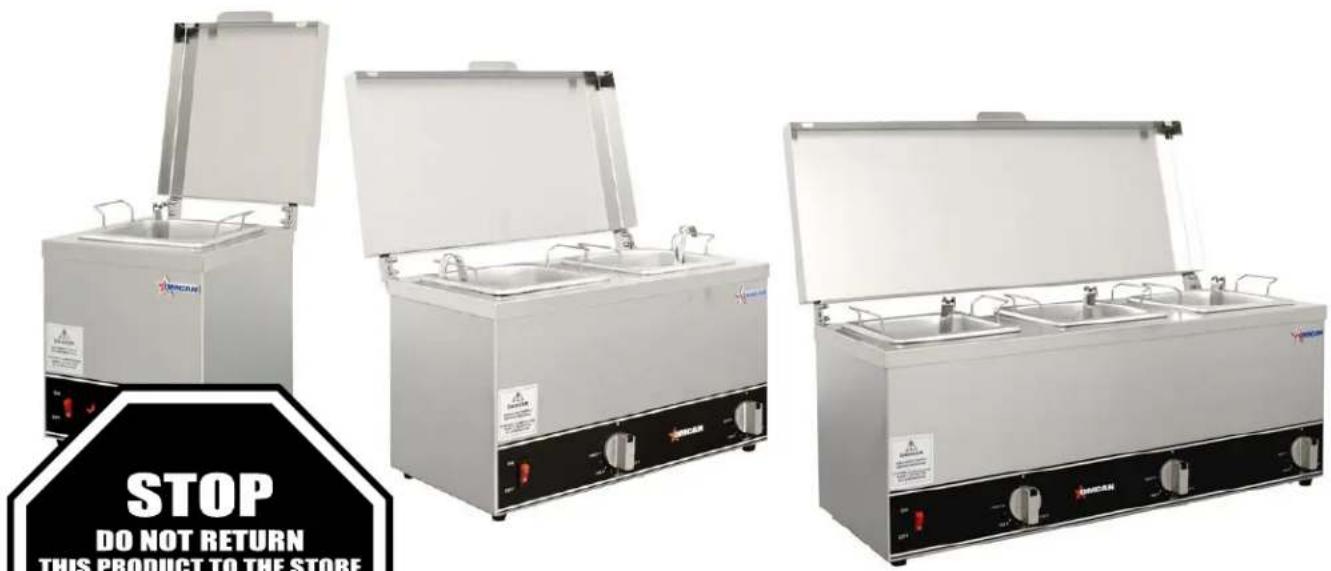

Countertop Sauce Warmers

Models FW-CN-0251, 0252, 0253

Items 44181, 44182, 44183

Instruction Manual

STOP DO NOT RETURN THIS PRODUCT TO THE STORE

Revised - 06/24/2021

APPROVED

Toll Free: 1-800-465-0234

Fax: [phone]

Email: [e-mail]

www.omcan.com

NEMA 5 - 15 125 VAC / 15 AMP RECEPTACLE

Table of Contents

Model FW-CN-0251 / Model FW-CN-0252 / Model FW-CN-0253

General Information 3 - 4
Safety and Warranty 4 - 5
Technical Specifications 6
Installation 6
Operation 6
Maintenance 7
Parts Breakdown 8 - 11
Electrical Schematics 12 - 14
Warranty Registration 15

Section Page

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person's improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and not under the influence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modification to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety instructions.

Omcan would like to thank you for purchasing this machine. It's of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the equipment if servicing or returning of the machine is required.

• The unit has been installed with a thermal cut out to avoid over heating or damage to the element.
• If the power cord is damaged, it must be replaced by qualified technician.

Caution: Don't touch the surface when the appliance is working, it is hot.

Safety and Warranty

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

Please see https://omcan.com/disclaimer for complete info.

WARNING:

The packaging components are classified as normal solid urban waste and can therefore be disposed of without difficulty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specifications

Model FW-CN-0251 FW-CN-0252 FW-CN-0253
Pot Capacity 1 2 3
Pot Size 2.5 L / 2.6 QT
Material Stainless Steel
Temperature Range 46 - 60 - 73.9 - 90.5°C / 115 - 140 - 165 - 195°F
Power 200W 400W 600W
Electrical 120V / 60Hz / 1
Weight 10.6 lbs. / 4.8 kgs.	18.7 lbs. / 8.5 kgs. 27.1 lbs.	/ 12.3 kgs.
Packaging Weight	12.4 lbs. / 5.6 kgs.	20.5 lbs. / 9.3 kgs.	29.1 lbs. / 13.2 kgs.
Dimensions	11" x 8.2" x 9"280 x 207 x 280mm	11" x 16.3" x 11"280 x 413 x 279mm	11" x 24.4" x 11.1"280 x 619 x 281mm
Packaging Dimensions	11.6" x 10.8" x 13.2"295 x 275 x 335mm	18.9" x 11.6" x 13.2"480 x 295 x 335mm	27" x 11.6" x 13.2"685 x 295 x 335mm
Item Number	44181	44182	44183

Installation

Take out the Warmer from the packaging and locate the unit on a firm level surface.

When this unit is to be positioned in close proximity to a wall, partitions, kitchen furniture, decorative finished, etc., it is recommended that they be made of non-combustible material, if not, they shall be clad with a suitable non-combustible heat-insulating material, and that the closet attention be paid to fire prevention regulations.

Once the Warmer has been placed in position by consulting International Standards and regulations. The Warmer is ready to operate.

Operation

Plug the power cord into the power supply, Switch on the unit, Turn the temperature dial clockwise to the desired setting, when not in use, just simply turn off the thermostat and unplug the power.

• Clean using warm soapy water after each use.
• Do not immerse completely in water to clean.
• The unit is not to be cleaned with a water jet.

HELP

If the Warmer does not work, please check the following:

1. The power supply is correct.
2. The element is not damaged.

Parts Breakdown

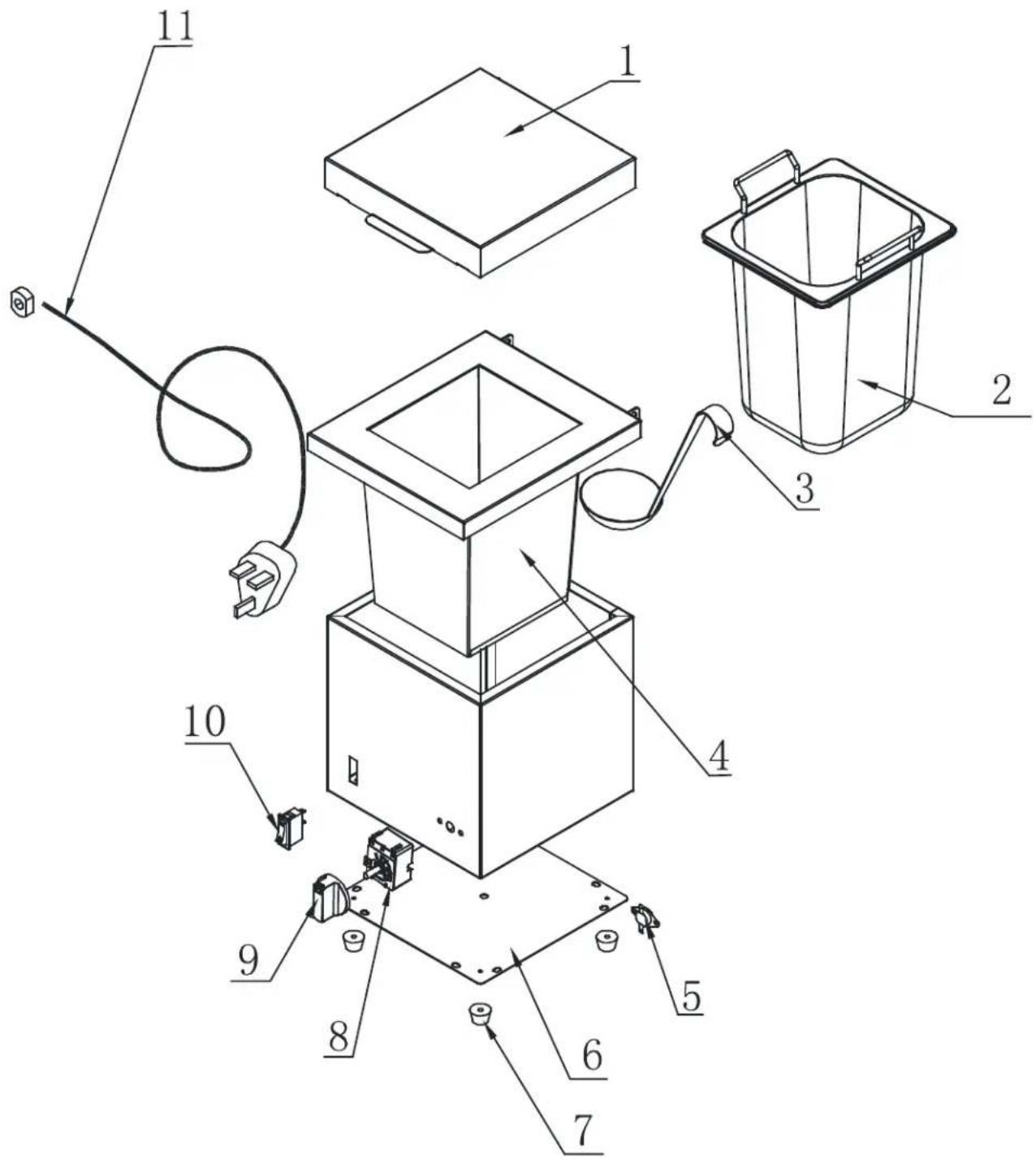

Model FW-CN-0251 44181

Technical diagram of a device with numbered components, likely an electrical or mechanical assembly.

Parts Breakdown

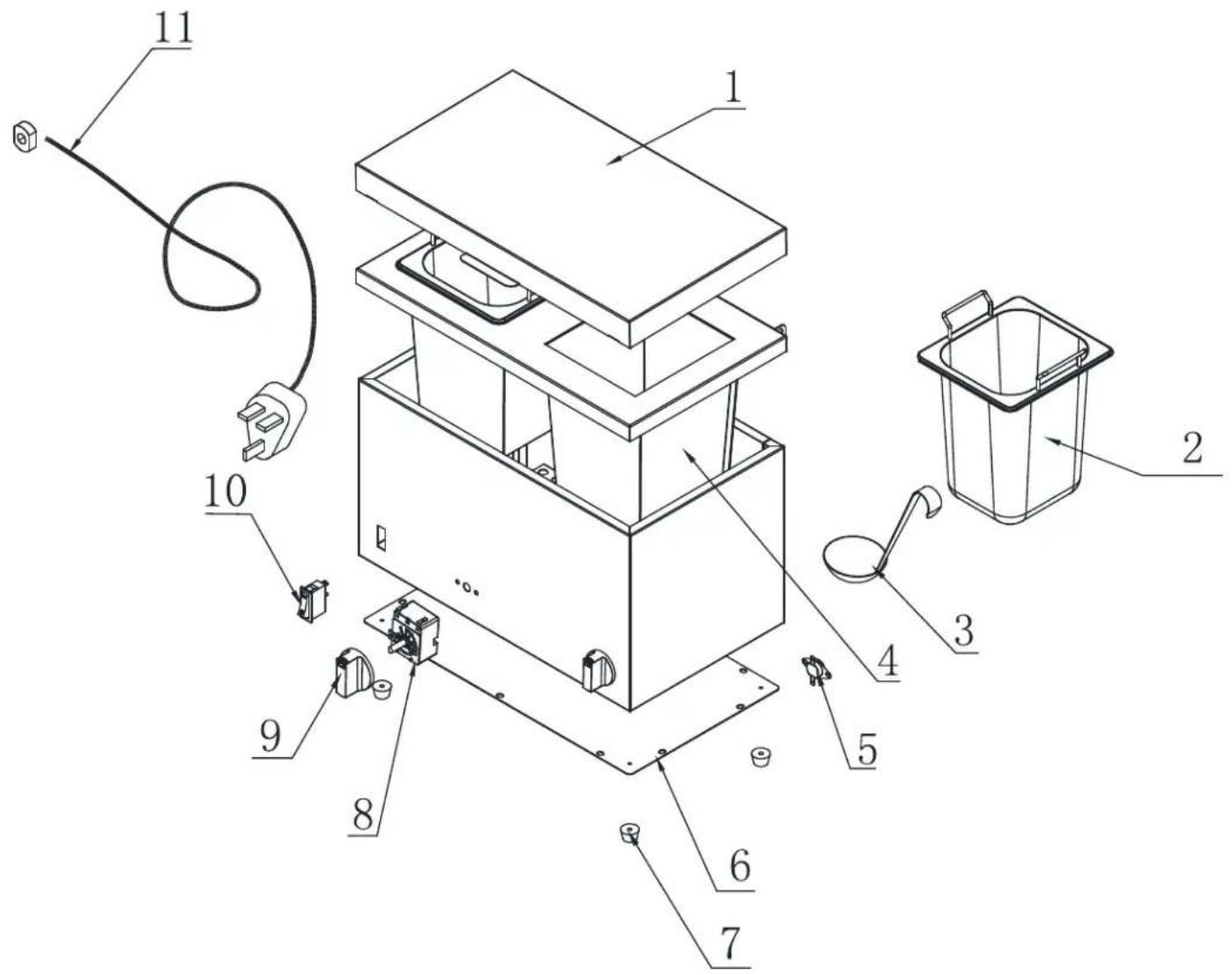

Model FW-CN-0252 44182

Technical diagram of a device with numbered components, likely an electrical or mechanical assembly.

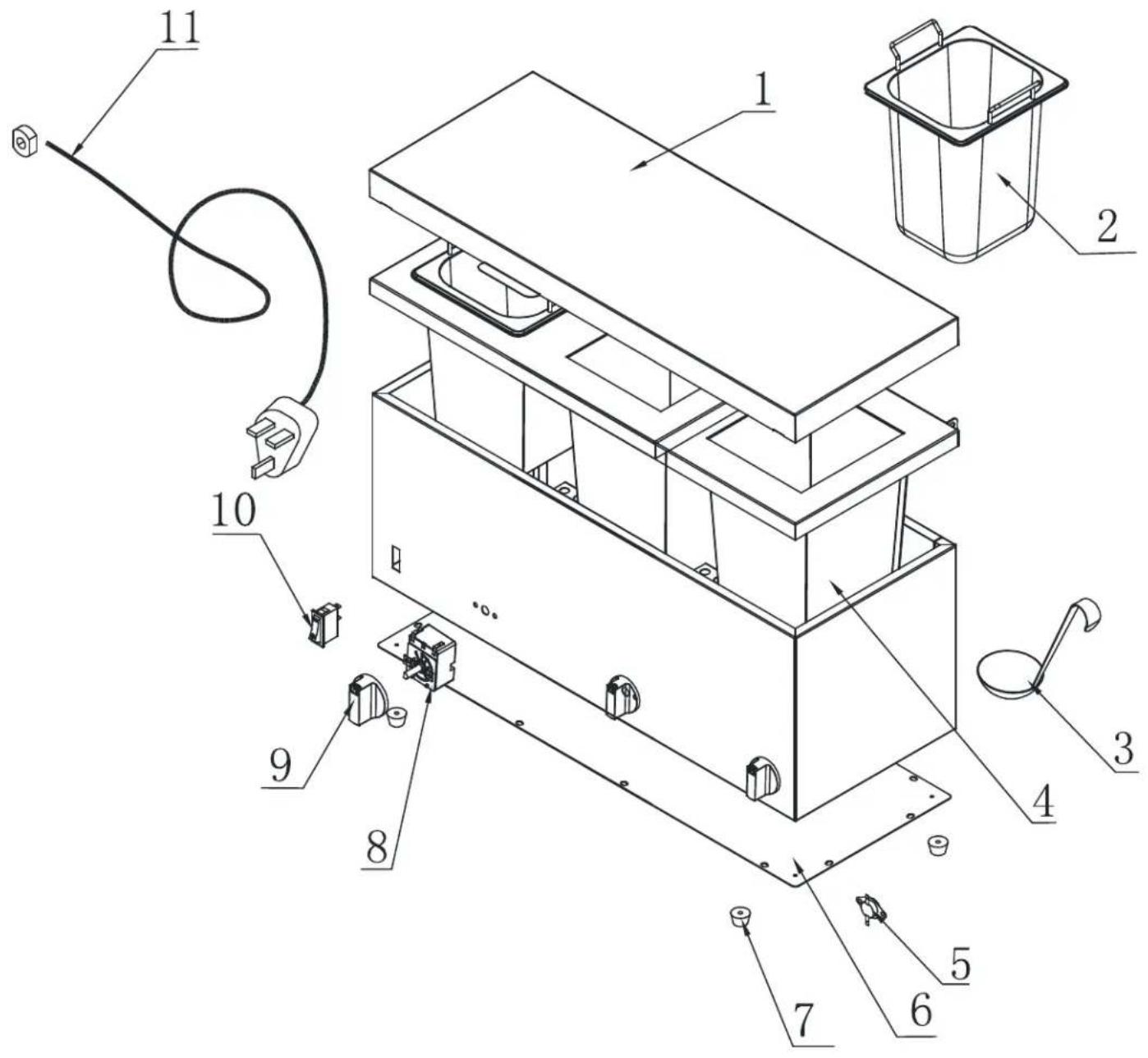

Parts Breakdown

Model FW-CN-0253 44183

Technical diagram of a mechanical device with numbered components and labeled parts

Model FW-CN-0251 44181

Item No. Description Position Item No. Description P

65021 Lid for 44181 1 65027 Thermal Cut Out for 44181 5 65033 Dial for
65024	Pot with Handles for 44181	2
65025	Spoon for 44181	3

65026 Element for 44181
4 65032 Thermostat for 44181

position Item No. Description Position

4181 9
65028	Base for 44181	6
65031	Feel for 44181	7

8

65034	Switch for 44181	10
65035	Plug and Lead for 44181	11

Model FW-CN-0252 44182

Item No. Description Position Item No. Description P

65022 Lid for 44182 1 65027 Thermal Cut Out for 44182 5 65033 Dial for
65024	Pot with Handles for 44182	2
65025	Spoon for 44182	3

65026 Element for 44182
4 65032 Thermostat for 44182

position Item No. Description Position

4182 9
65029	Base for 44182	6
65031	Feet for 44182	7

8

65034	Switch for 44182	10
65035	Plug and Lead for 44182	11

Model FW-CN-0253 44183

Item No. Description Position Item No. Description P

65023 Lid for 44183 1 65027 Thermal Cut Out for 44183 5 65033 Dial for
65024	Pot with Handles for 44183	2
65025	Spoon for 44183	3

65026 Element for 44183
4 65032 Thermostat for 44183

position Item No. Description Position

4183 9
65030	Base for 44183	6
65031	Feet for 44183	7

8

65034	Switch for 44183	10
65035	Plug and Lead for 44183	11

Electrical Schematics

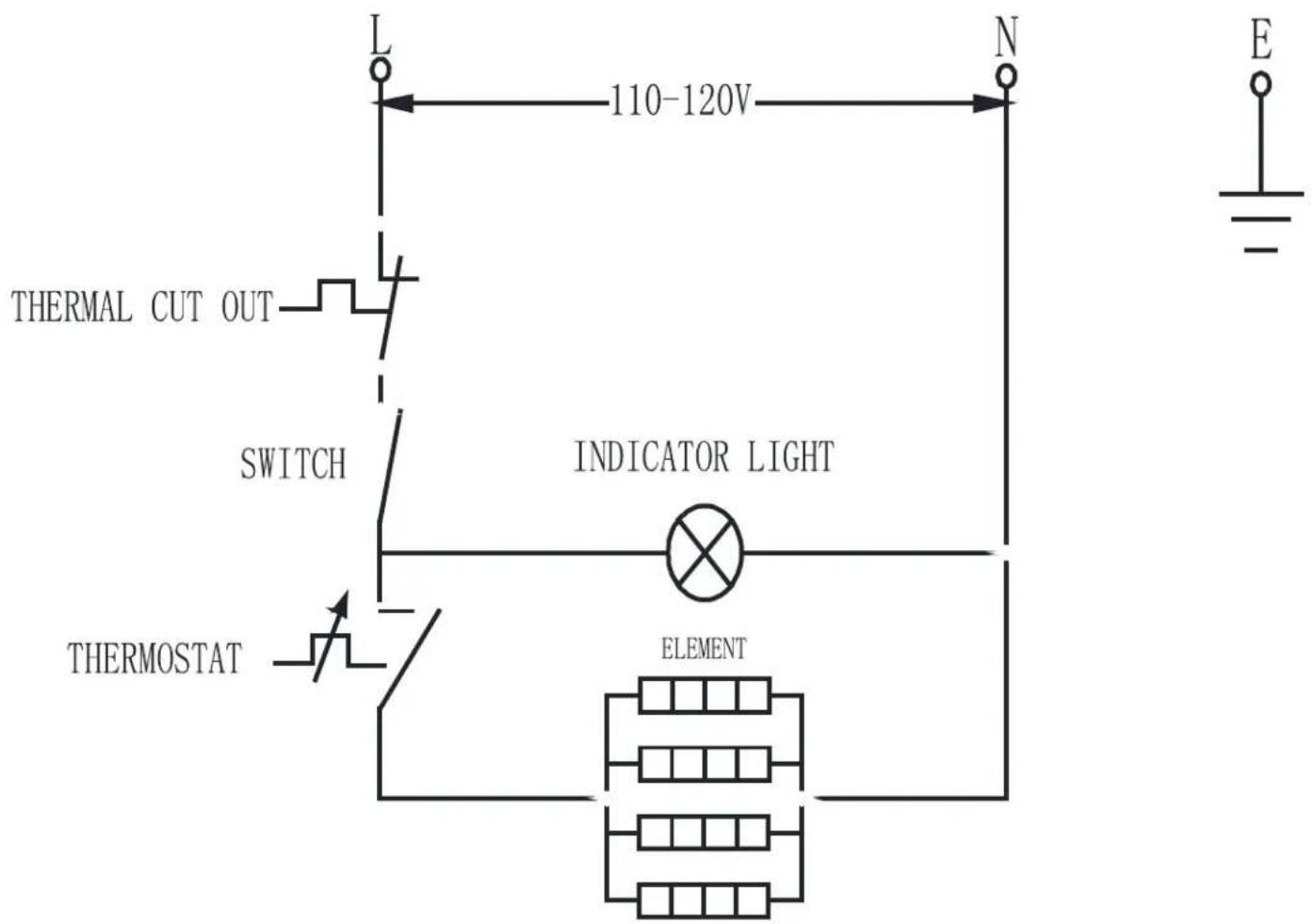

Model FW-CN-0251 44181

L 110-120V N E THERMAL CUT OUT SWITCH INDICATOR LIGHT THERMOSTAT ELEMENT

Electrical Schematics

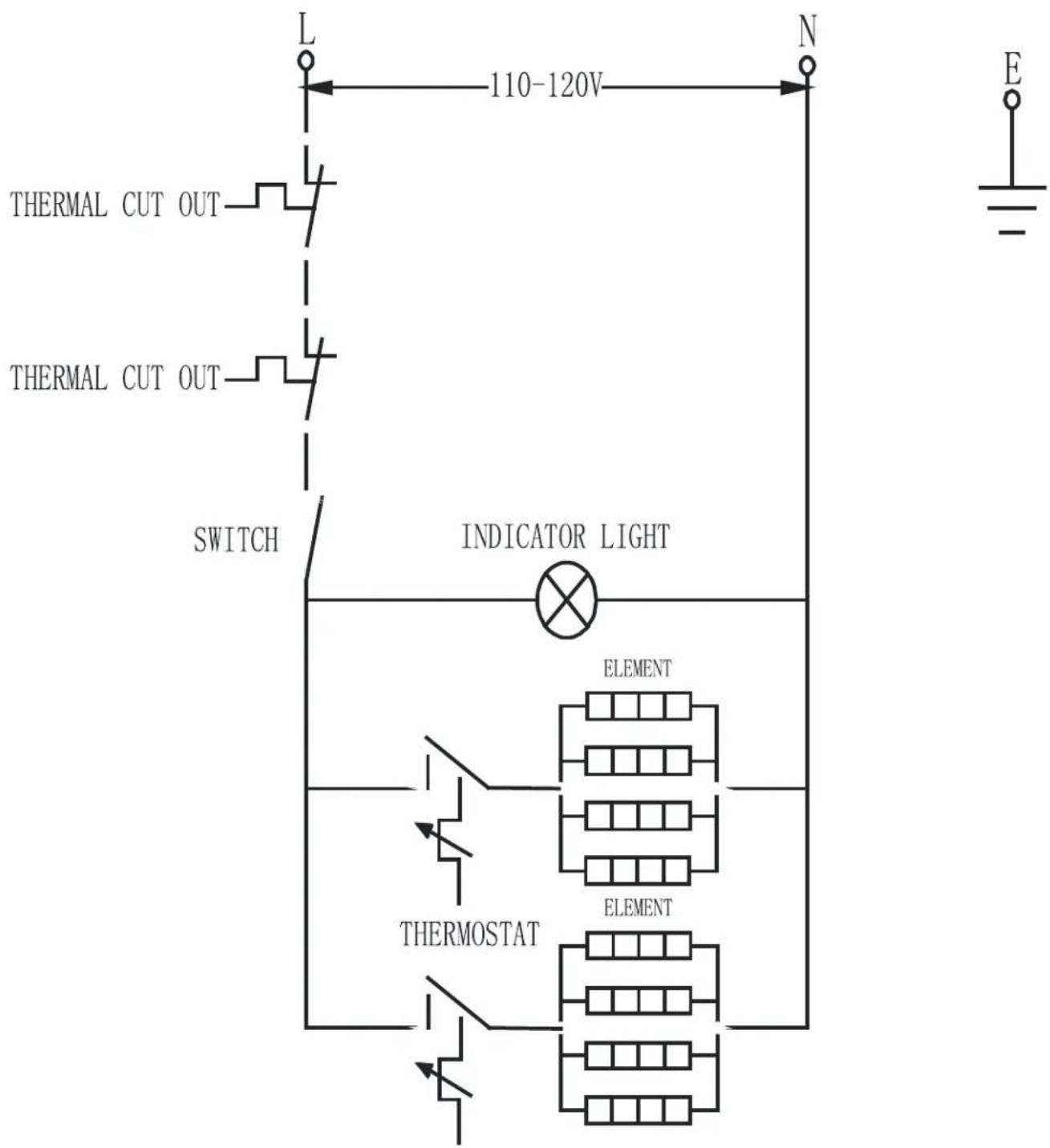

Model FW-CN-0252 44182

L 110-120V N THERMAL CUT OUT THERMAL CUT OUT SWITCH INDICATOR LIGHT ELEMENT THERMOSTAT ELEMENT E E

Electrical Schematics

Model FW-CN-0253 44183

110-120V THERMAL CUT OUT THERMAL CUT OUT THERMAL CUT OUT SWITCH INDICATOR LIGHT ELEMENT THERMOSTAT ELEMENT THERMOSTAT N E

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting:

https://omcan.com/warranty-registration/

For mailing in Canada

For mailing in the US

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

or email to: [e-mail]

Purchaser's Information

Name: Company Name:

Address:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice:

Model Name: Model Number:

Machine Description:

Date of Purchase (MM/DD/YYYY):

Would you like to extend the warranty? □ Yes □ No

Telephone:

Restaurant

Bakery

Deli

□

□

□

□

□

☐ Other (specify):

Serial Number:

Date of Installation (MM/DD/YYYY):

Thank you for choosing Omcan | Merci d'avoir choisi Omcan | Gracias por elegir Omcan
