USER MANUAL EM18156 EcoMax

www.altonindustries.com

If you have questions or comments, contact us.

English (original instructions) 1

This instruction manual uses the following safety alert symbols and words to alert people to hazardous situations and the risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Technical diagram of a cylindrical mechanical device with numbered components for identification

8

9

Two parallel cylindrical objects with rectangular ends, no text or symbols visible

10

11

12

13

14

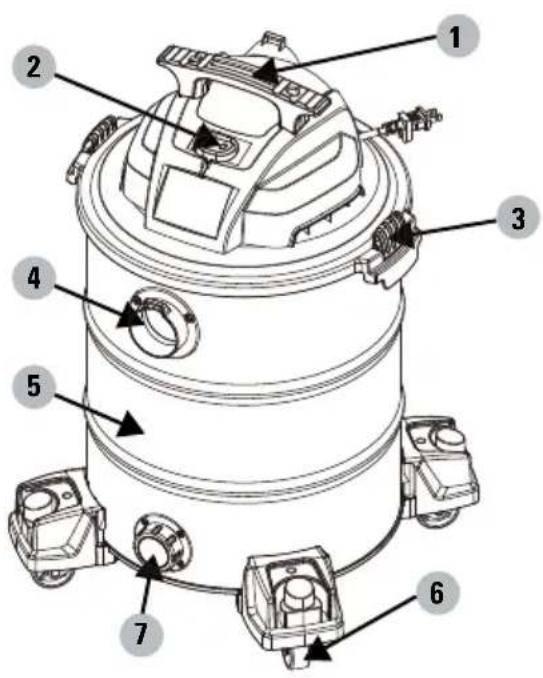

1 Handle

2 Power switch

3 Lid latch

4 Vacuum port

5 Dust tank

6 Caster

7 Drain port

8 1-7/8" x 6' Hose (19-1100)

9 Extension wand (19-1200)

10 Floor brush (19-1900)

11 Crevice nozzle (19-1400)

12 Utility nozzle (19-1300)

13 Disposable dust bag (19-3101) - For dry pick up only

14 Cartridge filter (08-2566) - For wet/dry pick up

CAUTION: Please always apply the appropriate filter when using the vacuum to avoid any material or debris getting into the motor housing.

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have questions or comments, contact us at: 1-888-899-0146.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using electric appliances, you follow basic safety precautions to reduce risk of fire, electric shock and personal injury, finding the following:

BEFORE USING THIS APPLIANCE, READ AND FOLLOW ALL INSTRUCTIONS.

WARNING: To reduce the risk of electric

shock. Do not expose to rain. Store indoors.

- Do not leave the appliance when it is connected to a power source. Unplug it from outlet when not in use and before servicing.

- Do not allow the appliance to be used as a toy. Pay close attention when the appliance is used by or near children.

- Use this appliance ONLY as described in the manual. Use only ECOMAX recommended attachments.

- Do not use this appliance with a damaged cord or plug. If the appliance is not working correctly, or if it has been dropped, damaged, left outdoors, or dropped in water, return it to a service center.

- Do not pull or carry this appliance by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep cord away from heated surfaces.

- Do not unplug this appliance by pulling on the cord. To unplug, grasp the plug, not the cord.

- Do not handle the plug or appliance with wet hands.

- Do not put any objects into the openings of the appliance. Do not use the appliance with any opening blocked; keep free of dust, lint, hair and anything else that may reduce air flow.

- Keep hair, loose clothing, fingers, and all body parts away from the openings and moving parts.

- Turn off all controls before unplugging appliance.

• Take extra care when cleaning on stairs.

- Do not use the appliance to pick up flammable or combustible liquids, such as gasoline, or use in areas where flammable or combustible liquids are present.

- Static shocks are possible in dry areas or when the relative humidity of the air is low. This is only temporary and does not affect the use of the vacuum. To reduce the frequency of static shocks, add moisture to the air with a console, installed humidifier or use anti-static hose (standard on some models).

- To avoid spontaneous combustion, empty the dust tank after each use.

SAVE THESE INSTRUCTIONS ADDITIONAL SAFETY RULES

WARNING

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to vacuum combustible explosive materials, such as coal, grain, or other finely divided combustible materials.
• Do not use to vacuum hazardous, toxic or carcinogenic materials, such as asbestos or pesticide.
• Never pick up explosive liquids (e.g. gasoline, diesel fuel, heating oil, paint thinner, etc.), acids or solvents.
• Do not use vacuum without filters in place.
• Some wood contains preservatives which can be toxic. Take extra care to prevent inhalation and skin contact when working with these materials. Request and follow any safety information available from the material supplier.
• Do not use vacuum as a step ladder.
• Do not place heavy objects on vacuum.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension cord contains at least the minimum wire size. The following table shows the correct size to use. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
• If an extension cord is to be used outdoors it must be marked with the suffix W-A or W following the cord type designation. For example – SJTW-A indicates it is acceptable for outdoor use.

Minimum Gauge for Cord Sets
Ampere Ra ting		Volts	Total Length of Cord in Feet (meters)
		120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
		240V	50 (15.2)	100 (30.5)	200 (61.0)	300 (91.4)
More Than	Not More Than	AWG
0618	1616	14
6	10		181614	12
10	12		161614	12
12	16		14	12	Not Re commended

WARNING: This product is NOT to be used for filtering of pathogens, for example COVID-19. Follow all local, state and federal guidance on general cleaning practices.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

WARNING: Always use safety goggles.

Everyday eyeglasses are NOT safety goggles. Also use face or dust mask if area of operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/ CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/ OSHA/ MSHA respiratory protection.

To reduce the exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

WARNING

SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM

In a double-insulated Wet/Dry Vac, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added. Servicing a double-insulated Wet/Dry Vac requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double-insulated Wet/Dry Vac must be identical to the parts they replace. This double- insulated Wet/Dry Vac is marked with the words "DOUBLE-INSULATED" and the symbol □ (square within a square) may also be marked on the appliance.

To reduce the risk of injury from electrical shock, unplug power cord before servicing the electrical parts of the Wet/Dry Vac.

IMPORTANT!

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

IMPORTANT!

Remove the plug from the socket before performing maintenance. Before using the machine make sure that the frequency and voltage shown on the rating plate correspond with the mains voltage.

Specifications and details are subject to change without prior notice. The accessories shown in the pictures may vary from model to model.

IMPORTANT SAFEGUARDS

The symbol on the product or packaging indicates that the product must not be treated as domestic refuse. Instead, it should be handed in to a collection point for the recycling of electrical and

electronic components. By ensuring the product is treated in the correct manner, you will help prevent any negative impact on the environment and health that might arise were the product to be discarded as ordinary refuse. For further information about recycling, you should contact your local authorities, refuse collection service or the sales outlet where you bought the goods.

WARNING: This product can expose people to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

WARNING

- TO REDUCE THE RISK OF INJURY, USERS MUST READ INSTRUCTION MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP FLAMMABLE, COMBUSTIBLE OR HOT MATERIALS. DO NOT USE AROUND EXPLOSIVE DUST, LIQUIDS OR VAPORS. ELECTRICAL DEVICES PRODUCE ARCS OR SPARKS WHICH CAN CAUSE FIRE OR EXPLOSION. DO NOT USE AT FILLING STATIONS OR ANYWHERE GASOLINE IS STORED OR DISPENSED. DO NOT VACUUM TOXIC OR CARCINOGENIC MATERIALS OR OTHER HEALTH ENDANGERING MATERIALS SUCH AS ASBESTOS OR PESTICIDES. ALWAYS USE PROPER EYE AND RESPIRATORY PROTECTION. TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT EXPOSE TO RAIN. STORE INDOORS. WHEN SERVICING, USE ONLY IDENTICAL REPLACEMENT PARTS. DO NOT TO BE USED AS A STEP STOOL.

PRODUCT SPECIFICATIONS

Model EM18156
Tank Capacity	10 Gallon
Power	120 V / 60 Hz / 10 A
Motor	Single Stage
Hose	1-7/8 in. x 6 ft.
Power cord	SJTW18AWG / 16 ft. Length

ENGLISH

UNPACKING & SET-UP SUMMARY

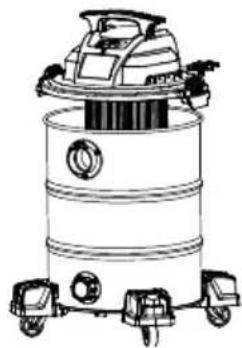

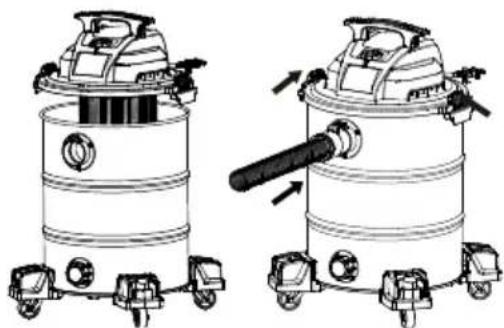

1. Pull lid latches in an outward motion, remove power head and some accessories that may have been shipped in the tank.
2. The caster installation with this vacuum, See CASTER ASSEMBLY for the caster assembly installation instructions.
3. Before replacing power head, refer to this manual to ensure you have the proper filters installed for the cleaning operation.

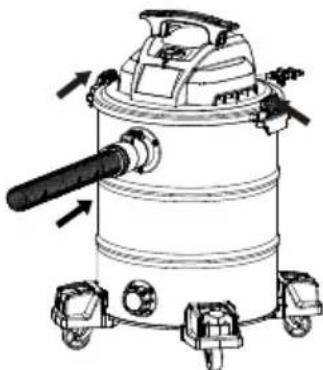

4. Replace power head, and apply pressure with thumb to each latch until it snaps tightly in place. Make sure all lid latches are clamped securely.

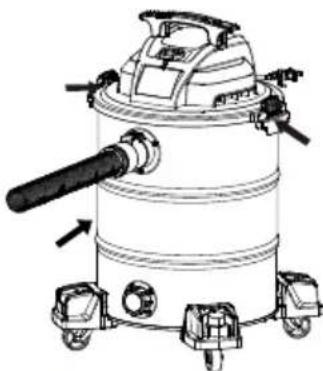

5. Insert the hose end into inlet of tank.
6. Attach one of the cleaning accessories (depending on the cleaning requirements) on the hose. Twist slightly to tighten the connection.
7. Attach one of the cleaning accessories (depending on the cleaning requirements) to the extension wands. Twist slightly to tighten the connection.
8. Plug the cord into the wall outlet. The cleaner is ready for use.
9. Turn the unit "ON" by pushing the switch from position "O" to position "I". The "O" is the "OFF" position and the "I" is the "ON" position.

Line drawing of a cylindrical container with internal components and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal components (no text or symbols)

Simple line drawing of a cylindrical container with an attached sensor or device (no text or symbols)

Technical line drawing of a vacuum cleaner with attached pump and wheels (no text or symbols)

WARNING: To reduce the risk of injury from accidental starting, always shut off vacuum and disconnect the power plug from the wall outlet before installing any part or cleaning accessory.

WARNING: Do not alter the plug in any way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet.

WARNING: To reduce the risk of fire or explosion, do not operate this vac in areas with flammable gases, vapors or explosive dust in the air. Flammable gases or vapors include but are not limited to: lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol or aerosol sprays.

Explosive dusts include but are not limited to: coal, magnesium, aluminum, and grain or gun powder. Do not vacuum explosive dust, flammable or combustible liquids or hot ashes.

Do not use this vac as a sprayer for any flammable or combustible liquid. To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.

WARNING: The operation of any utility vac can result in foreign objects being blown into the eyes, which can result in severe eye injury. Always wear safety goggles complying with ANSI Z87.1 (or in Canada, CSA Z94.3) before starting operation.

CAUTION: To reduce risk of hearing damage, wear ear protectors when using the vacuum for extended hours or when using it in a noisy area.

CASTER ASSEMBLY

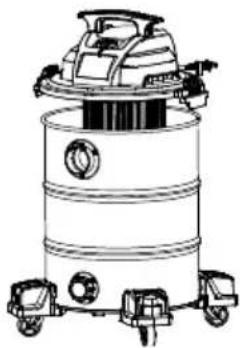

1. Pull lid latches in an outward motion, remove power head and some accessories that may have been shipped in the tank.
2. Attach casters following the instructions below:

a. Invert dust tank, take the caster to align the tank bottom sinking place. Secure with screws provided.
b. Return dust tank assembly upright.

Technical line drawing of a cylindrical mechanical assembly with multiple components and directional arrows (no text or symbols)

Line drawing of a cylindrical tank with attached vehicle wheels (no text or symbols)

WARNING: Never operate the vacuum without filters installed.

DRY PICK-UP

INSTALLING THE DISPOSABLE FILTER BAG

1. Slide the cardboard collar opening firmly onto the vacuum port deflector until it stops against the deflector wall.
2. Position the bag so that it is distributed around the inside of the tank.

INSTALLING THE CARTRIDGE FILTER

The cartridge filter can be used for wet or dry pick-up, installation is the same for both.

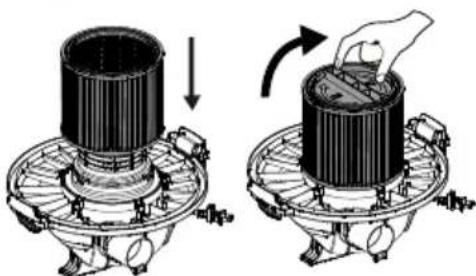

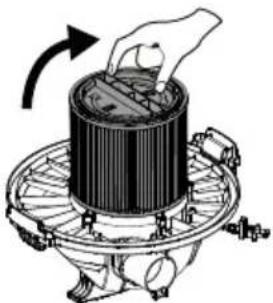

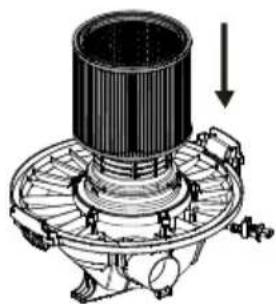

1. With the power head in an upside down position, slide the cartridge filter down over the lid cage, push the filter seals against the power head.
2. Turn the knob on filter retainer clockwise to tighten, the filter into place.

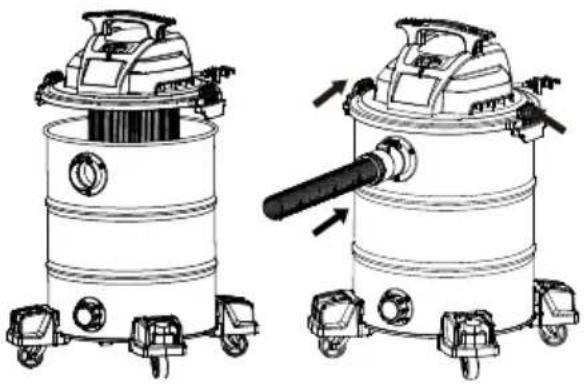

3. Replace power head, and apply pressure with thumb to each latch until it snaps tightly in place. Make sure all lid latches are clamped securely.
4. Insert the hose end into inlet of tank.
5. Attach one of the cleaning accessories (depending on the cleaning requirements) on the hose. Twist slightly to tighten the connection.
6. Attach one of the cleaning accessories (depending on the cleaning requirements) to the extension wands. Twist slightly to tighten the connection.
7. Plug the cord into the wall outlet. The cleaner is ready for use.
8. Turn the unit "ON" by pushing the switch from position "O" to position "I". The "O" is the "OFF" position and the "I" is the "ON" position.

Technical diagram of a cylindrical industrial device with mounting flanges and a central knob (no text or symbols)

Illustration of a cylindrical industrial device with mounting flanges and a central knob (no text or symbols)

Technical illustration of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Illustration of a hand pressing down on a cylindrical component with rotating arrow (no text or symbols)

Technical line drawing of two industrial vacuum cleaner units with internal components and mounting base (no text or symbols)

REMEMBER!

1. The filter must always be in correct position to reduce the risk of leaks and possible damage to vac. Make sure that the filter is completely covering the filter cage. Make sure there are no gaps between the filter and the lid. It is very important to assemble the filter to the cage without any possible leaks or tears. Any leaks will allow the picked up debris to be blown out of the blower port and back into the surrounding environment.
2. When using the vac to pick up fine dust, it will be necessary to empty the dust tank and clean or replace the filter at more frequent intervals to maintain peak vac performance.

NOTICE: DO NOT USE THE DISPOSABLE FILTER BAG FOR WET VACUUMING.

WET PICK-UP

UNLOAD THE CARTRIDGE FILTER

1. To remove the filter for cleaning, turn the filter knob counter clockwise till feel the tactile and auditory cue, and make sure the knob arrow align with the "Unlock" icon on the filter cap, then slide the cartridge filter off the lid cage. then grasp the step of knob tightly with fingers to pull the cartridge filter out off the cage.
2. To clean the cartridge filter, shake or brush off excess dirt or rinse with water, dry completely and re-install.
3. Replace power head, and apply pressure with thumb to each latch until it snaps tightly in place. Make sure all lid latches are clamped securely.
4. Insert the hose end into inlet of tank.

ENGLISH

1. Attach one of the cleaning accessories (depending on the cleaning requirements) on the hose. Twist slightly to tighten the connection.
2. Attach one of the cleaning accessories (depending on the cleaning requirements) to the extension wands. Twist slightly to tighten the connection.
3. Plug the cord into the wall outlet. The cleaner is ready for use.
4. Turn the unit "ON" by pushing the switch from position "O" to position "I". The "O" is the "OFF" position and the "I" is the "ON" position.

Diagram of a mechanical device with rotating components and directional arrow (no text or symbols)

Technical diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Diagram showing a faucet and a cylindrical tank with a diagonal line, no text or symbols present.

Illustration of a sun shining on a cylindrical object with diagonal lines, no text or symbols present

Mechanical assembly diagram showing a cylindrical component mounted on a fan with pressure gauge and directional arrow (no text or labels)

Illustration of a hand operating a cylindrical device mounted on a portable stove (no text or symbols visible)

Line drawing of a vacuum cleaner with control panel and wheels (no text or symbols)

Technical line drawing of a vacuum cleaner with attached pump and wheels (no text or symbols)

NOTICE: WET PICK-UP ACCESSORIES SHOULD BE WASHED PERIODICALLY, ESPECIALLY AFTER PICKING UP WET, STICKY FLUIDS OR SPILLS. THIS CAN BE ACCOMPLISHED WITH A WARM SOLUTION OF SOAP AND WATER.

This wet/dry vac is equipped with a float mechanism which will rise automatically to cut off the airflow when the liquid in the tank reaches a predetermined level. When this happens, turn off vac, unplug the power cord, and empty the dust tank. You will know that the float has shut the airflow off because the suction ceases and the motor noise becomes higher in pitch due to increased motor speed. The liquid capacity may vary with the rate of pickup.

Technical line drawing of a mechanical device with no visible text or symbols

IMPORTANT!

To reduce the risk of damage to the vac, do not run motor with float in raised position.

NOTICE:

IF ACCIDENTALLY TIPPED OVER, THE VACUUM COULD CLOSED SUCTION. IF THIS OCCURS, PLACE VAC IN UPRIGHT POSITION AND TURN SWITCH OFF. THIS WILL ALLOW THE FLOAT TO RETURN TO ITS NORMAL POSITION, AND YOU WILL BE ABLE TO CONTINUE OPERATION.

EMPTYING THE TANK

WARNING: To reduce the risk of injury from accidental starting, unplug power cord before emptying the dust tank.

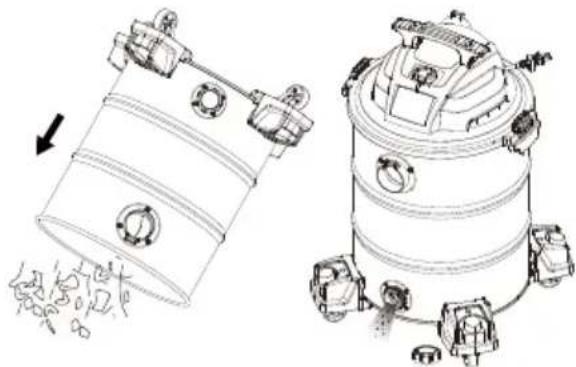

1. Remove the power head assembly of the wet/dry vac by pulling outward on the lid clips located on each side of the vac. Lift off the power head assembly.
2. Dump the tank contents into the proper waste disposal container.
3. Liquids can be emptied through the tank drain. To empty, turn the unit off and remove the plug from the wall outlet. Remove the drain cap and deposit the liquid waste conents in a suitable drain. After tank is empty, return the drain cap to its original position. To continue use, plug the cord into the wall outlet and turn the unit on.

Technical line drawing of two industrial storage tanks with internal components and a downward arrow indicating flow or movement (no text or symbols)

BLOWING OPERATION

WARNING: Always wear safety eyewear complying with ANSI Z87.1 (or in Canada CSA Z94.3) when using as a blower.
WARNING: To avoid injury to bystanders, keep them clear of blowing debris.
WARNING: To avoid injury to bystanders, keep them clear of blowing debris.
CAUTION: Wear a dust mask if blowing creates dust which might be inhaled.
CAUTION: To reduce the risk of hearing loss, wear ear protectors when using the vac/blower for extended hours or when using it in a noisy area. The vac contains a blowing feature. It has the capability to blow sawdust and other debris. It can be used to blow dust and debris out of garages or off patios and driveways. Follow the steps below to use the vac as a blower.

1. Locate blower port on the vac.
2. Insert one end of the 1-7/8 in. x 6 ft.

(4.8 cm x 1.8 m) hose into

the blower port.

1. Turn vac "ON".

Technical line drawing of a cylindrical mechanical device with attached components (no text or symbols)

CLEANING

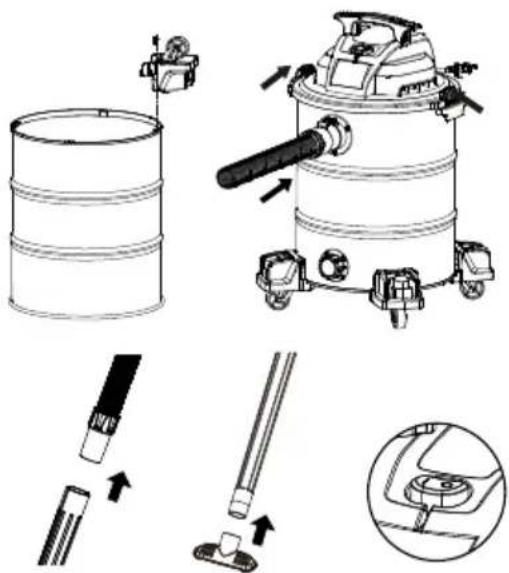

To keep the wet/dry vacuum looking its best, use a cloth dampened only with water and mild soap to clean its surface.

To clean the tank:

1. Dump out debris.
2. Wash tank thoroughly with a cloth dampened only with water and mild soap.
3. Wipe with dry cloth.

Line drawing of a cylindrical water tank with a piping and valve, mounted on a wheeled cart (no text or symbols)

Diagram of a pipe being poured into a container with attached fixtures (no text or symbols)

To clean the cartridge filter:

1. Shake or brush off excess dirt or rinse with water.
2. Dry completely (approximately 24 hours) and re-install.

MAINTENANCE

WARNING: To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter. The filter should be cleaned frequently to maintain peak vacuum performance.
WARNING: Do not remove filter cage and float. The float prevents water from entering the impeller and damaging the motor. The cage prevents fingers from touching the moving impeller.
CAUTION: To avoid damage to the impeller and motor, always reinstall the reusable filter before using the vacuum for dry pickups and always reinstall the foam filter before using the vacuum for dry pickups and wet pickups.
CAUTION: After cleaning, check the filter for tears or small holes. Do not use a filter with holes or tears in it. Even a small hole can cause dust to come out of the vacuum. Replace it immediately.
CAUTION: If the filter is clean and not damaged, replace it on the filter cage. If it cannot be reused, place a new filter over the filter cage.
CAUTION: Clean the filter in an open area.

STORAGE

Before storing the vacuum, the dust tank should be emptied and cleaned. The cord should be wrapped and hung on the unit and the accessories should be kept in the accessory holder. The vacuum should be stored indoors.

TROUBLESHOOTING

WARNING: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS AND/OR ELECTRICAL SHOCK, TURN POWER SWITCH OFF AND DISCONNECT GROUNDED PLUG FROM ELECTRICAL OUTLET BEFORE PERFORMING TROUBLESHOOTING CHECKS.

Minor problems often can be fixed without calling customer service.

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Vacuum does not run	No electricity	Make sure electrical outlet has voltage (A qualified electrician may need to be contacted)
Loss of suction, wet pick-up	1. Full tank2. Clogged hose3. Clogged filter	1. Drain and clean tank2. Remove hose and clean debris3. Clean or replace filter
Loss of suction, dry pick-up	1. Full tank2. Clogged hose3. Clogged filter	1. Drain and clean tank2. Remove hose and clean debris3. Clean or replace filter

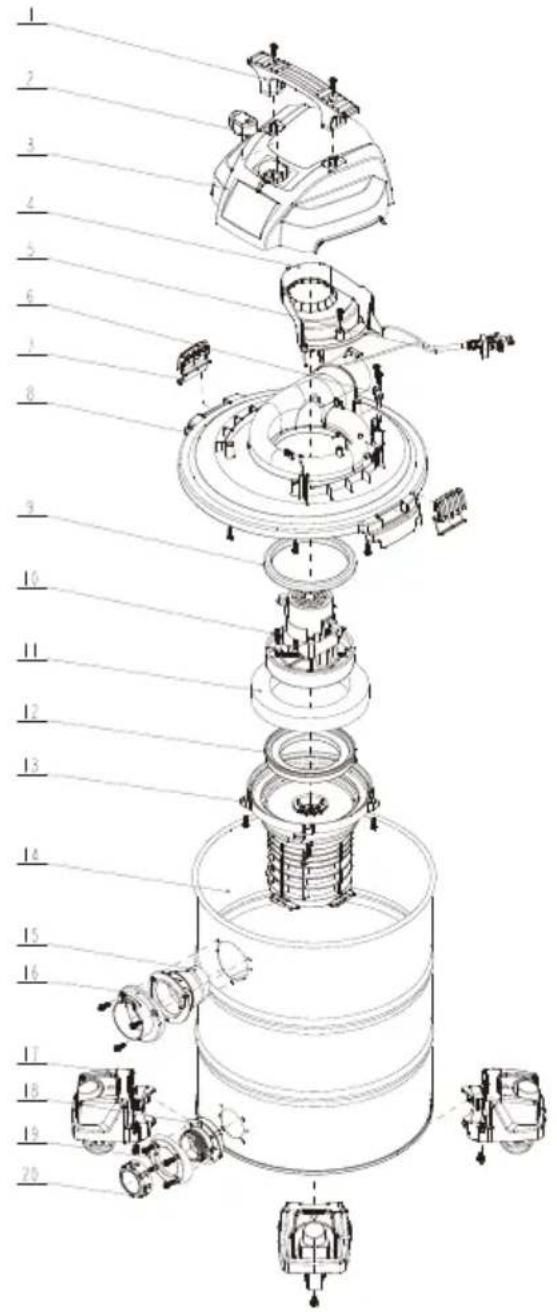

EXPLODED VIEW / PARTS LIST

Exploded view diagram of a mechanical assembly with numbered components for identification

DESCRIPTION QTY
1	Handle	1
2	Power Switch	1
3	Top Cover	1
4	Thermal Baffle	1
5	Power Cord	1
6	Cord Clamp	1
7	Lid Latch	2
	Lower Lid8	1
9	Thermal Baffle Sealing Ring	1
	Motor10	1

PART DESCRIPTION QTYPART
11	Silencer Sponge	1
12	Motor Sealing Ring	1
13	Filter Cage	1
14	Dust Tank	1
15	Vacuum Port	1
16	Vacuum Port Retainer	1
17	Caster	4
	Drain Outlet Seat18	1
19	Drain Port Retainer	1
	Drain Cover20	1

Alton Industry Ltd. Group 1 Year Limited Warranty

This warranty covers any defects in materials or workmanship of the enclosed product. Alton Industry Ltd. Group will repair or replace any defective materials due to craftsmanship of the product. This warranty does not cover any problem caused by misuse, abuse, accidents or acts of God, such as floods or hurricanes. Consequential and incidental damages are not covered under this warranty. Coverage terminates if you sell or otherwise transfer the ownership. If you feel you have a defective product, please submit a copy of your receipt to the address below and call 1-888-899-0146 for instructions prior returning this item to the store or sending back to:

Alton Industry Ltd. Group

643 Innovation Dr.

West Chicago, IL 60185

We will inspect the product and contact you within 72 hours to give you the results of our inspection. We reserve the right to repair or replace the product at our discretion. However, we may replace the product with one of similar but not exact features. Parts and Service Information available call Alton Industry at 1-888-899-0146.

This warranty gives you specific legal rights. You may have other rights which vary from state to state.

Technical diagram of a cylindrical mechanical device with numbered components for identification

8

9

Two parallel cylindrical objects with segmented bands, no text or symbols visible

10

11

12

13

14

1 Manejar

2 Interruptor

3 Tapa pestillo

Technical line drawings of industrial equipment including a barrel, pump, and tool assembly (no text or symbols)

Technical line drawings of two industrial tanks with internal components and control systems (no text or symbols)

Two industrial cylindrical devices with control knobs and a downward arrow indicator (no text or symbols)

Diagram showing two mechanical setups with a cylindrical component being placed on a base, one with an arrow indicating rotation (no text or symbols present)

Technical line drawing of two industrial vacuum cleaner units with internal components and mounting brackets (no text or symbols)

Three-step diagram showing mechanical assembly steps: pin, tool, and component (no text or symbols)

REMEMBER!

Technical diagram illustrating the step-by-step assembly of a vacuum cleaner with labeled components and directional arrows.

Technical line drawing of a mechanical device with no visible text or symbols

IMPORTANTE!

Technical line drawing of two cylindrical industrial components with internal components and a downward arrow indicating flow or movement (no text or symbols)

Technical line drawing of a cylindrical industrial device with mounting feet and a tool inserted (no text or symbols)

LIMPIEZA

Line drawing of a cylindrical water tank with a faucet and wheels (no text or symbols)

Technical line drawing of a pipe with valves and fittings (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered components for identification

Alton Industry Ltd. Group

643 Innovation Dr.

West Chicago, IL 60185

Technical diagram of a cylindrical industrial vessel with numbered components for identification

8

9

Two parallel cylindrical strips with square end caps, no text or symbols present

10

11

12

13

14

1 Poignée adhérence

2 Interrupteur

CARACTÉRISTIQUES DU PRODUIT

Technical line drawing of a cylindrical device with internal components and a separate view showing internal structure (no text or symbols)

Technical line drawings of industrial equipment including a cylindrical tank, a vacuum cleaner, and mechanical components (no text or symbols)

Diagram of a cylindrical industrial or mechanical assembly with multiple components and directional arrows (no text or labels)

Line drawing of a cylindrical water tank with attached cart base (no text or symbols)

Technical diagram illustrating the step-by-step assembly of a vacuum cleaner with labeled components and directional arrows.

SE SOUVENIR!

Diagram of a mechanical device with rotating components and a hand holding a cylindrical component (no text or symbols)

Technical diagram of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Diagram showing a faucet and two cylindrical containers with a diagonal line (no text or symbols)

Simple line drawing of a cylindrical object with a sun and rays, no text or symbols present

Mechanical assembly diagram showing a cylindrical component mounted on a fan with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using a rotating mechanical component on a fan base (no text or symbols)

Line drawing of a vacuum cleaner with control panel and wheels (no text or symbols)

Technical line drawing of a vacuum cleaner with attached pump and wheels (no text or symbols)

AVIS :

LES ACCESSOIRES DE RAMASSAGE MOUILLÉS DOIVENT ÊTRE LAVÉS PÉRIODIQUEMENT, EN PARTICULIER APRÈS AVOIR RAMASSÉ DES FLUIDES OU DES DÉVERSEMENTS MOUILLÉS, COLLANTS. CELA PEUT ÊTRE ACCOMPLI AVEC UNE SOLUTION CHAUDE DE SAVON ET D'EAU.

Technical line drawing of a mechanical assembly or device with no visible text or symbols

IMPORTANT!

Technical line drawing of two cylindrical industrial components with internal components and a downward arrow indicating flow or movement (no text or symbols)

OPÉRATION DE SOUFFLAGE

Technical line drawings of a water tank and a cylindrical container with liquid flow (no text or symbols)

Illustration of a cylindrical tank with a faucet and a small black cylindrical object on a table (no text or symbols)

ENTRETIEN

Exploded view diagram of a mechanical assembly with numbered components for identification

Alton Industry Ltd. Group

643 Innovation Dr.

West Chicago, IL 60185
