HTE550

DE	Elektro-HeckenschereOriginalbedienungsanleitung	4
GB	Electric hedge trimmerTranslation of original instruction manual	18
FR	Taille haiesTraduction des instructions d'origine	29

1 14567 3 2 8 9

2 a c d b e Sedgesheet

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a U-shaped connector and cable (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the device

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Read, understand and follow all warning information.
	Warning - read the instruction manual to reduce the risk of injury.
	Wear eye protection.
	Wear hearing protection.
	Wear work gloves!
	Wear safety shoes
	Attention! Keep bystanders away from the work area!
	Do not operate the device in rain or in humid conditions. Danger of electric shock!
	Attention: Risk of injury!Never have your hands near the blades. Never touch a blade when switching on or working with the device.
	Immediately pull the plug out of the socket if the cable is damaged or cut.
	Guaranteed sound power level
	Class II - double insulation
	The product complies with the applicable European directives.
△ Attention!	We have marked points in these operating instructions that impact your safety with this symbol.

Table of contents: Page:

1. Introduction....20
2. Device description (Fig. 1)....20
3. Scope of delivery (Fig. 2)....20
4. Proper use 20
5. General safety information 21
6. Residual risks 24
7. Technical data.... 24
8. Unpacking....24
9. Assembly 24
10. Start up 25
11. Working instructions 25
12. Electrical connection 25
13. Cleaning 26
14. Storage 26
15. Maintenance 26
16. Transport....27
17. Disposal and recycling....27
18. Troubleshooting 28

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new tool brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
  • Non-compliance with the operating manual,
• Repairs carried out by third parties, unauthorised specialists.
  • Installing and replacing non-original spare parts
  • Application other than specified
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 13 / VDE0113 not being observed

Please consider:

Read through the complete text in the operating manual before installing and commissioning the device.

The operating manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country. Keep the operating manual package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards.

The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

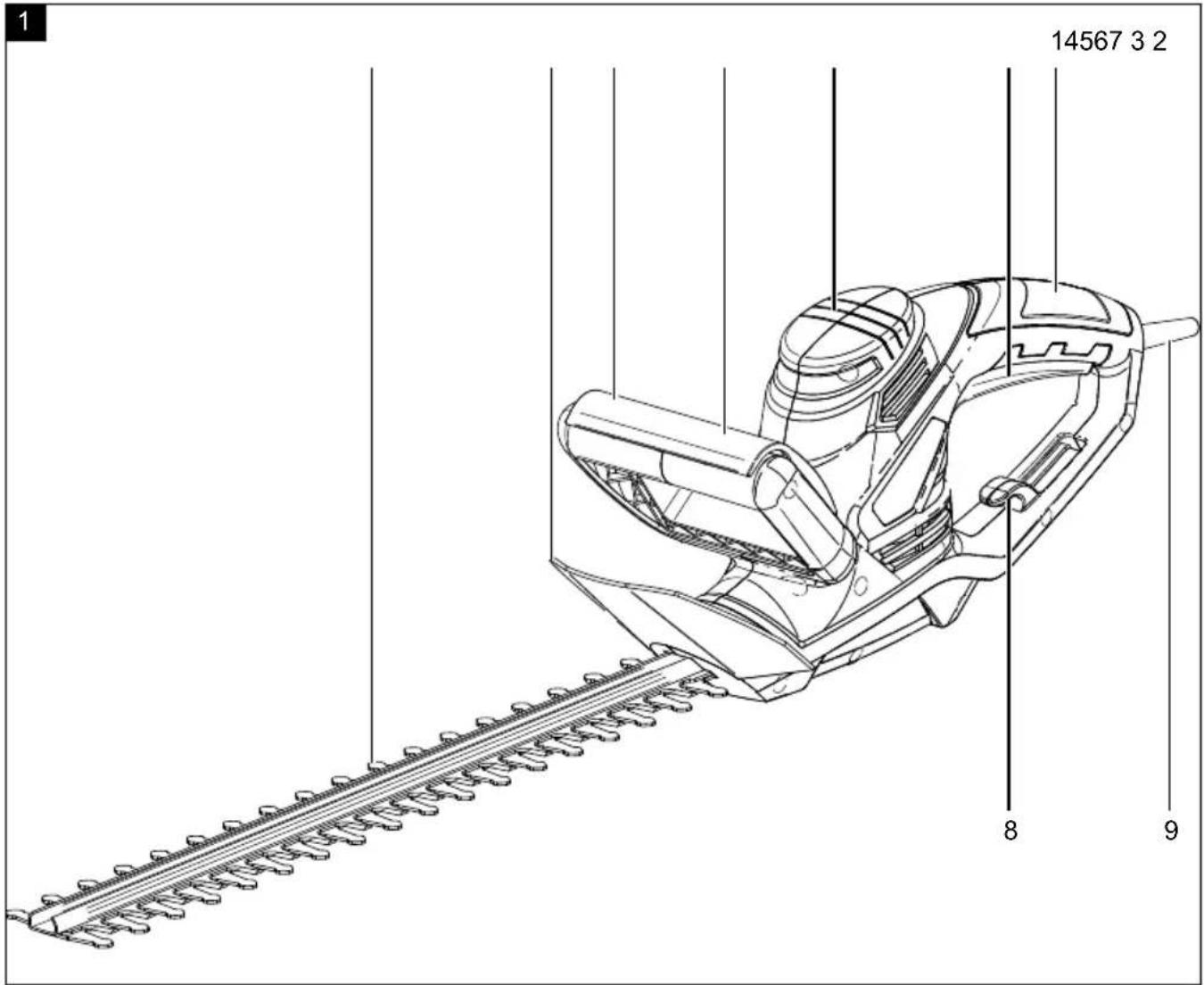

2. Device description (Fig. 1)

1. Rear handle
2. Trigger
3. Engine cover
4. Front switch bar
5. Front handle
6. Hand guard
7. Cutting blade
8. Cable holder
9. Connection cable

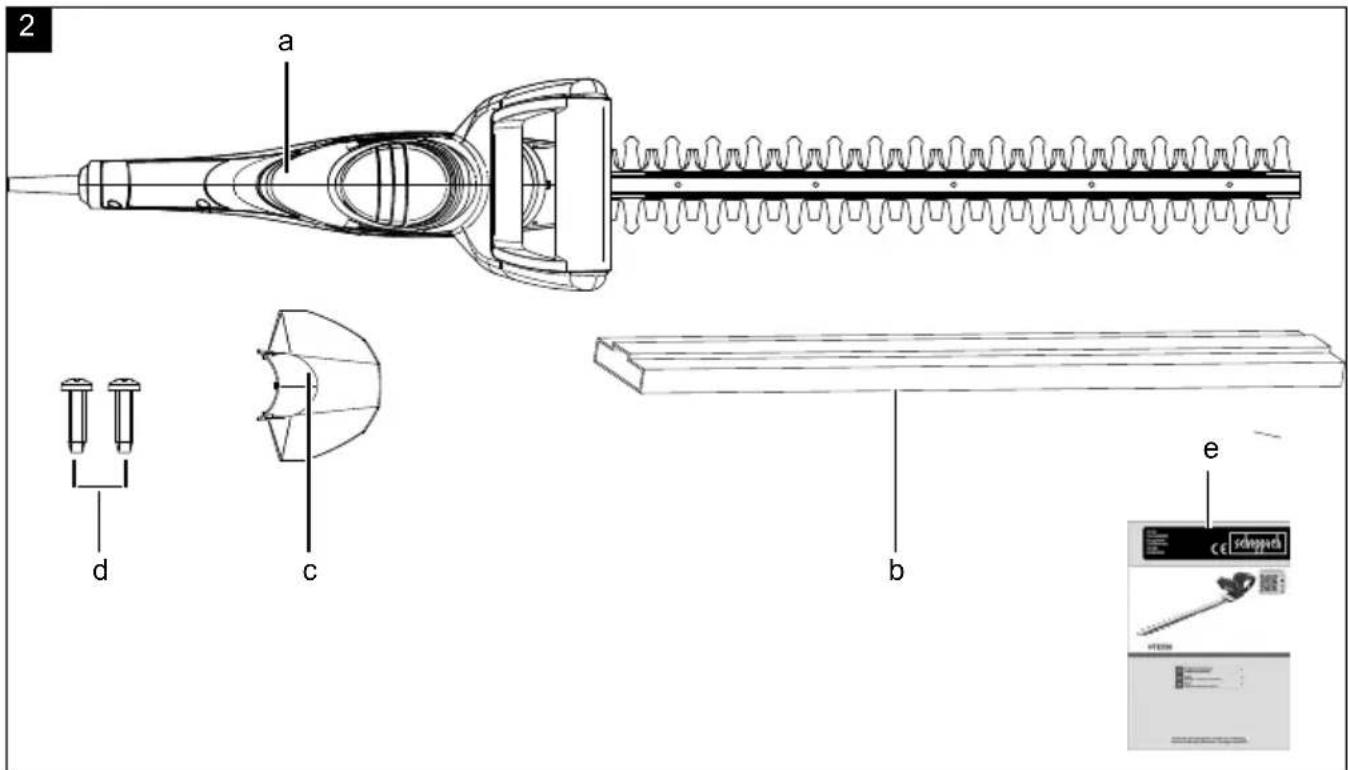

3. Scope of delivery (Fig. 2)

a. Hedge trimmer
b. Cutting knife guard
c. Hand guard
d. 2x screws ST 4x12
e. Operating manual

4. Proper use

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers.

In addition, the applicable accident prevention regulations must be strictly observed.

Other general occupational health and safety-related rules and regulations must be observed.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

The machine may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed. Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

The device is intended for use by adults. Children over the age of 16 may use the tool except under supervision. The manufacturer is not liable for damage caused by an improper use or incorrect operation of this device.

5. General safety information

⚠ WARNING - Read all safety information, instructions, illustrations and technical data for this electric tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” used in the safety instructions refers to mains-powered electrical tools (with a mains cable) and battery-powered electrical tools (without a mains cable).

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b. Do not work with the electric tool in an explosive environment where flammable liquids, gases or dusts may be located. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and other people away while using the electric tool. Distractions may cause you to lose control of the device.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d. Do not use the cable for another purpose, for example, carrying or hanging the power tool or pulling the plug out of the socket. Keep the cable away from heat, oil, sharp edges or moving device parts. Damaged or coiled cables increase the risk of an electric shock.

e. If you work with a power tool outdoors, only use extension cables that are also suitable for outdoor use. Using an extension cable suitable for outdoor use reduces the risk of an electric shock.

f. If you cannot avoid using the electrical tool in a wet environment, use a fault-current circuit breaker. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when using electrical tools can result in serious injuries.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Keeping your finger on the switch or having the device switched on when you connect it to the power supply may result in accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A tool or spanner that is located in a rotating device part may result in injuries.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If dust extraction and collection devices can be mounted, make sure that they are connected and used properly. Use of dust collection can reduce dust-related hazards.

h. Do not be lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless actions can lead to serious injuries within fractions of a second.

4. Power tool use and care

a. Do not overload the device. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Remove the plug from the socket and/or remove the battery before setting the device, changing accessories or putting the device away. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and Do not let people use the device if they are not familiar with it or if they have not read these instructions. Power tools are dangerous in the hands of untrained users.

e. Maintain the electric tool with care. Check whether moving parts function properly and do not get stuck and whether parts are broken or are damaged and thus adversely affect the electric tool function. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools.

f. Always keep your cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h. Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not allow safe operation and control of the power tool in unforeseen situations.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for hedge trimmers

- Keep all body parts away from the cutting blade. Do not attempt to remove cuttings or hold material to be cut while the blade is running. Remove trapped cuttings only when the device is switched off. A moment of carelessness when using the hedge trimmer can result in serious injury.

- Carry the hedge trimmer by the handle with the blade stationary. Always put the protective cover on when transporting or storing the hedge trimmer. Careful handling of the device reduces the risk of injury from the blade.

- Hold the electric tool by the insulated gripping surfaces, because the cutting blade can come into contact with its own mains cable. If the cutting blade comes into contact with an energised line, device parts can become energised and cause an electric shock.

- Keep the cable away from the cutting area. During operation, the cable may be covered by bushes and accidentally cut.

• Always pull the cover over the blades when transporting or storing the hedge trimmer. Proper handling of the hedge trimmer reduces the risk of injury from the blade.

- Make sure that all switches are switched off and the mains plug is disconnected before removing trapped cuttings or remove trapped clippings or service the machine. Unexpected operation of the unexpected operation of the hedge trimmer when removing trapped material can cause serious injury.

- Do not use the hedge trimmer in bad weather, especially when there is a risk of danger of thunderstorms. This reduces the risk of being struck by lightning.

Additional safety instructions

1. Before carrying out any work on the hedge trimmer and in the event of malfunctions, disconnect the mains plug, e.g.

2. Damage to the cable

3. Cleaning the blades

4. Checking in the event of malfunctions
   • Cleaning and maintenance
   • If being left unattended

5. The machine can cause serious injuries! Read the operating manual carefully for the correct handling, preparation, repair, starting and setting down of the machine. Familiarise yourself with all the adjustment parts and the correct use of the machine.

6. The hedge trimmer may only be operated with both hands.

7. When working with the hedge trimmer, ensure that you have a secure footing and wear sturdy footwear.

8. Do not use in the rain or on wet hedges and do not leave the device outdoors. It must not be used while wet.

9. Wearing safety goggles and hearing protection is recommended when cutting.

10. Wear suitable work clothing such as gloves, non-slip shoes and no loose clothing. Wear long hair in a hair net.

11. Avoid abnormal posture and ensure secure footing, especially when using ladders and steps.

12. Keep the device at a sufficient distance from the body while working.

13. Make sure that there are no people or animals in the working or pivot range.

14. Carry the hedge trimmer only by the guide handle.

15. Keep the cable out of the cutting area.

16. Inspect the connection cable for signs of damage and ageing before use.

17. The hedge trimmer may only be used if the connection cable is in undamaged condition.

18. Do not pull the mains plug out of the socket by the cable. Do not carry the device by the cable. Avoid damaging the cable.

19. Protect the cable from heat, aggressive liquids and sharp edges. Replace damaged cables immediately.

20. If the cutting device is jammed, e.g. by thick branches, etc., the hedge trimmer must be put out of operation immediately - pull out the mains plug and only then may the cause of the blockage be removed.

21. Store the device in a safe and dry location, out of reach of children.

22. When transporting or storing the cutting device, always cover it with the cutting device guard.

23. Avoid overloading the tool and misuse, i.e. the hedge trimmer is only to be used for cutting hedges, shrubs and bushes.

24. Only use cables and plug-in devices that are approved for outdoor use;

- Connection cable HO7RN-F 2x1.0 with moulded contour plug.

- Extension lead HO7RN-F 3G1.5 with splash-proof, earth contact plug and earth contact coupling.

- When operating power tools, it is recommended to use an earth leakage circuit breaker or a residual current device with a trigger current of 30 mA or less. Please ask your electrician!

1. The hedge trimmer must be checked and maintained properly on a regular basis. Replace damaged blades only in pairs. If damaged by dropping or impact, a professional inspection is essential.

2. Care for and maintain your tool carefully. Keep your tool clean and sharp in order to be able to work well and safely. Observe and follow the instructions for maintenance and care.

3. According to the regulations of the agricultural trade associations, only persons over 17 years of age may carry out work with electrically operated hedge trimmers. This is permitted for persons over 16 years of age with adult supervision.

4. Do not use the machine with a defective or heavily worn cutting device.

5. Familiarise yourself with your environment and pay attention to possible hazards that you may not hear due to the noise from the machine.

6. Never attempt to use an incomplete machine or one which an unauthorised alteration has been implemented.

7. Avoid using the hedge trimmer if people, and especially children, are in the vicinity.

8. Children are not permitted to use the hedge trimmer.

9. The noise developed at the workplace can exceed 85 dB (A). In this case, noise and hearing protection measures are required for the operator.

10. Always ensure that all handles and guards are in place when using the hedge trimmer.

11. Before working, search the hedge for hidden objects, e.g. wire, etc.

12. This device is not designed to be operated by persons (including children) with impaired physical, sensory or mental capabilities, or who have insufficient experience and/or insufficient knowledge unless they are being supervised by a person who is responsible for their safety or they are receiving instruction about how this device is to be used. Children must not be left unattended, to ensure they do not play with the device.

Warning! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6. Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements.

However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Safety information" and the "Proper use" together with the operating manual as a whole are observed.
- Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet. Use the tool attachment that is recommended in this operating manual. This is how to ensure that your machine provides optimum performance.
- Keep your hands away from the work area, when the machine is in operation.
- Risk of injury for fingers and hands due to the cutting tool running with improper guidance.
- Hazard due to electrical power with the use of improper electrical connection cables.
- Danger to health due to the hedge trimmer if hair is long or if wearing loose clothing. Wear personal protective equipment such as a hair net and close-fitting work clothing.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Safety instructions" and "Proper use" are observed along with the whole of the operating instructions.

7. Technical data

Motor V / Hz	230 / 50
Rated engine power W	550
Maximum cutting capacity in mm	18
Blade length in mm	621,5
Cutting length in mm	510
Max. cutting speed in min^-1	1600
Protection class	II
Weight in kg	2,4

Technical changes reserved!

Noise and vibration

⚠ Warning: Noise can have serious effects on your health. If the machine noise exceeds 85 dB (A), please wear suitable hearing protection.

Noise data

Sound power level L_WA 97,35 dB(A)

Sound pressure level L_pA 83,34 dB(A)

Uncertainty K_wa/pA 3 dB(A)

Vibration parameters

Vibration of front handle 2,149 m/s²

Vibration of rear handle 2,542 m/s²

Uncertainty K_h 1.5 m/s ^2

8. Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating instructions before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Replacement parts can be obtained from your dealer.
• When ordering please provide our article number as well as type and year of manufacture for your equipment.

⚠ WARNING!

The device and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

9. Assembly

ATTENTION!

Always switch off the device and disconnect it from the power supply before carrying out any work on the device - cleaning, inspection, maintenance or other work.

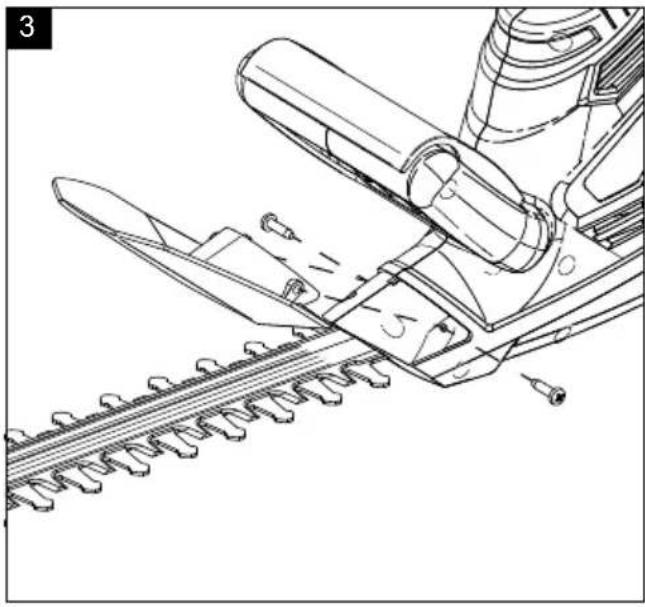

Fit the hand guard (Fig. 3)

Screw the hand guard (6) to the hedge trimmer housing with the two screws (d).

Attaching the extension cable (Fig. 4)

Plug the extension cable coupling onto the plug of the device.

Pull the extension cable through the cable strain relief (8) as a loop and hook it in.

Make sure that the extension cable has enough slack.

10. Start up

⚠ Attention!

Always make sure the device is fully assembled before commissioning!

Attaching the extension cable, Fig. 4

Plug the extension cable coupling onto the plug of the device.

Pull the extension cable through the cable holder (8) as a loop and hook it in.

Make sure that the extension cable has enough slack.

Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

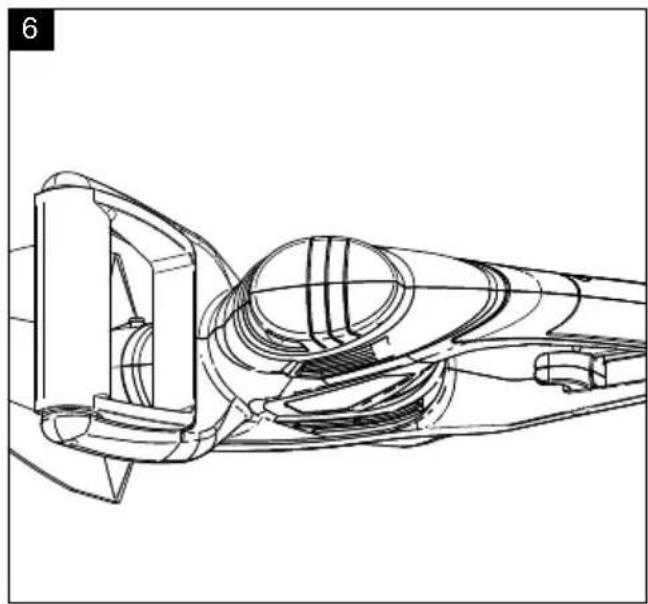

Starting and stopping the hedge trimmer, Fig. 6

Starting the device: Press the trigger (2) on the rear handle and simultaneously press the front switch bar (4) on the front handle (5) with the other hand.

Stopping the device: Release one of the two switches (2 or 4).

11. Working instructions

WARNING:

The device must never be switched on or used before it has been fully assembled.

For your own safety, please thoroughly read this manual and the general safety instructions before turning the machine on.

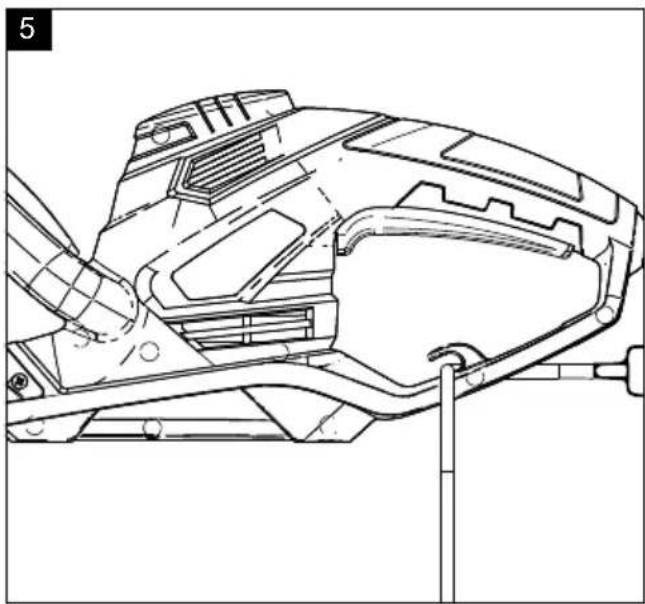

Hints and tips when cutting hedges Fig. 5

- The extension cable must remain behind the hedge trimmer during cutting so that it cannot be caught by the blades.

- Ensure your have a secure footing, hold the device with both hands and switch it on.

- Cut the hedge from both ends, starting at the bottom. This way, you avoid cutting debris falling into the area that is still to be cut.

- Run the device lightly over the surface of the hedge. Do not attempt to cut too deeply.

- Then cut the upper part of the hedge.

- For older hedges that need more pruning, first cut off thicker branches and twigs with pruning shears before using the device to trim the hedge.

- Make sure to remove any foreign objects from the hedges (e.g. wire), since it may damage the cutting unit of the hedge trimmer.

- Attention! The blades are still running! Do not stop the blades with your hand.

ATTENTION:

Incorrect use and misuse can damage the hedge trimmer and cause severe injuries due to thrown out parts.

To minimise the risk of accidents by using the cutting blade, take note of the following points:

- Never cut shrubs or timbers with a diameter of more than 1.8 cm.

- Avoid contact with metal bodies, stones, etc.

• Periodically check the cutting blade for damages. Never continue to use a damaged cutting blade.

- When the cutting blade becomes apparently blunt, it must be sharpened by a qualified specialist. When the cutting blade is apparently out of balance, it must be replaced.

12. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

- Pressure points, where connection cables are passed through windows or doors.

- Kinks where the connection cable has been improperly fastened or routed.

- Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall outlet.

- Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

For single-phase AC motors, we recommend a fuse rating of C 16A or K 16A for machines with a high starting current (from 3000 watts)!

13. Cleaning

Danger!

Pull out the mains plug before carrying out any cleaning work.

• Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the device clean with a clean cloth or blow it off with compressed air at low pressure.
  • We recommend that you clean the device directly after every use.
• Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior. Water entering a power tool will increase the risk of electric shock.

14. Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature lies between 5 and 30 °C. Store the power tool in its original packaging. Cover the power tool to protect it from dust or moisture. Store the operating manual with the power tool.

• Disconnect the hedge trimmer from the power supply when the device is not in use.
• Oil the blades to prevent rust.
• Store the device in a dry place and out of reach of children.

- When the device is not in use, store it in such a way that it cannot be activated by an unauthorised person.

15. Maintenance

WARNING!

Unplug the mains plug from the socket before carrying out any work on the device.

Always wear protective gloves during all work on and around the cutting tools.

• Check the device at regular intervals and before starting work.
• Check the device for properly fitted and intact covers or guards.
• Keep the handles free of oil and grease.
• Damaged cutting blades must be repaired or replaced by an approved service centre before working with the device.
• Clean the cutting blades with a soft brush after each job and spray a thin layer of liquid protective oil all over the blade.
• Always keep the ventilation openings on the motor housing free and clean.
• Never clean or splash the device with water. Only clean the motor housing with a damp cloth and never use cleaning agents or solvents! This could damage the plastic parts of the device. Finally, dry the motor housing carefully.
• Always store the machine with the protective guard provided.
• Only use original accessories and spare parts.

Use environmentally friendly oil, never use grease!

The user is responsible for all damage caused by failure to observe the instructions given in this user manual. This also applies to unauthorised modifications to the device, use of unauthorised spare parts, attachments, work tools, use other than intended and use for other than the intended purpose, consequential damage caused by the use of defective components.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Cutting blade

* may not be included in the scope of supply!

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any queries:

• Type of current for the motor
• Data of machine type plate
• Data of motor type plate

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

16. Transport

WARNING!

Remove the mains plug from the socket before transporting the device.

Slide the cutting blade guard (b) over the cutting blade (7) before any transport.

17. Disposal and recycling

The device is supplied in packaging to avoid transport damages. This packaging is raw material and can thus be used again or can be reintegrated into the raw material cycle.

The device and its accessories are made of different materials, such as metals and

plastics. Take defective components to special waste disposal sites. Check with your specialist dealer or municipal administration!

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and nic equipment (WEEE).

This product must be handed over at the intended collection point. This can be done, for example, by returning it when purchasing a similar product or delivering it to an authorised collection point for the recycling of old electrical and electronic devices. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

18. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Device does not start.	Mains voltage not present	Check the socket and the power supply; have it repaired by a certified electrician if necessary.
	ON/OFF switch defective Repair by an authorised service centre
	Carbon brushes worn Repair by an authorised service centre
	Engine defective Repair by an authorised service centre
	Power cable is damaged	Check the extension cable and have it repaired if necessary.
Device runs intermittently.	Power cable is damaged	Check the extension cable and have it replaced if necessary.
	Internal connections loose Repair by an authorised service centre
	On/Off switch defective Repair by an authorised service centre
Poor cutting quality Cutting blades are blunt		Have the blades sharpened or the cutter bar replaced
Motor is running but the transmission is not moving	The drive is jammed by a thick branch or other object	Switch off the hedge trimmer immediately, unplug it and remove the blockage
Blades become hot	The blades are blunt Have the blades sharpened
	The blades are defective Have the blades replaced
	No lubrication → friction Oil the blade

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Technical diagram of a mechanical assembly with exploded and assembled views, labeled with component numbers.

EC Declaration of Conformity

ELEKTRO-HECKENSCHERE - HTE550

ELECTRO HEDGE TRIMMER - HTE550

TAILLE-HAIES - HTE550

59105089956

89/686/EWG_96/58/EG 90/396/EWG

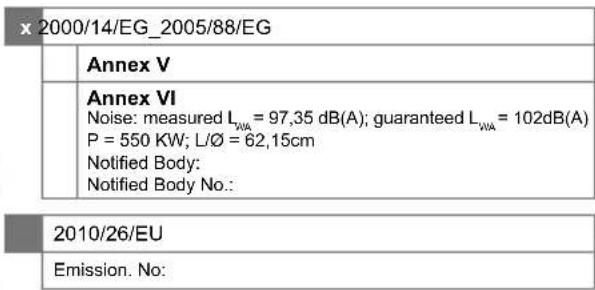

x 2000/14/EG_2005/88/EG Annex V Annex VI Noise: measured LWA = 97,35 dB(A); guaranteed LWA = 102dB(A) P = 550 KW; LØ = 62,15cm Notified Body: Notified Body No.: 2010/26/EU Emission. No:

x 2006/42/EG
	Annex IV Notified Body: Notified Body No.: Certificate No.:

Standard references:

EN 62841-1:2015; EN 62845-4-2:2019; EN 55014-1:2021; EN 55014-2:2021; EN 61000-3-2:2019+A1; EN 61000-3-3:2013+A1

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: David Rümpelein Günzburger Str. 69, D-89335 Ichenhausen

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.
