JCL150

DE	Elektro-UnkrautfugenbürsteOriginalbetriebsanleitung	5
GB	Electric weed sweeperTranslation of original instruction manual	18
FR	Brosse à joints électriqueTraduction des instructions d'origine	28

B

5 6 7 6 10

C

8 9/13 10 11 14

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Vibration (hinterer Griff) a_h = 1,8m / s^2

Vibration (vorderer Griff) a_h = 2,4m / s^2

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the device

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Before commissioning, read and observe the operating manual and safety instructions!
	Wear hearing protection.
	Wear safety goggles.
	Make sure that other persons maintain a sufficient safety distance.
	Do not expose the product to rain. The product may only be stationed, stored and operated in dry ambient conditions.
	Danger due to parts flying off while the engine is running.
	Only carry out maintenance, modification, adjustment and cleaning work when the motor is switched off and the mains is disconnected.
	Attention! Danger of injury due to a rotating tool!Keep feet and hands away.
	Protection class II (double insulation)
	The product complies with the applicable European directives.
△ ATTENTION!	We have marked points in this operating manual that impact your safety with this symbol.

Table of contents: Page:

1. Introduction....20
2. Device description (Fig. A, C).... 20
3. Scope of delivery 20
4. Proper use 20
5. Safety instructions 21
6. Technical data....23
7. Before commissioning 23
8. Assembly (Fig. B, C) 24
9. Commissioning 24
10. Working instructions (Fig. 1)....24
11. Transport....24
12. Maintenance and cleaning 25
13. Storage 25
14. Electrical connection 25
15. Disposal and recycling....26
16. Troubleshooting 27
17. Declaration of conformity 39

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new device brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
• Failure to comply with the operating instructions,
  • Repairs carried out by third parties, unauthorised specialists.
  • Installing and replacing non-original spare parts,
  • Application other than specified,
• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed.

Note:

Read through the complete text in the operating manual before installing and commissioning the device.

This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

2. Device description (Fig. A, C)

1. Handle
2. On/off switch
3. Strain relief
4. Mains cable
5. Handle section
6. Phillips screw
7. Centre piece
8. Protective cover
9. Nylon wire wheel
10. Motor head
11. Guide roller
12. Additional handle
13. Wire brush
14. Locking sleeve

3. Scope of delivery

• 1x electric weed sweeper
- 4x Phillips screw
- 1x protective cover
• 1x abrasive nylon brush
- 1x wire brush
- 1x guide roller
- 1x operating manual

4. Proper use

The device is suitable for removing weeds and moss in slab joints, interlocking paving or kerb gutters in domestic areas. This device is not suitable for commercial use.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

Please note that our equipment was not designed with the intention of use for commercial or industrial purposes.

We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.

5. Safety instructions

General power tool safety warnings

⚠ WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or screwdriver before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such precautionary measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a.) Only have your electric tool repaired by qualified specialists and only with original spare parts.. This will ensure that the safety of the power tool is maintained.

Further safety instructions

- If the mains connection cable of this device is damaged, it must be replaced by the manufacturer, their service department or a similarly qualified person to avoid dangers.

- Switch off the motor and disconnect the mains plug: - in the event of accidents or malfunctions, - when you are not using the device,

- when you are leaving the device unattended, - when cleaning, maintaining or before testing the device, - when transporting the device from one place to another, - Remove or replace the working brush.

- Brushes must not be fitted on machines whose speed is higher than the maximum permissible brush speed.

• Damaged brushes must not be used.

- Rust discolouration or other signs of chemical or mechanical alteration to the trim material may cause premature failure of the brush.

- Brushes must be stored in suitable racks, containers or boxes in such a way that they are protected against the following effects:

- High humidity, heat, water or other liquids that could cause damage to the brush - Acids or vapours of acids that could cause damage - Temperatures so low that they could lead to condensation on the brushes if they are moved out to an area with higher temperatures - Deformation of the brush components

- Do not use accessories that are not recommended by the manufacturer. This can lead to electric shock or fire.

Residual risks

The power tool is state-of-the-art and has been built according to the recognised technical safety regulations. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

- Residual risks can be minimised if the "Important information" and the "Proper use" are observed along with the whole of the operating instructions.

- Avoid accidental start-ups of the machine: the start button may not be pressed when inserting the plug in a socket.

- Keep your hands away from the working area when the machine is in operation.

- Before performing setting or maintenance work, release the start button and pull out the power plug.

⚠ WARNING

This power tool generates an electromagnetic eld during operation. This eld can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6. Technical data

Rated voltage 230-240 V\~ / 50 Hz

Rated input 150 W

Protection class II

Idle speed n_0 1300 min ^-1

Tool attachment ∅ 110 mm

Weight 1.7 kg

Subject to technical changes!

Noise/vibration information

⚠ WARNING!

Working without hearing protection or protective clothing can result in damage to health.

- Wear hearing protection and appropriate protective clothing when working.

Measured as per EN 62841. The noise at the work place can exceed 85 dB. In this case, protective measures for the user are required (wear suitable hearing protection).

Sound power level L_WA 84 dB

Guaranteed sound power level 87 dB

L_WA

Sound pressure level L_pA 76 dB

Uncertainty K_wa/pA 3 dB

The above mentioned values are device emissions values and therefore do not necessarily represent safe work place values. The correlation between emission and exposure levels cannot reliably lead to a derivation of whether additional precautionary measures are necessary or not.

Factors that could in uence the respective emissions level present at the work place include the speci cation of the working area and the environment, the duration of exposure, other noise sources and more.

Also pay attention to any possible deviations in the national regulations for the reliable work place values.

However, the above mentioned information makes it possible for the user to make a better assessment of the dangers and risks.

Vibration emission value a ^h (vector sum, three directions) and uncertainty K determined per EN 62841.

Vibration emission value (3-axle)

Vibration (rear handlef) a_h = 1.8 m/s^2

Vibration (front handle) a_h = 2.4 m/s^2

Uncertainty K = 1.5 m/s ^4

7. Before commissioning

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, keep the packaging until the expiry of the warranty period.

ATTENTION

The device and the packaging are not children's toys! Do not let children play with plastic bags,

films or small parts! There is a danger of choking or suffocating!

• The brush must be able to run freely.
• Before pressing the on/o switch, make sure that the brush is correctly tted and that moving parts run smoothly.
• Before connecting the machine, make certain that the data on the type plate matches with the mains power data.

Connection to the mains

Check whether the network to which you connect the machine is properly earthed according to the valid standards and whether the outlet is in good condition.

Assembly (Fig. B, C)

⚠ WARNING! Electric shock

Unplug the mains plug from the socket before carrying out any work on the machine!

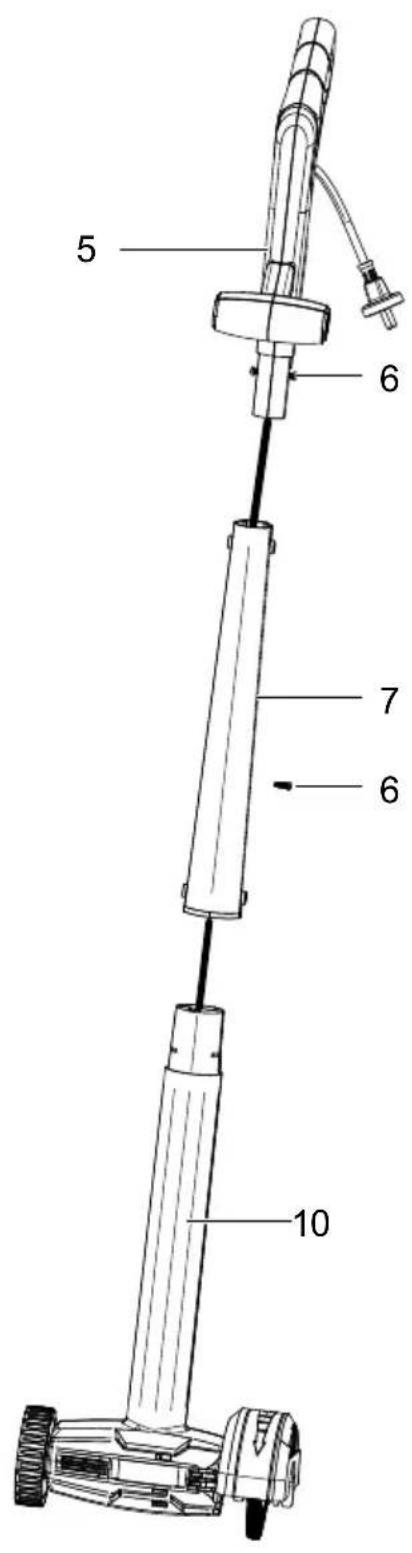

Assembling the device

1. Push the centre piece (7) onto the motor head (10).
2. Push the handle section (5) onto the centre section (7).
3. Screw the centre piece (7) tight with the four Phillips screws (6).

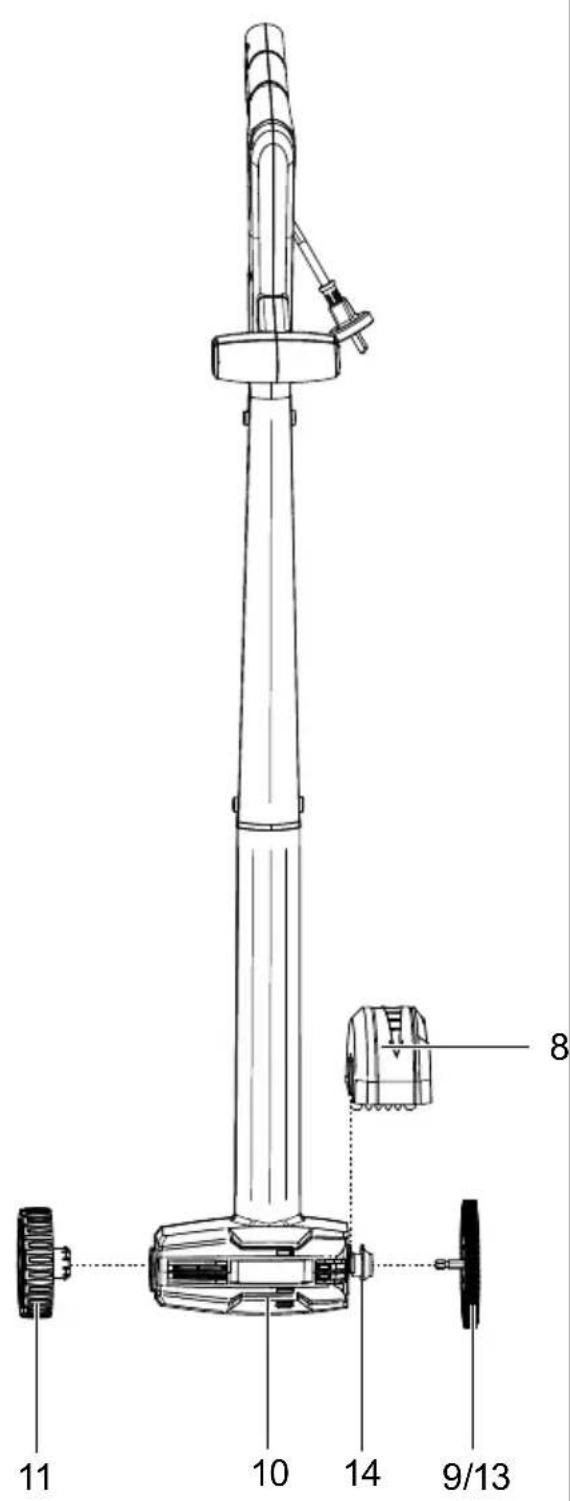

Fitting the protective cover and guide roller

1. Slide the protective cover (8) onto the rail on the motor head (10) until it clicks into place.
2. Insert the guide roller (11) into the holder on the motor head (10).

Inserting/changing the brush

To insert the brush:

1. Pull back the locking sleeve (14) and insert the desired brush (9/13).
2. Release the locking sleeve (14) to lock the brush (9/13) in place.

To remove the brush:

1. Pull back the locking sleeve (14) and remove the brush (9/13).

9. Commissioning

⚠ Attention!

Always make sure the device is fully assembled before commissioning!

Switching on and off (Fig. A)

1. Connect the mains cable (4) with a suitable extension cable.
2. Form a loop from the extension cable and hook it into the strain relief (3).
3. Connect the extension cable to the mains connection.
4. To switch on, press the on/off switch (2).
5. To switch it off, simply release the on/off switch (2).

△ Attention! After switching off the device, the brush continues to rotate for a few seconds. Keep hands and feet away.

⚠ Attention! The on/off switch (2) must not be locked.

10. Working instructions (Fig. 1)

⚠ Attention! Risk of injury

• Check the brush (9/13) before using it. Do not use damaged brushes (9/13). Replace a damaged or worn brush.
• Only use original brushes.
• Do not work in the rain or on wet surfaces. There is a danger of electric shock.
  • Always work across the slope on slopes.
• Avoid contact with solid obstacles (stones, walls, picket fences, etc.) to prevent damage to the device.
• Switch off the device during work breaks and for transport and wait until the brush (9/13) has come to a standstill.

Working with the device:

When working with the metal and nylon brushes (9/13), never sand over plastic or other sensitive floor materials. Otherwise it could scratch or damage the surface.

• Guide the device at walking pace.
- The arrow on the protective cover (8) indicates the direction of rotation of the brush (9/13).
- Test the device in an inconspicuous place before using it on sensitive floors.

Selecting the right brush:

Abrasive nylon brush (9):

For removing weeds, lichens and moss from small, narrow joints.

Wire brush (13):

For removing stubborn lichen and moss on insensitive substrates. Only use the wire brush on a non-sensitive substrate (road, pavement), as it could damage or scratch the floor covering.

11. Transport

Always switch off the power tool before transport and disconnect it from the power supply.

To transport the power tool, lift it by the centre struts.

Protect the electrical tool from impacts, shocks and severe vibrations, e.g. during vehicular transport.

Secure the power tool against toppling and slipping.

12. Maintenance and cleaning

⚠ WARNING!

Pull out the mains plug before carrying out any setting, servicing or repair work!

General maintenance tasks

• Always keep the cooling air openings in the housing clean and clear for air circulation.
- Rub the device clean with a clean cloth or blow it off with compressed air at low pressure.
• We recommend that you clean the device directly after every use.
- Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior.
- There are no parts which can be repaired by the user within the device. Never try to repair the device yourself. Always contact a qualified specialist.

Replacing the connection cable

If the mains connection cable of the plunge saw is damaged, it must be replaced by the manufacturer, their service department or a similarly qualified person to avoid dangers.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Carbon brushes, brushes

* may not be included in the scope of delivery!

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

13. Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C.

Store the power tool in its original packaging.

Cover the power tool to protect it from dust or moisture.

Store the operating manual with the power tool.

14. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

Important information

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  • Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with designation H05VV-F.

The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 230 V\~
- Extension cables up to 25 m long must have a cross-section of 1.5 mm ^2 .

Connections and repair work on the electrical equipment may only be carried out by electricians.

Connection type Y

If the mains connection cable of this device is damaged, it must be replaced by the manufacturer, their service department or a similarly qualified person to avoid dangers.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate

15. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

• Used batteries or rechargeable batteries are not installed permanently in the old appli- must be removed non-destructively before dis- al. Their disposal is regulated by the battery act.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards).

• Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.
• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- For additional take-back conditions of the manufacturers and distributors, please contact the respective customer service.

• In the case of delivery of a new electrical device by the manufacturer to a private household, the latter may arrange for the free collection of the old electrical device upon request from the end-user. Get in contact with the manufacturer's customer service.
  • These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.

16. Troubleshooting

Fault Possible cause Remedy
Motor does not work. Engine,	cable or connector defective, fuses burnt.	Arrange for inspection of the machine by a specialist.Never repair the motor yourself. Danger!Check fuses and replace if necessary
The engine runs slowly and does not reach the operating speed.	Voltage too low, coils damaged, capacitor burnt.	Contact the utility provider to check the voltage. Arrange for inspection of the motor by a specialist. Arrange for replacement of the capacitor by a specialist.
Engine producing excessive noise.	Coils damaged, motor defective. Arrange for inspection of the motor by a specialist.
The motor does not reach its full power.	Circuits in the network are overloaded (lamps, other motors, etc.).	Do not use any other equipment or motors on the same circuit.
Motor overheats easily. Overloading of the motor, insufficient cooling of the motor.		Avoid overloading the motor, remove dust from the motor in order to ensure optimal cooling of the motor.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Technical diagram of a mechanical assembly with exploded view and component labels in Chinese

EU Declaration of Conformity

X 2000/14/EG_2005/88/EG X Annex V Annex VI Noise: measured LWA = xx dB; guaranteed LWA = xx dB P = xx KW; LØ = cm Notified Body: Notified Body No.: 2016/1628/EU Emission. No:

X 2006/42/EG
	Annex IV Notified Body: Notified Body No.: Certificate No.:

Standard references:

EN 62841-1:2015/A11:2022; EN ISO 12100:2010; EN 1083-2:1997;

EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Georg Kohler

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
