USER MANUAL GHDSW8K4 IOGEAR

HDMI 2.1 source and 48Gbps HDMI cable are needed to display 8K resolution.

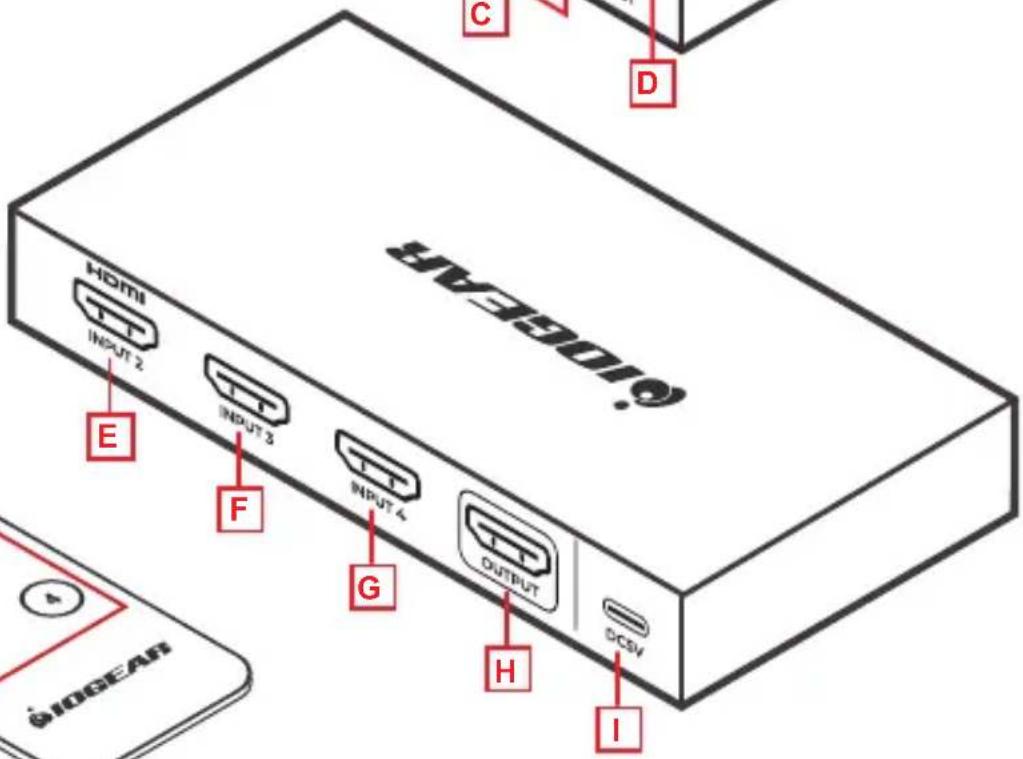

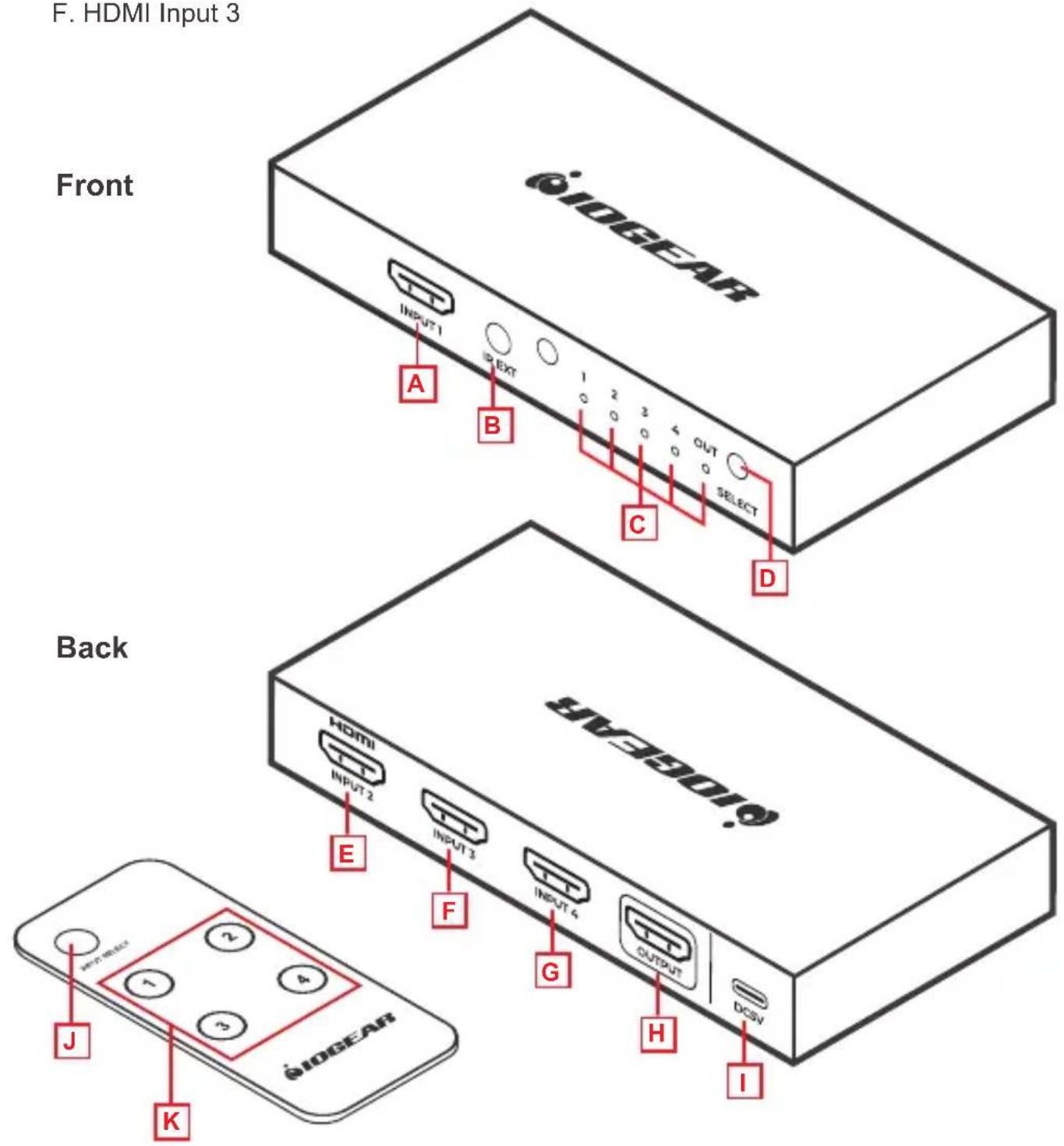

Product Overview

A. HDMI Input 1
B. IR Extension Port
C. Port Indicator LEDs
D. Port Selection Switch
E. HDMI Input 2
F. HDMI Input 3

G. HDMI Input 4

H. HDMI Output

I. USB-C Power

J. Input Selection Button

K. Port Selection Buttons

F. HDMI Input 3 Front i08EAR INPUT 1 B 1 2 3 4 OUT SELECT A B C D Back HY6801& HDMI INPUT 2 E F G H I J K i08EAR

Hardware Installation

1 Step 1 ....

Plug the USB-C power cable into the power port of the GHDSW8K4 and connect the other end to a USB port on your HDTV or to a USB power supply.

2 Step 2

Use an 8K capable HDMI cable to connect to the HDMI input port of the video display to the HDMI output port on the rear of the GHDSW8K4.

3 Step 3

Use 8K capable HDMI cables to connect to the HDMI output ports on the source devices to the HDMI input ports on the GHDSW8K4. The HDMI input ports are located on the rear of the switch.

Please refer to the diagram next page.

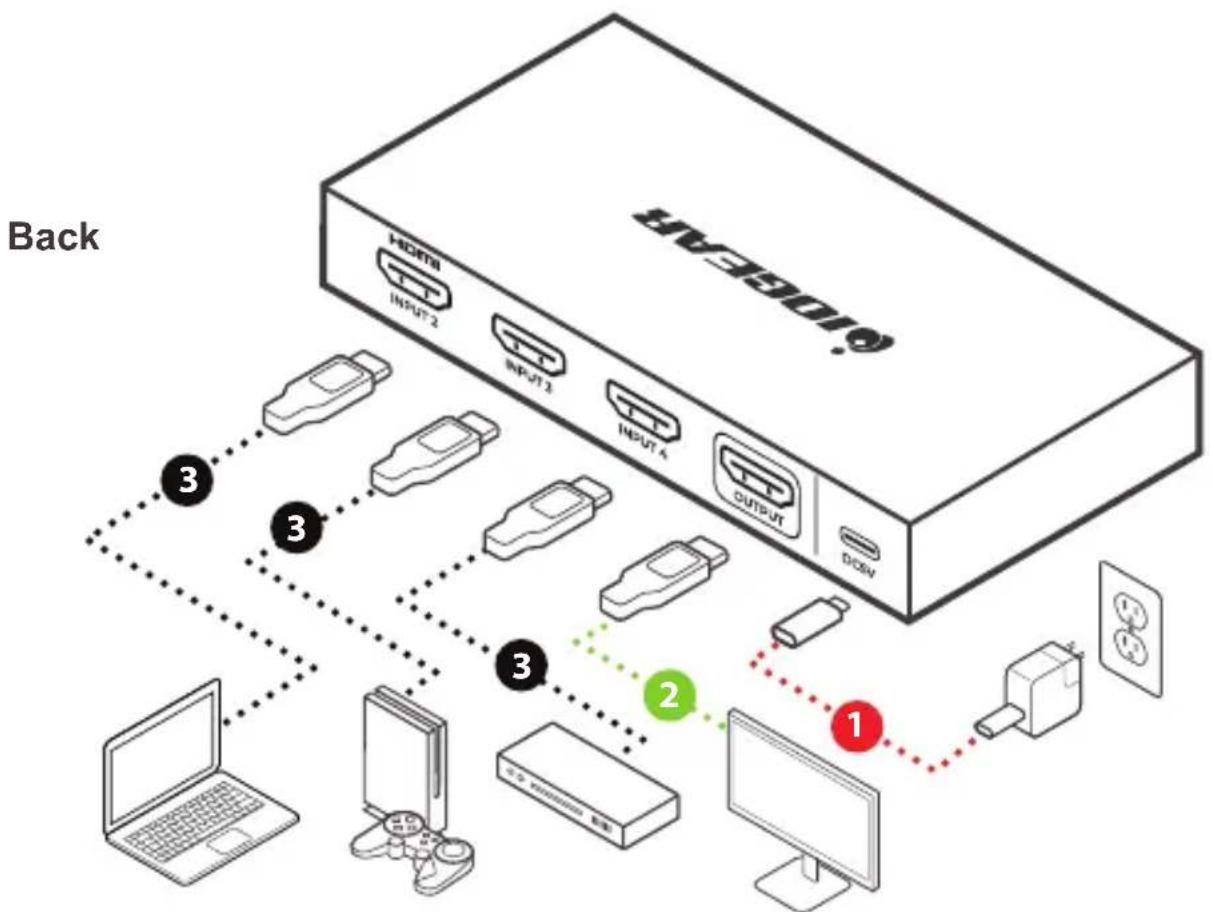

Hardware Installation (continued)


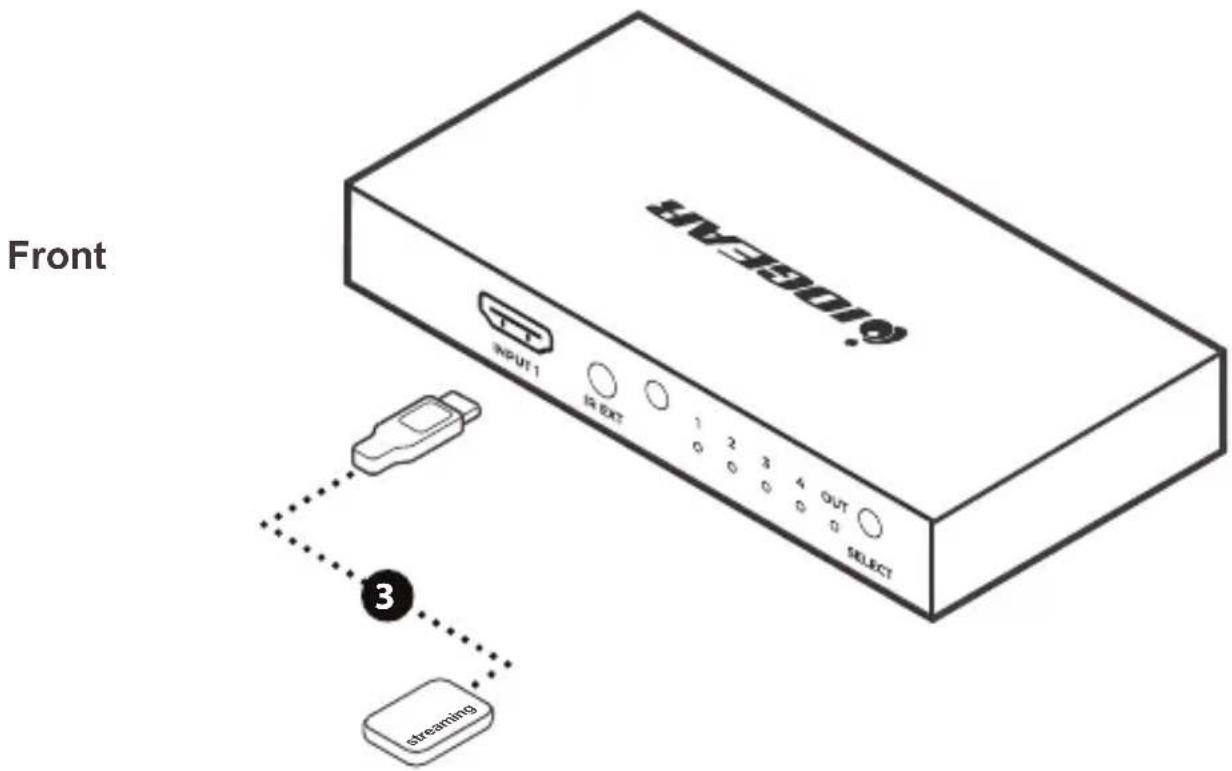

Front SASO INPUT 1 IN EXT 1 2 3 4 OUT 0 0 0 0 0 SELECT 3 streaming

Source Device Selection

The GHDSW8K4 Switch offers a two of methods for source device selection from the front panel using the pushbutton, or with the included IR remote.

Remote Control Selection

To select a source device with the remote control, press the number button that corresponds to the source you wish to view. Alternatively, you can cycle through the available source devices by pushing the Next button on the remote-control unit.

FAQ (Frequently Asked Questions)

1. Which resolutions does the GHDSW8K4 support?

7680*4320@30/60Hz

4096*2160@24/25/30/50/60/120Hz

3840*2160@24/25/30/50/60Hz

2160*1440@50/60Hz

1920*1080@50/60Hz

1920*1200@50/60Hz

2. My GHDS8K4 is not displaying any picture.

Please ensure that the cables you are using are shorter than 2 meters (6.5ft) and are 48Gbps rated HDMI cables.

3. What version HDMI is the GHDSW8K4?

HDMI 2.1

4. I have 48Gbps HDMI cables connected to the switch and still get no video, why?

The switch is designed with high/low voltage protection circuit, if you connect the video source to the switch first, due to low voltage supplied from the video source, the switch may malfunction. Please disconnect all cables currently connected to the switch and connect the power cable first to the switch.

Limited Warranty

Warranty Information

This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register

Important Product Information Product Model ____ Serial Number ____

Contact

WE'RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support

IOGEAR

iogear.custhelp.com

[e-mail]

www.iogear.com

Compliance Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CE Statement:

This device has been tested and found to comply with the following European Union directives: Electromagnetic Capability (2004/108/EC), Low Voltage (2006/95/EC) and R&TTED (1999/5/EC).
