USER MANUAL IFS 30K0.2DL Kern

KERN TKFP 6V20M-A, TKFP 6V20LM-A

KERN TKFP 15V20M-A, TKFP 15V20LM-A

KERN TKFP 30V20M-A, TKFP 30V20LM-A

KERN TKFP 60V20M-A, TKFP 60V20LM-A

KERN TKFP 150V20M-A, TKFP 150V20LM-A

KERN TKFP 300V20M-A

KERN TKFP 600V20M-A

Crossed black-and-white diagram of a bolt with a red arrow indicating a specific component (no text or symbols)

1

Pure structural diagram showing two beams supported by blocks, with a labeled point '2' at the center (no text or symbols beyond the label)

(4 x)

Variante 1:

Diagram showing a mechanical or electrical component with numbered components and directional arrows, likely illustrating a step or motion sequence.

Diagram showing a structural frame with labeled components and an arrow pointing to a hexagonal element containing numbers 1.

Variante 2:

Pure diagram of a symmetrical mechanical or structural component with four rounded ends and two horizontal arrows indicating force or direction (no text or symbols)

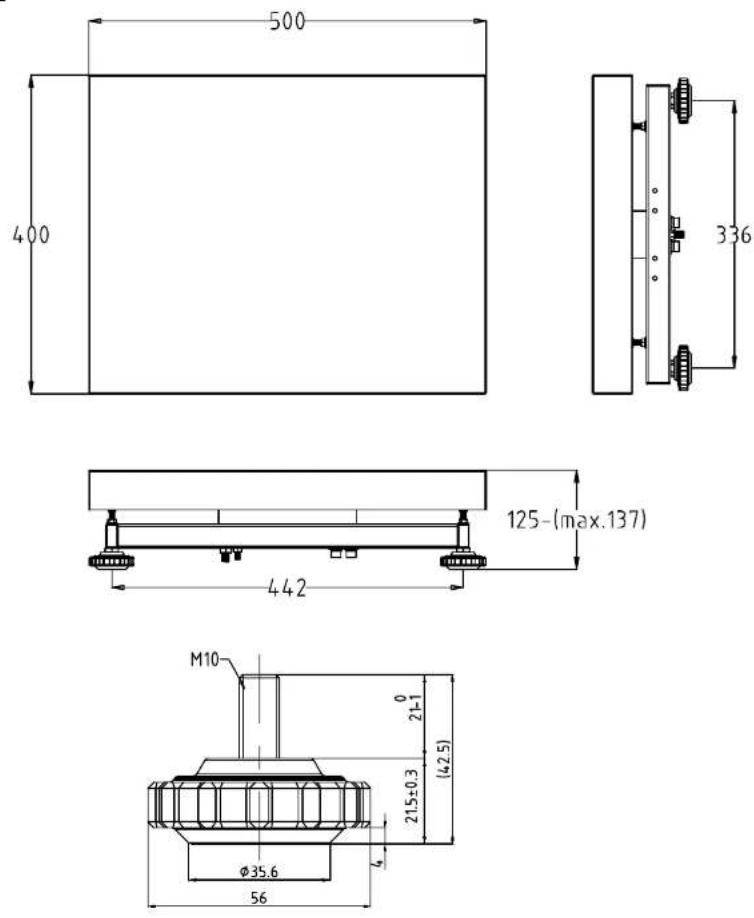

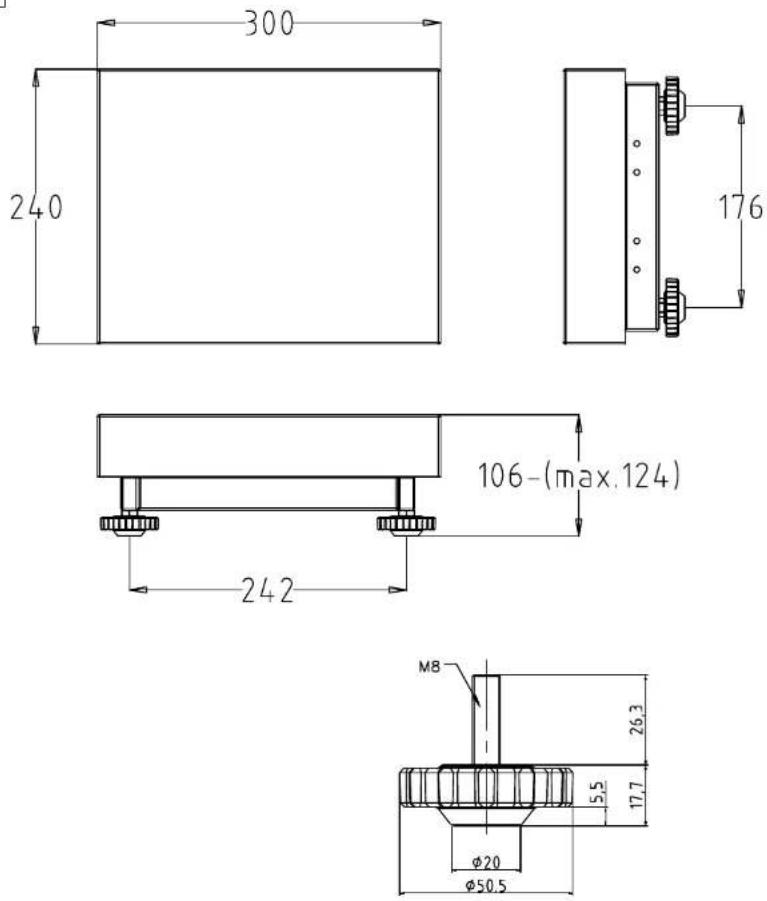

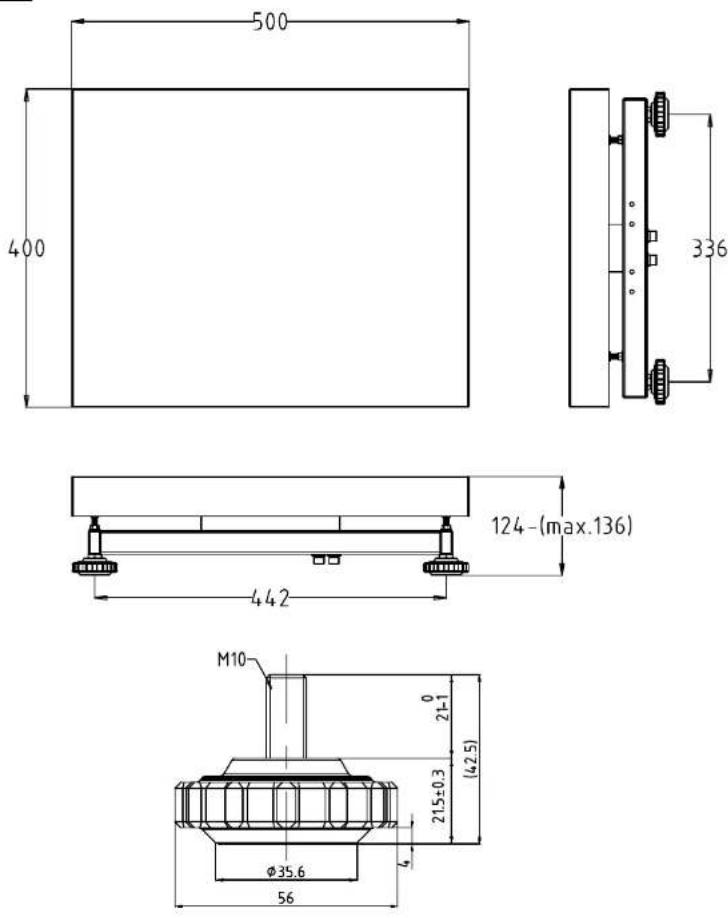

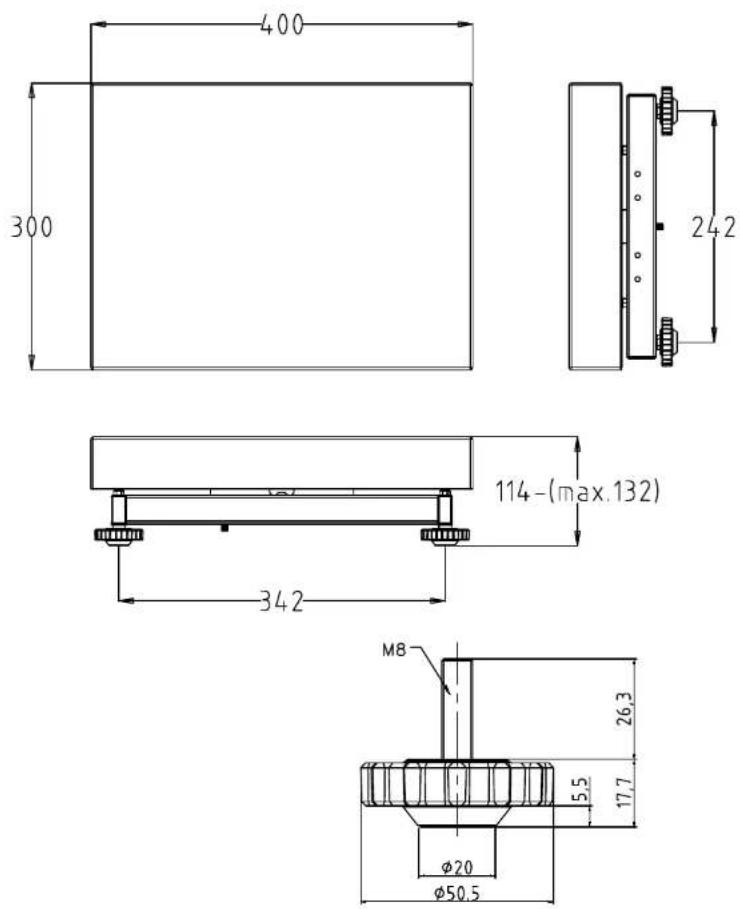

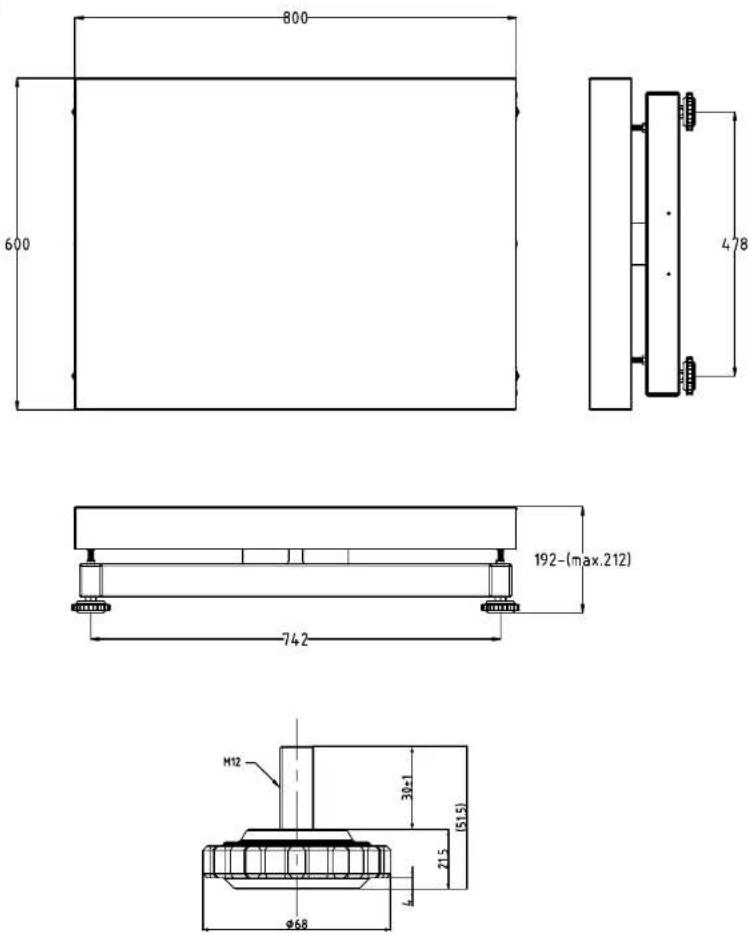

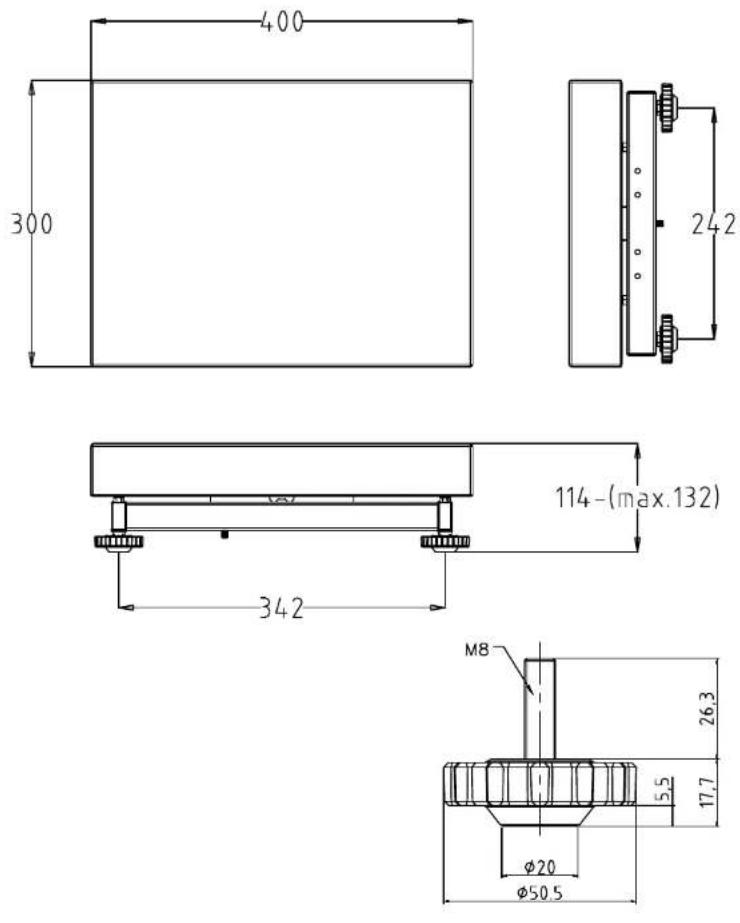

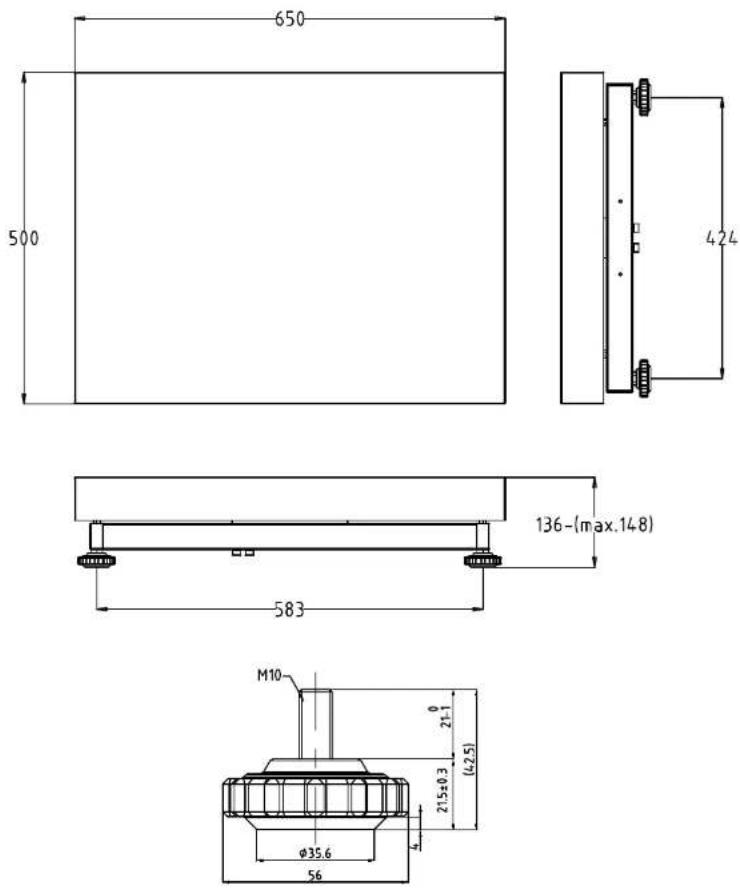

6.4 Niveller

Simple 3D diagram of a rectangular block with a downward arrow indicating force or direction (no text or symbols)

Simple line drawing of a rectangular block with a hatched top surface and an arrow pointing downward (no text or symbols)

Simple line drawing of a rectangular block with a downward arrow and label 'C' (no text or symbols on the object itself)

Simple line drawing of a block with a crosshair and arrow, no text or symbols present

REVISIONS
ZONE	REV.	DESCRIPTION	DATE	APPROVED
	A0	Released	2023.9.19	Tim Zhao

Isometric line drawing of a square electronic component with four base legs (no text or symbols)

Isometric line drawing of a four-legged robotic platform with mounting feet (no text or symbols)

Technical line drawing of a mechanical device with four wheels and a central component (no text or symbols)

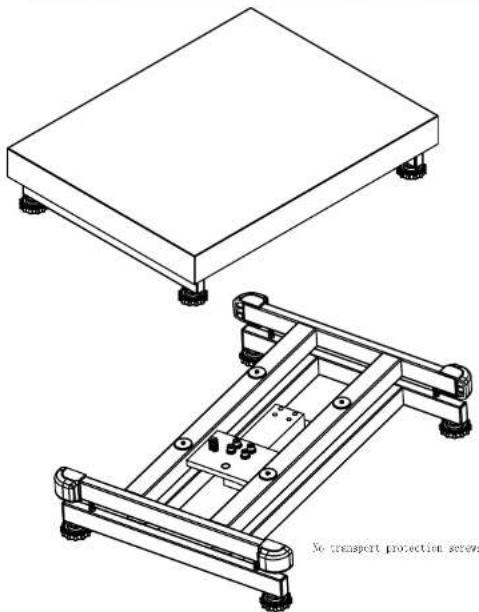

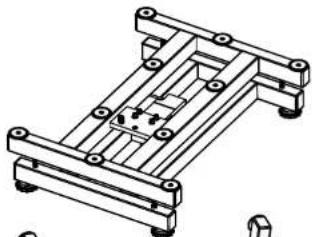

Transport protection screw

SLRANCE UNLESS ORWISSE SPECIFIED 30X ANGLES R0.1 FOR 0.X 8.05 FOR 0.X		KERN® KERN & SOHIN GmbH
3RD ANGLE PROJECTION		TITLE:	TKFP 3V20M-A with feet TKFP 6V20M-A with feet
DRAWN	Y.I.Zhao
CHECKED	Tim.Zhao	MODEL NO.	PB2323-3K-KERN PB2323-4K-KERN		PART NO.	1308004/00001 1308004/00002
APPROVED	Tim.Zhao	MATERIAL			FINISH
UNIT	m/m	SCALE		DO NOT SCALE DRAWING			SHEET OF

A4

REVISIONS
ZONE	REV.	DESCRIPTION	DATE	APPROVED
	A0	Released	2023.9.19	TimZhao

Isometric line drawing of a rectangular electronic component with four base pins (no text or symbols)

Isometric line drawing of a mechanical support structure with mounting feet (no text or symbols)

Line drawing of a wheeled cart with wheels and a door, no text or symbols present

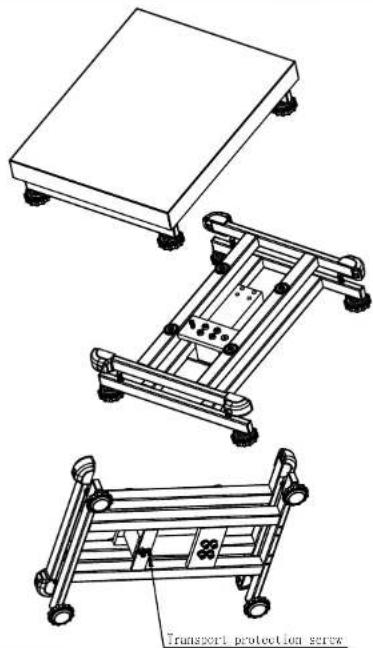

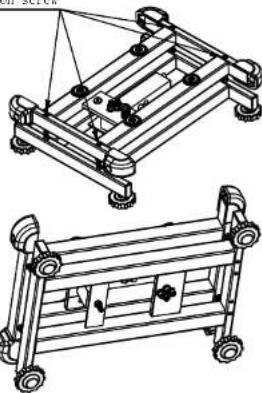

Transport protection screw

SUBANCE UNLESS OTHERWISE SPECIFIED 300 WMMS R.O.I FOR 0.X 14.05 FOR 0.XX		KERN® KERN & SOHN GmbH
∅ ⊆ 3RD ANGLE PROJECTION		TITLE:	TKFP 6V20LM-A with feet TKFP 1SV20M-A with feet TKFP 30V20SM-A with feet
DRAWN	YJ Zhao
CHECKED	Tim Zhao	MODEL NO.	PB3024-6K-KERN PB3024-1SK-KERN PB3024-30K-LGD-KERN		PART NO.	138000600011 138000600012 138000600037
APPROVED	Tim Zhao	MATERIAL			FINISH
UNIT	m/m	SCALE		DO NOT SCALE DRAWING		SHEET OF

A4

REVISIONS
ZONE	REV.	DESCRIPTION	DATE	APPROVED
	All	Released	2023.9.15	Tim Zhao

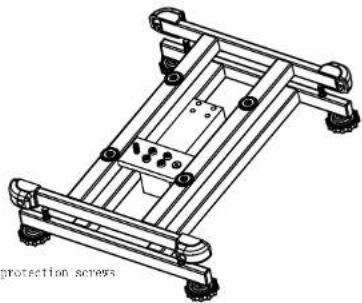

Transport protection screw

SOLARANCE MELLS SPRINGAGE SPECIFIED MILK 2013 R.Q. FOR 3,6 R.Q. FOR 5,6X		KERN® KERN & SOHN GmbH
#	300 ANGLE PROJECTION	TITLE:	TKFP. ISV23LM-A with feet
NAME	YJ23mm
ORDER	Tin.2 mm	MODEL NO	PA1538-TSK-KERN	PART NO.	TS000700009
APPROVED	Tin.2 mm	MATERIAL		FINISH
JNT	mm	SCALE		DO NOT SCALE DRAWING		SHEET OF

A4

REVISIONS
ZONE	REV.	DESCRIPTION	DATE	APPROVED
	All	Released	2023.9.15	Tim Zhao

Isometric line drawing of a rectangular electronic device with four wheels (no text or symbols)

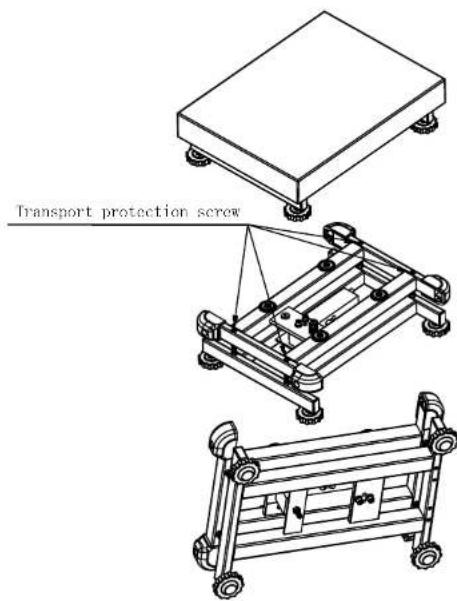

Transport protection screw

Technical line drawing of a mechanical frame assembly with wheels and supports (no text or symbols)

SOLARANT MELLS SPRING SPRING MELG RJ. FOR 3X RJ. FOR 2X AOS		KERN® KERN & SOH GmbH
### ### ### PROJECTION		TITLE:	THFP 36V20M-A with feet
NAME	YJ23ba
ORDER	Tim Zhao	MODEL NO	P3433-384-KERN	PART NO.	DS000700002
APPROD	Tim Zhao	MATERIAL		FINISH
JNT	m/m	SCALE		DO NOT SCALE DRAWING		SHEET OF

REVISIONS
ZONE	REV.	DESCRIPTION	DATE	APPROVED
	All	Released	2023.9.15	Tim Zhao

Isometric line drawing of a rectangular platform with four wheels (no text or symbols)

No transport protection screws

114-(max.132) 342 M87

Isometric line drawing of a mechanical frame with four wheels and central supports (no text or symbols)

M8 26.3 5.5 17.7 φ20 φ50.5

Line drawing of a wheeled cart or pallet with wheels and a small inset box (no text or symbols)

SILVERANCE SHEETS SPRING SHEET MID R.Q. FOR 3X R.Q. FOR 4X AOS		KERN® KERN & SOHGBHD TITLE: THFP 64V20M-A with feet
###	### PROJECTION
NAME	YJ23ba
ORDER	Tim Ziba	MODEL NO	P3433-491-KERN	PART NO.	1500070004
APPROD	Tim Ziba	MATERIAL		FINISH
JNT	m/m	SCALE		DO NOT SCALE DRAWING		SHEET OF

A4

REVISIONS
ZONE	REV.	DESCRIPTION	DATE	APPROVED
	A0	Released	2023.9.19	Tim.Zhao

Transport protection screw

TOLERANCE UNLESS STRAWBSE SPECIFIED DEC. ANGLES ±0.1 FOR 0X ±0.5 FOR 0XX		KERN® KERN & SOHN GmbH
#3 IRD ANGLE PROJECTION		TITLE:	TKFP 30V20LM-A with feet
DRAWN	YJ.Zhao
CHECKED	Tim.Zhao	MODEL NO.	PMS4-30R-30R-N	PART NO.		130801200027
APPROVED	Tim.Zhao	MATERIAL		FINISH
JUNT	mm	SCALE		DO NOT SCALE DRAWING			SHEET OF

A4

REVISIONS
ZONE	REV.	DESCRIPTION	DATE	APPROVED
	A0	Released	2023.9.19	Tim.Zhao

Simple line drawing of a rectangular electronic device with four wheels (no text or symbols)

Technical line drawing of a mechanical frame assembly with mounting holes and mounting feet (no text or symbols)

TOLERANCE UNLESS OTHERWISE SPECIFIED DEC. ANGLES ±0.5 FDR 0.X ±0.5 FOR 0.X		KERN® KERN & SOHN GmbH
#3 IRD ANGLE PROJECTION		TITLE:	TKFP 60V20LM-A with feet TKFP 150V20M-A with feet
DRAWN	YJ.Zhaq
CHECKED	Tim.Zhaq	MODEL NO.	FENSH-40M-RUM FENSH-30M-RUM		PART NO.	130801200024 130801200023
APPROVED	Tim.Zhaq	MATERIAL			FINISH
JUNT	mm	SCALE		DO NOT SCALE DRAWING		SHEET OF

A4

REVISIONS
ZONE	REV.	DESCRIPTION	DATE	APPROVED
	A0	Released	2023.9.19	Tim.Zhao

Technical line drawing of a mechanical assembly with two views: top shows a flat base, bottom shows a metal frame with mounting feet (no text or symbols)

TOLERANCE UNLESS STRAWBSE SPECIFIED ANGLES ±0.1 FOR 0.X ±0.5 FOR 0.XX		KERN® KERN & SOHN GmbH
#3 IRD ANGLE PROJECTION		TITLE:	TKFP 150V20LM-A with feet TKFP 300V20M-A with feet
DRAWN	Yi.Zhan
CHECKED	Tim.Zhan	MODEL NO.	P46550-150K-KERN P36550-300K-KERN		PART NO.	130001300005 130001300006
APPROVED	Tim.Zhan	MATERIAL			FINISH
JUNT	mm	SCALE		DO NOT SCALE DRAWING			SHEET OF

A4

REVISIONS
ZONE	REV.	DESCRIPTION	DATE	APPROVED
	All	Released	2023.9.19	Tim.Zhao

Isometric line drawing of a rectangular electronic component with four legs (no text or symbols)

Technical line drawing of a mechanical frame assembly (no text or symbols)

No transport protected scrings

FÜRENCHE UNITS SCHWEN SENSIFER NCT. ANGLES RIOI FÜR O.X. RODD FOR DUX.		KERN® KERN & SOHN GmbH
∅ 300 ANGLE PROCEEDER		TITLE	THFP 408V20H-A with feel
DRAWN	YJ.Zhu#
CHECKED	Tin.Zhu#	MODEL NO.	PM600-400K-KERN	PART NO.	13080930017
APPROVED	Tin.Zhu#	MATERIAL		FINISH
JNT	m/m	SCALE		DO NOT SCALE DRAWING		SHEET OF
