SWINGING DOORS

MODEL: SS-door2-WH-4/SS-door2-NA-5/SS-door2-NA-6/SS-door2-WH-7

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:

Exterior view of a white ventilation grille with slats (no text or symbols)

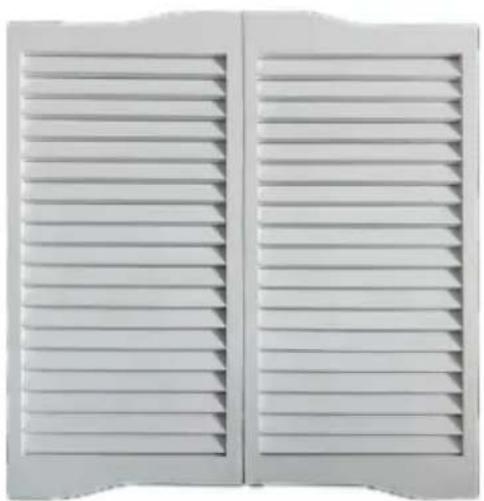

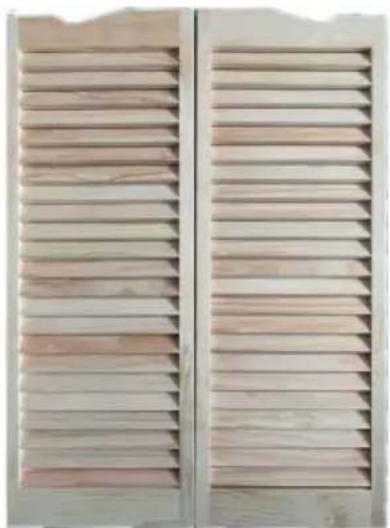

SS-door2-WH-4 SS-door2-NA-5 SS-door2-WH-7 SS-door2-NA-6

Two wooden slatted panels with vertical slats, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Safety Instructions

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions cause personal injury or damage to valuable property.

WARNING:

1. Do not draw, cut, or use sharp objects on the swinging doors to damage.
2. If you need to disassemble the swinging doors, please follow the steps to disassemble it and store it properly.
3. Clean the swinging doors regularly to keep it clean and fresh, you use a vacuum cleaner or damp cloth to gently wipe the swinging do

Maintenance Guide

1. Regularly clean the swinging doors, use a damp cloth to wipe the surface, and remove dust and dirt.
2. Avoid using corrosive cleaning agents or chemical solvents to clear swinging doors.
3. If the swinging doors is found to be damaged, please replace the swinging doors handles piece in time to ensure its normal use.

SAVE THESE INSTRUCTIONS

Part List
A		2
B		4
C	(M4*25)	32

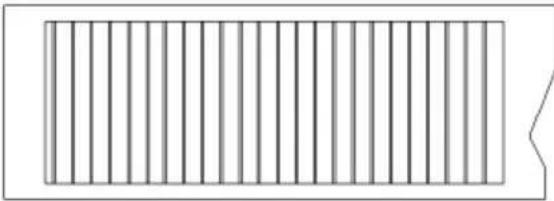

D	(Representative Graph)	1

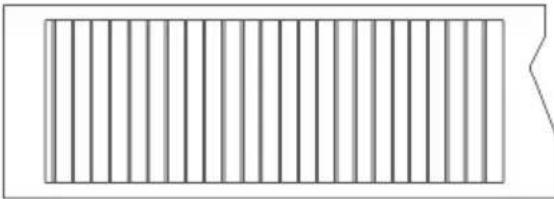

E	(Representative Graph)	1
F	(M5*68)	6
G		6
H		8
I		1

Product Installation

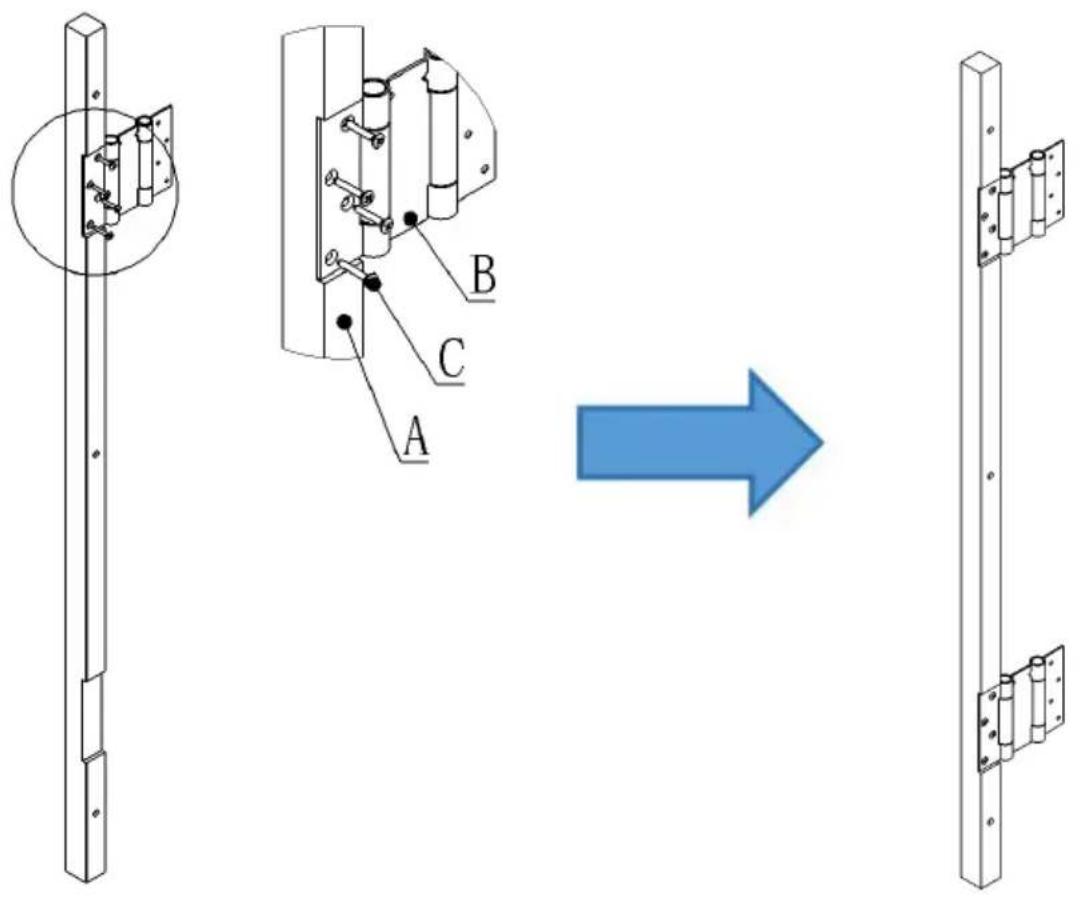

Step1:Mounting hinge.

Technical diagram showing a mechanical assembly process with labeled components A, B, and C, culminating in a blue arrow indicating direction.

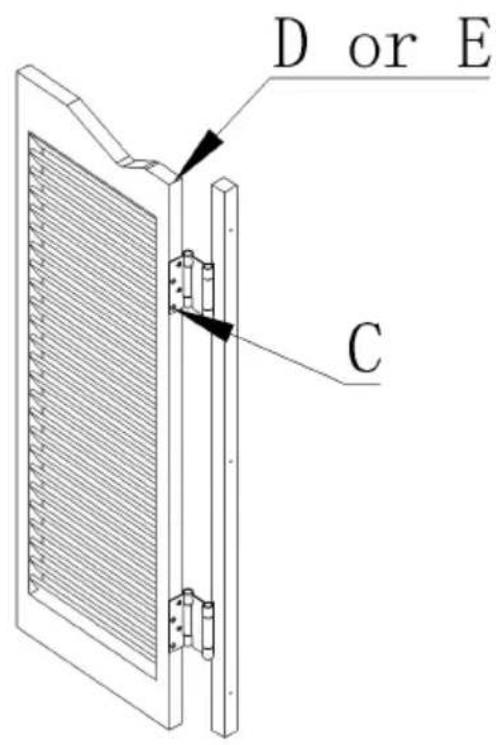

Step2:Mounting door panel.

Note: The door panel should be flush with the door frame strip.

D or E C

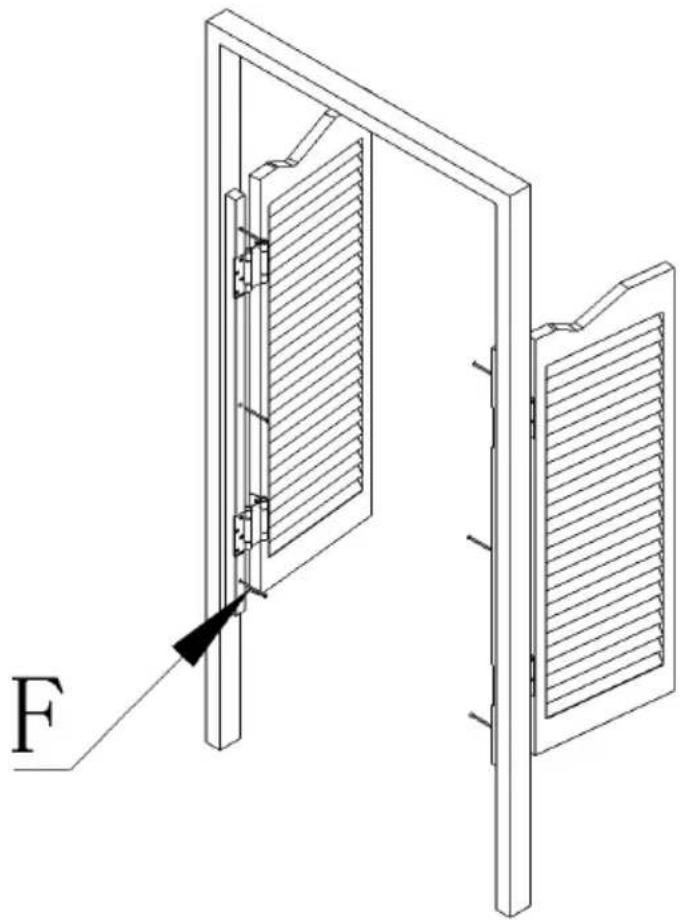

Step3: Install the swinging door on the door frame.

Technical line drawing of a door frame with hatched insulation and a labeled force arrow (no text or symbols beyond label)

Step4: Adjusting hinge.

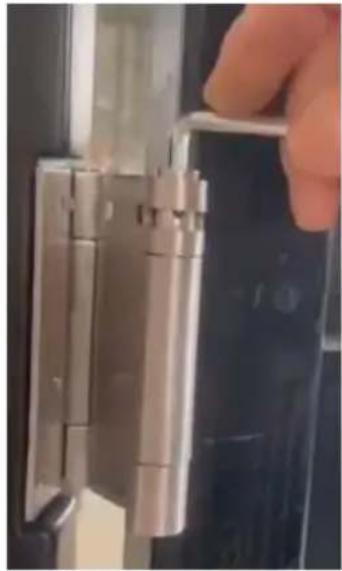

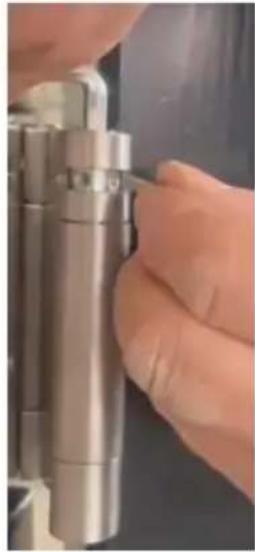

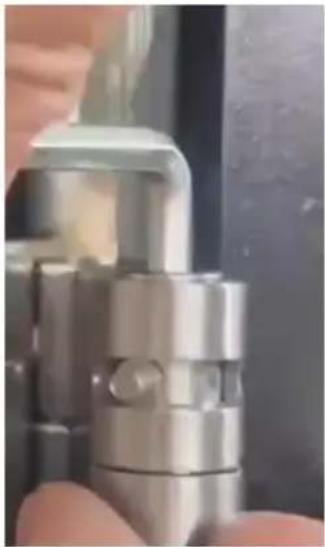

A.Insert the wrench into the hinge.	B.Swivel wrench adjusts hinge elasticity and inserts latch.	C.Select different holes to insert the latch to obtain differe closing speeds.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
