SS-door2-WH-4 - Swing door Vevor - Free user manual and instructions

Brand	Vevor
Model	SS-door2-WH-4
Product type	Double swing door with ventilation grilles
Material	Plastic (white PVC)
Color	White
Number of leaves	2
Package contents	Door panels, hinges, handles, screws (M4×25 and M5×68), adjustment key, mounting hardware
Main functions	Opening and closing of leaves with closing speed adjustment
Adjustment	Adjustment of hinge elasticity and closing speed via a key and different latch holes
Installation	Mounting hinges, fixing door panels, installation on frame, hinge adjustment
Maintenance and cleaning	Clean with a damp cloth; avoid chemical solvents and corrosive cleaners; vacuum dust
Safety	Do not pull, cut or use sharp objects; replace if damaged; secure handles
Spare parts and repairability	Hinges, handles, door panels (identified in the manual); disassembly by reverse procedure
General information	Electronic warranty: www.vevor.com/support; manufactured by Shanghai Muxin Muye Co., Ltd.; imported into Australia, USA and UK

Frequently Asked Questions - SS-door2-WH-4 Vevor

What are the dimensions of the doors?

The precise dimensions are not specified in the manual. Please refer to the packaging or contact Vevor customer service for detailed information.

How to install the Vevor swing door?

Follow the steps in the manual: first mount the hinges on the frame, then attach the door panels ensuring alignment, install the assembly on the door frame, and adjust the hinges with the supplied key to set the closing speed.

How to adjust the closing speed?

Insert the key into the hinge, turn it to adjust the elasticity. Then select another hole to insert the latch to achieve different closing speeds.

What maintenance is recommended?

Regularly clean the doors with a damp cloth to remove dust and dirt. Avoid corrosive products or chemical solvents. Use a vacuum cleaner for the ventilation grilles.

Are the doors reversible?

The manual does not mention reversibility. The standard installation is described for opening in one direction. If needed, contact technical support.

Can I use these doors for a pet passage?

Yes, this model is designed as a swing door with ventilation grilles, suitable for pets. Ensure the dimensions match your opening.

How to disassemble the door if necessary?

Follow the reverse procedure of installation: remove the latches, unscrew the hinges, and separate the panels. Store all parts carefully.

Where to find spare parts?

Parts such as hinges, handles, and panels are referenced in the manual. Contact Vevor via www.vevor.com/support to order spare parts.

What tools are needed for installation?

The manual does not specify additional tools. The kit includes screws and an adjustment key. A screwdriver may be needed for some screws.

Is the warranty included?

Yes, Vevor offers an electronic warranty. Register your product at www.vevor.com/support to benefit from technical support and the warranty certificate.

USER MANUAL SS-door2-WH-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SWINGING DOORS

MODEL: SS-door2-WH-4/SS-door2-NA-5/SS-door2-NA-6/SS-door2-WH-7

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

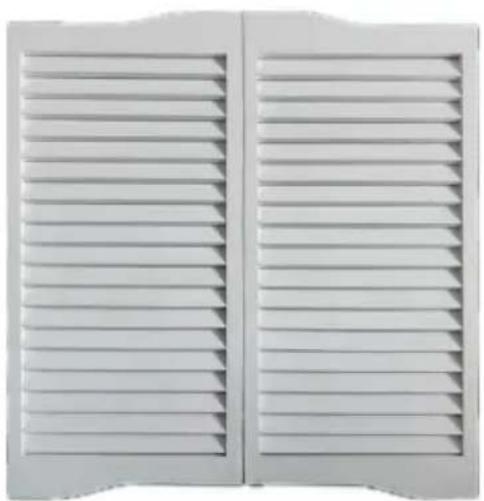

MODEL:

Exterior view of a white ventilation grille with slats (no text or symbols)

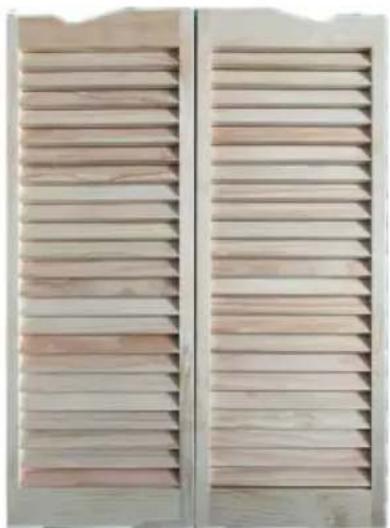

SS-door2-WH-4 SS-door2-NA-5 SS-door2-WH-7 SS-door2-NA-6

Two wooden slatted panels with vertical slats, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Safety Instructions

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions cause personal injury or damage to valuable property.

WARNING:

1. Do not draw, cut, or use sharp objects on the swinging doors to damage.
2. If you need to disassemble the swinging doors, please follow the steps to disassemble it and store it properly.
3. Clean the swinging doors regularly to keep it clean and fresh, you use a vacuum cleaner or damp cloth to gently wipe the swinging do

Maintenance Guide

1. Regularly clean the swinging doors, use a damp cloth to wipe the surface, and remove dust and dirt.
2. Avoid using corrosive cleaning agents or chemical solvents to clear swinging doors.
3. If the swinging doors is found to be damaged, please replace the swinging doors handles piece in time to ensure its normal use.

SAVE THESE INSTRUCTIONS

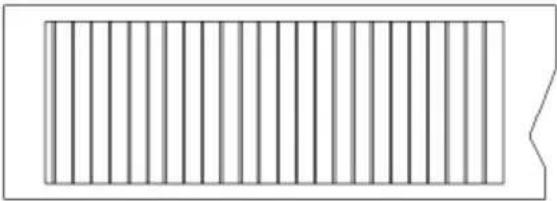

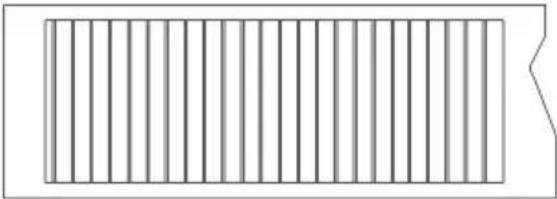

Part List
A		2
B		4
C	(M4*25)	32
D	(Representative Graph)	1
E	(Representative Graph)	1
F	(M5*68)	6
G		6
H		8
I		1

Product Installation

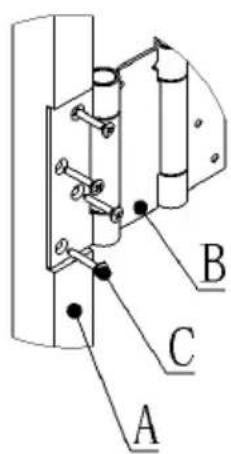

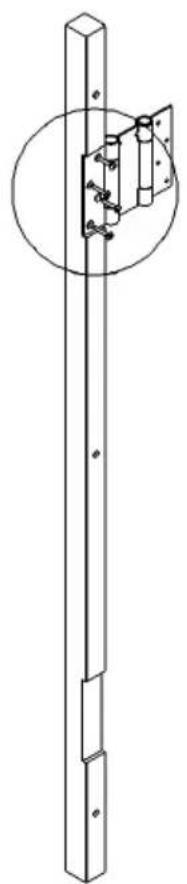

Step1:Mounting hinge.

Technical line drawing of a vertical pole with mounting brackets and a circular inset showing internal components (no text or symbols)

Technical diagram of a mechanical assembly with labeled components A, B, and C

Blue right-pointing arrow icon (no text or symbols)

Technical line drawing of a vertical metal frame with two side panels and mounting holes (no text or symbols)

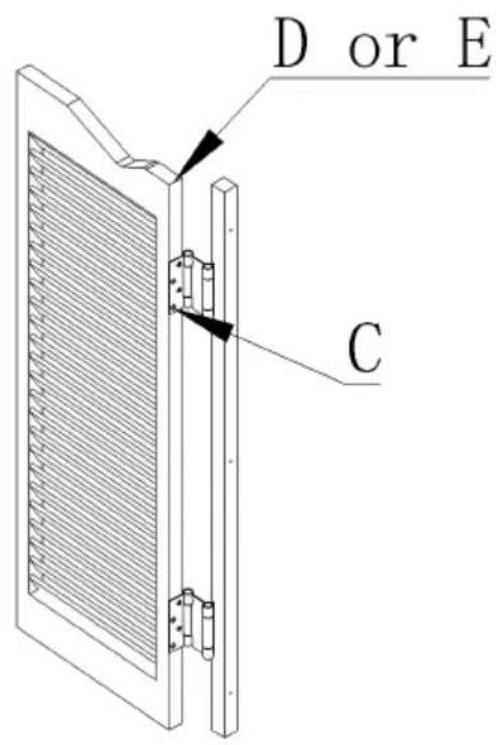

Step2:Mounting door panel.

Note: The door panel should be flush with the door frame strip.

D or E C

Step3: Install the swinging door on the door frame.

Technical line drawing of a door frame with hatched insulation and a labeled force arrow (no text or symbols beyond label)

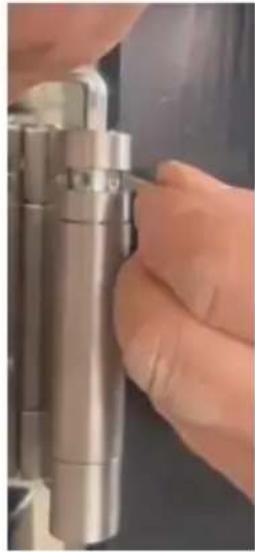

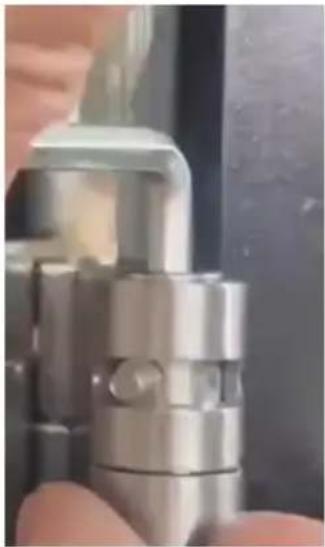

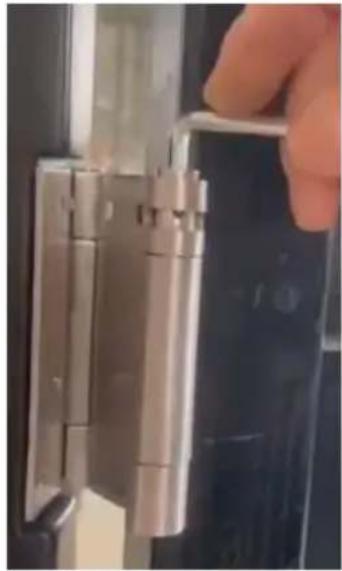

Step4: Adjusting hinge.

A.Insert the wrench into the hinge.	B.Swivel wrench adjusts hinge elasticity and inserts latch.	C.Select different holes to insert the latch to obtain differe closing speeds.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support
