Dear customer,

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 24

Installation 27

Device Overview 28

Control panel and button functions 31

Cleaning and care 32

Troubleshooting 33

Product Data Sheet 34

Product Data Sheet 36

Product Data Sheet 38

Disposal Considerations 40

Manufacturer & Importer (UK) 40

TECHNICAL INFORMATION

Item number 10041205 10041206 10041207
Name Barolo 12 Uno		Barolo 14 SlimUno	Barolo 15 Uno
Capacity	12 bottles(750 ml)	14 bottles(750 ml)	15 bottles(750 ml)
Power supply 220-240 V ~ 50 Hz

SAFETY INSTRUCTIONS

• Check the voltage on the product label before use. Ensure to only connect the appliance to sockets with the appropriate voltage.
• Children from the age of 8 years and mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• Make sure that the ventilation openings are free and cleaned regularly.
• Do not use mechanical devices to speed up the defrosting process.
• Do not place electrical appliances, such as ice machines, in the refrigerator.
• Be careful not to damage the coolant circuit.
• If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualified person.
• Check the power cord regularly for any damage. Do not use the device with a damaged power cord.
• Do not handle the appliance, plug or power cord with wet hands.
• If possible, do not use an extension cord. If you do use one, make sure that the ampere rating of the connected device does not exceed the maximum ampere rating of the power cord.
• Leave at least 5 cm of space around the appliance to the sides and 10 cm to the rear so that the air can circulate sufficiently.
• Do not put hot food in the appliance. Let it cool down to room temperature first.
• Close the door as soon as possible after stowing food to prevent cold from escaping.
• Place the device on a firm, level surface. Do not place it on a soft surfaces, such as carpet.
• Do not place any objects on the device.
• Do not store flammable or explosive substances in the unit.
• Do not use the device outdoors.
• Do not pull the plug out of the socket by the cable. Instead, hold it securely with your hand while unplugging it.
• Make sure that the power cord does not touch any hot surfaces.
• Only connect the unit to earthed sockets.
• Do not connect the appliance to sockets to which other kitchen appliances are already connected.
• If the refrigerator goes out, breaks down or is turned off, wait 5 minutes before turning it back on, otherwise the compressor could be damaged.

This unit contains the refrigerant Isobutane (R600a), a natural gas with high environmental compatibility, but flammable. Although it is flammable, it does not damage the ozone layer or increase the greenhouse effect. The use of this refrigerant results in a slightly higher noise level of the unit. In addition to the compressor noise, you can hear the flow of refrigerant. This is unavoidable and has no negative effect on the performance of the device. Be careful during transport to avoid damage to the refrigerant circuit. Refrigerant leaks can irritate the eyes.

Special Notes

• Children aged 3 to 8 may fill refrigerators with food and remove food.
- When positioning the unit, take care not to pinch or damage the power cord.
- Make sure that there are no multiple sockets or power supply units on the back of the device.

To avoid contamination of food, please follow the instructions below:

- Opening the door for too long can cause a significant temperature rise in the compartments of the appliance.

WARNING

, during maintenance and when disposing of the appliance, pay attention to the left symbol located on the back or on the compressor of the appliance. This symbol warns you of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Notes on correct use

• This device is intended exclusively for the storage of wine.
• This appliance is not intended for use as a built-in appliance unless explicitly stated in the instructions.
  • This appliance is not suitable for freezing food.
• The racks were pre-set to allow the most efficient use of energy.

Note: It is recommended to set the temperature to 12 °C. If the temperature is set too high, the wine may spoil. If the temperature is set too low, the power consumption could increase.

Special notes on the shelves

• The shelves have been pre-set to allow the most efficient use of energy.
• Only use the shelves provided by the manufacturer.
• Never block the holes in the shelves or use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.
  • We recommend that you use the shelves as shown so that the energy is used as efficiently as possible.

Notes on ambient temperature

Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's rating plate.

SN	Low	This cooling unit is intended for use at ambient temperatures of 10-32 °C.
N	Moderate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

The ambient temperature influences the internal temperature of the wine refrigerator. For optimal operation of the wine refrigerator, we recommend an ambient temperature of 23^ C to 25^ C.

INSTALLATION

Before first use

Let the unit stand for 24 hours before first use to allow the coolant to disperse. Leave the door open during this time to allow production-related odours to dissipate.

Note: All models without front ventilation or ventilation slots on the front are not built-in appliances and must be free-standing.

Location

The place where you place the unit should:

• be resilient and well ventilated.
- be away from direct sunlight and heat sources.
• not be too damp, such as bathrooms or washrooms.
• have a level floor.
• have a standardised electrical connection.
• have a socket outlet with overvoltage protection.

- be far away from microwaves, as their interference could have a negative effect on the unit.

Furthermore, the ambient temperature in the room should be neither very cold nor very warm. Cold and heat can possibly have a negative effect on the function, so that the desired interior temperature is not reached.

Setting up

• Remove all packaging material from and around the refrigerator.
• Position the refrigerator so that the plug is accessible at all times. Disconnect the mains cable and place the unit in its final location. Place it so that the compressor is free and not in contact with other objects or walls.
• Level out any small unevenness in the floor before filling the unit. Use the adjustable feet for this purpose. To do this, turn the back feet completely in and compensate for the slant with the front two feet.

DEVICE OVERVIEW

Model 10041205 (Barolo 12 Uno)

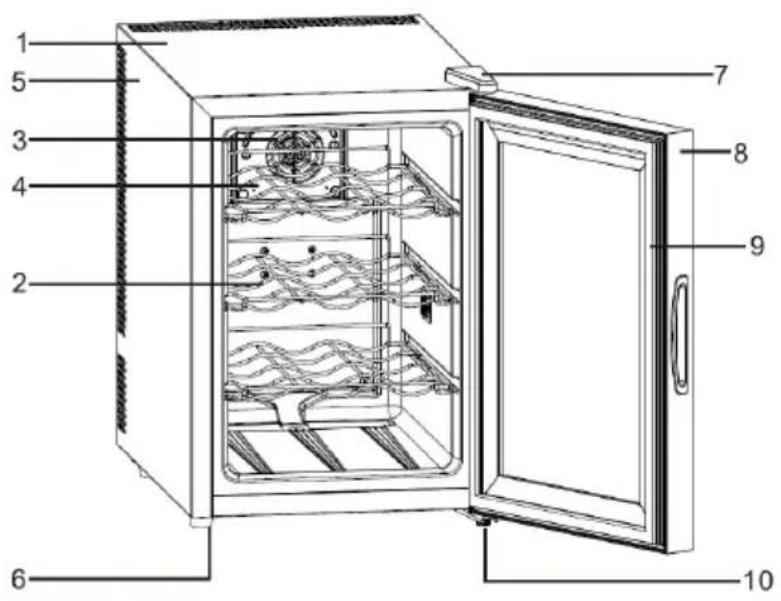

Labeled diagram of an oven with numbered parts for identification

1	Case	6	Levelling feet
2	Shelf	7	Upper door hinge with cover
3	Fan	8	Glass door
4	Fan cover	9	Gasket
5	Ventilation holes	10	Lower hinge

We recommend that you place the chiller in a location where the ambient temperature is between 23-26 °C (72 -78 °F). If the ambient temperature is above or below the recommended temperatures, the performance of the device may be affected. For example, if you place your device in extremely cold or hot environments, the internal temperature may fluctuate. The range of 10-18 °C may not be reached. The recommended ambient temperature is 14 °C.

Temperature range for your cooling device: 10-18 °C

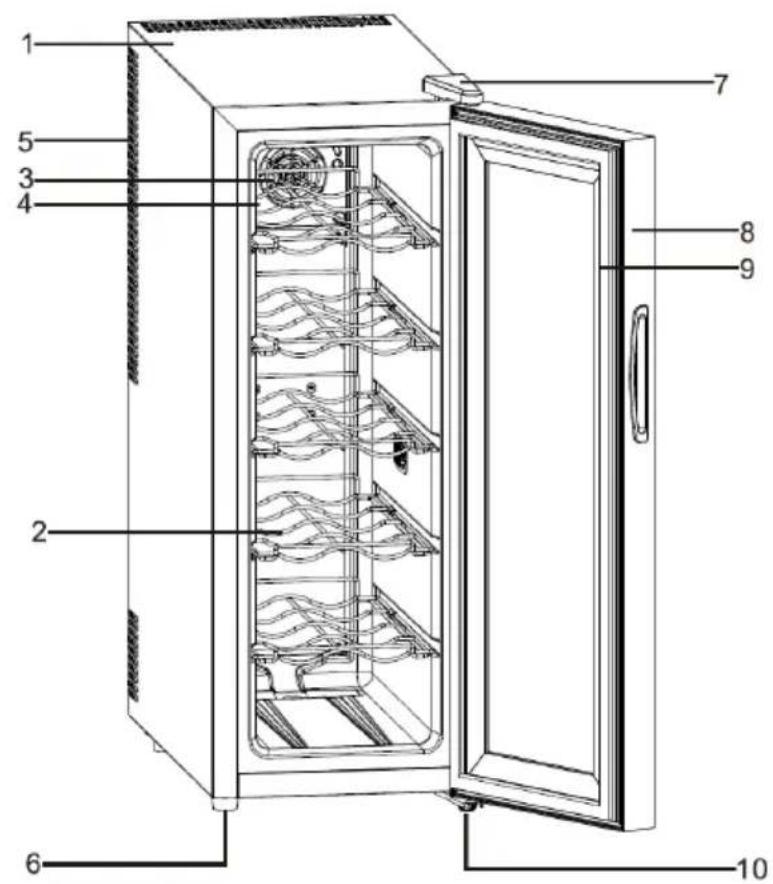

Labeled diagram of an open refrigerator interior with numbered parts for identification

1	Case	6	Levelling feet
2	Shelf	7	Upper door hinge with cover
3	Fan	8	Glass door
4	Fan cover	9	Gasket
5	Ventilation holes	10	Lower hinge

We recommend that you place the chiller in a location where the ambient temperature is between 23-26 °C (72 -78 °F). If the ambient temperature is above or below the recommended temperatures, the performance of the device may be affected. For example, if you place your device in extremely cold or hot environments, the internal temperature may fluctuate. The range of 11-18 °C may not be reached. The recommended ambient temperature is 14 °C.

Temperature range for your cooling device: 11-18 °C

1	Case	6	Levelling feet
2	Shelf	7	Upper door hinge with cover
3	Fan	8	Glass door
4	Fan cover	9	Gasket
5	Ventilation holes	10	Lower hinge

We recommend that you place the chiller in a location where the ambient temperature is between 23-26 °C (72 -78 °F). If the ambient temperature is above or below the recommended temperatures, the performance of the device may be affected. For example, if you place your device in extremely cold or hot environments, the internal temperature may fluctuate. The range of 11-18 °C may not be reached. The recommended ambient temperature is 14 °C.

Temperature range for your cooling device: 11-18 °C

CONTROL PANEL AND BUTTON FUNCTIONS

Weather and temperature icons including gear, light bulb, and blank box with directional arrows

	You can turn the interior light on or off with a single press of the button. The light switches off automatically if left on for 10 minutes. Press the button again and the light switches on again. You can switch the temperature display from Celsius to Fahrenheit by pressing and holding the button for 2 seconds.
	Your refrigerator is equipped with an automatic control panel lock that is activated 20 seconds after the last time a button is touched. Press the button for 2 seconds to unlock the control panel. You will hear a beep indicating that the control panel is now active.In addition, you can turn the interior light on or off by pressing the button. The light switches off automatically if left on for 10 minutes. Press the button again and the light switches on again.
	You can adjust the temperature as desired by pressing the UP or DOWN button on the control panel. The temperature that increases by 1^ when you press the HIGH button once. The temperature that decreases by 1^ when you press the DOWN button once.

Note: When you use the refrigerator for the first time or switch it on again after a long time, there may be a deviation of a few degrees between the temperature you have selected and the temperature shown on the LED display. This is normal and is related to the length of the switch-on time. When the refrigerator has been in operation for a few hours, everything is back to normal.

CLEANING AND CARE

Cleaning the appliance

• Switch off the appliance first and disconnect the power cord from the mains socket.
• Remove all the contents.
• Wipe the inside with a damp cloth dipped in lukewarm water with a little washing-up liquid.
• Make sure the rubber seal on the door is clean so that the appliance remains efficient.
• The exterior of the wine refrigerator should be cleaned with a mild detergent.
  • Dry the inside and outside with a soft cloth.
• Dust and anything else that clogs the exhaust vents will reduce the cooling capacity of the appliance. If necessary, vacuum the exhaust air opening.

Decommissioning in the event of absence

• First switch off the appliance. Then disconnect the power cord from the power outlet.
• Remove all the contents.
• Clean the appliance.
• Leave the lid on slightly to prevent condensation, mould or odours from forming.

Installation at another location

• First switch off the appliance. Unplug the power cord.
• Remove all the contents.
• Secure all loose items with tape.
• Tape up the doors.

Energy saving recommendations

The wine refrigerator should be placed in the coolest place in the room, away from appliances that generate heat, heating pipes and direct sunlight. Make sure that the door is properly closed when the wine refrigerator is switched on.

TROUBLESHOOTING

Problem Possible cause and solution
The appliance is not working.	It is not plugged in.
	It is switched off.
	The fuse is out or blown.
The appliance is not cold enough.	Check the temperature settings.
	The environment requires a lower setting.
	The door was opened too often.
	The door is not closed properly.
	The door seal does not seal properly.
The light doesn't work.	The appliance is not plugged in.
	The fuse is out or blown.
	The light bulb is broken.
	The light switch is set to "off".
The appliance goes on and off frequently.	The room temperature is higher than usual.
	There are many bottles in the appliance.
	The door was opened too often.
	The door is not closed properly.
	The temperature is not set correctly.
	The door seal does not seal properly.
Vibrations Check if the appliance is level.
The appliance is very loud.	The coolant is circulating. Noises that occur as a direct result of this are not a defect, but normal.
	After each cooling cycle, you hear a gurgling sound because there is still coolant in circulation.
	The contraction and expansion of the inner walls can cause cracking.
	The appliance is not level.
The door does not close properly.	The appliance is not level.
	The door was turned upside down and not fitted properly.
	The seal or the magnet are damaged.
	The shelves stick out too far.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10041205
Type of refrigerating appliance:
Low-noise appliance: Yes Design type: freestanding
Wine storage appliance: No Other refrigerating			appliance:	No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 530		Total volume (dm3 or L)	37
	Width	359
	Depth 547
EEI 101 Energy efficiency class F
Airborne acoustical noise emissions (dB(A) re 1 pW)		25	Airborne acoustical noise emission class	A
Annual energy consumption (kWh/a)		77 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	Yes	37,0	17	-	A
Wine storage No - - - -
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or icemaking No - - - -
1-star	No - - - -
2-star	No - - - -
3-star	No - - - -
4-star	No - - - -
2-star section	No - - - -
Variable temperature compartment	-	- - - -
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10041206
Type of refrigerating appliance:
Low-noise appliance: Yes Design type: freestanding
Wine storage appliance: No Other refrigerating			appliance:	No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 845		Total volume (dm3 or L) 46	Width 273
	Depth 547
EEI 130 Energy efficiency class		G
Airborne acoustical noise emissions (dB(A) re 1 pW)		26	Airborne acoustical noise emission class	A
Annual energy consumption (kWh/a)		100	Climate class:	temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 46,0 17 - A
Wine storage No - - - -
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or icemaking No - - - -
1-star	No - - - -
2-star	No - - - -
3-star	No - - - -
4-star	No - - - -
2-star section	No - - - -
Variable temperature compartment	-	- - - -
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10041207
Type of refrigerating appliance:
Low-noise appliance: Yes Design type: freestanding
Wine storage appliance: No Other refrigerating			appliance:	No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 635		Total volume (dm3 or L) 48	Width 360
	Depth 547
EEI		119	Energy efficiency class	F
Airborne acoustical noise emissions (dB(A) re 1 pW)		26	Airborne acoustical noise emission class	A
Annual energy consumption (kWh/a)		92 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No 48,0 17 - A
Wine storage Yes - - -
Cellar No - - -
Fresh food No - - -
Chill No - - -
0-star or icemaking	No - - -
1-star	No - - -
2-star	No - - -
3-star	No - - -
4-star	No - - -
2-star section	No - - -
Variable temperature compartment	-	- - -
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Labeled diagram of an open refrigerator interior with numbered parts for identification

Labeled diagram of an open refrigerator interior with numbered parts for identification

Weather and temperature icons including gear, light bulb, and blank box with directional arrows

FICHE DE DONNÉES PRODUIT

FICHE DE DONNÉES PRODUIT

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Labeled diagram of an open refrigerator interior with numbered parts for identification

Technical diagram of an open refrigerator with numbered parts for identification

Weather and temperature icons including gear, light bulb, and blank box with directional arrows

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

Reino Unido

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Labeled diagram of an open refrigerator interior with numbered parts for identification

Labeled diagram of an open refrigerator interior with numbered parts for identification

Labeled diagram of an oven with numbered parts for identification

Weather and temperature icons including gear, light bulb, and blank box with directional arrows

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
