USER MANUAL TitanSteel Klarstein

Kitchen Sink 24+18x43

COOKINGCO COOKINGCO KINGCOOKING KINGCOOKING COOKINGCO KINGCOOKING KINGCOOKING KINGCOOKING

KLARSTEIN

www.klarstein.com

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Lieferumfang 4

Line drawing of a rectangular kitchen sink with pipe fittings and a curved outlet (no text or symbols)

LIEFERUMFANG

Werkzeuge

UNTERBAUINSTALLATION

Line drawing of a rectangular mechanical or architectural component with internal compartments and a central sink (no text or symbols)

Simple line drawing of a hand pressing down on a rectangular plate with dashed lines indicating motion (no text or symbols)

Line drawing of a simple room interior with a cabinet and door (no text or symbols)

Diagram illustrating a laboratory setup with labeled components and a hand holding a sample, showing heating, drying, and cooling steps.

Technical diagram of a kitchen sink with numbered components and piping connections

Line drawing of a kitchen sink with two washers and piping (no text or symbols)

⑥ in ⑧ stecken.

Line drawing of a dual-bay appliance with internal pipes and tubing (no text or symbols)

Technical line drawing of a mechanical or fluidic device with pipes and valves (no text or symbols)

Diagram illustrating a procedure for plumbing or plumbing system installation, showing pipe connection and water displacement with a diagonal line indicating no movement.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Parts List 18

Sink installation for Undermouting 20

Drain set Installation 25

Check Sealing Performance and Clean 29

Manufacturer 30

Importer for Great Britain 30

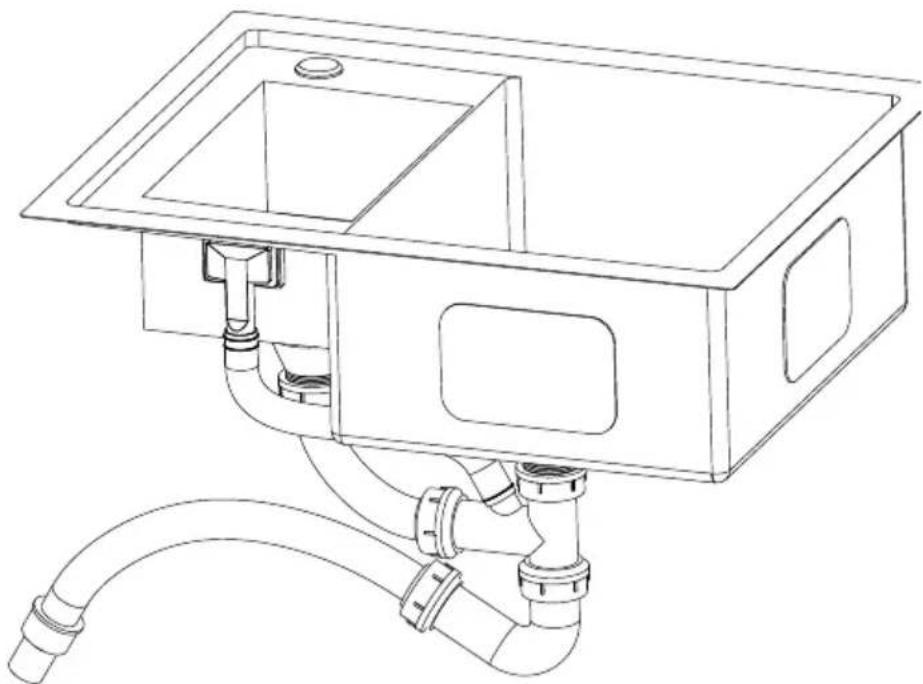

ARTICLE

Article number 10046021, 10046022

Line drawing of a kitchen sink with pipe fittings and a handle (no text or symbols)

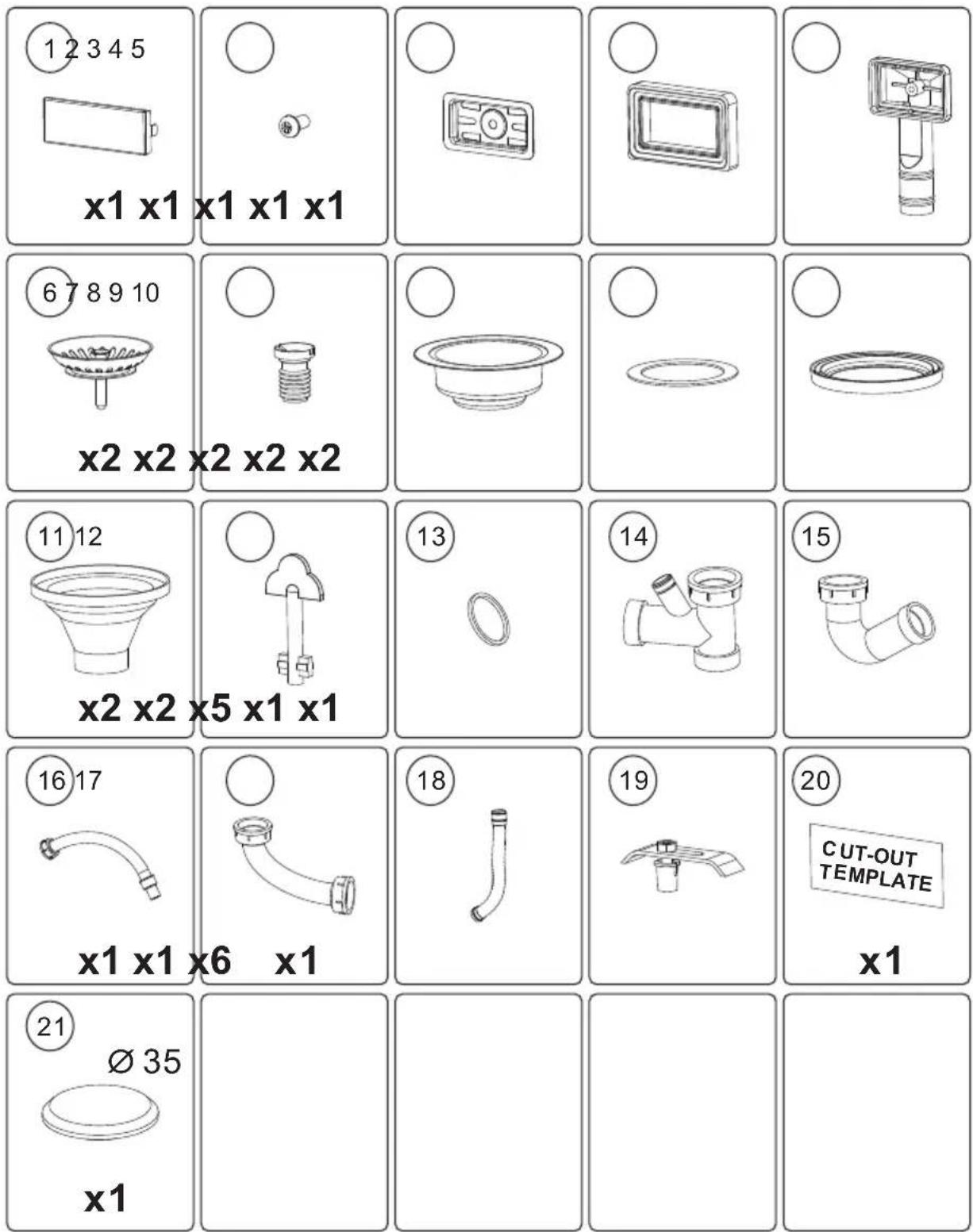

PARTS LIST

Tools

Pencil x1		[0 10 mm∅ 3 mmElectric drill x1	Ruler x1
Silicon x1	Electric saw x1		Shovel x1
Screw driver x1 Scissor x1

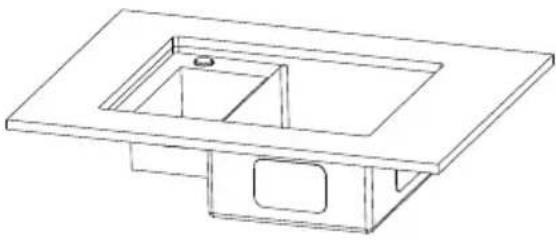

SINK INSTALLTION FOR UNDERMOUTING

Line drawing of a rectangular mechanical or architectural component with internal compartments and a central hole (no text or symbols)

No.	Description Reference		Qty
A Kitchen Sink 1
B Undermout Clips		19	1
C Cutout Template		20	1

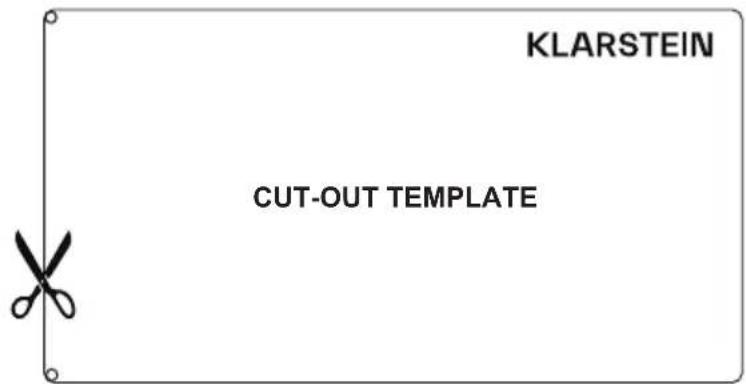

1. Cut the cut-out template along the wireframe with a scissor

KLARSTEIN CUT-OUT TEMPLATE

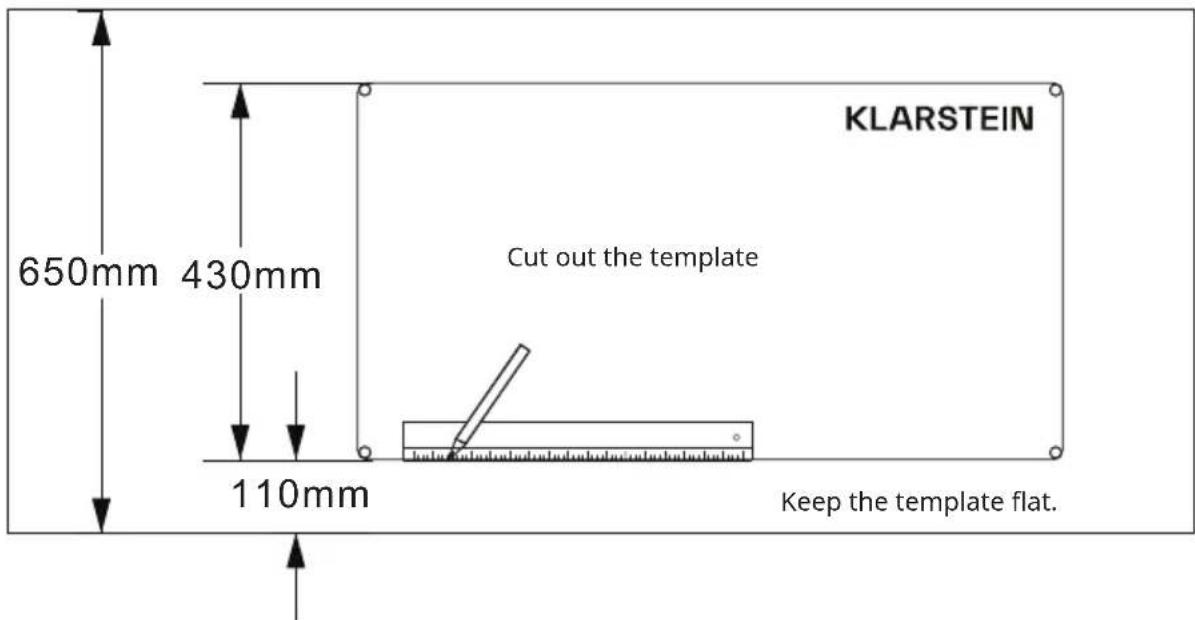

1. Place the cut-out template on the counter and draw the wireframe on the counter with pencil and ruler.

KLARSTEIN 650mm 430mm 110mm Cut out the template Keep the template flat.

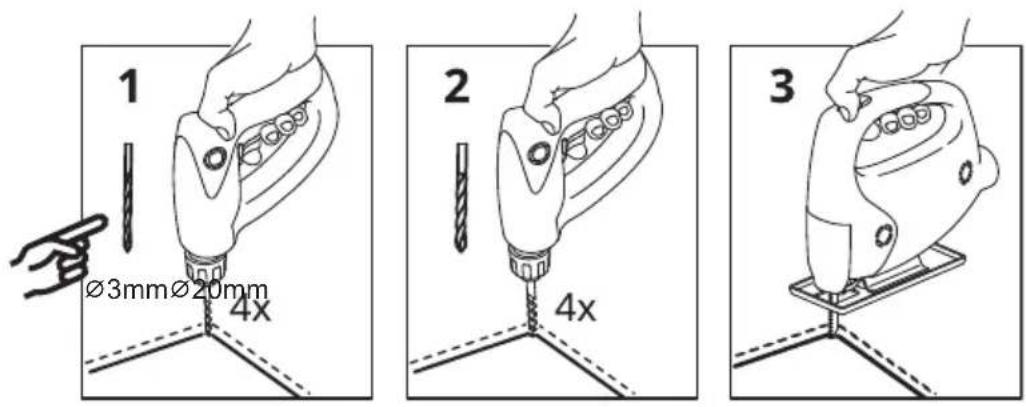

1. Drill 4 small holes with electric drills. First cut with small drill(∅3), then cut with big drill (∅20), twice totally.

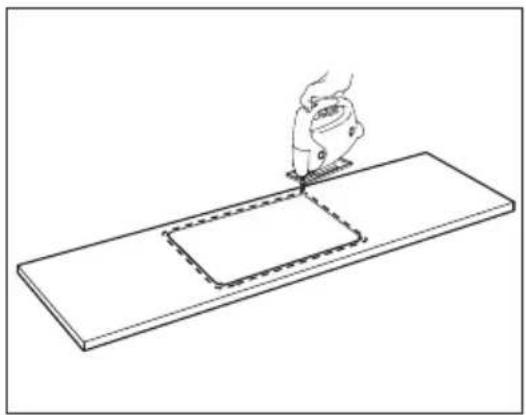

1. Cut the counter along the cutting line with electric saw.

Simple line drawing of a hand holding a small object above a rectangular plate with dashed outlines (no text or symbols)

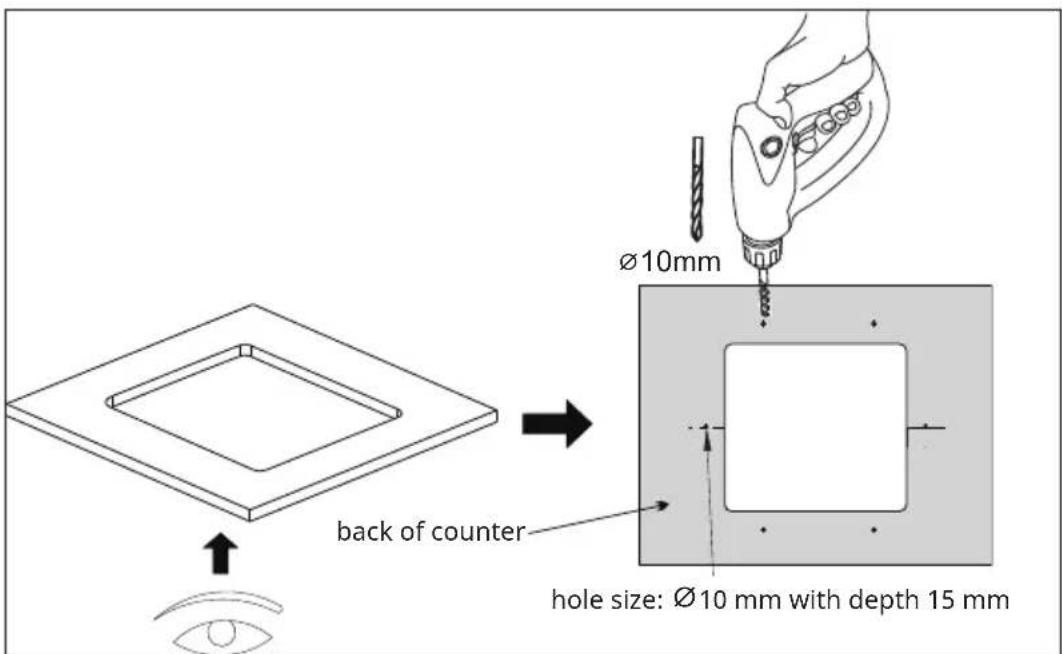

1. Drill corresponding quantity holes according to the sink dimension at the back of counter with electric drills, please refer to the distance between holes and lines.

back of counter ø10mm hole size: Ø10 mm with depth 15 mm

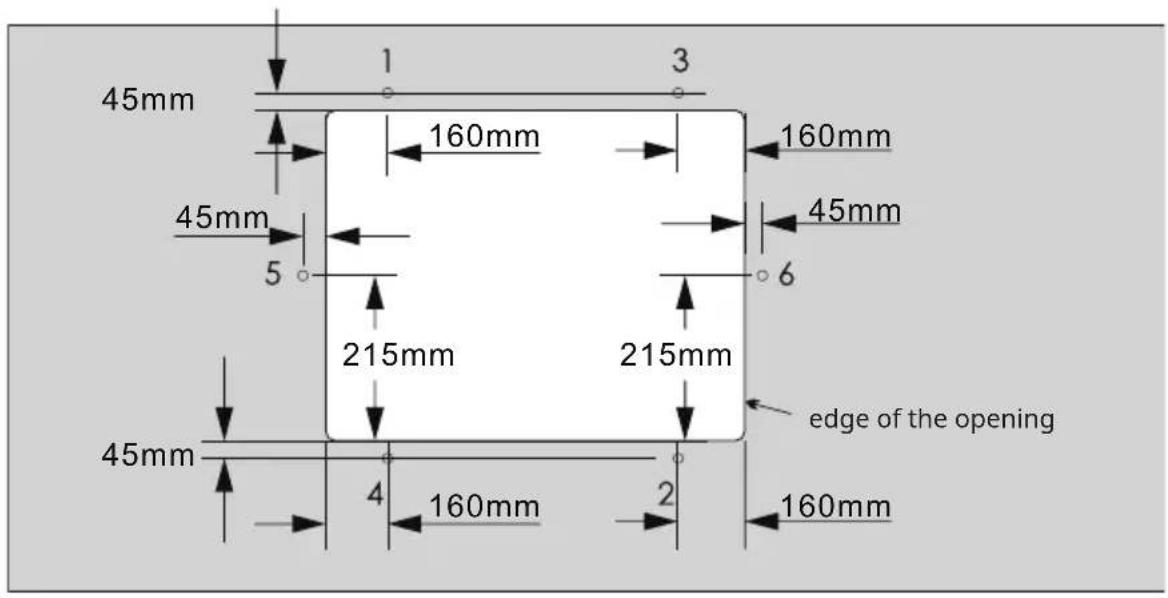

1. According to the following drawing, drill 6 ∅10mm holes with a depth of 15 mm on the back of the counter around the opening holes successively.

45mm 1 3 160mm 160mm 45mm 45mm 5 215mm 215mm 6 45mm 4 160mm 2 160mm edge of the opening

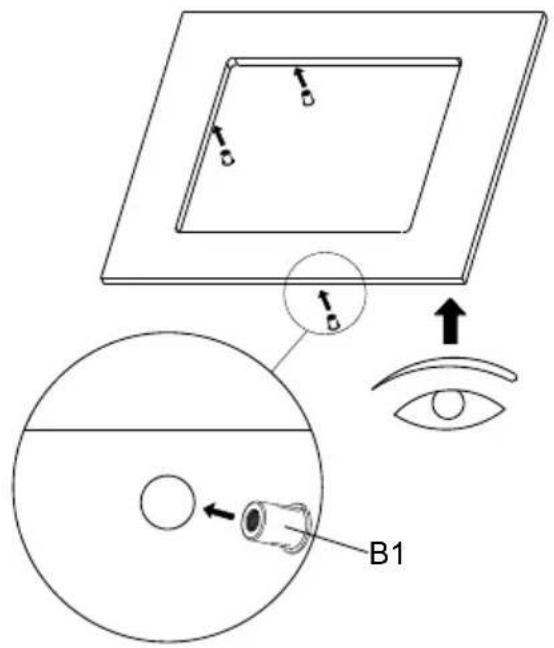

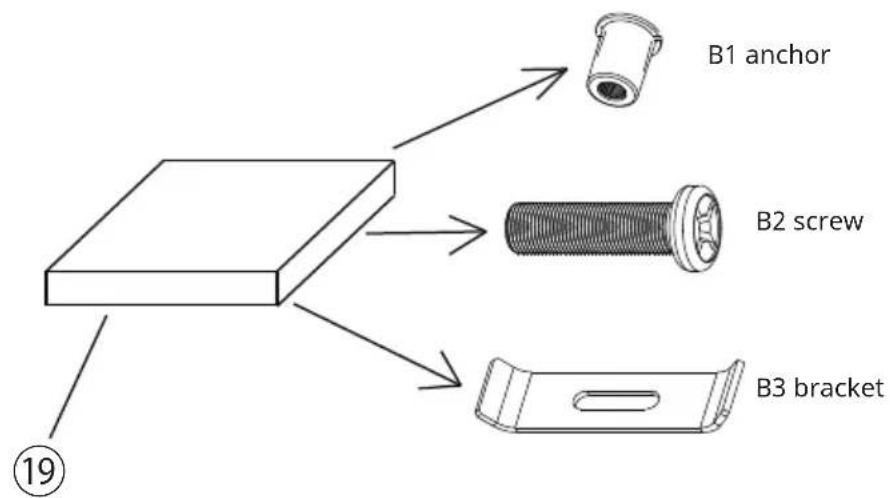

1. Open the undermount clips, take out the anchors and install them to the holes under the counter.

B1 anchor B2 screw B3 bracket ⑲

undermount clips

B1

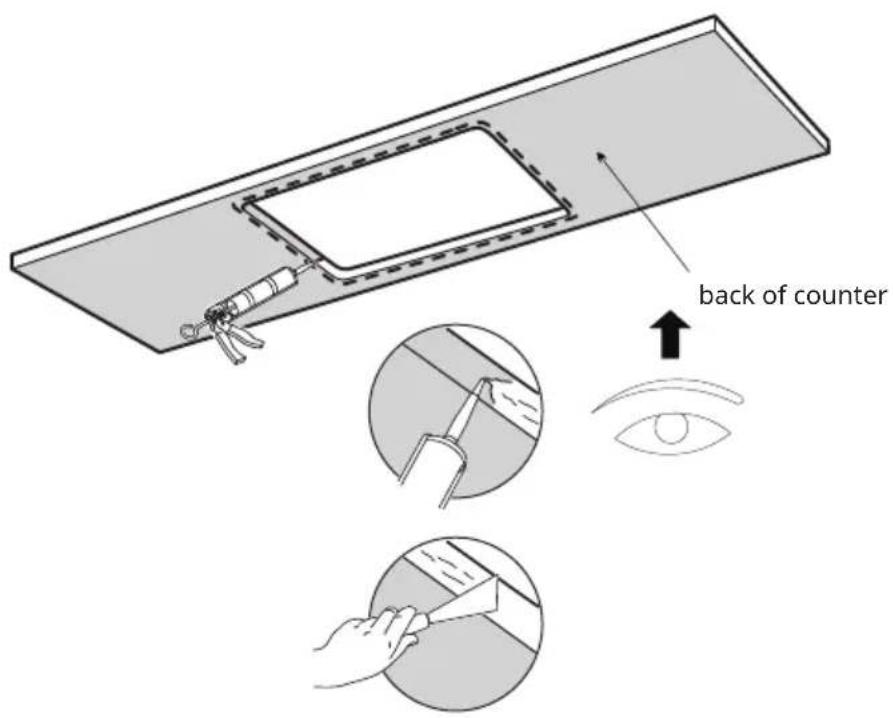

1. Put a layer of silicon along side the cutting lines at the back of the counter and scrape the silicon to be even and level.

back of counter

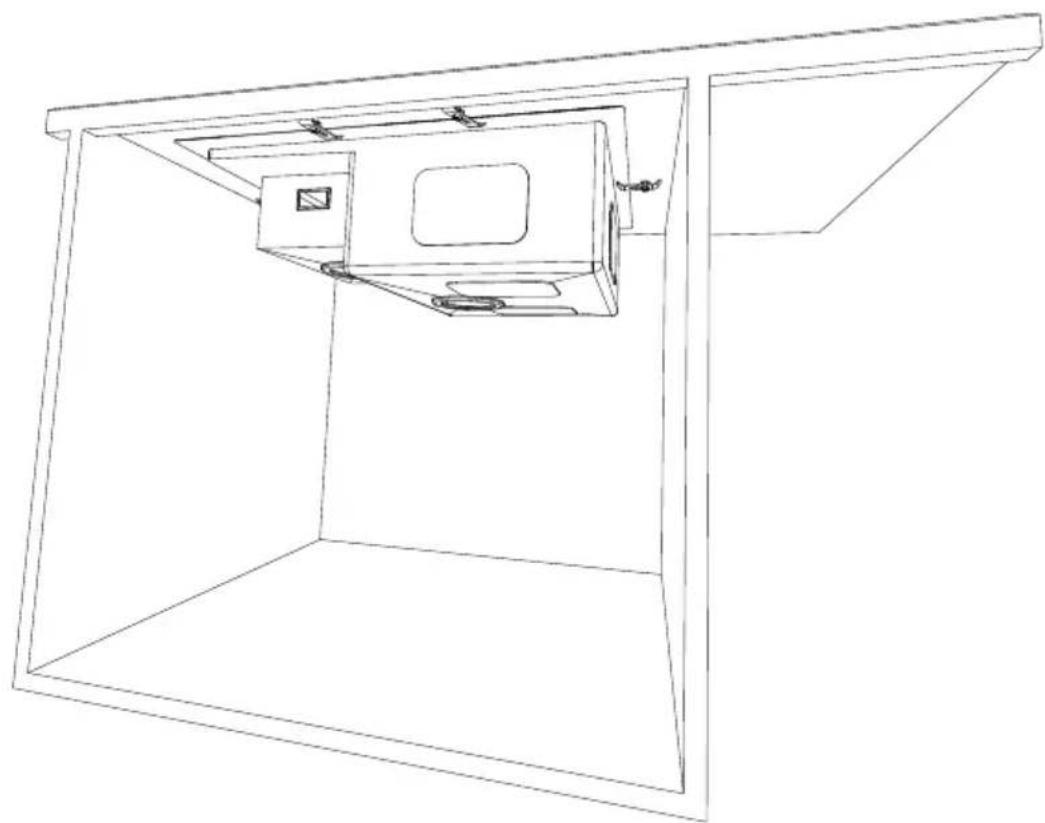

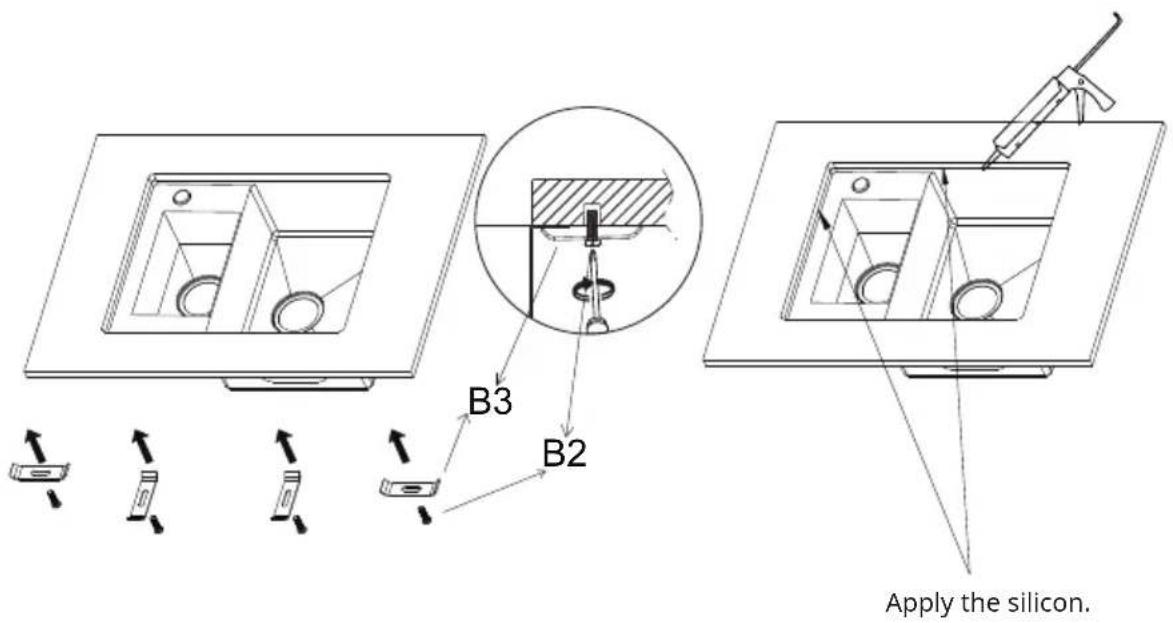

1. Install the kitchen sink with undermount clips.

Connect the sink to the cut-out hole at the back of the counter, put the screws and brackets into the anchor and tighten, then to apply the silicon between counter and sink at the front.

B3 B2 Apply the silicon.

Line drawing of a simple room interior with a cabinet and wall-mounted unit (no text or symbols)

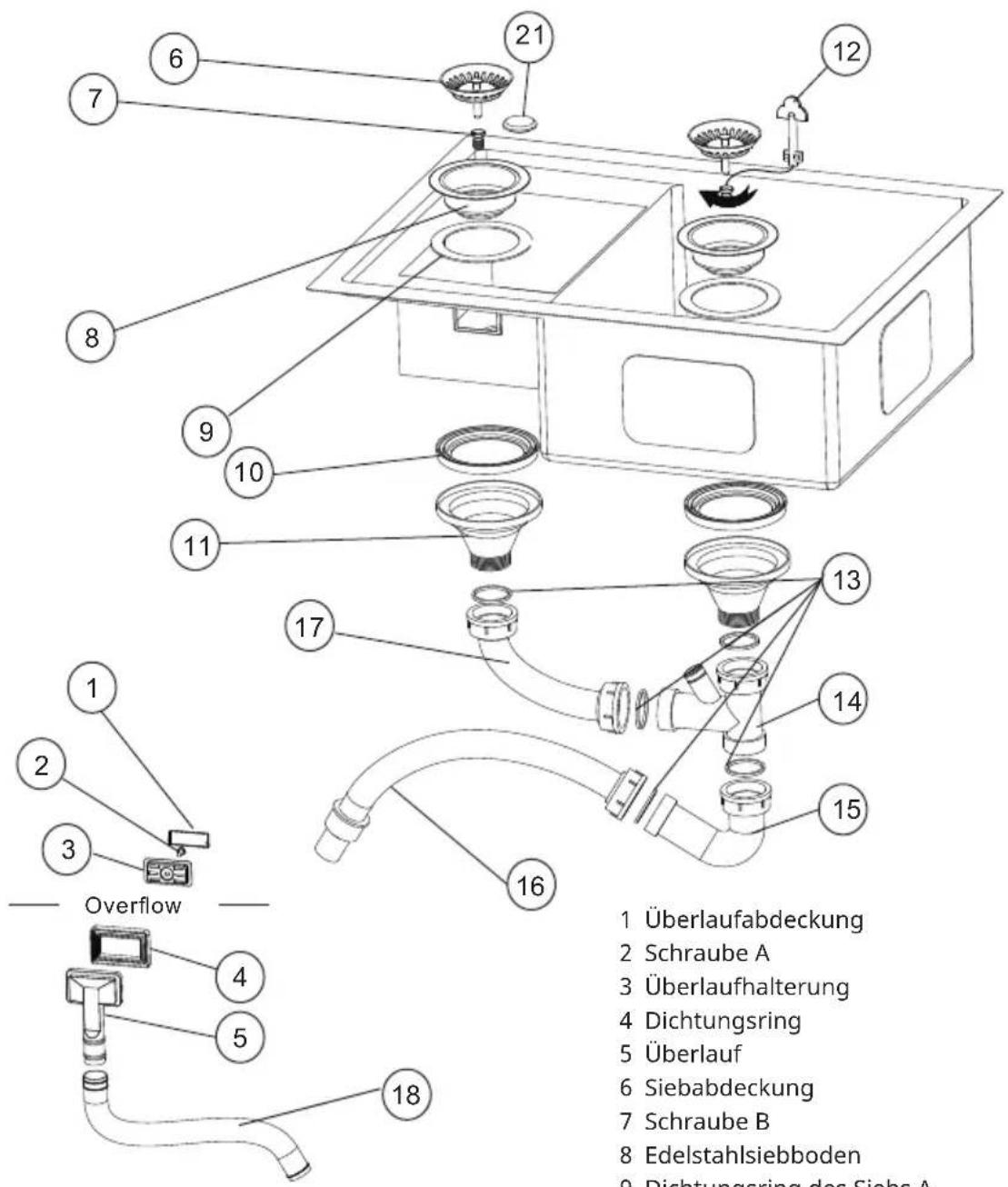

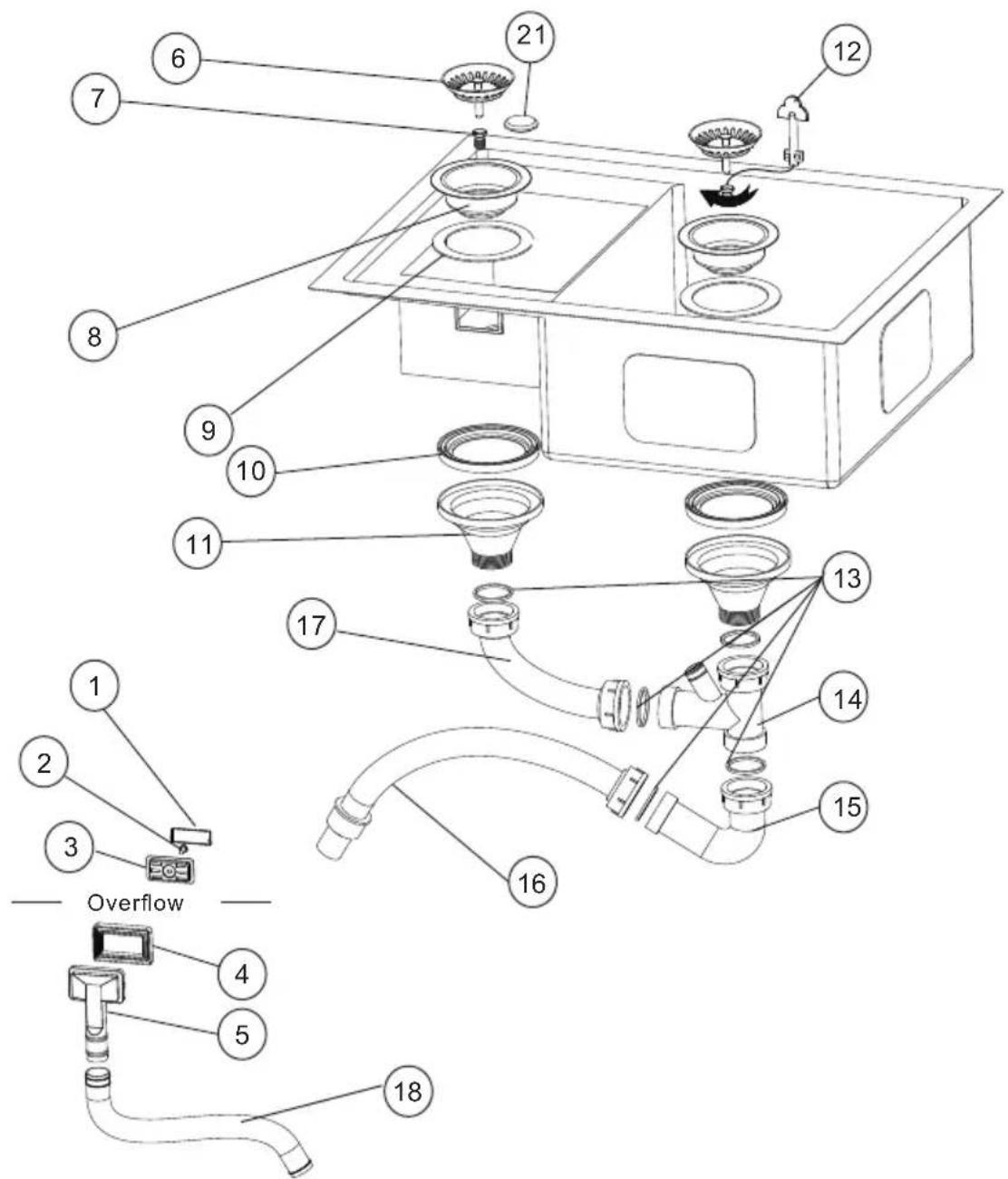

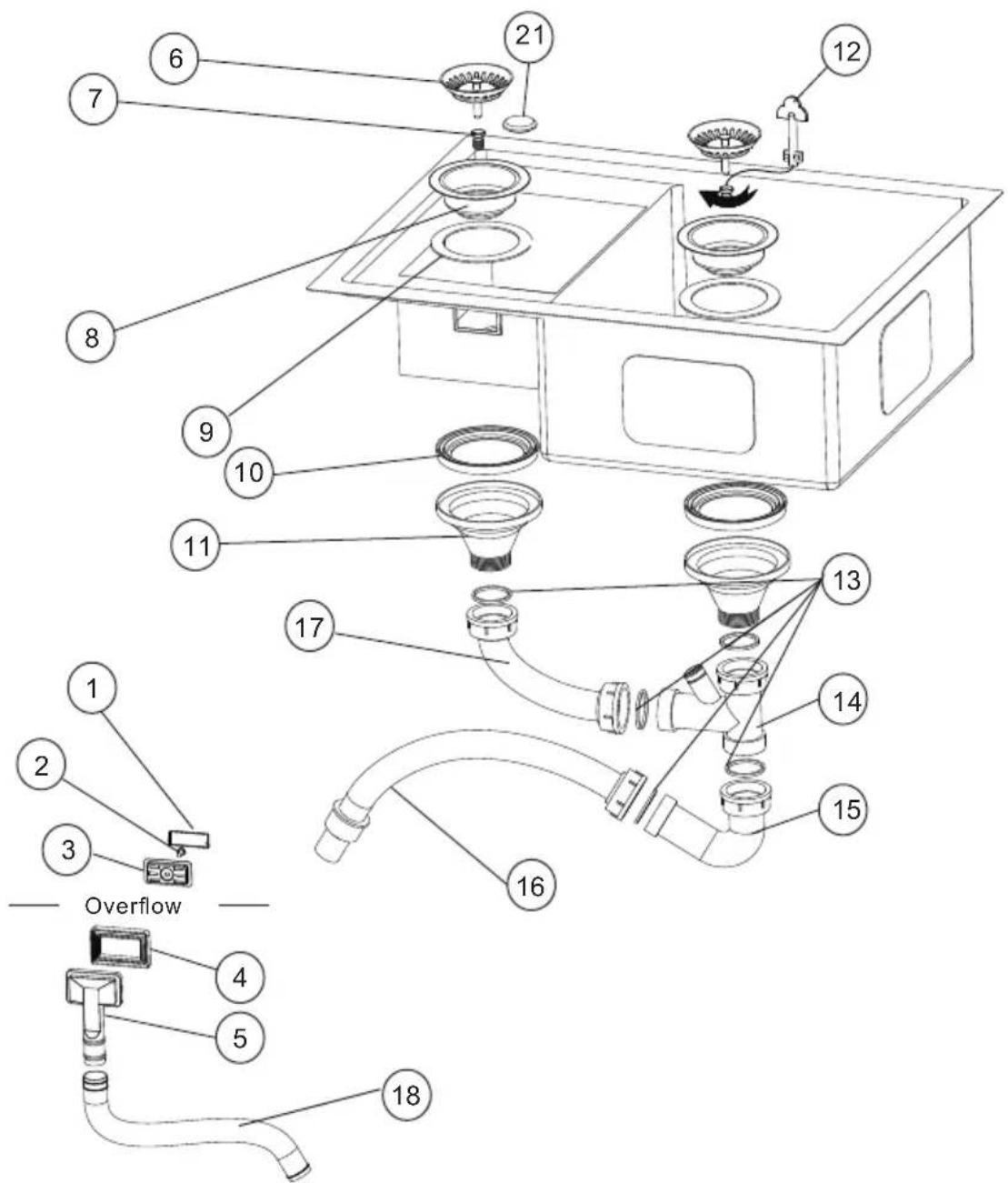

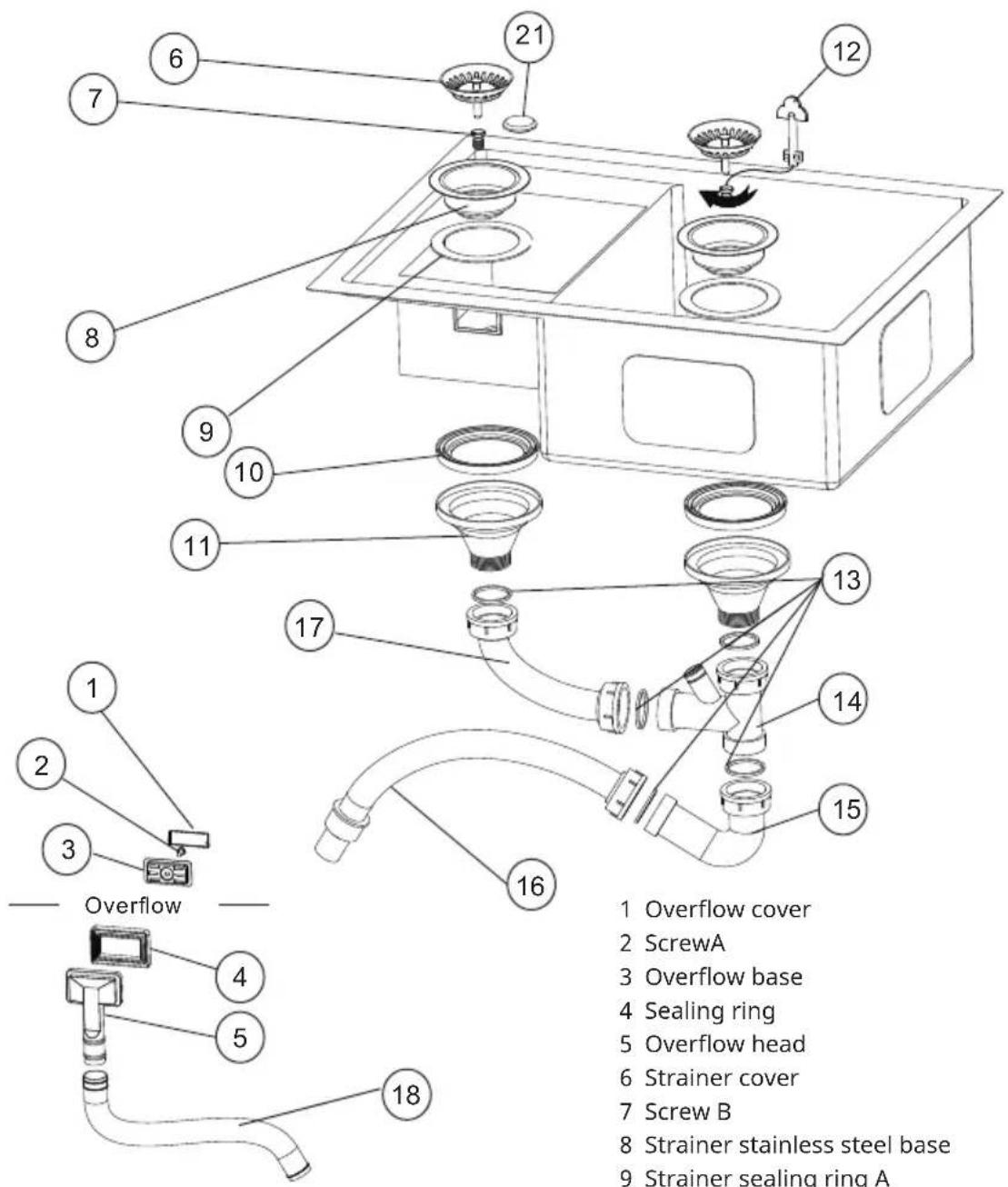

1 Overflow cover 2 ScrewA 3 Overflow base 4 Sealing ring 5 Overflow head 6 Strainer cover 7 Screw B 8 Strainer stainless steel base 9 Strainer sealing ring A 10 11 12 13 14 15 16 17 18 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78

1 Overflow cover
2 ScrewA
3 Overflow base
4 Sealing ring
5 Overflow head
6 Strainer cover
7 Screw B
8 Strainer stainless steel base
9 Strainer sealing ring A
10 Strainer sealing ring B
11 Strainer plastic base
12 Screw tightening tool
13 Interface sealing ring
14 Three-way connectors
15 Bend pipe A
16 PVC steel wire pipe
17 Bend pipe B
18 Overflow pipe

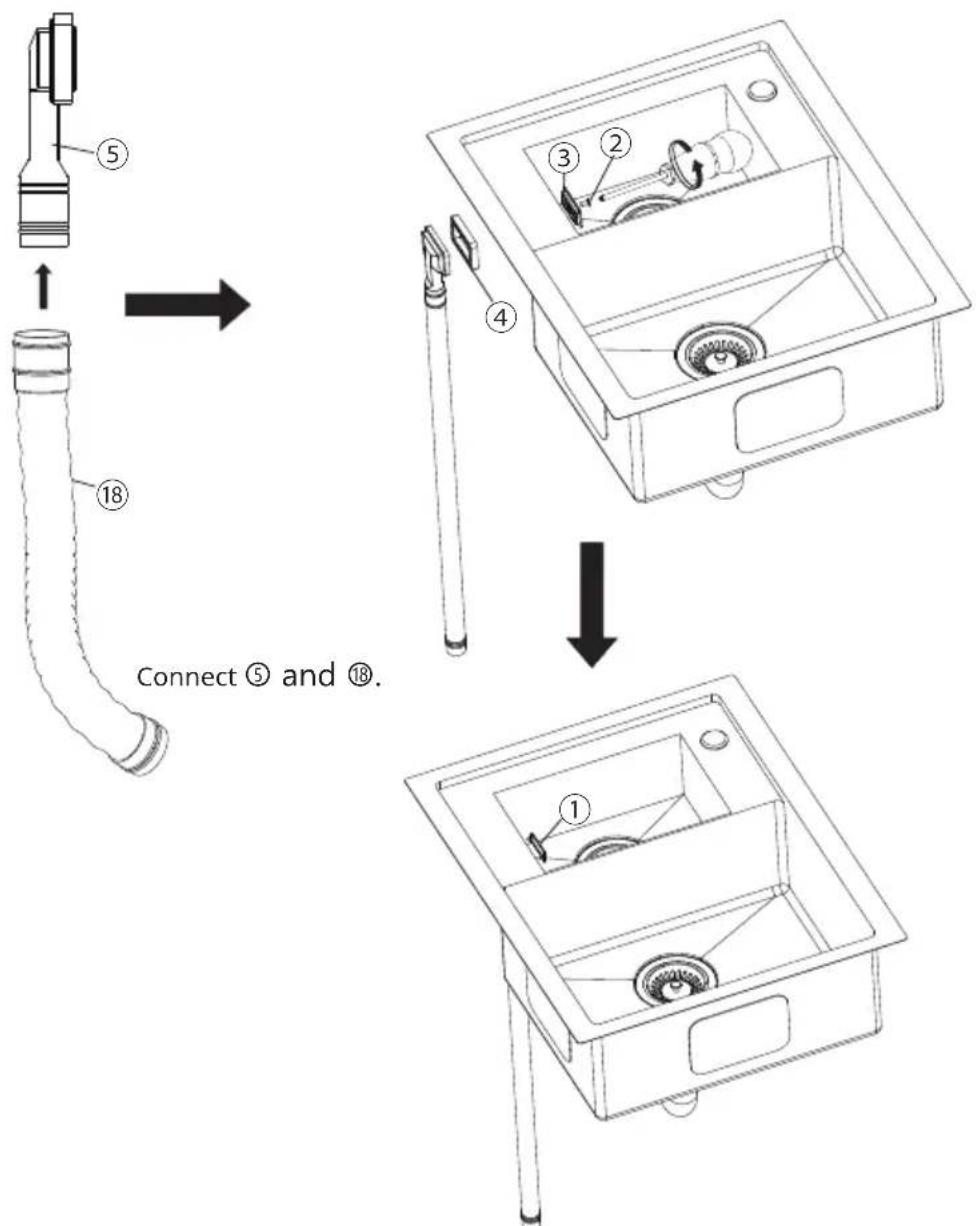

Install the overflow set

Put ④ on ⑤, put ② in ③, then put them together through the overflow hole, make sure ② is in ⑤, then tighten ②.

⑤ ① ⑱ Connect ⑤ and ⑱.

Put ① on ③, push it until stuck.

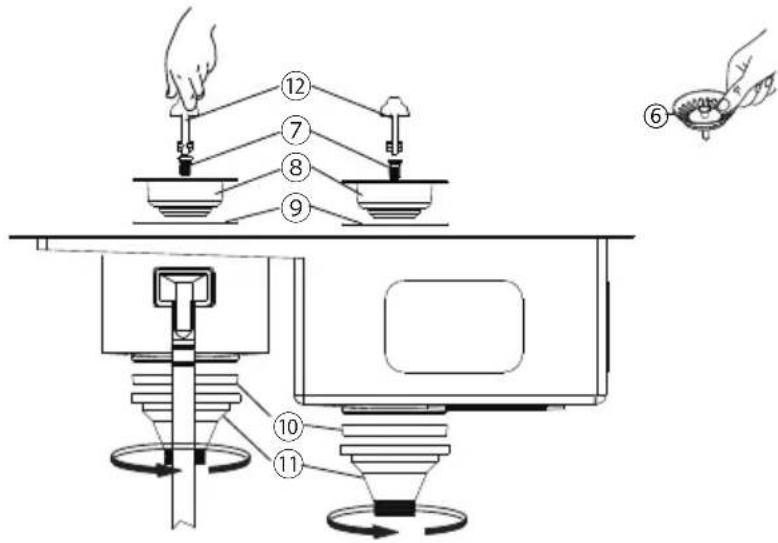

Install the strainer set

1. Take out ⑥, dismiss to several parts as below:

Put ⑦ in ⑧ and tighten ⑦ with ⑫, put

⑨ under ⑧ and put the whole assembly into sink drain hole.

Put ⑩ in ⑪, then connect the above assembly and tighten.

Diagram illustrating a laboratory filtration setup with labeled components and a magnified view of the device.

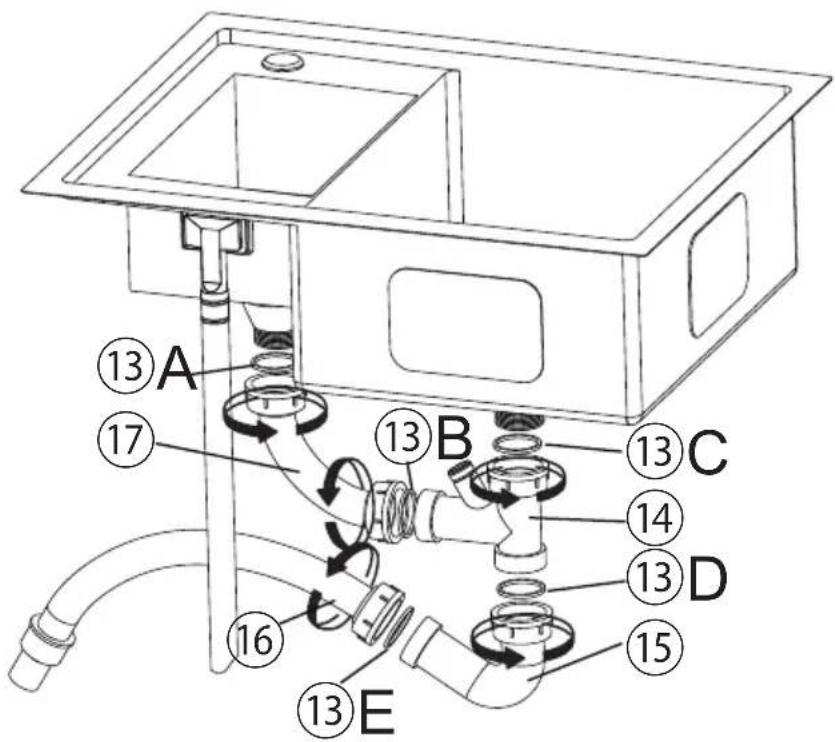

1. Take out the pipes

Put sealing ring ⑬A in ⑰, then connect ⑰ with ⑪ and tighten.

Put sealing ring ⑬B in ⑰, then connect ⑰ with ⑭ and tighten.

Put sealing ring ⑬C in ⑭, then connect ⑭ with ⑪ and tighten.

Put sealing ring ⑬D in ⑮, then connect ⑮ with ⑭ and tighten.

Put sealing ring ⑬E in ⑯, then connect ⑯ with ⑮ and tighten.

Technical diagram of a kitchen sink with numbered components and piping connections

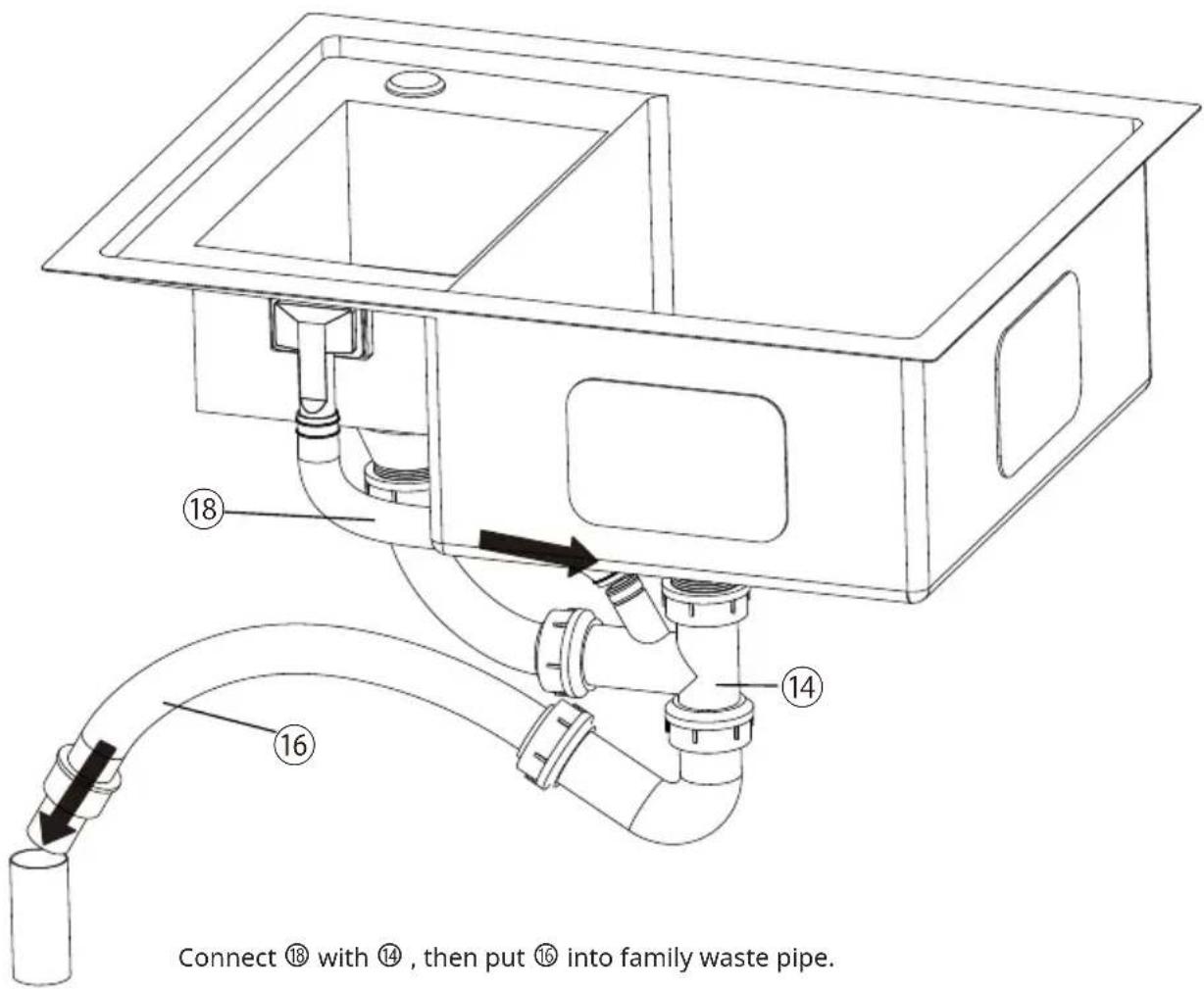

Install the waste pipe set

Connect ⑱ with ⑭, then put ⑯ into family waste pipe. ⑱ ⑭ ⑭ ⑭

CHECK SEALING PERFORMANCE AND CLEAN

Line drawing of a kitchen sink with two washers and piping (no text or symbols)

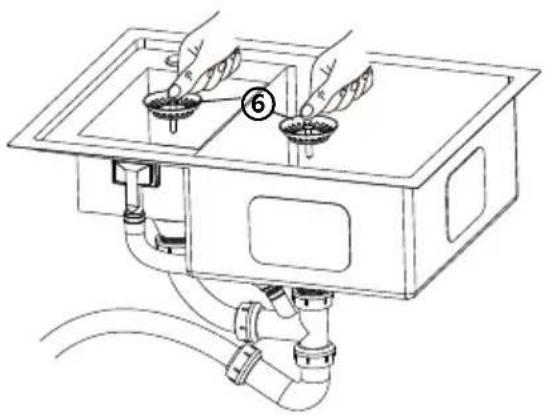

Put ⑥ into ⑧.

Line drawing of a dual-bay appliance with internal tubing and piping (no text or symbols)

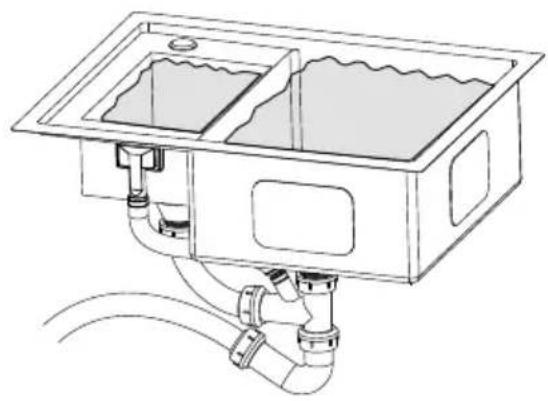

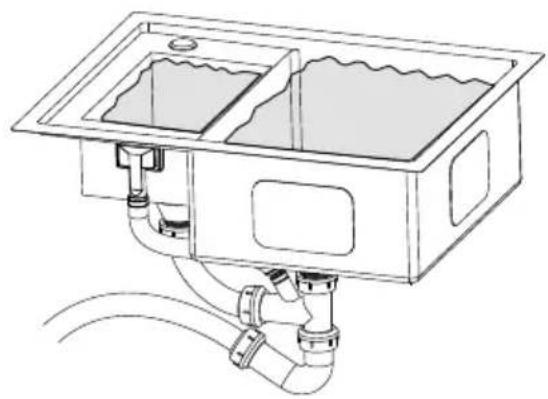

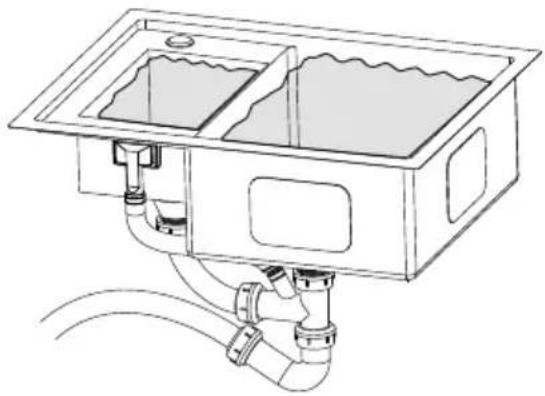

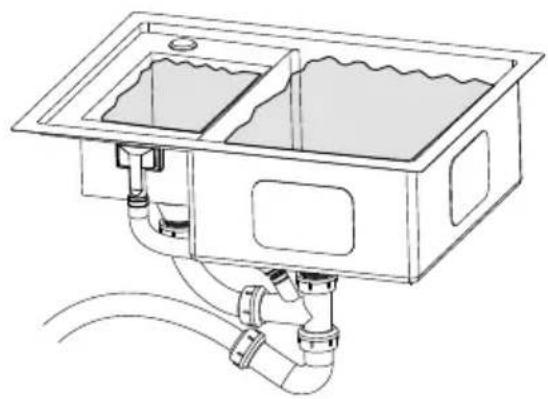

Fill in water to overflow hole. There is water coming out from overflow pipe.

Technical line drawing of a mechanical or fluidic device with pipes and valves (no text or symbols)

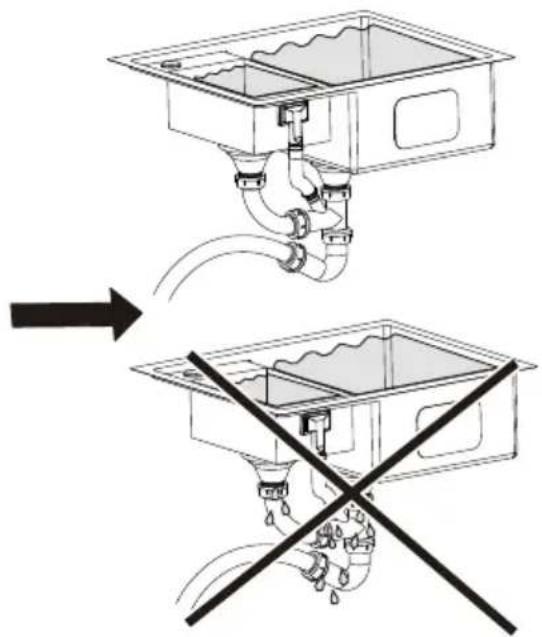

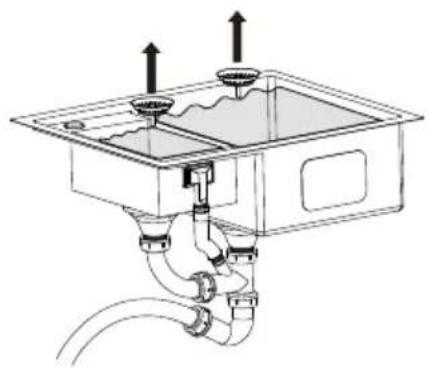

Take out ⑥, the water will drain.

Diagram illustrating a procedure for plumbing or plumbing system installation, showing pipe connection and water displacement with a diagonal line indicating no movement.

There is no water coming out outside the pipes. then it is successfully installed.

If there is water leakage, please check whether the fittings are tightened in this position to remove water leakage.

MANUFACTURER

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Deutschland (Germany).

IMPORTER FOR GREAT BRITAIN

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Line drawing of a rectangular kitchen sink with pipe fittings and a curved outlet (no text or symbols)

CONTENU DE L'EMBALLAGE

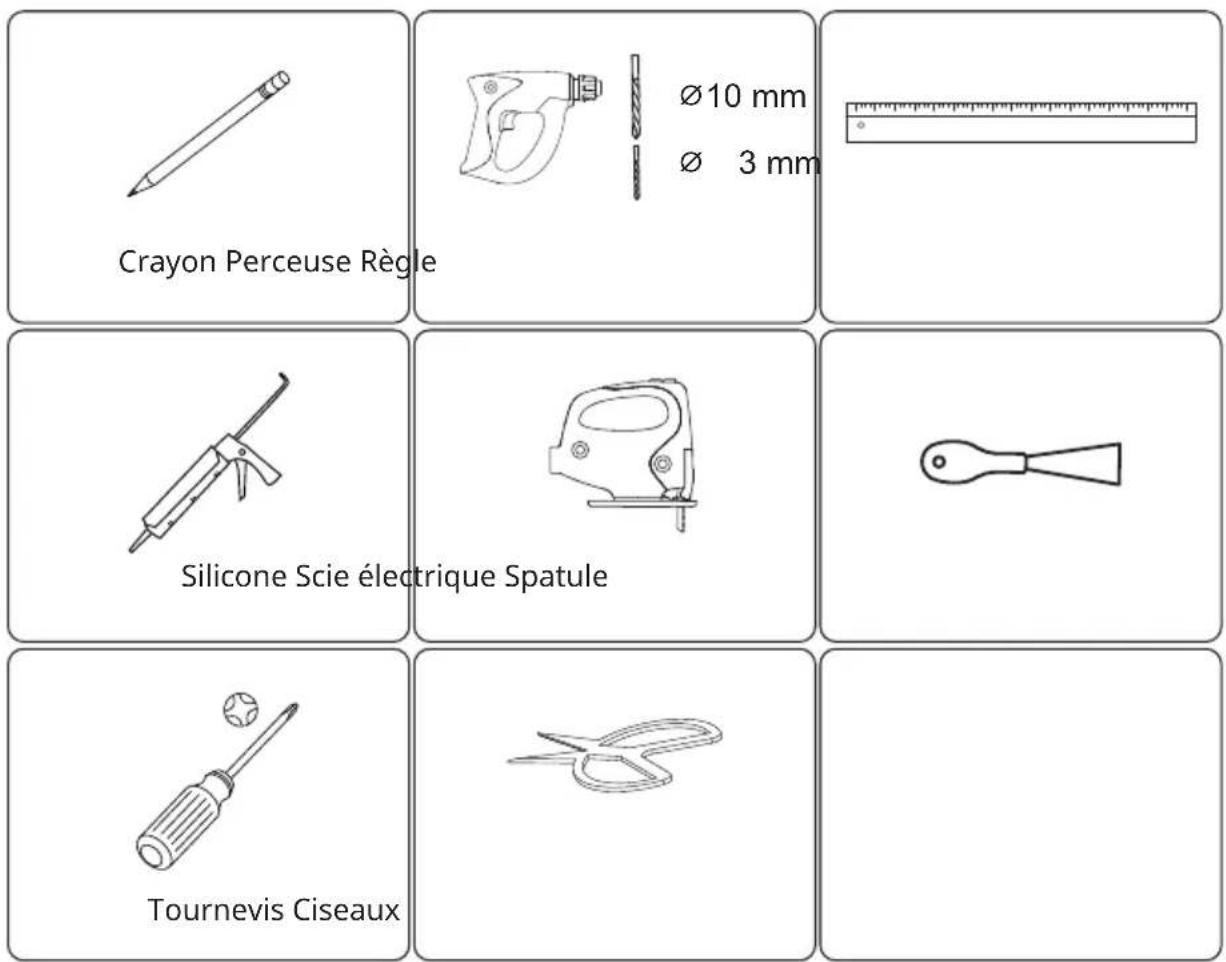

Outillage

INSTALLATION ENCASTRÉE

Line drawing of a rectangular mechanical or architectural component with internal compartments and a central sink (no text or symbols)

Simple line drawing of a hand holding a small object above a rectangular plate with dashed outlines (no text or symbols)

Cheville B1 Vis B2 Support B3 ⑲

Line drawing of a simple room interior with a cabinet and wall-mounted device (no text or symbols)

INSTALLATION DE L'ENSEMBLE D'ÉVACUATION

6 7 21 12 8 9 10 11 13 14 15 16 17 1 2 3 Overflow 4 5 18

Diagram illustrating a laboratory filtration setup with labeled components and a magnified view of the device.

1. Dépose des tuyaux

Technical diagram of a kitchen sink with numbered components and piping connections

Line drawing of a kitchen sink with two washers and piping (no text or symbols)

Insérez ⑥ dans ⑧.

Line drawing of a dual-bay appliance with internal pipes and tubing (no text or symbols)

Technical line drawing of a mechanical or fluidic device with pipes and valves (no text or symbols)

Diagram illustrating a procedure for plumbing or plumbing system installation, showing pipe connection and water displacement with a diagonal line indicating no movement.

Berlin Brands Group UK Ltd

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Line drawing of a small kitchen sink with pipe fittings and a curved outlet (no text or symbols)

VOLUME DI CONSEGNA

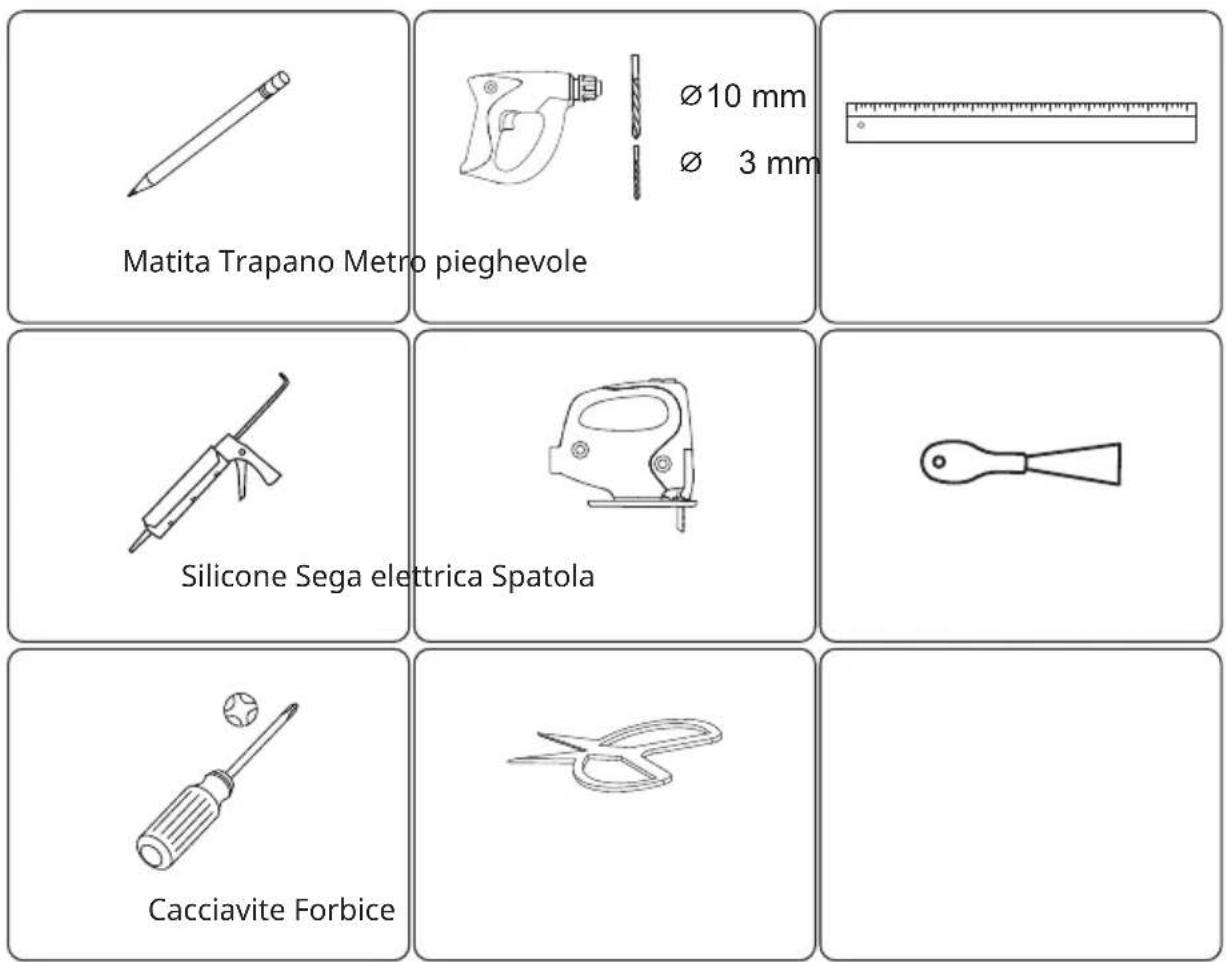

Attrezzi

Line drawing of a rectangular basin with internal compartments and a central sink (no text or symbols)

Simple line drawing of a hand pressing down on a rectangular plate with dashed lines indicating motion (no text or symbols)

B1 Tassello B2 Vite B3 Supporto ⑲

Line drawing of a simple room interior with a cabinet and wall-mounted device (no text or symbols)

6 7 21 12 8 9 10 11 13 14 15 16 17 1 2 3 Overflow 4 5 18

Diagram illustrating a laboratory setup with labeled components and a hand holding a sample, showing heating, drying, and cooling steps.

Technical diagram of a kitchen sink with numbered components and piping connections

Diagram of a kitchen sink with labeled components and piping connections

Inserire ⑥ in ⑧.

Line drawing of a dual-bay washing machine with inlet/outlet pipes and water level (no text or symbols)

Technical line drawing of a mechanical or fluidic device with pipes and valves (no text or symbols)

Diagram illustrating a procedure for plumbing or plumbing system installation, showing two steps with pipe connections and a diagonal line indicating no need.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Line drawing of a small kitchen sink with pipe fittings and a handle (no text or symbols)

CONTENIDO DEL ENVÍO

Herramientas

Line drawing of a simple architectural or mechanical component with two internal compartments and a base (no text or symbols)

Simple line drawing of a hand pressing down on a rectangular plate with dashed lines indicating motion (no text or symbols)

Line drawing of a simple room interior with a cabinet and door (no text or symbols)

Diagram illustrating a laboratory setup with labeled components and a hand holding a sample, showing heating, drying, and cooling steps.

⑬A ⑭B ⑮C ⑯D ⑰E ⑱ ⑲ ⑳ ⑪ ⑫ ⑬

Line drawing of a kitchen sink with two washers and piping (no text or symbols)

Inserte ⑥ en ⑧.

Line drawing of a dual-bay washing machine with inlet/outlet pipes and water level (no text or symbols)

Technical line drawing of a mechanical or fluidic device with pipes and valves (no text or symbols)

Diagram illustrating a procedure for plumbing or plumbing system installation, showing pipe connection and water displacement with a diagonal line indicating no movement.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

KLARSTEIN
