M1 - Microphone icon - Free user manual and instructions

USER MANUAL M1 icon

Line drawing of a Large Disaphragm Studio Condenser with mesh head and adjustable arm (no text or symbols on the device itself)

• ENGLISH Studio large-diaphragm condenser microphone
• FRANÇAIS Microphone à condensateur de studio à large diaphragme
• DEUTSCHE Großmembran-Kondensatormikrofon für Studioaufnahmen
- ESPAÑOL Micrófono de condensador de estudio de diafragma grande
- 日本語 スタジオ用大口径ダイアフラム コンデンサー マイクロホン
• ITALIANO Microfono a condensatore da studio a diaframma largo

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUvrir CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVIDEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED PERSONNEL ATTENTION: POUR EVITER LES RISQUES DE CHOC ELECTRIQUE: NE PAS ENLEVER LE COUVERCLE, AUCUN ENTRETIEN DE PIECES INTERIEURES PAR L'USAGER CONFIER L'ENTERETIEN AU PERSONNEL QUALIFIE. AVIS: POUR EVITER LES RISQUES D'INCENDIE OU DELECTROCUTION, N EXPOSEZ PAS CET ARTICLE A LA PLUE OU A L'HUMIDITE

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure, that may be of sufficient magnitude to electric shock to persons. Le symbol clair avec point de fl che l'int rieur d'un triangle quillat ral est utilis pour alerter l'utilisateur de la pr sence l'int rieur du coffret de voltage dangereux non isol d'ampleur suff

exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (serviving) instructions in the literature accompanying the appliance. Le point d exclamation l int rieur d un triangle quilat ral est employ pour alerter les utilisateurs de la prespce d instructions importantes pour le fonctionnement et l entretien (service) dans le livret d instruction accompagnant l appari l.

ENGLISH

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacture's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Only use attachments/accessories specified by the manufacturer.

FRANÇAIS

Simple line drawing of a spray bottle emitting smoke (no text or symbols)

警告表示の意味

Register your ICON ProAudio product to your personal account 2

Features 3

Operating the M1 4

Powering the M1 4

Setting up the signal level 4

Microphone Placement 4

P-Poping 5

Mounting the M1 5

Specifications 5

Services 6

FRANÇAIS

Introductions 7

Thank you for purchasing the ICON M1 studio large-diaphragm condenser microphone. We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete satisfaction, we will endeavor to make things right.

In these pages, you'll find a detailed description of the features of the M1, step-by-step instructions for its setup and use, and full specifications.

Please register the product on our website at the below link www.iconproaudio.com/registration:

You'll also find a warranty card enclosed---please don't forget to fill it out and mail it so that you can receive online technical support at: www.iccompr.Andiso we can send you updated information about these and other ICON products in the future. As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event the product must be returned for servicing, the original packaging (or reasonable equivalent) is required.

With proper care, your M1 will operate without any trouble for many years. We recommend that you record your serial number in the space provided below for future reference.

Register your ICON ProAudio product to your personal account

1. Check serial number of your device

Please go to http://iconproaudio.com/registration or scan the QR code below.

QR code image containing encoded data, no visible human-readable text

Input your device's serial number and the other information on the screen. Click "Submit".

A message will pop up showing your device information such as model name and its serial number - Click “Register this device to my account” or if you see any other message, please contact our after-sales service team

2.Log in to your personal account page for existing user or sign up for new user

Existing user: Please log into your personal user page by inputing your user name and password.

New user: Please click "Sign Up" and fill in all the information.

3. Download all useful materials

All your registered devices under your account will show on the page. Each product will be listed along with all its available files such as drivers, firmware, user manual in different languages and bundled software etc. for download.

Please make sure you have download the necessary files such as driver before you begin device installation.

Features

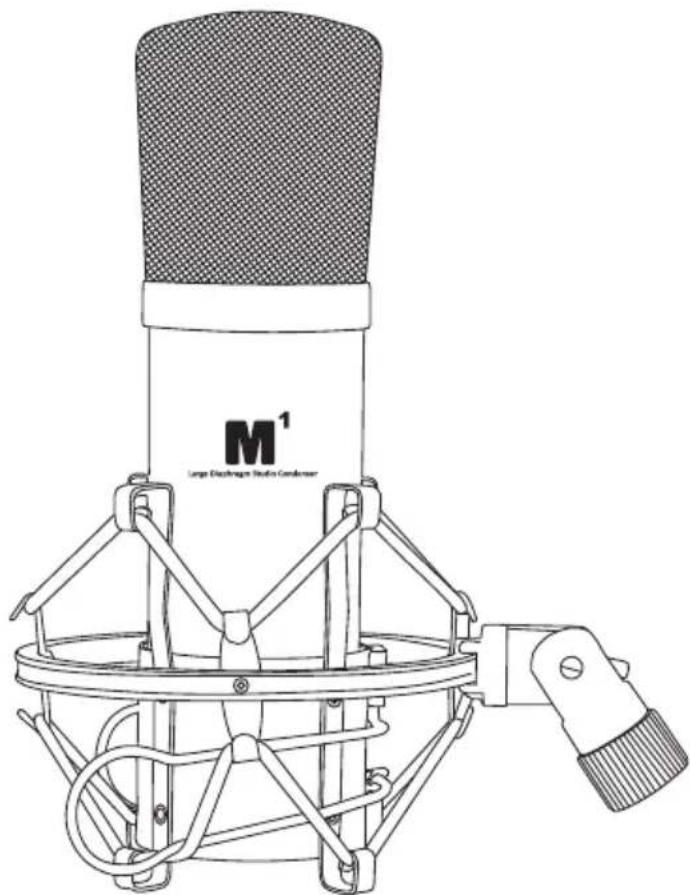

Line drawing of a Large Electrons Audio Condenser with mesh head and adjustable arm (no text or symbols on the device itself)

• Professional Large-diaphragm condenser microphone for unsurpassed audio quality
- Ideal as main and support microphone for most differing recording situations
- Cardioid pickup pattern for outstanding sound source separation and feedback rejection
• Pressure-gradient transducer with shock-mounted capsule
- Prefect for vocals and acoustic instruments
• External 36-52 Volt phantom power operation
- Heavy-duty suspension mount, windscreen and aluminum transport case included
- Ultra-rugged construction with metal die-cast body
• High-quality components and exceptionally rugged construction ensure long lift.

Operating the M1

Powering the M1

The M1 is a large diaphragm condenser microphone and therefore needs to be operated by connecting a phantom power supply. Phantom power is standard on most quality mixers, outboard MIC-pres and hard disk recorders. If necessary an external phantom power supply can also be used. The M1 receives the phantom power directly from a MIC cable when connected to a mixer or other microphone input that includes a phantom supply. The power is actually sent OUT of the microphone INPUT, riding silently along with the audio signal. Most mixers have a switch to engage the phantom power so be sure to check that the phantom power is on.

Setting up the signal level

When connecting the M1 to a mixer or recorder input, be sure that the input is of microphone level. Also, be sure that the phantom power is engaged as explained at the previous section “Powering the M1”. Most mixers and recorders of reasonable quality will offer a microphone input with MIC trim (usually called Trim or Gain) control. The purpose of the MIC trim control is to optimize the amount of good signal to any noise associated with the mixers electronics. A good MIC pre with trim also will have a Peak or Clip LED. To set a good level on the MIC, set the M1 up in front of the desired sound source and slowly raise the MIC trim control until you see the Peak LED light up. Then, turn the mix trim control down until the LED does not light any more. On most mixers, the ideal setting is that the trim control is turned up as much as possible without lighting the Peak LED.

Microphone Placement

In order to maximize the sound quality, you must pay careful attention to the placement of your M1 and how it is positioned for the instrument or vocalist that you are miking. All microphones, especially unidirectional or cardioid microphones, exhibit a phenomenon know as the “proximity effect”. Very simply put, proximity effect is a resulting change in the frequency response of a microphone based on the position of the MIC capsule relative to the sound source. Specifically, when you point a cardioid MIC directly at the sound source (on-axis) you will get the best frequency response, however, when you start pointing the microphone slightly away (off-axis) you will notice the low frequency dropping off and the microphone will start to sound thinner.

For most vocal applications you'll want to position the microphone directly in front of the artist. The same may be true for miking instruments. However, you can make some pretty amazing equalization adjustments by slightly changing the angle of the capsule to the sound source. This can be a very useful technique in capturing the optimum sound of drum set, acoustic guitar, piano or other instruments in a live room or sound stage. Experimentation and experience are the best teachers in getting good sounds, so plug in!

P-Poping

P-Poping is that annoying pop that you can get when the microphone diaphragm gets a blast of air from a vocalist pronouncing words with the letter "P" included. There are a few ways to deal with the problem including using an external pop filter. Some famous engineers have relied on an old nylon stocking over a bent clothes hanger, which actually works very well. For a cleaner solution, try ICON PF-01 pop filter. You can also try placing the microphone slightly off axis (on a slight angle) from the vocalist. This can often solve the problem without using an external pop filter.

Mounting the M1

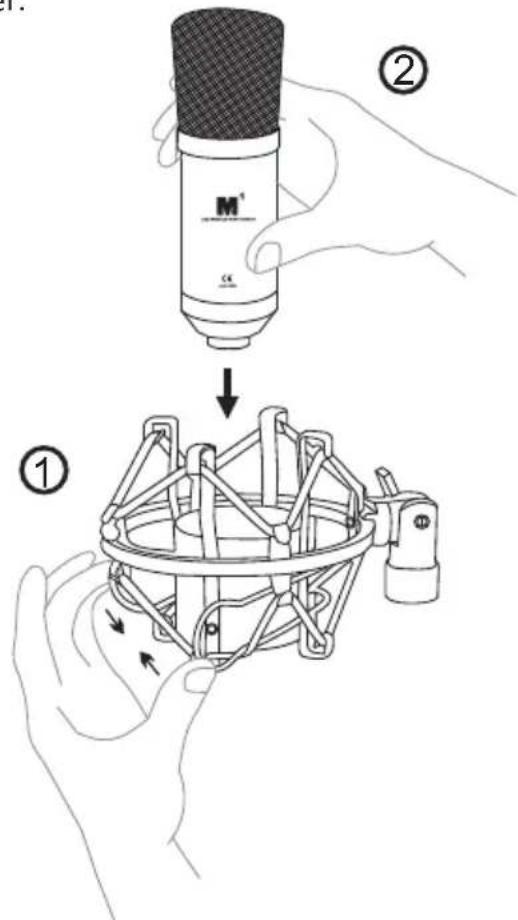

Mount your M1 into the provided suspension mount as the diagrams illustrated below.

Diagram illustrating a mechanical setup with labeled parts and directional arrows, showing hands operating a microphone and a rotating device.

Specifications

Acoustical operating principle ____ Pressure gradient transducer

Directional pattern Cardioid

Frequency range 20Hz - 20KHz

Sensitivity -37dBV/Pa

Rated Impedance 200 Ohms

Min. load impedance 1000 Ohms

SPL 144dB

S/N ratio 78dB

Dynamic range 128dB

Power supply voltage 48V +/-3V

Current consumption 4mA

Weight (Microphone only) 0.25Kg (0.55lb)

(with suspension mount) 0.43Kg (0.95lb)

Dimensions 46mm (dia.) x 157mm (L)

1.8" (dia.) x 6.2" (L)

Services

If your M'leeds servicing, follow these instructions.

Check our online Help Center at http://support.iconproaudio.com/hc/en-us, for information, knowledge, and downloads such as:

1. FAQ
2. Download
3. Learn More
4. Forum

Very often you will find solutions on these pages. If you don't find a solution, create a support ticket at our online Help Center at the link below, and our technical support team will assist you as soon as we can.

Navigate to http://support.iconproaudio.com/hc/en-us and then sign in to submit a ticket.

As soon as you have submitted an inquiry ticket, our support team will assist you to resolve the problem with your ICON ProAudio device as soon as possible.

To send defective products for service:

1. Ensure the problem is not related to operation error or external system devices.
2. Keep this owner's manual. We don't need it to repair the unit.
3. Pack the unit in its original packaging including end card and box. This is very important. If you have lost the packaging, please make sure you have packed the unit properly. ICON is not responsible for any damage that occurs due to non-factory packing.
4. Ship to the ICON tech support center or the local return authorization. See our service centers and distributor service points at the link below:

If you are located in US

Send the product to:

North America

Mixware, LLC – U.S. Distributor

11070 Fleetwood Street -Unit F.

Sun Valley, CA 91352; USA

Tel.: [phone]

Contact: www.mixware.net/help

If you are located in Europe

Send the product to:

Sound Service GmbH European

HeadquarterMoriz-Seeler-Straße

3D-12489 Berlin

Telephone: [phone]

Fax: [phone]

E-Mail: [e-mail]

If you are located in Hong Kong

Send the product to:

ASIA OFFICE:

Unit F, 15/F., Fu Cheung Centre,

No. 5-7 Wong Chuk Yueng

Street, Fotan, Sha Tin, N.T., Hong Kong.

1. For additional update information please visit our website at:

www.iconproaudio.com

FRANÇAIS

Introductions

QR code image containing encoded data, no visible human-readable text

Line drawing of a Large Electrophone Studio Condenser with a mesh head and adjustable arm (no text or symbols on the device itself)

Diagram illustrating a mechanical setup with labeled parts and directional arrows, showing hands operating a M¹ device.

Spécifications

Acoustical operating principle ____ Pressure gradient transducer

Directional pattern Cardioid

Frequency range 20Hz - 20KHz

Sensitivity----37dBV/Pa

Rated Impedance 200 Ohms

Min. load impedance 1000 Ohms

SPL 144dB

S/N ratio 78dB

Dynamic range 128dB

Power supply voltage 48V +/-3V

Current consumption 4mA

Weight (Microphone only) 0.25Kg (0.55lb)

(with suspension mount) 0.43Kg (0.95lb)

Dimensions 46mm (dia.) x 157mm (L)

1.8" (dia.) x 6.2" (L)

Unit F, 15/F., Fu Cheung Centre, No. 5-7 Wong Chuk Yueng Street, Fotan,

Sha Tin, N.T., Hong Kong.

Mixware, LLC – U.S. Distributor

11070 Fleetwood Street – Unit F.

Sun Valley, CA 91352; USA

Tel.: [phone]

Contact: www.mixware.net/help

1. For additional update information please visit our website at:

www.iconproaudio.com

DEUTSCHE

Einführung

QR code image containing encoded data, no visible human-readable text

Line drawing of a Large Electrophone Studio Condenser with no text or symbols on the device itself

Diagram illustrating the use of a microphone to interact with a mechanical device, labeled with steps ① and ②.

Technische Daten

Acoustical operating principle ____ Pressure gradient transducer

Directional pattern Cardioid

Frequency range 20Hz - 20KHz

Sensitivity-----37dBV/Pa

Rated Impedance 200 Ohms

Min. load impedance 1000 Ohms

SPL 144dB

S/N ratio 78dB

Dynamic range 128dB

Power supply voltage 48V +/-3V

Current consumption 4mA

Weight (Microphone only) 0.25Kg (0.55lb)

(with suspension mount) 0.43Kg (0.95lb)

Dimensions 46mm (dia.) x 157mm (L)

1.8" (dia.) x 6.2" (L)

Unit F, 15/F., Fu Cheung Centre,

No. 5-7 Wong Chuk Yueng Street, Fotan, Sha Tin, N.T., Hong Kong.

Mixware, LLC – U.S. Distributor 11070 Fleetwood Street – Unit F.

Sun Valley, CA 91352; USA

Tel.: [phone]

Contact: www.mixware.net/help

QR code image containing encoded data, no visible human-readable text

Line drawing of a Large Electrophone Studio Condenser with a mesh head and adjustable arm (no text or symbols on the device itself)

Acoustical operating principle ____ Pressure gradient transducer

Directional pattern Cardioid

Frequency range 20Hz - 20KHz

Sensitivity -37dBV/Pa

Rated Impedance 200 Ohms

Min. load impedance 1000 Ohms

SPL 144dB

S/N ratio 78dB

Dynamic range 128dB

Power supply voltage 48V +/-3V

Current consumption 4mA

Weight (Microphone only) 0.25Kg (0.55lb)

(with suspension mount) 0.43Kg (0.95lb)

Dimensions 46mm (dia.) x 157mm (L)

1.8" (dia.) x 6.2" (L)

Servicio

Unit F, 15/F., Fu Cheung Centre, No. 5-7 Wong Chuk Yueng Street, Fotan, Sha Tin, N.T., Hong Kong.

Mixware, LLC – U.S. Distributor

11070 Fleetwood Street – Unit F.

Sun Valley, CA 91352; USA

Tel.: [phone]

Contact: www.mixware.net/help

1. For additional update information please visit our website at:

www.iconproaudio.com

日本語

はじめに

QR code image containing encoded data, no visible human-readable text

Line drawing of a Large Electrophone Studio Condenser with a mesh head and adjustable arm (no text or symbols on the device itself)

Diagram illustrating a mechanical setup with labeled parts and directional arrows, showing hands operating a microphone and a rotating device.

製品仕様

Acoustical operating principle ____ Pressure gradient transducer

Directional pattern Cardioid

Frequency range 20Hz - 20KHz

Sensitivity -37dBV/Pa

Rated Impedance 200 Ohms

Min. load impedance 1000 Ohms

SPL 144dB

S/N ratio 78dB

Dynamic range 128dB

Power supply voltage 48V +/-3V

Current consumption 4mA

Weight (Microphone only) 0.25Kg (0.55lb)

(with suspension mount) 0.43Kg (0.95lb)

Dimensions 46mm (dia.) x 157mm (L)

1.8" (dia.) x 6.2" (L)

修理について

Unit F, 15/F., Fu Cheung Centre,

No. 5-7 Wong Chuk Yueng Street, Fotan,

Sha Tin, N.T., Hong Kong.

北米 にお住まいの場合は、

製品をこちらまで返送してください:

ICON Service Centre

611 Potomac PL Ste 102

Smyrna, 37167-5655 Tennessee.

United States

Tel.: [phone]

ヨーロッパにお住まいの場合は、

製品をこちらまで返送してください:

Sound Service

GmbH European

HeadquarterMoriz-Seeler-Straße

3D-12489 Berlin

Telephone: [phone]

Fax: [phone]

E-Mail: [e-mail]

QR code image containing encoded data, no visible human-readable text

Line drawing of a Large Electrophone Studio Condenser with a mesh head and adjustable arm (no text or symbols on the device itself)

Diagram illustrating the use of a M-type microphone to interact with a mechanical device, labeled with steps ① and ②.

Dati tecnici

Acoustical operating principle ____ Pressure gradient transducer

Directional pattern Cardioid

Frequency range 20Hz - 20KHz

Sensitivity -37dBV/Pa

Rated Impedance 200 Ohms

Min. load impedance 1000 Ohms

SPL 144dB

S/N ratio 78dB

Dynamic range 128dB

Power supply voltage 48V +/-3V

Current consumption 4mA

Weight (Microphone only) 0.25Kg (0.55lb)

(with suspension mount) 0.43Kg (0.95lb)

Dimensions 46mm (dia.) x 157mm (L)

1.8" (dia.) x 6.2" (L)

Revisione

Unit F, 15/F., Fu Cheung Centre,

No. 5-7 Wong Chuk Yueng Street, Fotan,

Sha Tin, N.T., Hong Kong.

Mixware, LLC – U.S. Distributor

11070 Fleetwood Street – Unit F.

Sun Valley, CA 91352; USA

Tel.: [phone]

Contact: www.mixware.net/help

1. For additional update information please visit our website at:

www.iconproaudio.com
