Product Type	Multi-function shower with thermostatic valve
Brand	Vevor
Model	FS10285-MB-G
Color	Matte Black
Material	Stainless steel / Chrome-plated brass
Main shower head dimensions	16 inches (40.6 cm) diameter
Valve type	Constant temperature thermostatic
Flow rate	8.3 L/min (2.2 GPM)
Connection	G 1/2" (male thread)
Functions	Rain shower, handheld shower head, back massage jets
Weight (approx.)	6 kg
Tools included	Allen key, Teflon tape, screws, wall plugs
Maintenance and cleaning	Rinse with clean water, descale with white vinegar (30 min), avoid abrasive cleaners
Safety	Anti-scald thermostatic valve, sealing gaskets included
Spare parts	Gaskets, shower heads, hoses: available from the manufacturer (Shanghaimuxinmuyeyouxiangongsi)
Installation	Professional plumber recommended; ensure hot (left) and cold (right) water inlets

Frequently Asked Questions - FS10285-MB-G Vevor

What is the difference between models FS10285 and FS10286?

The FS10286 model comes with a handheld shower head (6 inches) while the FS10285 does not (null arm). Both models include a 16-inch rain shower head, a jet strip, and a back jet.

Is the thermostatic valve compatible with all water heaters?

Yes, the valve works with all standard hot water systems. It maintains constant temperature even with pressure fluctuations. Ensure hot and cold water inlets are properly connected.

What tools are needed for installation?

Included tools are an Allen key, Teflon tape, screws, wall plugs, and a spirit level. Also have an adjustable wrench, screwdriver, and possibly a drill.

How to clean limescale-clogged nozzles?

Disassemble the shower heads and soak them in white vinegar for 2 hours. Gently rub the rubber nozzles with your fingers to loosen limescale. Rinse thoroughly with clean water.

Is the product guaranteed?

The warranty covers manufacturing defects but not damage due to incorrect installation, improper maintenance, or abusive use. Keep the proof of purchase.

Can this shower be installed without a fixed bracket?

Yes, two installation methods are described in the manual: with or without a fixed bracket. The fixed bracket is provided as an option to reinforce mounting on uneven walls.

What is the minimum recommended water pressure?

The minimum recommended pressure is 2 bars (30 PSI) for optimal performance of the jets and thermostatic valve.

How to adjust the water temperature?

Turn the handle of the thermostatic valve to set the temperature. A safety button limits the temperature to 38°C to prevent burns. You can unlock it for hotter water.

Can I buy spare parts separately?

Yes, spare parts (shower heads, hoses, gaskets, thermostatic cartridge) are available from the manufacturer or authorized dealers. Contact Vevor customer service.

The shower makes a vibration noise during use. What to do?

Check that all connections are tight. A misaligned gasket or too high pressure can cause vibrations. Install a pressure regulator if necessary.

USER MANUAL FS10285-MB-G Vevor

Affordable. Reliable. Home Improvement.

Multiple Shower Heads

Model: FS10285-MB, FS10285-MB-G

FS10286-BN, FS10286-BN-G

VEVOR

Affordable. Reliable. Home Improvement.

MULTIPLE SHOWER HEADS

FS10285-MB, FS10285-MB-G	FS10286-BN, FS10286-BN-G

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product y received. Please forgive us that we won't inform you again if there are a technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

Warning Tips:

1. During the installation process, it is best to wear gloves to prevent sharp corners on the panel from scratching the palm of the hand.
2. When installing the shower, ensure that all joints are fully tightened to avoid water leakage.
3. When the shower is not in use, please close the switch valve of the shower.
4. Not be liable for any of the following claims: 1. Damage and/or breakdown caused by improper use and/or maintenance; Or any unauthorized Rebuild; including any damage caused by abuse (e.g. falls, drops, etc.) 2. Hire a professional plumber. Not responsible for any damage and/or failure caused by incorrect installation. 3. Damage and/or failure caused by removal after installation or other factors.
5. Damage and/or failure caused by applications beyond the scope of use.
6. Damage and/or failure caused by sand, dust and other impurities
7. Damage and/or failure caused by improper / inadequate maintenance; Rust surface treatment, etc.
8. Damage and/or failure caused by fire, earthquake, flood, lightning and other natural disasters, pollution, harmful gas, salt, abnormal voltage, and other factors.

Installation precautions.

1. Before installing the spool, clean the dirty water, residue, sand, and impurities remaining in the pipe before installing the spool. Do not open the protective cover before installing the spool to avoid impurities
2. Faucets and hot and cold water pipes must be installed correctly. Facing the faucet, connect hot water on the left and cold water on the right
3. Check the installation size. Do not forcibly install the product to avoid damagir the parts. How to Clean a shower head: In order to maintain the external brightness and good performance of the shower, please care for the shower in the following ways:

a. Rinse with water only and dry with a soft cotton cloth.
b. Place the shower head in a pot and fill the pot with enough white vinegar to cover the shower head. The acid in the vinegar helps dissolve the deposits on the white mineral nozzle. Let the shower head soak in vinegar for 30 minutes. The dirtier the shower head, the longer you'll need to soak it in vinegar.
c. Mild liquid and colorless glass cleaner can be used to remove surface dirt and dirt film, not abrasive polish agent 4. Do not use acid detergent, insoluble granular detergent, soap, etc.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

Model	FS10285	FS10286
Control Valve	Constant Temperature
Head's Shower	16 Inch	16 Inch
Head's Shower	Strip	Strip
Arm's Shower	Null	6 Inch
Back's Shower	3 Inch	3 Inch
Flow Rate Description	2.2 GPM (8.3L/min)
Pipe Threads	Null=NPT1/2” -G=G1/2”
Color	-BN=Brushed Nickel, -MB=Matte Black,-BG=Brushed Gold, -CP=Chrome Plating,

PARTS LIST

Tools you may need

Wrench

Screwdriver

Teflon Tape

Install Accessories
Hexagon Wrench (1pcs)	Teflon Tape (1pcs)	Screws (4pcs)	Bolt (4pcs)	Flat (4pcs)	Screws (6pcs)	Set Screw (1pcs)	Button (1pcs)	Fixed Bracket (4pcs)

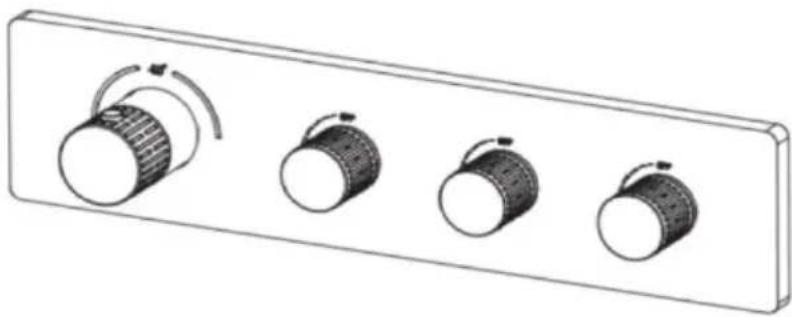

Illustration of a four-cylinder rotary knob with curved arrows indicating rotation (no text or symbols)

FS10285

Parts included

Illustration of two cylindrical mechanical components with textured surfaces (no text or symbols)

① Faucet Body

②Panel

③Handle*3

④Handle

Pure technical line drawing of mechanical components without any text or symbols

⑤Shower arm

⑥Showerhead

⑦Shower Socket

⑧Shower Hose

⑨Back Spray*6

⑩Showerhead

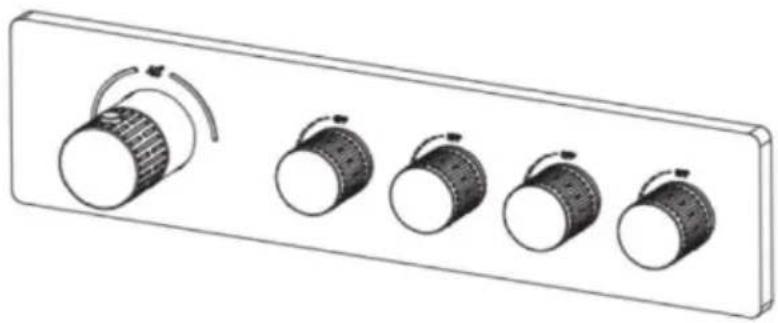

Illustration of a five-cylinder rotary knob with curved arrows indicating rotation (no text or symbols)

FS10286

Parts included

Technical illustration of two cylindrical mechanical components with textured surfaces (no text or symbols)

①Faucet Body

②Panel

③Handle*4

④Handle

Pure technical line drawing of a mechanical component with no text or symbols

⑤Shower arm

⑥Showerhead

⑦Shower Socket

⑧Shower Hose

⑨Showerhead

⑩Shower arm

⑧Back Spray*6

④Showerhead

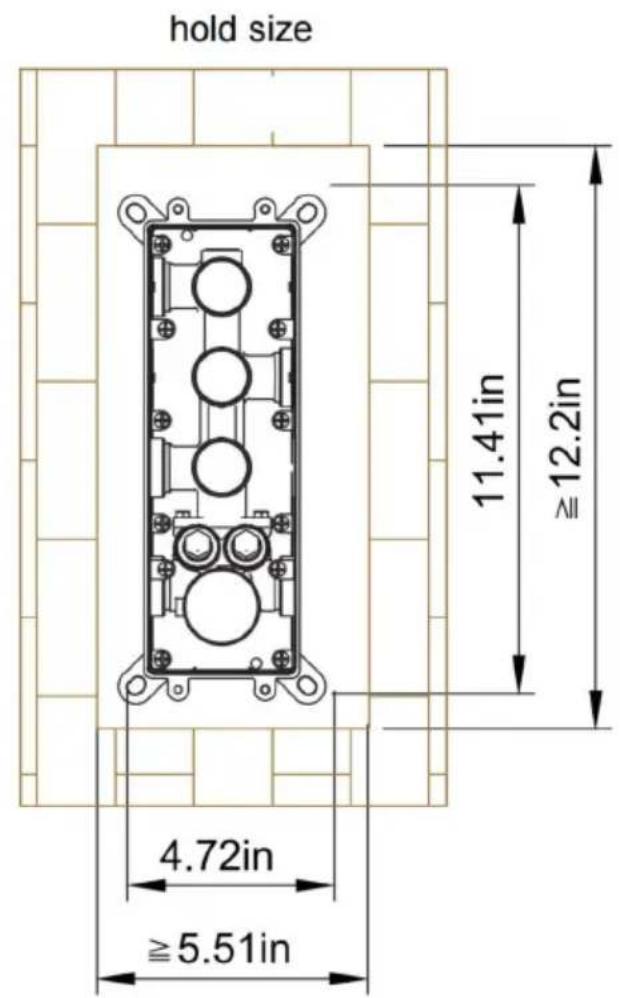

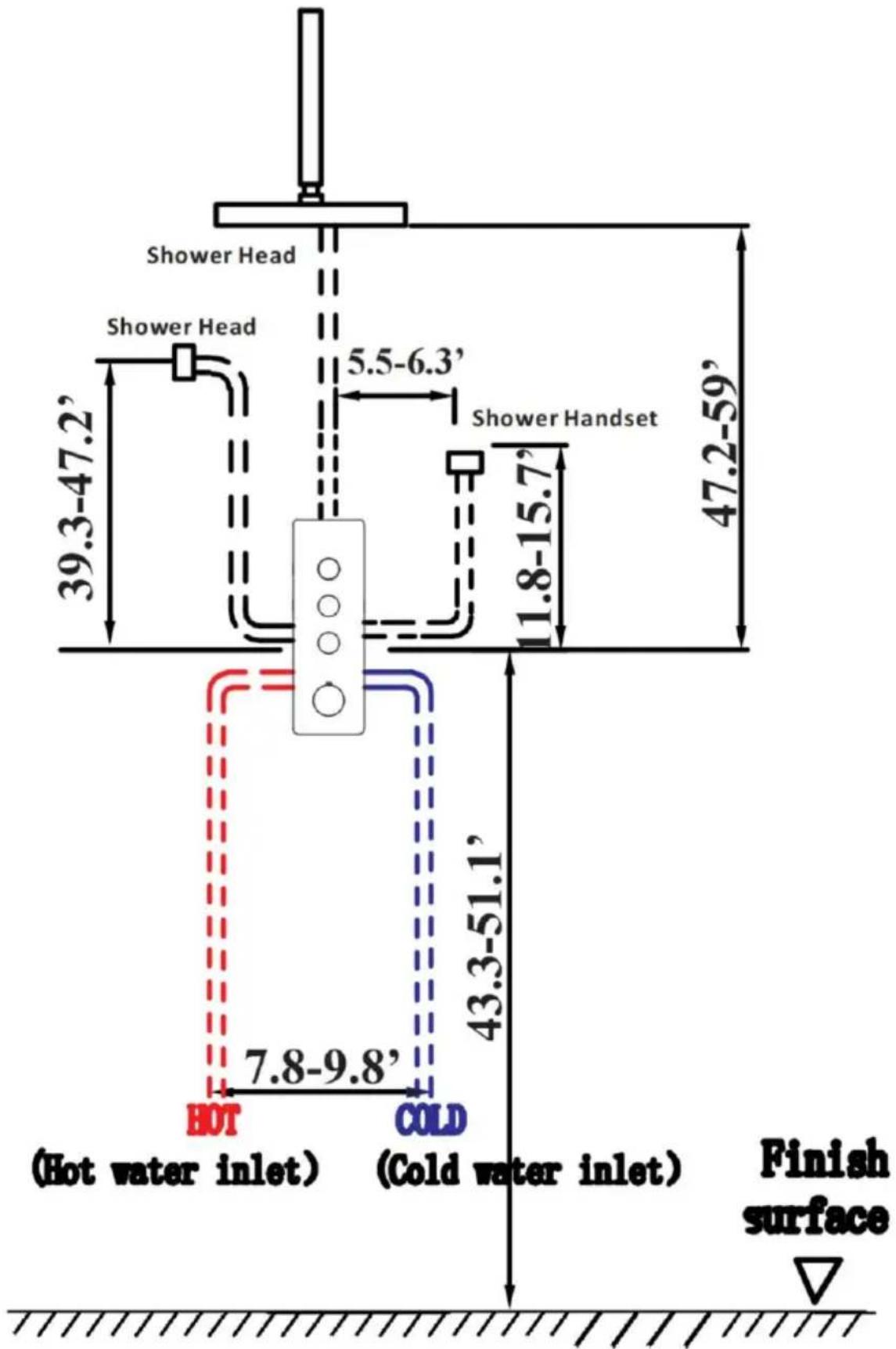

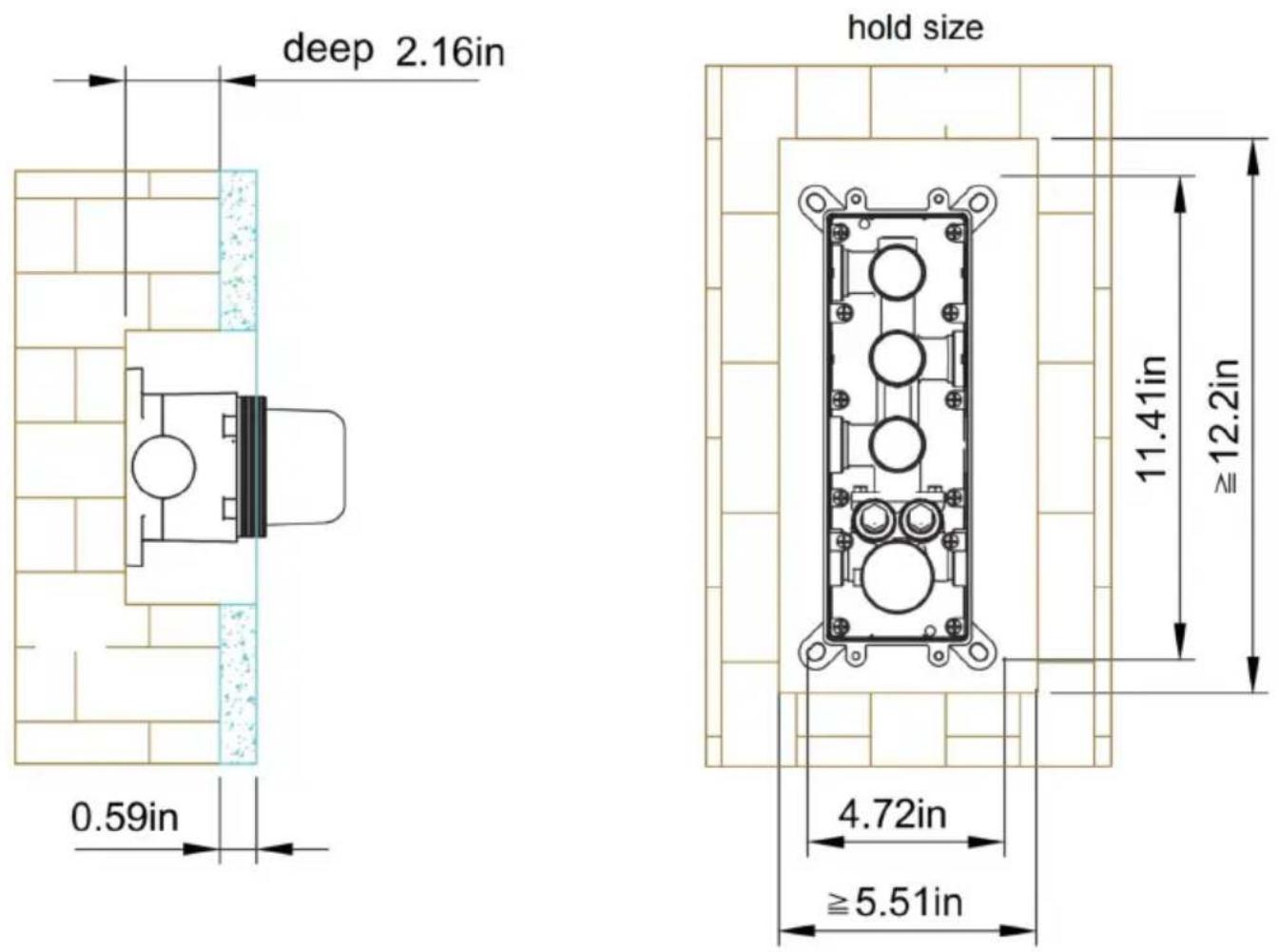

Suggest Installation Dimension

1. According to the site conditions and the installation size requirement and to make a hole.

1. According to the site conditions and the installation size requirement to set up the pipe line. (2). Connect the plastic box to the pipe, put the plate box on the hole, then adjust the levels (the bubble in the middle of the leveller). (3). Make the positioning holes.

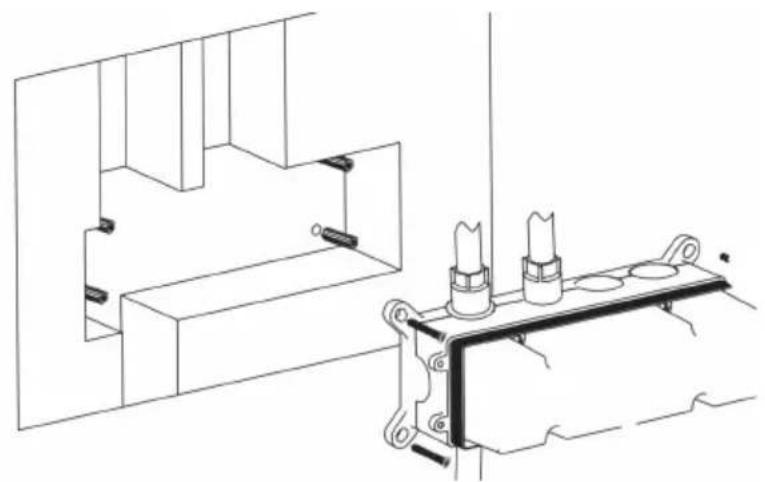

Method 1 (No need to Fixed Bracket)

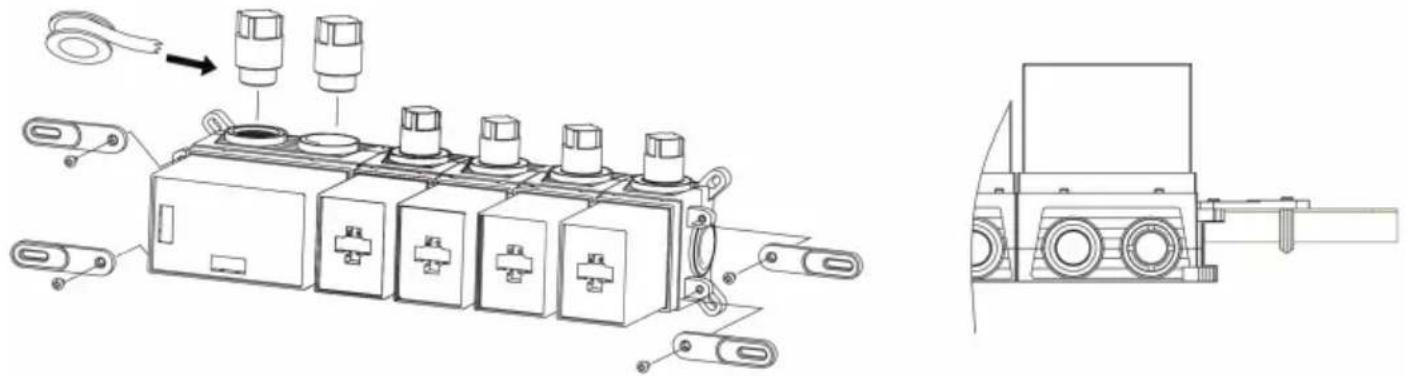

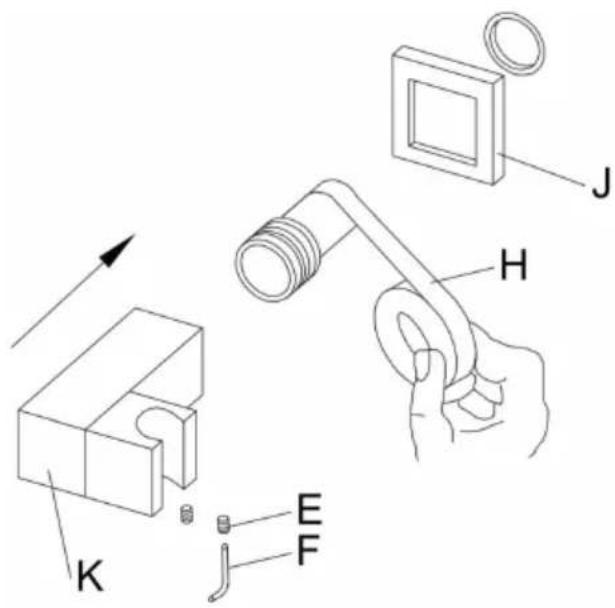

Method 2 (need to Fixed Bracket)

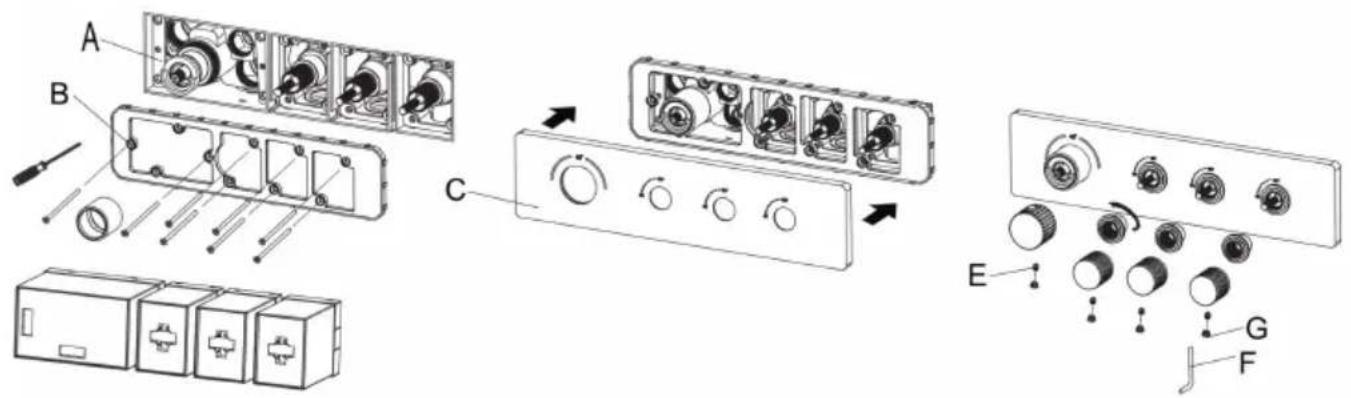

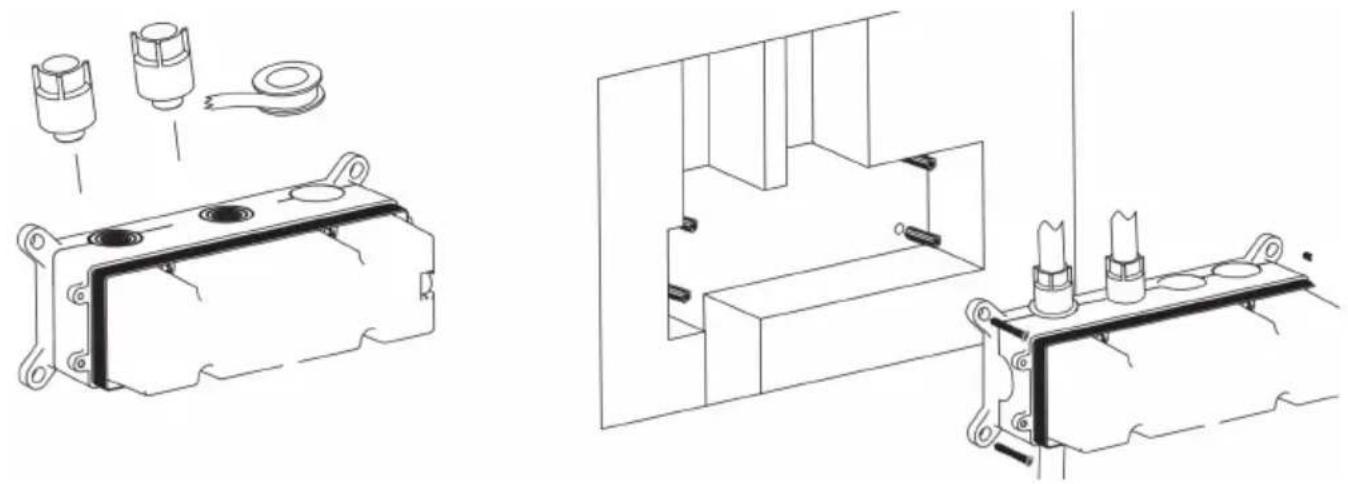

Technical line drawing of a mechanical assembly with labeled components and an inset view (no text or symbols present)

1. Remove the protective cover when the finished wall is completed and install the escutcheon (B) to the valve (A) and press it against the finish wall. Then, install the handle (C), tighten set screws (E) with Allen key (F) and put on the indication buttons (G).

1. Turn the water on for 1 minute to flush any debris. Apply Teflon tape to the threaded tail pipe and install the shower hose (I) into the outlet o wall. Then connect the top shower (P) to the spout.

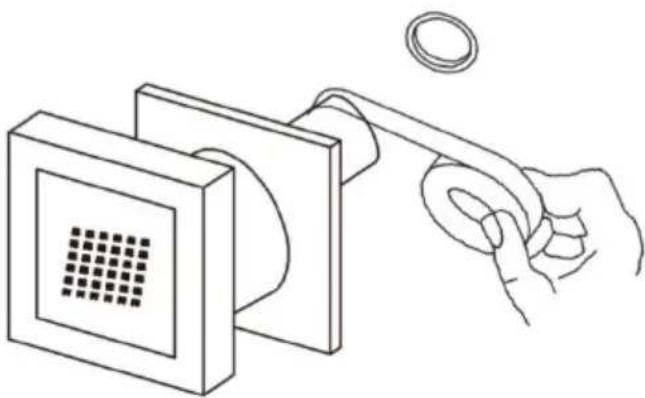

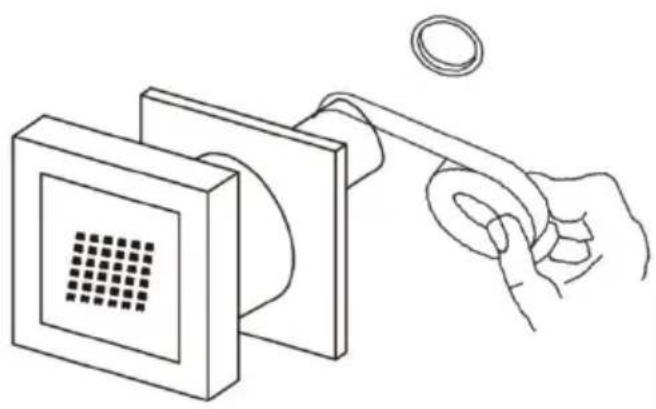

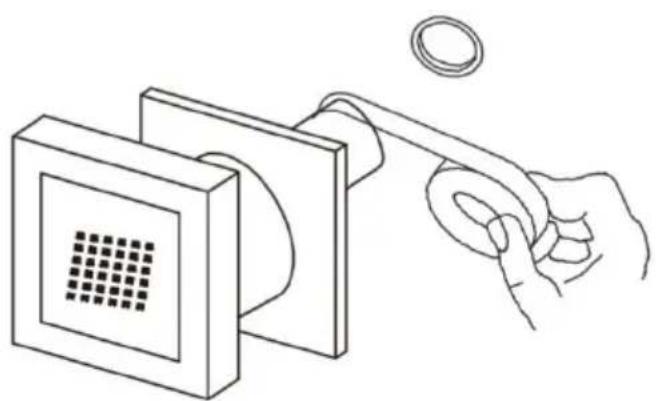

5. Apply Teflon tape (H) to the thread end, the fix the cover plate (d) onto the wall supply holder (K) and screw the supply holder (K) into the hand shower outlet.and screw (E) with Allen key(F).	6. The distance between the bottom the opening and the surface of the t is 30mm.Twist the nozzle to the pipe embedded in the wall;

Product usage

Simple diagram of a vertical panel with three circular holes and a curved knob at the bottom (no text or symbols)

Rotate switch

Rotating temperature control

CLEANING

1. To maintain proper working conditions or cleaning is required when mineral deposits appear on spray nozzles. To clean mineral deposits or gently rub rubber nozzles on the face of shower head to dislodge.
2. To clean heavier deposits/remove shower head and soak face down in a cup white vinegar for 2-3 hours. Replace shower head and run in each spray setting flush out vinegar, DO NOT use harsh chemicals/heavy-duty cleaners or abrasives. This may damage parts or finished product and may void warranty.
