USER MANUAL FS10286-BN-G Vevor

Affordable. Reliable. Home Improvement.

Multiple Shower Heads

Model: FS10285-MB, FS10285-MB-G

FS10286-BN, FS10286-BN-G

VEVOR

Affordable. Reliable. Home Improvement.

MULTIPLE SHOWER HEADS

FS10285-MB, FS10285-MB-G	FS10286-BN, FS10286-BN-G

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product y received. Please forgive us that we won't inform you again if there are a technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

Warning Tips:

1. During the installation process, it is best to wear gloves to prevent sharp corners on the panel from scratching the palm of the hand.
2. When installing the shower, ensure that all joints are fully tightened to avoid water leakage.
3. When the shower is not in use, please close the switch valve of the shower.
4. Not be liable for any of the following claims: 1. Damage and/or breakdown caused by improper use and/or maintenance; Or any unauthorized Rebuild; including any damage caused by abuse (e.g. falls, drops, etc.) 2. Hire a professional plumber. Not responsible for any damage and/or failure caused by incorrect installation. 3. Damage and/or failure caused by removal after installation or other factors.
5. Damage and/or failure caused by applications beyond the scope of use.
6. Damage and/or failure caused by sand, dust and other impurities
7. Damage and/or failure caused by improper / inadequate maintenance; Rust surface treatment, etc.
8. Damage and/or failure caused by fire, earthquake, flood, lightning and other natural disasters, pollution, harmful gas, salt, abnormal voltage, and other factors.

Installation precautions.

1. Before installing the spool, clean the dirty water, residue, sand, and impurities remaining in the pipe before installing the spool. Do not open the protective cover before installing the spool to avoid impurities
2. Faucets and hot and cold water pipes must be installed correctly. Facing the faucet, connect hot water on the left and cold water on the right
3. Check the installation size. Do not forcibly install the product to avoid damagir the parts. How to Clean a shower head: In order to maintain the external brightness and good performance of the shower, please care for the shower in the following ways:

a. Rinse with water only and dry with a soft cotton cloth.
b. Place the shower head in a pot and fill the pot with enough white vinegar to cover the shower head. The acid in the vinegar helps dissolve the deposits on the white mineral nozzle. Let the shower head soak in vinegar for 30 minutes. The dirtier the shower head, the longer you'll need to soak it in vinegar.
c. Mild liquid and colorless glass cleaner can be used to remove surface dirt and dirt film, not abrasive polish agent 4. Do not use acid detergent, insoluble granula detergent, soap, etc.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

Model	FS10285	FS10286
Control Valve	Constant Temperature
Head's Shower	16 Inch	16 Inch
Head's Shower	Strip	Strip
Arm's Shower	Null	6 Inch
Back's Shower	3 Inch	3 Inch
Flow Rate Description	2.2 GPM (8.3L/min)
Pipe Threads	Null=NPT1/2” -G=G1/2”
Color	-BN=Brushed Nickel, -MB=Matte Black,-BG=Brushed Gold, -CP=Chrome Plating,

PARTS LIST

Tools you may need

Wrench

Screwdriver

Teflon Tape

Install Accessories
Hexagon Wrench (1pcs)	Teflon Tape (1pcs)	Screws (4pcs)	Bolt (4pcs)	Flat (4pcs)	Screws (6pcs)	Set Screw (1pcs)	Button (1pcs)	Fixed Bracket (4pcs)

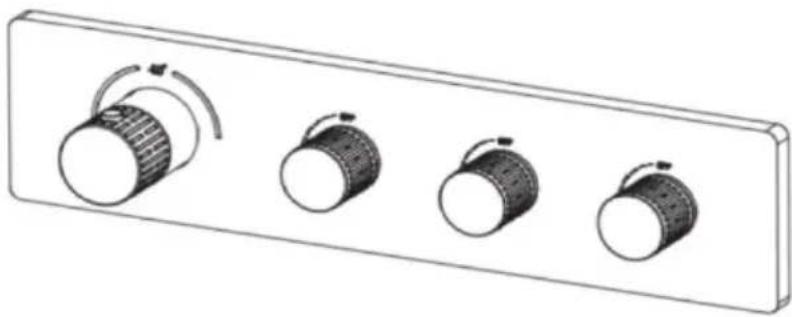

Illustration of a four-cylinder rotary knob with curved arrows indicating rotation (no text or symbols)

FS10285

Parts included

Technical line drawing of two cylindrical mechanical components with textured surfaces (no text or symbols)

① Faucet Body

②Panel

③Handle*3

④Handle

Pure technical line drawing of mechanical components without any text or symbols

⑤Shower arm

⑥Showerhead

⑦Shower Socket

⑧Shower Hose

⑨Back Spray*6

⑩Showerhead

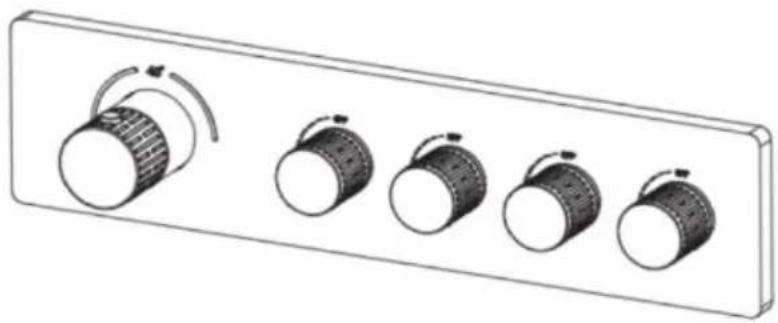

Illustration of a five-cylinder rotary knob with curved arrows indicating rotation (no text or symbols)

FS10286

Parts included

Technical illustration of two cylindrical mechanical components with textured surfaces (no text or symbols)

①Faucet Body

②Panel

③Handle*4

④Handle

Pure technical line drawing of a mechanical component with no text or symbols

⑤Shower arm

⑥Showerhead

⑦Shower Socket

⑧Shower Hose

⑨Showerhead

⑩Shower arm

⑧Back Spray*6

④Showerhead

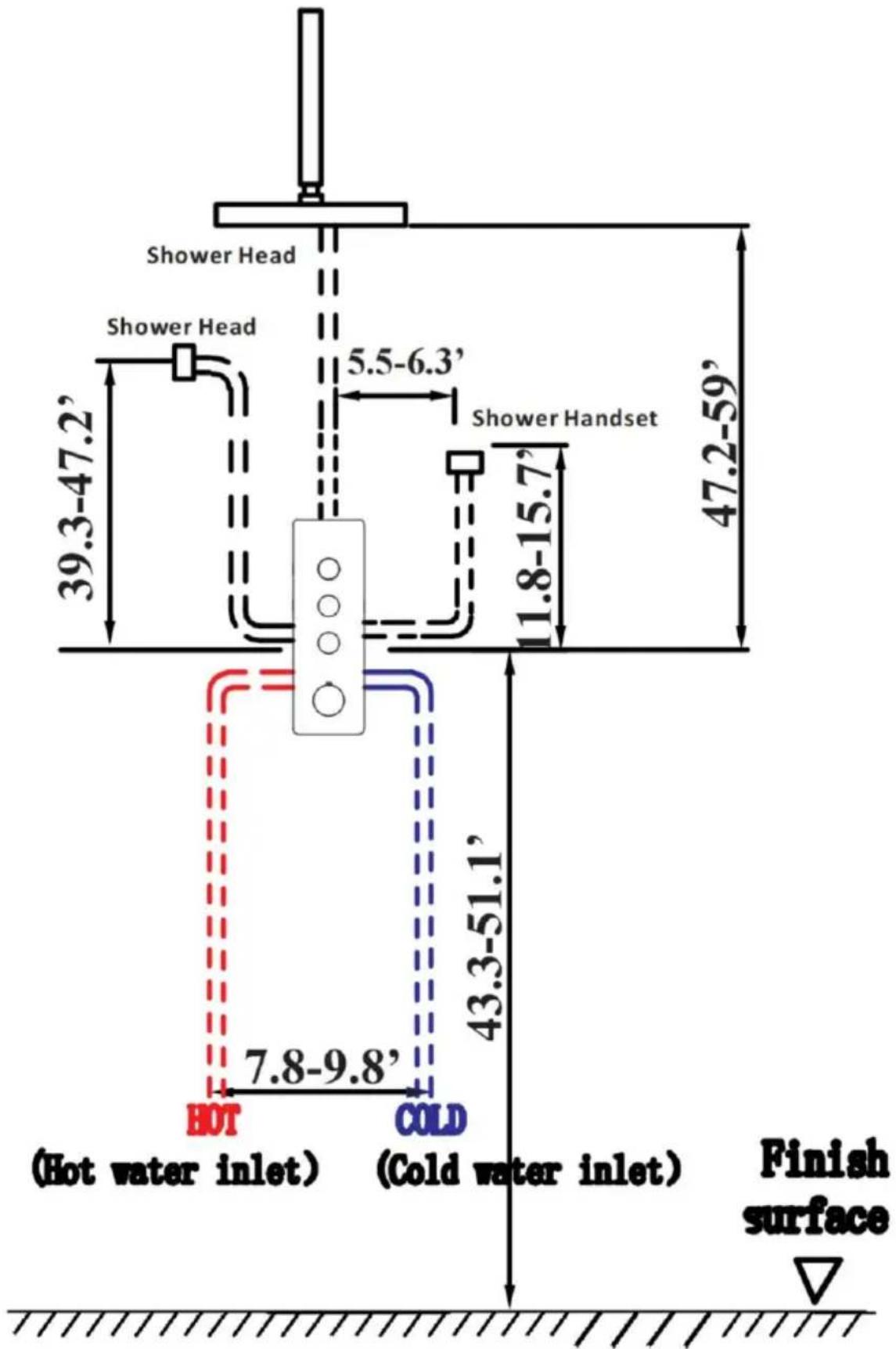

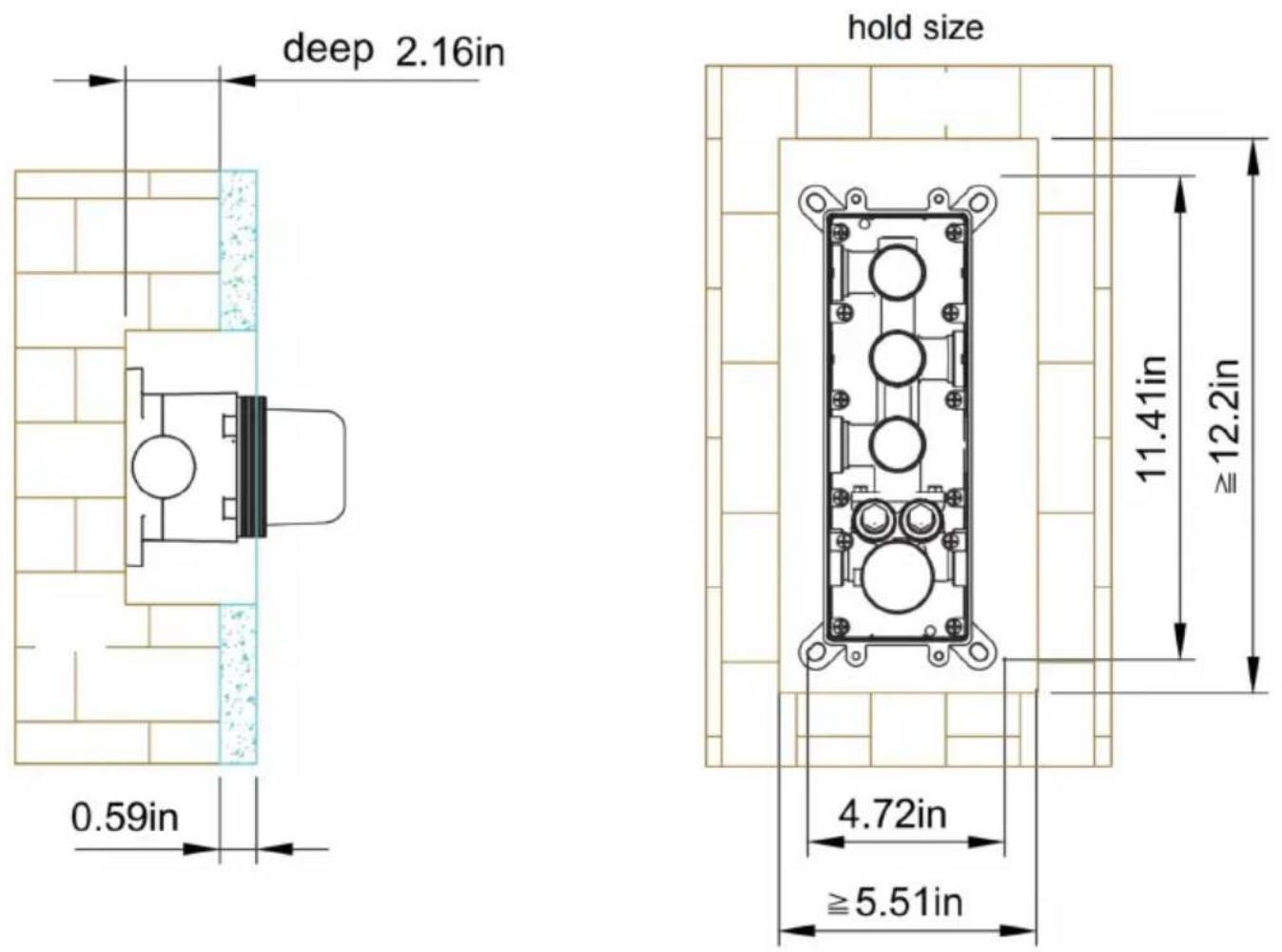

Suggest Installation Dimension

Shower Head 5.5-6.3' Shower Handset 39.3-47.2' 11.8-15.7' 47.2-59' 7.8-9.8' 43.3-51.1' Hot COLD (Hot water inlet) (Cold water inlet) Finish surface

1. According to the site conditions and the installation size requirement and to make a hole.

1. According to the site conditions and the installation size requirement to set up the pipe line. (2). Connect the plastic box to the pipe, put the plate box on the hole, then adjust the levels (the bubble in the middle of the leveller). (3). Make the positioning holes.

Method 1 (No need to Fixed Bracket)

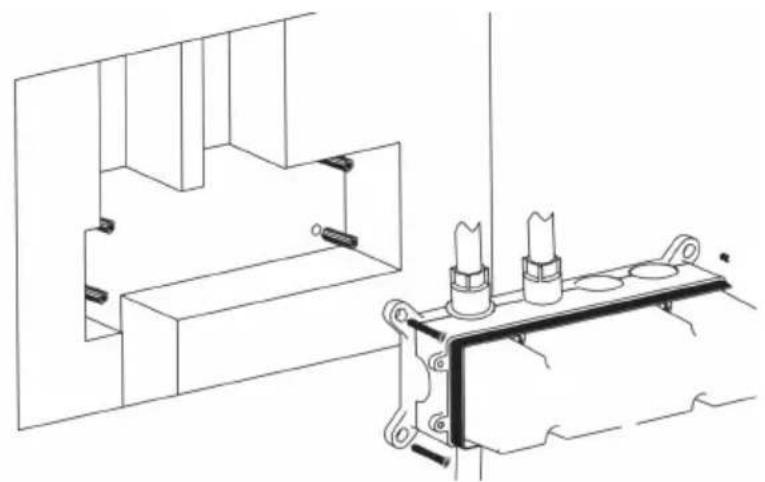

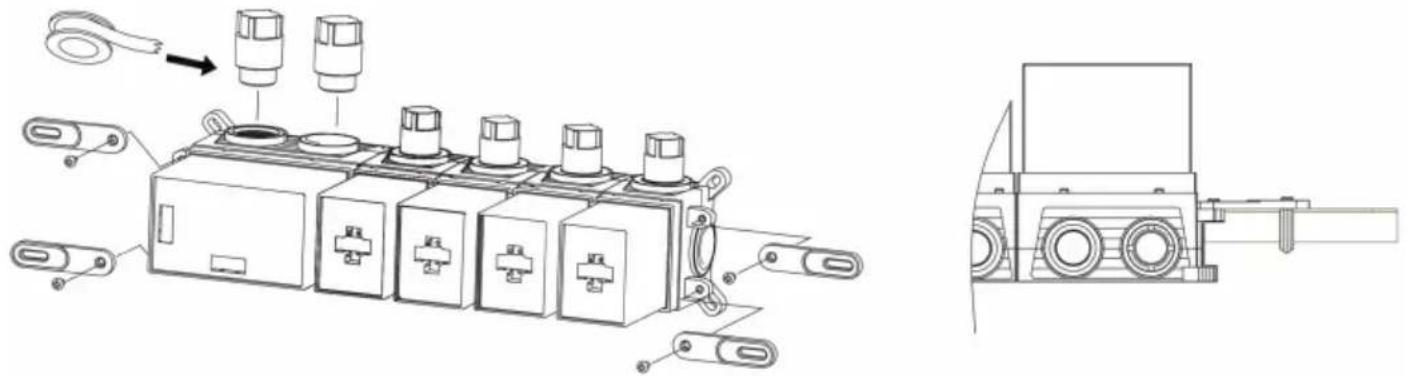

Method 2 (need to Fixed Bracket)

Technical line drawing of a mechanical assembly with labeled components and an inset view (no text or symbols present)

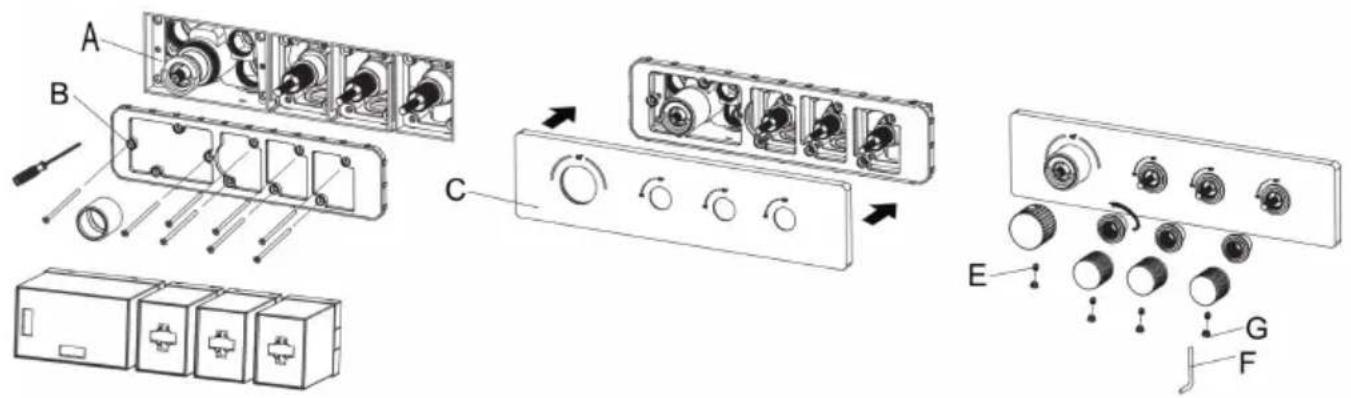

1. Remove the protective cover when the finished wall is completed and install the escutcheon (B) to the valve (A) and press it against the finish wall. Then, install the handle (C), tighten set screws (E) with Allen key (F) and put on the indication buttons (G).

Exploded view diagram of a device showing labeled components including ports, switches, and buttons

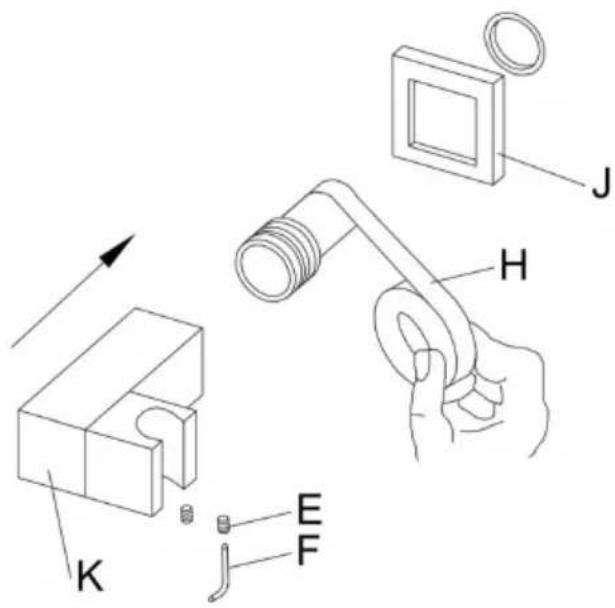

1. Turn the water on for 1 minute to flush any debris. Apply Teflon tape to the threaded tail pipe and install the shower hose (I) into the outlet o wall. Then connect the top shower (P) to the spout.

Technical diagram showing mechanical assembly steps with labeled parts H, I, and P

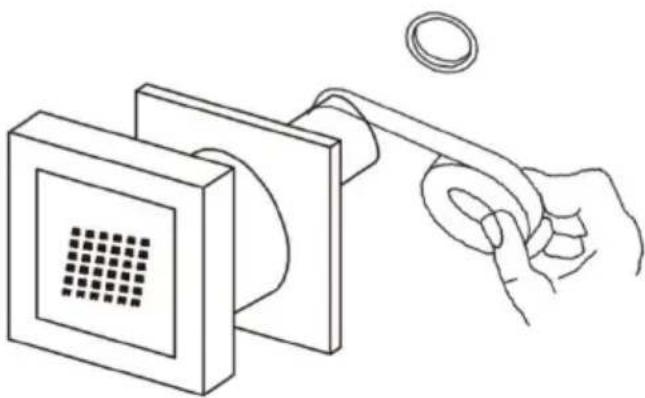

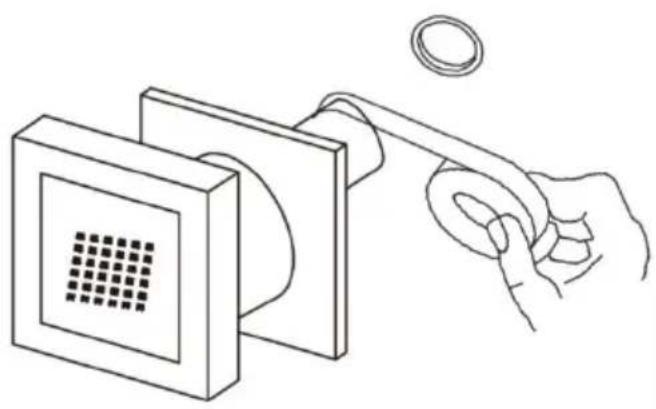

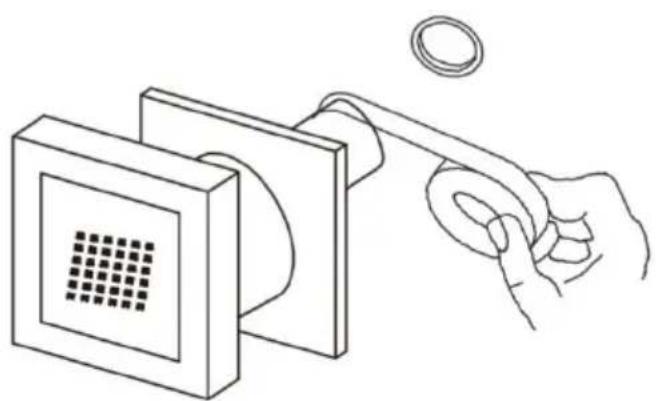

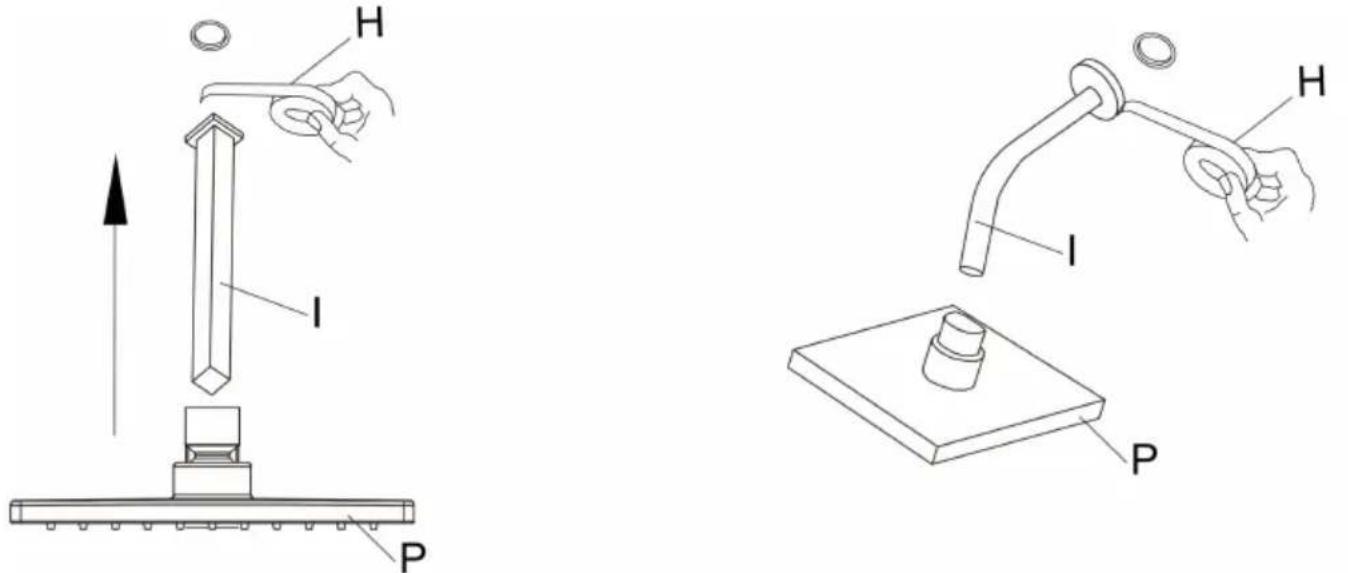

5. Apply Teflon tape (H) to the thread end, the fix the cover plate (d) onto the wall supply holder (K) and screw the supply holder (K) into the hand shower outlet.and screw (E) with Allen key(F).	6. The distance between the bottom the opening and the surface of the t is 30mm.Twist the nozzle to the pipe embedded in the wall;

Product usage

Simple diagram of a vertical panel with three circular holes and a curved knob at the bottom (no text or symbols)

Rotate switch

Rotating temperature control

CLEANING

1. To maintain proper working conditions or cleaning is required when mineral deposits appear on spray nozzles. To clean mineral deposits or gently rub rubber nozzles on the face of shower head to dislodge.
2. To clean heavier deposits/remove shower head and soak face down in a cup white vinegar for 2-3 hours. Replace shower head and run in each spray setting flush out vinegar, DO NOT use harsh chemicals/heavy-duty cleaners or abrasives. This may damage parts or finished product and may void warranty.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
