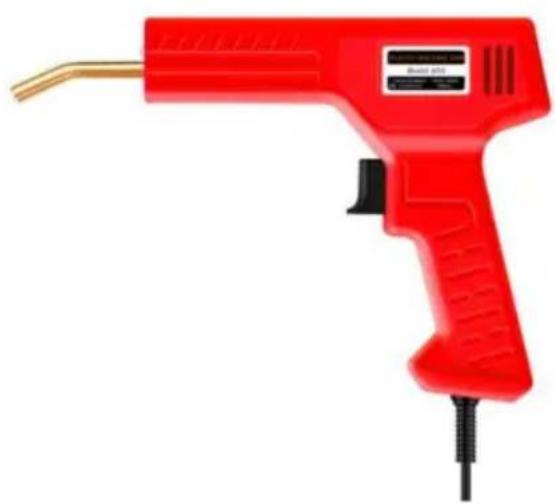

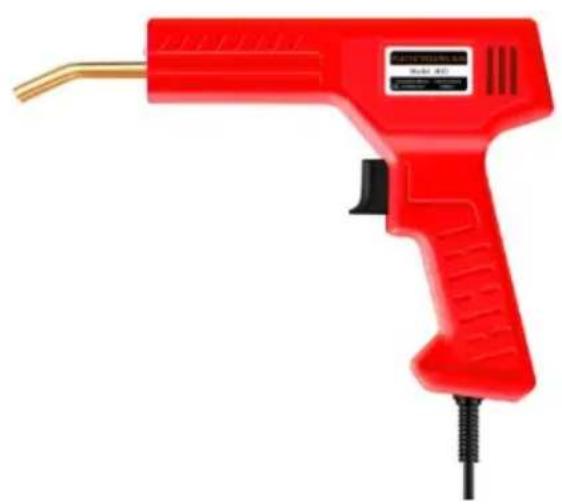

Red electric soldering gun with metal clamps and a small digital display (no visible text or symbols)

H50

Note: The product picture is for reference, the actual details shall prevail

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instruction carefully.
	CORRECT DISPOSAL for DisplayThis product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a point for recycling electrical and electronic devices.
CE	Compliance is a EC security certification.
	FCC Information:CAUTION: Changes or modifications not expressly approved by party responsible for compliance could void the user's authority operate the equipment!This device complies with Part 15 of the FCC Rules. Operation subject to the following two conditions:1) This product may cause harmful interference.2) This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not express approved by the party.responsible for compliance could void the authority to operate the product.Note: This product has been tested and found to comply with for a Class B digital device pursuant to Part 15 of the FCC limits are designed to provide reasonable protection against har interference in a residential installation.This product generates, uses and can radiate radio frequency and if not installed and used in accordance with the instruction cause harmful interference to radio communications. However, thno guarantee that interference will not occur in a particular ins If this product does cause harmful interference to radio or tele reception,which can be determined by turning the product off a the user is encouraged to try to correct the interference by or of the following measures.· Reorient or relocate the receiving antenna.· Increase the distance between the product and receiver.· Connect the product to an outlet on a circuit different from which the receiver is connected.· Consult the dealer or an experienced radio/TV technician for assistance.

Operation safety

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

1. To provide continued protection against risk of electric shock, connected properly grounded outlets only.

2. Do not immerse in water.

3. Hot Surface, Avoid Contact.

4. Shock Hazard. To provide continued protection against electric shock disconnect from the power supply when not in use

5. Heat gun, soldering iron, desoldering iron must be placed on its s when not in use.

6. HOUSEHOLD AND INDOOR USE ONLY.

7. To prevent electric shock, unplug before replace the fuse and other service.

8. Replace only with same type and rating of fuse.

9. This appliance is not intended for use by persons (including children with reduced physica, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safe 10. Children should be supervised to ensure that they do not play w appliance.

10. The soldering iron and desoldering iron is only to be used with power supply unit provided with the appliance.

11. If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

12. Any servicing should be performed by an authorized service representative AND that the product has no user serviceable parts.

13. To reduce the risk of fire or electric shock, do not expose this to rain or moisture. Store indoors. Read instruction manual before using

14. A fire may result if the appliance is not used with care, therefore careful when using the appliance in places where there are combustible materials;

- do not apply to the same place for a long time;

- do not use in presence of an explosive atmosphere;

- be aware that heat may be conducted to combustible materials that out of sight

- place the appliance on its stand after use and allow it to cool down storage

- do not leave the appliance unattended when it is switched on.

1. To ensure personal safety, please turn off the power switch after is completed; When not in use for an extended period, please unplug power cord!

2. The soldering iron should only be used for soldering. Do not hit soldering iron against the work surface to remove fluxresidues (Can b

cleaned by the cleaning device of the product), as doing so may ser damage the soldering iron.

1. Soldering produces fumes, ensure there is adequate ventilation.
2. Ater used, remember that cooling the unit, the handle should be placed on the handle holder.
3. Longer detachable power-supply cords are available and may be if care is exercised in their use.
4. If a long detachable power-supply cord is used;

1) The marked electrical rating of the detachable power-supply cord extension cord should be at least as great as the electrical rating of appliance,
2) The extension cord should be a grounding type 3-wire cord;
3) The longer cord should be arranged so that it will not drape over countertop or tabletop where it can be tripped over, snagged, or pulled unintentionally (especially by children).
22. A short power-supply cord (or short detachable power-supply co-provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
23. When using the brass wool tip cleaner (rosin-inside),
24. DO NOT inhale the fume generated or consume the solid-state ro
25. DO NOT allow your skin and eyes to get in direct contact with rosin.

SAVE THESE INSTRUCTIONS

APPLICATIONS

Brand iron money:

His product is externally heated. Preheating the heating wire 3-5 minu before use will produce smoke, which is a normal phenomenon. It wi occur after preheating.

Gun money:

When using the hot smoothing head (not include) and welding rods, I machine works continuously for 20 minutes, Please let your machine I for 60 minutes. you can continue to use the machine again. Otherwise high temperature will burn out the machine

OPERATION

1. Clamp a hot staple with the plier and insta staple into the copper tube. Make sure that the is pushed all the way in.
2. Press the hot staple on the crack and mak that the hot staple intersects with the crack.
3. Press and hold the activation trigger until th melts

into the plastic.

Simple line drawing of two circular objects connected by a wavy line (no text or symbols)

Pure line drawing of a hand holding a tool, no text or symbols present

1. Pull the hot stapler to separate from the hot staple.

2. Repeat the above procedures until the crack is fully stapled.

3. Use a plier to cut off the excess staple leads.

Warning:

1. Melting plastic generates fume, and inhaling the fume may cause discomfort. Ensure appropriate ventilation measures are taken and wea protective mask before operation.
2. During the operation, DO NOT touch the hot staple and copper t
3. DO NOT attempt to remove the hot staple leads with bare hands avoid potential cut injuries on your hand.

Hot Staple Guide

Simple line drawing of two rods tied with a curved wire (no text or symbols)

For outer cormer cracks

Abstract geometric line drawing with red and black segments (no text or symbols)

Simple line drawing of two cylindrical objects with a curved line extending from them (no text or symbols)

For inner corner cracks

Simple line drawing of two cylindrical objects connected by a wavy line (no text or symbols)

For thin or straight cracks

Simple line drawing of two cylindrical objects with a wavy line above them (no text or symbols)

For large or curved cracks

Pure electrical circuit lines without any symbols

INSTALLATION STEPS

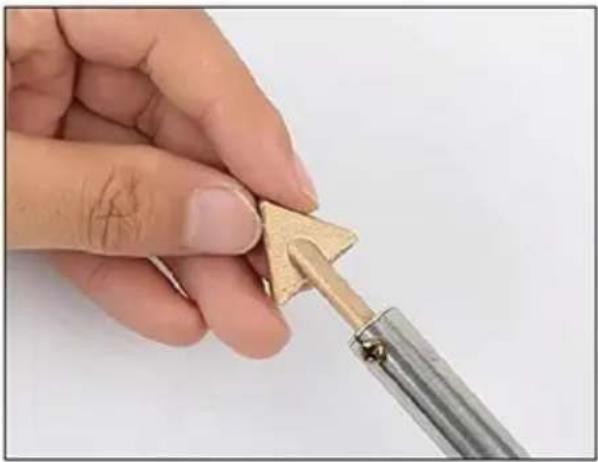

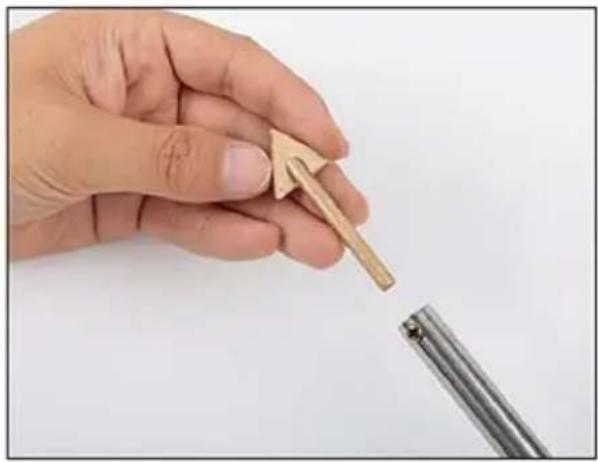

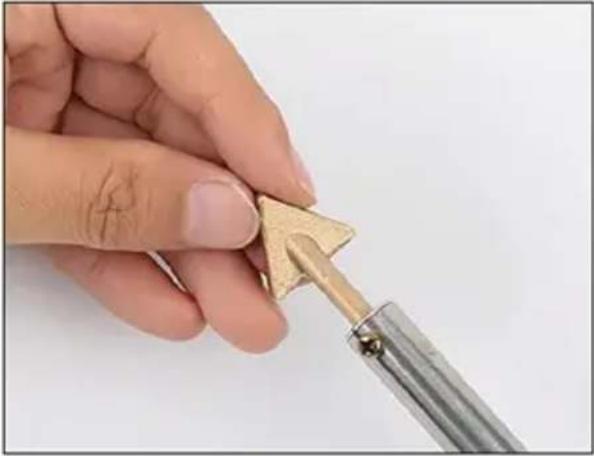

1. Loosen the fixing screws	2. Insert the triangular trowel head

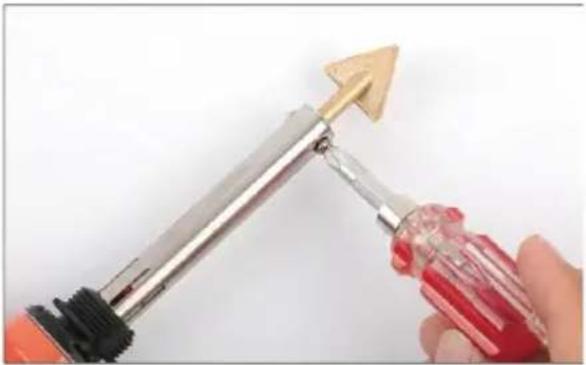

	3. Tighten the fixing screws until t triangular trowel head is fixed.

OPERATION STEPS

Close-up of a hand holding a white rectangular object against an orange background, with a crack visible (no text or symbols)

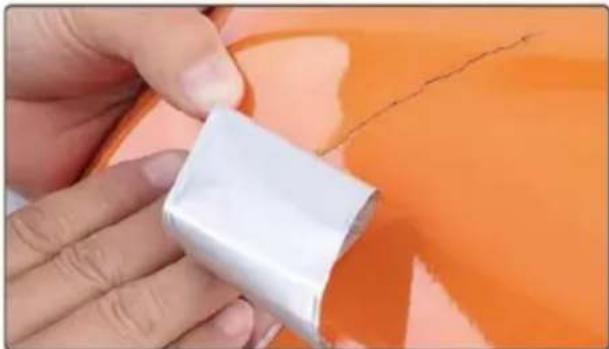

Attach metal foil to the back of the crack to fix the crack.

Close-up of a hand holding a white rectangular object against a dark background (no text or symbols visible)

Polish the cracks with sponge sand paper on the side to be repaired

Close-up of scissors cutting fabric with a white diagonal line, no visible text or symbols

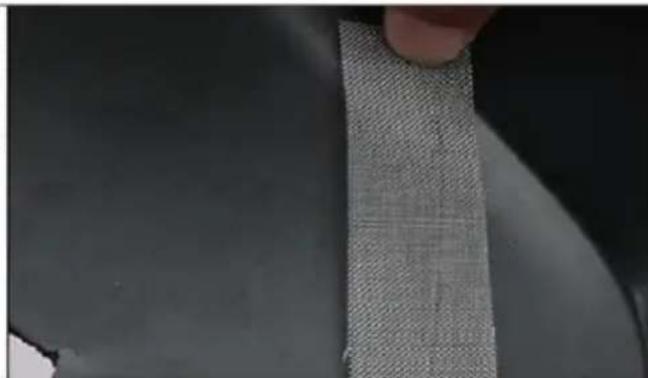

According to the size and shape

Close-up of a textured fabric strip attached to a dark surface, with a finger pointing to it (no visible text or symbols)

f the crack, cut the appropriate rep

Close-up of a tool applying material to a dark, textured surface (no visible text or symbols)

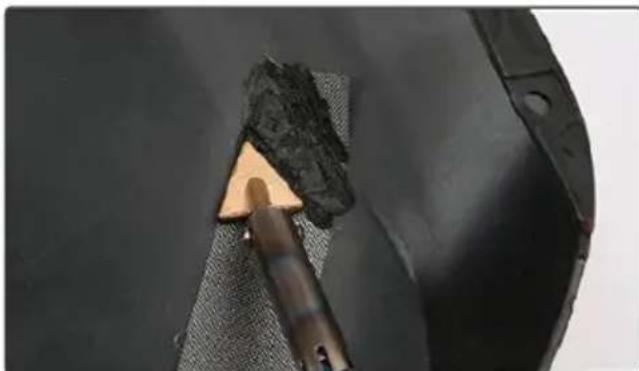

Heat the repair net with a trowel and insert it into the plastic

Close-up of a metal tool applying white paint to a dark surface, with no visible text or symbols

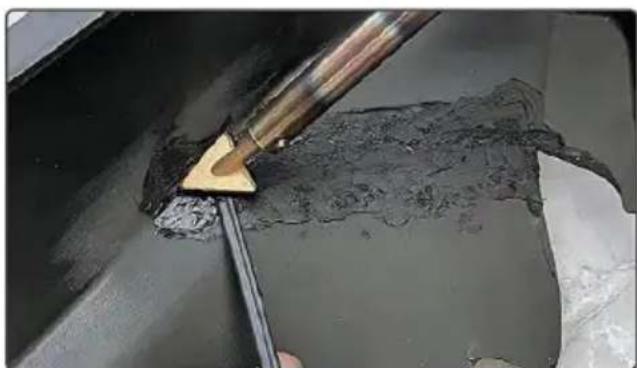

Melt the plastic welding rod, reinfor the repair net, and finally repair it.

MAINTENANCE&PRECAUTIONS

1. When operating, DO NOT pressure the soldering iron excessively, or knock soldering iron against objects.
2. Remove and clean the oxidization off the soldering iron tip periodically
3. To keep the soldering iron tip clean, use a steel brush to.clean the plastic when it cools off.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
