USER MANUAL XC-200 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Plastic Welding Kit

MODEL:XC-200

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

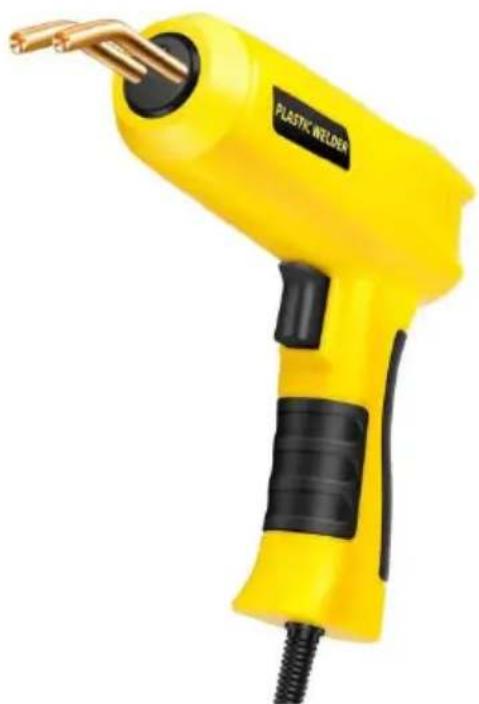

MODEL:XC-200

Yellow plastic welding torch with black handle and brass tip, no visible text or symbols on body

Note: The product picture is for reference, the actual details shall prevail

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions carefully.
	CORRECT DISPOSAL for DisplayThis product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories with this symbol. Products marked as such may not be discard normal domestic waste, but must be taken to acollection point recycling electrical and electronic devices.
	Compliance is a EC security certification.
	FCC Information:CAUTION: Changes or modifications not expressly approved by party responsible for compliance could void the user's authority operate the equipment!This device complies with Part 15 of the FCC Rules. Operation to the following two conditions:1) This product may cause harmful interference.2) This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not express approved by the party.responsible for compliance could void the authority to operate the product.Note: This product has been tested and found to comply with for a Class B digital device pursuant to Part 15 of the FCC limits are designed to provide reasonable protection against harm interference in a residential installation.This product generates, uses and can radiate radio frequency e and if not installed and used in accordance with the instructions cause harmful interference to radio communications. However, the no guarantee that interference will not occur in a particular insta

this product does cause harmful interference to radio or television reception, which can be determined by turning the product off an user is encouraged to try to correct the interference by one or the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Operation safety

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this product

fully aware of all warnings and precautions.

1. To provide continued protection against risk of electric shock, connect to properly grounded outlets only.

2. Do not immerse in water.

3. Hot Surface, Avoid Contact.

4. Shock Hazard. To provide continued protection against electric shock disconnect from the power supply when not in use

5. Heat gun, soldering iron, desoldering iron must be placed on its stand when use.

6. HOUSEHOLD AND INDOOR USE ONLY.

7. To prevent electric shock, unplug before replace the fuse and other servic

8. Replace only with same type and rating of fuse.

9. This appliance is not intended for use by persons (including children) with reduced physica, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning of the appliance by a person responsible for their safety.

10. Children should be supervised to ensure that they do not play with the appliance.

11. The soldering iron and desoldering iron is only to be used with the pow supply unit provided with the appliance.
12. If the SUPPLY CORD is damaged, it must be replaced by the manufacture service agent or similarly qualified persons in order to avoid a hazard.
13. Any servicing should be performed by an authorized service representative AND that the product has no user serviceable parts.
14. To reduce the risk of fire or electric shock, do not expose this product moisture. Store indoors. Read instruction manual before using.
15. A fire may result if the appliance is not used with care, therefore -be c when using the appliance in places where there are combustible materials;
    -do not apply to the same place for a long time;
    -do not use in presence of an explosive atmosphere;
    -be aware that heat may be conducted to combustible materials that are out sight
    -place the appliance on its stand after use and allow it to cool down before -do not leave the appliance unattended when it is switched on.
16. To ensure personal safety, please turn off the power switch after work is completed; When not in use for an extended period, please unplug the power cord!!
17. The soldering iron should only be used for soldering. Do not hit the soldering iron against the work surface to remove fluxresidues (Can be cleaned by the cleaning device of the product), as doing so may seriously damage the soldering iron.
18. Soldering produces fumes, ensure there is adequate ventilation.
19. Ater used, remember that cooling the unit, the handle should be placed handle holder.
20. Longer detachable power-supply cords are available and may be used if is exercised in their use.
21. If a long detachable power-supply cord is used;
    1) The marked electrical rating of the detachable power-supply cord or exter cord should be at least as great as the electrical rating of the appliance,
    2) The extension cord should be a grounding type 3-wire cord;

3) The longer cord should be arranged so that it will not drape over the cc or tabletop where it can be tripped over, snagged, or pulled on unintentionall (especially by children).
22. A short power-supply cord (or short detachable power-supply cord) is provided to reduce the risks resulting from becoming entangled in or tripping a longer cord.
23. When using the brass wool tip cleaner (rosin-inside),
24. DO NOT inhale the fume generated or consume the solid-state rosin
25. DO NOT allow your skin and eyes to get in direct contact with the rosi

SAVE THESE INSTRUCTIONS

APPLICATIONS

The tool has a temperature protection function. When the long time is used smoothing function (over 20 minutes), the machine will enter the protection function due to the temperature increase, the machine will shut down. At this it should stop using and wait for about 30 minutes before the machine temp drops to the room temperature to continue to use. If the waiting time is not continue to use, there will be a phenomenon that the use time is very short. Therefore, it is recommended that when you use the wipe function, use no time than 20 minutes each time, and rest for about 30 minutes

OPERATION

1. Clamp a hot staple with the plier and install into the copper tube. Make sure that the staple pushed all the way in.
2. Press the hot staple on the crack and make the hot staple intersects with the crack.
3. Press and hold the activation trigger until the melts into the plastic.
4. Pull the hot stapler to separate from the hot
5. Repeat the above procedures until the crack is stapled.

Simple line drawing of two circular objects connected by a zigzag line (no text or symbols)

Pure line drawing of a hand holding a tool, no text or symbols present

1. Use a plier to cut off the excess staple leads.

Warning:

1. Melting plastic generates fume, and inhaling the fume may cause discomfort. Ensure appropriate ventilation measures are taken and wear a protective mask before operation.
2. During the operation, DO NOT touch the hot staple and copper tube.3. D attempt to remove the hot staple leads with bare hands to avoid potential cu injuries on your hand.

Hot Staple Guide

Simple line drawing of three rods with a curved wire loop between them (no text or symbols)

For outer cormer cracks

Simple line drawing of two cylindrical objects with a curved line above them (no text or symbols)

For inner corner cracks

Simple line drawing of three parallel rods with a zigzag line above them (no text or symbols)

For thin or straight cracks

Simple line drawing of two cylindrical rods with a coiled spring (no text or symbols)

For large or curved cracks

Pure electrical circuit lines without any symbols

Operation instructions for plastic welding machine to repair cr

Close-up of a metallic cylindrical object against an orange background, with a visible crack in the center (no text or symbols)

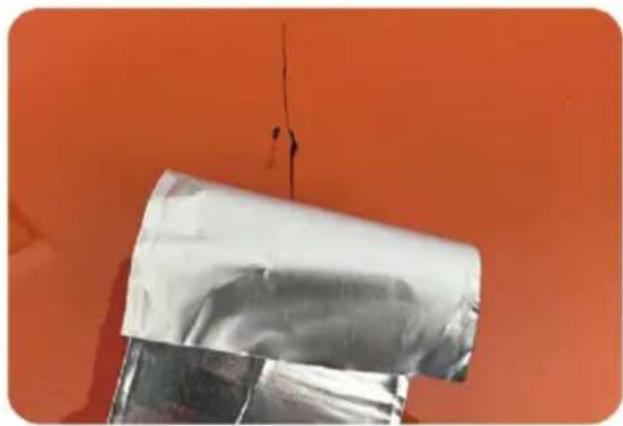

1. The back of the crack is fixed w metal foil

Close-up of a metallic tool tip interacting with a wavy, coiled wire on a dark surface (no text or symbols visible)

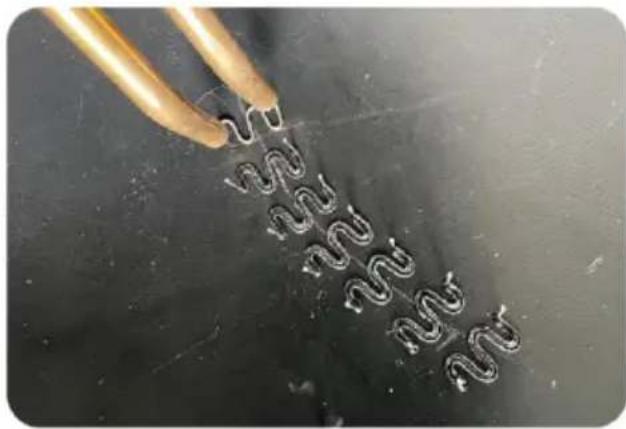

1. After the nail is embedded in the plastic wait for 2 to 3 seconds before pulling out the machine

Close-up of a pliers applying wire loops to a surface, no text or symbols visible

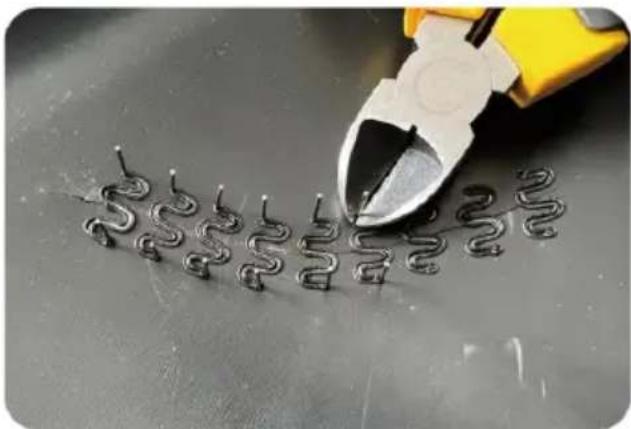

1. Cut off Redundant Welding Hot Staples

Close-up of a soldering iron being heated by tweezers, with coiled wire and molten material in contact (no text or symbols visible)

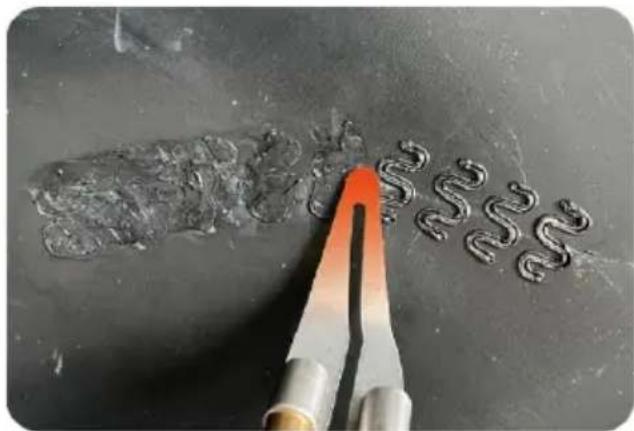

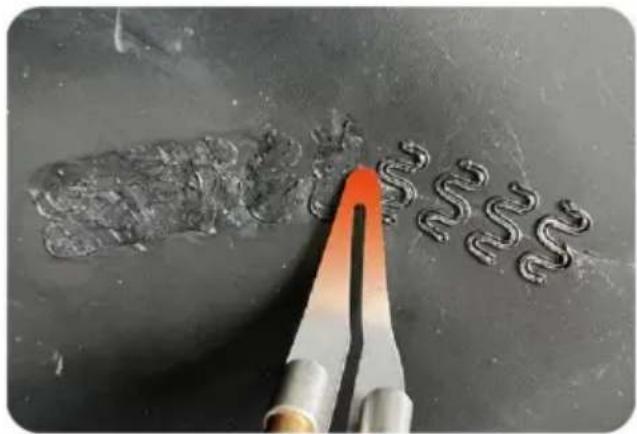

1. Use the hot smoothing head to repair the flat

Close-up of a hand using a wooden tool to scrape or scrape a dark, textured surface (no text or symbols visible)

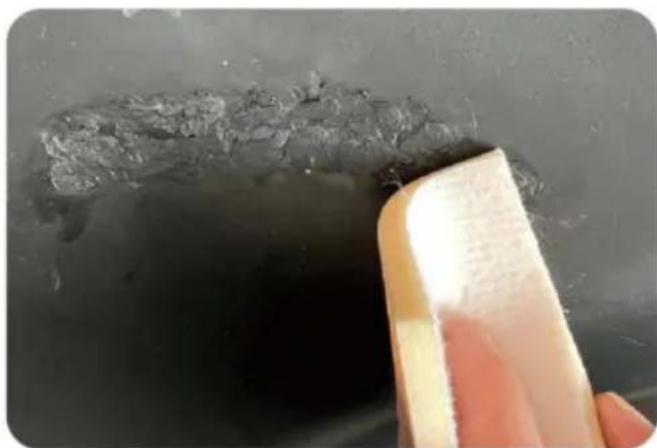

1. Polish repair the flat, the work completed

Operation instructions for plastic welding machine repairing ho

Close-up of a metal rod inserted into a small square component on a dark surface, with a textured fabric background (no text or symbols visible)

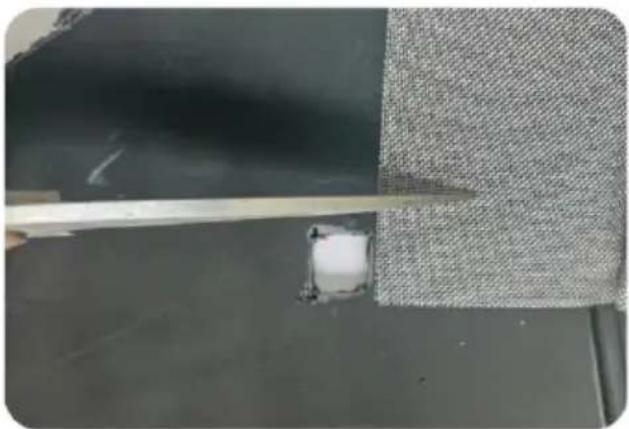

1. Cut stainless steel repair net

Close-up of a finger pointing at a small metallic component on a dark surface (no text or symbols visible)

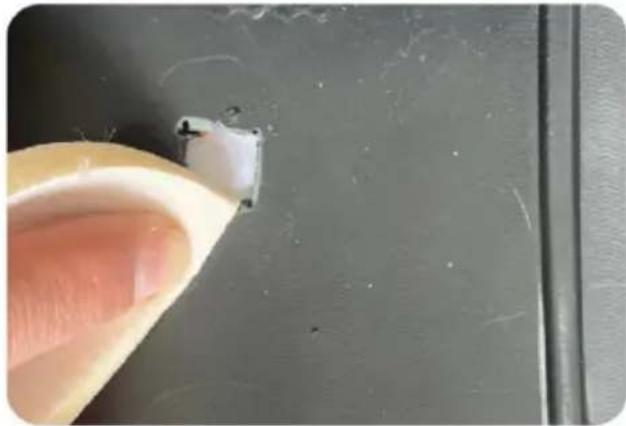

1. Polish around the hole

Close-up of a tool applying paint to a textured surface, no visible text or symbols

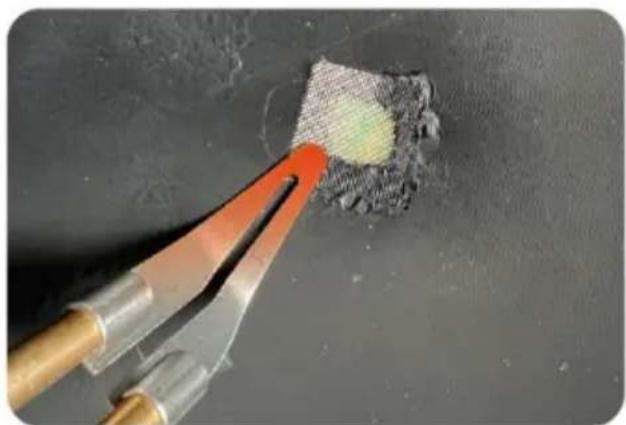

1. Use the hot smoothing head to melt stainless steel mesh noto the base plastic

Close-up of a metal tool applying material to a cracked surface, with a red-handled tool partially visible (no text or symbols)

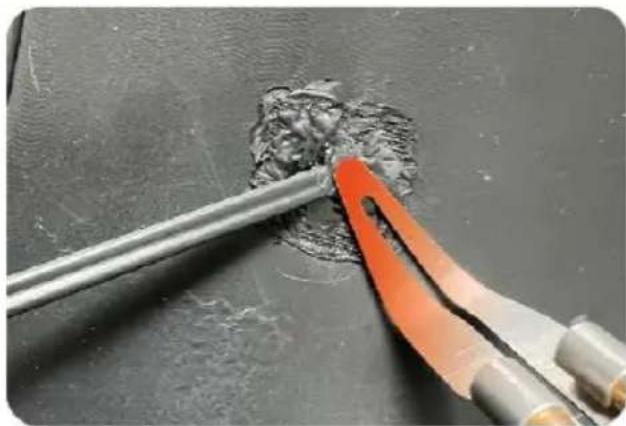

1. Melt welding rod to cover the whole repair net

Close-up of a hand holding a white fabric sample against a dark surface, with no visible text or symbols.

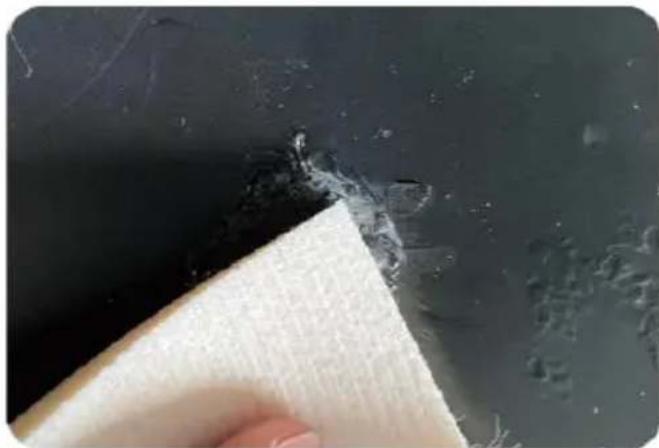

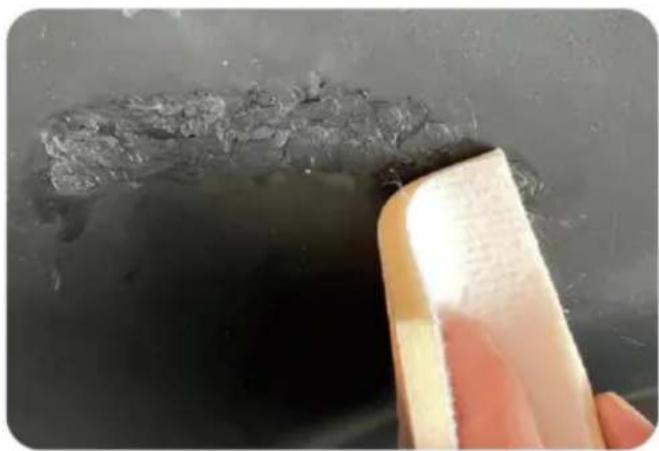

1. After completed repair, polish the repair marks

Operation instructions for repairing broken

Close-up of broken dark metal blocks with visible cracks and texture (no text or symbols)

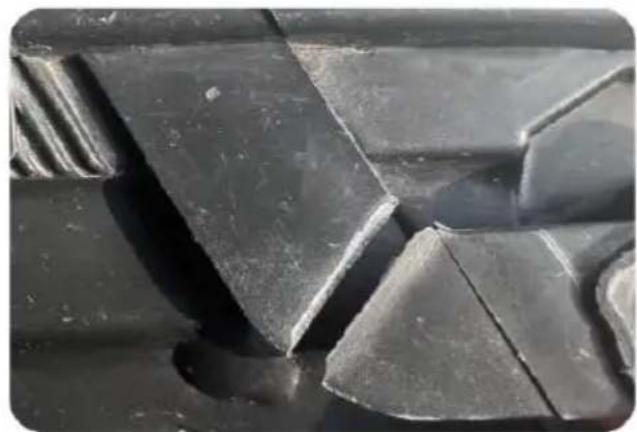

1. Broken plastic parts

Close-up of a mechanical component with visible cracks and surface texture (no text or symbols)

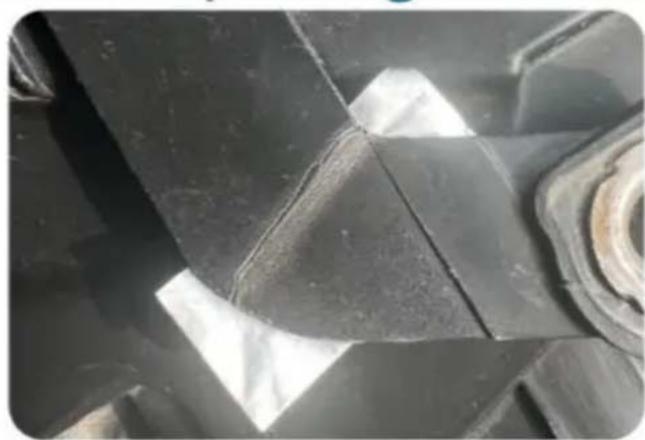

1. Stick the broken part with meta foil for easy maintenance

Close-up of a metal mesh structure with a diamond-shaped grid pattern, no visible text or symbols

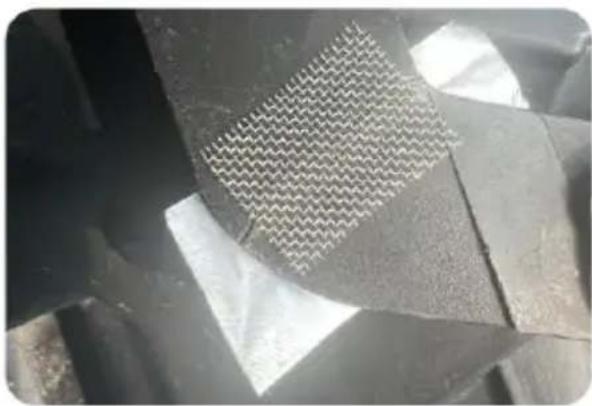

1. Cut repair net with similar sha


Close-up of mechanical components with a red-orange tool interacting with a black metal bracket (no visible text or symbols)

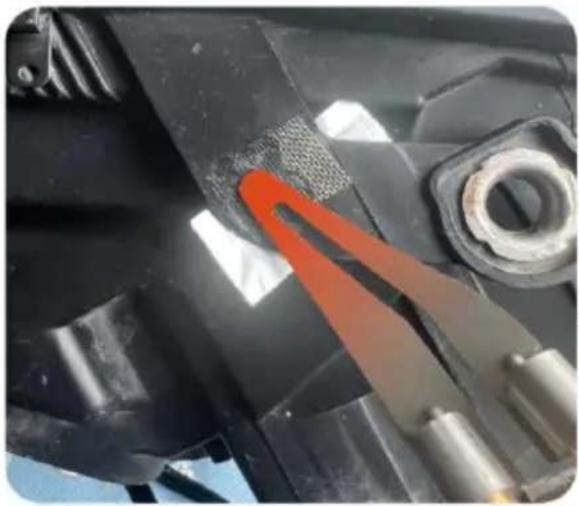

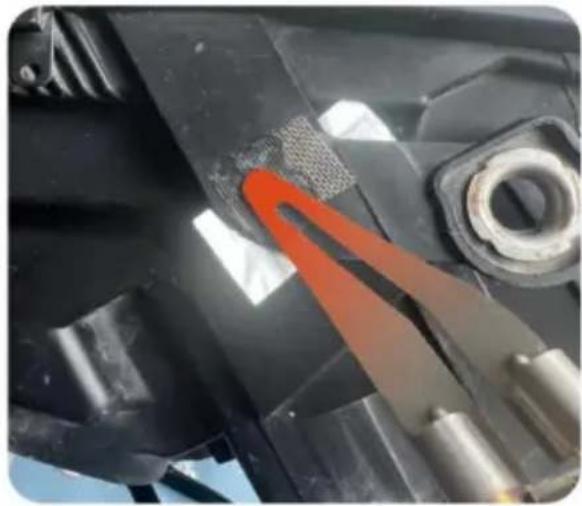

1. Use the hot smoothing head to melt noto the base plastic

Close-up of mechanical components with a metal rod and orange tool, no visible text or symbols

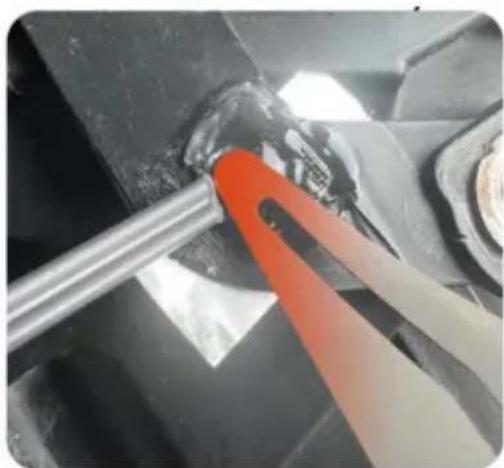

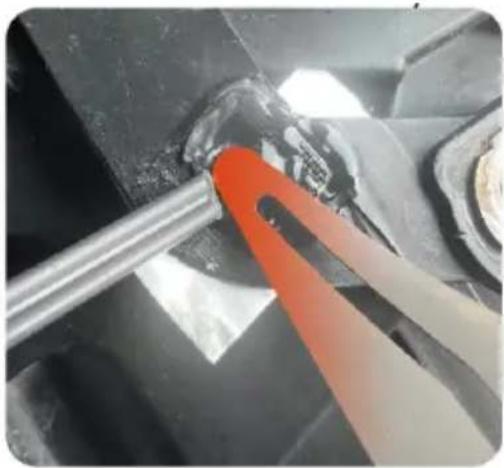

1. Melt welding rod to cover the whole repair net

Close-up of a textured, irregularly shaped object resting on a dark surface (no visible text or symbols)

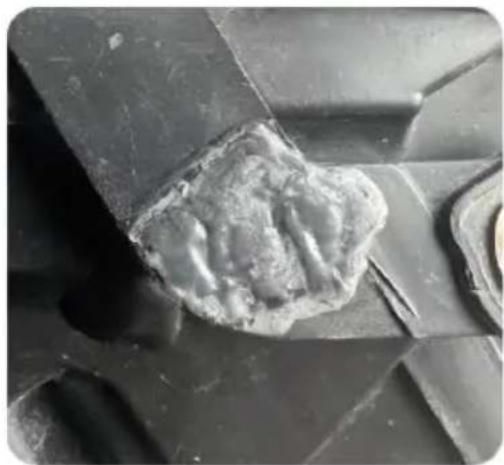

1. After completed repair, remove th metal foil

Close-up of a hand using a wooden stick to clean or store wood, with visible paint and residue (no text or symbols)

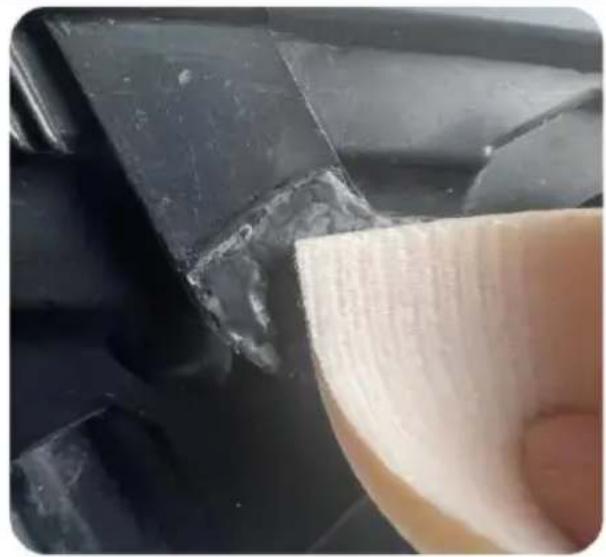

1. Sand it smooth
