USER MANUAL BP2008 BLAUPUNKT

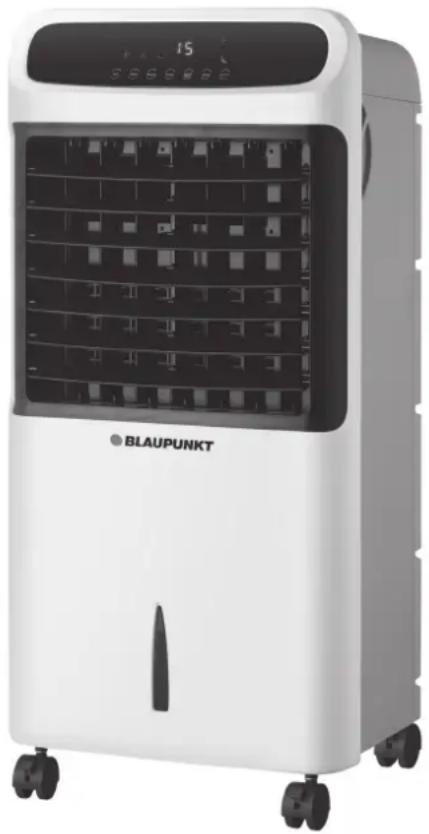

White industrial air conditioner unit with digital display and wheels (no visible text or symbols)

Enjoy it.

White industrial air conditioner unit with digital display and wheels (no visible text or symbols)

Enjoy it.

SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the outlet is grounded.

Do not immerse the cord, plug, or any non-removable part of the product in water or any other liquid. Do not expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

If the product falls accidentally in water, unplug it immediately. Do not reach into the water!

Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service, in order to avoid any type of danger.

Do not move the product or pull from it from its cord. Do not force the cable against corners or sharp edges. Do not run appliance over the cord. Keep the power cord away from hot surfaces.

Do not use the appliance if its cord, plug, or housing is damaged, nor after it malfunctions or has been dropped or damaged in any way.

Do not use the appliance in confined spaces with explosive or toxic vapours.

Keep the device away from heat sources.

Do not leave the appliance unattended while in use. Unplug it from the mains supply when you finish using it or when you leave the room.

Do not try to repair the product by yourself. Contact the official Technical Support Service. Switch off and unplug from wall outlet when not in use, when moving the appliance from one location to another or before assembling or disassembling parts. To avoid atripping hazard, safely coil the cable.

Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance functions properly. Turn off and unplug the appliance before moving and cleaning it.

The cleaning and maintenance of the appliance should not be carried out by children without supervision.

Store the appliance and its instruction manual in a safe and dry place when not in use.

Do not cover the device's air inlet and outlet.

Keep the air inlet and outlet free from obstructions.

When drainage pipes are installed, ensure that the drainage pipes are properly connected, and are not distorted or bended.

While adjusting the upper and lower wind-guide strips of the air outlet, pluck using your hands gently to avoid damaging wind-guide strips.

When moving the device, make sure that it is in an upright position.

Do not install and use the air conditioning in the bathroom or other humid environments.

Do not use insecticide sprays or other flammable substances near the air conditioning.

Make sure that the mains voltage matches the voltage stated on the rating label of the appliance.

If the cord or plug are damaged, they must be replaced by the official Technical Support Service, in order to avoid any type of danger.

Do not cover the air inlets nor outlets.

Air inlet should not be close to walls, curtains or other objects as this could block air flow.

Do not cover the air outlet. Use a power outlet suitable for a current higher than 10 A.

Do not place the appliance on an uneven or sloping surface.

Do not use the appliance outdoors, next to a toilette, shower or swimming pool.

When operating on cool mode, water level in the tank should be beneath MAX and over MIN.

After filling water tank in, do not lean the appliance and do not agitate during its transportation.

Do not touch the plug with wet hands in order to avoid electric shocks.

During operation, do not put your hands or any other part of your body inside the appliance. Pay special attention to children.

Do not place any object on the device.

The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.

This appliance is not intended to be used by persons with reduced physical, sensory, or mental

capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety, and understand the hazards involved.

Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

Keep this product out of the reach of children under 8 years old.

1. PARTS AND COMPONENTS

(Fig. 1)

1. Dust filter
2. Refrigeration pannel
3. Back part
4. Handle
5. Control panel
6. Air outlet
7. Wheels
8. Water tank
9. Ice tank
10. Remote control

Power button: It is placed in the back of the device. Press this button to turn the device on or off.

2. BEFORE USE

How to fill the water tank

Pull out the water tank from the bottom of the air cooler's back and fill 1/3 of the water tank.

Pay attention to the water level indicator while filling the tank.

The water level of water tank must be beneath "MAX".

The water level of water tank must be beneath "MIN".

Ice boxes are placed inside water tank in order to create the coolest air.

How to use the ice boxes

Ice boxes allow cold maintenance and slowly absorb water warmth. At the same time, they decrease water tank temperature in order for it to be cooler than room temperature. Thanks to the ice boxes, the air cooler can produce much cooler air.

Fill in the ice boxes with water and place them in the freezer.

After the ice boxes are frozen successfully, take ice boxes out the freezer.

Pull the water tank out and put frozen ice boxes into water tank.

Each air cooler includes 2 ice boxes in order for the client to always have 1 available for use.

3. OPERATION

CONTROL PANEL

(Fig. 2)

Buttons

1. ON/OFF
2. Speed
3. Mode
4. Timer
5. Oscillation
6. Cool
7. Ioniser

Indicators

1. Heat I
2. Heat II
3. Timer
4. High speed
5. Medium speed
6. Low speed

7. Ioniser

8. Cool

9. Oscillation
10. LED screen
11. ECO
12. Sleep
13. Normal

Cooling function

(Fig. 3)

Drag the Cooling and Heating selector upwards, located on the side part of the product, and take it to the "Cooling" position.

"ON/OFF"

If pressed once, "LOW" function activates and air cooler works at low speed.

If pressed twice, air cooler stops working.

"SPEED"

If pressed once, "MIDDLE" function activates.

If pressed twice, "HIGH" function activates.

If pressed 3 times, "LOW" function activates.

"MODE"

If pressed once, "NORMAL" function activates.

If pressed twice, "NATURE" function activates. (ECO mode).

If pressed 3 times, "SLEEP" function activates.

"TIMER"

If pressed once, air cooler will stop operating after 1 hour.

If pressed twice, air cooler will stop operating after 2 hours.

If pressed 3 times, air cooler will stop operating after 3 hours.

If pressed 4 times, air cooler will stop operating after 4 hours.

If pressed 5 times, air cooler will stop operating after 5 hours.

If pressed 6 times, air cooler will stop operating after 6 hours.

If pressed 7 times, air cooler will stop operating after 7 hours.

If pressed 8 times, air cooler will stop operating after 12 hours.

"COOL"

If pressed once, "COOL" function activates.

"SWING"

If pressed once, "SWING" function activates and blades stat oscillating.

"ION"

If pressed once, "ION" function activates.

Heating function

Drag the Cooling and Heating selector downwards, located on the side part of the product, and take it to the "Heating" position. During "Heating" mode, fan only works at a steady medium speed.

Speed cannot be selected.

"ON/OFF"

Press once to activate "HEAT I" function. Temperature level will be low.

If pressed twice, air cooler will stop after operating 30 seconds at medium speed.

"MODE"

Press once to activate "HEAT II" function. Temperature level will be heat.

If pressed twice, air cooler stops heating.

If pressed 3 times, "HEAT I" function will activate and air cooler will heat at low speed.

4. CLEANING AND MAINTENANCE

(Fig. 4)

Cleaning the air filter

Unplug the appliance from the power supply and pull from the dust filter bracket in order to take it out. Clean air filter using a neutral cleaning product and a soft brush, then, clean it with water.

Clean the humid filter

Take it out. Clean with soft brush, water and cleaning product. Then, put it back in the appliance

together with air filter.

Warning: In order to avoid leak, wet filter must be properly installed.

Cleaning the water tank

Take water tank out and clean it with a cloth and cleaning product. Rinse it with water and place it back in the air cooler.

Clean the housing

Clean the appliance's housing with a neutral cleaner and a soft cloth.

5. TECHNICAL SPECIFICATIONS

Product reference: BP2008

Water tank's max. capacity: 12 L

Power, voltage and frequency: 80 W, 220-240 V\~, 50/60 Hz

Power level in Heat mode: 2000 W

Made in China | Designed in Spain

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU

read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127) R.S.A is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

Adress: Pedro Muñoz Torres n° 1

Post Code: 41006

SEVILLA

We declare under our responsibility that the product:

Product Description: EVAPORATIVE AIR COOLER

Model: BP2008

Brand: BLAUPUNKT

It complies with the European Union

legislation in compliance with the

2004/108 / EU guidelines

The standards apply: EN 55014-1: 2006+A1:+A2:

EN 55014-2: 1997+A1:+A2:

EN 61000-3-2:2006+A1:+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position : manager

Date: 26 de December 2020

Signature:

26 de December

Ramsons, S.A,

Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA

Tfn. 954 933 404 • Fax. [phone]

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certifi cate.

To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theto optimize the recovery and recycling of the materials they contain and reduce the impact

on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.
