USER MANUAL DOC343CO LIVOO

Black air fryer with digital display and food images, no visible text or symbols on the device itself.

Livoo

Version : v.1.5

Exploded view diagram of an air fryer with labeled parts including air fryer, oven, and fan.

Figure 1

1 Frites Pouket frit Vlande blanche Vlande rouge Poisson Pizza Dessert Tartes Légumes Décongelation 7 6 5 + PRE-HEAT 4 2 START STOP 3

Figure 2

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Thank you for choosing a Livoo and Marmiton product!

The collaboration between Marmiton and Livoo is a breath of fresh air. By exploring our shared expertise, we've come up with a product that will simplify your life in the kitchen. How do we do it? By slipping you 30 ready-to-use recipes with your new oil-free fryer. Simply scan the Qr code on the product to access the recipes at any time. With its 10 functions, you'll be able to prepare a wide range of meat and fish recipes, and even bake cakes. Find our entire collection on our website www.livoo.en.

Livoo, your daily companion till social networks

@Livoo

@livoo_officiel

@Livoo

Safety Instructions

Please, take time to read well the instruction sheet before the first use and keep them for a future use.

A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed. We refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.

1. Please check the voltage of the unit corresponds to the voltage of your installation before connecting the appliance.
2. Never immerse the appliance. Never clean the appliance by placing it under the tap. Do not allow water or liquids enter the unit. The appliance contains electronic components. Risk of electric shock!
3. Do not cover the air inlet or the air outlet when the unit is running.
4. Do not fill the oil drawer. Fire hazard!
5. Do not touch the inside of the fryer when the unit is running. Instruction Manual 2 Risk of burns!
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard (*).
7. This appliance can be used by children aged from 8 years and above and by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of

the appliance in a safe way and understand the hazards involved.

1. Children shall not play with the appliance.

2. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. Keep the power cord away from the hot surface of the appliance and any other heat sources.

5. Make sure the appliance is plugged into your power outlet.

6. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

7. Do not place the unit on or near flammable materials such as a tablecloth or curtain.

8. Do not place the appliance against the wall or other appliances. Keep a distance of at least 10 cm of free space at the back and sides and a clearance of 10 cm above the unit. Never place an object on top of the unit. Instruction Manual 3

9. Never use the appliance for other purposes than those described in this manual.

10. Surfaces are liable to get hot during use. Always use thermal gloves.
11. Turn off the power immediately and unplug the unit if you see black smoke coming out of the unit. Wait smoke emission stop before removing the drawer.
12. Always place the unit on a level surface or a stable surface.
13. Make sure to always unplug the appliance after use.
14. Let cool for about 30 minutes before cleaning.
15. Always keep the appliance clean as it comes in contact with food.
16. Regarding the details on how to clean the surfaces come in contact with food or oil, refer to the following paragraph of the leaflet.
17. The temperature of accessible surfaces may be high when the appliance is operating.

18. Appliance must not be immersed.

19. Cooking appliances should be positioned in a stable situation with the handles (if any)

positioned to avoid spillage of the hot liquids.

1. This appliance is intended to be used in

household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments,

- farm houses,

- by clients in hotels, motels and other residential type environments,

- bed and breakfast type environments.

(*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Yellow triangular warning sign with black smoke symbol indicating steam or heat release

Warning: Hot surface! - Do not cover the air inlet and the air outlet when the appliance is working.

Technical Specifications

Voltage: 220-240V\~50-60Hz Power: 1700W

Power consumption in off mode: 0W - power consumption in standby mode: 0.28W switches to standby mode after 5 minutes

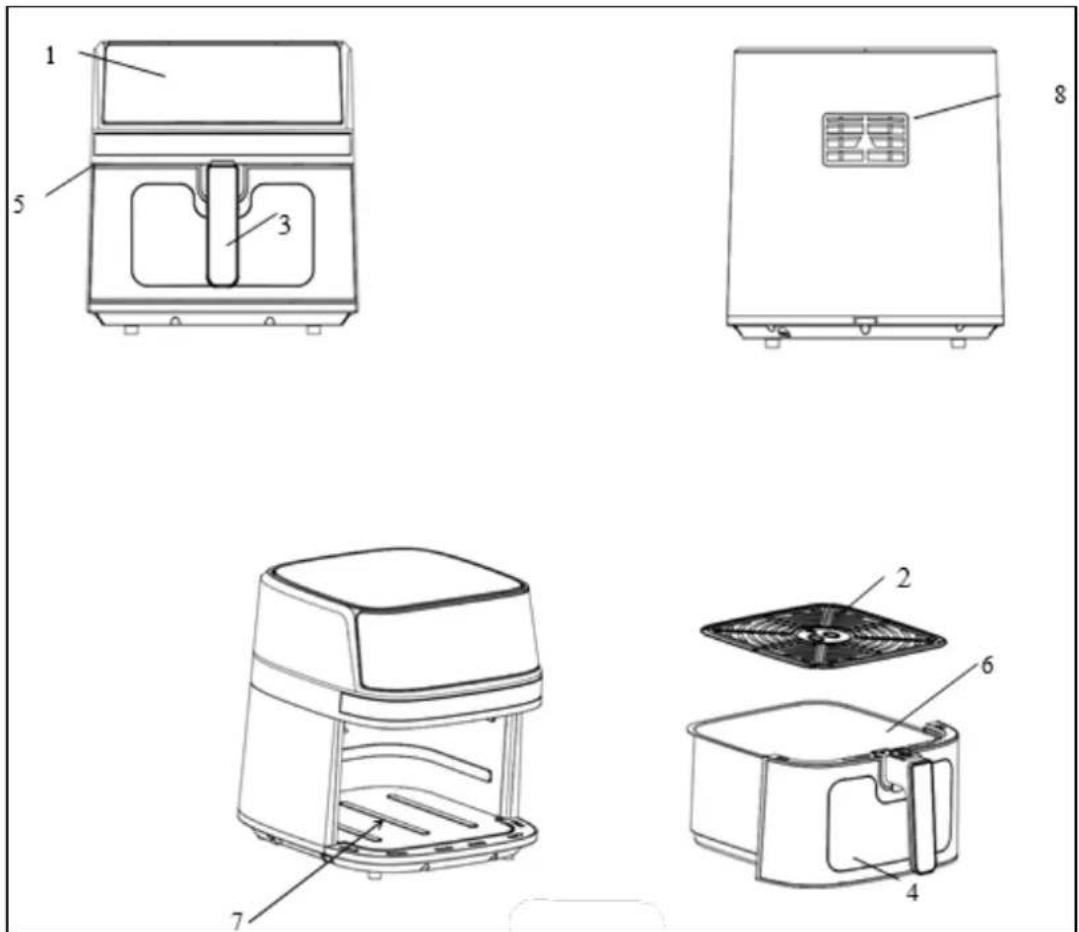

Drawing of the device:

1	digital display
2	Grid
3	Handle
4	Cooking window

5	Body of the device
6	Baking tray
7	Bottom plate
8	Rear ventilation

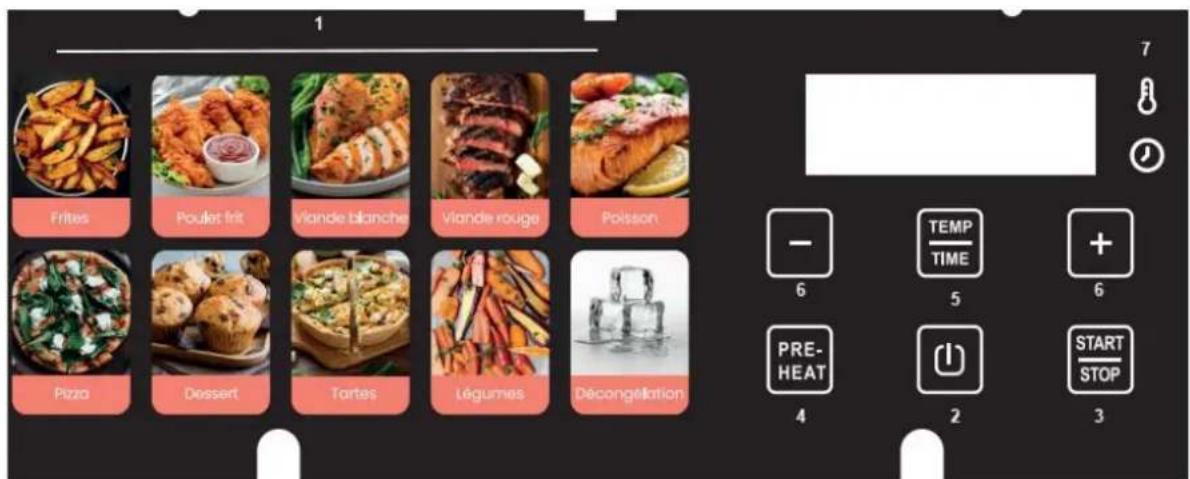

Control Panel Functions: Figure 2

Press the power key 2 to turn on the machine. Hold the power key press for 3 seconds to turn off the appliance completely while cooking. "OFF" will be displayed on the screen. The "OFF" light will turn off and the fan will stop working 20 seconds later, shutting down the unit completely.

Preset Settings: By pressing key 4, you can preheat your appliance before choosing one of the 10 cooking modes corresponding to 10 most common types of food (1). Confirm your selection by pressing the START/STOP button (3). The predetermined cooking time and temperature apply and are displayed, but you can still change them using the + and - keys.

The table below will help you select the optimal amount, temperature, and cooking time for different foods. As the ingredients differ in their origin, size, and shape, these settings may vary.

Ingredients	Min-max Qtys (g)	Time (min)	Temperature (°C)
Vegetables	500	10	160
Thawing	700	10	80
Fresh fries	1000	15	200
White meats	1000	25	200
Red meats	1000	25	200
Fruitcake	1000	20	200

Press the START/STOP button (3) to start cooking. During the cooking process, if you need to take a break, press this button again and the air fryer will stop working.

Press the 5 button to set the temperature or cooking time.

Press + or - (6) to increase or decrease the cooking temperature or time. Holding down the button allows you to quickly change the temperature in 5°C increments or the duration in one-minute increments. Temperature setting range: 80 °C - 200 °C.

Symbols (7): Temperature or cooking time indicator lights.

Before the first use:

Remove all packaging materials. Thoroughly clean the inside of the drawer and the rack with warm soapy water and a non-abrasive sponge. Wipe the inside and outside of the appliance with a lint-free cloth. Plug in the appliance and allow it to heat up without any ingredients for a few minutes. It may emit slight smoke or odor. This is normal for many appliances and does not affect the safety of your device.

Use of the device

Instructions:

Plug in your oil-free fryer, remove the tray, and ensure that the rack is properly positioned in the tray.

Add the food with a little oil and then put the tray back in place. Never use the tray without the rack.

Caution: Do not touch the walls of the tray and the appliance during and after use, as they become very hot. Use the handle and oven mitts.

Adjust the oil-free fryer according to the chosen ingredients.

Halfway through cooking, stir the food in the tray to ensure even frying.

Once cooking is complete, remove the tray. Empty it carefully as the food and rack will be hot. Steam may also escape depending on the type of food in the oil-free fryer.

Unplug the appliance and wait at least 30 minutes before cleaning it.

Tips:

Always preheat your appliance before use to facilitate cooking.

Cooking times may vary depending on the size of your ingredients.

Add a little oil to fresh potatoes for a crispier result.

The optimal quantity for preparing crispy fries is 500 grams.

Avoid cooking very fatty foods, such as sausages, in the appliance.

Place a baking dish or pan in the basket of the hot air oil-free fryer if you want to bake a small cake or fry delicate or stuffed foods.

You can also use the oil-free fryer to reheat food or dishes.

Cleaning and maintenance

Clean the tray and rack after each use. Avoid using metal kitchen utensils or abrasive cleaning products, as they may damage the non-stick coating. Unplug the power plug from the wall outlet and let the appliance cool down. Clean the exterior of the appliance with a damp cloth and dry it with a dry cloth.

Clean the tray and rack with warm soapy water and a non-abrasive sponge. Use a soft non-metallic brush to clean the heating element and remove any food residue.

Troubleshooting tips

Problems	Reasons	Solutions
The oil-free fryer doesn't start.	It's not plugged in.	Plug in the oil-free fryer.
	The cooking time is not set.	Set the cooking time.
The food is not cooked enough.	There's too much food in the tray.	Reduce the amount of food.
	The selected temperature is too low.	Choose a higher temperature.
	The cooking time is too short.	Increase the cooking time.
The food is fried unevenly.	Some foods need to be stirred.	Stir the food halfway through cooking.
White smoke is coming out of the appliance.	The foods used are too fatty.	Excess fat can overheat and cause the release of white smoke. This doesn't affect the operation of the appliance.
Fresh fries are cooked unevenly.	You didn't use the right type of potatoes.	Choose potatoes specifically for frying.
	You didn't rinse the potato sticks properly before frying.	Rinse the fresh fries.
Fresh fries are not crispy when they come out of the oil-free fryer.	The crispiness of the fries depends on the amount of oil and water they contain.	Ensure the potato sticks are well-dried before adding the oil.
		Cut the potato sticks into smaller pieces for a crispier result.
		Add a bit more oil for a crispier result.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Correct disposal of the unit (Electrical and Electronic Equipment).

(Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries). The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for

information concerning the correct disposal of their product.

• Non contractual illustration

Product information is subject to change without prior notice
