P49-1-100 - Composite pipe Vevor - Free user manual and instructions

Product type	Composite PEX-Aluminum-PEX Pipe
Brand	Vevor
Model	P49-1-100
Outer diameter	16 mm
Total thickness	2 mm
Length	100 meters
Color	White
Material	Cross-linked polyethylene (PEX), aluminum, PEX
Maximum working pressure	1.0 MPa (10 bar)
Maximum operating temperature	95 °C
Estimated service life	More than 50 years at 20 °C and 1.0 MPa
Coefficient of thermal expansion	2.5 × 10⁻⁵ m/mK
Thermal conductivity	0.45 W/mK
Pressure resistance	10 kg (equivalent to 10 bar)
Included accessories	1 rounding tool, 10 clamps
Recommended use	Plumbing, underfloor heating, domestic hot water
Installation	Cold bending without rebound, cutting with tube cutter
Frost resistance	Installation possible up to -40 °C without damage
Antioxidant protection	Anti-oxygen permeation aluminum layer
Inner surface	Smooth, anti-scale, low fluid resistance
Compliance	Compliant with hot water system requirements
Cross-linking degree	Stable and uniform

Frequently Asked Questions - P49-1-100 Vevor

How to cut the Vevor P49-1-100 composite pipe?

Use a special tube cutter for composite pipe. A clean cut ensures a good connection. The tube cutter is not included in this model, but can be purchased separately.

What is the maximum supported pressure?

The maximum working pressure is 1.0 MPa (i.e., 10 bar). The pipe withstands a pressure of 10 kg for continuous use.

What is the maximum water temperature?

The pipe can support water temperature up to 95 °C continuously. The Vicat softening point is 131.5 °C.

Can the pipe be used for underfloor heating?

Yes, thanks to its high thermal conductivity (0.45 W/mK) and pressure resistance, it is perfectly suitable for underfloor heating systems.

How to bend the pipe without breaking it?

The pipe bends cold without rebound. Simply bend it by hand or with a bender. No heating is required.

What accessories are included in the package?

The package contains 1 rounding tool and 10 clamps for fittings. The tube cutter is not provided for this model.

What is the service life of this pipe?

The service life is estimated at more than 50 years at 20 °C and under pressure of 1.0 MPa. Under normal conditions, it can exceed 100 years.

Can this pipe be used outdoors?

Yes, the pipe is frost-resistant down to -40 °C and UV-resistant thanks to the aluminum layer. However, it is recommended to protect it from direct sunlight to extend its service life.

How to connect the pipe to fittings?

Use compression or push-fit fittings. After cutting and rounding the end with the provided tool, insert the fitting and tighten the clamp with an appropriate pliers.

Is the pipe frost-resistant?

Yes, it can be installed and used without damage at temperatures down to -40 °C. The multilayer structure prevents excessive expansion due to frost.

USER MANUAL P49-1-100 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

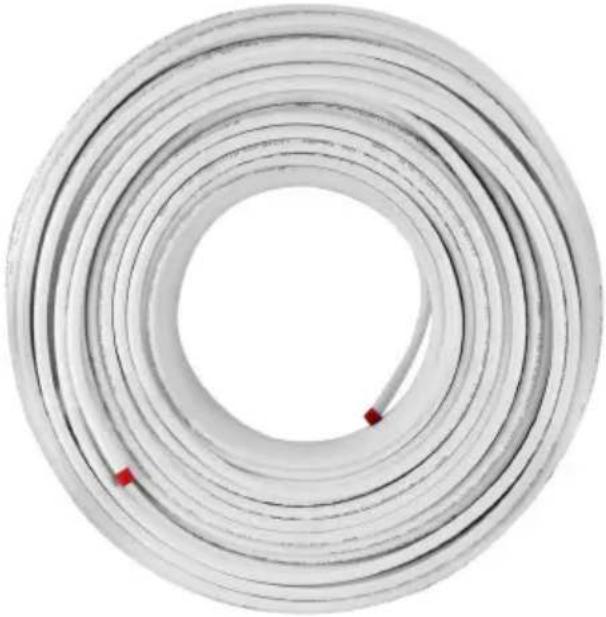

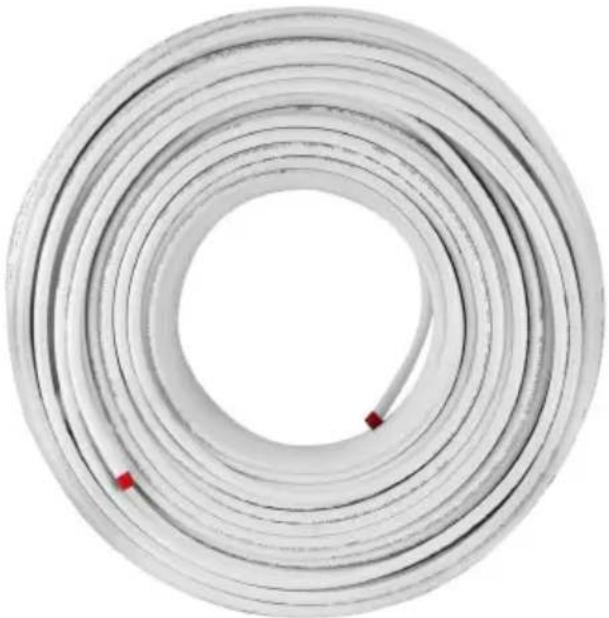

PEX-AL-PEX ALUMINUM-PLASTIC COMPOSITE PIPE

MODEL: P49-1-X, P49-3-X

X is 25/50/100/200/500

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PEX-AL-PEX ALUMINUM-PLASTIC COMPOSITE PIPE MODEL: P49-1-X, P49-3-X

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any data changes on our product.

PRODUCT PARAMETERS

Model	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
Exterior Diameter	16mm	16mm	16mm	16mm	20mm
Overall Thickness	2mm	2mm	2mm	2mm	2mm
Total Length	25m	100m	200m	300m	50m
Color	White	White	White	White	White
Material	PEX - Aluminum Layer - PEX

PACKING LIST

Model		P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
COMPOSITE PIPE		1pcs	1pcs	1pcs	1pcs	1pcs
Rounding tool		1pcs	1pcs	1pcs	1pcs	1pcs
Pipe Cutter		0pcs	0pcs	1pcs	1pcs	0pcs
Clamps		0pcs	10pcs	20pcs	30pcs	10pcs

INSTRUCTIONS

Long service life: under the working temperature of 70 °C and the working pressure of 1.0 MPa, the long-term continuous service life is more than 50 years; the normal temperature 20 °C service life is more than 50 years.

The crosslinking degree is stable and even: the crosslinking degree is stable, the inner and outer diameters of the pipes are unified, and the thickness is even in the longitudinal and transverse directions.

High strength and pressure resistance: it can withstand 85 °C water temperature for a long time, because it contains seamless laser butt welding and aluminum layer lap welding process, it can withstand a wide pressure range.

Good thermal conductivity: the coefficient of thermal conductivity is 0.45 W/mK, 1.5 to 2 times the coefficient of cross-linked polyethylene, which is more conducive to the heat transfer between the pipe and the heating system, and has higher thermal efficiency.

Installation is faster as bending without rebound: with the characteristic

of easy bending and non-rebounding, laying coil in construction, pipe positioning and fixing are very easy, work efficiency can be greatly improved.

The coefficient of thermal expansion is small: the coefficient of expansion is 2.5 × 10⁻⁵ m/mK, to avoid large expansion or contraction caused by ground rupture or pipe system damage.

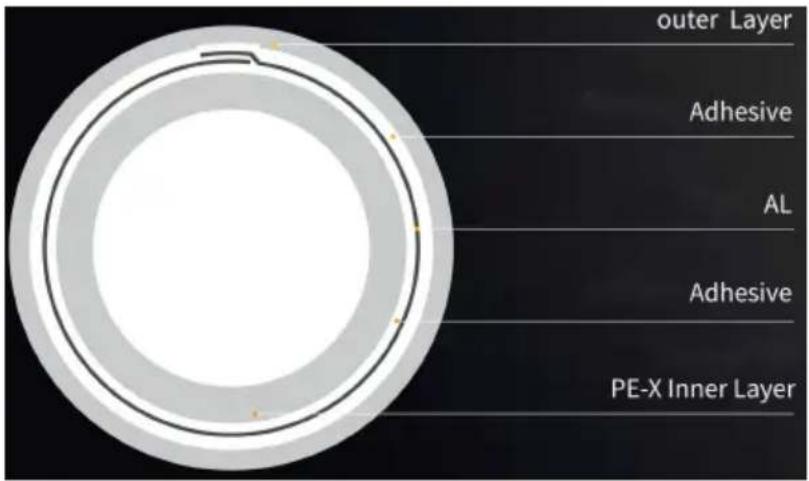

The safety of oxygen protection system: the aluminum tube in the layer can completely isolate the oxygen permeation, prevent the oxidative corrosion of the corrosion-prone components, and ensure the normal operation and service life of the system for a long time.

Smooth inner wall of pipe without scaling: streamlined design, low flow resistance, low flow noise, reduce scaling to avoid blockage.

Good heat resistance: Vicat softening point is 131.5 °C, the maximum working temperature up to 95 °C, fully meet the building water supply and drainage code in the use of hot water system requirements.

Don't damage on cold temperature: in winter -40 °C low temperature conditions can be normal construction, easy to bend without damage, melt and mechanical connection is convenient and simple.

INSTRUCTIONS FOR USE

Easy Installation

The aluminum-plastic pipe can be cut with a special pipe cutter or other cutting tools, without the need for a wire, and can be bent without rebounding. The pipe bending operation is simple and the pipeline connection is convenient.

① Prepare the Tools

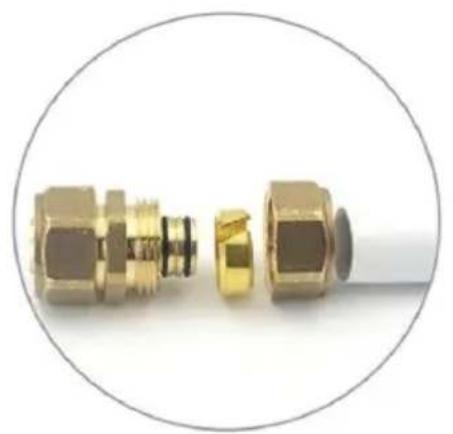

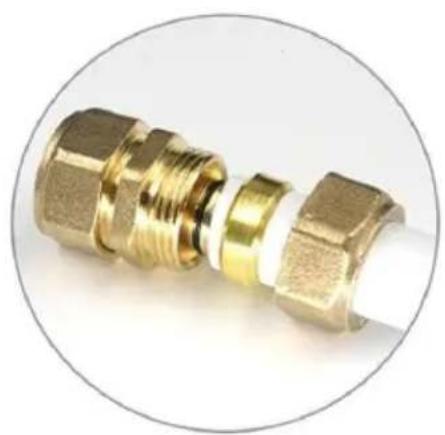

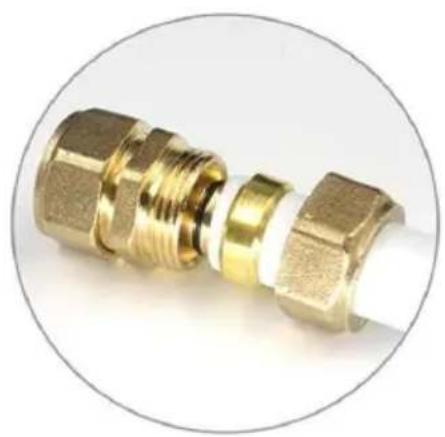

② Put On Nuts & Snap Ring Connector

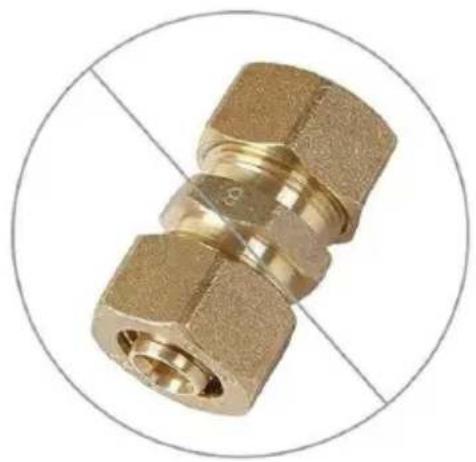

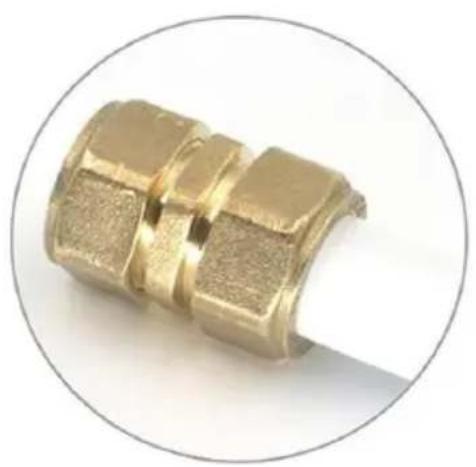

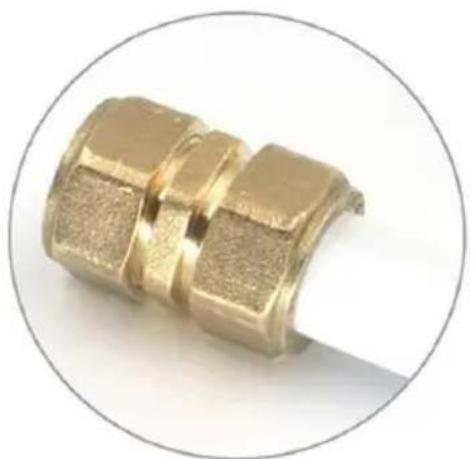

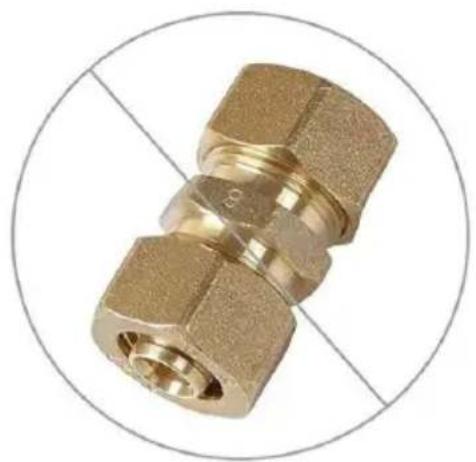

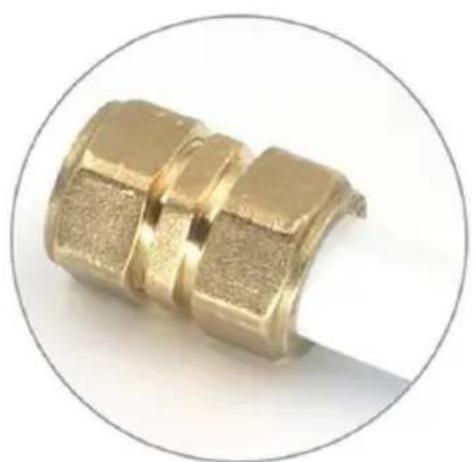

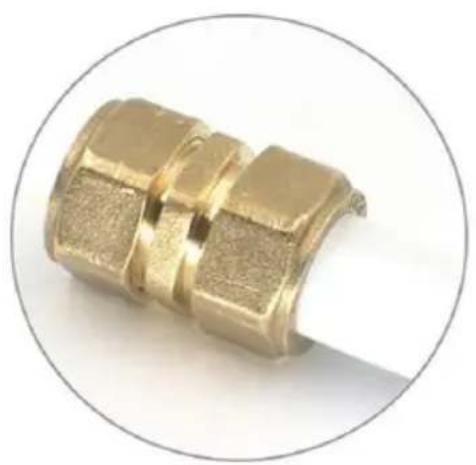

③ Tighten the Nut

Note: No hardware included

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

EC

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

COMPOSITE ALUMINIUM-PLASTIC PEX-AL-PEX

MODEL: P49-1_-X, P49-3-X

X is 25/50/100/200/500

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

COMPOSITE ALUMINIUM-PLASTIC PEX-AL-PEX

MODEL: P49-1_-X, P49-3-X

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of data changes on our product.

PRODUCT PARAMETERS

INSTRUCTIONS

① Prepare the Tools

② Put On Nuts & Snap Ring Connector

③ Tighten the Nut

Note: No hardware included

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported in Australia: SIHAO PTY LTD. 1 ROKEVA STREET ASTWOOD N 2122 Australia

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PEX-AL-PEX ALUMINIUM-PLASTIC COMPOSITE PIPE

MODEL: P49-1 _ X , P49-3- X

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

PRODUCT PARAMETERS

Modell	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
Außen Durchme sser	16mm	16mm	16mm	16mm	20mm
Gesamtdi cke	2mm	2mm	2mm	2mm	2mm
Gesamtlä nge	25m	100m	200m	300m	50m
Farbe	Weiß	Weiß	Weiß	Weiß	Weiß
Material	PEX - Aluminiumschicht - PEX

PACKING LIST

INSTRUCTIONS

① Prepare the Tools

② Put On Nuts & Snap Ring Connector

③ Tighten the Nut

Note: No hardware included

Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ALUMINUM-PLASTIC COMPOSITE PIPE

PEX-AL-PEX

MODEL: P49-1 _ XP49-3- _ X

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

PRODUCT PARAMETERS

INSTRUCTIONS

1. Prepare the Tools

2. Put On Nuts & Snap Ring Connector

3. Tighten the Nut

Note: No hardware included

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

PRODUCT PARAMETERS

Modelo	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
Exterior Diámetro	16mm	16mm	16mm	16mm	20mm
Espesor total	2mm	2mm	2mm	2mm	2mm
Largo total	25m	100m	200m	300m	50m
Color	Blanco	Blanco	Blanco	Blanco	Blanco
Material	PEX - Capa de Aluminio - PEX

PACKING LIST

INSTRUCTIONS

① Prepare the Tools

② Put On Nuts & Snap Ring Connector

③ Tighten the Nut

Note: No hardware included

Rancho Cucamonga, CA 91730

UK

REP

EC

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean that all categories of tools offered are covered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ALUMINUM-PLASTIC COMPOSITE PIPE PEX-AL-PEX

MODEL: P49-1 _ X , P49-3- X

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform y there are any technology or software updates on our product.

PRODUCT PARAMETERS

INSTRUCTIONS

① Prepare the Tools

② Put On Nuts & Snap Ring Connector

③ Tighten the Nut

Note: No hardware included

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Import to AUS: SIHAO PTY LTD . 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Import to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Ra Cucamonga, CA 91730

UK

REP

EC

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

X is 25/50/100/200/500

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

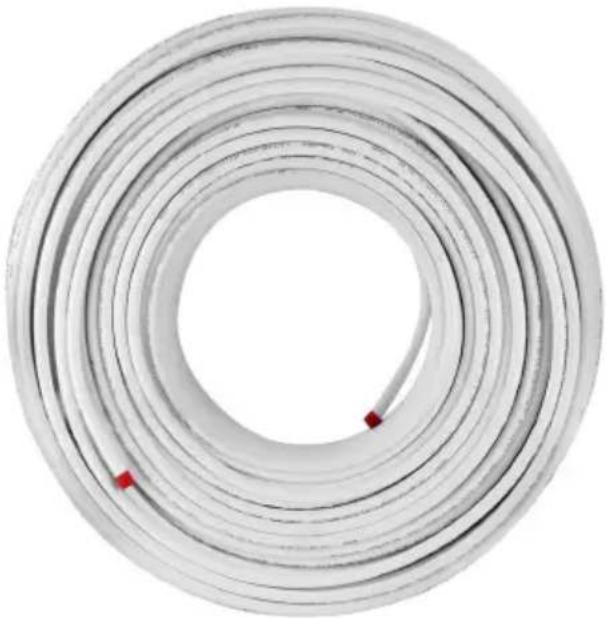

PEX-AL-PEX ALUMINIUM-KUNSTSTOF

COMPOSIETBUIS

MODEL: P49-1 _ XP49-3-_X

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform y there are any technology or software updates on our product.

PRODUCT PAREMETERS

Model	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
Buitenkan t Diameter	16 mm	16 mm	16 mm	16 mm	20 mm
Totale dikte	2 mm	2 mm	2 mm	2 mm	2 mm
Totale lengte	25m	100m	200m	300m	50m
Kleur	Wit	Wit	Wit	Wit	Wit
Materiaal	PEX - Aluminiumlaag - PEX

PACKING LIST

INSTRUCTIONS

① Prepare the Tools

② Put On Nuts & Snap Ring Connector

③ Tighten the Nut

Note: No hardware included

Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

EC

REP

SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PEX-AL-PEX ALUMINUM-PLASTIC COMPOSITE PIPE

MODEL: P49-1 - X, P49-3 - X

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any data changes on our product.

PRODUCT PARAMETERS

Modell	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
Exteriör Diameter	16 mm	16 mm	16 mm	16 mm	20 mm
Total tjocklek	2 mm	2 mm	2 mm	2 mm	2 mm
Total längd	25m	100m	200m	300m	50m
Färg	Vit	Vit	Vit	Vit	Vit
Material	PEX - Aluminiumlager - PEX

PACKING LIST

Modell		P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
KOMPOSITRÖR		1 st	1 st	1 st	1 st	1 st
Avrundningsverktyg		1 st	1 st	1 st	1 st	1 st
Rörskärare		0 st	0 st	1 st	1 st	0 st
Klämmor		0 st	10 st	20 st	30 st	10 st

INSTRUCTIONS

① Prepare the Tools

② Put On Nuts & Snap Ring Connector

③ Tighten the Nut

Note: No hardware included

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD . 1 ROKEVA STREETEASTWOOD NS 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

UK

REP

EC

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

Made in China
