P49-1-200 - Composite pipe Vevor - Free user manual and instructions

USER MANUAL P49-1-200 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

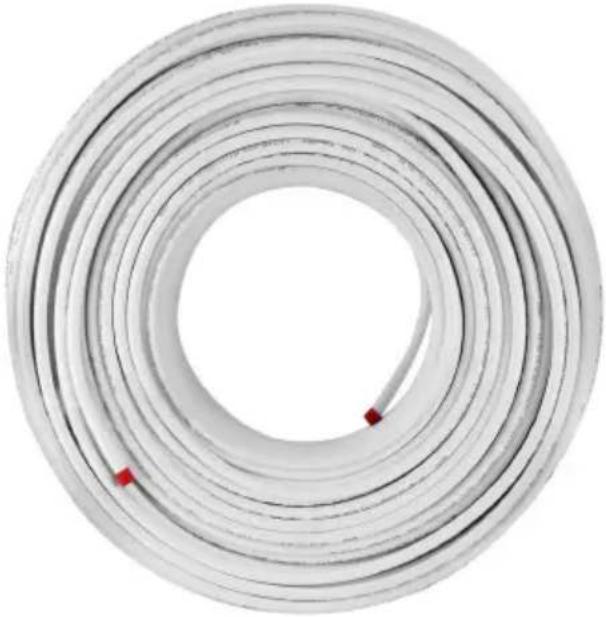

PEX-AL-PEX ALUMINUM-PLASTIC COMPOSITE PIPE

MODEL:P49-1-X、P49-3-X

X is 25/50/100/200/500

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

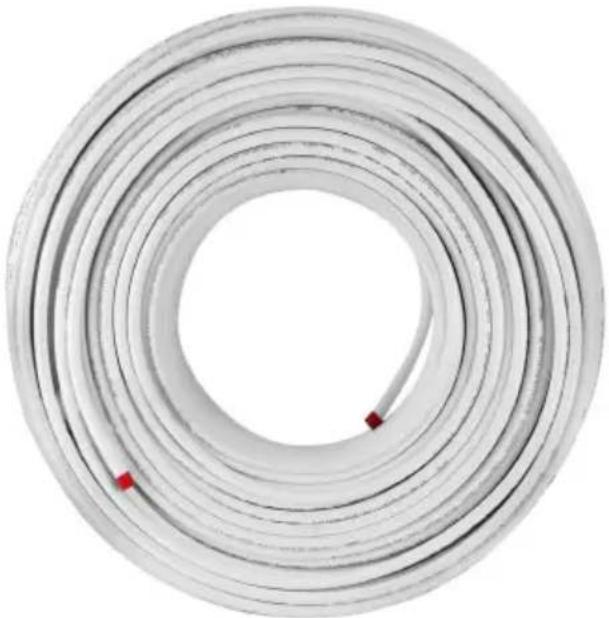

PEX-AL-PEX ALUMINUM-PLASTIC COMPOSITE PIPE MODEL:P49-1-X、P49-3-X

Circular metallic wire with red connectors, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

PRODUCT PAREMETERS

Model	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
Exterior Diameter	16mm	16mm	16mm	16mm	20mm
Overall Thickness	2mm	2mm	2mm	2mm	2mm
Total Length	25m	100m	200m	300m	50m
Color	White	White	White	White	White
Material	PEX - Aluminum Layer - PEX

PACKING LIST

Model		P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
COMPOSITE PIPE		1pcs	1pcs	1pcs	1pcs	1pcs
Rounding tool		1pcs	1pcs	1pcs	1pcs	1pcs
Pipe Cutter		0pcs	0pcs	1pcs	1pcs	0pcs
Clamps		0pcs	10pcs	20pcs	30pcs	10pcs

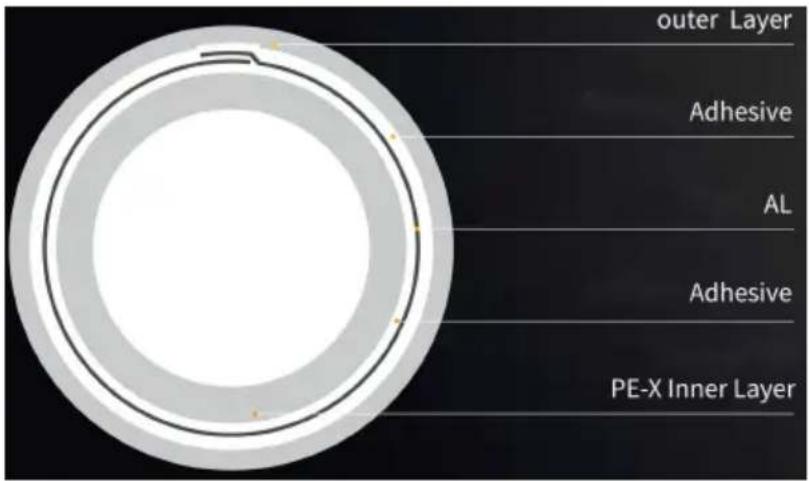

Fifth floor structural section

outer Layer Adhesive AL Adhesive PE-X Inner Layer

INSTRUCTIONS

◎Long service life: under the working temperature of 70 °C and the working pressure of 1.0MPa, the long-term continuous service life is n than 50 years; the normal temperature 20c service life is more than years;

◎The crosslinking degree is stable and even: the crosslinking degree stable, the inner and outer diameters of the pipes are unified, and th thickness is even in the longitudinal and transverse directions;

◎High strength pressure resistance: it can withstand 85 ° water temperature for a long time, because it contains seamless laser butt welding and aluminum layer of lap welding process, it can withstand pressure range;

◎Good thermal conductivity: the coefficient of thermal conductivity is 0.45w/mk, 1.5 \~ 2 times of the coefficient of cross-linked polyethylene which is more conducive to the heat transfer between the pipe and the heating system has higher thermal efficiency;

◎Installation is faster as bending without rebound : with the character

of easy bending non-respringback, laying coil in construction, pipe positioning and fixing are very easy, work efficiency can be greatly improved;

◎ The coefficient of thermal expansion is small: the coefficient of the expansion is 2.5 × 10^-5 m/mk, to avoid large expansion or contraction caused by ground rupture or pipe system damage;

◎The safety of oxygen protection system: the aluminum tube in the layer can completely isolate the oxygen permeation, prevent the oxidat corrosion of the corrosion-prone components, and ensure the normal operation and service life of the system for a long time;

◎ Smooth inner wall of pipe without scaling: streamlined design, low fl resistance, low flow noise, reduce scaling to avoid blockage;

◎Good heat resistance: Vicat softening point is 131.5°C, the maximum working temperature up to 95°C, fully meet the building water supply drainage code in the use of hot water system requirements;

◎Don't damage on cold temperature: in winter-40°C low temperature conditions can be normal construction, easy to bend without damage, melt and mechanical connection is convenient and simple;

INSTRUCTIONS FOR USE

Easy Installation

The aluminum-plastic pipe can be cut with a special pipe cutter or o cutting tools, without the need for a wire, and can be bent without rebounding. The pipe bending operation is simple and the pipeline connection is convenient.

Close-up of a metallic connector with internal components, shown in two states (no text or symbols visible)

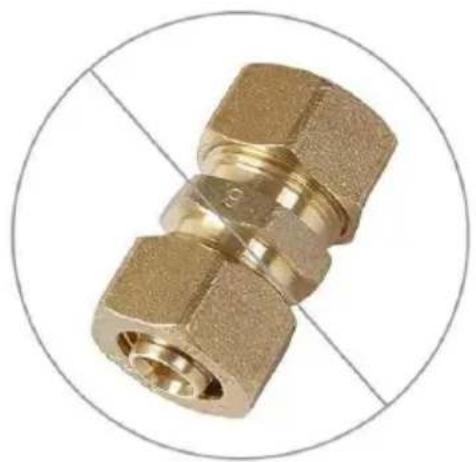

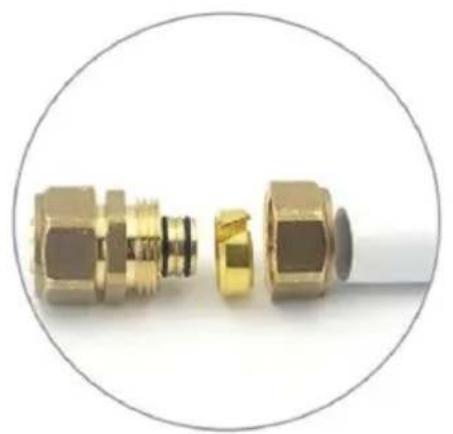

① Prepare the Tools

Close-up of a brass-colored threaded connector with hexagonal nuts, shown in close-up (no text or symbols visible)

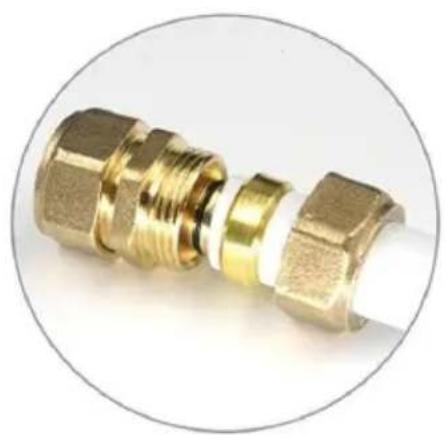

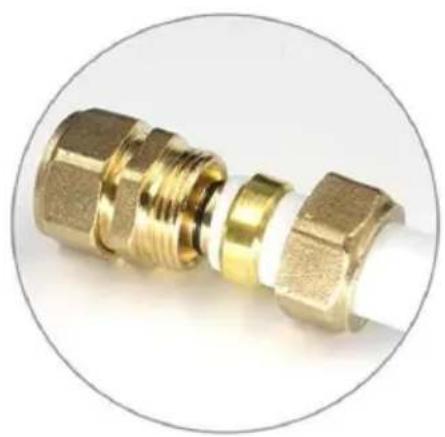

② Put On Nuts & Snap Ring Connector

Close-up of a brass-colored mechanical connector with hexagonal end caps, shown against a plain white background (no text or symbols visible)

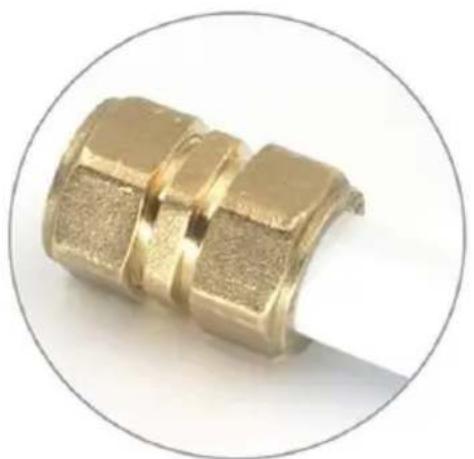

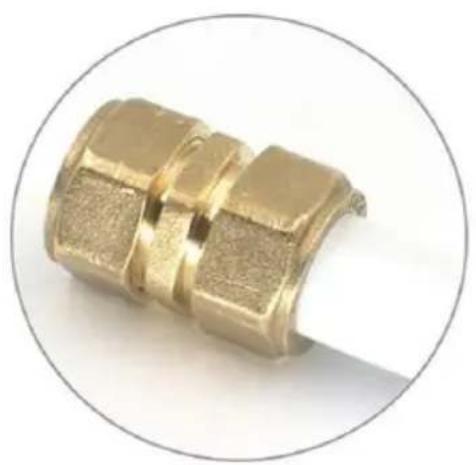

③ Tighten the Nut

Close-up of a brass-colored mechanical coupling component (no text or symbols visible)

Note: No hardware included
