Name: P49-3-50
Brand: Vevor
Rating: 8 (144 reviews)

Find the device manual for free P49-3-50 Vevor in PDF.

📄 70 pages

EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs

View the manual :

Pick your language and provide your email: we'll send you a specifically translated version.

This manual is not available in your language

Desired language Your email address

Brand	Vevor
Model	P49-3-50
Product type	Multilayer composite pipe
Outer diameter	20 mm
Total thickness	2 mm
Length	50 m
Color	White
Material	PEX – Aluminum – PEX (triple layer)
Maximum working pressure	10 kg (1.0 MPa)
Maximum working temperature	95 °C
Vicat softening temperature	131.5 °C
Service life at 20 °C	More than 100 years
Service life under nominal conditions	More than 50 years
Thermal conductivity coefficient	0.45 W/mK
Thermal expansion coefficient	2.5 × 10⁻⁵ m/mK
Frost resistance	Withstands work at -40 °C without damage
Oxygen barrier	Yes, thanks to the aluminum layer
Package contents	Pipe (1 piece), rounding tool (1), clamps (10)
Installation	Easy, bending without springback, cutting without burrs
Maintenance and cleaning	Clean with a soft cloth, avoid abrasive products
Safety	Do not exceed specified maximum pressure and temperature
Spare parts and repairability	Contact Vevor after-sales service for any spare parts

Frequently Asked Questions - P49-3-50 Vevor

How to install the Vevor P49-3-50 composite pipe?

Installation is simple: cut the pipe to the desired length using a pipe cutter (not included for this model), round the end with the provided rounding tool, then connect the appropriate fittings. The pipe bends easily without springback, making it easy to install.

Can this pipe be used for drinking water?

Yes, the PEX-aluminum-PEX pipe is suitable for drinking water systems. It is corrosion-resistant and does not release harmful substances.

What tools are needed for installation?

Included tools are a rounding tool and clamps. A specific pipe cutter may be needed (not provided for model P49-3-50). You will also need compatible fittings.

How to cut the pipe?

Use a special pipe cutter for composite pipe or a fine-tooth hacksaw. Make sure to cut straight to facilitate connection.

Can this pipe be used outdoors?

Yes, it is frost-resistant down to -40 °C and UV-resistant thanks to the aluminum layer. It is therefore suitable for outdoor buried or above-ground installations.

What is the flexibility of the pipe?

The pipe is very flexible and bends easily without springback, making it easy to bend and install in corners.

How to connect the pipe to fittings?

Use compatible compression or push-fit fittings. Tighten the nuts with the provided clamps to ensure a seal.

What is the product warranty?

Vevor offers an electronic warranty. For more details, consult the included warranty certificate or contact customer service.

Can this pipe be buried?

Yes, it is suitable for direct burial. Its aluminum layer protects against oxygen and rodents, and it withstands soil pressure.

How to store the pipe before installation?

Store it away from direct sunlight, in a dry and temperate place. Avoid extreme temperatures to preserve its properties.

User questions about P49-3-50 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Composite pipe in PDF format for free! Find your manual P49-3-50 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. P49-3-50 by Vevor.

USER MANUAL P49-3-50 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PEX-AL-PEX ALUMINUM-PLASTIC COMPOSITE PIPE

MODEL: P49-1-X, P49-3-X

X is 25/50/100/200/500

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PEX-AL-PEX ALUMINUM-PLASTIC COMPOSITE PIPE MODEL: P49-1-X, P49-3-X

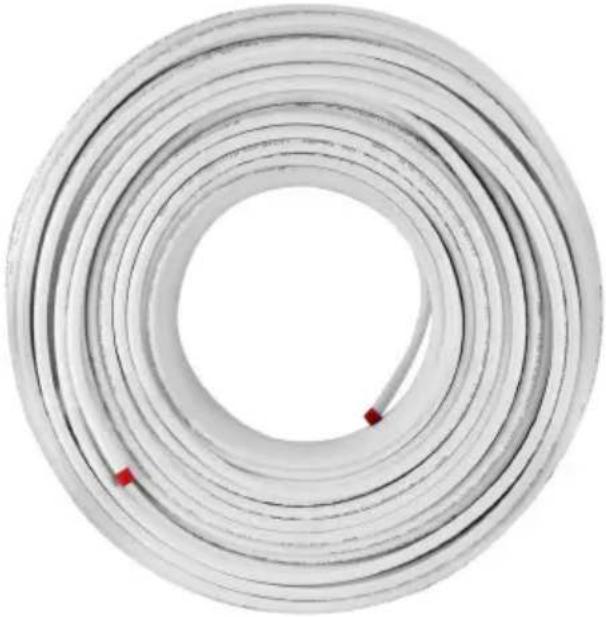

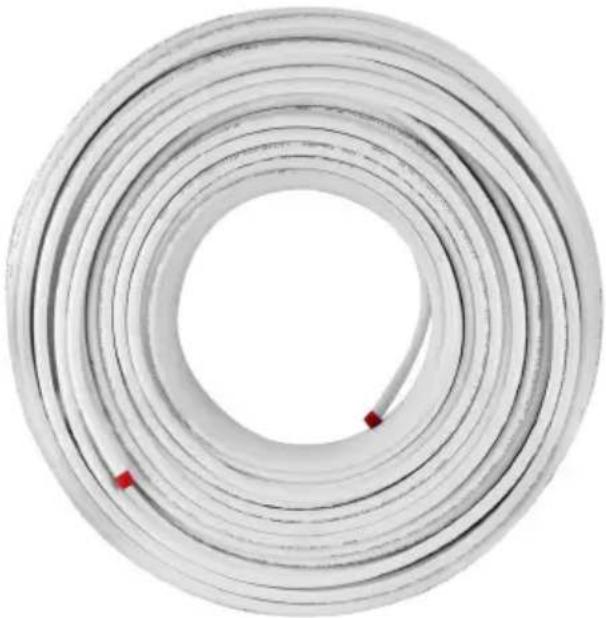

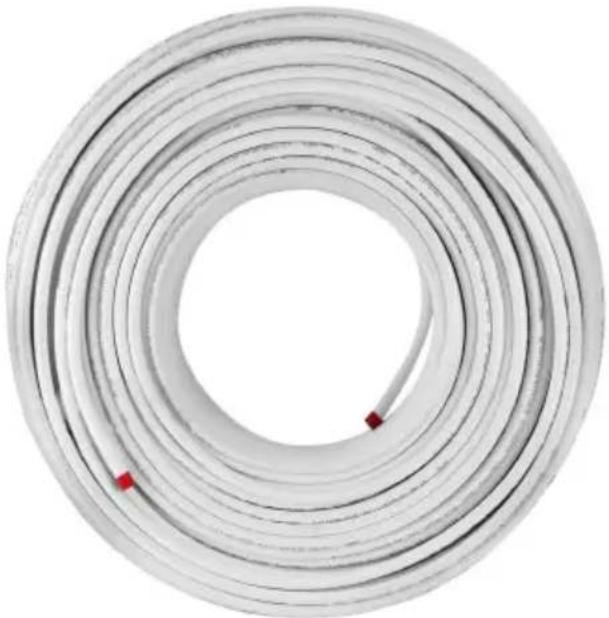

Circular metallic wire with red connectors, no text or symbols visible.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any data changes on our product.

PRODUCT PARAMETERS

Model	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
Exterior Diameter	16mm	16mm	16mm	16mm	20mm
Overall Thickness	2mm	2mm	2mm	2mm	2mm
Total Length	25m	100m	200m	300m	50m
Color	White	White	White	White	White
Material	PEX - Aluminum Layer - PEX

PACKING LIST

Model	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
COMPOSITE PIPE	1pcs	1pcs	1pcs	1pcs	1pcs
Rounding tool	1pcs	1pcs	1pcs	1pcs	1pcs
Pipe Cutter	0pcs	0pcs	1pcs	1pcs	0pcs
Clamps	0pcs	10pcs	20pcs	30pcs	10pcs

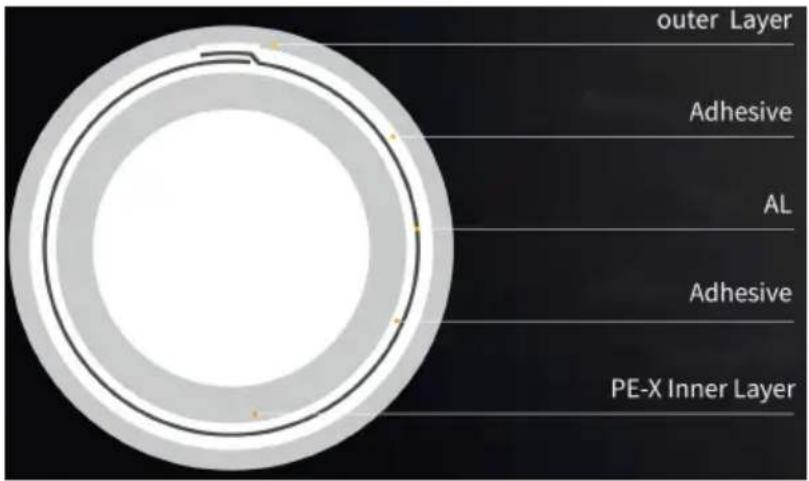

Outer layer, adhesive, AL, adhesive, PE-X inner layer.

INSTRUCTIONS

◎ Long service life: under the working temperature of 70 °C and the working pressure of 1.0 MPa, the long-term continuous service life is more than 50 years; the normal temperature 20 °C service life is more than years;

◎ The crosslinking degree is stable and even: the crosslinking degree is stable, the inner and outer diameters of the pipes are unified, and the thickness is even in the longitudinal and transverse directions;

◎ High strength pressure resistance: it can withstand 85 °C water temperature for a long time, because it contains seamless laser butt welding and aluminum layer of lap welding process, it can withstand pressure range;

◎ Good thermal conductivity: the coefficient of thermal conductivity is 0.45 W/mK, 1.5 ~ 2 times of the coefficient of cross-linked polyethylene which is more conducive to the heat transfer between the pipe and the heating system has higher thermal efficiency;

◎ Installation is faster as bending without rebound: with the character

of easy bending non-respringback, laying coil in construction, pipe positioning and fixing are very easy, work efficiency can be greatly improved;

◎ The coefficient of thermal expansion is small: the coefficient of the expansion is 2.5 × 10^-5 m/mK, to avoid large expansion or contraction caused by ground rupture or pipe system damage;

◎ The safety of oxygen protection system: the aluminum tube in the layer can completely isolate the oxygen permeation, prevent the oxidat corrosion of the corrosion-prone components, and ensure the normal operation and service life of the system for a long time;

◎ Smooth inner wall of pipe without scaling: streamlined design, low fl resistance, low flow noise, reduce scaling to avoid blockage;

◎ Good heat resistance: Vicat softening point is 131.5 °C, the maximum working temperature up to 95 °C, fully meet the building water supply drainage code in the use of hot water system requirements;

◎ Don't damage on cold temperature: in winter -40 °C low temperature conditions can be normal construction, easy to bend without damage, melt and mechanical connection is convenient and simple;

INSTRUCTIONS FOR USE

Easy Installation

The aluminum-plastic pipe can be cut with a special pipe cutter or o cutting tools, without the need for a wire, and can be bent without rebounding. The pipe bending operation is simple and the pipeline connection is convenient.

Close-up of two brass connectors with internal components, no visible text or symbols.

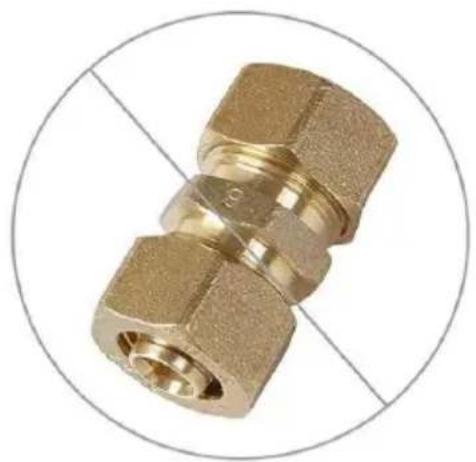

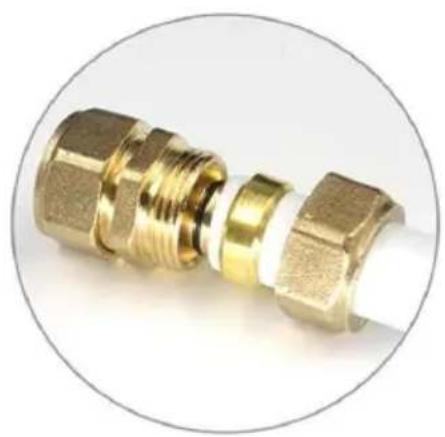

① Prepare the Tools

Close-up of a brass-colored threaded connector with hexagonal nuts, shown in close-up (no text or symbols visible).

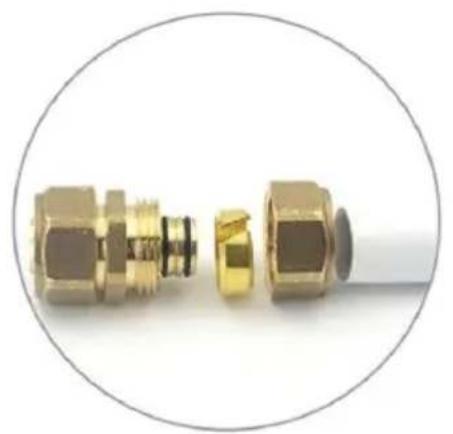

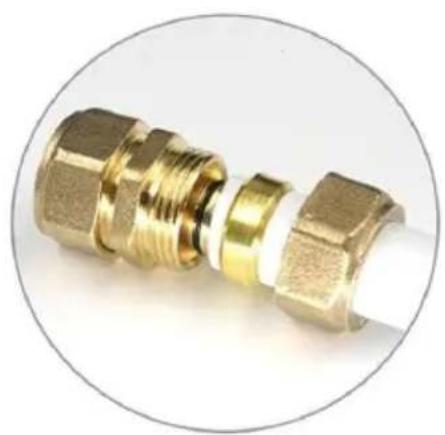

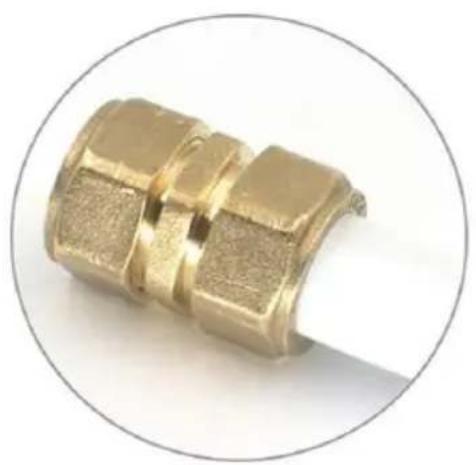

② Put On Nuts & Snap Ring Connector

Close-up of a brass-colored mechanical connector with hexagonal end caps, shown against a plain white background (no text or symbols visible).

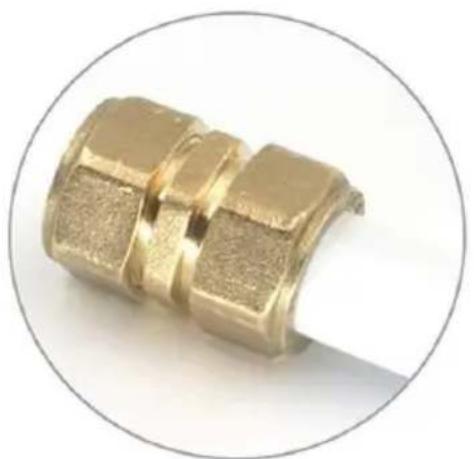

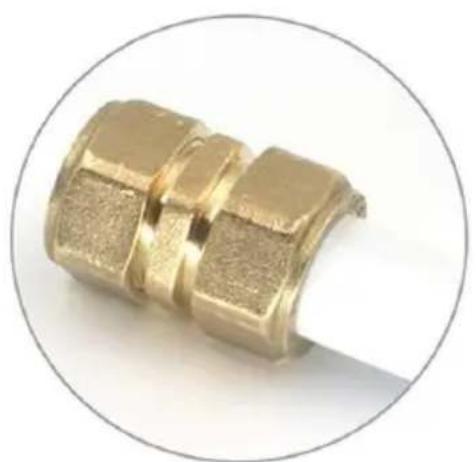

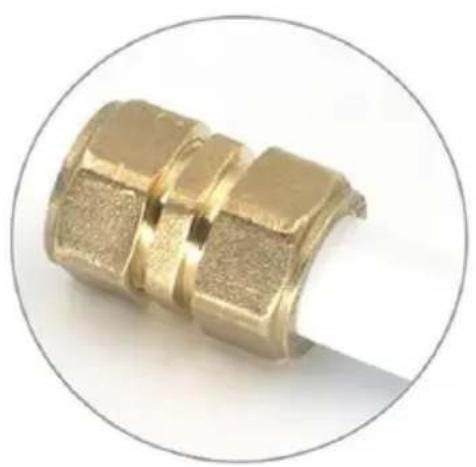

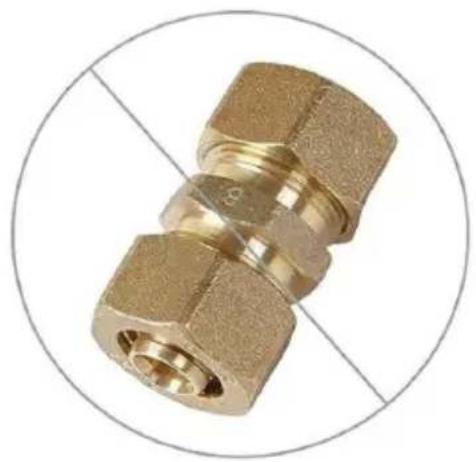

③ Tighten the Nut

Close-up of a brass-colored mechanical coupling component (no text or symbols visible).

Note: No hardware included

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

COMPOSITE ALUMINIUM-PLASTIC PEX-AL-PEX

MODEL: P49-1_-X, P49-3-X

X is 25/50/100/200/500

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

COMPOSITE ALUMINIUM-PLASTIC PEX-AL-PEX

MODEL: P49-1_-X, P49-3-X

Circular metallic wire with red connectors, no text or symbols visible.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

PRODUCT PARAMETERS

INSTRUCTIONS

① Prepare the Tools

Close-up of a brass-colored threaded connector with flanged ends, enclosed in a circular frame (no text or symbols visible).

② Put On Nuts & Snap Ring Connector

Close-up of a brass mechanical connector with hexagonal end caps, shown against a plain white background (no text or symbols visible).

③ Tighten the Nut

Close-up of a brass-colored mechanical fitting with threaded ends, set against a circular background (no text or symbols visible).

Note: No hardware included

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported in Australia: SIHAO PTY LTD. 1 ROKEVA STREET, ASTWOOD N 2122 Australia

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PEX-AL-PEX ALUMINIUM-PLASTIC COMPOSITE PIPE

MODEL: P49-1 _ X , P49-3- X

Circular metallic wire with red connectors at the bottom (no text or symbols visible).

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

PRODUCT PARAMETERS

Modell	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
Außen Durchme sser	16mm	16mm	16mm	16mm	20mm
Gesamtdi cke	2mm	2mm	2mm	2mm	2mm
Gesamtlä nge	25m	100m	200m	300m	50m
Farbe	Weiß	Weiß	Weiß	Weiß	Weiß
Material	PEX - Aluminiumschicht - PEX

PACKING LIST

INSTRUCTIONS

① Prepare the Tools

Close-up of a brass-colored mechanical connector with threaded shaft and flange (no text or symbols visible)

② Put On Nuts & Snap Ring Connector

Close-up of a brass-colored mechanical connector component (no text or symbols visible)

③ Tighten the Nut

Close-up of a brass-colored mechanical coupling component (no text or symbols visible)

Note: No hardware included

Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ALUMINUM-PLASTIC COMPOSITE PIPE

PEX-AL-PEX

MODEL: P49-1 _ XP49-3- _ X

Circular white spiral cable with red connectors at one end (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

PRODUCT PARAMETERS

INSTRUCTIONS

1. Prepare the Tools

Close-up of a brass-colored mechanical connector with threaded shaft and flange (no text or symbols visible)

2. Put On Nuts & Snap Ring Connector

Close-up of a brass-colored mechanical connector with hexagonal end caps (no text or symbols visible)

3. Tighten the Nut

Close-up of a brass-colored mechanical coupling component (no text or symbols visible)

Note: No hardware included

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

PRODUCT PARAMETERS

Modelo	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
Exterior Diámetro	16mm	16mm	16mm	16mm	20mm
Espesor total	2mm	2mm	2mm	2mm	2mm
Largo total	25m	100m	200m	300m	50m
Color	Blanco	Blanco	Blanco	Blanco	Blanco
Material	PEX - Capa de Aluminio - PEX

PACKING LIST

INSTRUCTIONS

① Prepare the Tools

Close-up of a brass-colored threaded connector with flanged ends, enclosed in a circular frame (no text or symbols visible)

② Put On Nuts & Snap Ring Connector

Close-up of a brass-colored mechanical connector component (no text or symbols visible)

③ Tighten the Nut

Close-up of a brass-colored mechanical fitting with threaded ends, shown against a circular background (no text or symbols)

Note: No hardware included

Rancho Cucamonga, CA 91730

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean that all categories of tools offered are covered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ALUMINUM-PLASTIC COMPOSITE PIPE PEX-AL-PEX

MODEL: P49-1 _ X , P49-3- X

Circular metallic wire with red connectors at the bottom (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

PRODUCT PARAMETERS

INSTRUCTIONS

① Prepare the Tools

Close-up of a brass-colored threaded connector with hexagonal nuts (no text or symbols visible)

② Put On Nuts & Snap Ring Connector

Close-up of a brass-colored mechanical connector with hexagonal end caps (no text or symbols visible)

③ Tighten the Nut

Close-up of a brass-colored mechanical fitting with threaded ends, set against a circular background (no text or symbols visible)

Note: No hardware included

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

X is 25/50/100/200/500

VEVOR®

TOUGH TOOLS, HALF PRICE

PEX-AL-PEX ALUMINIUM-KUNSTSTOF

COMPOSIETBUIS

MODEL: P49-1 _ XP49-3-_X

Circular metallic wire with red connectors at the bottom (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform y there are any technology or software updates on our product.

PRODUCT PAREMETERS

Model	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
Buitenkan t Diameter	16 mm	16 mm	16 mm	16 mm	20 mm
Totale dikte	2 mm	2 mm	2 mm	2 mm	2 mm
Totale lengte	25m	100m	200m	300m	50m
Kleur	Wit	Wit	Wit	Wit	Wit
Materiaal	PEX - Aluminiumlaag - PEX

PACKING LIST

INSTRUCTIONS

① Prepare the Tools

Close-up of a brass-colored threaded connector with flange and cap (no text or symbols visible)

② Put On Nuts & Snap Ring Connector

Close-up of a brass-colored mechanical connector with hexagonal end caps (no text or symbols visible)

③ Tighten the Nut

Close-up of a brass-colored mechanical fitting with threaded ends, set against a circular background (no text or symbols visible)

Note: No hardware included

Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

REP

SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

PEX-AL-PEX ALUMINIUM-PLASTIC COMPOSITE PIPE

MODEL: P49-1 - X, P49-3 - X

Circular metallic wire with red connectors, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any data changes on our product.

PRODUCT PARAMETERS

Modell	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
Exteriör Diameter	16 mm	16 mm	16 mm	16 mm	20 mm
Total tjocklek	2 mm	2 mm	2 mm	2 mm	2 mm
Total längd	25m	100m	200m	300m	50m
Färg	Vit	Vit	Vit	Vit	Vit
Material	PEX - Aluminiumlager - PEX

PACKING LIST

Modell	P49-1-25	P49-1-100	P49-1-200	P49-1-300	P49-3-50
KOMPOSITRÖR	1 st	1 st	1 st	1 st	1 st
Avrundningsverktyg	1 st	1 st	1 st	1 st	1 st
Rörskärare	0 st	0 st	1 st	1 st	0 st
Klämmor	0 st	10 st	20 st	30 st	10 st

INSTRUCTIONS

① Prepare the Tools

Close-up of a brass-colored threaded connector with hexagonal nuts.

② Put On Nuts & Snap Ring Connector

Close-up of a brass-colored mechanical connector with hexagonal end caps, shown against a plain white background.

③ Tighten the Nut

Close-up of a brass-colored mechanical coupling component.

Note: No hardware included

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD . 1 ROKEVA STREETEASTWOOD NS 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

Made in China

Table of contents Click a title to access it

PEX-AL-PEX ALUMINUM-PLASTIC COMPOSITE PIPE
VEVOR®
PEX-AL-PEX ALUMINUM-PLASTIC COMPOSITE PIPE MODEL: P49-1-X, P49-3-X
NEED HELP? CONTACT US
INSTRUCTIONS
INSTRUCTIONS FOR USE
EASY INSTALLATION
TOUGH TOOLS, HALF PRICE
COMPOSITE ALUMINIUM-PLASTIC PEX-AL-PEX
PEX-AL-PEX ALUMINIUM-PLASTIC COMPOSITE PIPE
ALUMINUM-PLASTIC COMPOSITE PIPE
PEX-AL-PEX
ALUMINUM-PLASTIC COMPOSITE PIPE PEX-AL-PEX
PEX-AL-PEX ALUMINIUM-KUNSTSTOF
COMPOSIETBUIS

Manual assistant

Waiting for your message

Product information

Brand : Vevor

Model : P49-3-50

Category : Composite pipe
