USER MANUAL ERPT627W MIDEA

Line drawing of a standard rice cooker with lid and side panel (no text or symbols)

ELECTRIC PRESSURE COOKER

USER MANUAL

ERPT627W

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

EN

CONTENTS

THANK YOU LETTER 01

SAFETY INSTRUCTIONS 02

SPECIFICATIONS 06

PRODUCT OVERVIEW 07

QUICK START GUIDE 08

OPERATION INSTRUCTIONS 13

CLEANING AND MAINTENANCE 16

TROUBLESHOOTING 22

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT 24

DATA PROTECTION NOTICE 25

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

EN

Explanation of Symbols

Danger

This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

Warning of electrical voltage

This symbol indicates that there is a danger to life and health of persons due to voltage.

Warning

The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

Caution

The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

Attention

The signal word indicates important information (e.g. damage to property), but not danger.

Observe instructions

This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

EN

CAUTION

• READ ALL INSTRUCTIONS
• Do not touch hot surfaces. Only use side handles or knobs for carrying or moving.
• To protect against electrical shock, do not immerse the power cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when the appliance is use by or near children.
• Unplug from outlet when not in use and before cleaning.
• Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• For household use only. Do not use outdoors.
• Do not let power cord hang over edge of table or counter, or touch hot surfaces.
• Do not place the appliance on or near a hot gas or electric burner, or a heated oven;
• Extreme caution must be used when moving the appliance co taining hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet.

• To disconnect, turn appliance “off”, then remove plug from wall outlet.

• Do not use appliance for anything other than intended use.

• This appliance cooks under pressure. Improper use may result in scalding injury. Make certain unit is properly closed before operating. Please see the “Getting Started” section.

- Do not fill the appliance over the Max marked on the inner pot. When cooking foods that expand during cooking such as rice or dried vegetables, do not fill the appliance over half of its capacity full. Over filling may cause a risk of clogging the vent pipe and developing excess pressure. See the “Food Preparation/Pressure Cooking” section.

- Do not open the appliance until the appliance has cooled and all internal pressure has been released. If the float valve is still up and/or the lid is difficult to open, this indicates that the appliance is still pressurized – do not force it open. Any pressure in the appliance can be hazardous. Please see the “Getting Started” section for instructions to safely remove lid.

- Always check the pressure release devices for clogging before use.

- Do not use this appliance for pressure frying with oil.

- To prevent risk of explosion and injury, replace only dynamic seal ring as recommended by the manufacturer.

• See Operating Instructions. Intended for countertop use only.

- WARNING: Spilled food can cause serious burns. Keep appliance and cord away from children. Never drape cord over edge of counter, never use outlet below counter, and never use with an extension cord.

- CAUTION: Risk of Electric Shock. Cook only in removable container.

- This appliance is not intended for deep frying foods. "This appliance has a polarized plug (one blade is wider

than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified

- electrician. Do not attempt to modify the plug in any way.

EN

- Do not use an extension cord.

- When the normal operating pressure is reached, turn the heat down so all the liquid, which creates the steam, does not evaporate.

- Be aware that certain foods, such as applesauce, cranberries, pearl barley, oatmeal or other cereals, split peas, noodles, macaroni, rhubarb, or spaghetti can foam, froth, and sputter, and clog the pressure release device (steam vent). These foods should not be cooked in a pressure cooker.

- A short power-supply cord is used to reduce the risk resulting from it being grabbed by children, becoming entangled in, or tripping over a longer cord.

PLEASE SAVE THESE INSTRUCTIONS

SPECIFICATIONS

	ERPT627WProduct Model
Capacity	6 Qt
Power Supply	120V~ 60Hz
Rated Power	1000W
Working Pressure 70kPa
Keep Warm Temperature	60°C~80°C

EN

PRODUCT OVERVIEW

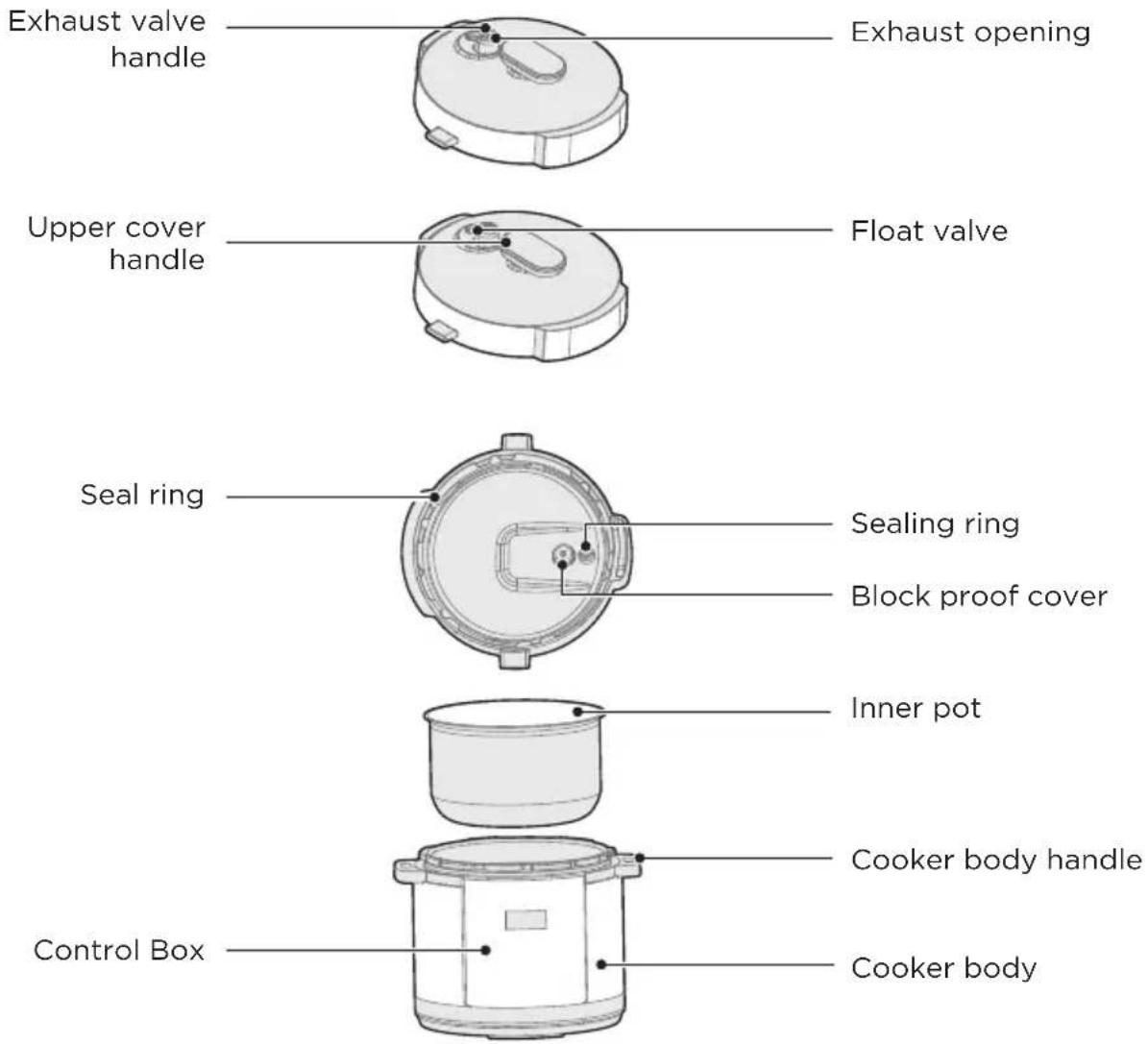

Product Structure

EN

Exhaust valve handle Exhaust opening Upper cover handle Float valve Seal ring Sealing ring Block proof cover Inner pot Cooker body handle Control Box Cooker body

Accessories

Spoon

Soup Spoon

User Manual

Measuring cup

QUICK START GUIDE

Tips:

• Please move the product with the handle of the cooker body;
• Please remove the water from the housing cover with cloth.

NOTE

• Exhaust valve: Pull out the exhaust valve from the lid. Clean the internal side of the exhaust valve and the exhaust valve and float valve of the lid with brush and cloth at least once a month.
• Sealing ring: Please remove oil and dirt from the sealing ring with detergent and brush.
• Water box: After cooking, the steam may stay in the water box of the external pot as water. Water in the box should be removed for avoiding bad odor, please clean it with clean cloth.

EN

Disassemble and Install the Block Proof Cover, Seal Ring and sealing ring

Disassemble and install the block proof cover

1. Check if the seal ring and block proof cover are correctly installed in the upper cover before use each time.
2. After use, please clean the seal ring and around of block proof cover for avoiding jamming the cover, keep it clean to avoid bad odor.

Block proof cover

Disassemble Pull it out upwards

Diagram of a hand pressing down on a circular device component with an arrow indicating the action (no text or symbols present)

Install Press it down to install

Disassemble and install the seal ring

1. Please do not pull the seal ring, otherwise, the distorted seal ring may influence the seal and pressure effect.
2. Do not use the dam aged seal ring, please replace it at the authorized repair office.

Seal ring

Disassemble Pull it out upwards

Illustration of hands holding a circular device with a handle, no text or symbols present

Install Press it down to install

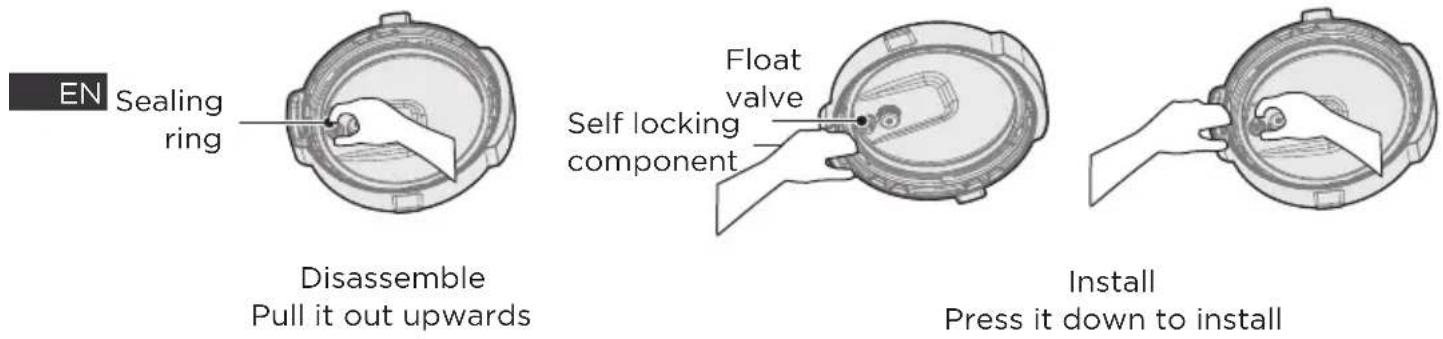

Disassemble and install the sealing ring

1. Please do not pull the sealing ring, otherwise, the distorted sealing ring may influence the seal and pressure effect.

2. Install the sealing ring, when the float valve is in a falling state, press the self-locking slider with the left hand, then rotate the lid with left hand and press the sealing ring with right hand.

EN Sealing ring Disassemble Pull it out upwards Float valve Self locking component Install Press it down to install

Use and Maintain the Inner Pot

1. Do not empty

It may cause yellowish and spotted inner pot or distorted bottom if it is empty for a long time.

2. Do not use it to store the acid, alkali and preserved foods for a long period

Although the inner pot has excellent anti-corrosion performance, it may cause corrosion of certain degree, the suggested time of keep warm shall not exceed 2h.

3. Keep it clean to prolong the service life

Do not immerse it in water for a long period.

Clean the inner pot with soap, mild detergent or warm water to remove dust, oil and dirt.

1. Do not use a metal shovel or other hard tool, otherwise it will damage the inner surface of pot.

Prepare for Cooking

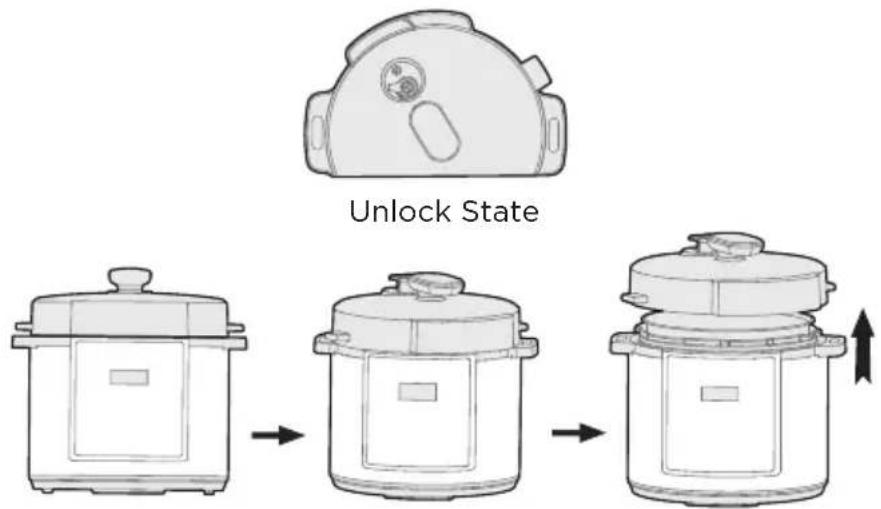

1 Opening the lid correctly

- Hold the handle of upper cover, turn it anticlockwise for about 30^ till the lid at unlock state, and then lift the upper cover.

Unlock State

2 Check if the parts and accessories of lid are well installed

- Check if the floater valve and exhaust valve are jammed, confirm if the sealing ring and block proof cover are well installed.

3 Take out the inner pot, put the foods and water into the inner pot

- The total amount of foods and water shall not exceed the Max marked on the inner pot.

Max Usable Capacity

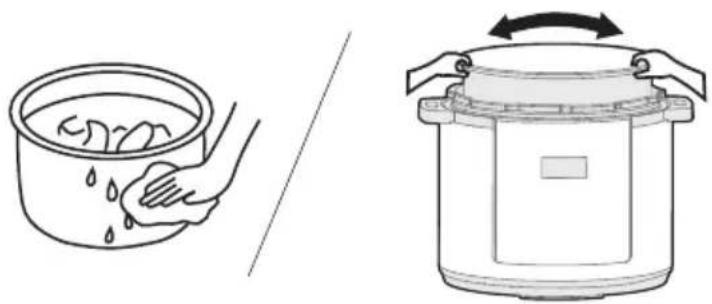

4 Put the inner pot into the cooker

• Wipe to clean the external surface of inner pot, foreign object and water are not allowed on the inner surface of electric pressure cooker;
• Turn the inner pot to left and right to ensure good contact with the heating plate.

Illustration showing a hand washing food in a pot and another cooking into a rice cooker with a rotation arrow (no text or symbols)

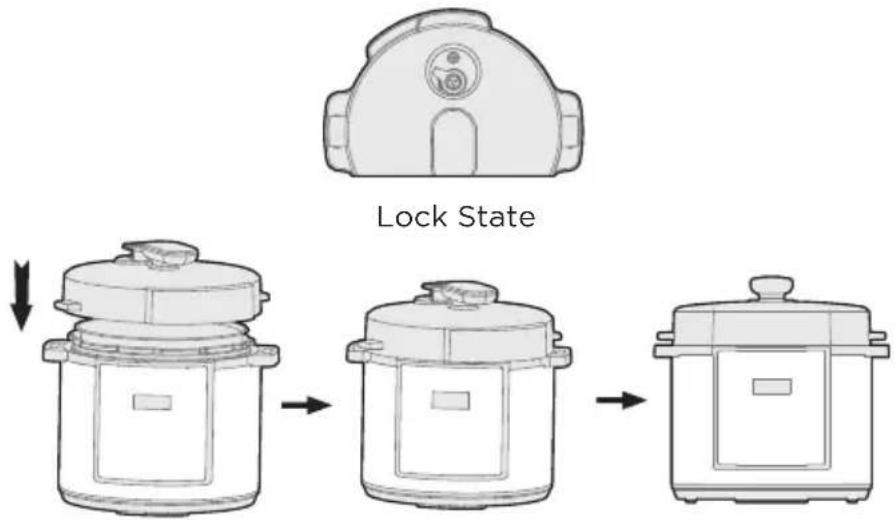

5 Safely close the lid

- Before closing the lid, check if the sealing ring is well installed.

- Hold the handle of upper cover, aim the lid as "unlock state", put the top cover horizontally on the cooker body, turn the upper cover clockwise for about 30^ to the lock place as "Lock State".

Lock State

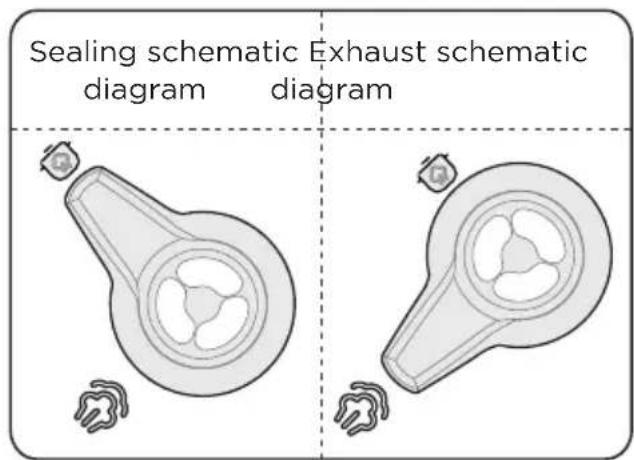

6 Put the exhaust valve well

• When working, please turn the exhaust valve to the sealing place, which means the electric pressure cooker keeps at sealing state:
• For manual exhaust, please turn the exhaust valve handle to the exhaust place, the electric pressure cooker keeps at the exhaust state; when exhausting, do not keep the hands or face above the exhaust opening;

Sealing schematic Exhaust schematic diagram diagram

- Check if the floater valve drops down before working (before heating, the floater valve is down).

NOTE

• (Picture are for reference only, atual product may differ from picture shown)

General Function

1. Switch on If the buttons are inactive when use, please confirm if the lid is closed at the right place, the buttons are inactive if the lid is not closed correctly for product of this series.
2. After cooking, the cooker may automatically enter into the keep warm state. After cooking, the cooker may automatically enter into the keep warm state(Some funtion), and the indicator display “OH(0 hour), 1H(1 hour), 2H(2 hour)... “or ” L0:00(0 min), L0:01(1 min)....”

EN

Tips:

• When the cooker is working, it is normal that it makes “cluck” sound, please set your heart at relax when use.
• To cook a small amount of foods, the inner pot may possibly be lifted when opening the lid, please shake the lid to drop the inner pot in the cooker body and then remove the lid.

Safely Open the Lid

1. Cut off power supply or remove the power plug
2. Exhaust method

A. Quickly open the lid (For non-fluid foods)

Turn the exhaust valve to the exhaust place for exhausting, Some unit by pressing steam release button “ 📂 ” till the float valve drops down.
B. Generally open the lid

Keep the electric pressure cooker cool naturally till the float valve drops down.

1. Open the lid

Turn the upper cover anticlockwise with the left hand, turn it to the cover open limit place, lift the upper cover with the right hand to open the lid.

Do not open the lid before the pressure in the pot has been completely released, do not open the lid fiercely if it is difficult to open.

Do not pull out the exhaust valve when turning the exhaust valve.

After cooking fluid foods (porridge and soup), do not turn the exhaust valve or press the steam release button please cut off power supply to make it cool naturally till the float drops before opening the lid.

OPERATION INSTRUCTIONS

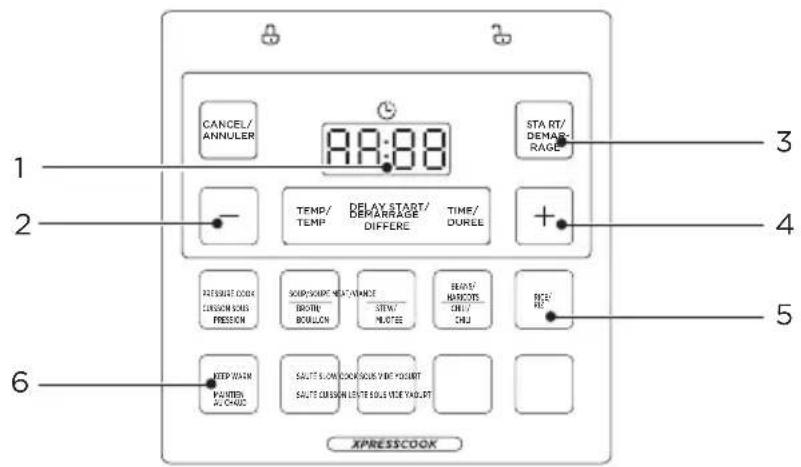

Operation Part

EN

CANCEL/ ANNULER 8:00:00 START/ DEMAR- RAGE TEMP/ TEMP DELAY START/ DEMARRAGE DIFFERENCE TIME/ DUREE + PASSIVE COOK CORNION SODS FIRESSION SKIP/SHARE NETFLAVANCE BROTLE BOMULON STRAW MILKTEE BEANS/ BANCOIS ONLY CHU FACE/ HD STEP/WAIN PAINTER AC CHACC SALTE GLOW COOK SOLIC VIDE YOGURT SALTE CUSHION LETE SOLIC VIDE YAGL.RT XPRESSCOOK

		Function description
1		• Display Screen
2		• “-” Button
3		• START BUTTON
4		• “+” Button
5		• MENU FUNCTION
6		• KEEP WARM BUTTON

Operation Guidelines

	Operation GuidelinesFunction
CANCEL	·Under any state, press “CANCEL/ANNULER” button to cancel the current work state and return standby state. Press and hold the “CANCEL/ANNULER” button for 10 seconds to restore the default parameters of the menu function.
TEMP/TIME	·With temperature adjustable menu, you can press this button to switch between temperature and time adjustment. SOUS VIDE can adjust the Temperature.
DELAY START	·Delay Start: Before the program start, press “DELAY START/DEMARRAGE DIFFERE” button.·The screen shows the preset beginning time. Press “-” or “+” or “DELAY START/DEMARRAGE DIFFERE” button to adjust the delay time. Press “START/DEMARRAGE” button, the unit starts delay time count down. When it countdown to the end, the program starts working.·Note: Sauté、Sous vide、Keep Warm、Yogurt function cannot set the delay timer.
PRESSURE COOK/SOUP/BROTH/BEANS/CHILI/MEAT/STEW/RICE	·Under standby state, press “PRESSURE COOK/CUISSON SOUS PRESSION”, “SOUP/BROTH/BROTH/BOUILLON”, “BEANS/CHILI/CHILI/CHILI”, “MEAT/VIANDE/STEW/MIJOTEE”, “RICE/RIZ” button, the indicator light is on and the digital screen shows default working time.Press “TIME/DUREE” button, then press “+” or “-” button to adjust the working time. Press “START/DEMARRAGE” button to enter into cooking state.·The digital screen starts countdown as soon as the pressure rise to working pressure. Auto release and enters into keep warm when it finishes working.

EN

	Operation GuidelinesFunction
SAUTÉ	·Under standby state, press “SAUTÉ” button, the indicator light is on and the digital screen shows default working time. Press “TIME/DUREE” button, then press “+” or “-” button to adjust the working time. Press “TEMP/TEMP/TIME/DUREE” button. then press “+” or “-” button to adjust the working temperature. Press “START/DEMARRAGE” button to enter into cooking state. Starts countdown and enters to standby state when it finishes working.
SLOW COOK	·Under standby state, press “SLOW COOK/CUISSON LENTE” button, the indicator light is on and the digital screen shows default working time. Press “TIME/DUREE” button, then press “+” or “-” button to adjust the working time. Press “START/DEMARRAGE” button to enter into cooking state. Starts countdown and enters into keep warm when it finishes working.
SOUS VIDE	·Under standby state, press “SOUS VIDE” button, the indicator light is on and the digital screen shows default working temperature. Press “+” or “-” button to adjust the working temperature. Press “TEMP/TEMP/TIME/DUREE” button, then press “+” or “-” button to adjust the working time. Press “START/DEMARRAGE” button to enter into cooking state. The digital screen starts countdown as soon as the pressure rise to working temperature. Enters to standby state when it finishes working.
YOGURT	·Under standby state, press “YOGURT/YAOURT” button, the indicator light is on and the digital screen shows default working time. Press “TIME/DUREE” button, then press “+” or “-” button to adjust the working time. Press “START/DEMARRAGE” button to enter into cooking state. Starts countdown and enters to standby state when it finishes working.
KEEP WARM	·Under standby state, press “KEEP WARM/MAINTIEN AU CHAUD” button, the indicator light is on and the digital screen shows default working time. Press “TIME/DUREE” button, then press “+” or “-” button to adjust the working time. Press “START/DEMARRAGE” button to enter into cooking state. Starts countdown and enters to standby state when it finishes working.

CLEANING AND MAINTENANCE

For use the product safely with a longer service life, please carefully check and maintain it.

	SolutionsIf followings
Power cord and plug is expanded, deformation, damaged and it color is changed.One part of the power cord and plug are hotter.Power cord is flexible with discontinuous power supply.The electric pressure cooker has abnormal heating and generates bad odor.There's abnormal noise or vibration when supply power.	Stop using, and repair it by the authorized repair center.
There's dust or dirt on the plug or socket.	Remove the dust or dirt.

Safety Precautions

To avoid personal injury and property loss, be sure to observe the following safety precautions.

• Meanings of the marks:

	Means“Forbidden” items		GeneralForbid		DisassembleForbidden		Wet handsForbidden
			ContactForbidden		Spray WaterForbidden
[BAWW]	Means“Mandatory” items		Must beexecuted		Remove thepower plug

- The danger caused by mistaken use if following warnings are neglected includes to two grades.

WARNING

It may possibly cause death or serious injury if the warming items are disobeyed.

CAUTION

It may cause physical injury or property damage if the caution items are disobeyed.

WARNING

AC

Use correct power outlet (Refer to the label)

• Failure to use correct electricity can cause fire or electric shock.
• Danger of fire if the bad socket is adopted.

Simple line drawing of a plug inserted into a socket (no text or symbols)

A socket shall be used alone

• A socket of more than 10A rated current with grounding wire shall be used alone;
• If shared with other electrical appliances, the socket may cause abnormal heat and result in fire.

Illustration of two cooking pots with a crossed-out black bandage (no text or symbols)

It is strictly prohibited to use other lid

• It is strictly prohibited to use other lid for heating, and in the (switching on) process, the use of non-original lid is not allowed.
• As this may cause electric shock or safety hazards.

Simple line drawing of two electrical plugs connected to a fuse with a starburst (no text or symbols)

Stop using if the power cord is damaged

- Replace the damaged power cord with special soft cord or replace it with special assembly purchased from the manufacturer or authorized repair center.

Line drawing of a rice cooker with a hand holding a spoon (no text or symbols)

Do not put foreign objects

• It is prohibited to insert metal shavings, needles and other foreign matter in the gap.
• As this may cause electric shock or movement anomalies.

Simple line drawing of a child kneeling beside a rice cooker (no text or symbols)

Place the appliance in a location out of reach of infants

• Place the appliance in a location out of reach of infants.
  • To avoid electric shock and scald.

Line drawing of a cooking pot with a hand pointing to it (no text or symbols)

Modification is prohibited

• Modification or repair by non-professionals is prohibited.
  • Violation may cause a fire or electric shock.
• Repair or replacement of parts shall be made in a designated service center.

Line drawing of a cooking pot with a faucet and steam rising (no text or symbols)

Products may not be immersed or sprinkled in water

- Doing so could cause electric shock and electrical short circuits.

WARNING

Warning on Opening the lid

• When the electric pressure cooker is not working, there isn't pressure in the pot, the float valve is down;
• When the electric pressure cooker is working, pressure in the cooker rises, float valve ascends; do not fiercely open the lid before the pressure has been completely released;
• If it is difficult to open the lid, please do not open it fiercely, otherwise, it may cause scalding or physical injury.

Line drawing of a rice cooker with an inset showing its interior components (no text or symbols)

Check periodically

• Be sure to check periodically the block proof cover and exhaust valve core to make sure that they are not be blocked;
• Do not cover the exhaust valve with heavy object or replace it with other object.

CAUTION

Illustration of a hand holding a plug with liquid, next to a wall socket (no text or symbols)

Never pull the plug with a wet hand

• To avoid electric shock.

Illustration of a hand holding a plug with three pins, connected to a wall socket (no text or symbols)

When pulling the plug, you must pinch the plug

• When pulling the plug, you must pinch the plug;
• Do not pull the power cord, otherwise it will damage the cord, causing electric shock and short circuit.

Diagram showing a hand holding a plug with three pins, indicating electrical outlet connection or power switch.

Unplugging when not in use

- Otherwise, it may produce leakage, fire or failure.

Line drawing of a cooking pot with steam rising from a hand (no text or symbols)

In working, never move your hands to close to the exhaust port.

• In cooking process, never move your hands to close to the exhaust port to avoid burns.
• During cooking, do not cover the vent with a cloth and other items.

Simple line drawing of a rice cooker with a black X mark indicating a cooking resistance (no text or symbols)

When the cooker is working, please do not touch the lid

• When the cooker is working, lid has high temperature, do not touch it;
• Otherwise, it may possibly cause scalding.

Simple line drawing of a cooking pot with steam rising from the side (no text or symbols)

The total amount of food and water can not exceed Max scale

- The total amount of food and water can not exceed Max scale, otherwise food may be cooked unfamiliar, or cause malfunction.

Illustration of two cooking pots, one with lid and one with lid (no text or symbols)

Do not use a pot other than the dedicated pot

• When there is foreign object on the bottom of pot and heating plate surface, remove the foreign object before use.
• Otherwise, it may cause overheating and work abnormalities etc.

Simple line drawing of a cooking pot on a tray with steam rising (no text or symbols)

Do not put the inner pot on other appliance for heating

• In order to avoid deformation or fault.
- Please use the special inner pot.

Illustration of two hands holding a cooking pot, one with a cross mark and the other with a label (no text or symbols present)

When moving the product, please hold the handle of cooker body

- When moving the product, do not directly hold the handle of lid for avoiding lid dropping.

Do not use in the following locations

• Do not use in unstable locations;
• Do not use in locations near water and fire;
• Do not use near walls and furniture;
• Do not use in locations exposed to direct sunlight and oil splatter.
• Do not approach the stove for avoiding fire.

EN

Environment for Storing the Product

• Periodically clean the cooker and remove oil and dirt if it is stored on the table.
• Put the electric pressure cooker 30cm away from other kitchen appliances.

Clean After Use

1. Clean after each use.
2. Before cleaning and maintenance, please unplug the power cord until the product cools.
3. Remove the lid and inner pot, clean with detergent first, then rinse well with water, and wipe dry with a soft cloth.
4. Clean the internal side of the lid with water, the seal ring, block proof cover, exhaust valve core and float valve can be removed for washing, timely and correctly install them after washing, and then dry the internal side of lid with cloth.
5. Wipe clean the cooker body with a rag, and it is prohibited to soak the cooker body in water or spray water to it.

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center.

— If the fault is not removed after above check, please contact our authorized service center for repair.

		Reason Sol
Difficult to close the lid	Sealing ring not installed properly.	Position the sealing ring well.
	The floater valve clamps the push rod.	Lightly push the push rod.
Difficult to open the lid	Float valve in the popped-up position.	Press the float valve lightly with a fine bamboo skewer.
	Pressure exists inside the cooker.	Open the lid after the pressure is completely released.
Steam leaks from the lid	Sealing ring installed improperly.	Install the sealing ring as required.
	Food debris attached to the sealing ring.	Clean the sealing ring.
	Sealing ring damaged.	Replace the sealing ring.
	The lid is not closed correctly.	Close the lid correctly.
Steam leaks from float valve.	Food debris on the float valve gasket.	Clean the float valve gasket.
	Float valve gasket worn-out.	Replace the float valve gasket.
Float valve unable to rise	Too little food and water in inner pot.	Add water and food according to the recipe.
	Steam leaks from the lid or exhaust valve.	Send to the service center for repair.
		Reason SolutionProblem
Steam comes out from exhaust valve non-stop		· Exhaust valve not in sealing position.	· Turn the exhaust valve to the sealing position.
		· Pressure control fails	· Send to the service center for repair.
Power indicator doesn't light on		· Power socket bad contact.	· Please check the power socket.
All indicators flas	Display screen displays E1	· Bottom sensor fault.	· Send to the service center for repair.
	Display screen displays E2
	Display screen displays C1	· High temperature since there isn't water in the inner pot.	· Add water according to the requirement.
		· The inner pot isn't fitted correctly.	· Put the inner pot correctly.
	Display screen displays E8	· Pressure switch fault.	· Send to the service center for repair.
Rice half cooked or too hard		· Too little water.	· Add water accordingly.
		· Lid opened prematurely.	· After cooking cycle completes, leave the lid on for 5 more minutes.
		· Too much water.Rice too soft	· Reduce water accordingly.

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions there of are valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

EN

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

LETTRE DE REMERCIEMENTS

VUE D'ENSEMBLE DU PRODUIT 07

GUIDE DE DEMARRAGE RAPIDE 08

INSTRUCTIONS DE FONCTIONNEMENT 13

NETTOYAGE ET ENTRETIEN 16

DÉPANNAGE 22

MARQUES, DROITS D'AUTEUR ET MENTIONS LEGALES 24

AVIS SUR LA PROTECTION DES DONNEES 25

CONSIGNES DE SECURITE

Usage prévu

VUE D'ENSEMBLE DU PRODUIT

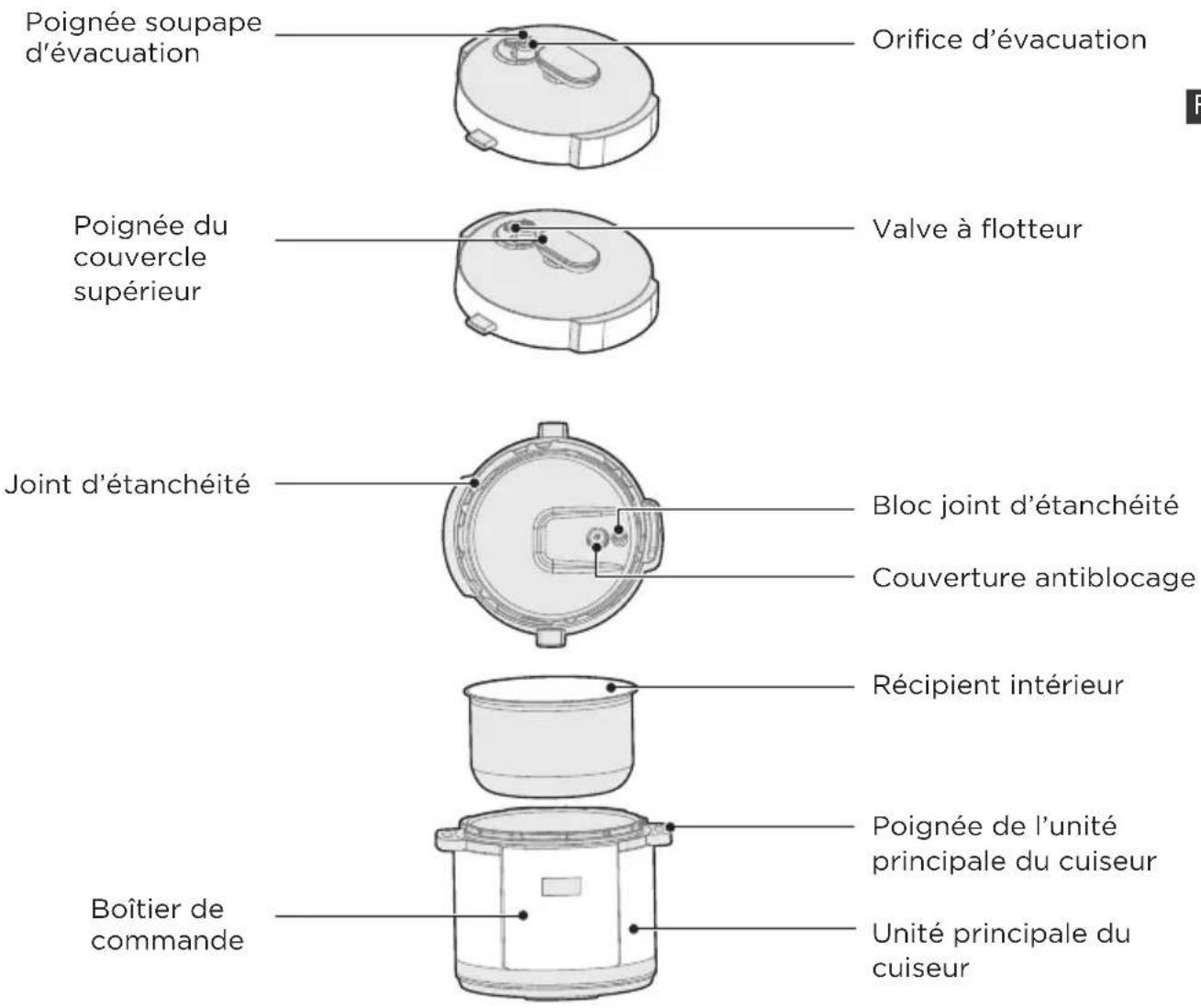

Noms des Composants

Diagram of a hand pressing down on a circular device component (no text or symbols visible)

Line drawing of a mechanical component with a circular feature and two side ports (no text or symbols)

FR

Illustration showing a hand washing food in a bucket and another cooking pot with a right-hand arrow (no text or symbols)

Simple line drawing of a plug inserted into a socket (no text or symbols)

Illustration of two cooking pots with a crossed-out black tape (no text or symbols)

Simple line drawing of two electrical plugs connected to a fuse with a leaf (no text or symbols)

Line drawing of a cooking pot with a hand holding a tool (no text or symbols)

Illustration of a child reacting to a cooking appliance next to a rice cooker (no text or symbols)

Line drawing of a rice cooker with a hand pointing to it (no text or symbols)

Line drawing of a cooking pot with a faucet spraying water (no text or symbols)

Line drawing of a rice cooker with an inset showing its interior (no text or symbols)

Illustration of a hand holding a plug with liquid, next to a wall socket (no text or symbols)

Illustration of a hand holding a plug with three pins, next to a wall socket (no text or symbols)

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

Line drawing of a hand reaching toward a cooking pot with steam rising (no text or symbols)

Simple line drawing of a rice cooker with a hand holding a cross-shaped object (no text or symbols)

Simple line drawing of a cooking pot with steam rising from the side (no text or symbols)

Line drawing of two cooking pot containers, one with lid and one with lid (no text or symbols)

Simple line drawing of a steaming pot on a tray with steam rising from the side (no text or symbols)

Illustration of hands holding a cooking pot and a jar with a cross mark (no text or symbols)

make yourself at home
