TX-B6232C-40IN+C - Trampoline Vevor - Free user manual and instructions

Product Type	Fitness Trampoline
Brand	Vevor
Model	TX-B6232C-40IN+C
Diameter	40 inches (101.6 cm)
Maximum User Weight	150 kg (330 lb)
Recommended Minimum Age	3 years (adult supervision required up to 12 years)
Intended Use	Outdoor only, on flat surface
Capacity	1 person at a time
Frame Material	Steel
Jumping Mat Material	Durable fabric (not specified)
Safety Net	Included with zipper
Handlebar	Included, height adjustable
Number of Elastic Bands	11 pre-installed, up to 34 possible
Included Accessories	Safety pins, spare elastic bands, triangle tool, T-hook, foot pads, screws
Maintenance	Clean with a soft dry cloth; do not use abrasive cleaner or harsh pad
Storage	Fold after removing at least 20 elastic bands; keep dry
Safety	Do not do flips, do not use under influence of alcohol or drugs, remove sharp objects and jewelry, do not jump on net
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - TX-B6232C-40IN+C Vevor

How to assemble the Vevor TX-B6232C-40IN+C trampoline?

Assembly requires two adults. Unfold the frame into a half-circle, insert the safety pins, attach the elastic bands to the mat using the T-hook, fix the feet by screwing them clockwise, then assemble the handlebar with the brackets and adjustable knobs. Follow the manual steps for safe assembly.

What is the maximum weight for this trampoline?

The maximum user weight is 150 kg (330 lb) for the TX-B6232C-40IN+C model. Never exceed this limit.

Can I use the trampoline indoors?

No, the trampoline is intended for outdoor use only. It must be placed on a flat surface, at least 2 meters from any obstacle. Do not use it on concrete or asphalt.

From what age can a child use this trampoline?

The minimum age is 3 years. Children under 12 must be supervised by an adult capable of assessing risks. Not suitable for children under 36 months (choking hazard from small parts).

How to maintain and clean the trampoline?

Clean it with a soft dry cloth. Never use abrasive cleaner or harsh pad. Store it dry after use. Before reusing, reassemble it according to the instructions.

Can I do flips on the trampoline?

No, flips are strictly prohibited. Landing on the head or neck can cause serious injury or death. Always jump in the center of the mat and bend your knees to stop.

How to fold and store the trampoline?

To fold the trampoline, first remove at least 20 elastic bands using the T-hook. Then, two people should close the frame by pushing gently. Keep fingers away from joints. Store it dry.

What to do if parts are missing or damaged?

Inspect the trampoline before each use. Replace any worn or missing parts. To obtain spare parts, contact technical support via www.vevor.com/support.

Can I use the trampoline during pregnancy or with high blood pressure?

No, do not use it during pregnancy, high blood pressure, or heart disease. Consult a doctor before starting an intense exercise program.

What are the essential safety rules?

Use the trampoline one person at a time, barefoot, without jewelry or sharp objects. Always close the net zipper before jumping. Supervise children. Do not jump on the net. Read all instructions before use.

USER MANUAL TX-B6232C-40IN+C Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

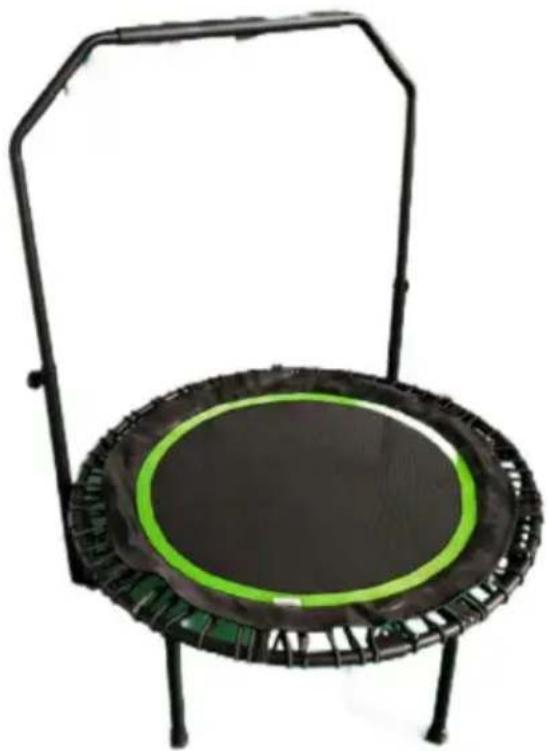

FITNESS TRAMPOLINE

MODEL: TX-B6232C-40IN+C / TX-B6232C-48IN+C

We continue to be committed to providing you tools with competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: TX-B6232C-40IN+C / TX-B6232C-48IN+C

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Not suitable for children under 36 months
	Do not use during pregnancy!
	Do not use when suffering from high blood pressure!
	Only one person on the trampoline!
	Use only bare feet!
	No somersaults!
	No smoking!
	Remove all sharp objects from trampoline and jumper!
	Do not bring watches, glasses, rings, scissors, phone etc.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please call a doctor.

Please read ALL the instructions before using your machine.

1. Assembly needs to follow these instructions. Incorrect assembly can be a hazard. Wear heavy-duty work gloves during assembly.
2. Do not assemble and use when tired or when under the influence of alcohol, drugs, or medication.
3. Elastic and other product properties only apply to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. The trampoline must be set up by an adult following the instructions. Do not allow children and pets to play alone or approach this item. Do not climb on the product.
7. Use as intended only. Always zip up the net before jumping. Make sure it is securely zipped before bouncing.
8. Inspect before every use. Do not use it if parts are loose or damaged. Be aware of the following potential hazards:
9. Missing, damaged or improperly positioned frame padding.
10. Punctures, tears, frays, or holes in the fabric of the bed. Deterioration of stitching, fabric, or webbing.
11. Bent or broken frame.
12. Loose or missing bolts. Loosened legs.
13. Bumper cotton cracked, damaged, or lost.
14. People or objects hanging on the product will cause the product to fall.
15. Pay attention to pedestrians and vehicles when using.
16. Do not use this unit for any purpose other than the indicated usage. Changes to any part or structure of the product are not allowed.
17. Do not place items on the trampoline net to avoid damage.
18. Do not use it for commercial purposes.
19. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
20. Never leave it unattended while in use.
21. Pet urine and feces can damage the product; please keep pets away.
22. Do not place the product on or near hot air, electric burners, or heaters. Fireworks, cigarettes, flares, and other items can ignite the product. Please keep them away.
23. The product should be placed on a flat surface. It should be installed in an open and safe place, at least 2m from any structure or obstruction, avoiding places near windows, roads, railways, rivers, fences, garages, houses, overhanging branches, electrical wires, swimming pools, swings, slides, climbing frames, walls, furniture, wires, ceiling fans, etc.
24. The trampoline is intended for outdoor use only. Do not place it in a damp environment.
25. Must use the designed access points to climb in and out of the trampoline.
26. Do not eat or drink while jumping. It is advisable not to bounce immediately after a meal.
27. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Not suitable for children under 36 months - small parts, choking hazard.
28. Always jump in the middle of the mat and practice bounce techniques with adult supervision and guidance.
29. Take your shoes off while jumping. Empty pockets and hands before jumping. Do not wear glasses.
30. Do not allow more than one person at a time on the trampoline. Do not allow multiple people at the same time.
31. Max user weight limit: check size chart.
32. DO NOT bury the trampoline in the ground.
33. Do not install the trampoline over concrete, asphalt, or any other hard surface. Make sure there are no children, pets, animals, or obstructions underneath the trampoline.
34. Do not intentionally jump against the protection net as this will weaken it.
35. Artificial illumination may be required for indoor or shady areas.
36. The metal frame of the trampoline can conduct electricity. All lamps, extension cords, and similar electronic devices must not come into contact with the frame.
37. Check the trampoline before and after each use to make sure that all parts are properly and securely in place. If necessary, tighten the screws and replace any worn, defective, or missing parts.
38. Wear comfortable clothing in which you can move around easily when using the device. Do not wear hooks, snaps, drawstrings, or similar items that could get caught in the trampoline. Before use, remove all necklaces and earrings.
39. Please only wear suitable trampoline shoes or socks to avoid slipping. Tennis shoes or shoes with smooth leather soles are not suitable for trampoline use.
40. The minimum age for using the trampoline is 3 years. Children under the age of 12 should only use the trampoline under the supervision of an adult who is able to assess the risks.
41. If you have heart disease, high blood pressure, or other physical diseases, you should not use this product. We accept no liability for consequential damage caused by non-compliance.

WARNING: This appliance is not intended for use by young children or infirm persons without supervision.

persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product. Do not use outdoors on rainy and cloudy days and in strong wind conditions, to avoid lightning strikes and falls. People or pets hanging on the product will cause injury or death.

1. The manufacturer strongly recommends assembling the enclosure net before using the trampoline. This will reduce the risk of falling off and offer safety for children.
2. Do not attempt somersaults on the trampoline. Landing on the head or neck, even if it happens in the middle of the trampoline, can result in injuries such as paralysis and, in the worst case, death.

MAX USER WEIGHT

Max user weight limit:

TX-B6232C-40in+C: Max 330 Pounds (150 kg)

TX-B6232C-48in+C: Max 450 Pounds (205 kg)

NOTE: Do not allow more than one person at a time on the trampoline. Do not allow multiple people at the same time.

PRODUCT PARTS

1. Please dispose of all plastic bags carefully and keep them away from children and pets.
2. Check all components provided according to the list in this manual. Make sure you have all the parts listed.
3. Although particular attention is paid when manufacturing this product, you should be careful during the assembly process to avoid being scratched by sharp edges.
4. Wear protective gloves during assembly and use.
5. The product should be placed on a flat surface.
6. The product requires two people to assemble.

Key Number	Part Picture	Description	Quantity
A		Trampoline Mat &Frame	1
B		Leg with Cap	6
C		Secure Pin	1
D		Bungee Code	34
E		Triangle tool	1
F		T-hook	1
G		Leg SocketCap(Pre-assembled with #B)	6
H		Washer	2
1		Handle bar with Foam	1
2	[22K4]	Handrail Leg	2
3a		Handrail Support- Right	1
3b		Handrail Support- Left	1
4		Triangle AdjustableKnob M6 x 17mm	6
5		Adjustable KnobM8x35mm	2

NOTE: The quantity of parts shown in the manual is the actual usage, and the unused parts are spare parts.

ASSEMBLY STEPS

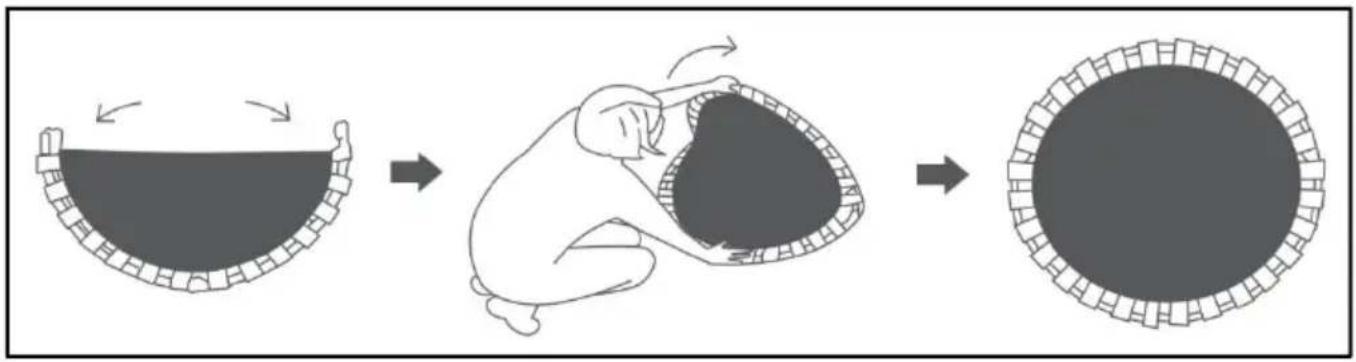

Step 1 - Expand into a semicircle in the direction of the arrow. Warning: Keep fingers away from the end of the rails near the hinged area. Hold the frame firmly against the floor with one hand, slowly push the frame with the other hand, and push it open completely. If one person cannot push it open, ask 2 people to help push it open.

Note: If one person cannot push it open, ask 2 people to help push it open to avoid injury.

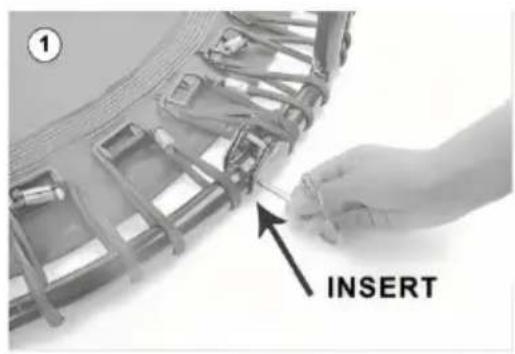

Step 2 - Install the SECURE PINS

- Make sure the SECURE PINS (#C) are inserted into the ends of the RAILS and properly secured by the wire ring. Refer to the illustration ①-②-③-④.

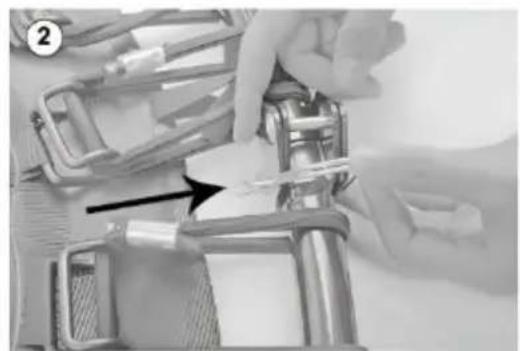

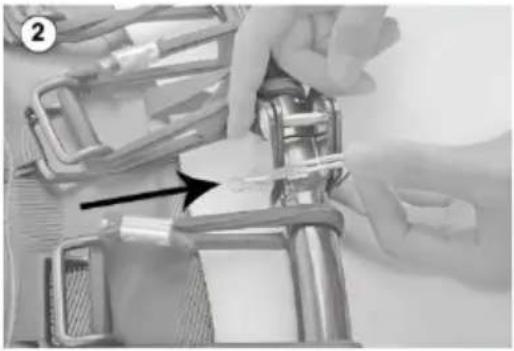

1. Open the metal lock on the SECURE PINS. Insert the pin through the hinge.

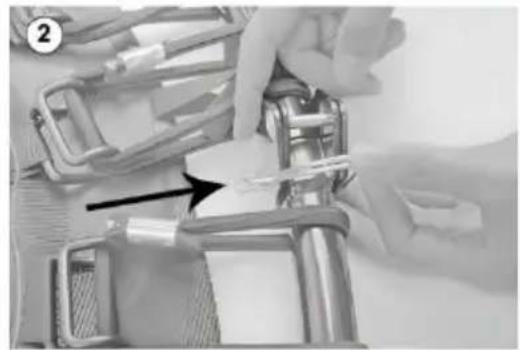

1. Place the metal lock onto the pin.

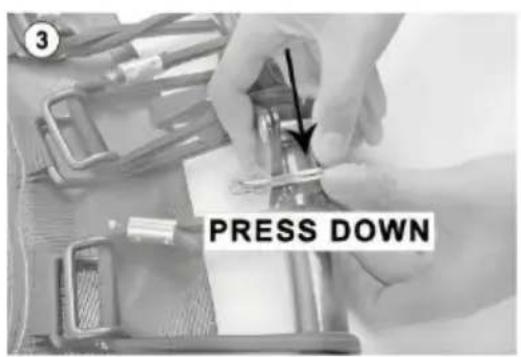

1. Press the metal ring until the SECURE PINS are locked.

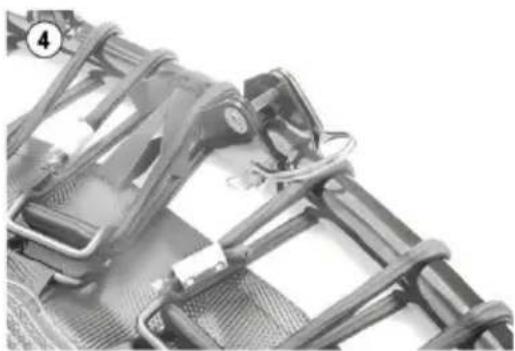

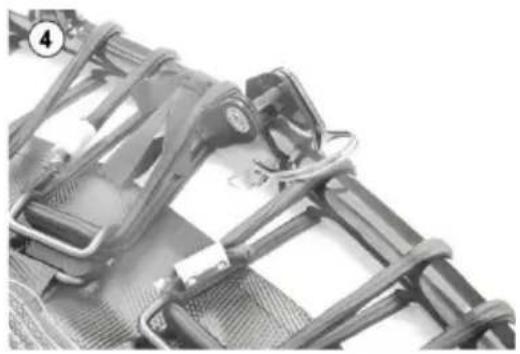

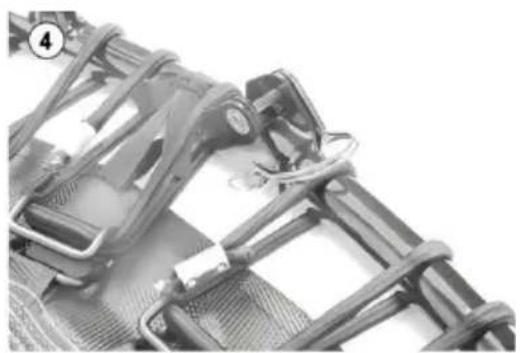

1. Make sure the two secure pins are installed correctly.

Attention: Make sure the trampoline is fully extended before installing the secure pins.

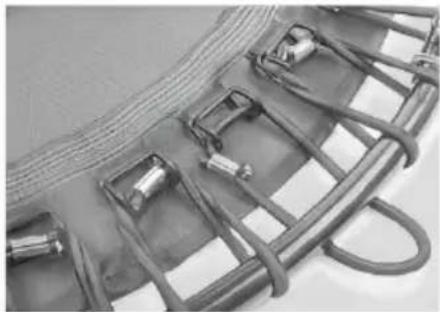

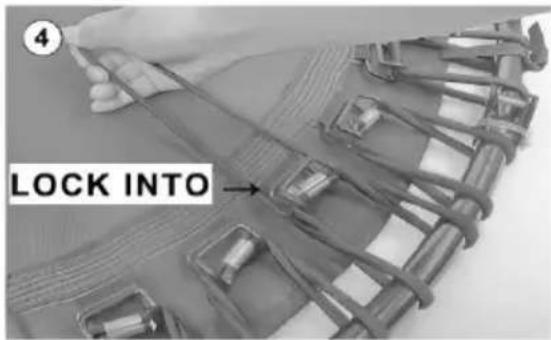

Step 3 - Attach the Bungee Cords

- The trampoline is pre-assembled with 11 bungee cords, and you can install additional bungee cords according to your needs. (It is recommended to install 32 in total.) If you need more detailed instructions on the bungee cord installation, watch the related video at the link.

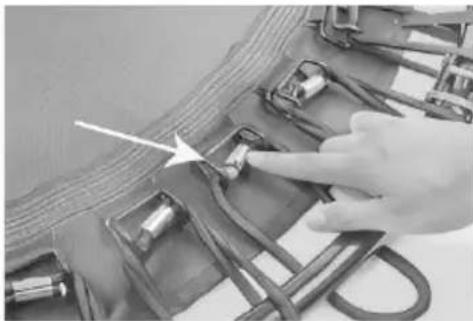

Attention: Please make sure the silver metal ring is in the black metal buckle when installing the bungee cord.

Please use the triangle tool to install the bungee cord, and make sure the bungee cord is properly installed. Refer to the illustrations ①-②-③-④.

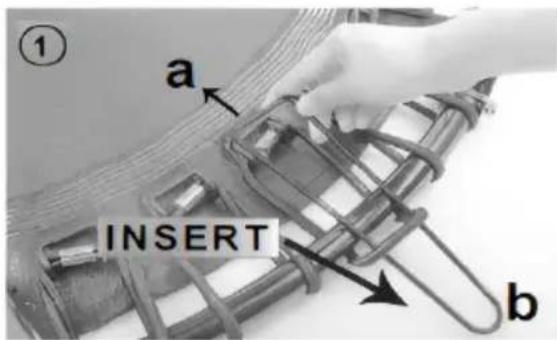

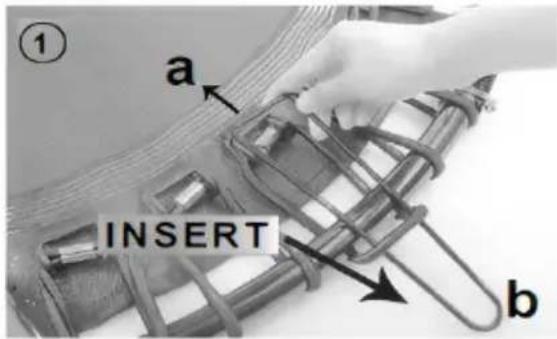

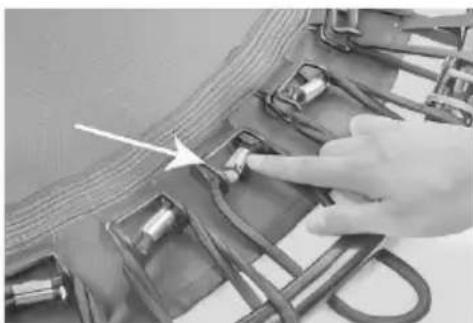

Check the place of the silver metal part and insert #b of the triangle tool into the bungee cord.

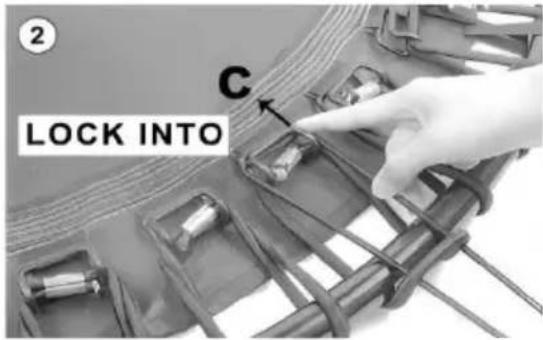

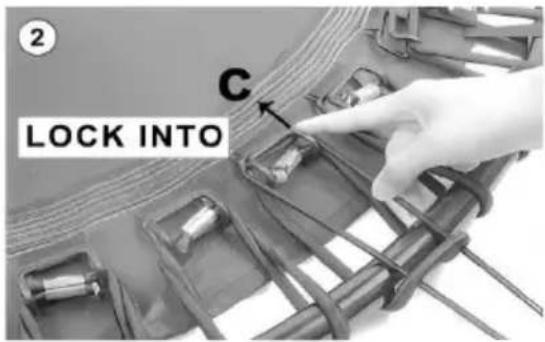

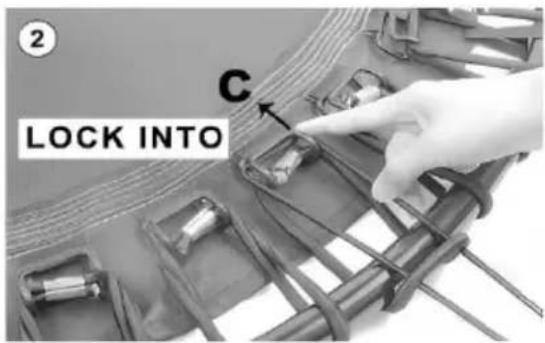

Pull back #b until #a is locked into the black metal buckle (#c).

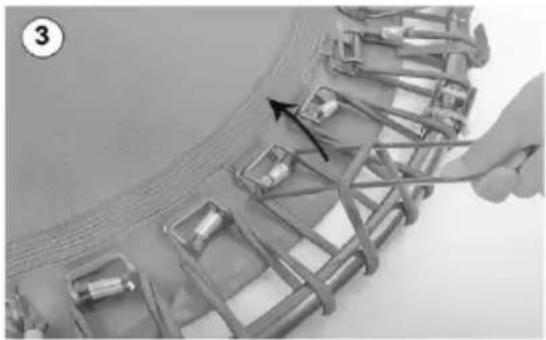

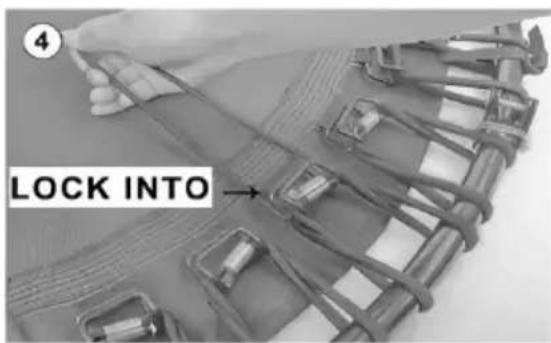

Move #b towards the mat until the bungee cord snaps into the black metal buckle.

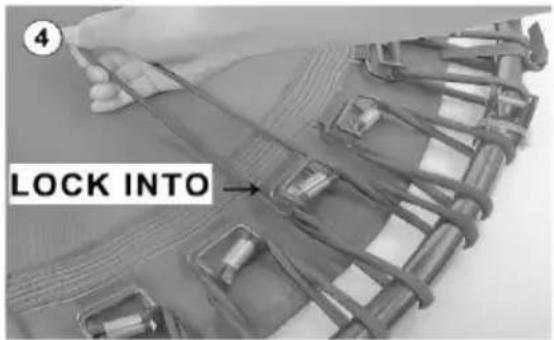

Take out the triangular tool and continue to install the bungee cords until 11 bungee cords are installed.

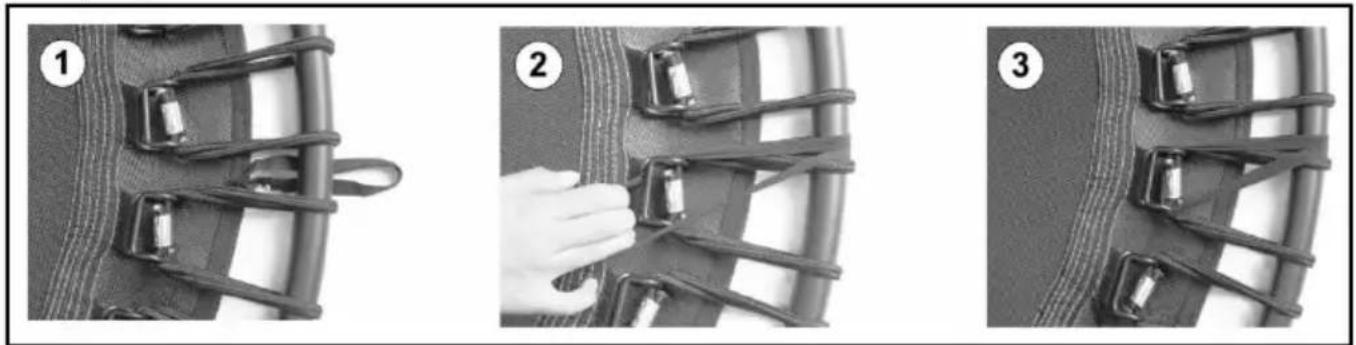

Step 4 - Fasten the strap

- Please attach the straps to the steel buckles following the pictures, otherwise the jump mat may not be secure.

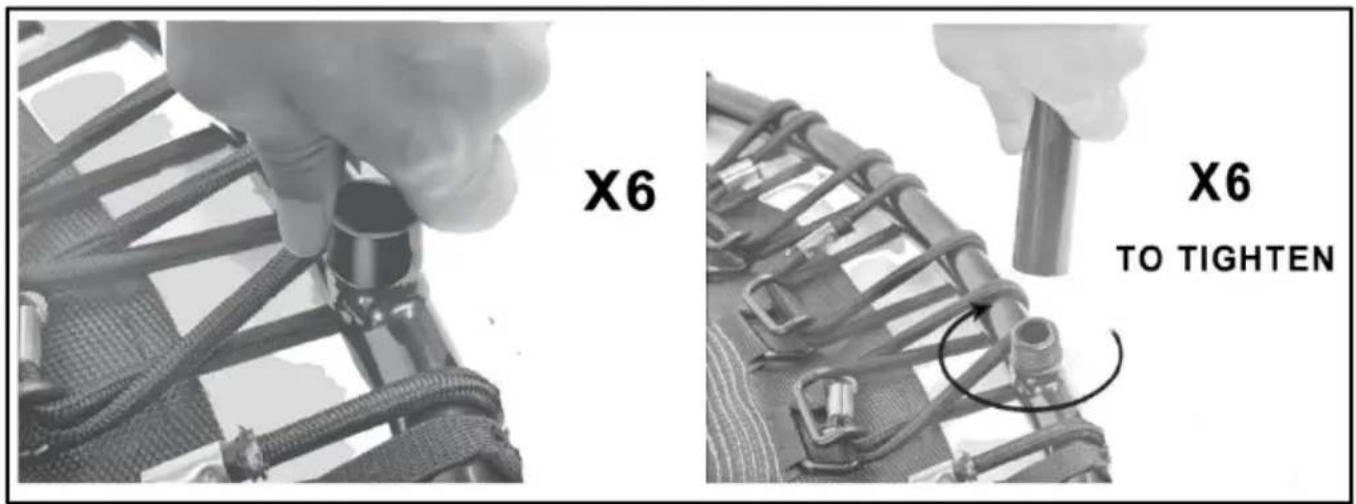

Step 5 - Attach Leg to the Frame

- Remove all protective end caps from screw threads and discard. Insert Leg into leg sockets of the trampoline frame and twist clockwise until completely tight.

Attention: All the Legs and Leg Caps must be screwed tightly. The trampoline must be placed flat on the ground to avoid wobble.

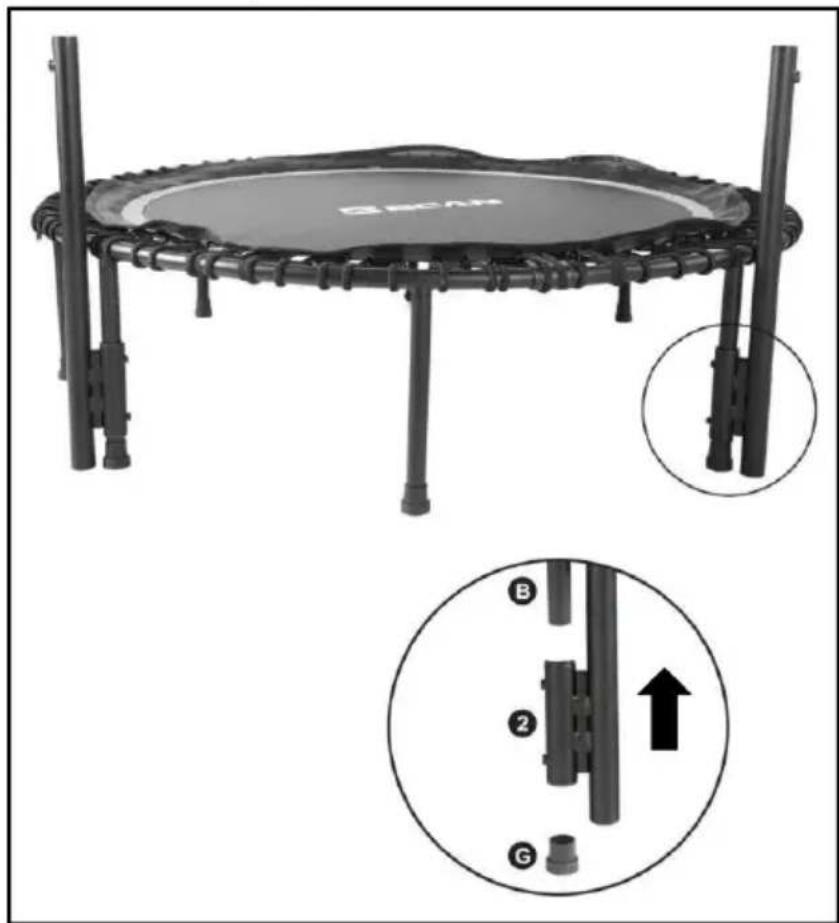

Step 6 - Assemble Handle Bar

- Lift the trampoline to a standing position. Attach Handrail Legs to the two that remove the rubber cap.

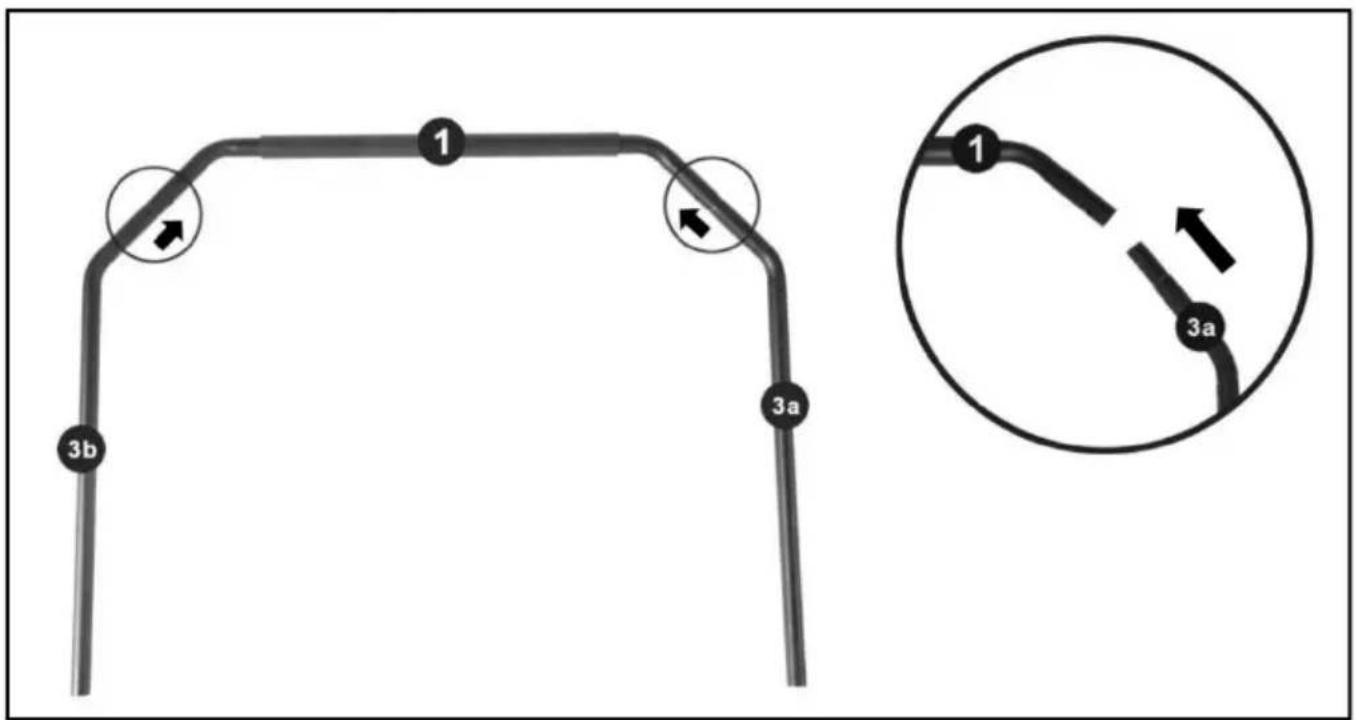

Step 7 - Assemble Handle Bar Support

- Attach Handrail Support (#3a and #3a) to each side of Handle Bar (#1).

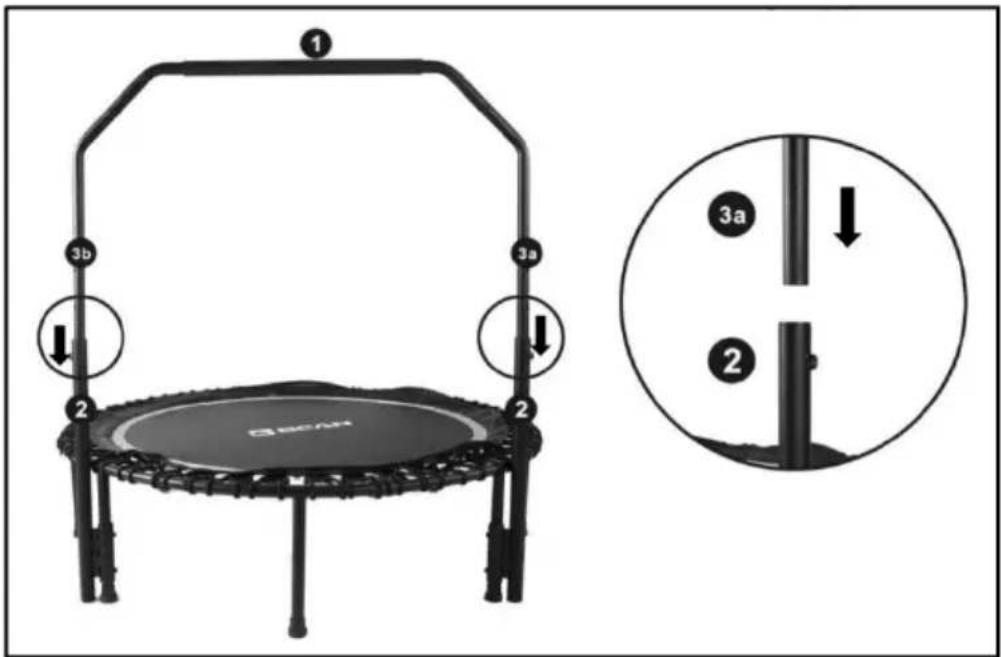

Step 8 - Assemble Handrail Leg

- Connect the assembled handle bar to Handrail Leg Supports (#2)

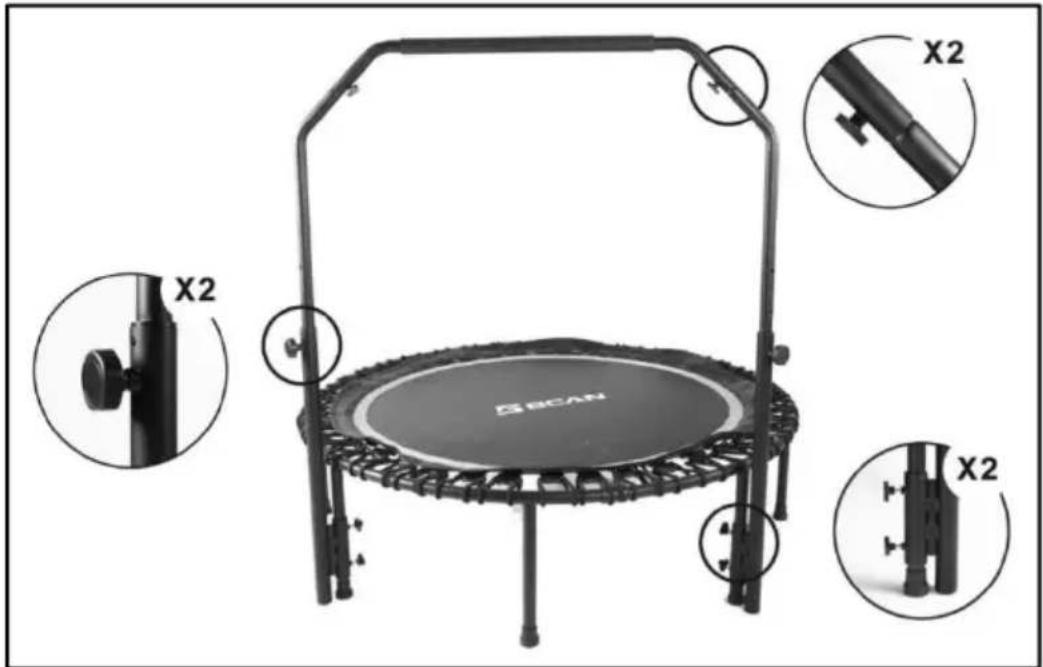

Step 9 - Assemble Adjustable Knobs

• Please make sure the holes of the handle bar parts are aligned before inserting the adjustable knobs.
• Assemble the Adjustment Knobs (#5) at the appropriate height level and the adjustable knobs (#4). Please don't tighten them fully until all adjustable knobs are connected correctly.

Attention: All the Legs (#B), Leg Caps (#G) and Knobs must be screwed tight. Legs (#B) should be flat on the ground to avoid wobbling when in use.

1. Please check whether the product is installed correctly and firmly, and read the safety information in the manual again.
2. The product should be placed on a flat surface. Make sure the net zipper is closed before use. Follow the manual's safety information and enjoy your trampoline.

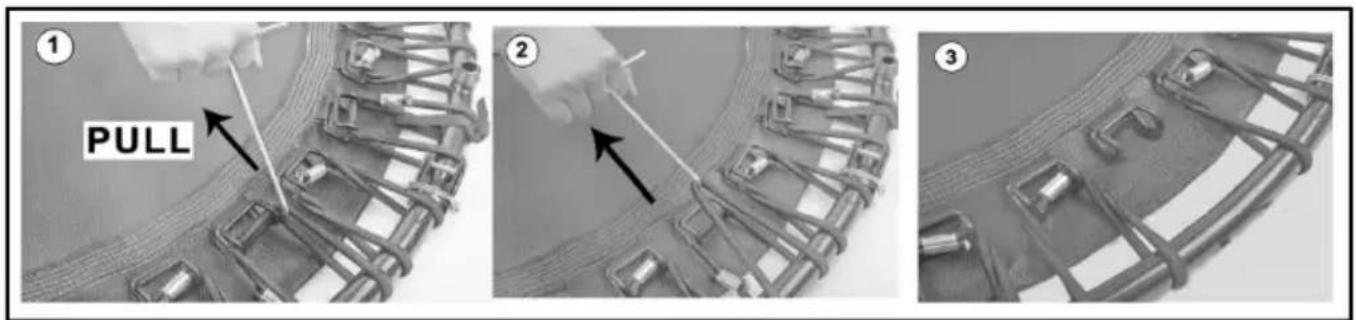

CLOSE TRAMPOLINE

Important Safety Note: Always close your folding trampoline with 2 people. Warning: Keep fingers away from the end of the rails near the hinge. Remove the bungee cord

Special notice: It is easier to fold the trampoline after removing at least some bungee cords.

- Use the T-hook to hook one side of the bungee cord and pull until the cord pops out of the black metal buckle. Then remove the bungee cord. Please follow the steps shown in the pictures ①-②-③.

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad.
2. Children are not allowed to wipe the product to avoid tipping and falling.
3. After disassembling the product, please assemble the parts and accessories. Be sure to keep the product dry.
4. Please clean regularly to avoid dirt.

Notes: Before using it again, reassemble according to the instructions.

TIPS

1. Always step on and off the trampoline carefully, do not jump.
2. Stay in the center of the trampoline when jumping. Don't jump on the edge or on the net.
3. Stop bouncing by flexing your knees as your feet come in contact with the trampoline bed.
4. For safety, it's suggested that lessons from a professional should be acquired before using this trampoline.

Notice: Before anyone uses this trampoline, it is imperative that you read all instructions carefully and make sure that the assembly went without any error.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

SAFETY WARNINGS AND PRECAUTIONS

1. Open the metal lock on the SECURE PINS. Insert the pin through the hinge.

1. Place the metal lock onto the pin

1. Press the metal ring until the SECURE PINS are locked.

1. Make sure the two secure pins are installed correctly.

Please use the triangle tool to install the bungee cord, and make sure the bungee cord is properly installed. Refer to the illustrations ①-②-③-④.

Check the place of the silver metal part and insert #b of the triangle tool into the bungee cord.

Pull back #b until #a is locked into the black metal buckle (#c).

Move #b towards the mat until the bungee cord snaps into the black metal buckle.

Take out the triangular tool and continue to install the bungee cords until 11 bungee cords are installed.

CLEANING AND STORAGE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

SAFETY WARNINGS AND PRECAUTIONS

1. Open the metal lock on the SECURE PINS. Insert the pin through the hinge.

1. Place the metal lock onto the pin.

1. Press the metal ring until the SECURE PINS are locked.

1. Make sure the two secure pins are installed correctly.

Please use the triangle tool to install the bungee cord, and make sure the bungee cord is properly installed. Refer to the illustrations ①-②-③-④.

Check the place of the silver metal part and insert #b of the triangle tool into the bungee cord.

Pull back #b until #a is locked into the black metal buckle (#c).

Move #b towards the mat until the bungee cord snaps into the black metal buckle.

Take out the triangular tool and continue to install the bungee cords until 11 bungee cords are installed.

CLEANING AND STORAGE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

SAFETY WARNINGS AND PRECAUTIONS

1. Open the metal lock on the SECURE PINS. Insert the pin through the hinge.

1. Place the metal lock onto the pin.

1. Press the metal ring until the SECURE PINS are locked.

1. Make sure the two secure pins are installed correctly.

Please use the triangle tool to install the bungee cord, and make sure the bungee cord is properly installed. Refer to the illustrations ①-②-③-④.

Check the place of the silver metal part and insert #b of the triangle tool into the bungee cord.

Pull back #b until #a is locked into the black metal buckle (#c).

Move #b towards the mat until the bungee cord snaps into the black metal buckle.

Take out the triangular tool and continue to install the bungee cords until 11 bungee cords are installed.

CLEANING AND STORAGE

Imported in AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported in the USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

SAFETY WARNINGS AND PRECAUTIONS

1. Open the metal lock on the SECURE PINS. Insert the pin through the hinge.

1. Place the metal lock onto the pin.

1. Press the metal ring until the SECURE PINS are locked.

1. Make sure the two secure pins are installed correctly.

Please use the triangle tool to install the bungee cord, and make sure the bungee cord is properly installed. Refer to the illustrations ①-②-③-④.

Check the place of the silver metal part and insert #b of the triangle tool into the bungee cord.

Pull back #b until #a is locked into the black metal buckle (#c).

Move #b towards the mat until the bungee cord snaps into the black metal buckle.

Take out the triangular tool and continue to install the bungee cords until 11 bungee cords are installed.

Step 5 - Attach the leg to the frame

CLEANING AND STORAGE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

SAFETY WARNINGS AND PRECAUTIONS

1. Open the metal lock on the SECURE PINS. Insert the pin through the hinge.

1. Place the metal lock onto the pin

1. Press the metal ring until the SECURE PINS are locked.

1. Make sure the two secure pins are installed correctly.

Please use the triangle tool to install the bungee cord, and make sure the bungee cord is properly installed. Refer to the illustrations ①-②-③-④.

Check the place of the silver metal part and insert #b of the triangle tool into the bungee cord.

Pull back #b until #a is locked into the black metal buckle (#c).

Move #b towards the mat until the bungee cord snaps into the black metal buckle.

Take out the triangular tool and continue to install the bungee cords until 11 bungee cords are installed.

CLEANING AND STORAGE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-warranty Certificate www.vevor.com/support

FITNESS TRAMPOLINE

MODEL: TX-B6232C-40IN+C / TX-B6232C-48IN+C

NEED HELP? CONTACT US!

SAFETY WARNINGS AND PRECAUTIONS

1. Open the metal lock on the SECURE PINS. Insert the pin through the hinge.

1. Place the metal lock onto the pin.

1. Press the metal ring until the SECURE PINS are locked.

1. Make sure the two secure pins are installed correctly.

Please use the triangle tool to install the bungee cord, and make sure the bungee cord is properly installed. Refer to the illustrations ①-②-③-④.

Check the place of the silver metal part and insert #b of the triangle tool into the bungee cord.

Pull back #b until #a is locked into the black metal buckle (#c).

Move #b towards the mat until the bungee cord snaps into the black metal buckle.

Take out the triangular tool and continue to install the bungee cords until 11 bungee cords are installed.

CLEANING AND STORAGE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

SAFETY WARNINGS AND PRECAUTIONS

1. Open the metal lock on the SECURE PINS. Insert the pin through the hinge.

1. Place the metal lock onto the pin

1. Press the metal ring until the SECURE PINS are locked.

1. Make sure the two secure pins are installed correctly.

Please use the triangle tool to install the bungee cord, and make sure the bungee cord is properly installed. Refer to the illustrations ①-②-③-④.

Check the place of the silver metal part and insert #b of the triangle tool into the bungee cord.

Pull back #b until #a is locked into the black metal buckle (#c).

Move #b towards the mat until the bungee cord snaps into the black metal buckle.

Take out the triangular tool and continue to install the bungee cords until 11 bungee cords are installed.

Step 7 - Mount the steering support

CLEANING AND STORAGE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
