Brand	Vevor
Model	SDKC2024XT0626QGQ
Product Type	Trampoline (Replacement Jumping Mat)
Jumping Mat Diameter (Padded)	147 inches (approx. 3.73 m)
Suitable Frame Outer Diameter	14 feet (approx. 4.27 m)
Spring Length	6.5 to 7 inches (approx. 16.5 to 17.8 cm)
Number of V-Ring Joints	72 pieces
V-Ring Joint Material	Mild Steel
Included Accessories	Spring Tension Tool
Assembly	Requires at least 2 people and provided tool
Safety	Beware of pinch points during assembly
Recommended Use	Outdoor exercise and leisure
Maintenance	Regularly check springs and mat
Cleaning	Clean mat with a damp cloth, avoid abrasive products
Spare Parts	Available via www.vevor.com/support
Repairability	V-Ring joint and springs replaceable

Frequently Asked Questions - SDKC2024XT0626QGQ Vevor

How to correctly measure my trampoline to buy the right mat?

Measure the frame from one outer edge to the other (vertically and horizontally) to get the diameter. Count the number of spring holes. Measure the length of one spring (from hook to hook without stretching). Compare with the compatibility table provided.

Is the spring tension tool included?

Yes, a spring tension tool is provided in the package to facilitate spring installation.

How many people are needed for assembly?

It is recommended that at least 2 people participate in the mat assembly for safety and ease.

What is the maximum weight capacity of this trampoline?

The manual does not specify a weight capacity. Consult the original frame instructions or contact Vevor support for an estimate.

Can I use this mat on a non-round frame?

This mat is designed for round or oval frames. Check the spring assembly diagram according to your frame style in the manual.

How to maintain the trampoline mat?

Clean the mat with a damp cloth and mild soap. Avoid harsh chemicals. Store it away from weather if possible.

Are the springs included with the mat?

No, only the mat and tension tool are included. Springs must be reused from your old set or purchased separately.

How to know if the mat is the right size before installation?

Follow the measurement steps in the manual: measure the frame, count spring holes, and measure one spring. Compare with the compatible models table.

Is there a warranty for this product?

Yes, Vevor offers an electronic support and warranty certificate. Register at www.vevor.com/support for more details.

Can I order spare parts (V-rings, mats)?

Yes, contact Vevor customer service via www.vevor.com/support. Provide your model number to get the right part.

USER MANUAL SDKC2024XT0626QGQ Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

TRAMPOLINE MAT ASSEMBLY

MODEL: SDKC20240628CGQ \ SDKC2024Q40628CGQ \ SDKC202406YY28CGQ \ SDKC2024XT0626QGQ \ SDKC2024Y06U58CGQ \ SDKC0628QYL42P0 \ SDKC202369CCZECGG

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TRAMPOLINE MAT ASSEMBLY

MODEL: SDKC20240628CGQ \ SDKC2024Q40628CGQ \

SDKC202406YY28CGQ \ SDKC2024XT0626QGQ \ SDKC2024Y06U58CGQ \

SDKC0628QYL42PO \ SDKC202369CCZECGG

TYPES-ROUND

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Thank you for choosing our TRAMPOLINE MAT ASSEMBLY for all your trampoline and trampoline replacement needs!

Simply follow the assembly and safety instructions in this manual and you will soon be starting your exercise program for a happier, healthier and more active lifestyle!

Before you begin to install your new jumping mat, please verify that the mat you purchased is the correct size for your trampoline. To ensure that the trampoline mat you bought is the right size, please follow the steps below:

Measuring Tips for Jumping Mat

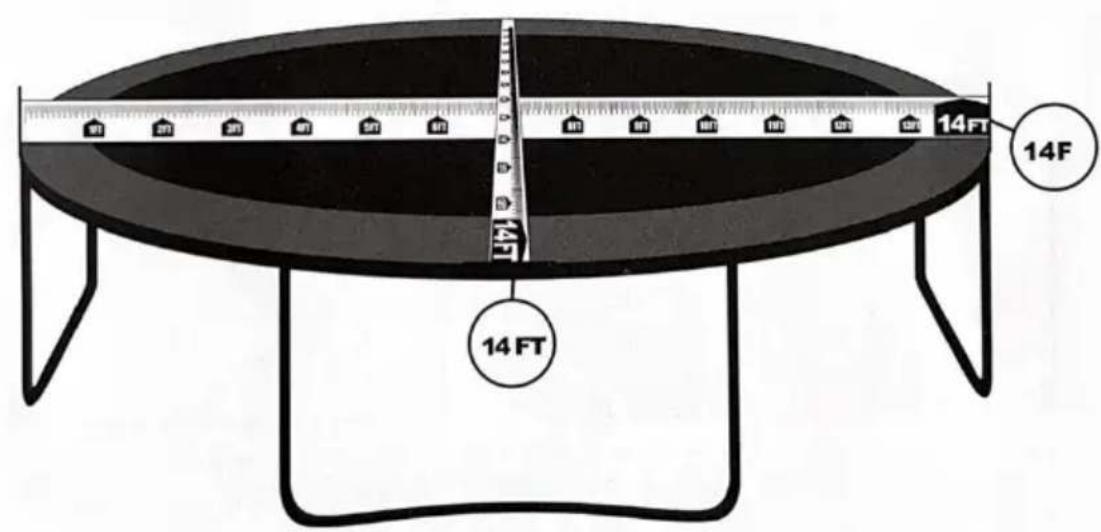

Step 1. FRAME SIZE

Measure your frame from one outer edge to the other with a measuring tape. Do this both vertically and horizontally across the center of the trampoline. Make sure it is from the outer edge so that you get the correct measurements.

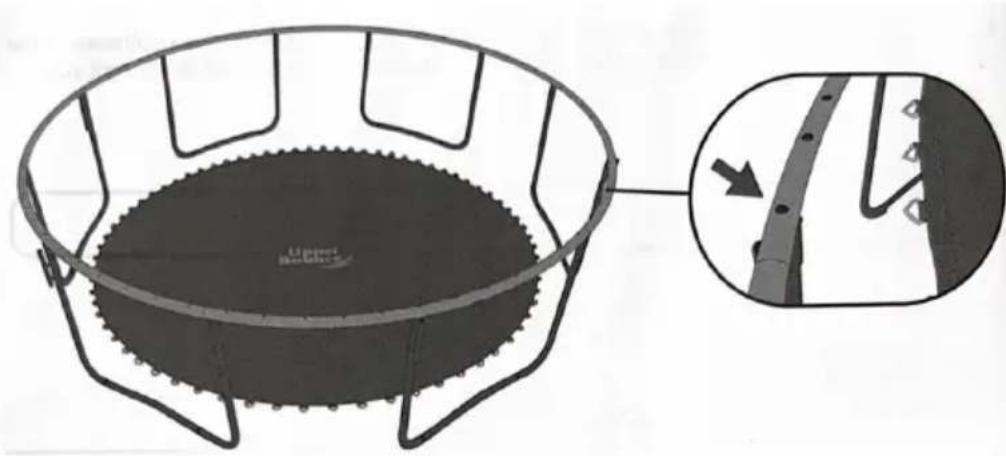

Step 2. AMOUNT OF SPRING HOLES

Count the amount of spring holes on your trampoline frame.

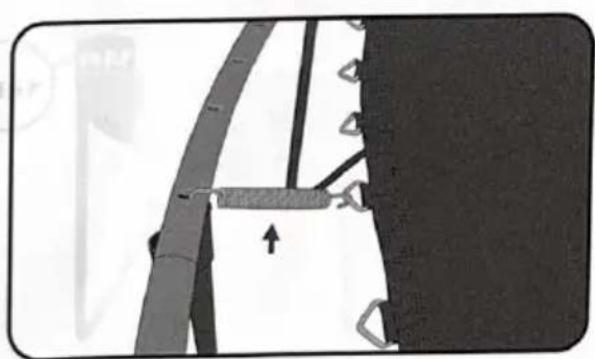

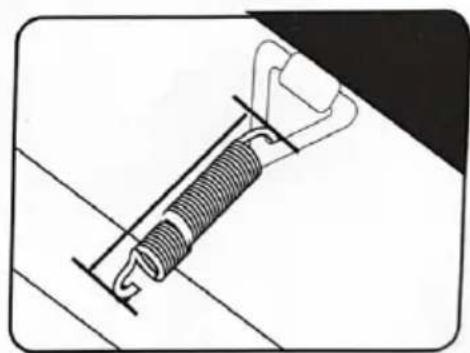

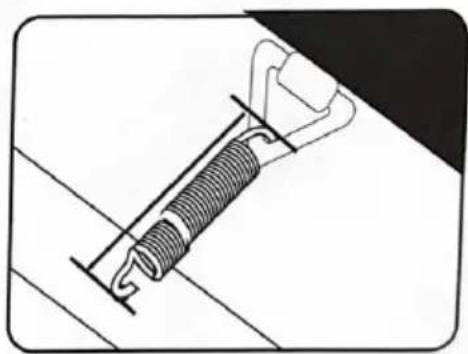

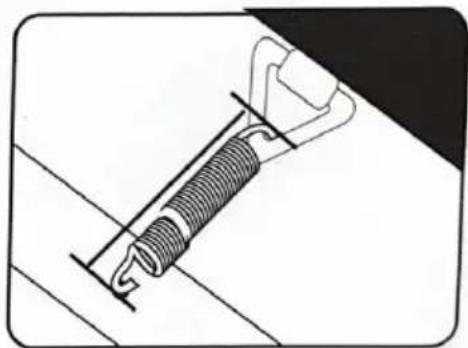

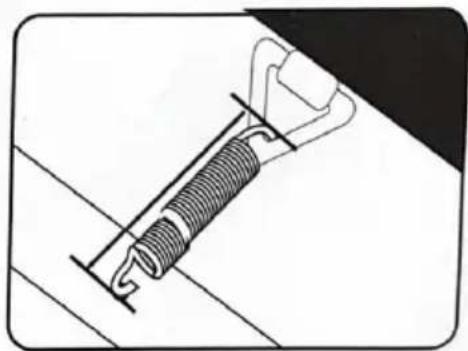

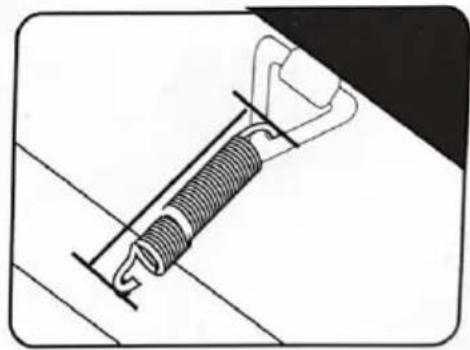

Step 3. SIZE OF THE SPRINGS

Measure the spring size from hook to hook unstretched.

Based on the

1) Frame Size 2) Spring Amount 3) Spring Size

Determine if you bought the correct jumping mat.

IMPORTANT NOTICE

1. Be careful where you place your hands during spring assembly as connector points can pinch!
2. We recommend at least 2 people participate in assembling the Jumping Mat.

NOTE:

You will need a spring tool to help you install the springs to the frame (included in the package).

How to use the spring pulling tool

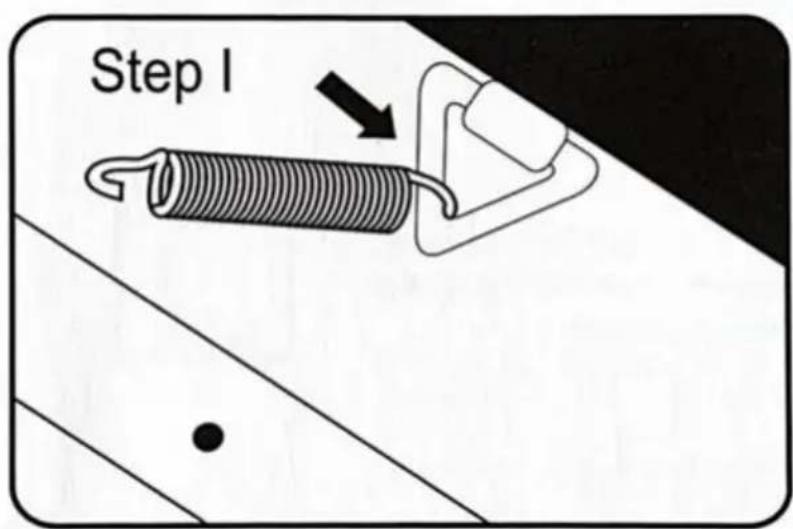

Step 1: Hook the more rounded end of the spring onto the trampoline mat's triangular rings.

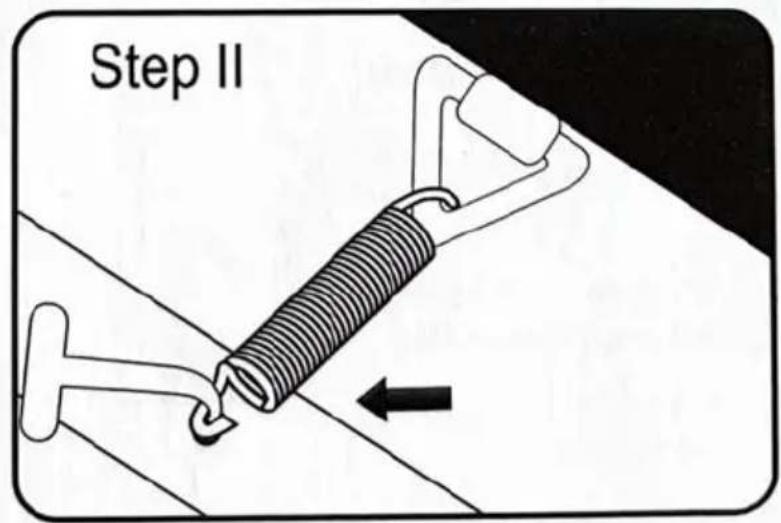

Step 2: Extend the spring pull tool and link it up with the other end of the spring. Pull the tool in the direction of the trampoline frame until the spring is lined up with the hole in

the trampoline frame. Slide the spring end into the hole as you remove the tool.

See below the pattern of the spring assembly according to your frame style.

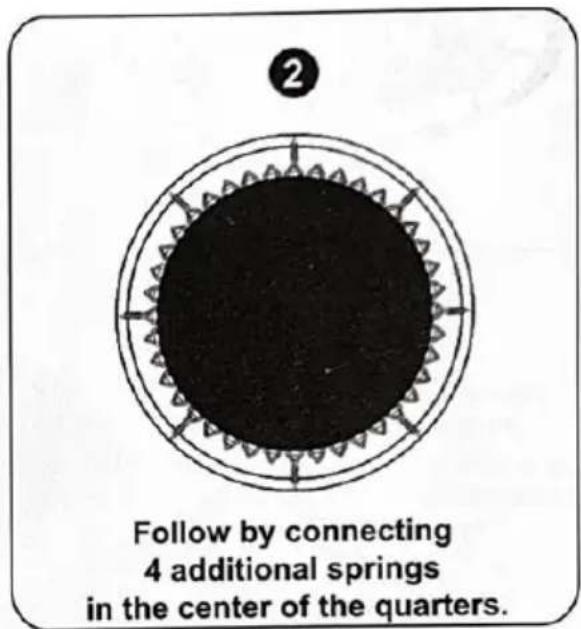

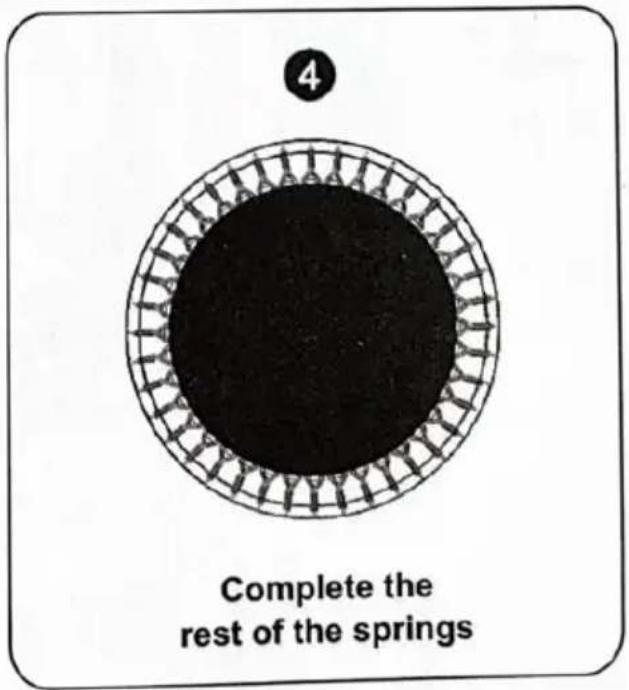

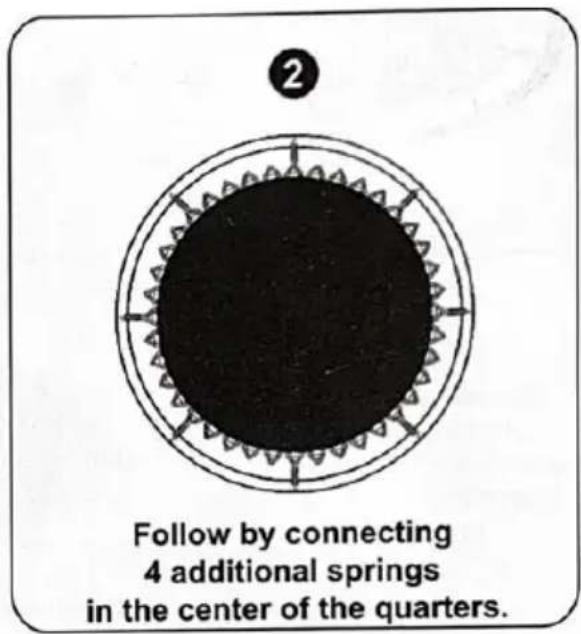

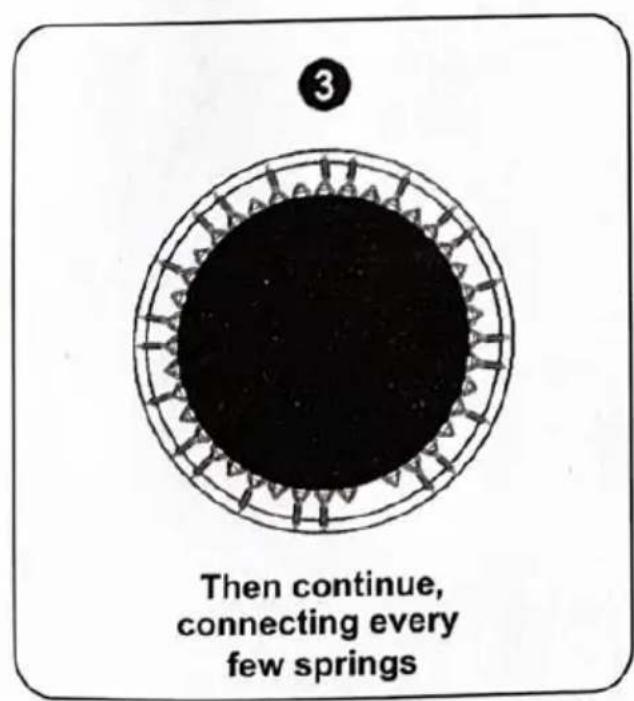

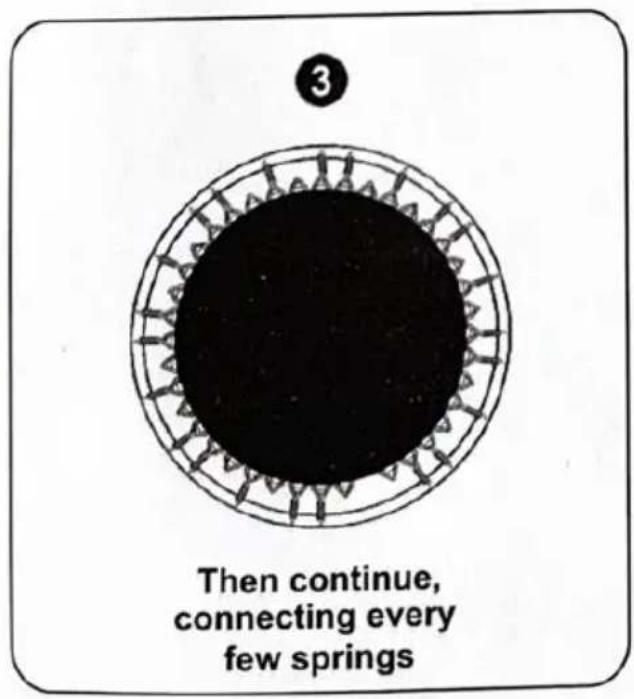

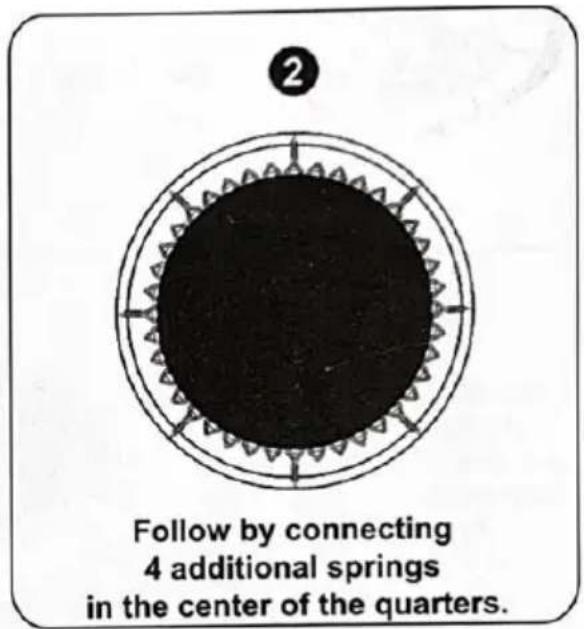

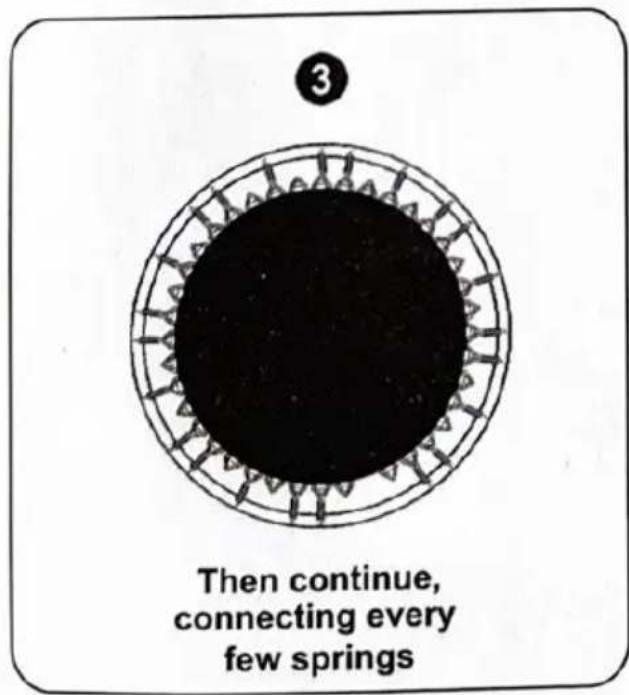

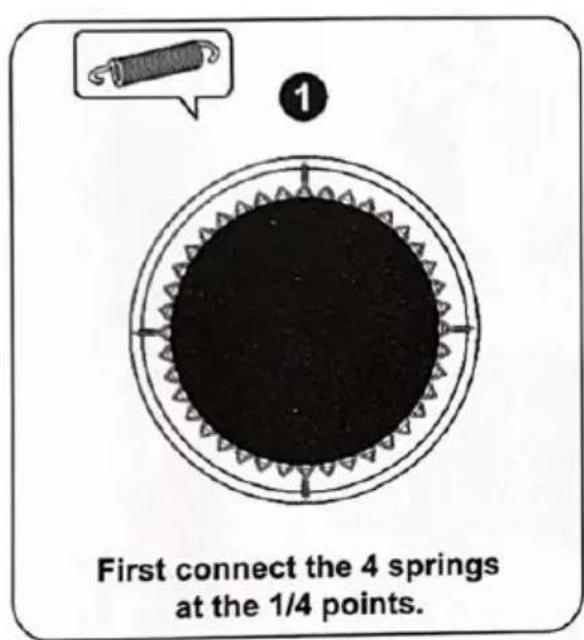

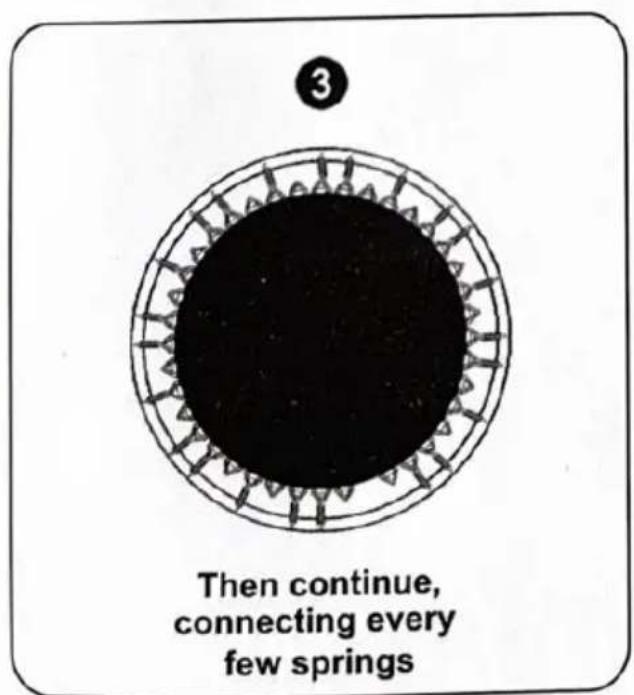

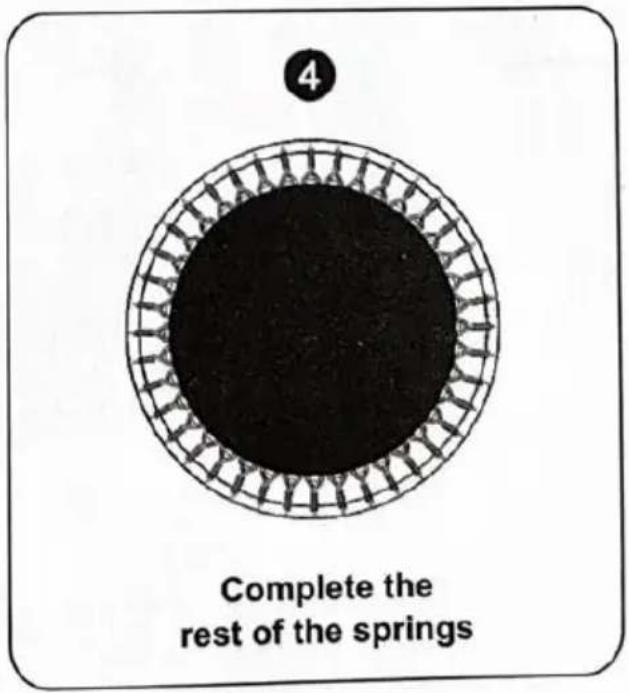

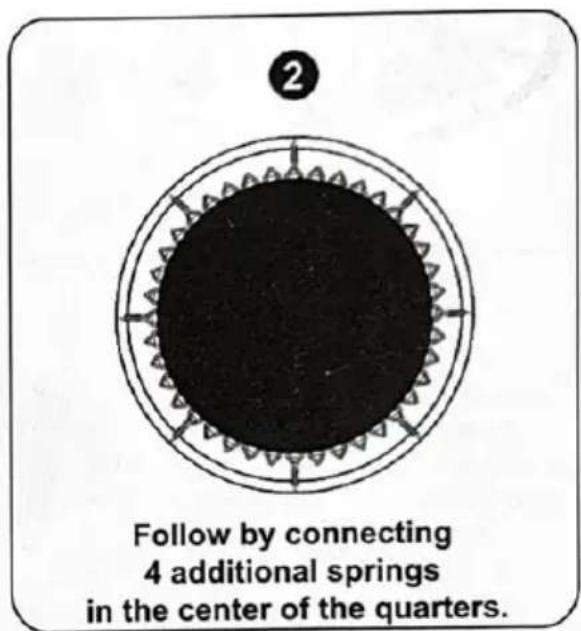

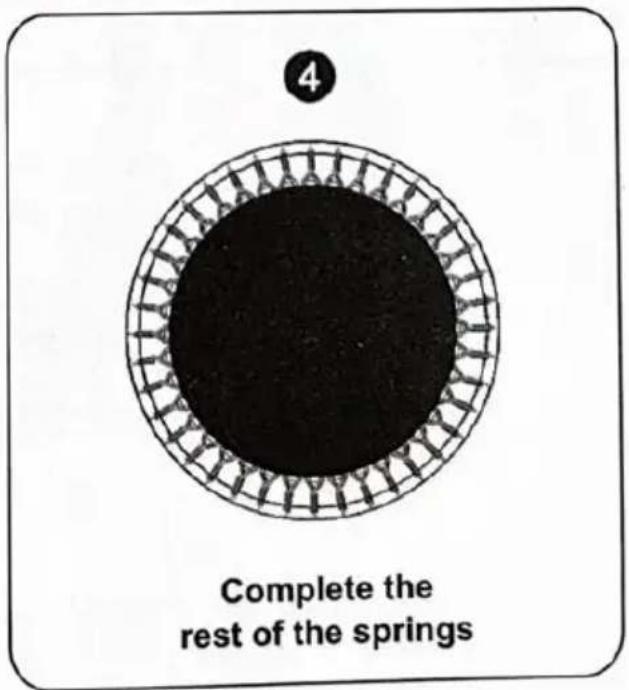

SPRING ASSEMBLY PATTERN

ROUND/OVAL

Note: Make sure the v-rings between the springs match the number of holes in the frame between the springs.

Parameters

	padded jumping diameter (inch)	Adapted to the outer diameter of the trampoline frame (ft)	Adapted spring length (inch)	V-Ring Material	Number of V-rings (pcs)
SDKC20240628CGQ	127	12	5.5	mild steel	72
SDKC2024Q40628CGQ	136	13	7	mild steel	80
SDKC202406YY28CGQ	150	14	5.5	mild steel	72
SDKC2024XT0626QGQ	147	14	6.5-7	mild steel	72
SDKC2024Y06U58CGQ	147	14	7	mild steel	96
SDKC0628QYL42PO	161	15	6.5	mild steel	96
SDKC202369CCZECGG	159	15	7	mild steel	96

Our Customer Service Department staff are trained in the details of all trampolines and will help you find the right part to get you bouncing again. We never forget our goal... Get the Upper Bounce!
