Brand	Vevor
Model	ZT10FTBWHD-US
Product type	Inflatable water trampoline with slide
Dimensions	Diameter 10 ft (3.05 m) approx
Maximum user weight	80 kg (according to safety instructions)
Power supply	AC 110-120 V, 50-60 Hz, 600 W
Air pump included	Yes, built-in electric pump with inflation and deflation function
Minimum recommended age	6 years (adult supervision required for under 6)
Number of simultaneous users	1 person
Recommended water depth	At least 1 meter
Included accessories	Rope ladder, water ballast bag, repair patch
Material	Durable PVC
Safety standards	CE, UKCA
Care and cleaning	Wipe with a soft dry cloth; do not use abrasive cleaners
Storage	Deflate, dry, roll, and store in original carton
Repairability	Repair kit included for leaks; use PU resin glue

Frequently Asked Questions - ZT10FTBWHD-US Vevor

What is the maximum weight allowed on this water trampoline?

According to safety instructions, the maximum weight allowed is 80 kg. Although the technical sheet indicates 185 kg, it is imperative to respect the 80 kg limit to avoid any risk of injury.

From what age can a child use this trampoline?

The minimum recommended age is 6 years. Children under 6 must be constantly supervised by an adult capable of assessing risks.

How to inflate the water trampoline?

Use the supplied electric pump: plug it into a 110-120 V outlet, insert the output hose into the trampoline's air inlet valve, and turn on the pump. Do not overinflate to avoid damaging the product. If the pump stops due to overheating, let it cool for 30 minutes before reusing.

Can I use the trampoline without supervision?

No, never leave the trampoline unsupervised while in use, especially in the presence of children. A responsible adult must always supervise users.

What safety precautions should I take before each use?

Inspect the trampoline for any leaks or damage. Remove all sharp objects, jewelry, glasses, and watches. Make sure the water bag is filled and securely attached. Check that the water depth is at least 1 meter.

How to clean and maintain the trampoline?

Clean it with a soft dry cloth. Never use abrasive cleaners or harsh pads. After use, deflate it, dry it completely, and store it in its carton to avoid odors and damage.

What to do if the trampoline has an air leak?

Use the included repair patch: clean the area around the leak, apply PU resin glue (not supplied) to the patch and the area, then stick and smooth. For better adhesion, you can heat the patch with a hair dryer.

Can the trampoline be used with multiple people?

No, it is strictly forbidden to have more than one person at a time on the trampoline. Using the trampoline with multiple people significantly increases the risk of collision and injury.

What is the minimum required water depth?

The water depth must be at least 1 meter to ensure safe use. The area must be supervised by a lifeguard or a competent adult.

Can I use the trampoline in bad weather?

No, do not use the trampoline in rain, storms, or strong winds. Weather conditions can make use dangerous (risks of lightning, wind lift, etc.). Remove the trampoline from the water in case of bad weather.

USER MANUAL ZT10FTBWHD-US Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

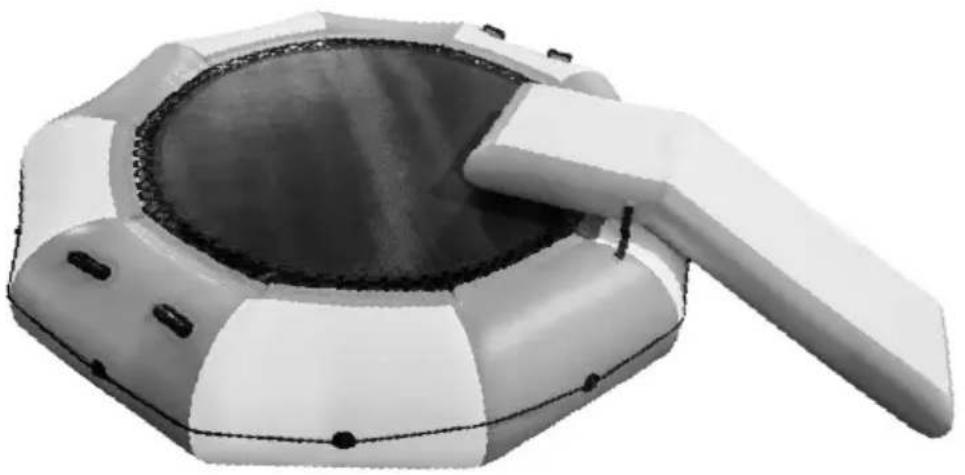

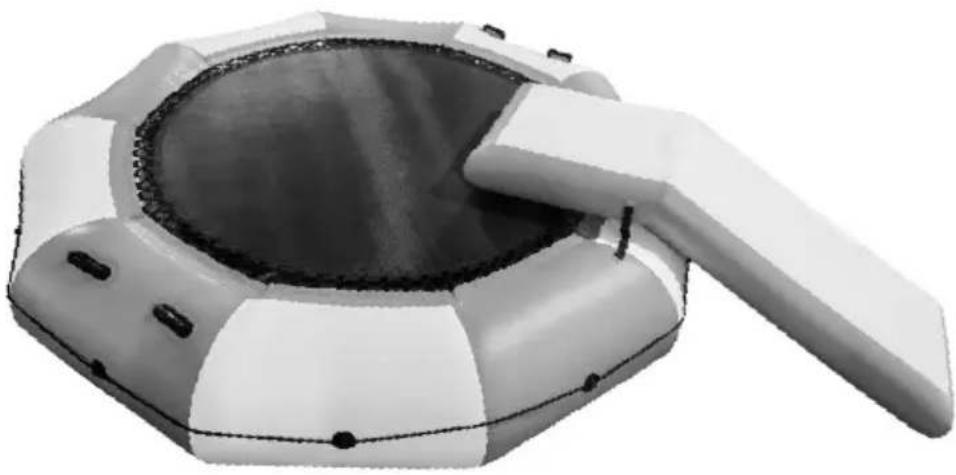

WATER TRAMPOLINE

MODEL: ZT10FTBWHD-US / ZT10FTBWHD-EU / ZT10FTBWHD-AU / ZT10FTBGHD-US / ZT10FTBGHD-EU

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: ZT10FTBWHD-US / ZT10FTBWHD-EU / ZT10FTBWHD-AU / ZT10FTBGHD-US / ZT10FTBGHD-EU

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Not recommended for children under 6 years of age.
	Do not use during pregnancy!
	Do not use when suffering from high blood pressure!
	Only one person on the trampoline!
	Use only bare feet!
	No somersaults!
	No smoking!
	Remove all sharp objects from trampoline and jumper!
	Do not bring watches, glasses, rings, scissors, phone etc.
	CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection in European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices
	Compliance is a EC & UK security certification.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please call a doctor.

Please read ALL the instructions before using your machine.

1. Assembly needs to follow these instructions. Incorrect assembly can be a hazard.
2. Do not assemble and use when tired or when under the influence of alcohol, drugs, or medication.
3. Elastic and other product properties only apply to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. The water trampoline must be set up by an adult following the instructions. Do not allow children and pets to play alone or approach this item. Do not climb on the product.
7. Users need to climb up the water trampoline along the escalator, and only one person can use the escalator at a time.
8. Inspect before every use.
9. Pay attention to safety when using.
10. It is prohibited for people with skin diseases, cardiovascular and cerebrovascular diseases to use this product. Pregnant women and people with bone diseases are prohibited from using this product. People weighing more than 80 kg are prohibited from using this product.
11. Do not use it for commercial purposes.
12. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
13. Never leave it unattended while in use. Never leave the child unattended.
14. Pet urine and feces can damage the product, please keep away.
15. Do not place the product on or near hot air, electric burners, or heaters. Fireworks, cigarettes, flares, and other items can ignite the product. Please stay away from them.
16. It is recommended that the water depth of the water trampoline should be less than 1 meter, and it must be supervised by professional lifeguards or adults with good water skills. Users must wear life jackets (provided by customers).
17. A breeding bag must be used to prevent the water trampoline from floating away.
18. It is strictly forbidden to use water trampolines and slides without sufficient pressure. If the air bag is found to be weak, it must be dealt with in time and replenished before continued use.
19. Do not eat or drink while jumping. It is advisable not to bounce immediately after a meal.
20. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Not suitable for children under 36 months - small parts, choking hazard.
21. Always jump in the middle of the mat and practice bounce techniques set with adult supervision and guidance.
22. Take your shoes off while jumping. Empty pockets and hands before jumping. Do not wear glasses.
23. Do not allow more than one person at a time on the trampoline. Do not allow multiple people at the same time.
24. Max user weight limit: check size chart.
25. Do not wear hooks, snaps, drawstrings or similar items that could get caught on the trampoline. Before use, remove all necklaces and earrings.
26. Tights or shoes with smooth leather soles are not suitable for trampoline use.
27. The minimum age for using the water trampoline is 6 years. Children under 6 should only use the trampoline under the supervision of an adult able to assess the risks.
28. If you have heart disease, high blood pressure or other physical diseases, you should not use this product. We accept no liability for consequential damage caused by non-compliance.

⚠ WARNING: This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product. Do not use outdoors on rainy and cloudy days and in strong wind conditions, to avoid lightning strikes and falls. People or pets hanging on the product will cause injury or death.

1. Do not attempt somersaults on the trampoline. Landing on the head or neck, even in the middle of the trampoline, can result in serious injuries such as paralysis, and in the worst case, death.

PRODUCT PARAMETERS

Model	Voltage	Power	Maximum load
ZT10FTBWHD-US	AC110-120V50-60Hz	600W	407 Pound ( 185Kg )
ZT10FTBWHD-EU	AC220-240V50-60Hz	600W	407 Pound ( 185Kg )
ZT10FTBWHD-AU	AC220-240V50-60Hz	600W	407 Pound ( 185Kg )
ZT10FTBGHD-US	AC110-120V50-60Hz	600W	407 Pound ( 185Kg )
ZT10FTBGHD-EU	AC220-240V50-60Hz	600W	407 Pound ( 185Kg )

Attention:

1. Please use an appropriate external power supply according to the product voltage.
2. Do not exceed the maximum load specified in the product manual.
3. People weighing more than 80 kg are prohibited from using this product.
4. It is recommended that only one person uses the product at a time to avoid collisions between people.

HOW TO USE AN AIR PUMP

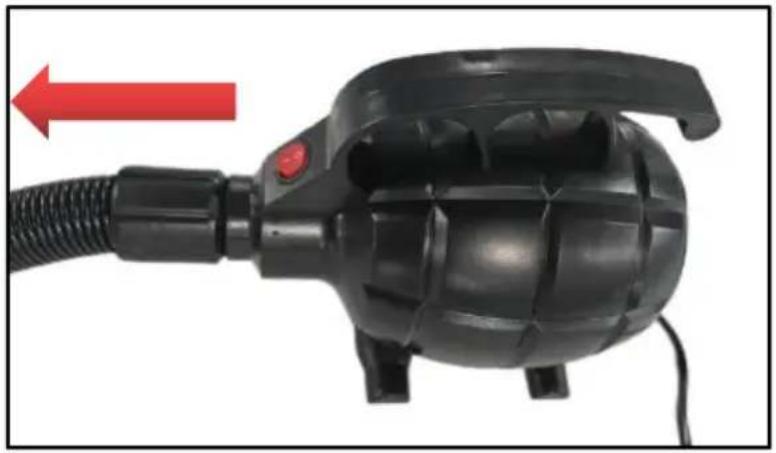

● Inflating: The side with the knob is the inflation port.

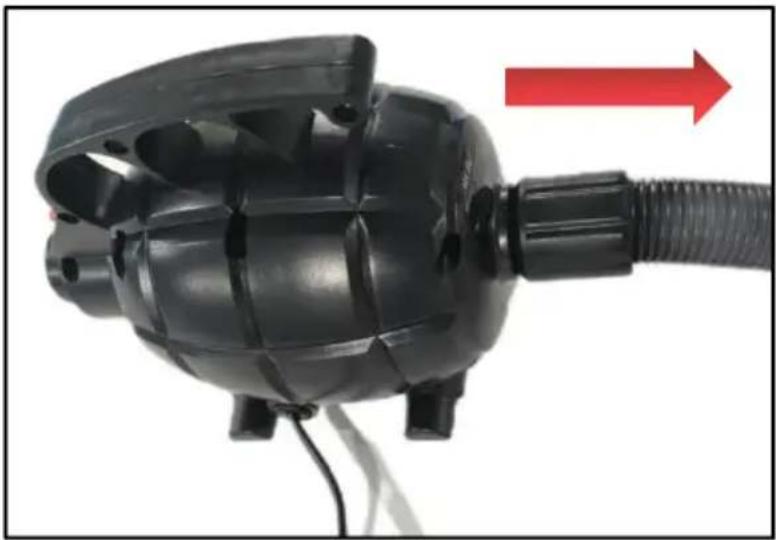

● Deflating: The side away from the switch is the air extraction port.

Attention: Continuous use of the air pump for a long time will cause it to stop working due to high temperature protection. In this case, unplug the air pump and allow it to cool down for 30 minutes before continuing to use it.

Warning:

- Do not use the air pump in a humid environment to avoid electric shock.

● Unplug the air pump when not in use.

- Keep children and pets away from the air pump.

The air pump is only allowed to be used when the product is inflated.

Do not over-inflate to avoid product damage.

PRODUCT INFLATION

1. Please dispose of all plastic bags carefully and keep them away from children and pets.
2. Check all components provided according to the list in this manual. Make sure you have all of the parts listed.
3. Although particular attention is paid when manufacturing this product, you should be careful during the assembly process to avoid being scratched by sharp edges.
4. Wear protective gloves during assembly and use.
5. The product requires two people to assemble.

NOTE: The quantity of parts shown in the manual is the actual usage, and the unused parts are spare parts.

Step 1

Open the product package, take out the water trampoline and accessories, and place them on a spacious, flat surface free of debris and sharp objects.

Step 2

Find the air inlet valves of the trampoline and the slide, unscrew the outer cover of the valve, insert the air outlet pipe of the special electric air pump into the inlet valve of the product, and connect the power supply to inflate the trampoline respectively. After inflation is completed, screw on the valve outer cover.

Step 3

Tie the rope ladder to the buckle under the handle and make sure it is hooked under one of the armrests.

Step 4

Fill the water bag with water and securely tie it to the two D-shaped metal buckles under the product. Prevent the product from floating away.

FIXED SLIDE

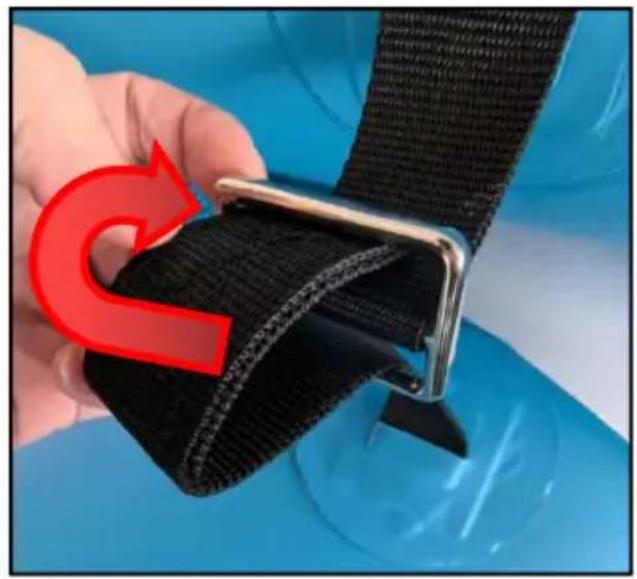

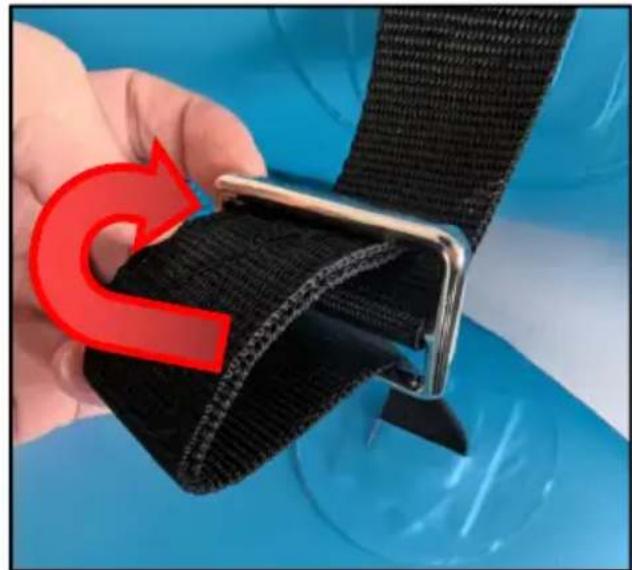

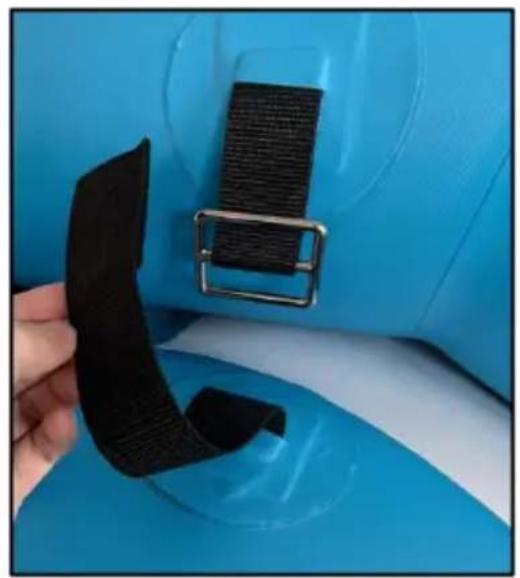

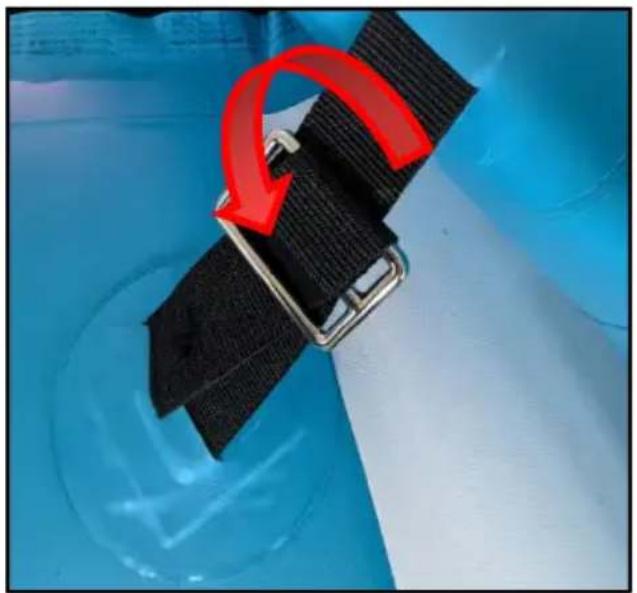

Step 5

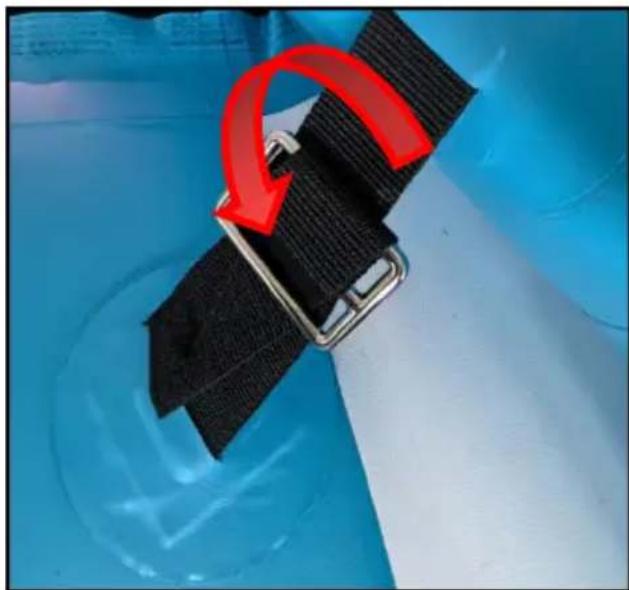

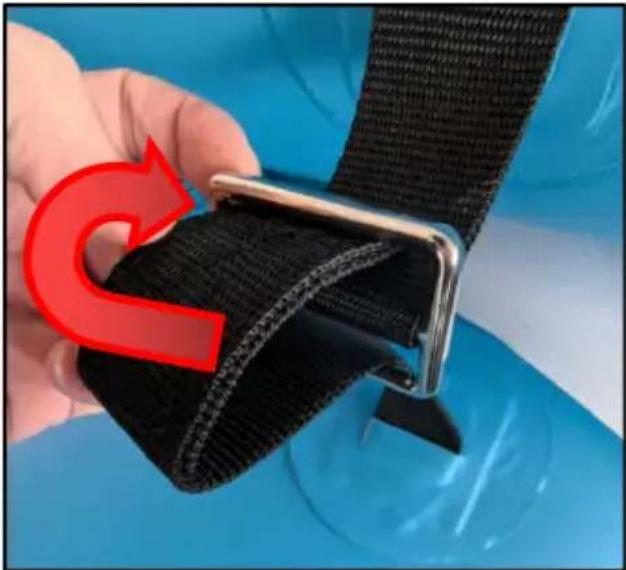

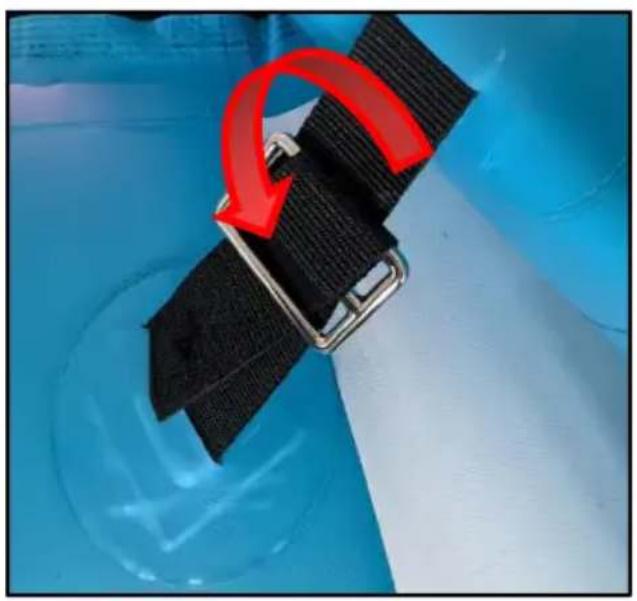

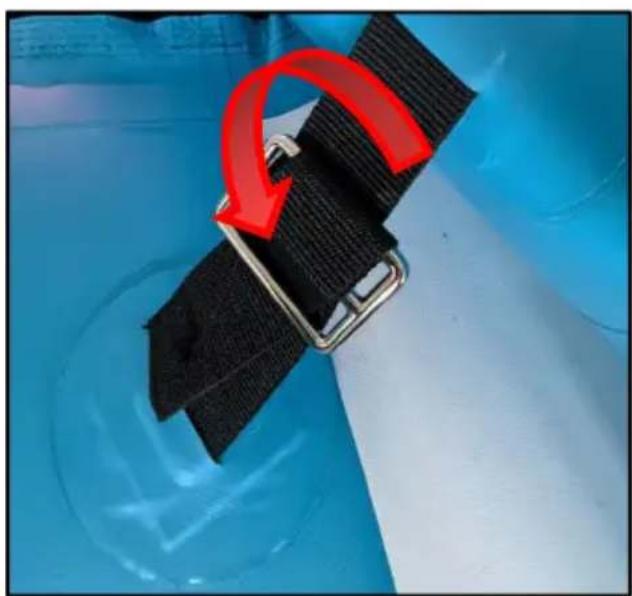

Pass the rope on the product through the metal buckle on the slide, then pass it through the metal buckle again. Pull with your hands to see that it is firm. The slide needs to be sprayed with water or have foam added to increase lubrication before use.

Step 6

Confirm that the product does not leak air, and double-check that the instructions are followed. Enjoy using this product.

STORAGE

NOTE:

1. Make sure there are no people, pets, or objects on or under the product.
2. Make sure the product is dry to avoid odor.

Step 7

Open the outer valve and use the air pump function to pump out the air. Step 8

After the air is completely extracted from the product, two people are required

to roll the product up together.

Step 9

● Put the rolled products and accessories back into the carton to avoid loss.

CLEANING

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad.
2. Children are not allowed to wipe the product to avoid tipping and falling.
3. After disassembling the product, please assemble the parts and accessories. Be sure to keep the product dry.
4. Please clean regularly to avoid dirt.

Notes: Before using it again, reassemble according to the instructions.

TIPS

1. Always step on and off the trampoline carefully, do not jump.
2. Stay in the center of the trampoline when jumping. Don't jump on the edge or on the net.
3. Stop bouncing by flexing your knees as your feet come in contact with the trampoline bed.
4. For safety, it's suggested that lessons from a professional should be acquired before using this trampoline.

Notice: Before anyone uses this trampoline, it is imperative that you read all instructions carefully and make sure that the assembly went without any error.

REPAIR METHOD

If your product is damaged, scratched, cracked, or otherwise leaking, please repair it in time before use. Clean the impurities and sludge at the air level location, apply PU resin glue (prepared by the customer), and apply glue to the patch (in your product packaging). When the applied glue is almost completely dry, stick it on, knead and smooth it. It is recommended to use a hot air gun (provided by the customer) to heat the patch while scraping it flat to achieve a stronger thermal bonding effect.
