USER MANUAL 800lb-1 Vevor
Technical Support and E-Warranty Certificate www. vvor. com/support

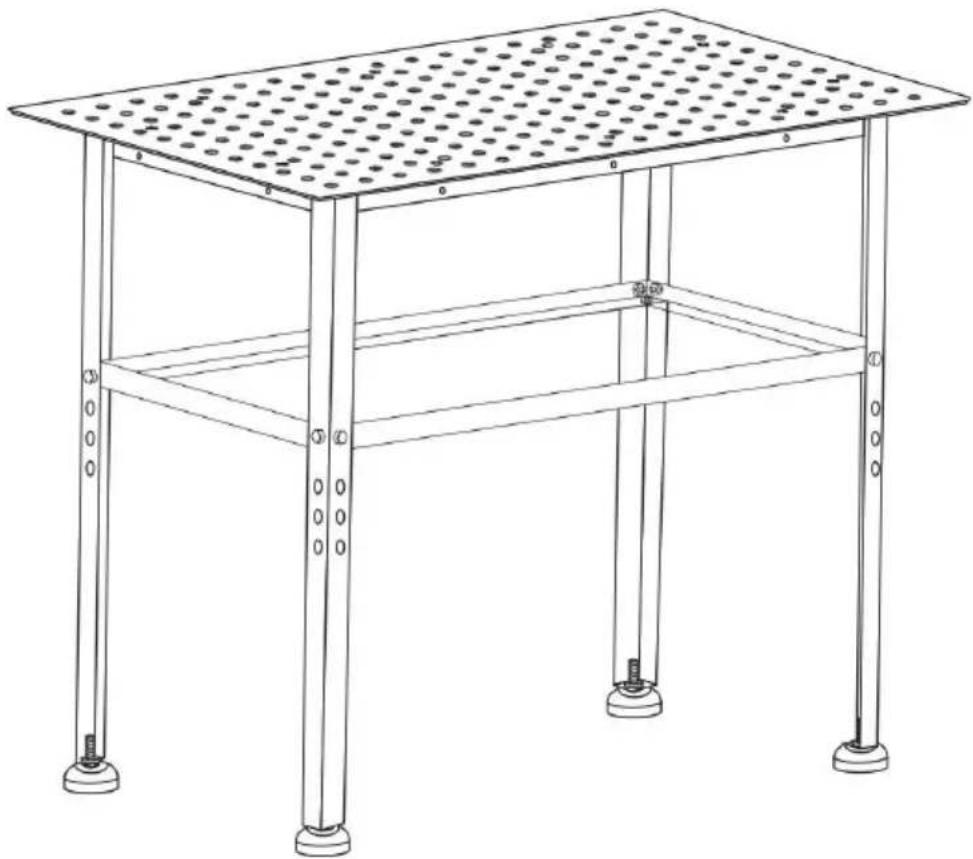

WELDING TABLE
Model:800lb-1
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools in us. You are kindly reminded to verify carefully when you are placing an order with us, as we are actually saving half in comparison with the top major brands.
VEVOR
TOUGH TOOLS, HALF PRICE
WELDING TABLE HOB USER MANUAL
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www. vvor. com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform y there are any technology or software updates on our product.
SAFETY INSTRUCTIONS
WARNING:
Read this material before using this product. Failure to do so can result in serious injury.
Assembly precautions
- Assemble only according to these instructions. Improper assembly can create hazards.
- Wear safety goggles and heavy-duty work gloves during assembly.
- Keep the assembly area clean and well-lit.
- Keep bystanders out of the area during assembly.
- Do not assemble when tired or when under the influence of alcohol, drug medication.
- The product capabilities apply to properly and completely assembled products only.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate a parts in a clean work area.
Use precautions
- Use with products heavier than the rated weights indicated may result in instability causing possible injury.
- Mounts must be attached as specified in assembly instructions. Improper installation may result in damage or serious personal injury.
- Make sure that the supporting surface will safely support the combined well of the equipment and all attached hardware and components.
- Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
- This product is not a toy. Do not allow children to play with or approach it.
- Use as intended only. Do not sit or stand on table.
- Inspect before every use. Do not use if parts are loose or damaged.
- Use only on flat, level, hard surface.
- Do not exceed listed weight capacity. Tighten all knobs securely before applying load.
- Be aware of dynamic loading! Sudden load movement may briefly create excess load causing product failure.
ASSEMBLY INSTRUCTIONS
For additional information regarding the parts listed in the following pages, refer the Assembly.
Diagram of this manual. Unwrap and separate all parts on a clear work area
PRODUCT PARAMETERS
| Model | 800lb-1 |
| Maximum load-bearing | 800lb |
| Product Size (mm) | 914.4*609.4*784.8 |

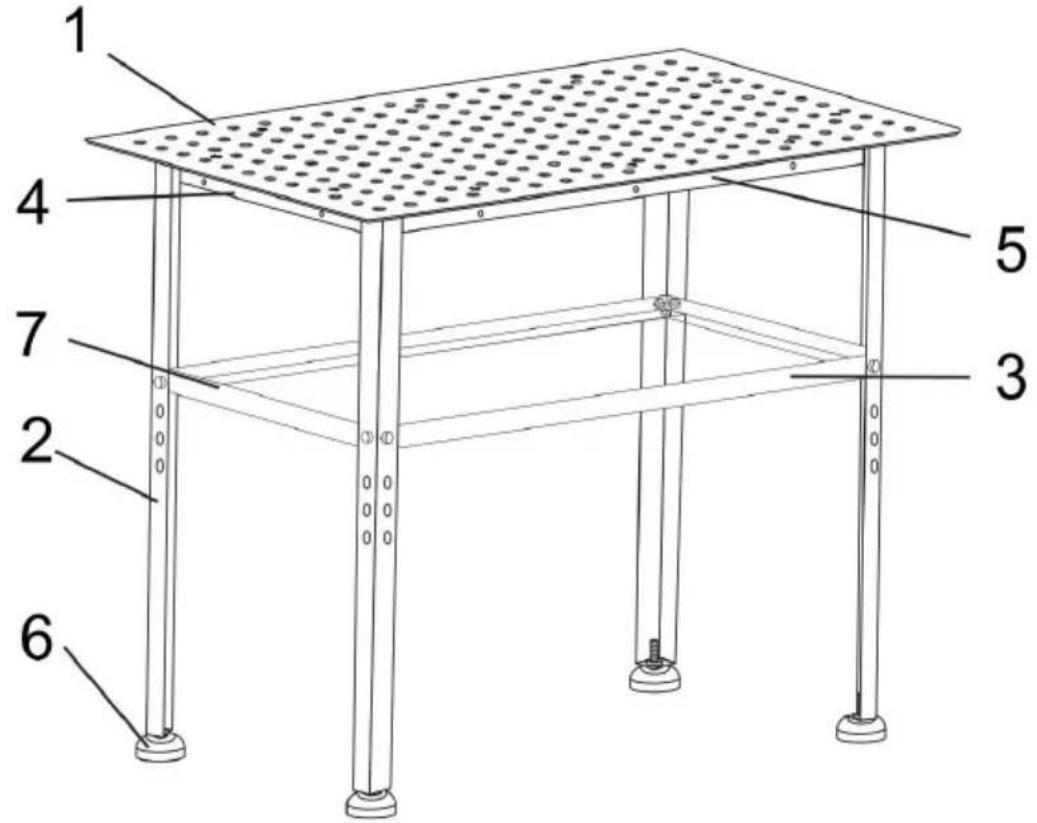

PACKING LIST
| Item | Part Name | QTY | Picture |
| 1 | Countertop | 1 PCS | |
| 2 | Table leg | 4 PCS | |
| 3 | Plate 1 | 2 PCS | |
| 4 | Plate 2 | 2 PCS | |
| 5 | Plate 3 | 2 PCS | |
| 6 | foot pad | 4PCS | |
| 7 | Plate 3 | 2PCS | |
| 8 | A. M20 Nut | 8PCS | |
| 9 | B. M8x10 Grub screw | 10PCS | |
| 10 | C. M8 Nut | 30PCS | |
| 11 | D. M8x20 Screw | 20PCS |
ASSEMBLY STEP
This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there is any technology or soft updates on our product.

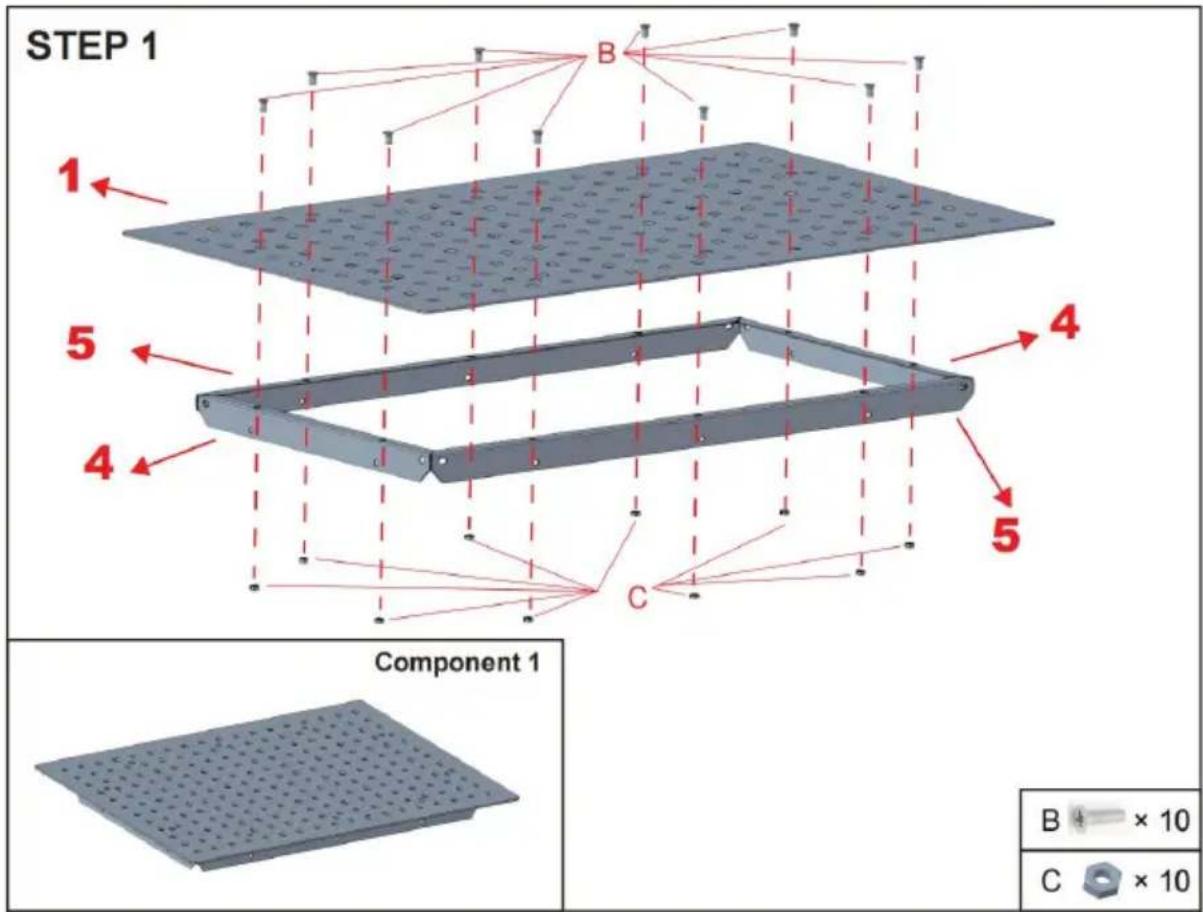

- Install the countertop as shown in the figure.

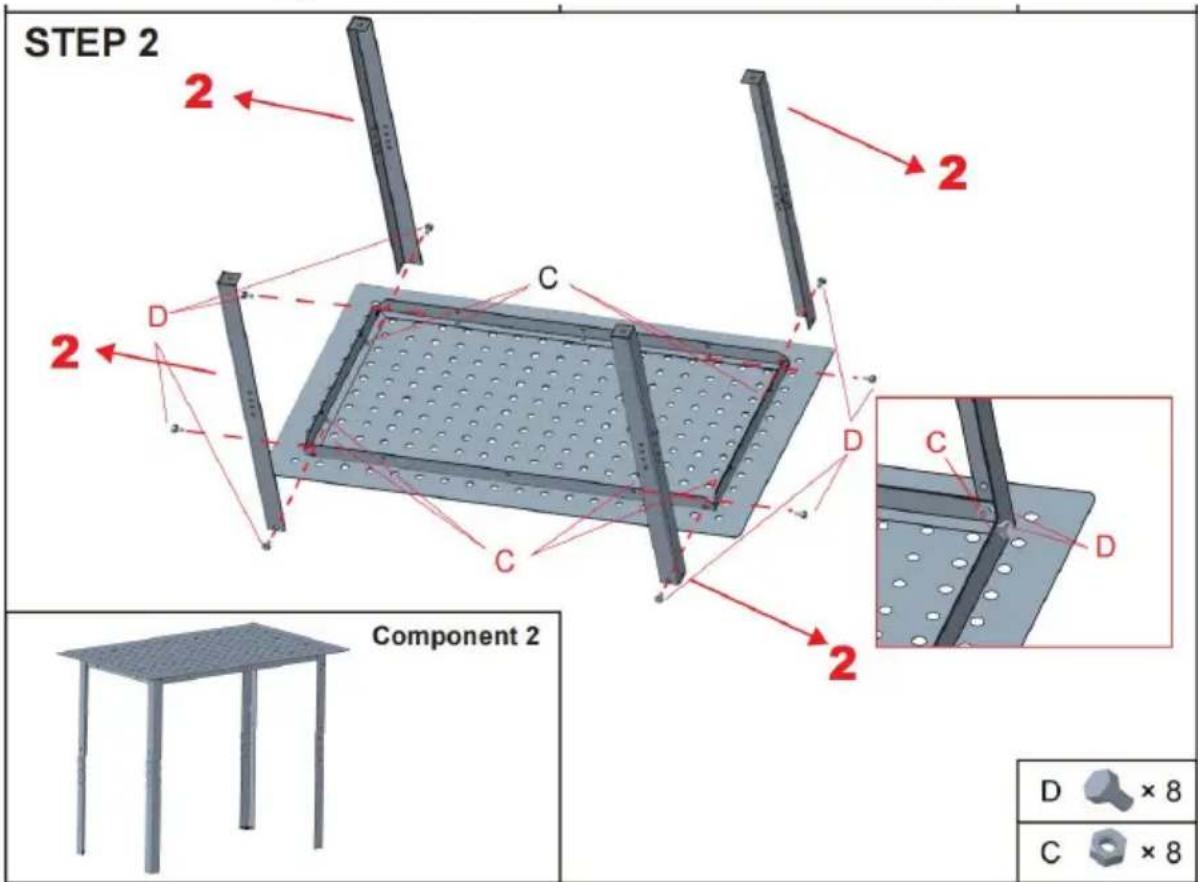

- Install four support feet as shown in the figure.

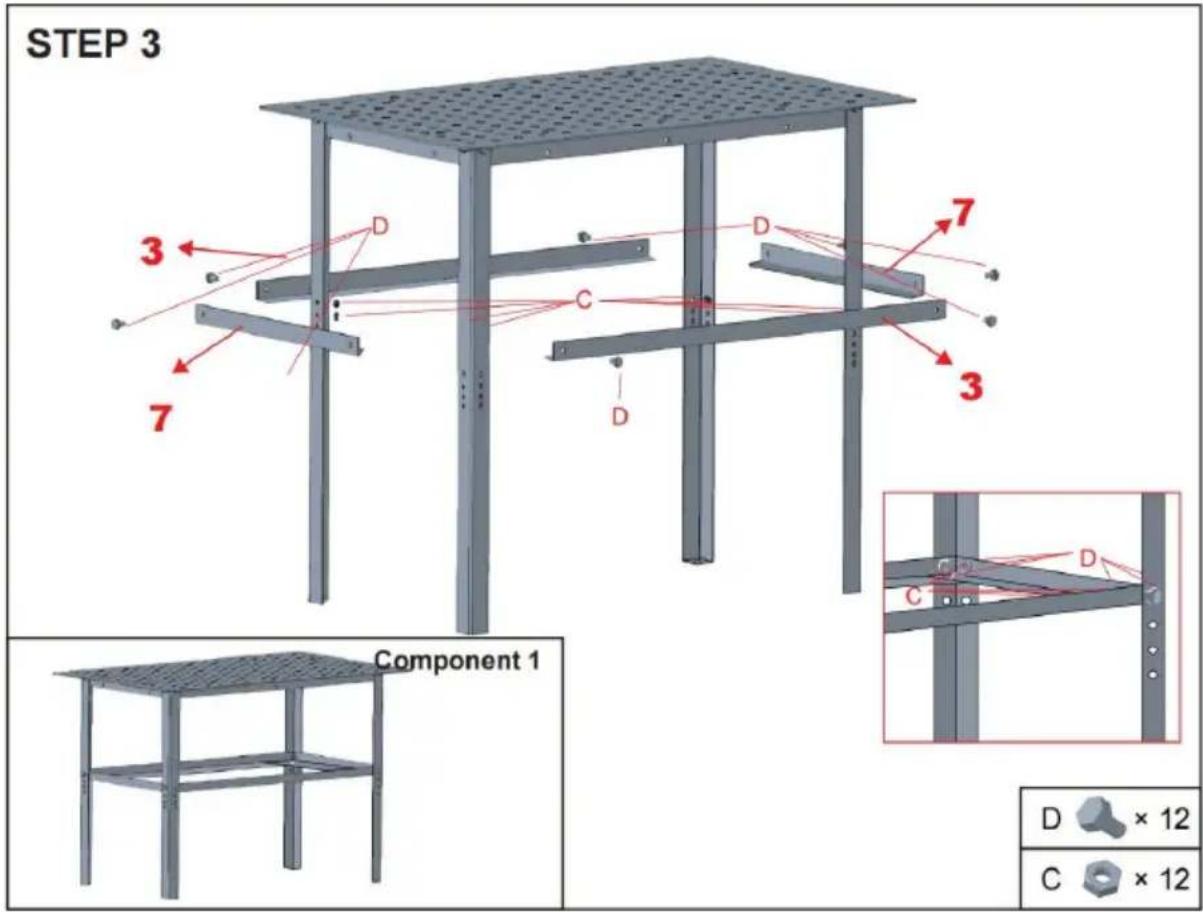

- Install the reinforced plate as shown in the figure.

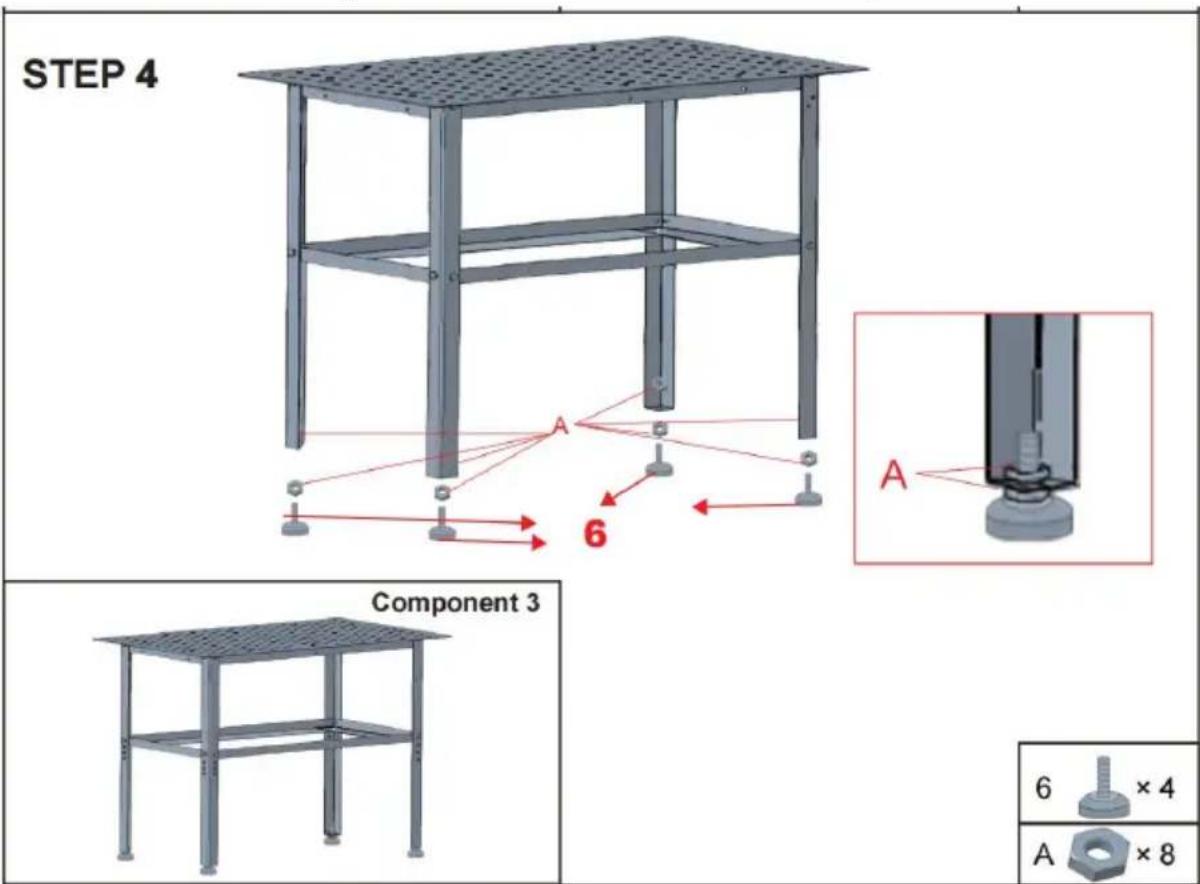

- Install the foot pad as shown in the figure.
