YJXXGZ-006 - Table Vevor - Free user manual and instructions

USER MANUAL YJXXGZ-006 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SLAB ENTRYWAY TABLE

USER MANUAL

MODEL NO.: YJXXGZ-006

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Slab Entryway Table

MODEL NO.: YJXXGZ-006

Line drawing of a multi-level metal shelving unit with mesh compartments and support beams (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

Please read and observe carefully all the assembly instructions before beginning assembly.

Unit should be assembled by two or more people.

DO NOT CLIMB

Please do not let your child climb on the product. If y kids or animals who like to climb, we highly recommend using the wall anchors and brackets/straps that come the package.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Slab Entryway Table.

8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.

2. Do not exceed weight capacities, before moving.

3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Slab Entryway Table.

4. Use as intended only.

5. Inspect before every use; do not use if parts are loose or damage

TECHNICAL SPECIFICATIONS

Model	YJXXGZ-006
Product Dimensions (LxWxH)(mm)	1060*295*735
Net Weight(kg)	About 8.1

*Products such as specifications, appearance, and design are subject to modification without prior notice.

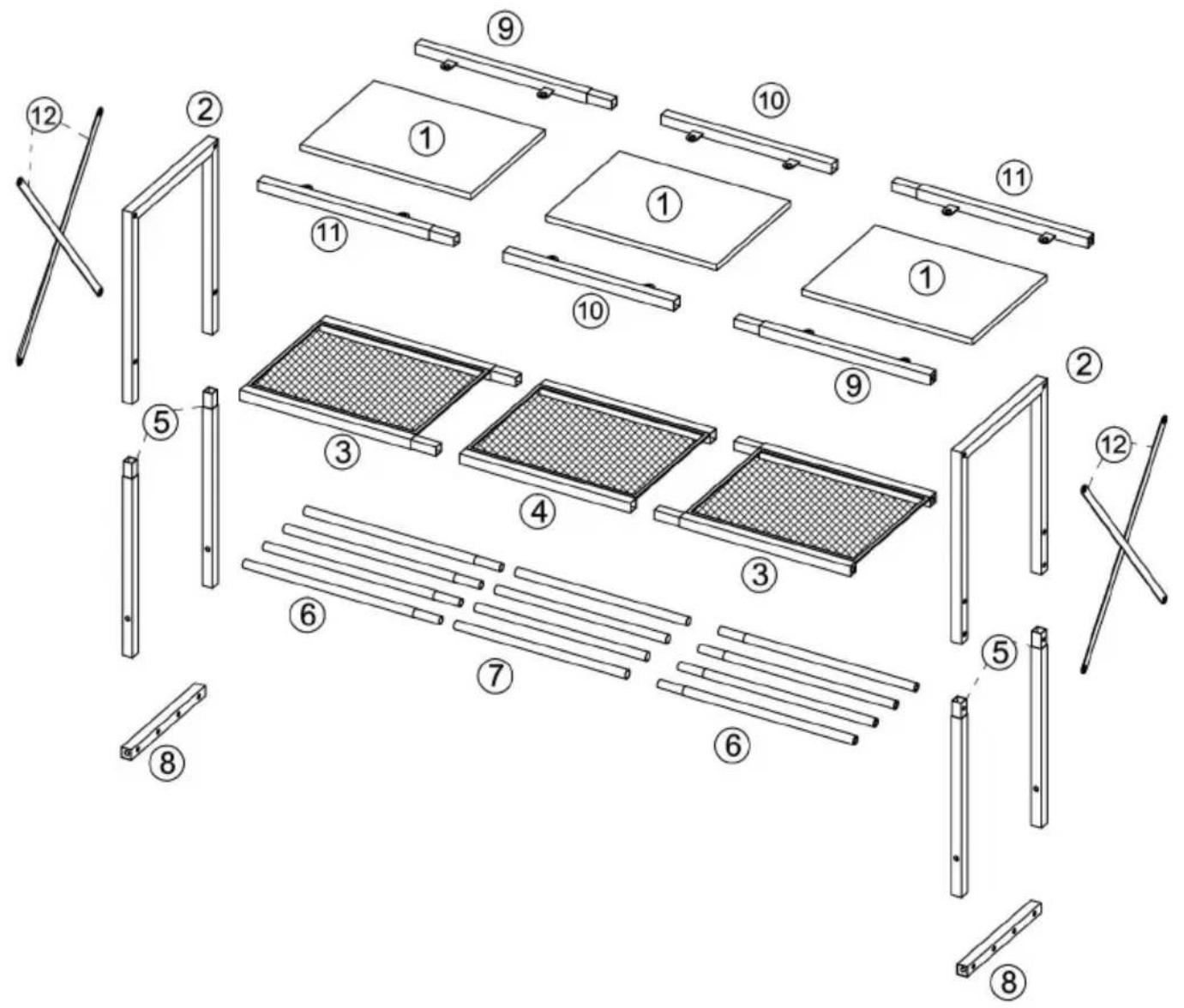

PACKAGE CONTENTS

1×3	2×2	3×2
4×1	5[8x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10x10	6×8
7×4	8×2	9×2
10×2	11×2	12×4
AM6×10mm ×48	BM6×40mm ×20	CM4 ×1	DM6 ×4
E×2

Technical diagram showing 12 labeled mechanical assembly components with numbered parts for identification.

ASSEMBLY STEPS

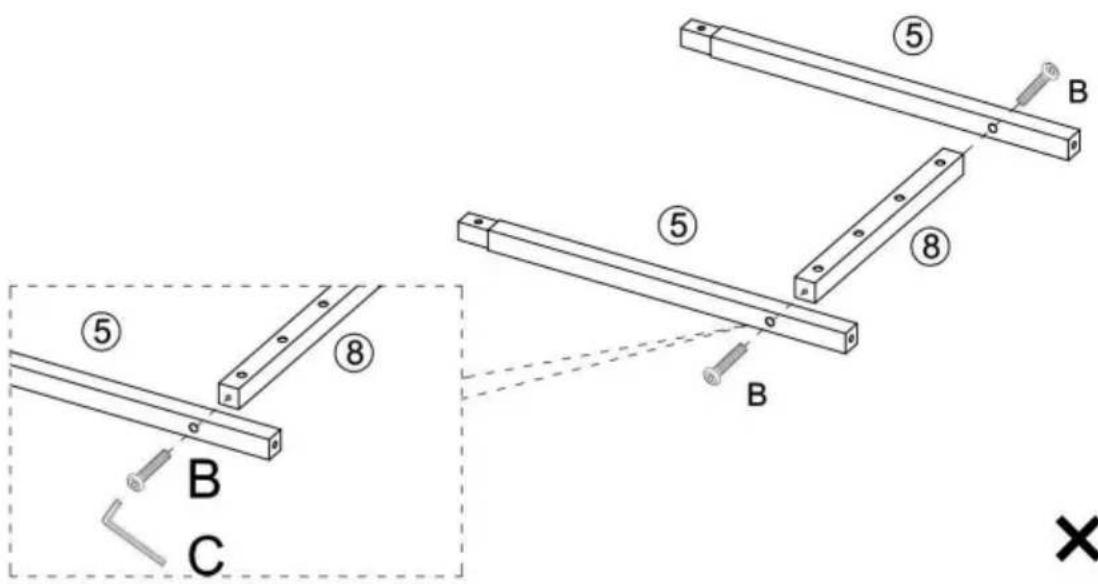

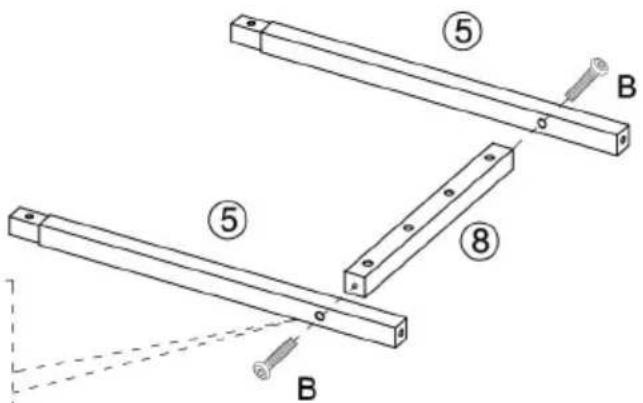

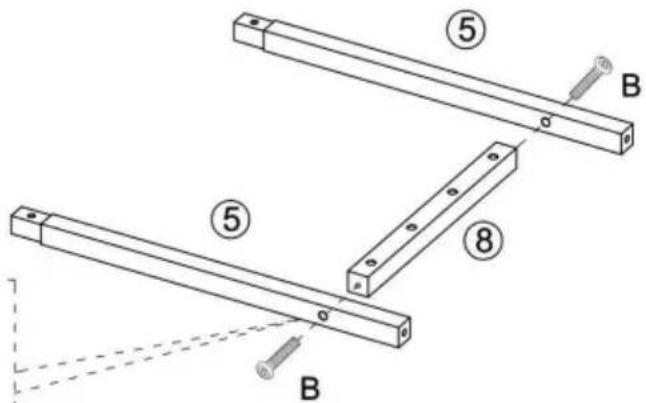

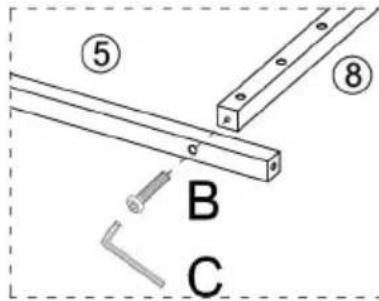

Step 1
B

M6×40mm

×4 pcs

C

M4

× 1pc

⑤ ⑧ B C

Technical diagram showing labeled components of a mechanical assembly with parts marked 5 and 8, including screw fasteners and alignment lines.

×2

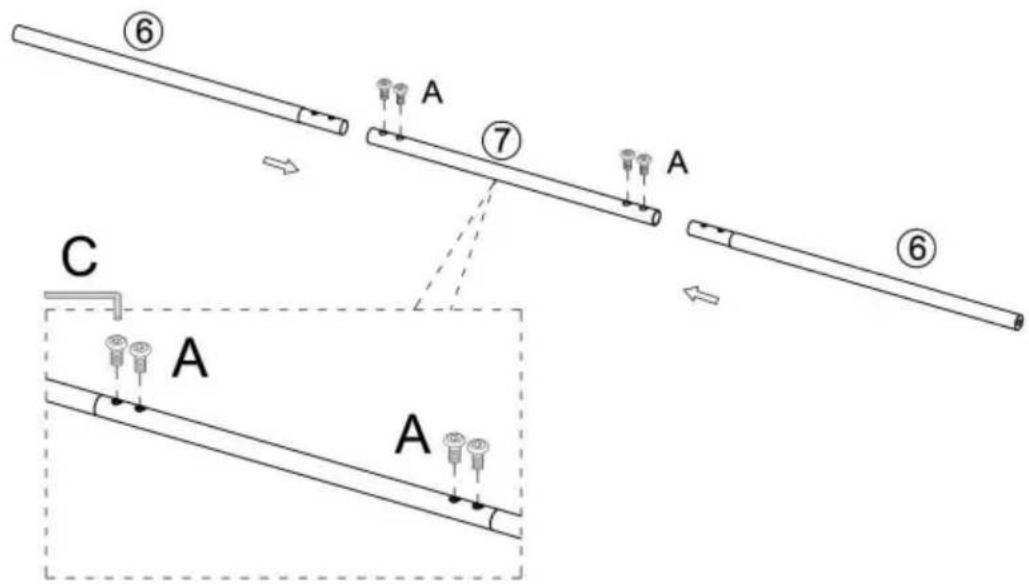

Step 2
A

M6×10mm

×16 pcs

C

M4

× 1pc

⑥ A ⑦ A ⑥ C A A

×4

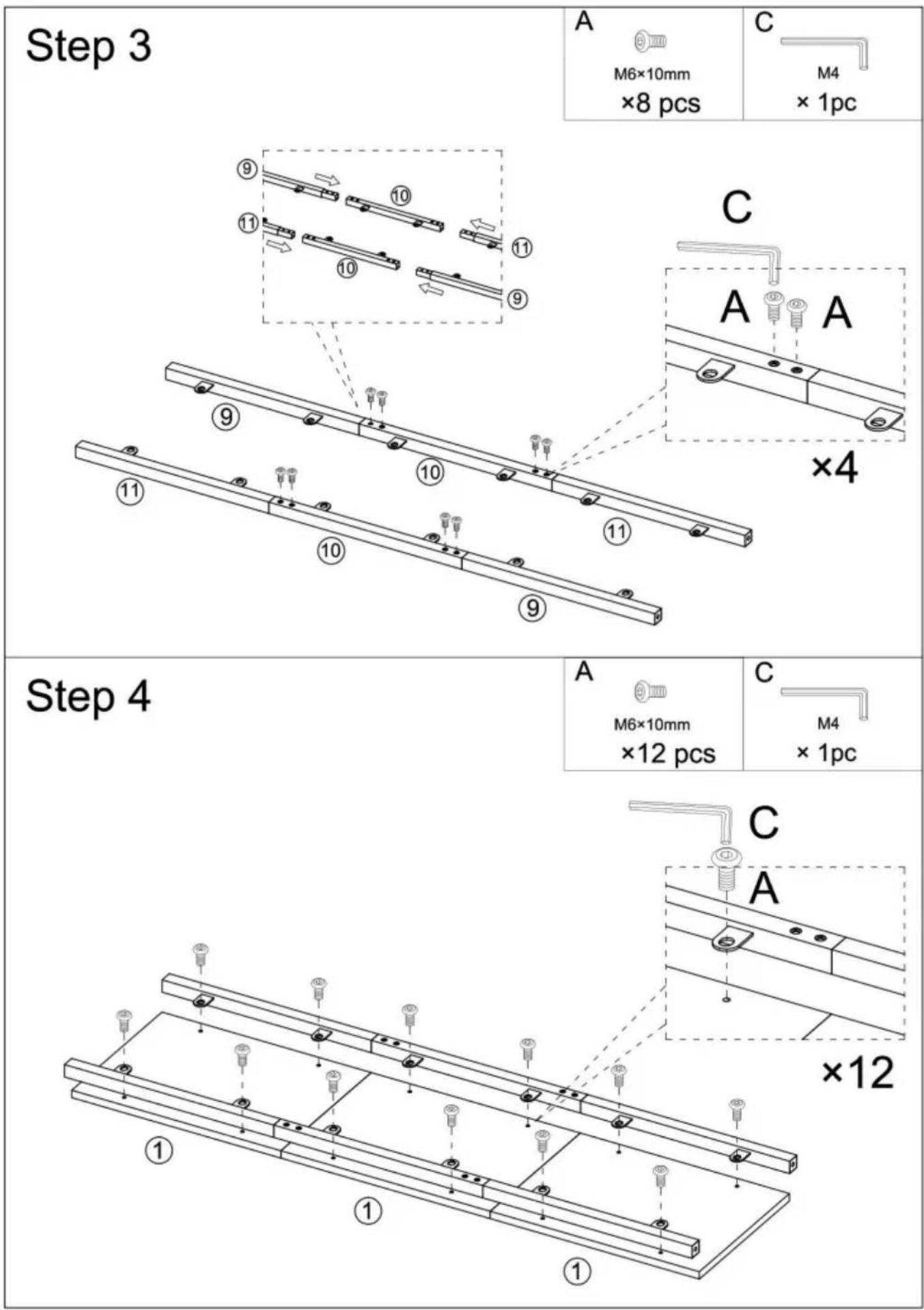

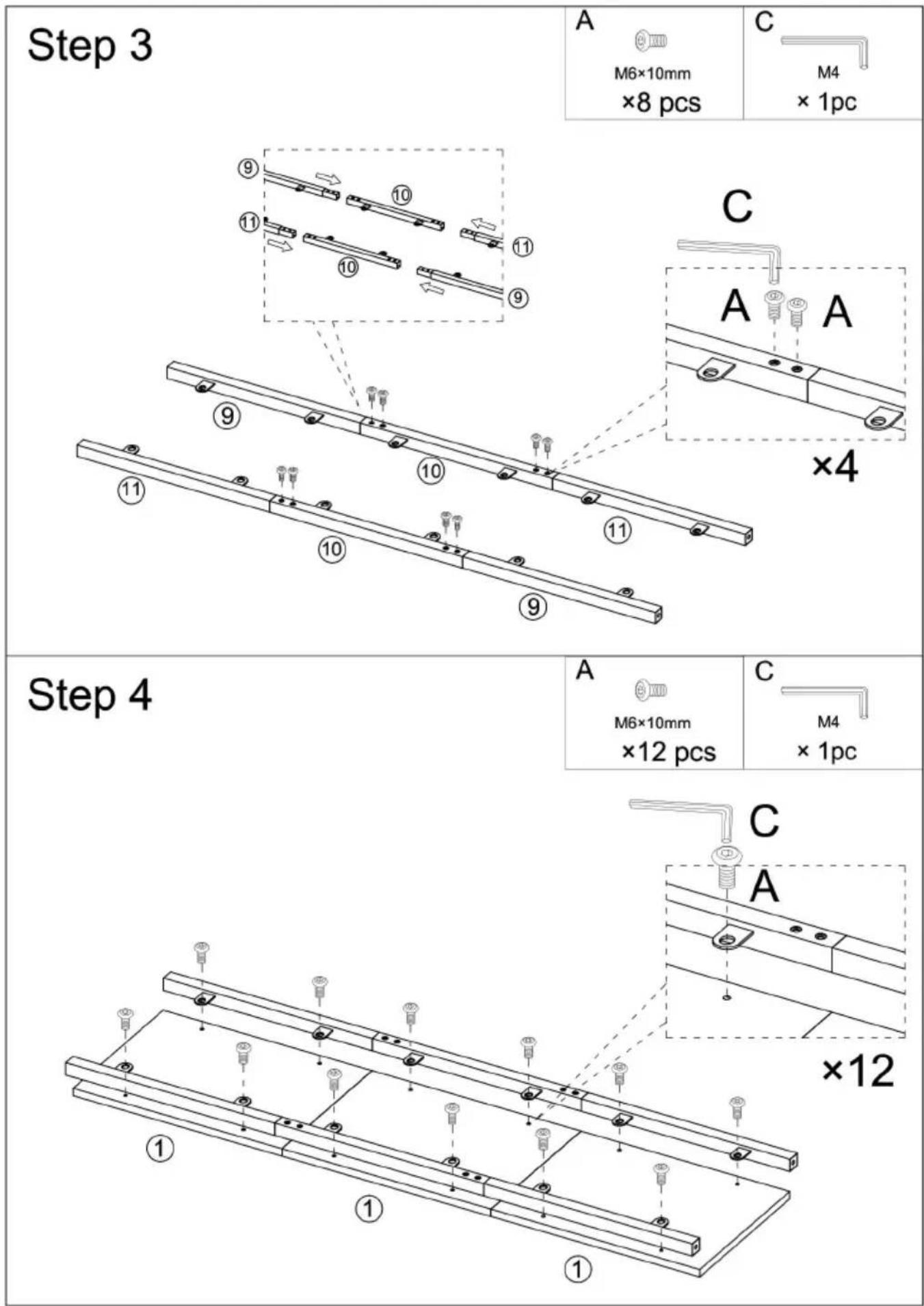

Step 3 A M6×10mm ×8 pcs C M4 ×1pc Step 4 A M6×10mm ×12 pcs C M4 ×1pc Step 3 A M6×10mm ×8 pcs C M4 ×1pc Step 4 A M6×10mm ×12 pcs C M4 ×1pc Step 4 A M6×10mm ×12 pcs C M4 ×1pc Step 3 ① ① ① ①

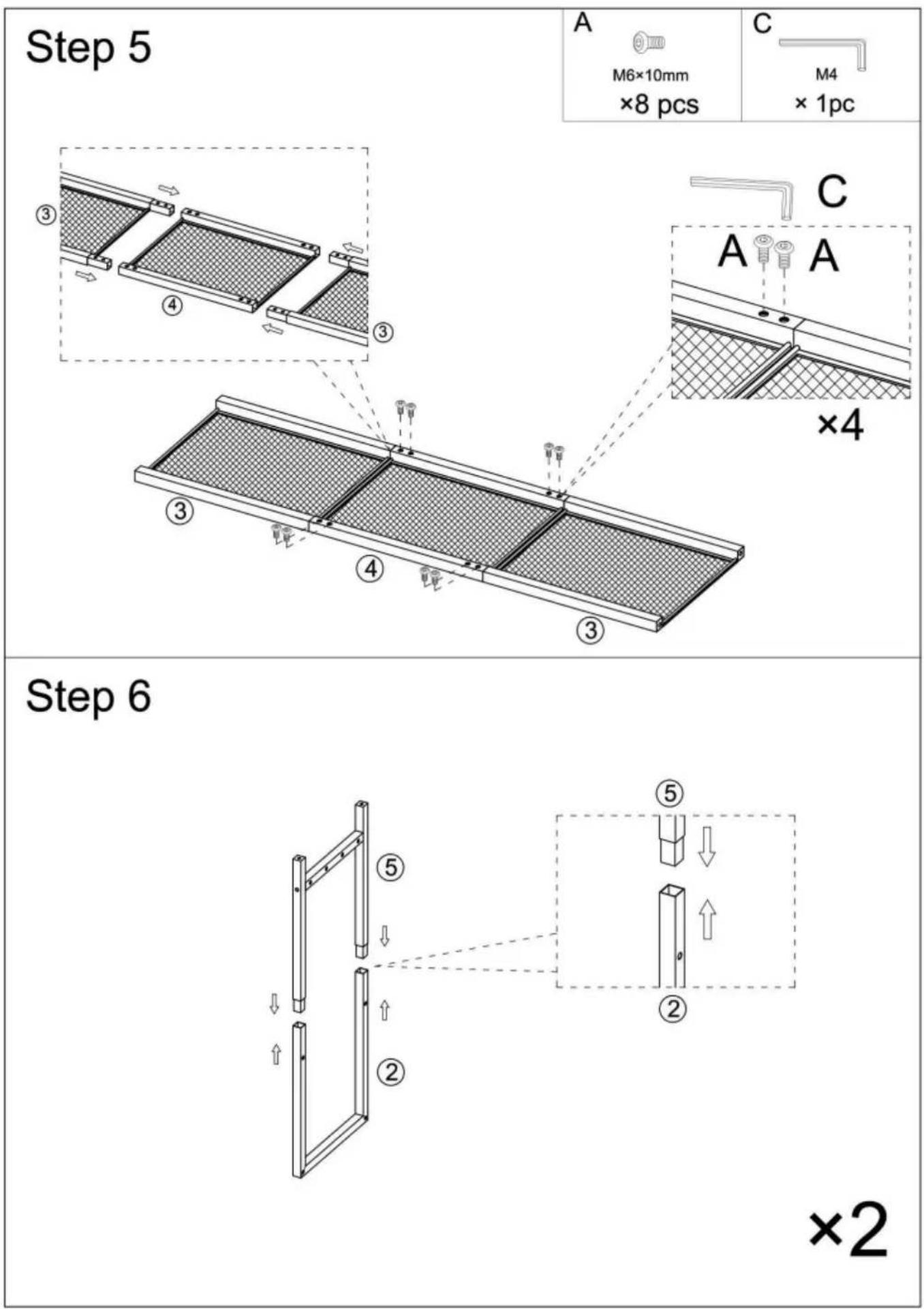

Step 5 A M6×10mm ×8 pcs C M4 ×1pc ③ ④ ③ ③ ④ ③ C A A ×4 Step 6 ⑤ ② ×2

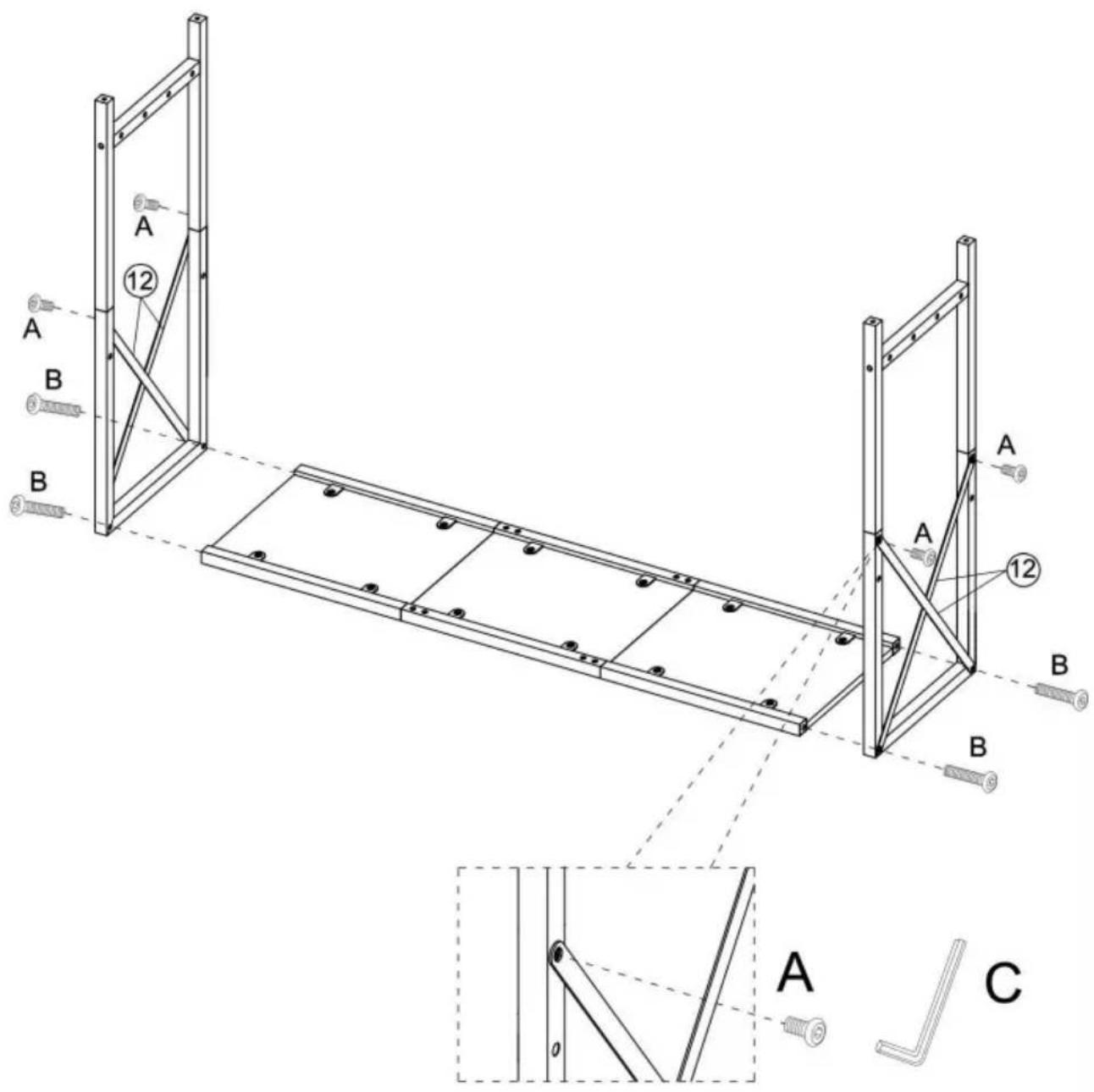

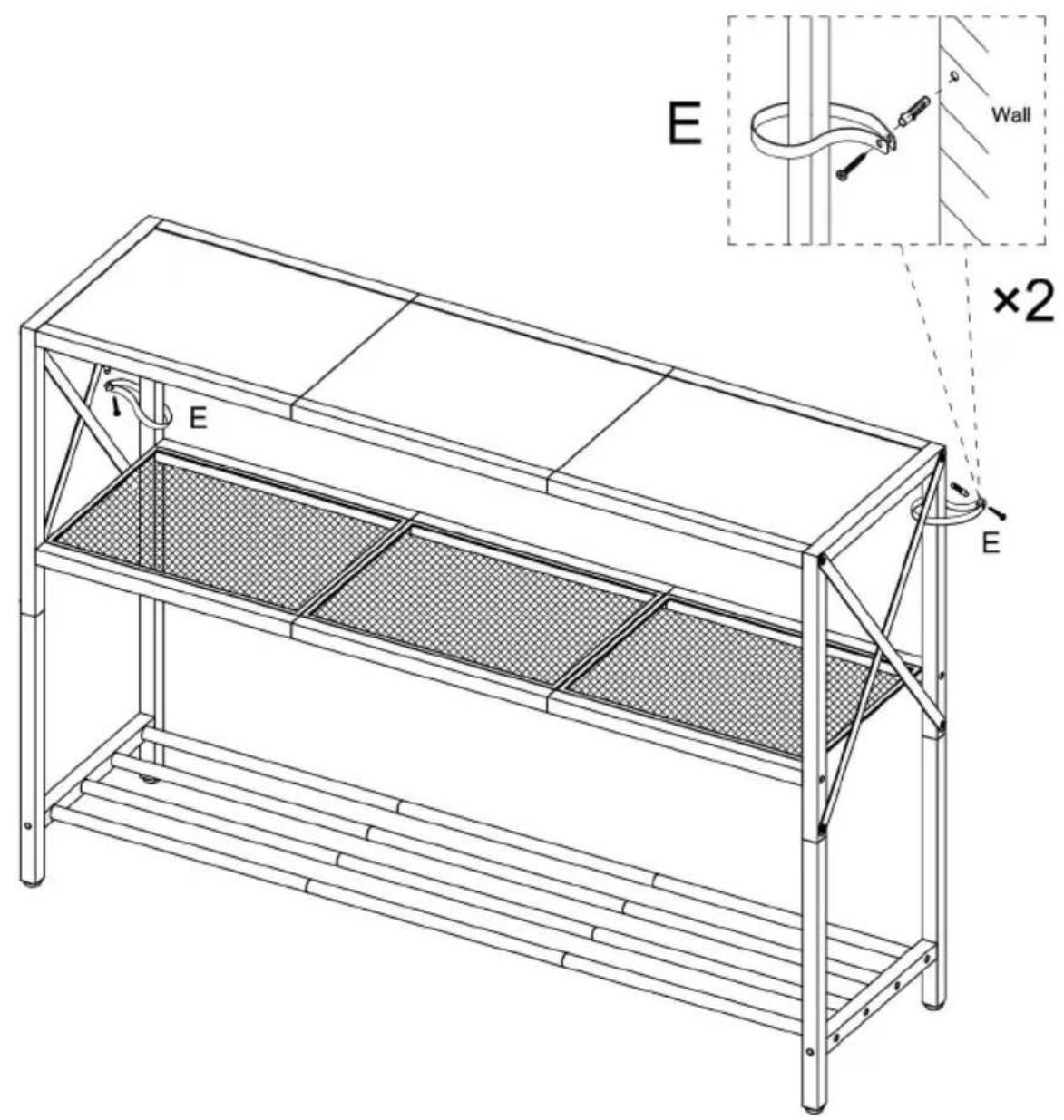

Step 7

A

B

C

Technical diagram of a metal frame structure with labeled components and assembly details

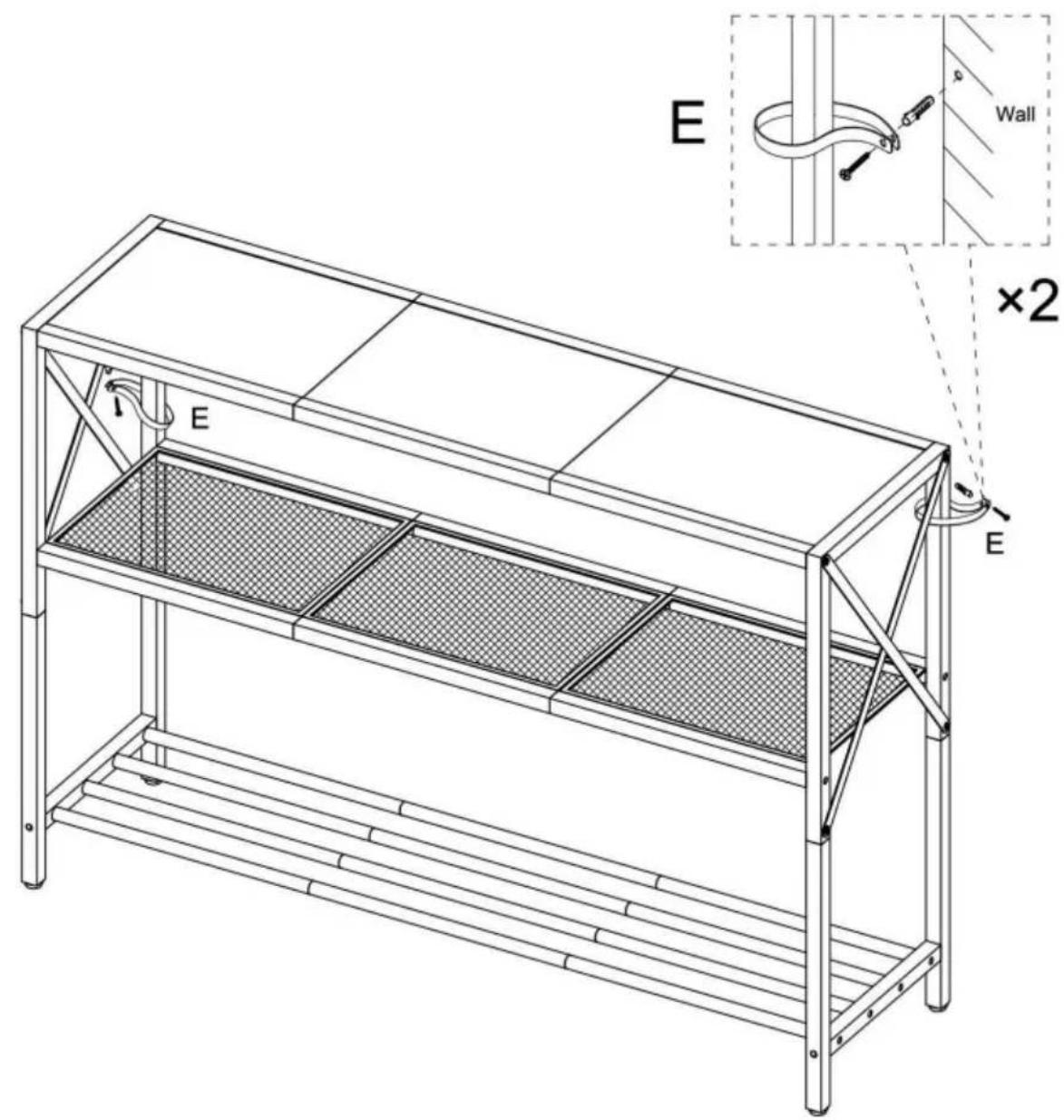

Step 9

E × 2pcs

E Wall ×2 E E

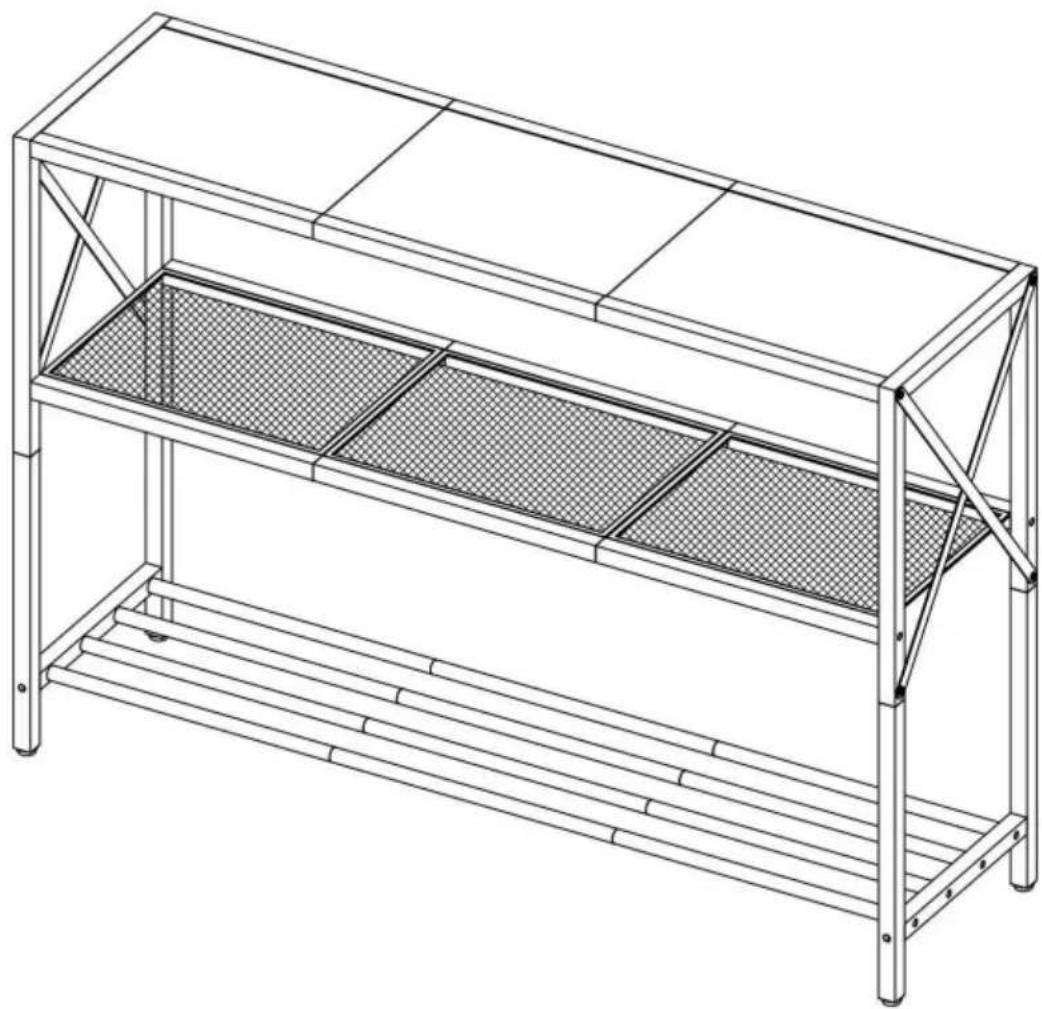

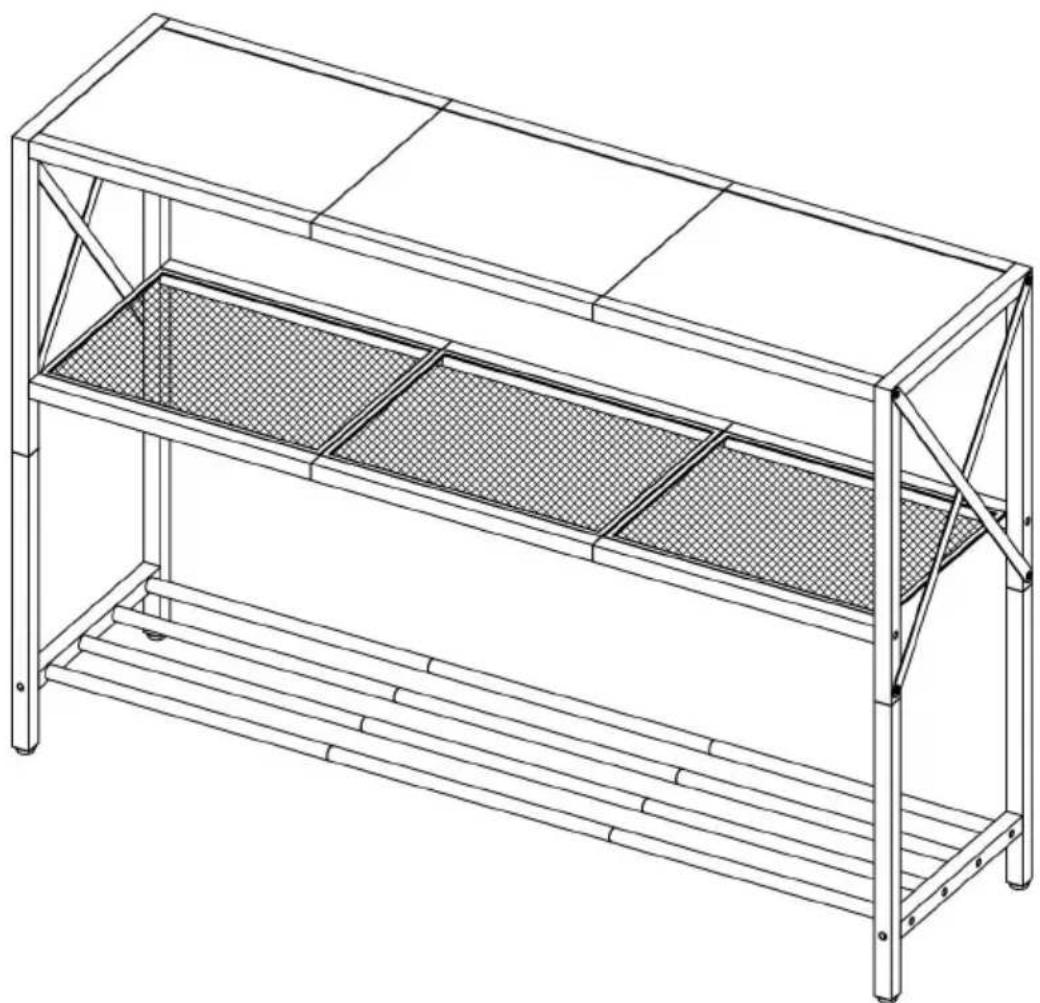

Step 10

Line drawing of a multi-level metal shelving unit with mesh panels and support beams (no text or symbols)

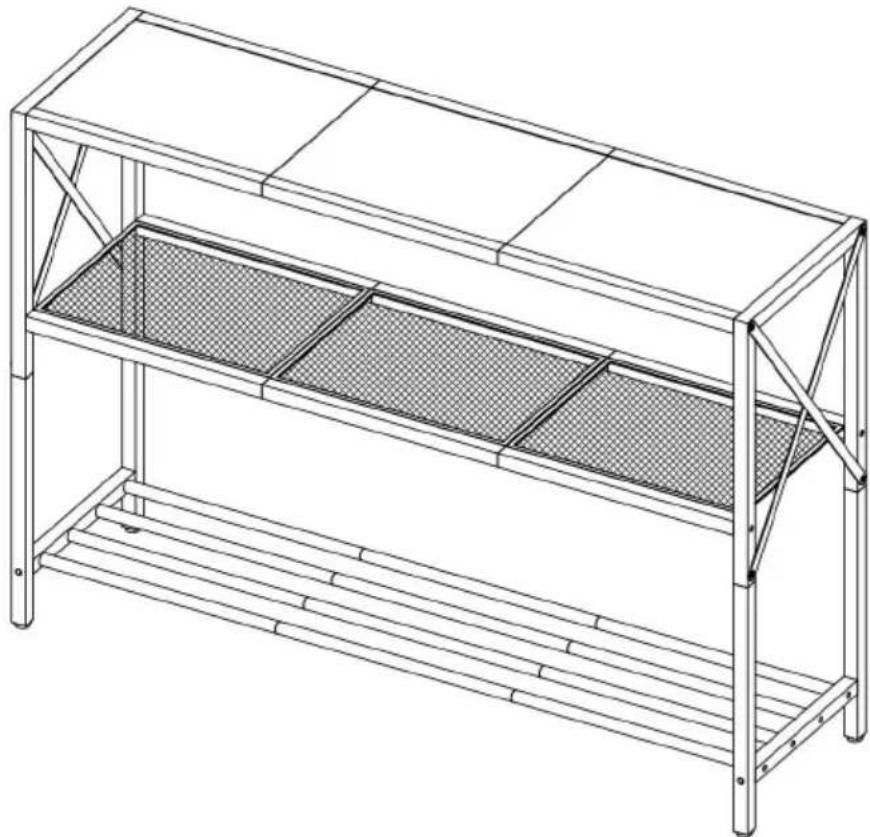

COMPLETION

Line drawing of a multi-level metal shelving unit with mesh panels and supports (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
