USER MANUAL FRB-286-BD3 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COFFEEMACHINE

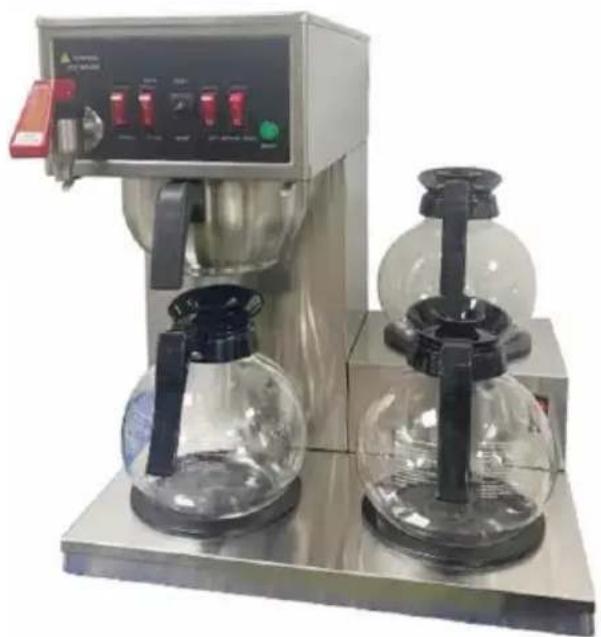

MODEL:FRB-286-BD3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:FRB-286-BD3

Laboratory setup with glass domes and control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

General Precautions

1. This electric appliance must be installed, commissioned and serviced by qualified technician in accordance with regulations in the country of installation.
2. This appliance is made for commercial use purpose, and please not it for household purposes.
3. This appliance must only be used for its intended use and design Manufacturer and seller is not responsible and liable for any damage not used correctly.
4. Please do not let people with reduced physical, sensory or mental capabilities, or lack of experience use this appliance.
5. Don't let children to use this appliance.
6. Keep the product and the power cord accessible to children.
7. Please check the electric plug and power cord regularly. Whenever find the power cord damaged, please replace it by the manufacturer, authorized service agent, or qualified person before operating the prod
8. Please connect the electric plug to the main socket at accessible position, so that in case of emergency or danger, you can disconnect electric plug immediately.
9. Please avoid the appliance and electric plug in touch with water a

liquids. If the appliance falls into water, please disconnect the electric from the socket immediately, and do not use the appliance until you throughout check by qualified technicians. Failure to follow this instruct may lead to fatal danger.

1. Don't try to open the housing of the appliance yourself
2. Don't insert any objects into the housing of the appliance.
3. Never touch the plug if your hand is wet or damp.
4. Never try to repair the appliance yourself. This may cause electric shock!
5. In case of malfunctioning, repair must be done by qualified perso
6. Don't use malfunctioning or damaged product. Disconnect the elect plug from main power and call the aftersales services for repair.
7. Don't submerse any electrical parts of the appliance into water or liquids, and don't put the appliance in running water.
8. Please do not let the power cord touch any sharp or hot objects avoid it being close to open fire. To disconnect the electric plug from socket, please always pull the electric plug but not by pulling the power cord.
9. Please make sure to place the power cord in a safe position to from causing trip hazard.
10. Please keep watching the appliance when it is operating.
11. Be care! Whenever the electric plug is in the main socket, the p is connected to electric power.
12. Make sure your electric plug is connected to a fast accessible electrical outlet, so that you can unplug the appliance immediately once there is any emergency.
13. Please switch off the appliance before pulling out the electric plug the socket.
14. Don't use any devices which are not supplied together with the appliance.
15. Don't use any accessories other than those recommended by the manufacturer.
16. Only connect the appliance to electricity supply with voltage and

frequency as declared in the appliance label.

1. Remove any plastic coating and clean the product before use.

2. When the appliance is operating, some parts of it may get hot, avoid touching it or any accidental contact.

3. Please disconnect the power before servicing, maintenance, dissembling, assembling cleaning, or when it is being left unintended, when it is not in use.

4. When the appliance is being used, don't let it be unattended

5. Remember to switch off the appliance before disconnecting the plug.

Specific Precautions

1. This appliance is intended for making coffee. If it is being used for purpose, it may lead to damage of the appliance and or even harmf user.
2. The appliance should be operated by professional or trained users.
3. Not to cover the appliance during operating.
4. The appliance should be put on a level, clean and stable platform operating.
5. Don't put the appliance close to other hot appliances or equipment as electric and gas thermal appliances, ovens, heating plates, griddles, fryers, and so on.
6. Not to allow the appliance to be close to fire as well as any ho and surfaces.
7. If the appliance is to be placed at a position close to a wall, pa kitchen furniture, decorative finishes, etc., please make sure they are of non-flammable material; otherwise the appliance has to be clad with non-flammable and heat insulating material. It's important to pay extra attention to conform to fire prevention regulations.
8. Place the appliance at a position that will not be reach by children persons with reduced mental capabilities.

9. Clean the appliance after use for sanitation.

10. Allow the appliance to cool down completely before cleaning.

11. Not to use water jet or flush water directly to the appliance. It's to have electric shock if water enters into electrical parts.
12. Not to use steam cleaner to clean the appliance.
13. Only put fresh and cold water into the water reservoir.
14. Don't put hot water into the water reservoir.
15. This appliance is constructed for heating water but no other liquid
16. Don't put more than one decanter of water into the reservoir.
17. This appliance is constructed for heating water but no other liquid
18. Don't put more than 2L of water into the reservoir.
19. Be caution! Whenever you open the cover of the water reservoir steam may come out.
20. Make sure there is enough water in the water reservoir before s on the appliance, and do not let the water reservoir empty during op
21. Don't move the appliance when it is operating or when it has he

Connect the intake pipe

1.

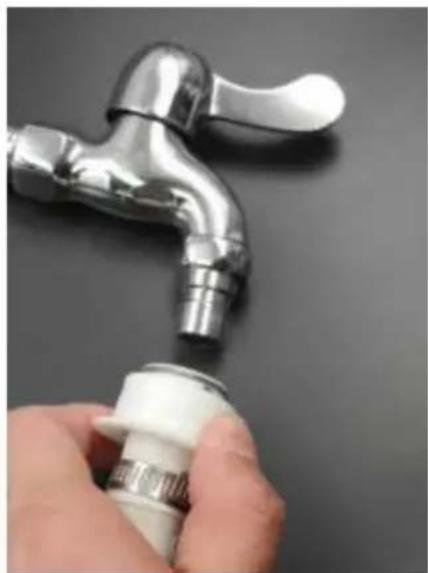

Close-up of a hand holding a white PVC hose next to a metallic faucet handle (no text or symbols visible)

2.

Close-up of a metallic faucet with white fittings and a black screw, mounted on a stand (no text or symbols visible)

3.

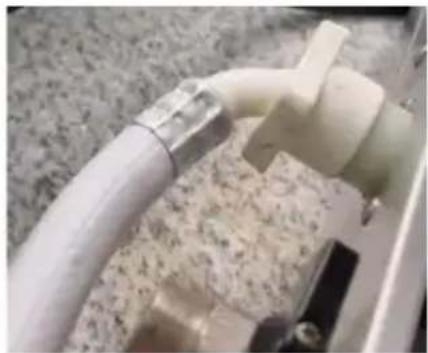

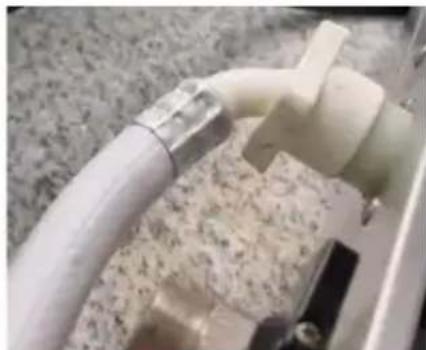

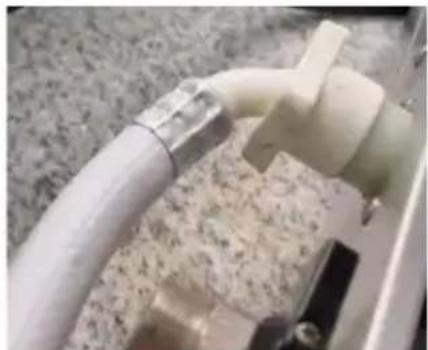

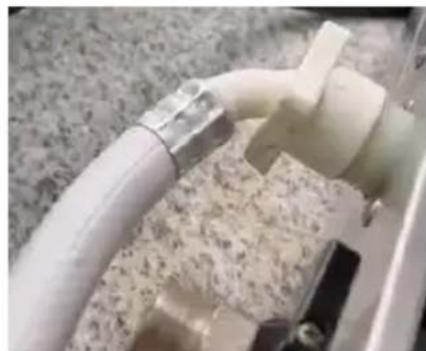

Close-up of a white PVC pipe fitting with a metallic handle, placed on a textured surface (no visible text or symbols)

Operation

1. Before use, carefully check if the appliance is without damage. Co your supplier if you find damage or problem, and don't use the appli
2. Remove all packaging and protective material.
3. Place the appliance on a stable and level platform.
4. Make sure the power cord has been connected.
5. Make sure the water hose has been connected.
6. Place the paper filter into the funnel.
7. Make sure the empty coffee decanter is prepared place underneath filter funnel.
8. Add 90-105 grams of coffee powder into the paper filter and slide funnel into position.
9. Switch the power ON, and wait for the "ready" indicator to light u
10. When the "ready" indicator lights up, flip down the brewing button start brewing process.
11. Flip up the brewing button to stop/cancel the brewing process if necessary.
12. You can also choose brew 6 cups / 12 cups by switching the \ button.
    * If the "ready" Indicator light is off, it means the water tank is heated the water to reach the brewing temperature, the brewing button will not operate until the "ready" Indicator light is ON.
    * If the "ready" Indicator light does not turn on for a long time, th will beep a warning sound. please check the water source connection make sure the water pipe is connected and the tap is turned on.

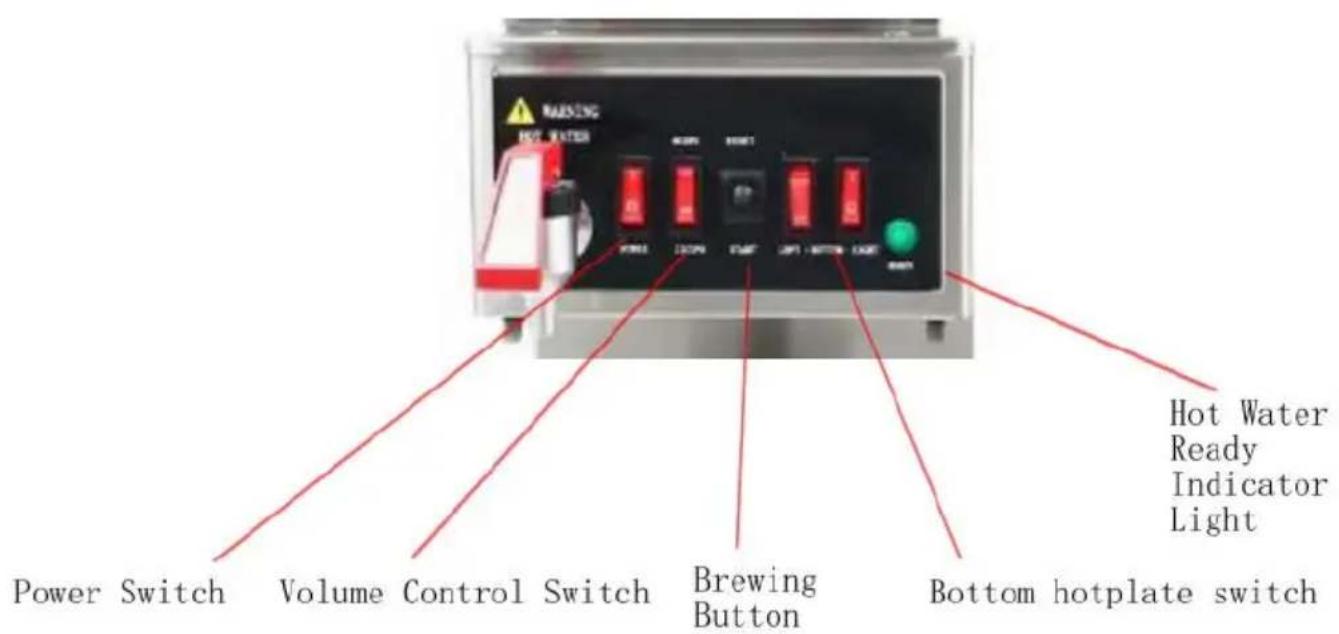

WARNING HOT WATER Power Switch Volume Control Switch Brewing Button Bottom hotplate switch Hot Water Ready Indicator Light

Grounding of the appliance

1. This is a Class I electrical appliance that must be connected to a ground.
2. This appliance has a power cord and electrical plug with ground v and pin.
3. The electrical plug must be plugged into a main socket installed v earth connection.

Maintenance

Cleaning

1. Before cleaning, always remember to switch off, unplug the appliant and let it cool down completely.
2. You can clean the parts of the appliance, including the filter funnel decanter, water tubes with mild detergent and by using a soft and cloth.
3. Do not use steel wool, abrasive cleaners, or chlorinated cleaners of appliance.
4. Dry the appliance before connecting it to a power socket.

Descaling

When the appliance has been using for a certain period of time, water scale will build up and accumulated on the heating element and the the water flow. You should clean up the water scale regularly to ensure appliance can be operated at the optimum condition as well as to keep taste and flavor of the coffee.

Steps of descaling:

1. Open the top cover and pour descale material into the water rese only.
2. Use de-scaling agent, lemon juice or cleaning vinegar for descaling
3. If you use lemon juice or cleaning vinegar, please mix 1/3 of lerr or cleaning vinegar with 2/3 of water.
4. Put the filter funnel on the holder of the appliance.
5. Put an empty decanter under the filter funnel.
6. Pour the de-scaling agent or lemon juice solution or cleaning vineg solution into the water reservoir.
7. Switch ON the appliance.
8. When the descaling agent or lemon juice solution or the cleaning vinegar solution starts to pass through the appliance, switch the appliance OFF.
9. Leave the appliance for about 5 minutes to let the de-scaling age lemon juice solution or the cleaning vinegar solution dissolve the water scale in the appliance.
10. Switch ON the appliance again to release out the descaling agen lemon juice solution or cleaning vinegar solution.
11. After the all the descaling agent or lemon juice solution or the cvinegar solution has been released out, switch OFF the appliance aga
12. Put clean water into the water reservoir and repeat the brewing procedures until the no more odour and taste in the water.

Regular maintenance

1. To ensure the appliance can always be operating in the best state, the appliance and do descaling regularly.
2. How frequently to do maintenance depends how heavily you use the appliance.

Trouble shooting

Problem	Possible Causes	Solutions
The ON/OFF switch button does not light	No power input into appliance	Check the power plug
	The ON/OFF switch button has been damaged	Call the after sale service
The appliance operates but water flo is not smooth	Internal electronic control is not functioning	Call the after sale service
	Temperature protection is damaged
The fuse tripped whe the appliance has be switched ON	Short circuit happens	Call the after sale service
