RBT-386-BD3 - Coffee grinder Vevor - Free user manual and instructions

Product type	Commercial drip coffee machine
Brand	Vevor
Model	RBT-386-BD3
Usage	Professional / commercial
Water tank capacity	1.8 L
Recommended ground coffee quantity	80 to 95 g
Number of hot plates	2 (upper and lower)
Coffee type	Ground (paper filter)
Power supply	Single phase, voltage and frequency per label (Class I with grounding)
Dimensions (approx.)	40 x 30 x 35 cm
Weight (approx.)	5 kg
Maintenance	Regular cleaning with mild detergent; periodic descaling with vinegar or lemon juice
Safety	Do not immerse; unplug before cleaning; hot plate hot
Indicator light	Yes (on/off and brew cycle)
Automatic shut-off	No (lower plate stays on after brewing)
Warranty	Via technical support at www.vevor.com/support
Included accessories	Glass carafe, funnel with paper filter
Repairability	Refer to qualified technician; do not open yourself
Electrical classification	Class I (with ground wire)
Housing material	Plastic and stainless steel (estimated)

Frequently Asked Questions - RBT-386-BD3 Vevor

How do I use the Vevor RBT-386-BD3 coffee machine?

Place the paper filter in the funnel, add 80 to 95 g of ground coffee, pour cold water into the tank (max 1.8 L), then plug in and turn on the appliance. The indicator lights up and hot water flows into the carafe. When the indicator turns off, the brewing is complete.

What types of coffee can I use?

The machine is designed for ground coffee. Use standard paper filters suitable for the funnel.

How do I clean the machine after use?

Turn off, unplug and let cool. Clean the funnel, carafe and tubes with a mild detergent and a damp cloth. Do not use steel wool or abrasive cleaners.

How often should I descale the appliance?

Descale regularly according to usage. Use a descaling agent, lemon juice or vinegar mixed with water (1/3 product to 2/3 water). Follow the steps described in the manual.

What should I do if the appliance does not turn on?

Check the power outlet and cord. If the problem persists, contact customer service. Do not attempt to repair yourself.

Does the hot plate stay on after brewing?

Yes, the lower plate stays on to keep the coffee warm. Remember to turn off the appliance when the carafe is empty.

Can I use hot water in the tank?

No, only use cold, fresh water. Do not exceed 1.8 L.

Is the appliance suitable for home use?

The manual states it is intended for commercial use. It can be used at home but with caution.

How do I avoid burns from the hot plate?

Never touch the hot plates during or after operation. Use the insulated handle of the carafe. Let cool before cleaning.

Where can I find technical support or warranty?

Go to www.vevor.com/support for technical support and the electronic warranty certificate.

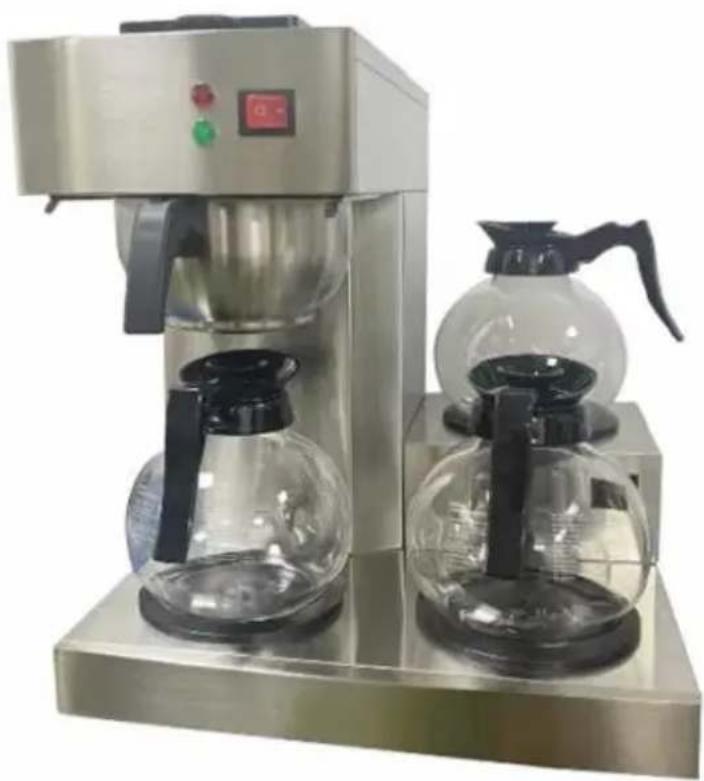

USER MANUAL RBT-386-BD3 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COFFEE MACHINE

MODEL: RBT-386-BD3

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: RBT-386-BD3

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

General Precautions

1. This electric appliance must be installed, commissioned, and serviced by a qualified technician in accordance with regulations in the country of installation.
2. This appliance is made for commercial use purposes, and please do not use it for household purposes.
3. This appliance must only be used for its intended use and design. The manufacturer and seller are not responsible or liable for any damage caused by incorrect use.
4. Please do not let people with reduced physical, sensory, or mental capabilities, or lack of experience use this appliance.
5. Don't let children use this appliance.
6. Keep the product and the power cord accessible to children.
7. Please check the electric plug and power cord regularly. Whenever find the power cord damaged, please replace it by the manufacturer, authorized service agent, or qualified person before operating the product.
8. Please connect the electric plug to the main socket at accessible position, so that in case of emergency or danger, you can disconnect electric plug immediately.
9. Please avoid the appliance and electric plug in touch with water a

Please avoid the appliance and electric plug in touch with water and liquids. If the appliance falls into water, please disconnect the electric from the socket immediately, and do not use the appliance until you throughout check by qualified technicians. Failure to follow this instruct may lead to fatal danger.

1. Don't try to open the housing of the appliance yourself.
2. Don't insert any objects into the housing of the appliance.
3. Never touch the plug if your hand is wet or damp.
4. Never try to repair the appliance yourself. This may cause electric shock!
5. In case of malfunctioning, repair must be done by qualified personnel.
6. Do not use a malfunctioning or damaged product. Disconnect the electric plug from the main power supply and contact after-sales service for repair.
7. Do not submerge any electrical parts of the appliance in water or other liquids, and do not place the appliance in running water.
8. Do not let the power cord touch sharp or hot objects, and keep it away from open flames. To disconnect the electric plug from the socket, always pull the plug itself, not the cord.
9. Make sure to place the power cord in a safe position to avoid creating a trip hazard.
10. Keep watching the appliance while it is operating.
11. Be careful! Whenever the electric plug is in the main socket, the appliance is connected to the electric power supply.
12. Make sure your electric plug is connected to an easily accessible electrical outlet, so that you can unplug the appliance immediately in case of an emergency.
13. Switch off the appliance before pulling the electric plug out of the socket.
14. Don't use any devices which are not supplied together with the appliance.
15. Don't use any accessories other than those recommended by the manufacturer.
16. Only connect the appliance to an electricity supply with voltage and

frequency as declared on the appliance label.

1. Remove any plastic coating and clean the product before use.
2. When the appliance is operating, some parts of it may get hot; avoid touching it or any accidental contact.
3. Please disconnect the power before servicing, maintenance, disassembling, assembling, cleaning, or when it is left unattended or not in use.
4. When the appliance is being used, don't leave it unattended.
5. Remember to switch off the appliance before disconnecting the plug.

Specific Precautions

1. This appliance is intended for making coffee. If it is used for any other purpose, it may lead to damage of the appliance and even harm the user.
2. The appliance should be operated by professional or trained users.
3. Do not cover the appliance during operation.
4. The appliance should be placed on a level, clean, and stable platform during operation.
5. Do not place the appliance close to other hot appliances or equipment such as electric and gas thermal appliances, ovens, heating plates, griddles, fryers, and so on.
6. Do not allow the appliance to be close to fire as well as any hot surfaces.
7. If the appliance is to be placed at a position close to a wall, partitions, kitchen furniture, decorative finishes, etc., please make sure they are of non-flammable material; otherwise, the appliance has to be clad with non-flammable and heat insulating material. It's important to pay extra attention to conform to fire prevention regulations.
8. Place the appliance at a position that will not be reached by children or persons with reduced mental capabilities.
9. Clean the appliance after use for sanitation.
10. Allow the appliance to cool down completely before cleaning.
11. Do not use a water jet or flush water directly onto the appliance. Electric shock may occur if water enters electrical parts.
12. Do not use a steam cleaner to clean the appliance.
13. Only put fresh and cold water into the water reservoir.
14. Do not put hot water into the water reservoir.
15. This appliance is designed for heating water only, not any other liquid.
16. Do not put more than one decanter of water into the reservoir.
17. This appliance is designed for heating water only, not any other liquid.
18. Do not put more than 2 liters of water into the reservoir.
19. Caution! Whenever you open the cover of the water reservoir, steam may come out.
20. Make sure there is enough water in the water reservoir before switching on the appliance, and do not let the water reservoir empty during operation.
21. Do not move the appliance when it is operating or when it has heated.
22. The two warming plates can become very hot during and after operation. Do not touch them; only hold the glass decanter by its insulated handle to avoid injury.

Operation

1. Before use, carefully check that the appliance is not damaged. Contact your supplier if you find any damage or problem, and do not use the appliance.
2. Remove all packaging and protective material.
3. Place the appliance on a stable and level platform.
4. Leave sufficient space around the appliance for ventilation.
5. Place the paper filter on the funnel of the appliance.
6. Open the flip cover of the water reservoir.
7. Fill the decanter with cold water and then pour the water into the reservoir.

* Capacity of the water reservoir is 1.8 L. Please avoid it to be over

1. Close the cover and leave the appliance for 1 minute to let the

out.

1. Put the decanter on the warming plate under the funnel.
2. Connect the power plug to the power socket.
3. Add 80-95 grams of coffee powder into the paper filter and slide funnel into position.
4. Switch the power ON, the "Indicator" will light up.
5. After a while, hot water starts dripping into the decanter.
6. When the "Indicator" light turns off, the brewing cycle is complete
7. The bottom warming plate will remain functional after the brewing process is completed.
8. Please remember to switch off if the decanter is picked up.
9. When you pick up the decanter, remember to hold its handle, the surface is harmful to your hand, and avoid touching the warming plate.

ON/OFF switch button:- Heat up the water & brew- turn on the lower warming pla
Switches to turn on and off the right side top & bottom warming plate

Grounding of the appliance

1. This is a Class I electrical appliance that must be connected to a ground.
2. This appliance has a power cord and electrical plug with ground wire pin.
3. The electrical plug must be plugged into a main socket installed with earth connection.

Maintenance

Cleaning

1. Before cleaning, always remember to switch off, unplug the appliance and let it cool down completely.
2. You can clean the parts of the appliance, including the filter funnel, decanter, and water tubes with mild detergent and by using a soft cloth.
3. Do not use steel wool, abrasive cleaners, or chlorinated cleaners on the appliance.
4. Dry the appliance before connecting it to power socket.

Descaling

When the appliance has been used for a certain period of time, water scale will build up and accumulate on the heating element and hinder the water flow. You should clean up the water scale regularly to ensure the appliance can be operated at the optimum condition as well as to keep the taste and flavor of the coffee.

Steps of descaling:

1. Use de-scaling agent, lemon juice or cleaning vinegar for descaling.
2. If you use lemon juice or cleaning vinegar, please mix 1/3 of lemon juice or cleaning vinegar with 2/3 of water.
3. Put the filter funnel on the holder of the appliance.
4. Put an empty decanter under the filter funnel.
5. Pour the de-scaling agent or lemon juice solution or the cleaning vinegar solution into the water reservoir.
6. Switch ON the appliance.
7. When the descaling agent or lemon juice solution or the cleaning vinegar solution starts to pass through the appliance, switch the appliance OFF.
8. Leave the appliance for about 5 minutes to let the de-scaling agent, lemon juice solution or the cleaning vinegar solution dissolve the water scale in the appliance.

Switch ON the appliance again to release out the descaling agent, lemon juice solution or the cleaning vinegar solution.

1. After all the descaling agent or lemon juice solution or the cleaning vinegar solution has been released out, switch OFF the appliance again.
2. After all the descaling agent, lemon juice solution, or vinegar solution has been released, switch OFF the appliance again.
3. Put clean water into the water reservoir and repeat the brewing procedures until there is no more odour or taste in the water.

To ensure the appliance can always be operating in the best state, clean the appliance and do descaling regularly.

1. To ensure the appliance can always be operating in the best state, descale the appliance regularly.
2. How frequently to do maintenance depends on how heavily you use the appliance.

Troubleshooting

Problem	Possible Causes	Solutions
The ON/OFF switch button does not light	No power input into appliance	Check the power plug
	The ON/OFF switch button has been damaged	Call the after sale service
The appliance operates but water flo is not smooth	Internal electronic control is not functioning	Call the after sale service
	Temperature protection is damaged
The fuse tripped whe the appliance has be switched ON	Short circuit happens	Call the after sale service
