RV-386-B - Coffee grinder Vevor - Free user manual and instructions

Product Type	Drip Coffee Maker
Brand	Vevor
Model	RV-386-B
Water Tank Capacity	1.8 L
Recommended Coffee Dose	90 to 105 g
Filter Type	Paper Filter
Carafe Included	Yes, glass carafe
Warming Plate	Yes, to keep warm
Electrical Class	Class I, mandatory grounding
Intended Use	Commercial use by trained personnel
Power Supply	Voltage and frequency as per label
Main Function	Coffee brewing by hot water flow
Cycle Indicator	Indicator light turns off at the end of brewing
Safety System	Thermal protection device (fuse)
Routine Maintenance	Clean with a soft cloth and mild detergent
Descaling	Regular, with descaler, lemon juice, or vinegar
Important Safety Instructions	Do not immerse, do not use hot water, unplug before cleaning

Frequently Asked Questions - RV-386-B Vevor

How to use the Vevor RV-386-B coffee maker?

Place the appliance on a flat surface, fill the water tank with cold water (max 1.8 L), add 90 to 105 g of ground coffee in a paper filter, then close the lid. Plug in the appliance and turn it on using the switch. The indicator light turns on and hot water flows into the carafe. The cycle stops automatically when the indicator light turns off.

What is the water tank capacity?

The water tank has a capacity of 1.8 liters. Do not exceed this amount to avoid overflow.

Can I use hot water in the tank?

No, use only cold and fresh water. Hot water could damage the appliance or cause burns.

How to clean the machine?

Always unplug the appliance and let it cool before cleaning. Clean the removable parts (funnel, carafe) with a mild detergent and a damp cloth. Do not use steel wool or abrasive cleaners.

How to descale the machine?

Use a commercial descaler, lemon juice, or white vinegar. Mix 1/3 product with 2/3 water, pour into the tank, run a cycle until the solution partially flows out, then let it sit for 5 minutes. Complete the cycle and rinse with two cycles of clear water.

What are the important safety instructions?

The appliance is class I and must be plugged into a grounded outlet. Do not immerse it, do not place it near a heat source, and never let water enter the electrical parts. Unplug it before any maintenance.

Is the machine suitable for domestic use?

No, this appliance is designed for commercial use and must be used by trained personnel. It is not intended for domestic use.

What to do if the machine does not heat or turn on?

Check that the power outlet works and the cord is not damaged. If the indicator light does not turn on, the switch button may be defective. If the fuse has blown, contact customer service.

What type of coffee to use?

Use ground coffee for filter, between 90 and 105 grams per cycle. Paper filter is recommended for optimal extraction.

Where to find spare parts or get technical support?

Visit www.vevor.com/support for technical support and the electronic warranty certificate. For parts, contact customer service.

USER MANUAL RV-386-B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

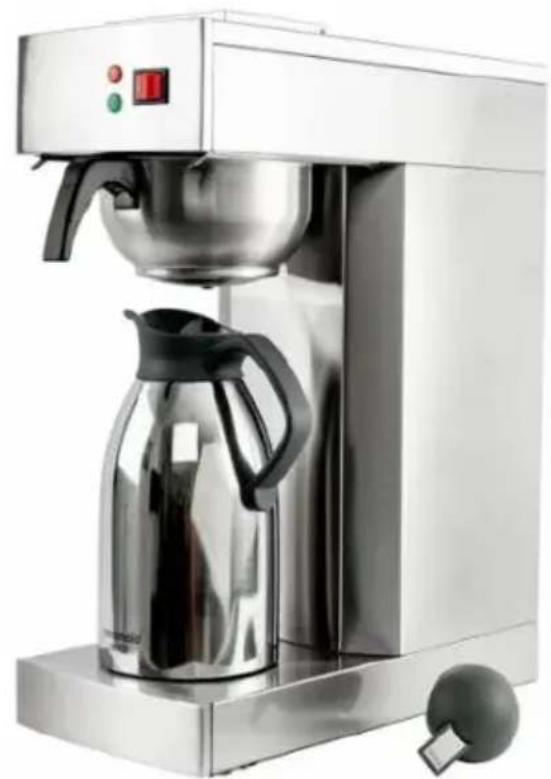

COFFEE MACHINE

MODEL: RV-386-B

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: RV-386-B

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

General Precautions

1. This electric appliance must be installed, commissioned, and serviced by a qualified technician in accordance with regulations in the country of installation.
2. This appliance is made for commercial use purposes, and please do not use it for household purposes.
3. This appliance must only be used for its intended use and design. The manufacturer and seller are not responsible or liable for any damage caused by incorrect use.
4. Please do not let people with reduced physical, sensory, or mental capabilities, or lack of experience use this appliance.
5. Don't let children use this appliance.
6. Keep the product and the power cord out of reach of children.
7. Check the electric plug and power cord regularly. If the power cord is damaged, have it replaced by the manufacturer, an authorized service agent, or a qualified person before operating the product.
8. Connect the electric plug to a main socket that is easily accessible, so that in case of emergency or danger, you can disconnect the plug immediately.
9. Avoid contact between the appliance and the electric plug with water or

liquids. If the appliance falls into water, disconnect the electric plug from the socket immediately, and do not use the appliance until it has been checked by qualified technicians. Failure to follow this instruction may lead to fatal danger.

1. Do not attempt to open the housing of the appliance yourself.
2. Do not insert any objects into the housing of the appliance.
3. Never touch the plug if your hands are wet or damp.
4. Never attempt to repair the appliance yourself. This may cause electric shock!
5. In case of malfunction, repairs must be carried out by qualified personnel.
6. Do not use a malfunctioning or damaged product. Disconnect the electric plug from the main power supply and contact after-sales service for repair.
7. Do not submerge any electrical parts of the appliance in water or liquids, and do not place the appliance under running water.
8. Do not let the power cord touch sharp or hot objects, and keep it away from open flames. To disconnect the plug from the socket, always pull the plug itself, not the cord.
9. Make sure to place the power cord in a safe position to avoid creating a trip hazard.
10. Keep an eye on the appliance while it is operating.
11. Be careful! Whenever the electric plug is in the main socket, the product is connected to electric power.
12. Make sure your electric plug is connected to a fast accessible electrical outlet, so that you can unplug the appliance immediately once there is any emergency.
13. Please switch off the appliance before pulling out the electric plug from the socket.
14. Don't use any devices which are not supplied together with the appliance.
15. Don't use any accessories other than those recommended by the manufacturer.
16. Only connect the appliance to electricity supply with voltage and

frequency as declared on the appliance label.

1. Remove any plastic coating and clean the product before use.
2. When the appliance is operating, some parts of it may get hot, avoid touching it or any accidental contact.
3. Please disconnect the power before servicing, maintenance, disassembling, assembling, cleaning, or when it is being left unattended, or when it is not in use.
4. When the appliance is being used, don't let it be unattended.
5. Remember to switch off the appliance before disconnecting the plug.

Specific Precautions

1. This appliance is intended for making coffee. If it is used for any other purpose, it may lead to damage of the appliance and even harm the user.
2. The appliance should be operated by professional or trained users.
3. Do not cover the appliance during operation.
4. The appliance should be placed on a level, clean, and stable platform during operation.
5. Do not place the appliance close to other hot appliances or equipment such as electric and gas thermal appliances, ovens, heating plates, griddles, fryers, and so on.
6. Do not allow the appliance to be close to fire as well as any hot surfaces.
7. If the appliance is to be placed at a position close to a wall, partitions, kitchen furniture, decorative finishes, etc., please make sure they are of non-flammable material; otherwise, the appliance has to be clad with non-flammable and heat insulating material. It's important to pay extra attention to conform to fire prevention regulations.
8. Place the appliance at a position that will not be reached by children or persons with reduced mental capabilities.
9. Clean the appliance after use for sanitation.
10. Allow the appliance to cool down completely before cleaning.
11. Do not use a water jet or flush water directly onto the appliance. It is possible to have an electric shock if water enters into electrical parts.
12. Do not use a steam cleaner to clean the appliance.
13. Only put fresh and cold water into the water reservoir.
14. Do not put hot water into the water reservoir.
15. This appliance is designed for heating water only, not any other liquid.
16. Do not put more than one decanter of water into the reservoir.
17. This appliance is designed for heating water only, not any other liquid.
18. Do not put more than 2 liters of water into the reservoir.
19. Caution! Whenever you open the cover of the water reservoir, steam may come out.
20. Make sure there is enough water in the water reservoir before switching on the appliance, and do not let the water reservoir empty during operation.
21. Do not move the appliance when it is operating or when it has heated up.

Operation

1. Before use, carefully check if the appliance is without damage. Contact your supplier if you find damage or a problem, and do not use the appliance.
2. Remove all packaging and protective material.
3. Place the appliance on a stable and level platform.
4. Leave sufficient space around the appliance for ventilation.
5. Place the paper filter on the funnel of the appliance.
6. Open the flip cover of the water reservoir.
7. Fill the carafe with cold water and then pour the water into the reservoir.

* Capacity of the water reservoir is 1.8 L. Please avoid it to be over 8. Close the cover and leave the appliance for 1 minute to let the out.

1. Put the carafe on the warming plate under the funnel.

* Capacity of the water reservoir is 1.8 L. Please avoid it to be over

1. Connect the power plug to the power socket.
2. Add 90-105 grams of coffee powder into the paper filter and slide the funnel into position.
3. Switch the power ON, the "Indicator" will light up.
4. After a while, hot water starts dripping into the carafe.
5. When the "Indicator" light turns off, the brewing cycle is complete.

Grounding of the appliance

1. This is a Class I electrical appliance which must be connected to a safety ground.
2. This appliance has a power cord and electrical plug with ground wire and pin.
3. The electrical plug must be plugged into a main socket installed with an earth connection.

Maintenance

Cleaning

1. Before cleaning, always remember to switch off, unplug the appliance, and let it cool down completely.
2. You can clean the parts of the appliance, including the filter funnel, decanter, water tubes with mild detergent and by using a soft and damp cloth.
3. Do not use steel wool, abrasive cleaners, or chlorinated cleaners on the appliance.
4. Dry the appliance before connecting it to a power socket.

Descaling

When the appliance has been using for a certain period of time, water scale will build up and accumulated on the heating element and the path of the water flow. You should clean up the water scale regularly to ensure the appliance can be operated at the optimum condition as well as to keep the

taste and flavor of the coffee.

Steps of descaling:

1. Use de-scaling agent, lemon juice or cleaning vinegar for descaling
2. If you use lemon juice or cleaning vinegar, please mix 1/3 of lemon juice or cleaning vinegar with 2/3 of water.
3. Put the filter funnel on the holder of the appliance.
4. Put an empty decanter under the filter funnel.
5. Pour the descaling agent or lemon juice solution or cleaning vinegar solution into the water reservoir.
6. Switch ON the appliance.
7. When the descaling agent or lemon juice solution or the cleaning vinegar solution starts to pass through the appliance, switch the appliance OFF.
8. Leave the appliance for about 5 minutes to let the descaling agent, lemon juice solution, or the cleaning vinegar solution dissolve the water scale in the appliance.
9. Switch ON the appliance again to release out the descaling agent, lemon juice solution, or the cleaning vinegar solution.
10. After all the descaling agent or lemon juice solution or cleaning vinegar solution has been released out, switch OFF the appliance again.
11. Put clean water into the water reservoir and repeat the brewing procedures until there is no more odour and taste in the water.

Regular maintenance

1. To ensure the appliance can always be operating in the best state, clean the appliance and do descaling regularly.
2. How frequently to do maintenance depends on how heavily you use the appliance.

Troubleshooting

Problem	Possible Causes	Solutions
The ON/OFF switch button does not light	No power input into appliance	Check the power pl
	The ON/OFF switch button has been damaged	Call the after sales service
The appliance operates but water flo is not smooth	Internal electronic control is not functioning	Call the after sales service
	Temperature protection is damaged
The fuse tripped whe the appliance has be switched ON	Short circuit happens	Call the after sales service
