USER MANUAL WPSR-XM010 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PIPE SHELVES

MODEL:WPSR-XM010

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: WPSR-XM010

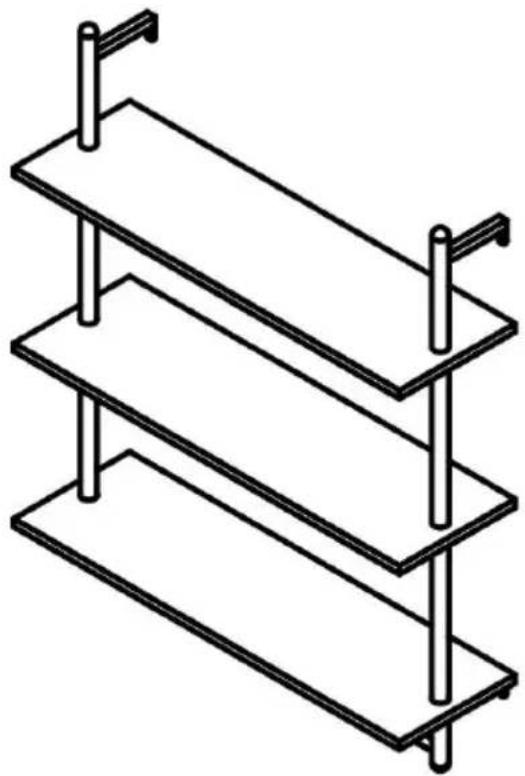

Isometric line drawing of a three-tiered shelf or rack structure with vertical supports (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

- Avoid children using the product. And this product is not a toy. Do not allow children to play.

SETUP PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep the assembly area clean and well-lit.
3. Capabilities apply to properly and completely assembled product only.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. Keep away from sharp points, blades and other items.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts of children's reach.

SAVE THESE INSTRUCTIONS

SAFETY AND PRECAUTIONS

WARNING:

• Do not place too heavy weight on the pipe shelves, it may bend or ev break the board, we recommend placing the weight of no more than 50lb
• The pipe shelves is installed only on solid walls, such as solid brick wall and concrete walls. If the pipe shelves is installed on wooden walls, the thickness of the wooden wall be at least 6cm.

CAUTION:

• When installing the pipe shelves, pay attention to keeping the board in horizontal state, so as to have a better experience of placing items
• This product is intended for indoor installation use only.

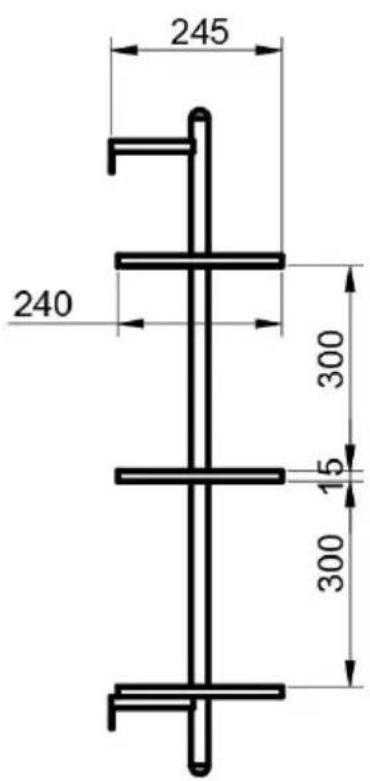

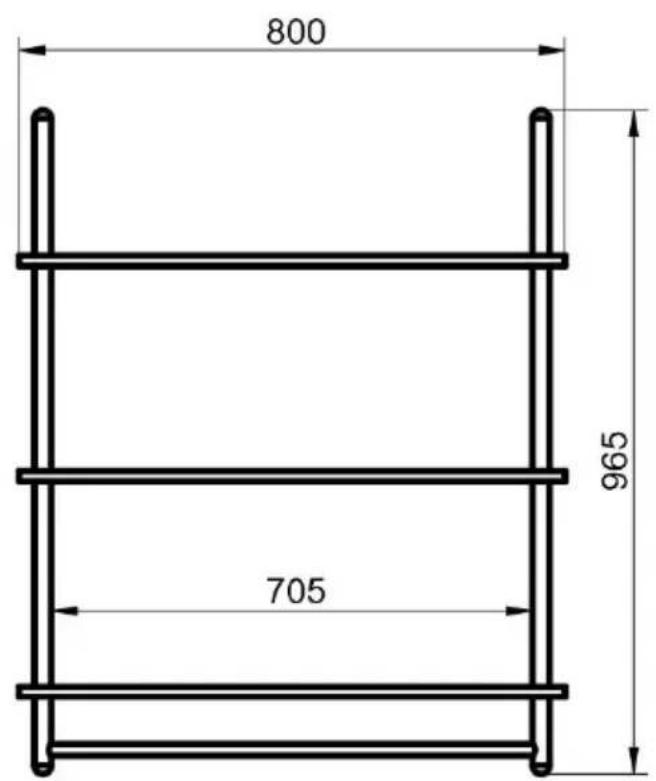

SPECIFICATION

800 705 965

245 240 300 15 300

Note: The number unit in the figure is mm.

Part List

Mark	Name	Picture		QTY
A	Upper bracket			2
B	Lower bracket - Left			1
C	Lower bracket - Right			1
D	Board		1
E	Board		2
F	Rod		2
G	Rod		1

Install accessories

Mark	Name	Specifications	Picture	QTY
P	Double-headed screw	/		4
Q	Screw	M4*25mm		2
R	Screw	M5*40mm		4
S	Plastic expansion tube	D=8mm		4
T	Hook	/		5

PIPE SHELVES ASSEMBLE

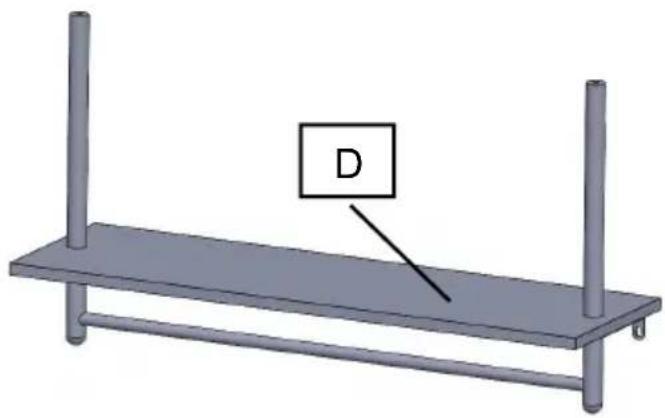

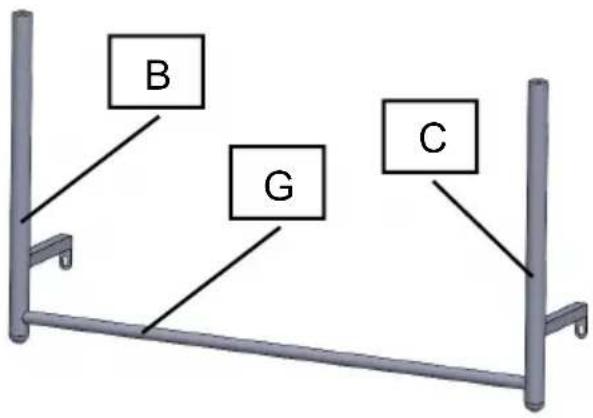

STEP1. As shown below, combine B, G and C, and then insert the board

B G C

3D diagram of a metal shelf with two vertical posts and a labeled component 'D' (no text or symbols beyond label)

STEP2.Screw the double-headed screw P into the ends of both rods B&

P P

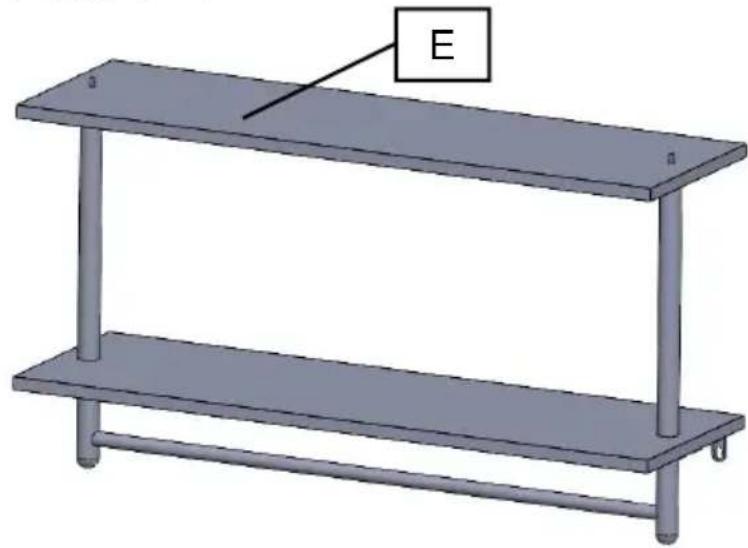

STEP3.Insert the board E.

3D rendering of a two-tier metal shelf with a labeled section marked 'E' (no text or symbols on the shelf itself)

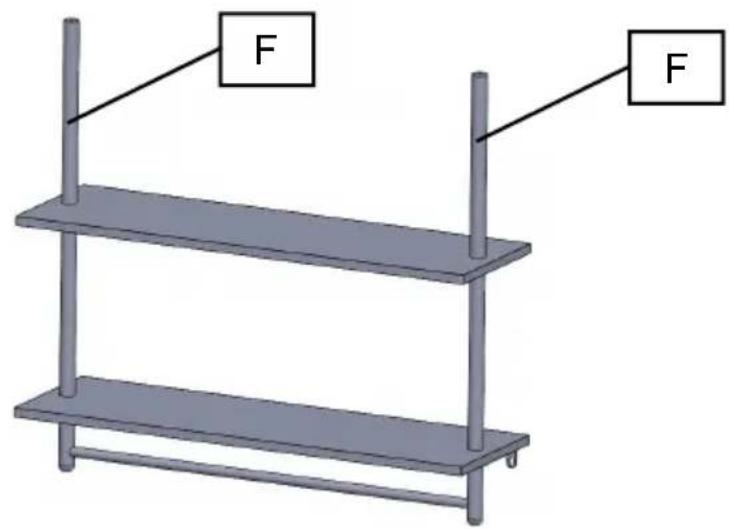

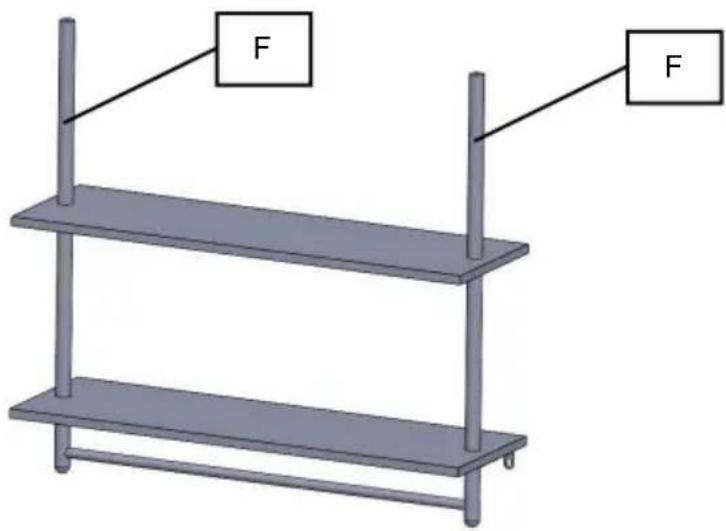

STEP4.Screw in rod F.

F F

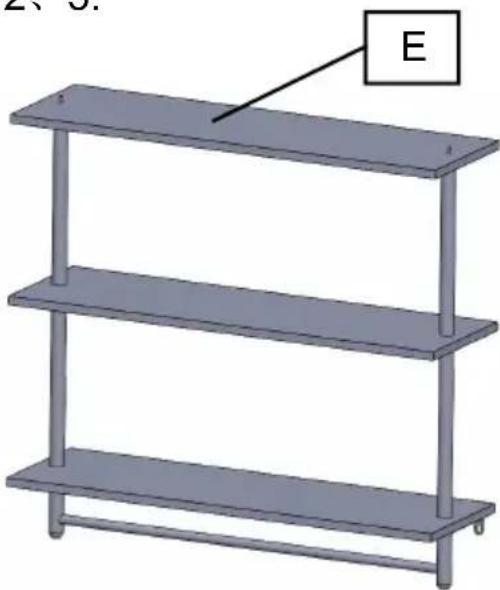

STEP5.Repeat Steps 2、3.

3D diagram of three stacked metal shelves with a label 'E' pointing to the top shelf (no text or symbols on the shelves themselves)

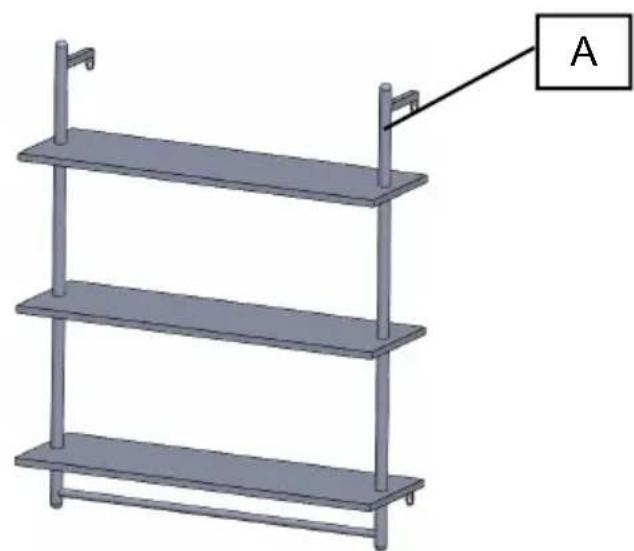

STEP6.Screw in Upper bracket A.

3D diagram of a three-tiered shelving unit with metal racks and a labeled section A (no text or symbols on the structure itself)

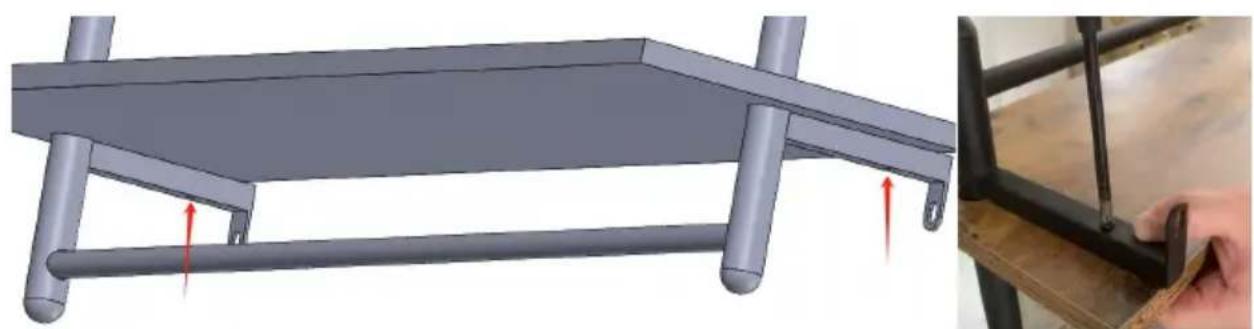

STEP7.If you think it is necessary, you can attach the bottom board to t bracket and tighten it with screw Q.

3D mechanical assembly diagram showing a lever mechanism with red arrows indicating force or movement, alongside a close-up of a metal frame (no text or symbols)

ATTACH PIPE SHELVES TO THE WALL

Note: At least one assistant is recommended.

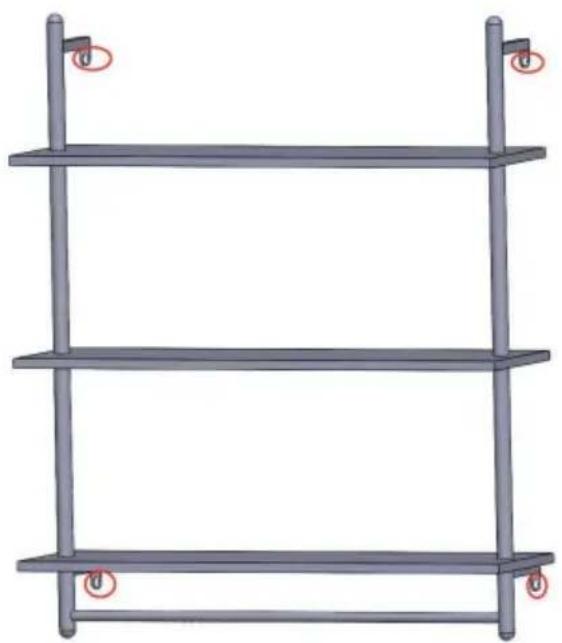

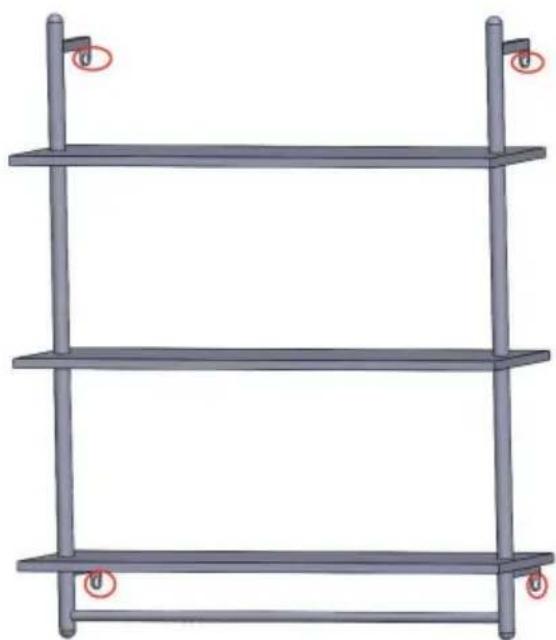

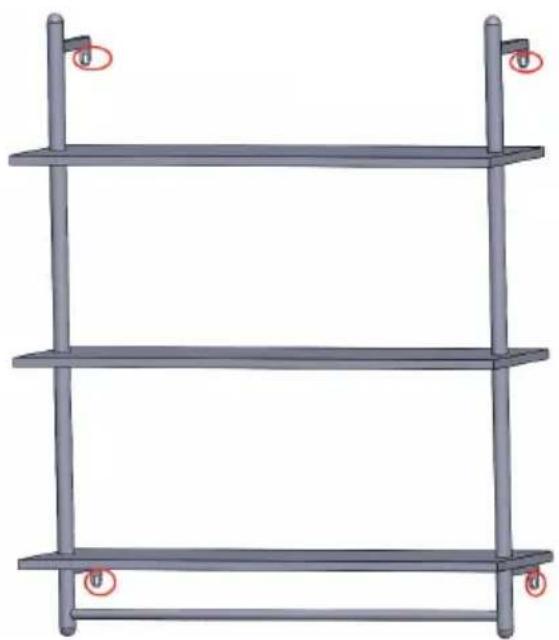

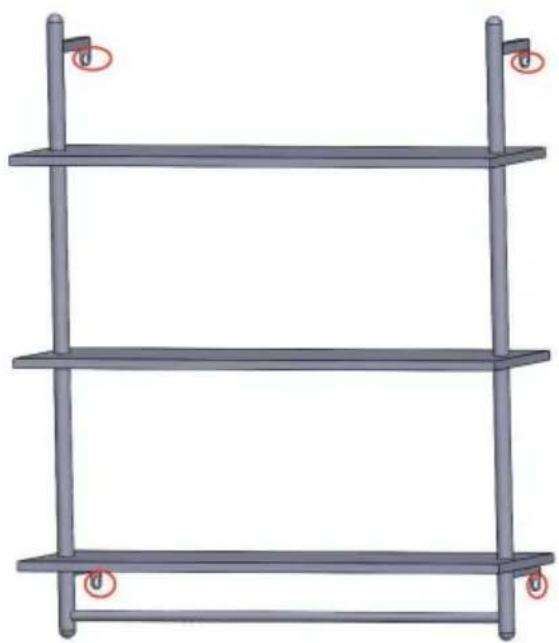

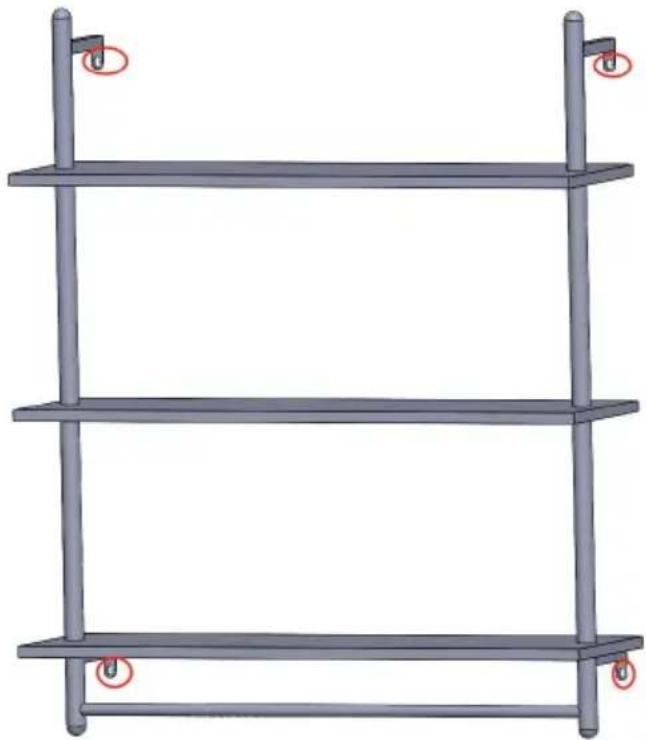

STEP1: Locate the pipe shelves to the wall and determine the height you want to install them at. Use a level to make sure the boards are level, mark the location holes on the mounting bracket.

Illustration of a three-tiered shelving unit with red circular markers on both ends (no text or symbols)

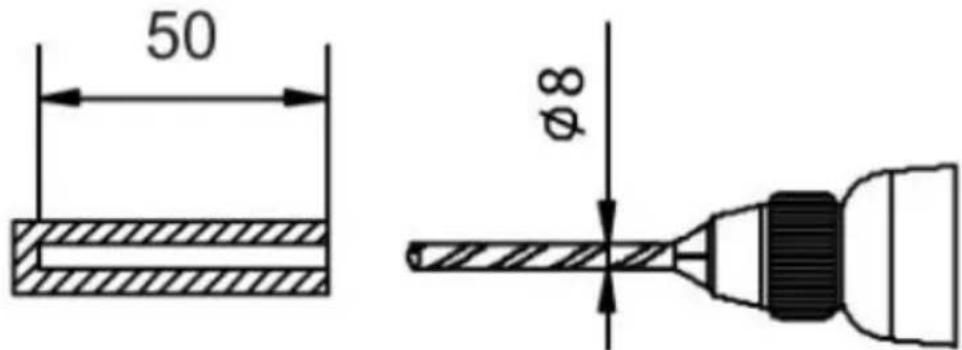

STEP2: Drill holes in the concrete wall with an impact drill bit. The size of the holes is shown below.(If mounted on a wooden wall, drill holes with common drill bit.)

50 Ø8

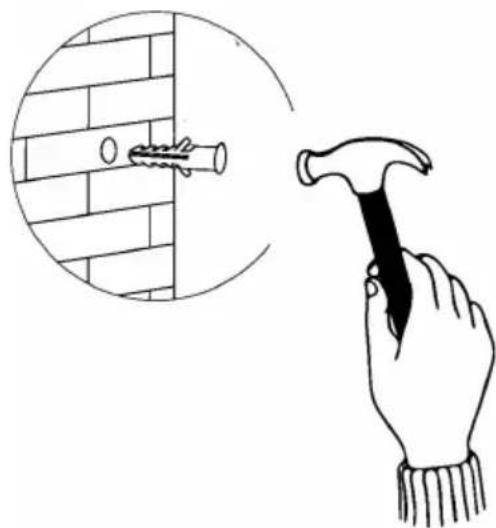

STEP3:Drive Plastic expansion tube into each hole.

Illustration of a hand using a hammer to mark a nail on a brick wall, with a magnified inset showing the nail being inserted (no text or symbols present)

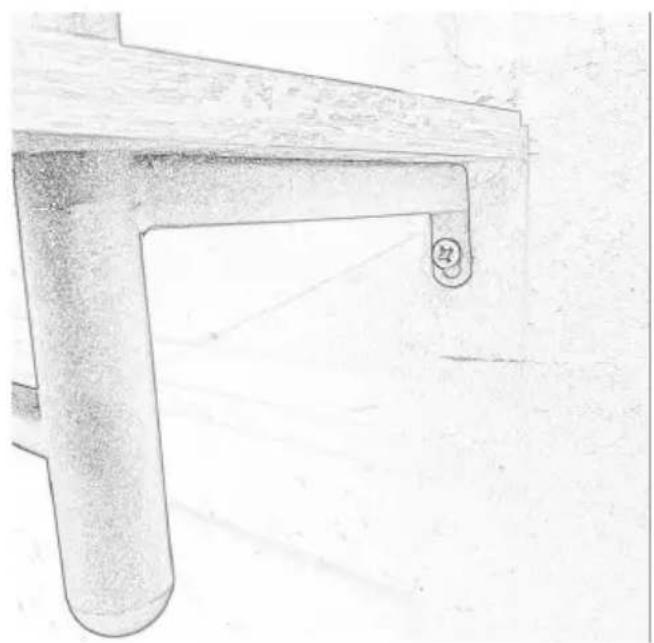

STEP4: For each mounting hole, secure pipe shelves with tapping screws.

Pencil sketch of a corner bracket with a circular detail and a small circular mark on the base (no text or symbols)

Illustration of a three-tiered metal shelving unit with red circular markers on both ends (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of three stacked rectangular shelves with vertical supports (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

www.vevor.com/support

3D diagram of three parallel metal shelving units with a labeled 'UN' annotation (no other text or symbols)

3D mechanical assembly diagram showing a metal frame with red arrows indicating force or movement, alongside a close-up of a wooden panel (no text or symbols)

FIXEZ LES ÉTAGÈRES DE TUYAUX AU MUR

Illustration of a three-tiered metal shelving unit with red circular markers on both ends (no text or symbols)

Illustration of a hand using a hammer to mark a nail on a brick wall, with a magnified inset showing the nail being inserted (no text or symbols present)

Pencil sketch of a corner bracket with a circular detail and a numbered marker (no text or symbols)

Simple line drawing of a three-tiered shelving unit with red circular markers on each shelf (no text or symbols)

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 RUE ROKEVAASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147,

Maison Centurion, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Isometric line drawing of a three-tiered shelf or rack structure with vertical supports (no text or symbols)

3D diagram of a three-tiered shelving unit with labeled 'UND' (no text or symbols on the shelves)

3D model of a three-tiered shelving unit with metal racks and a labeled section A (no text or symbols on the structure itself)

3D mechanical assembly diagram showing a metal frame with red arrows indicating force or movement, alongside a close-up of a hand holding a black metal bracket (no text or symbols visible)

Illustration of a three-tiered metal shelving unit with red circular markers on both ends (no text or symbols)

Illustration of a hand using a hammer to tighten a screw on a brick wall, with a magnified inset showing the same object (no text or symbols present)

Pencil sketch of a corner bracket with a circular detail and a numbered marker (no text or symbols)

Simple line drawing of a three-tiered shelving unit with no text or symbols

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Ort, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of three stacked rectangular shelves with vertical supports (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

3D rendering of a two-tiered metal shelf with a labeled section marked 'E' (no text or symbols on the shelf itself)

3D diagram of a three-tiered shelving unit with labeled component E (no text or symbols on the structure itself)

3D model of a three-tier metal shelf with vertical supports and a labeled 'UN' box (no text or symbols on the shelf itself)

3D mechanical assembly diagram showing a metal frame with red arrows indicating force or movement, alongside a close-up of a wooden panel (no text or symbols)

FISSARE GLI SCAFFALI TUBO ALLA PARETE

Illustration of a three-tiered metal shelving unit with red circular markers on both ends (no text or symbols)

Illustration of a hand using a hammer to tighten a screw on a brick wall, with a magnified inset showing the same object (no text or symbols present)

Pencil sketch of a structural bracket with a circular detail and diagonal line (no text or symbols)

Simple line drawing of a three-tiered shelving unit with no text or symbols

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122Australia

C/O YH Consulting Limited Ufficio 147,

Casa del Centurione, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of three stacked rectangular shelves with vertical supports (no text or symbols)

3D rendering of a two-tier metal shelf with a labeled section Y (no text or symbols on the shelf itself)

PASO 4. Atornille la varilla F.

F F

3D diagram of a three-tiered shelving unit with labeled section Y (no text or symbols on the structure itself)

3D diagram of a three-tier metal shelf with vertical supports and a labeled section A (no text or symbols on the shelf itself)

3D mechanical assembly diagram showing a metal frame with red arrows indicating force or movement, alongside a close-up of a hand holding a black metal bracket (no text or symbols visible)

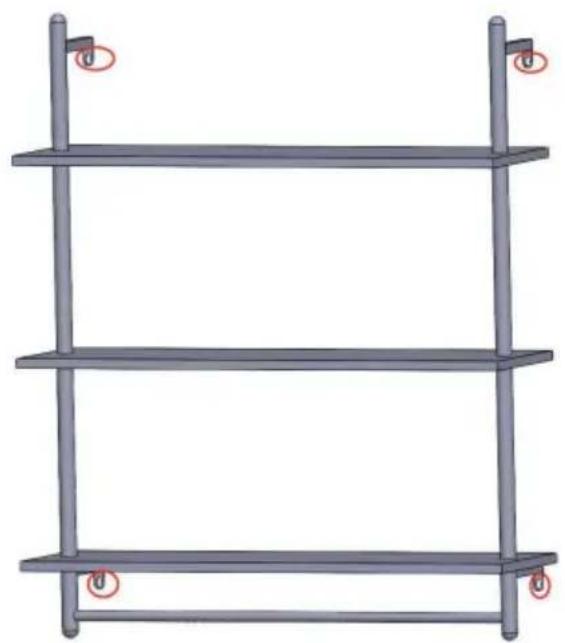

FIJAR ESTANTES PARA TUBERÍAS A LA PARED
