USER MANUAL BJY-PHJ700u2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COLD SPARK MACHINE

MODEL: BJY-PHJ500u1/BJY-PHJ500u2/BJY-PHJ700u1/BJY-PHJ700u2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

COLD SPARK

MACHINE

MODEL:

BJY-PHJ500u1 / BJY-PHJ500u2 BJY-PHJ700u1 / BJY-PHJ700u2

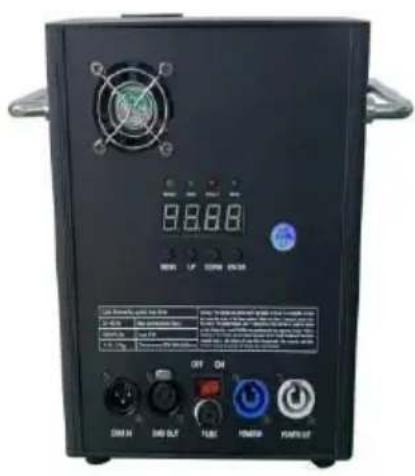

9.8.8.6 MOSO UP SENS ON 03 OFF ON DMN DIO OUT FUSE HOMSOR POWER OUT

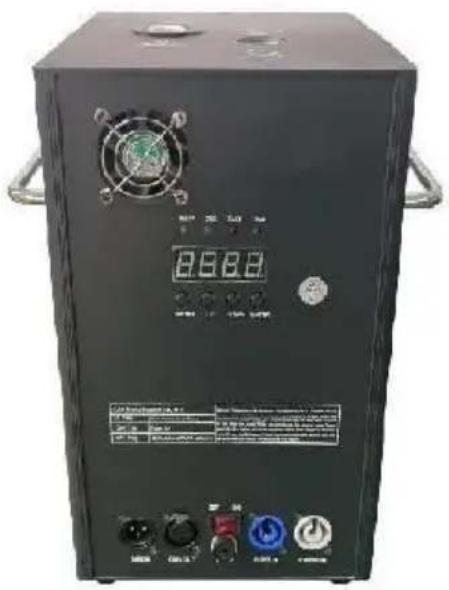

Black industrial electronic device with digital display and control buttons, labeled in Chinese

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic w must be taken to a collection point for recycling electric electronic devices.
	FCC statement:This device complies with Part 15 of the FCC Rules. (is subject to the following two conditions:(1)This device cause harmful interference, and (2)this device must acce interference received, including interference that may cau undesired operation.
	Alternating current

SAFETY INSTRUCTIONS AND OPERATING INSTRUCTIONS

1. Please make sure the Ti composite powder is dry enough before add it. The powder must be clean, with small particles, without too much impurity.
2. When you don't use the machine for a long time to keep the powder from dampness, please pour out the powder and keep it sealed for reserve.

3. When the machine is powered on, there is a danger of electric s and high-temperature burns. Please do not attempt to open the machine disassemble and debug any part of the machine.

4. Keep the electronic fireworks machine dry, please do not use it in or snowy days.

5. Fix the device with the screw holes on the bracket. Make sure the equipment is securely fastened to prevent vibration and movement during operation, and always check that the structure supporting the equipment is strong enough to withstand equipment that is at least 10 times the value of the equipment.
6. The equipment must be fixed by professionals in places out of real people, and no one can pass under or over the crosswalk.
7. Note: There is a danger of explosion if the battery is improperly | Only replace the same or equivalent types.
8. If you are in doubt about whether the battery has been swallowed, it is introduced to other parts of the body, contact a doctor immediately. By cleaning the device, disconnect it from the mains if connected. Do not harsh cleaners. Wipe off dust or dirt from the product with a clean tool are not responsible for damage caused by incorrect handling, improper or wear and tear. We reserve the right to make technical modification
9. The consumable cover at the top of the equipment must be close prevent accidental ejection. Consumables should be stored in a dry air sealed environment to prevent moisture.
10. Before and after the performance, you should observe whether the are nodules in the nozzle. If so, it needs to be cleaned up. These will affect the fireworks effect and even damage the spark machine.
11. A single electronic fireworks power cord (sprayer power cord) can be connected in series for up to 6 groups. Too much series connect lead to damage or fire.
12. The maximum run time is 5 minutes. Reusable, but should not overheat the machine. Movement and handling of the machine while in use is prohibited.
13. When loading consumables, make sure that the machine is turned. After putting it away, please cover it to prevent the garbage from fall the feed inlet and causing the machine to be blocked.
14. Prevent anything from entering the nozzle, clear obstructions before

operation

1. To avoid fire or electric shock hazards, do not expose this device to rain or moisture. During operation, make sure that there are no flammable objects near the equipment.
2. Install the equipment in a well-ventilated place, at least 50cm away from any surface. Make sure the ventilation slots are not blocked.
3. Disconnect the equipment from the power supply before any operation or maintenance.
4. If something goes wrong, stop the equipment immediately and done repair it yourself. Improper maintenance will lead to damage and failure. Contact technical support for approval. Only use the same spare parts the original ones to ensure that the power cord is not blocked or da
5. Replace the fuse: unplug the device from the power supply. Rem the fuse holder from its original position with a screwdriver. Remove blown fuse and replace it with a fuse with the same characteristics. Re-screw the screws to connect the equipment to the power supply.
6. Warning: If the fuse is still blown after replacing it, please stop Please contact customer support for further instructions. Continued use may cause serious damage.
7. Warning about remote control batteries: Used batteries should not thrown away with household waste, but should be collected at a separate collection point.

SAVE THESE INSTRUCTIONS

Precautions:

• After use, the consumables must be cleaned for 30 seconds by pre the "D" button!
• Stop heating operation if fireworks are not sprayed for a long time
• Prohibition of letting the machine tip over.
• Do not touch the nozzle with your hands.
• Prohibition of continuous work with the machine for 30 minutes.
• The fireworks machine must be idle for 2 minutes without powder, each use.

- The powder in the powder tank should be cleaned and poured out recycling in time, and should not be piled up.

PACKING LIST

NO	PICTURE	NAME	QTY	NO	PICTURE	NAME	QTY
A		Cold Spark Machine	1	E		Remote Control	1
B		Power Line	1	F		Battery	1
C		Power Cable	1	G		Fuse	1
D		DMX Signal Cable	1
The above list is for each inner box.

TECHNICAL PARAMETERS

Model	BJY-PHJ500u1	BJY-PHJ500u2	BJY-PHJ700u1	BJY-PHJ700u2
Rated Voltage	AC120V60Hz	AC220-240V50Hz/60Hz	AC120V60Hz	AC220-240V50Hz/60Hz
Rated Power	500W	500W	700W	700W
Fuse	15A	10A	15A	10A
Pre-Heating Time	<3min	<3min	<3min	<3min
Height of Spark	4m	4m	5m	5m
Wireless Controller	W-3+W-8	W-3+W-8	W-3+W-8	W-3+W-8
Display Screen Board	LED	LED	LED	LED
DMX Range	1-512	1-512	1-512	1-512
Inject Powder	Ti Composite	Ti Composite	Ti Composite	Ti Composite

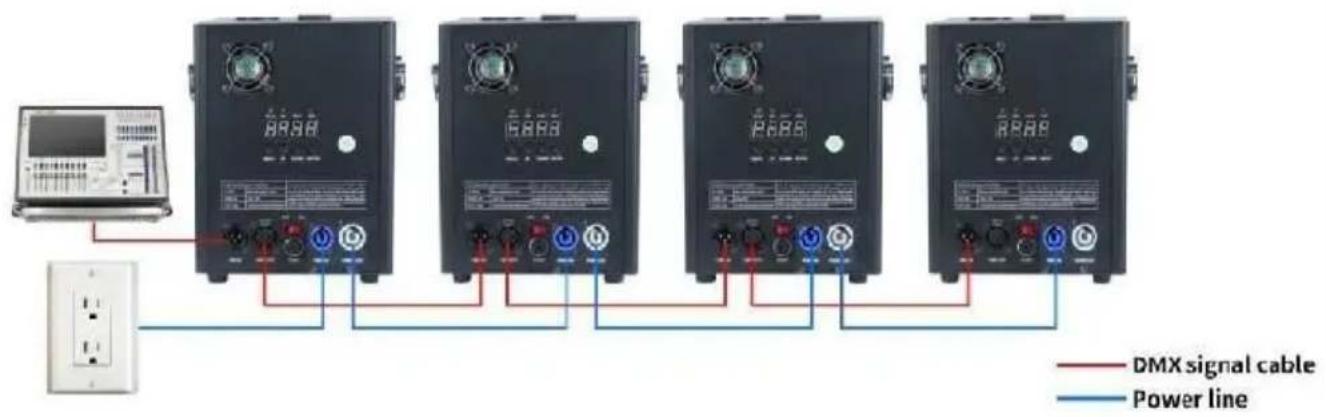

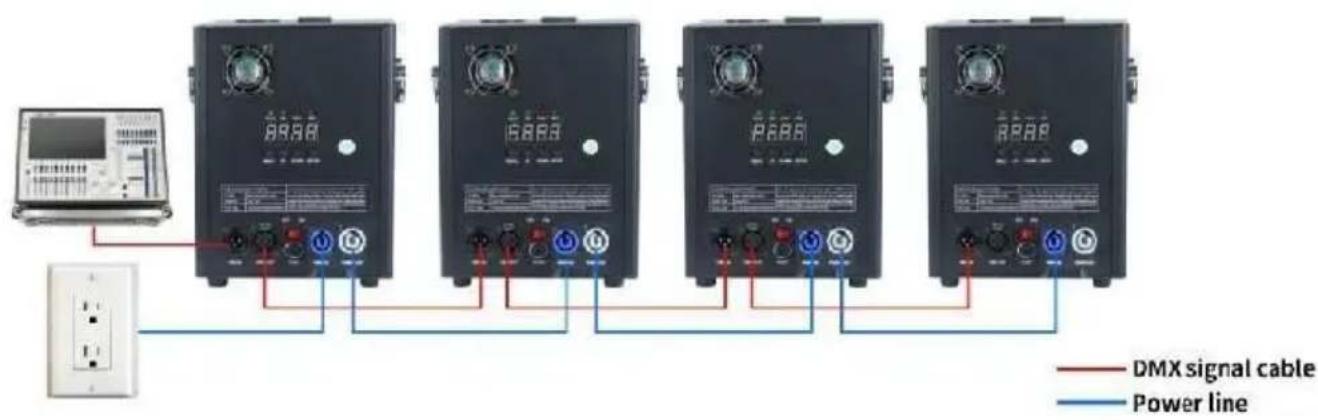

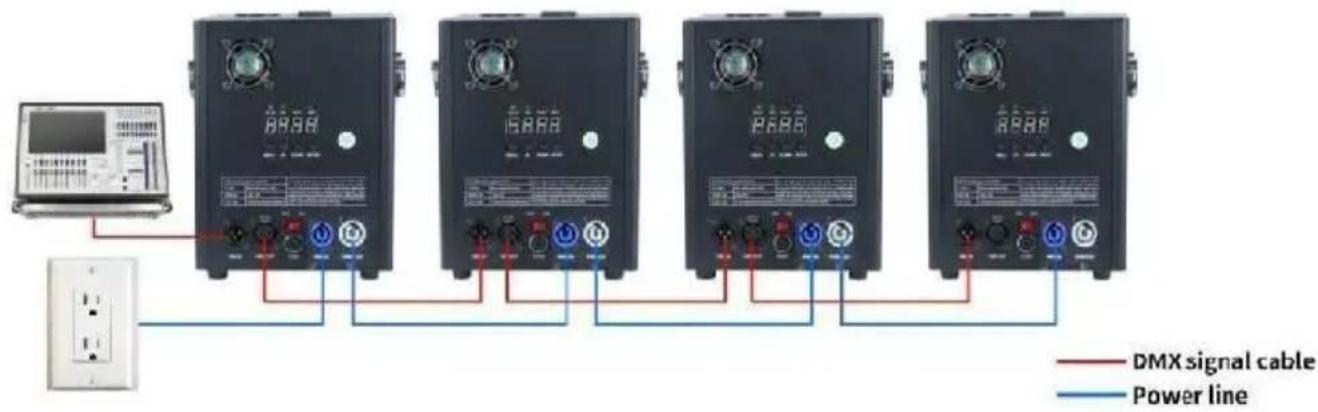

METHOD OF INSTALLATION

Up to six machines in series on one channel

DMX signal cable Power line

This machine supports DMX512 signal control, just connect it to console for control.

A single cold spark machine power cord (sprayer power cord) be connected in series for up to 6 groups. Too much series can lead to damage or fire.

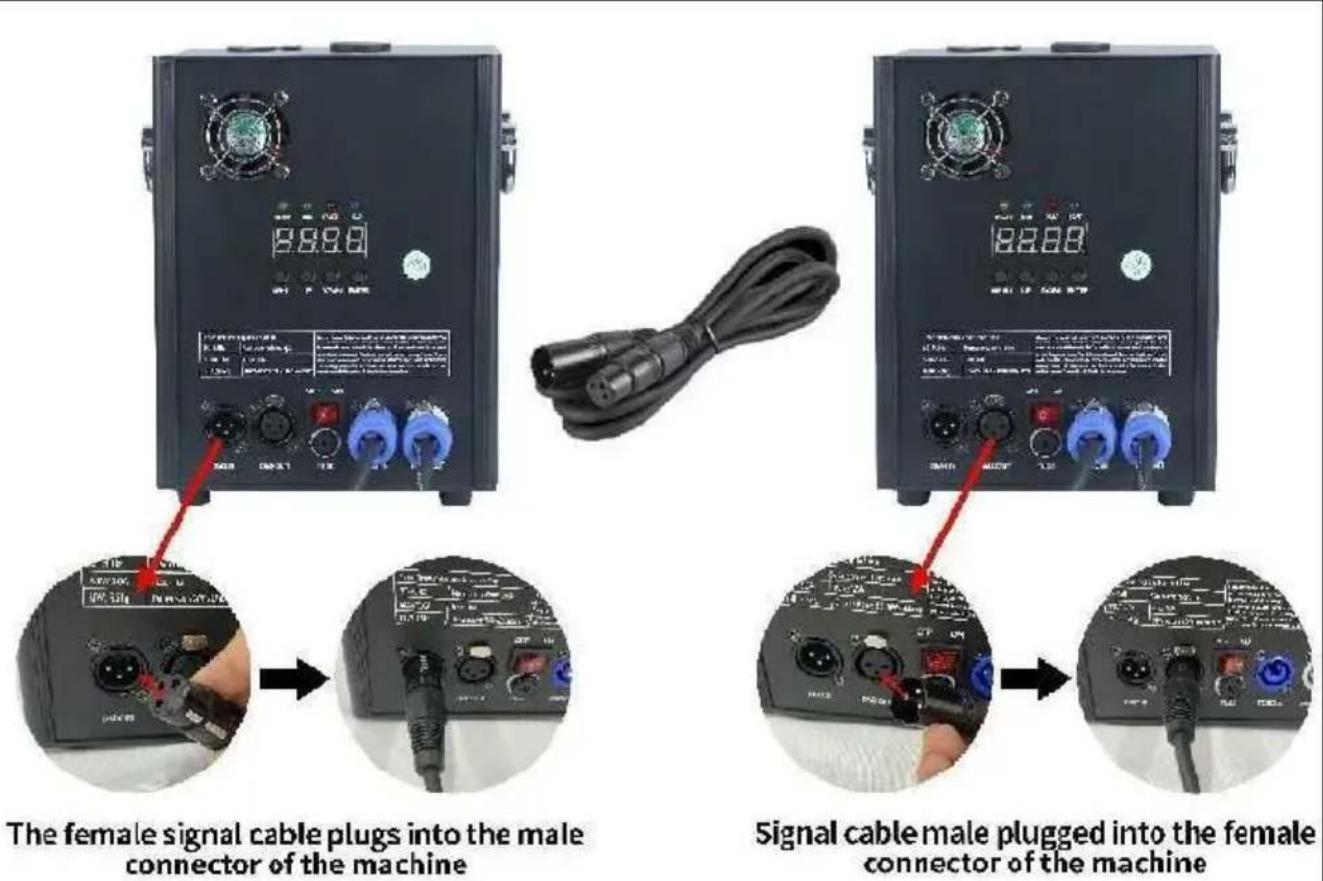

The female signal cable plugs into the male connector of the machine Signal cable male plugged into the female connector of the machine

can lead to damage or fire.

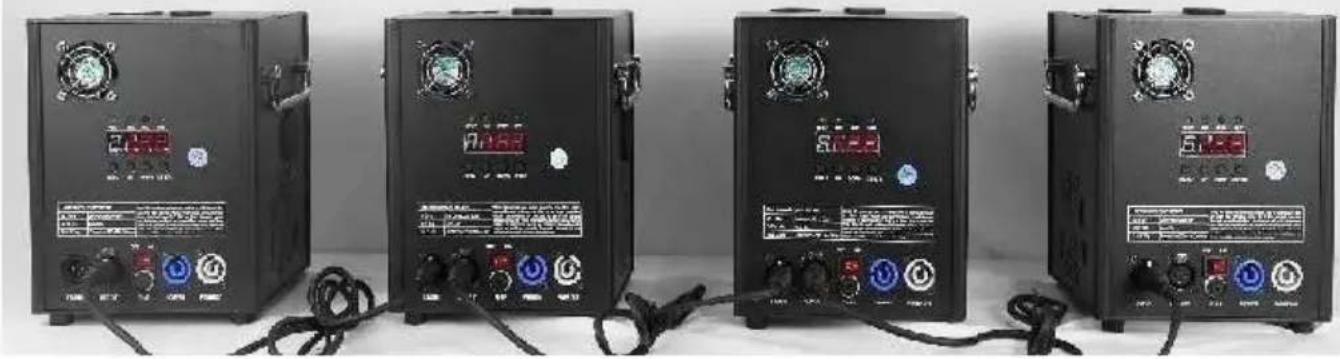

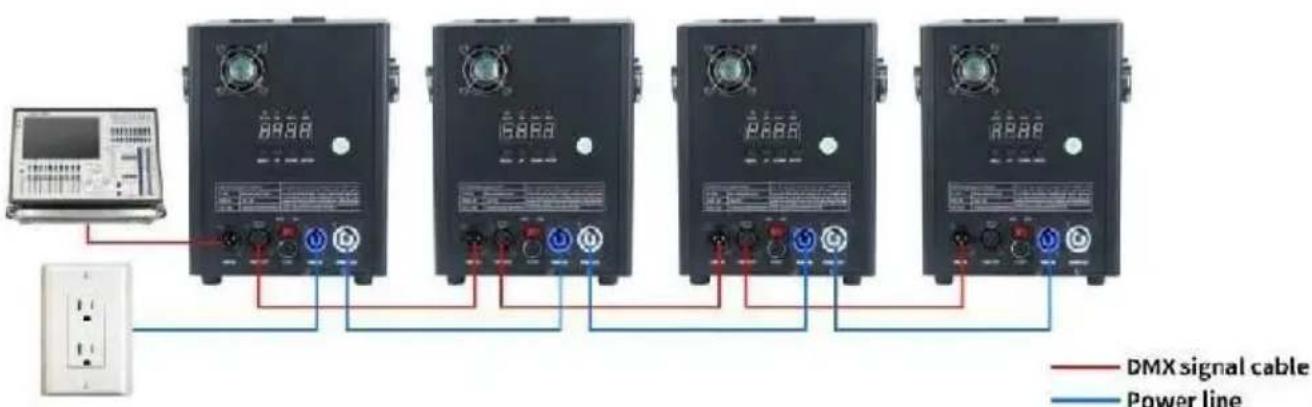

A. Signal series connection schematic:

Signal line up to 60 units in series

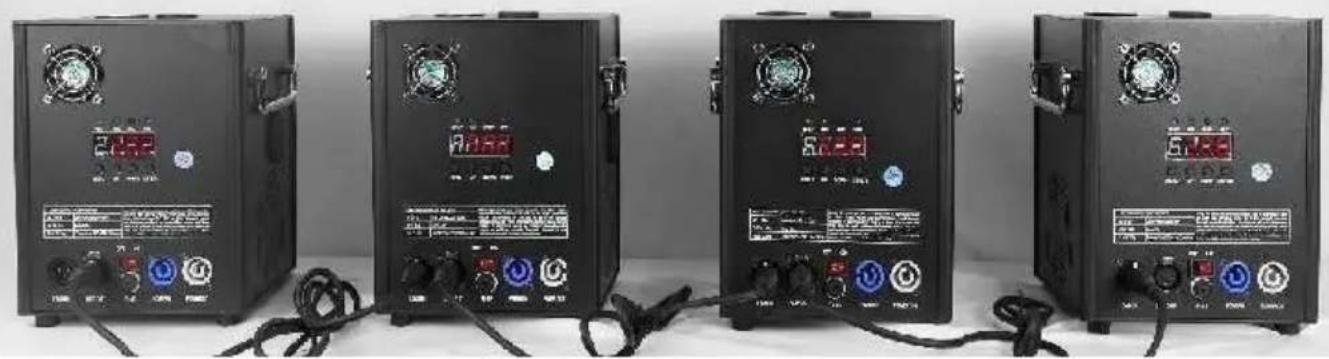

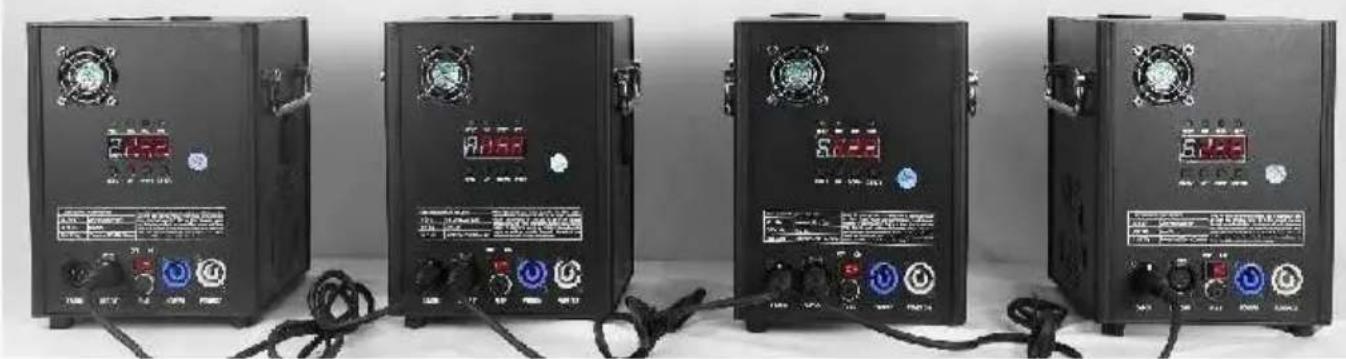

Four black electronic testing devices with control knobs and power connectors, no visible text or symbols on the devices themselves.

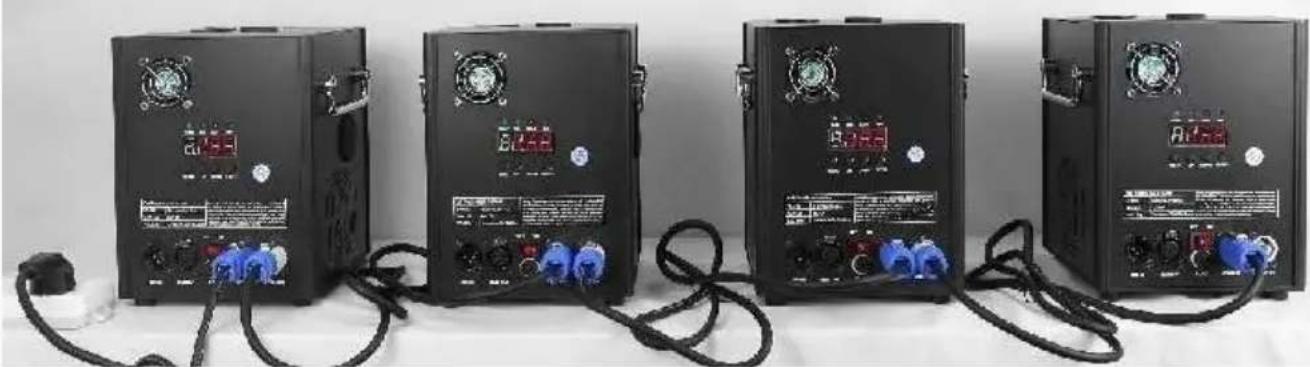

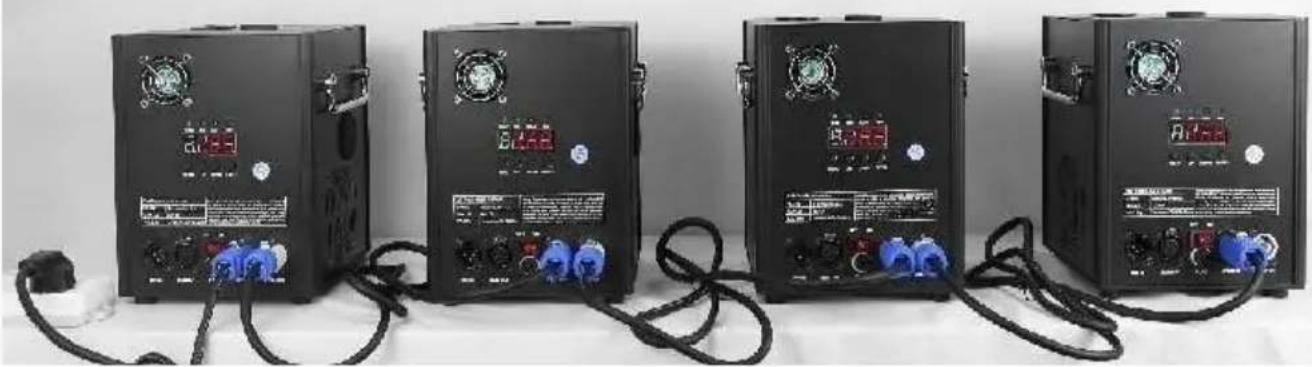

B. Power supply series connection schematic:

Up to six machines in series on one channel

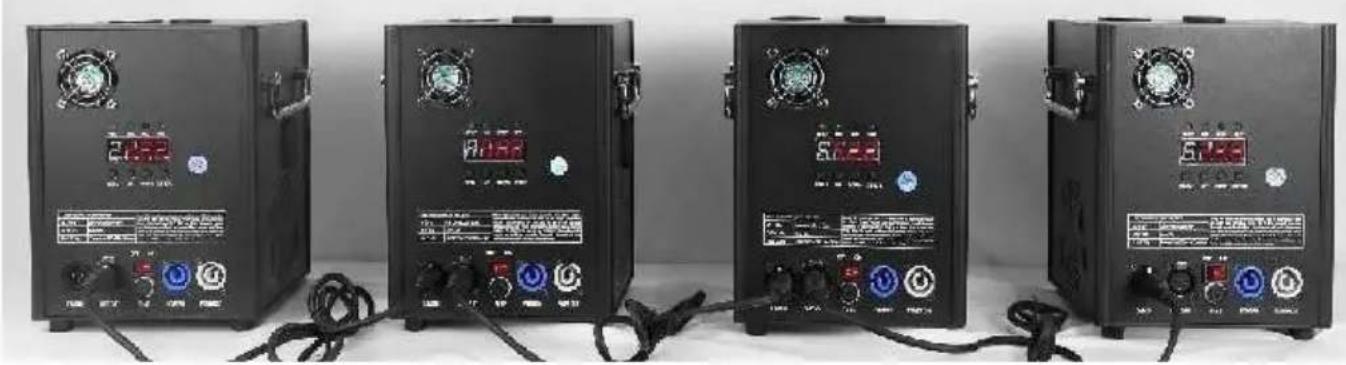

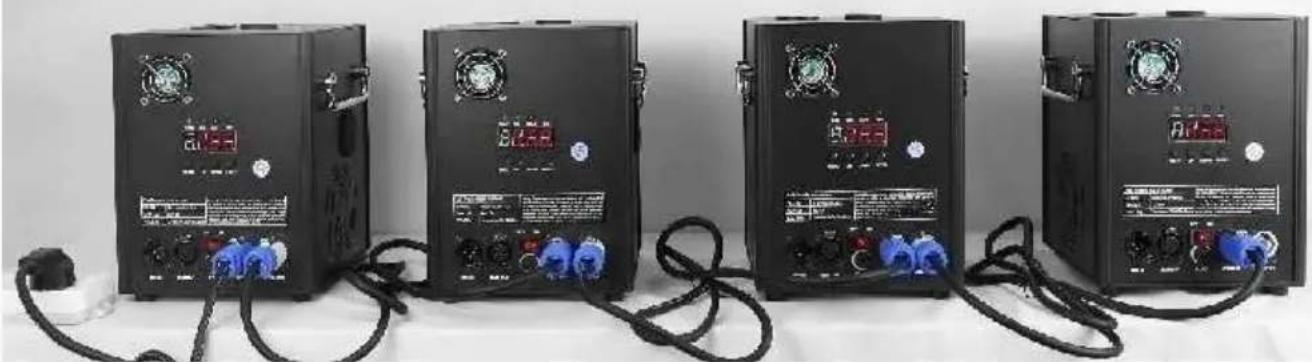

Four black electronic testing devices with connected cables and control knobs, arranged side by side (no visible text or labels)

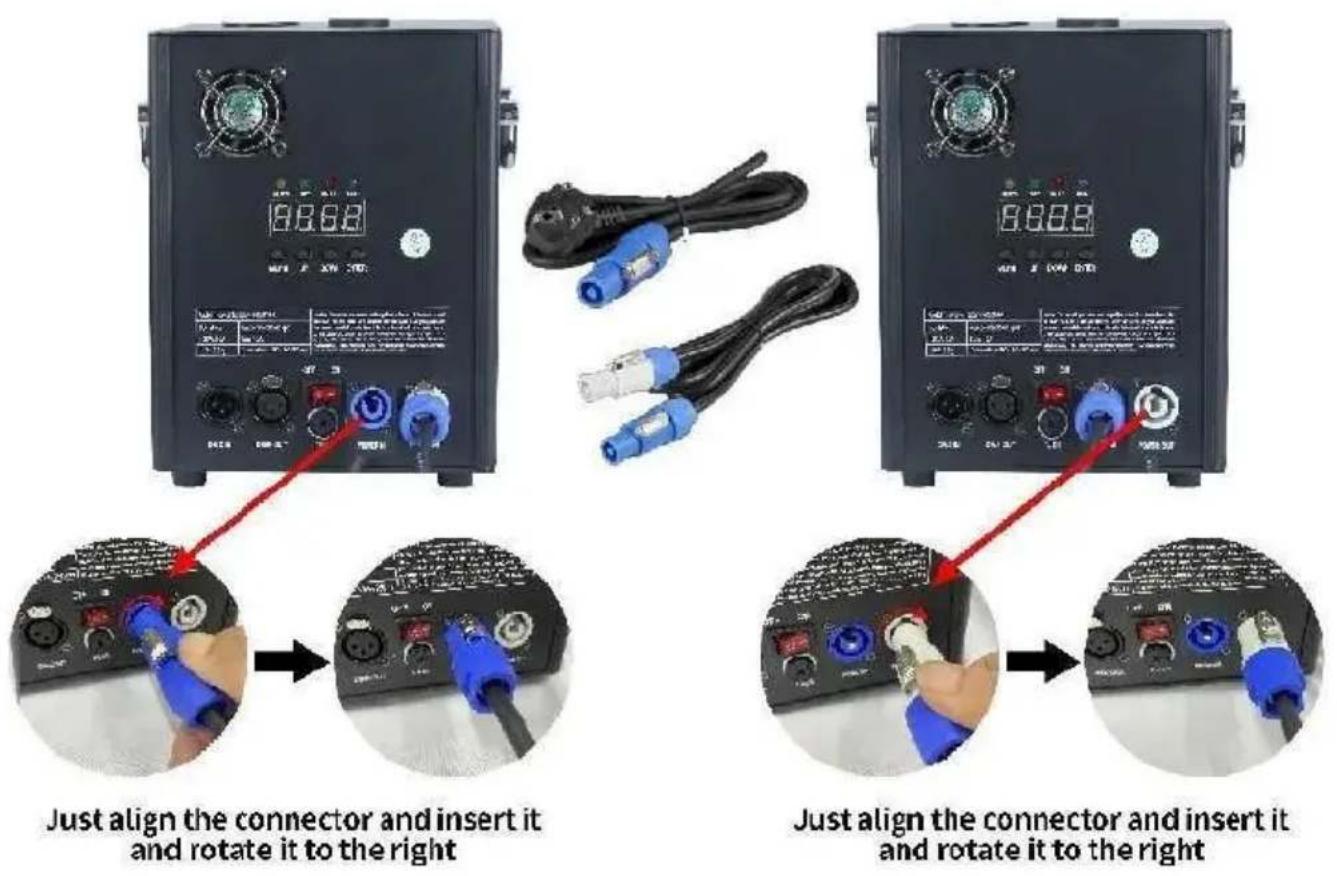

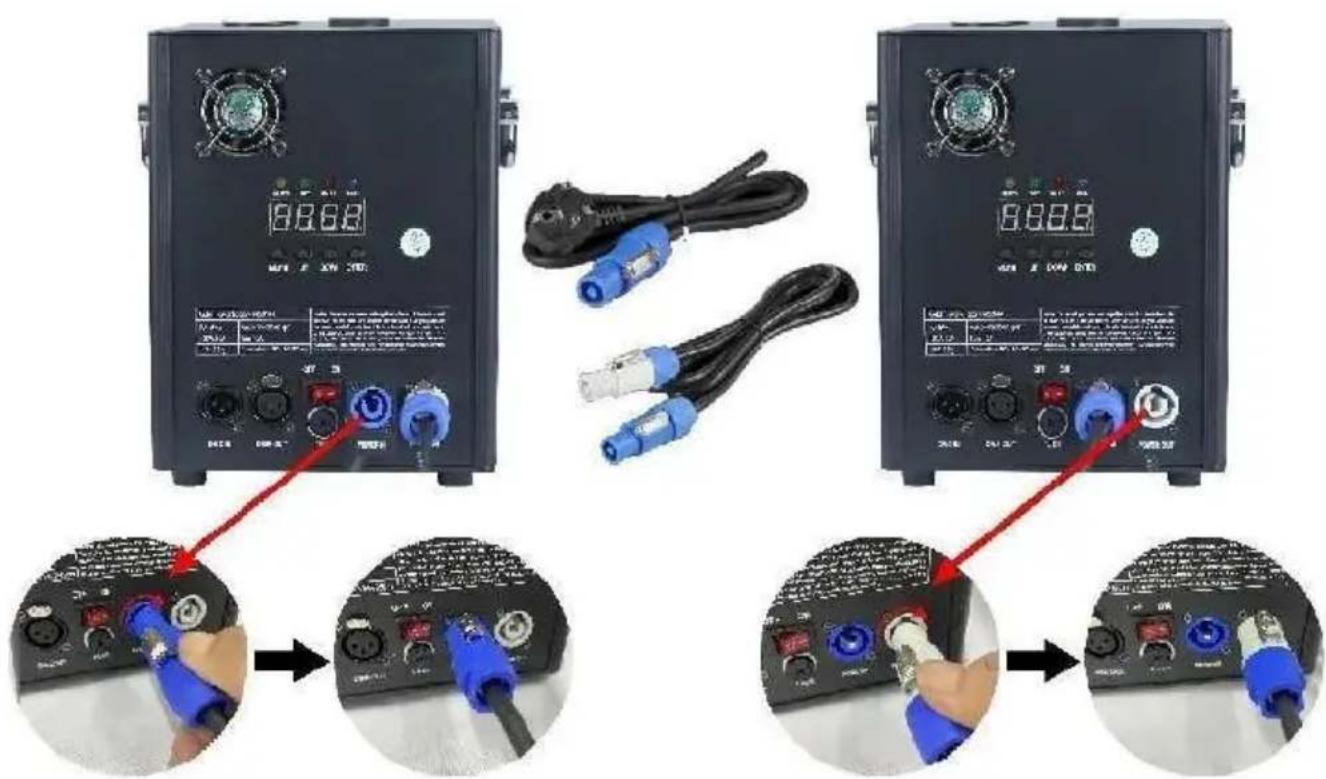

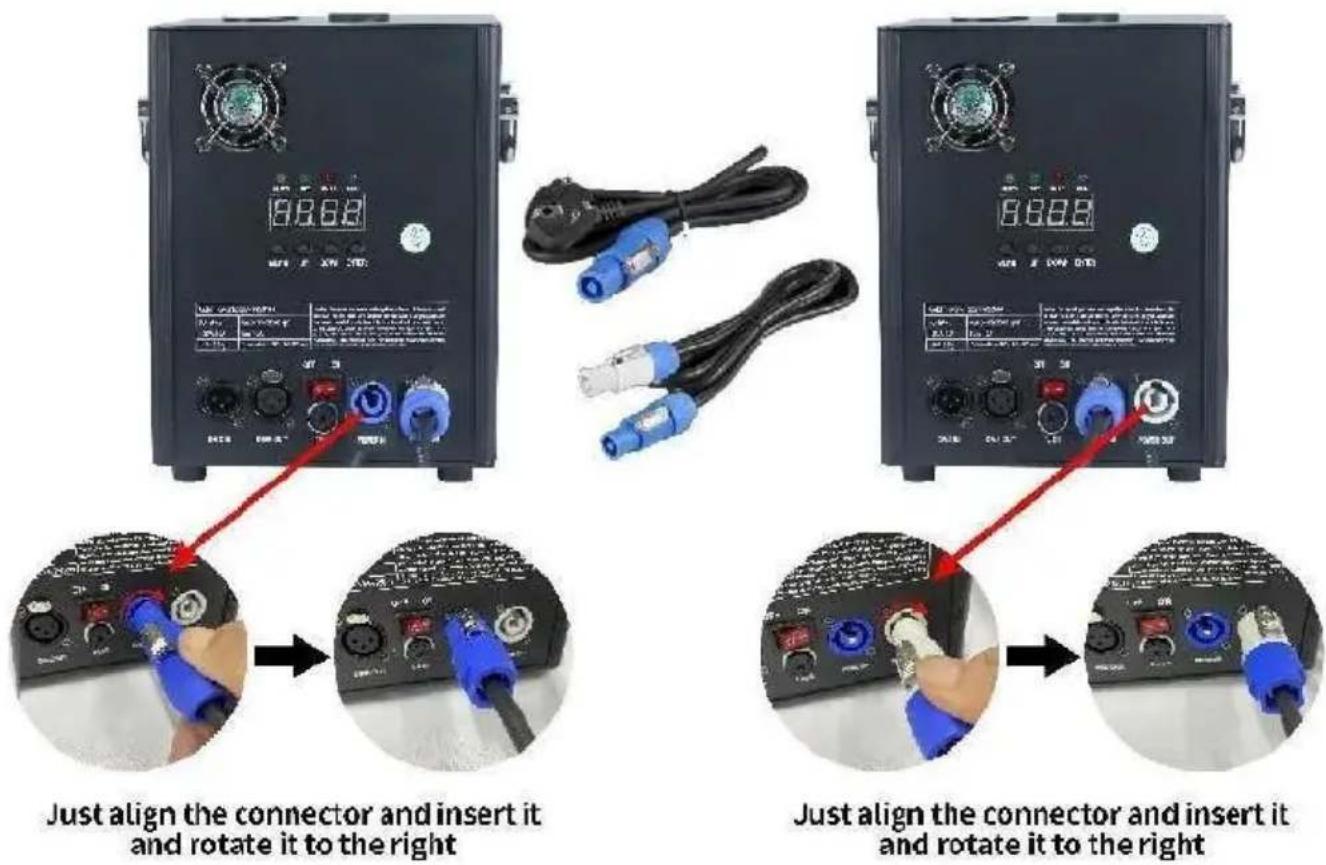

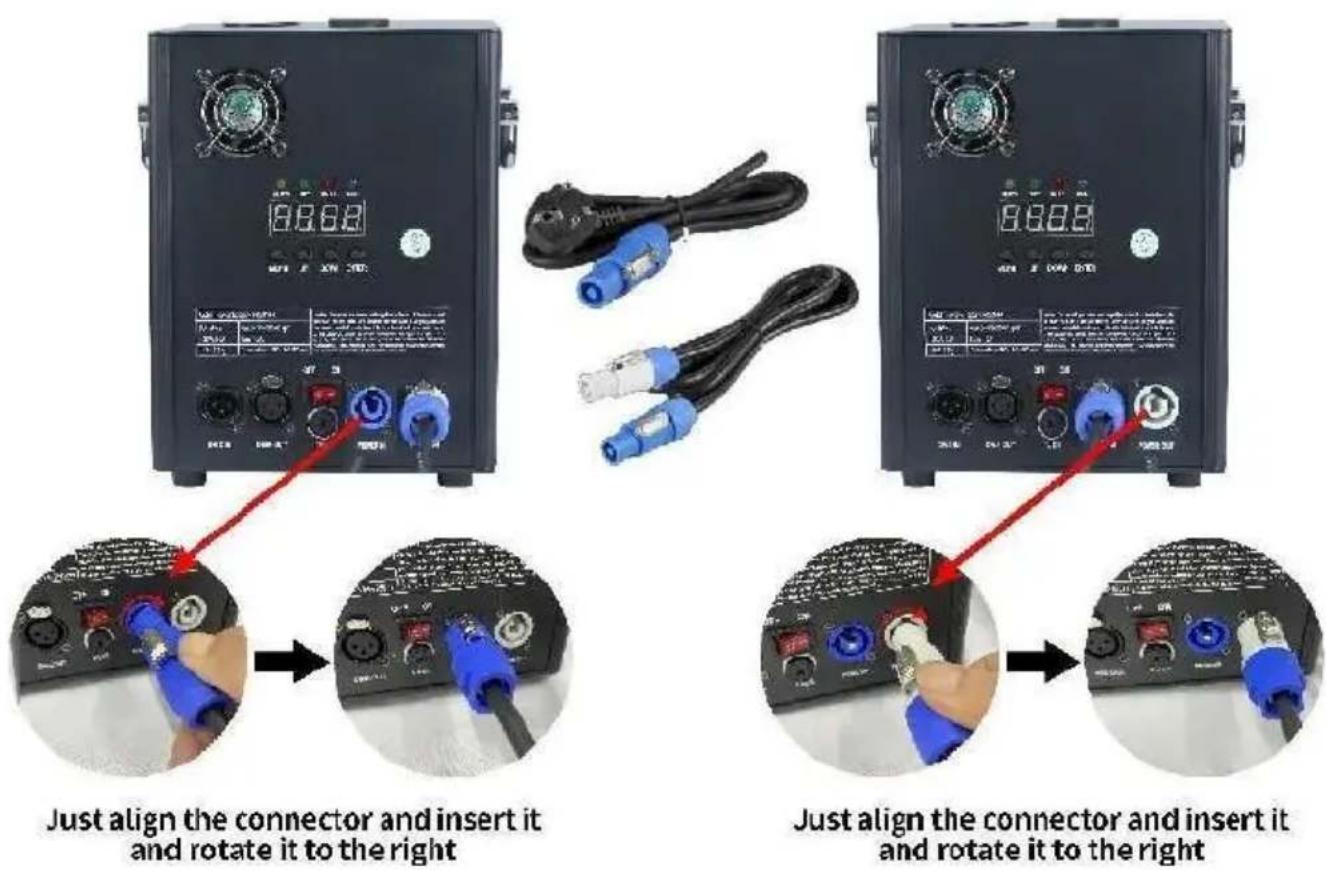

8.868 9.888 Just align the connector and insert it and rotate it to the right Just align the connector and insert it and rotate it to the right

I .Channel instructions

Channel	Control function	Numerical values	Digital tube display
1	Preheat off	000~010	A001 DMX address code
	Invalid	011~239
	Preheat to open	240~255	Displays the current temperature value
2	close	000~015	OFF
	Spray flower height 1	015~074	F1(Only valid if it reaches operating temperature)
	Spray height 2	075~134	F2(needs to reach operating temperature to be effective)
	Spray height 3	135~194	F3(need to reach operating temperature to be effective)
	Clear stock	195~255	CLE Clearings

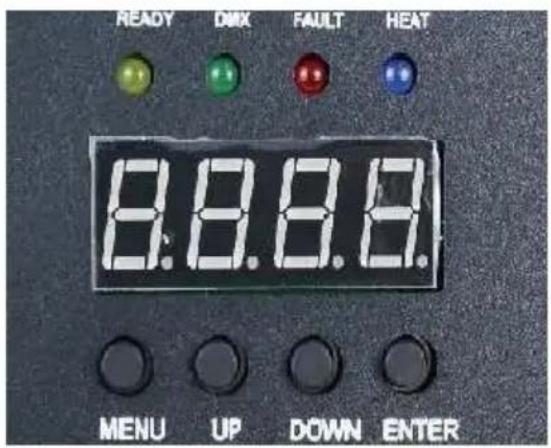

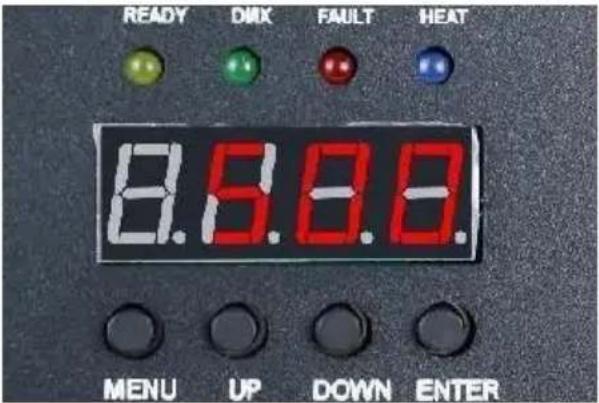

II. Panel description

READY DMX FAULT HEAT 8.8.8.8. MENU UP DOWN ENTER

1.Key description

Keys from left to right order: Menu -> Up -> Down -> Confirm

1) Menu: Switch menu interface, next menu
2) On: can be used as a menu switch, the previous menu; When the confirm key is pressed into the upward add, in the DMX address code interface, the address code upward add; In the working temperature s interface, the working temperature is added up.
3) Down: when the confirm key is pressed down, in the DMX address interface, the address code is reduced down; In the working temperature setting interface, the working temperature is reduced down.
4) Confirm: The interface enters the setting state, and the current inte can add or subtract the value. (Only valid in address code, working temperature).

2. indicator light description

1) Yellow light: light up when there is an error, such as a problem temperature control detection, or a problem with heating.
2) Green light: on indicates that there is DMX signal, off for signal disconnection
3) Red light: it is always on when heating
4) Blue light: The light indicates that the temperature heating is complete and the working temperature has been reached.

3. Interface description (Press menu key or up key to switch interface)

Address code interface:Operation instructions: Press the confirm key to enter the editing, can select the address code 001-512, and then press the con key to exit the address code ed
Temperature interface:Operation description: The current interface can not be operated, or do real-time display of the current temperature status.
Operating temperature setting interface:Operation instructions: Set the working temperature, when the temperature is heated to the current temperature can be sprayed operation; Click the confirm key enter the editing, you can choose temperature range of 480-550 degrees, and then click the conf key to exit the editing state.
Wireless interface:Friendly Reminder:When using multiple machines in a series, please designate on machines as the host. Here are the setup instructions.

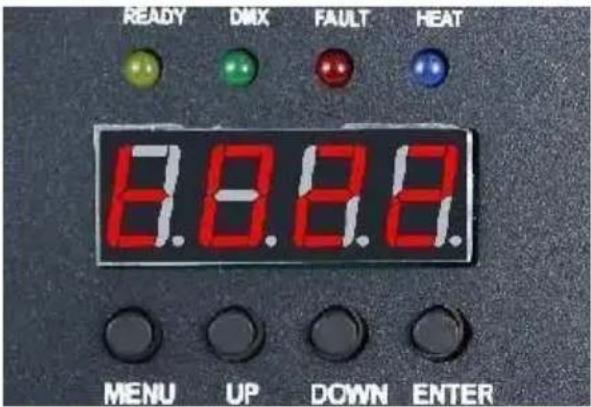

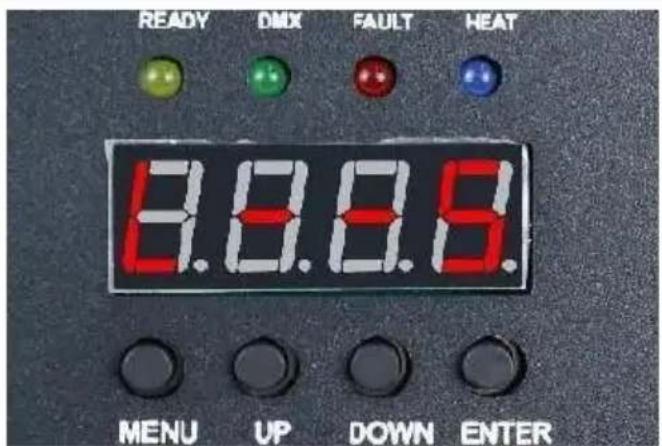

READY DMX FAULT HEAT 8.8.8.9. MENU UP DOWN ENTER

Slave interface

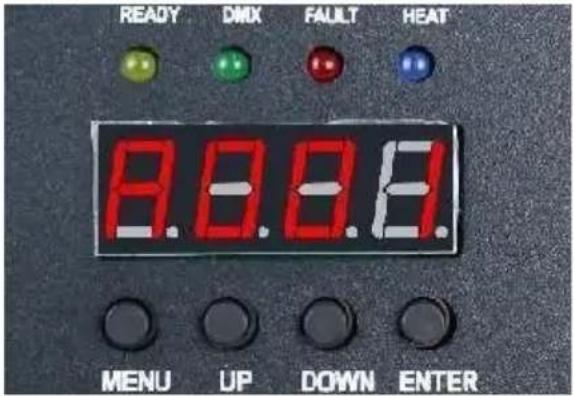

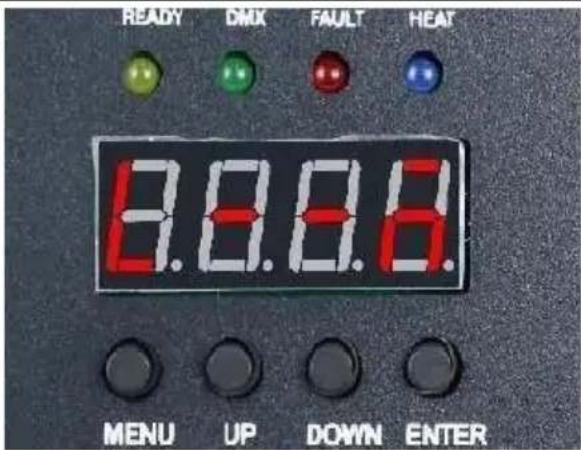

READY DMX FAULT HEAT 8.8.8.6 MENU UP DOWN ENTER

Host interface

Operation instructions: The code interface display as shown in "Slave interface", after the successful code interface display as shown in figure "Host interface"; When setting the master, you can do the "ENTER" button to select the master/slave state of the main you need to set it as the host, the setting interface is shown "Host interface", and the current machine has been set as the

III.Remote control Instructions

A LOW B HIGH C STOP D LEAN I have been from the cooler to detect bits and you can

A: Low Range;

B: High-Grade;

C: Stop;

D: Material Cleaning;

VI.Machine operation step by step

P926 型号：1000000000000000000000000000000000000000000000000000000000000000000000000000000000000

NO.1

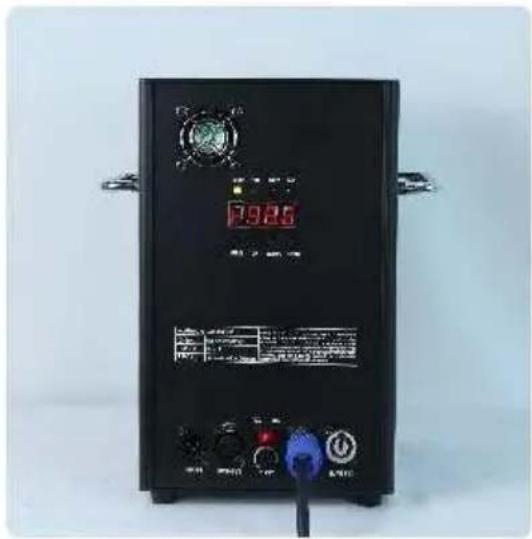

The first step is that the machine will automatically heat up when powered on, wait for the machine to heat up to 550 degrees

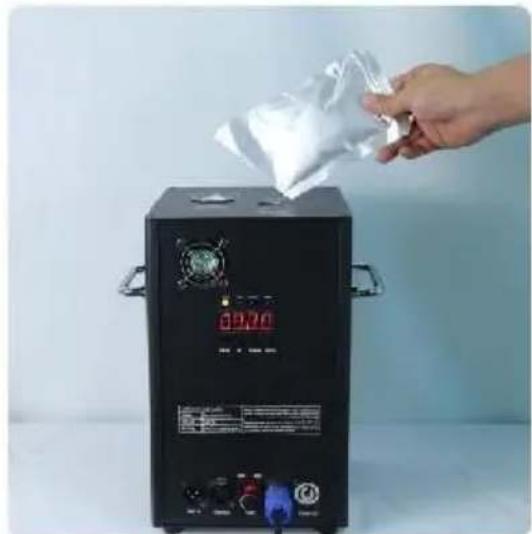

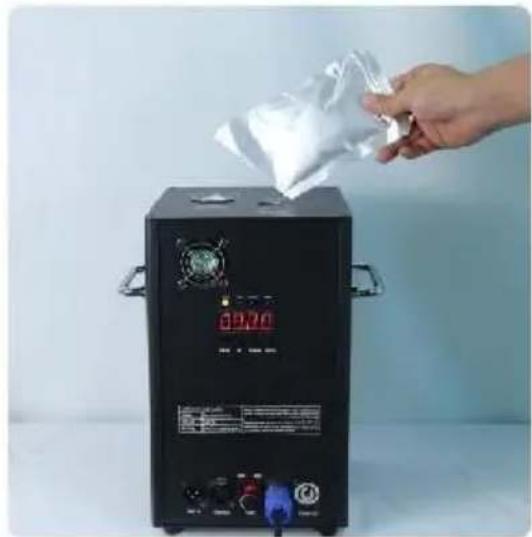

Hand pouring white powder into a black industrial machine with digital display (no visible text or symbols)

NO.2

The second step is to pour the consumables into the mouth of adding consumables, the consumables can only be added up to 180 grams, the use of time 5-7 minutes.

After adding the powder, don't forget to cover the rubber cap.

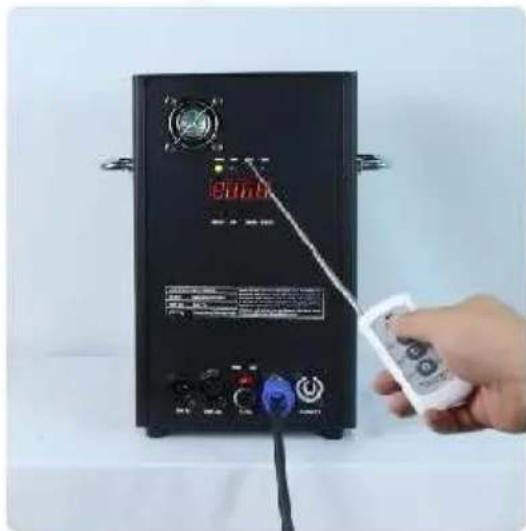

Hand holding remote control panel with digital display and warning labels

NO.3

The third step is to press the "A" key to let the machine work in the first gear, press the "B" key to let the machine work in the second gear, press the "C" key to let the machine stop working and press the "D" key to let the machine clear the material automatically for thirty seconds.

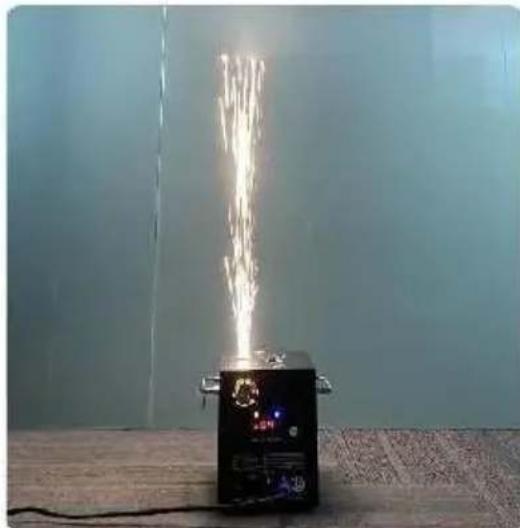

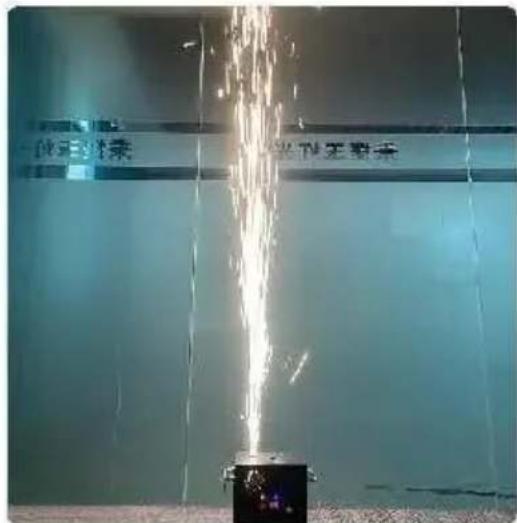

The fourth step, just press the remote control button, the machine can begin to work, press the "A" button to make its jet height in 2-3 meters, press the "B" button to make its jet height in 3-5 meters, the remote control effective distance of 20 meters, the machine jets out the fireworks without fire can be touched very safe, environmentally friendly and pollution-free!

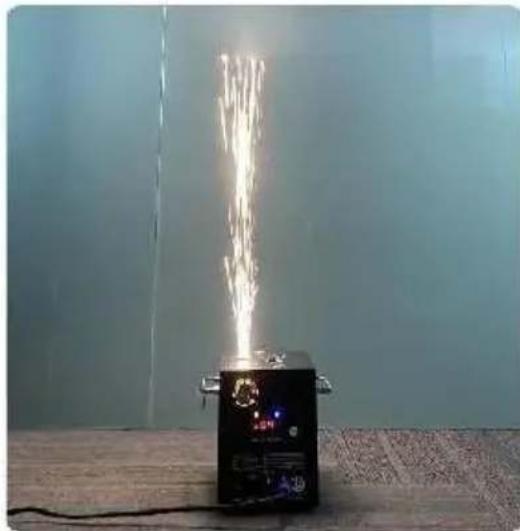

Black box with light flare emission from a small device, placed on a textured surface against a plain wall (no text or symbols visible)

NO.5

Step 5, after use, you must press the "D" button to clean up the consumables for 30 seconds, the machine cleanup process will gradually become smaller fireworks until the consumables cleanup is complete. Otherwise, it will lead to machine jamming, affecting the service life of the machine.
