Product Type	Grease trap (oil-water separator)
Brand	Vevor
Model	YSFLQ63*31*32
Dimensions	630 × 310 × 320 mm
Water intake mode	Top inlet
Main functions	Separation of grease, oil, and solid waste from wastewater
Maintenance and cleaning	Regular filter cleaning and draining of accumulated grease
Safety	Do not sit or stand on it; keep out of reach of children; inspect before use
Included parts	Drain hose, hose gasket, male adapter, rubber pad, nuts, sealing gasket, valve switch, sealing tape
Intended use	For professional kitchens and communities
Power supply	No electricity (passive)
Material	Stainless steel (estimated)
Weight	Approximately 8 kg (estimated)
Warranty	Refer to Vevor website for warranty terms

Frequently Asked Questions - YSFLQ63*31*32 Vevor

How to install the Vevor YSFLQ63*31*32 grease trap?

Place the device horizontally on a flat surface. Install the drain hose gasket at the outlet. Secure the rubber pad with the gasket and nut, wrap sealing tape around the male adapter, then install the valve switch. Insert the water inlet hose into the water inlet, placing it in the middle of the screen filter.

What are the exact dimensions of model YSFLQ63*31*32?

The dimensions are 630 mm in length, 310 mm in width, and 320 mm in height.

How to maintain and clean this grease separator?

It is recommended to regularly clean the screen filter and empty accumulated grease. Check the condition of seals and hoses. Regular maintenance prolongs the device's lifespan.

Can I use this grease trap for a home kitchen?

This model is designed for professional or community use. For a home kitchen, ensure the wastewater volume does not exceed the capacity of the basin.

How to drain accumulated grease?

Use the provided valve switch to open the drain outlet. Collect the grease in a suitable container and dispose of it according to local regulations.

What accessories are included in the kit?

The kit includes: a drain hose, a drain hose gasket, a male adapter, a rubber pad, two nuts, two sealing gaskets, a valve switch, and sealing tape.

How to check the proper functioning of the separator?

After installation, pour water to test the tightness of the connections. Ensure water flows freely and that grease is well separated. In case of issue, inspect seals and connections.

Where can I find spare parts for this model?

Contact Vevor support via their website (www.vevor.com/support) to order spare parts such as seals or hoses.

Does this product come with a warranty?

Yes, Vevor offers an electronic warranty. Check the website www.vevor.com/support for more information on warranty terms.

What safety precautions should I follow?

Do not sit or stand on the device. Keep out of reach of children. Inspect before each use and do not use if parts are loose or damaged.

USER MANUAL YSFLQ63*31*32 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GREASE TRAP

USER MANUAL

YSFLQ35 25 25

YSFLQ60 40 40

YSFLQ37 26 26

YSFLQ63 31 32

YSFLQ60 40 39

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GREASE TRAP

YSFLQ35 25 25

YSFLQ60 40 40

YSFLQ37 26 26

YSFLQ63 31 32 YSFLQ60 40 39

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear safety goggles and duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard, and smooth surface capable of safely supporting the GREASE TRAP.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or in item.
3. Do not exceed capacities.
4. Use only on a flat, level, hard and smooth surface capable of supporting a fully loaded GREASE TRAP.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PRODUCT PARAMETER

Model	Water Intake Mode	Product Size
YSFLQ35*25*25	Side Entrance	350*250*250mm
YSFLQ60*40*40	Side Entrance	600*400*400mm
YSFLQ37*26*26	Top Entrance	350*250*250mm
YSFLQ63*31*32	Top Entrance	630*310*320mm
YSFLQ60*40*39	Top Entrance	600*400*390mm

PARTS LIST

MODEL Name	YSFLQ35*25*25 YSFLQ37*26*26	YSFLQ60*40*40 YSFLQ63*31*32 YSFLQ60*40*39
	Qty	Qty
Drain Pipe	1	1
Drain Pipe Gasket	1	1
Male Adapter	1	2
Rubber Pad	1	2
Nut	1	2
Gasket	1	2
Valve Switch	1	2
Seal Tape	1	1

INSTRUCTIONS

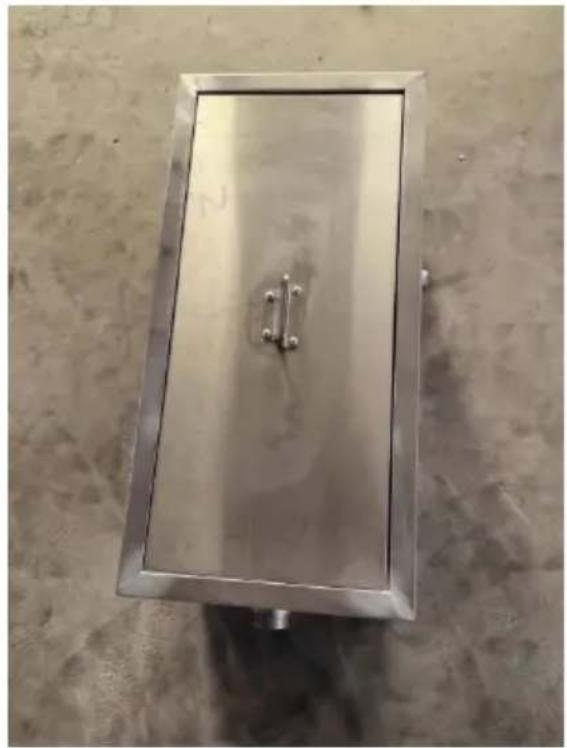

STEP 1

Place the product and parts horizontally on the floor.

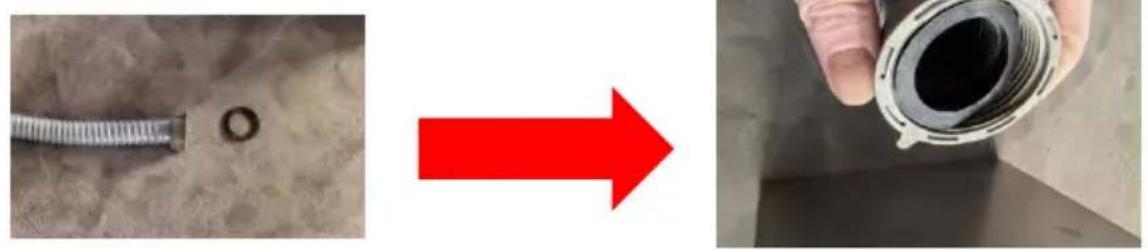

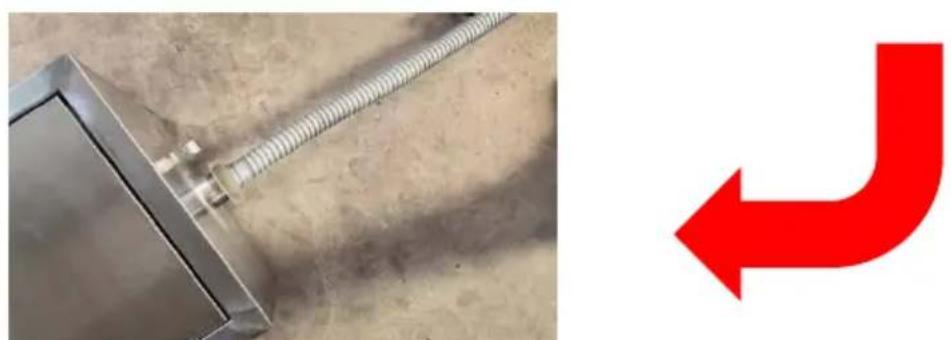

STEP 2

Install the drain pipe gasket in place and install it at the outlet oil-water separator.

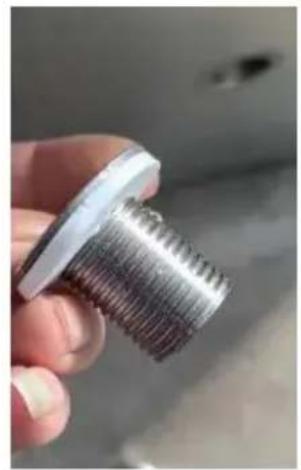

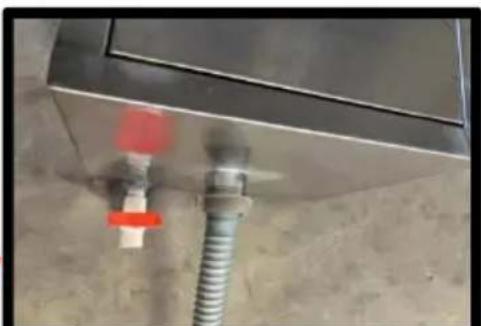

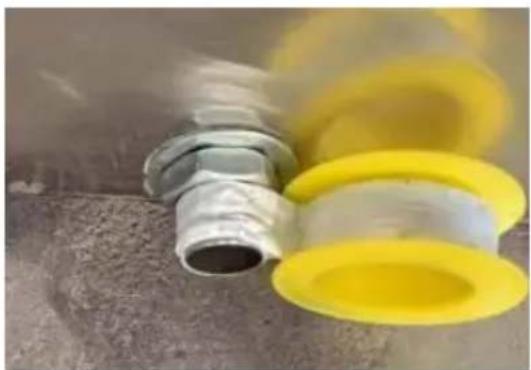

STEP 3

Install the rubber pad in place, secure it with gasket and nut, wrap tape around the male adapter, and finally install the valve switch.

MODEL: YSFLQ60 40 40

YSFLQ63 31 32

YSFLQ60 40 39

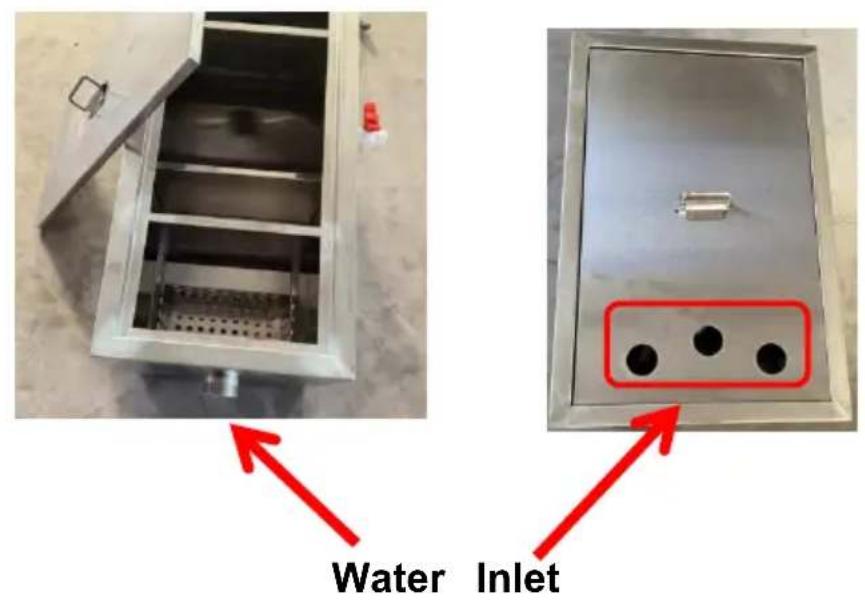

STEP 4

Insert the water inlet pipe into the water inlet.

Note: The water inlet pipe should be placed in the middle of the screen.
