Product Type	Grease Trap (Grease Container)
Brand	Vevor
Model	YSFLQ37*26*26
Dimensions (L x W x H)	350 x 250 x 250 mm
Water Inlet Type	Top Inlet
Main Material	Stainless Steel
Power Supply	None (Mechanical Operation)
Main Function	Separation of fats and oils from wastewater
Recommended Use	Kitchen sinks, commercial catering
Installation	Simple assembly with connections to inlet and outlet pipes
Maintenance and Cleaning	Regular cleaning of filter and container; inspection before each use
Safety	Do not sit or stand on the device; keep out of reach of children
Supplied Parts	Drain pipe, pipe gasket, male adapter, rubber pad, nut, sealing gasket, valve switch, sealing tape
Repairability	Spare parts available; possible replacement of gaskets and valves
Warranty	Electronic warranty via www.vevor.com/support
Technical Support	Online at www.vevor.com/support

Frequently Asked Questions - YSFLQ37*26*26 Vevor

How to install the Vevor YSFLQ37*26*26 grease trap?

Place the product horizontally on the floor. Install the drain pipe gasket at the outlet, then secure the rubber pad, gasket and nut. Wrap sealing tape around the male adapter and install the valve switch. For top inlet models, insert the water inlet pipe into the middle of the screen filter.

What is the capacity of the grease trap?

The approximate capacity is about 22 liters (based on internal dimensions 350x250x250 mm). Suitable for domestic use or small restaurants.

How often should I clean the grease trap?

Inspect and clean regularly, at least once a month or more often depending on use. The filter and container must be emptied and washed to avoid blockages and odors.

Can I use this grease trap for a domestic kitchen sink?

Yes, this model is perfectly suitable for domestic kitchen sinks. Check that the flow rate and dimensions of your sink are compatible with the top inlet of 350x250 mm.

What materials are used for this product?

The grease trap is mainly made of stainless steel, ensuring corrosion resistance and longevity. The gaskets are rubber for sealing.

How to maintain the sealing gasket?

Regularly check the condition of the sealing gaskets. If worn or leaking, replace them. Clean with a soft cloth and avoid abrasive products.

What to do if the grease trap leaks?

First check the connections: tighten the nuts and ensure the gaskets are correctly placed. If the leak persists, replace the sealing gaskets or contact Vevor technical support.

Does this product require an electrical power supply?

No, the Vevor grease trap operates entirely mechanically. It does not require any electrical power to separate fats from wastewater.

Where can I find spare parts?

Spare parts (gaskets, valves, pipes) are available on the official Vevor website or from authorized dealers. Use model reference YSFLQ37*26*26 to order.

How to contact Vevor after-sales service?

Visit www.vevor.com/support for technical support and electronic warranty. You will find contact forms and product information.

USER MANUAL YSFLQ37*26*26 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GREASE TRAP

USER MANUAL

YSFLQ35*25*25

YSFLQ60*40*40

YSFLQ37*26*26

YSFLQ63*31*32

YSFLQ60*40*39

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GREASE TRAP

YSFLQ35*25*25

YSFLQ60*40*40

YSFLQ37*26*26

YSFLQ63*31*32 YSFLQ60*40*39

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear safety goggles and duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard, and smooth surface capable of safely supporting the GREASE TRAP.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed capacities.
4. Use only on a flat, level, hard and smooth surface capable of supporting a fully loaded GREASE TRAP.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PRODUCT PARAMETER

Model	Water Intake Mode	Product Size
YSFLQ35*25*25	Side Entrance	350*250*250mm
YSFLQ60*40*40	Side Entrance	600*400*400mm
YSFLQ37*26*26	Top Entrance	350*250*250mm
YSFLQ63*31*32	Top Entrance	630*310*320mm
YSFLQ60*40*39	Top Entrance	600*400*390mm

PARTS LIST

Name\MODEL	YSFLQ35*25*25YSFLQ37*26*26	YSFLQ60*40*40YSFLQ63*31*32YSFLQ60*40*39
	Qty	Qty
Drain Pipe	1	1
Drain Pipe Gasket	1	1
Male Adapter	1	2
Rubber Pad	1	2
Nut	1	2
Gasket	1	2
Valve Switch	1	2
Seal Tape	1	1

INSTRUCTIONS

STEP1

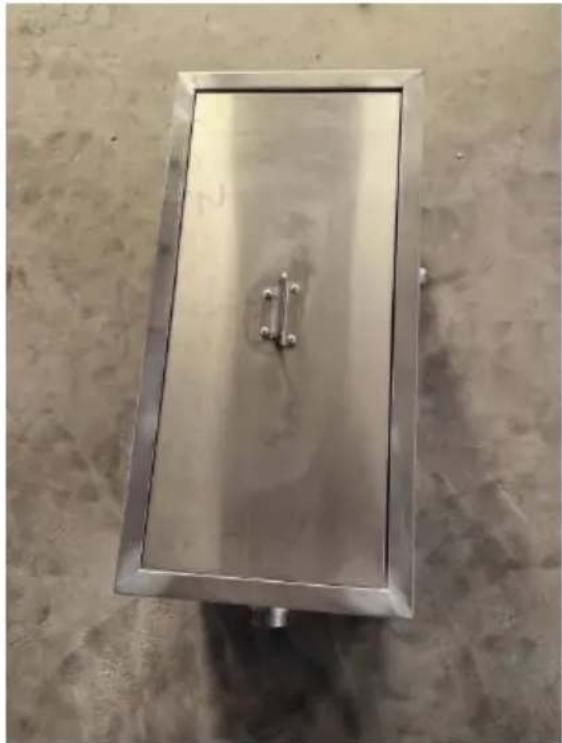

Place the product and parts horizontally on the floor.

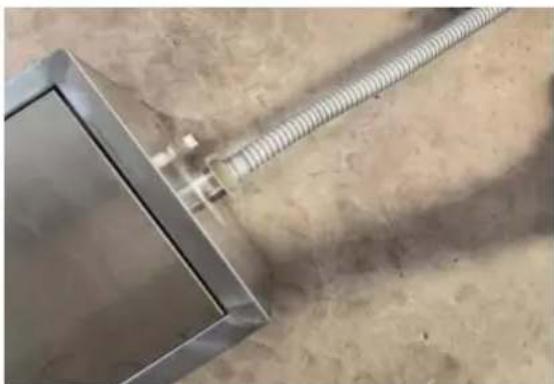

STEP2

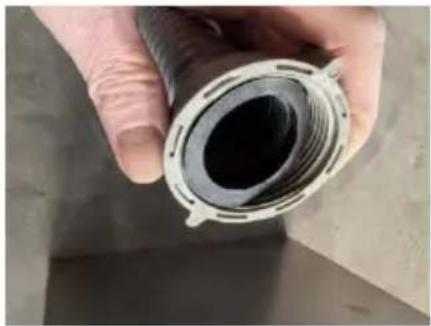

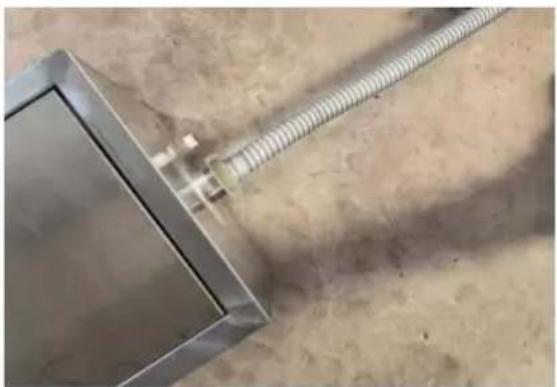

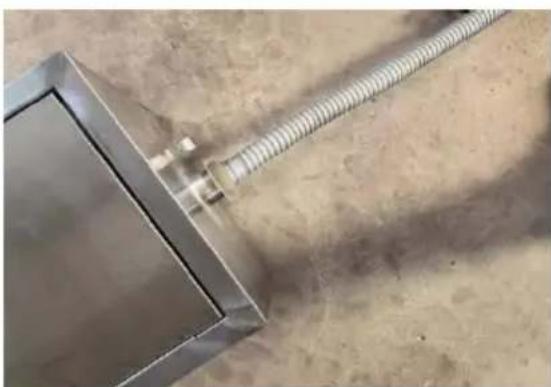

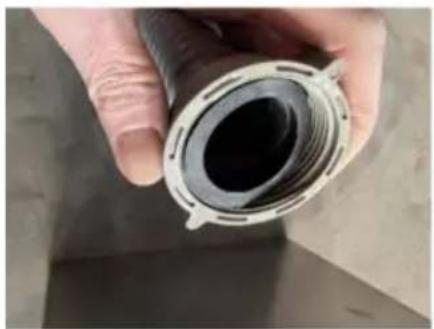

Install the drain pipe gasket in place and install it at the outlet oil-water separator.

STEP 3

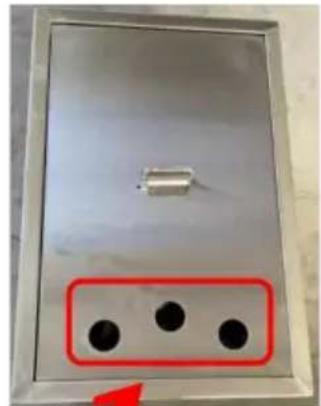

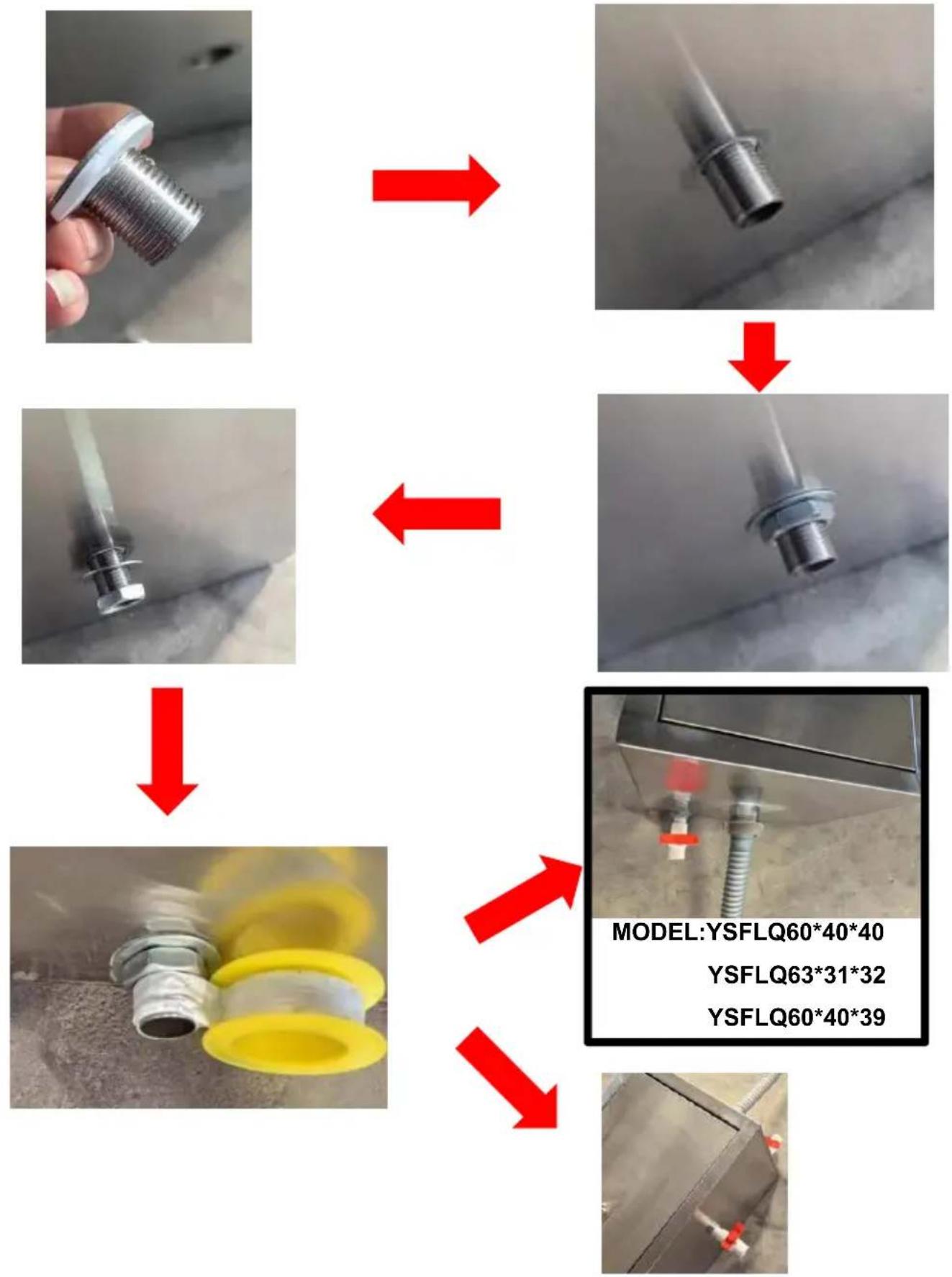

Install the rubber pad in place, secure it with the gasket and nut, wrap tape around the male adapter, and finally install the valve switch.

YSFLQ63*31*32

YSFLQ60*40*39

STEP 4

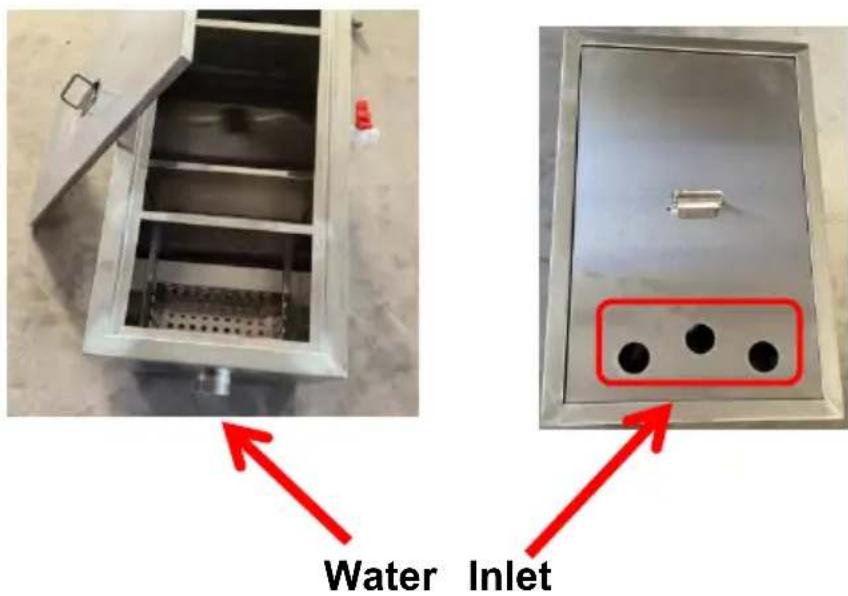

Insert the water inlet pipe into the water inlet.

Note: The water inlet pipe should be placed in the middle of the screen.
