Product Type	Grease Trap
Brand	Vevor
Model	YSFLQ60*40*39
Dimensions (L x W x H)	600 x 400 x 390 mm
Water Inlet Type	Top Inlet
Material	Stainless Steel
Main Functions	Separation of grease and oil from wastewater
Included Accessories	Drain hose, gaskets, male adapter, rubber buffer, nuts, sealing ring, valve switch, sealing tape
Installation	Mount on a flat, hard, horizontal surface. Assemble the parts according to the instructions.
Maintenance	Clean regularly and drain accumulated grease. Inspect before each use.
Safety	Do not sit or stand on the device. Use only on a stable surface. Keep out of reach of children.
Spare Parts	Gaskets, valves, hoses available as replacements
Repairability	Repairable by replacing parts
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - YSFLQ60*40*39 Vevor

How to install the Vevor YSFLQ60*40*39 grease trap?

Place the trap on a flat, hard surface. Install the drain hose gasket at the outlet, then the rubber buffer, gasket and nut. Wrap sealing tape around the male adapter and install the valve switch. Finally, insert the water inlet hose into the middle of the screen filter.

What accessories are included with the model YSFLQ60*40*39?

The kit includes a drain hose, a hose gasket, a male adapter, a rubber buffer, two nuts, two sealing rings, two valve switches and a sealing tape.

What is the capacity of the grease trap?

The dimensions of 600x400x390 mm provide a significant volume for grease separation, but the exact capacity is not specified. It is designed for professional use in kitchens.

How to maintain the grease trap?

Clean the interior regularly and drain accumulated grease. Inspect the gaskets and valves before each use. Replace worn parts if necessary.

What safety precautions should be followed?

Do not sit or stand on the device. Keep children away. Use only on a flat, hard surface. Inspect before each use and do not use if parts are damaged.

Is the grease trap repairable?

Yes, parts such as gaskets, valves and hoses can be replaced. Contact Vevor support for replacement parts.

What is the material of manufacture?

The grease trap is mainly made of stainless steel, offering good corrosion resistance and long service life.

How to get the complete instruction manual?

Download the manual in PDF format from notice-facile.com or the Vevor website. You can also request a translation into your language via the form on notice-facile.com.

What is the difference between side inlet and top inlet?

The top inlet (model YSFLQ60*40*39) allows connecting the water inlet hose from above, while side inlet models connect on the side. This depends on your plumbing configuration.

Where to find spare parts?

Spare parts are available through Vevor customer service at www.vevor.com/support. You can also contact support for information on compatible parts.

USER MANUAL YSFLQ60*40*39 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GREASE TRAP

USER MANUAL

YSFLQ35*25*25

YSFLQ60*40*40

YSFLQ37*26*26

YSFLQ63*31*32

YSFLQ60*40*39

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GREASE TRAP

YSFLQ35*25*25

YSFLQ60*40*40

YSFLQ37*26*26

YSFLQ63*31*32 YSFLQ60*40*39

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear safety goggles and duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard, and smooth surface capable of safely supporting the GREASE TRAP.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with this item.
3. Do not exceed capacities.
4. Use only on a flat, level, hard and smooth surface capable of supporting a fully loaded GREASE TRAP.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PRODUCT PARAMETER

Model	Water Intake Mode	Product Size
YSFLQ35*25*25	Side Entrance	350*250*250mm
YSFLQ60*40*40	Side Entrance	600*400*400mm
YSFLQ37*26*26	Top Entrance	350*250*250mm
YSFLQ63*31*32	Top Entrance	630*310*320mm
YSFLQ60*40*39	Top Entrance	600*400*390mm

PARTS LIST

Name\MODEL	YSFLQ35*25*25YSFLQ37*26*26	YSFLQ60*40*40YSFLQ63*31*32YSFLQ60*40*39
	Qty	Qty
Drain Pipe	1	1
Drain Pipe Gasket	1	1
Male Adapter	1	2
Rubber Pad	1	2
Nut	1	2
Gasket	1	2
Valve Switch	1	2
Seal Tape	1	1

INSTRUCTIONS

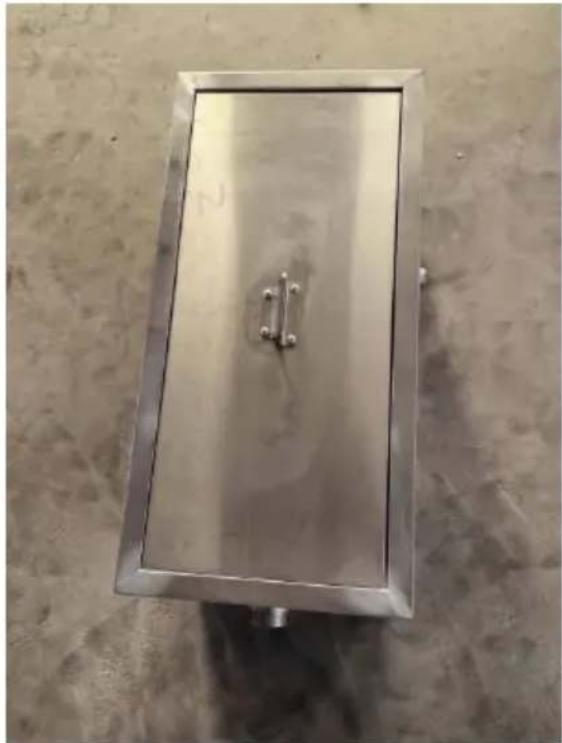

STEP 1

Place the product and parts horizontally on the floor.

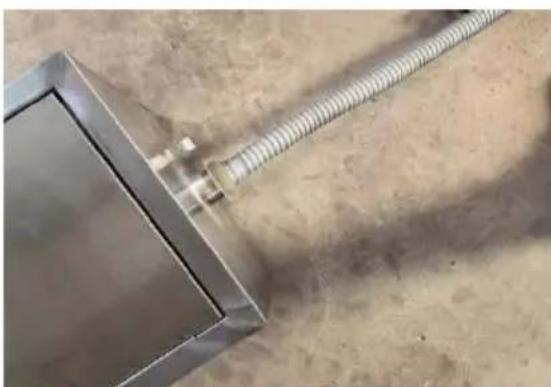

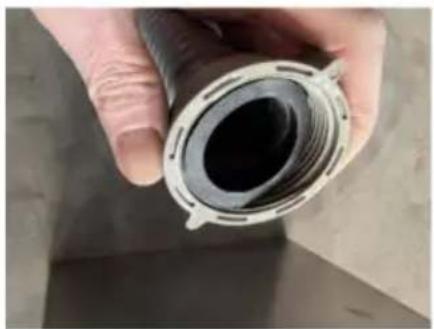

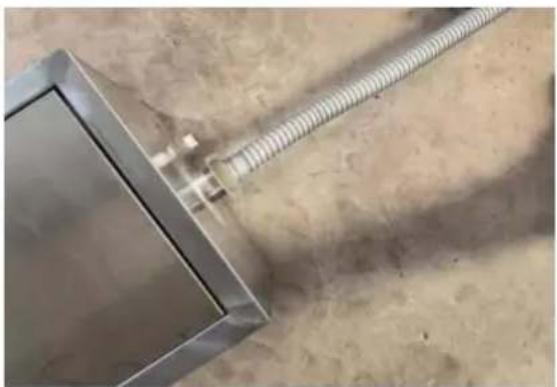

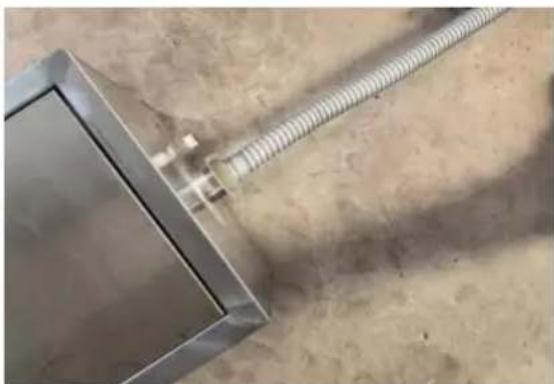

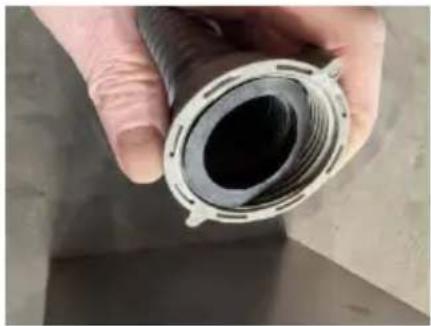

STEP 2

Install the drain pipe gasket in place and install it at the outlet of the oil-water separator.

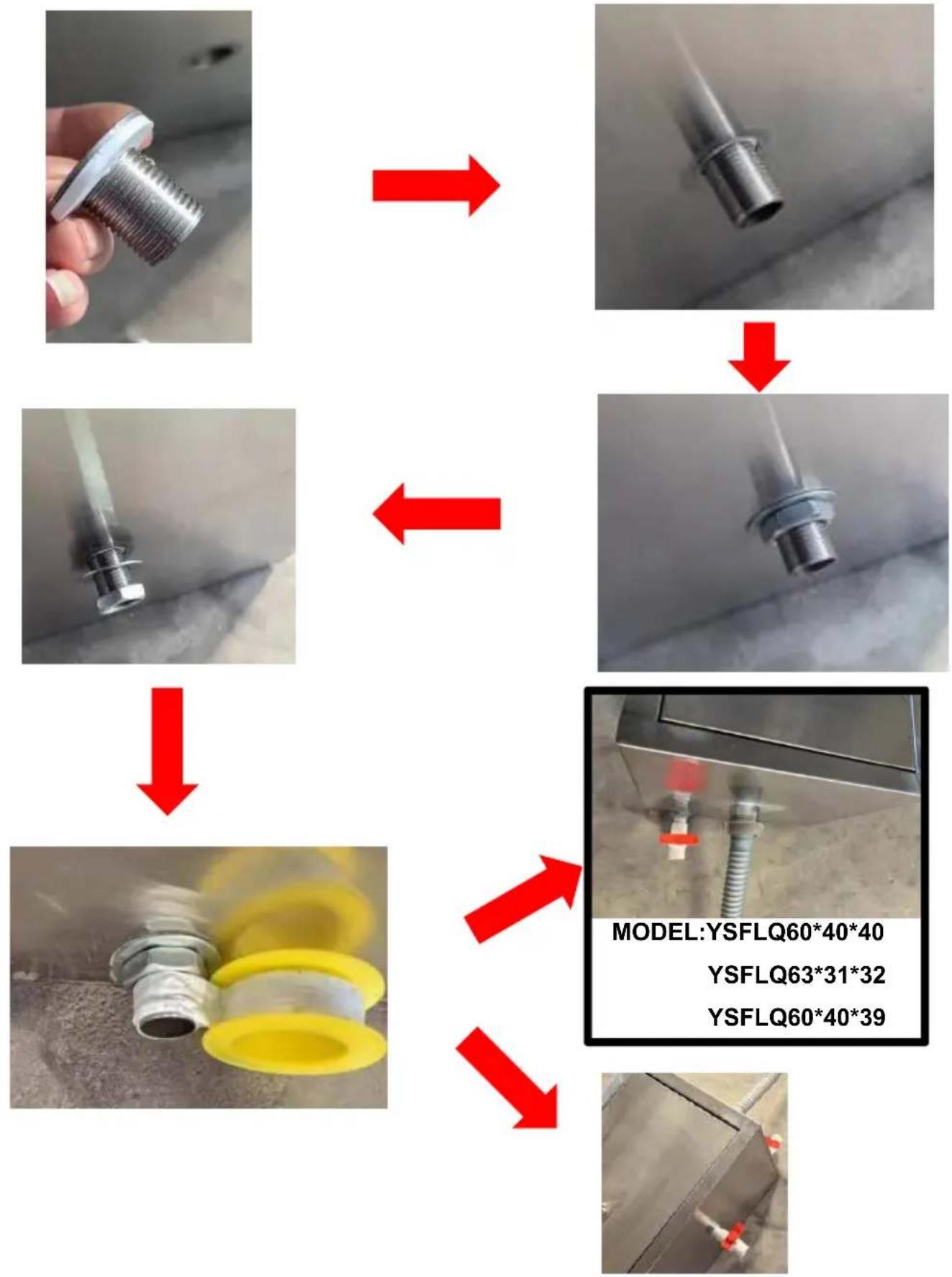

STEP 3

Install the rubber pad in place, secure it with the gasket and nut, wrap tape around the male adapter, and finally install the valve switch.

YSFLQ63*31*32

YSFLQ60*40*39

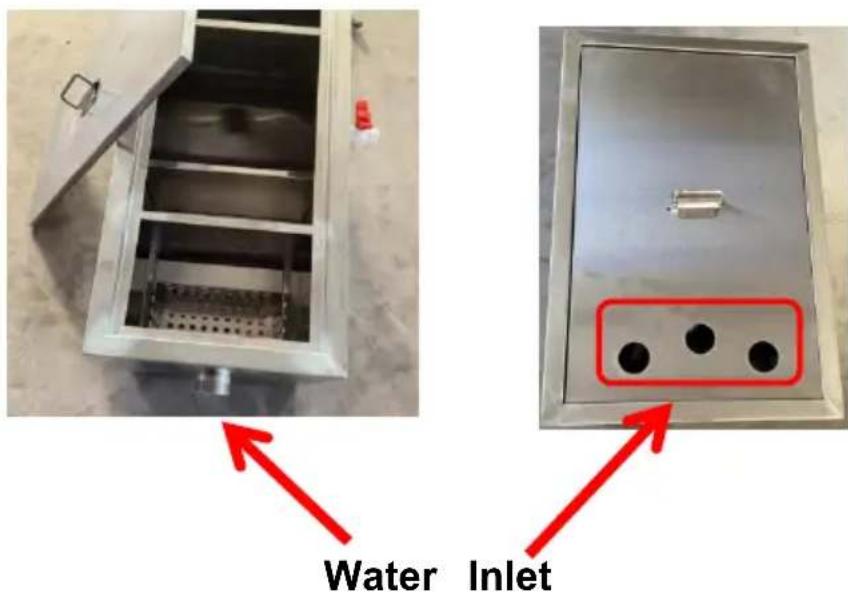

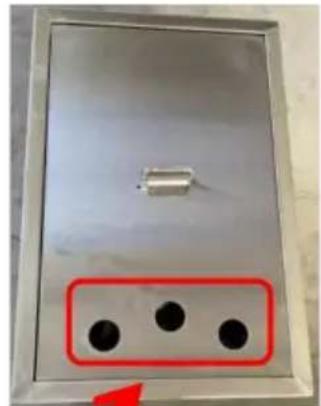

STEP 4

Insert the water inlet pipe into the water inlet.

Note: The water inlet pipe should be placed in the middle of the screen.
