USER MANUAL SR-R005C Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CORDLESS HEAT GUN

MODEL: SR-R005A SR-R005C

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us onl represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cc all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

CORDLESS HEAT GUN

MODEL: SR-R005A SR-R005C

Line drawing of a handheld electric shaver device (no text or symbols)

BATTERY NOT INCLUDED

This manual will provide you with the information you need to safely and effectively

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if the any technology or software updates on our product.

Product Introduction

1. Functional Description

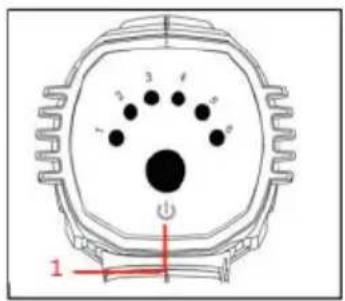

SR-R005A

1 Power Switch

2 123456 Is For Light Display

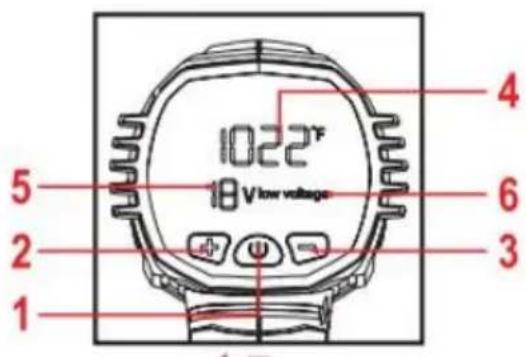

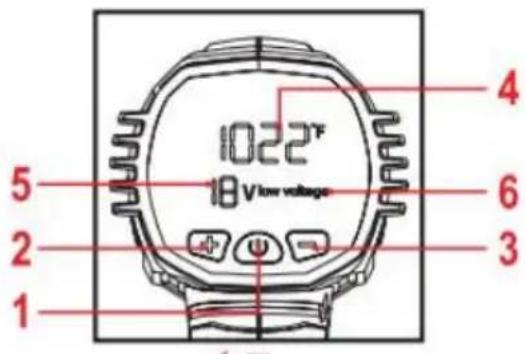

SR-R005C

1 Power Switch °C/°F Unit Switch
2 Temperature Increase Button
3 Temperature Decrease Button
4 Temperature Display

5 Lithium Battery VoltageDisplay

6 Lithium Battery LowVoltage Reminder

1 2 3 4 5 6 7 8 9 10

1022°F 18 V low voltage 5 2 1 4 6 3

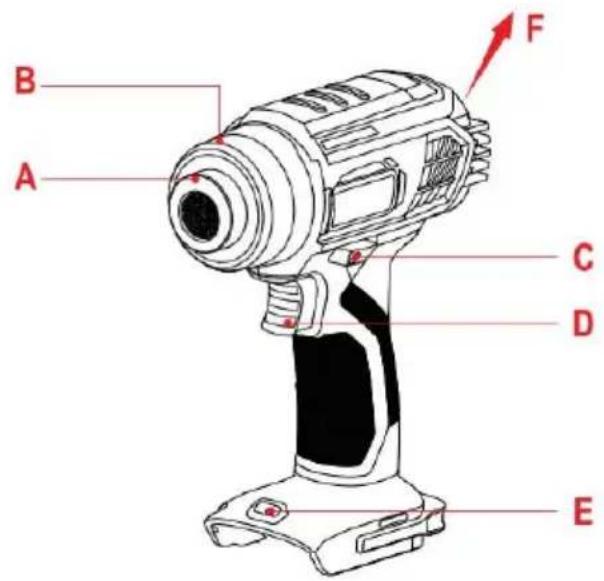

A-Heat Gun Nozzle

B-Nose Cone

C-Lock-Off Button

D-Switch Trigger

E-LED Light

F-Light Display(SR-R005A) F-Screen Digital Display(SR-R005C)

B A F C D E

NOTE:

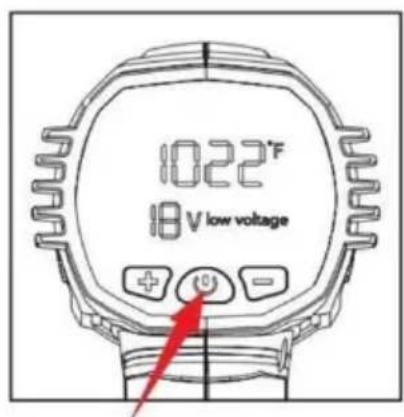

1. To switch between ^ C/ ^ F units, simply press the power switch once. (Only S R005C)

2.SR-R005A: Each time the power switch is pressed, the gear cycle is repeated (1-2-3-4-4-5-6-1). Gear 1 is for cold air, and gears 2-5 have temperatures ranging from 100-200-300-400-550 °C.

3.SR-R005C:To adjust the temperature,press"+"to increase the temperature by 10°C(50°F)or"-" to lower the temperature by 10°C(50°F).

1. The heat gun will consume battery power during use, so it's normal for the screen to display a voltage lower than 18V(Only SR-SR005C with display).

2. If the voltage drops below 16V, it may affect the heat gun's performance. I this case, please replace or recharge the battery.

3. If the lithium battery voltage drops below 14.5V, a low voltage prompt will appear on the digital display. (Only SR-SR005C with display, But SR-R005A still has low voltage protection)

4. For the tool to function at its best, it's recommended to go for a battery a capacity of 4.0AH or more.

2.Package Include

Name	Quantity
Cordless Heat Gun	1
Nozzles	4
User Manual 1

1. Technical Specifications

Model	SR-R005A SR-R005C
Motor	with brush with brush
Voltage DC	18V/20V	18V/20V
Output Powe	400W	400W
Temperature Range	100-550°C (212-1022°F)	50-550°C(122-1022°F)
Airflow	9.9CFM	9.9CFM
Low Voltage Protection	14.5V 14.5V
NOTE:This cordless heat gun is ideal for small projects,including heat shrinking,shrink wrapping,sticker removal,car window film,resin crafting,and more

Installing Operation

Operating The Heat Gun

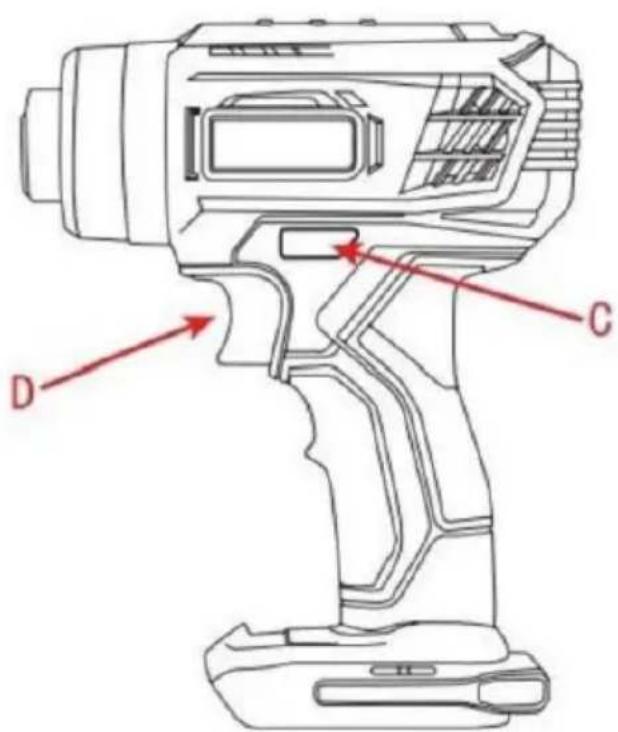

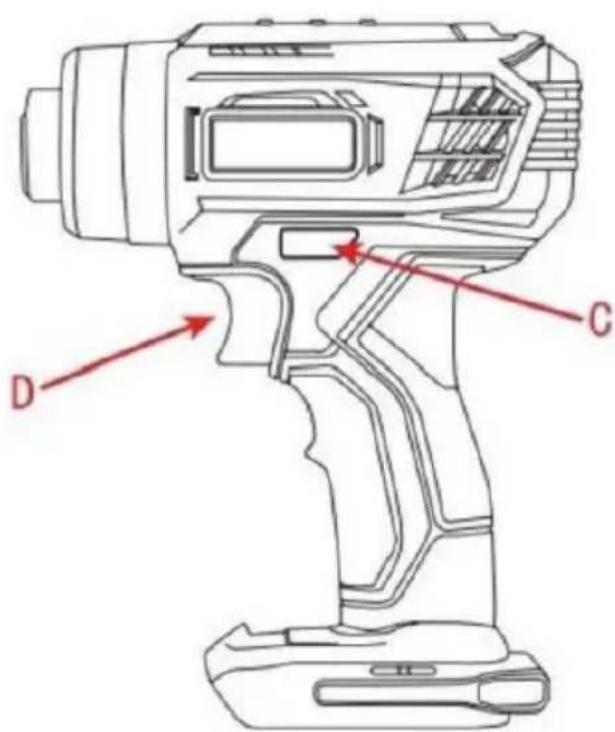

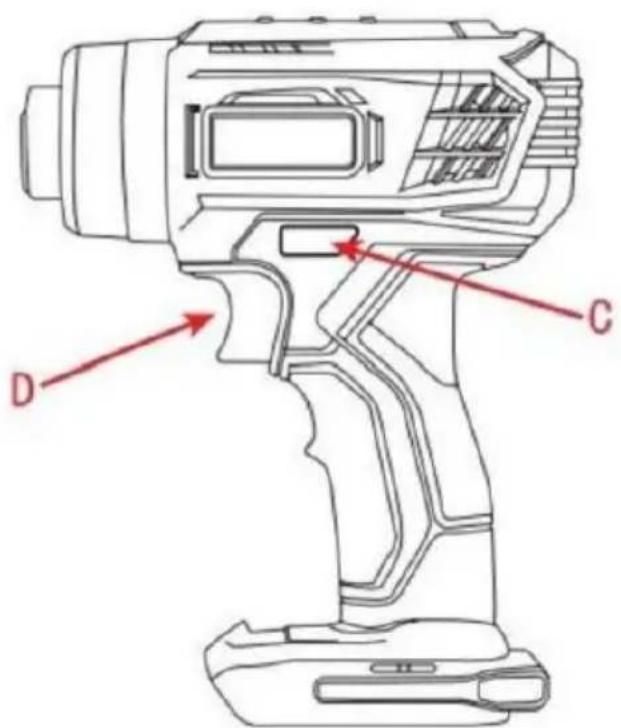

Switching On

1. Install the battery pack(not included).
2. Press and hold the power switch for 3

seconds. 3. Press switch trigger D to turn on the tool.

4.SR-R005A:Adjust the temperature to your desired level using power switch SR-R005C: Use the"+"or"-"buttons to adjust the temperature to your desired level.

NOTE:

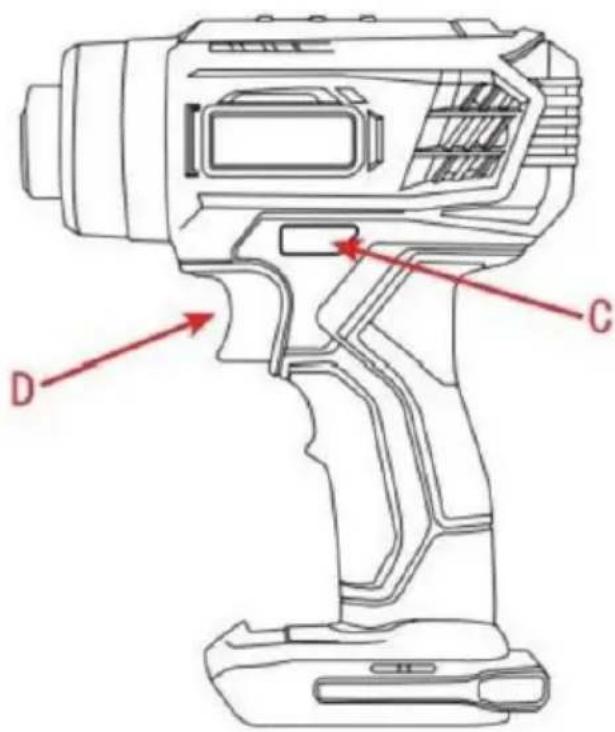

You can activate the lock-off button C from either the left or right s keep the tool running.

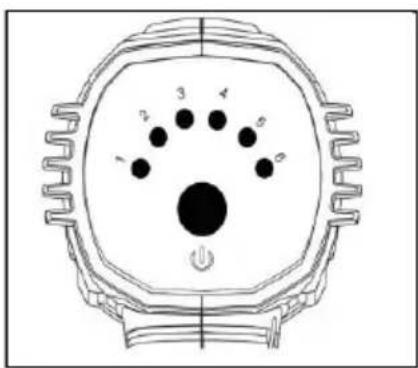

SR-R005A

Diagram of a device or connector with numbered pins and a power button, likely for electrical or mechanical labeling.

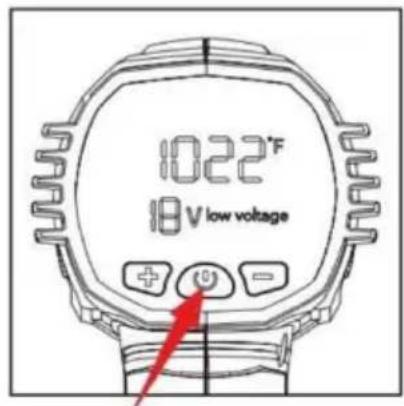

SR-R005C

1022°F 18 V low voltage

Technical diagram of a handheld device with labeled parts D, C, and an unlabeled internal component

Attachment Installation

The heat gun comes with attachments that can expand its capabilities, and they can easily installed by placing them on the end of the heat gun's nozzle.

NOTE:

Only install or remove attachments when both the heat gun nozzle and attachments nozzle are cool.

Switching Off

1. Release the switch trigger to stop the operation.

2. Pull out the battery pack(not included)

General Safety Warnings

WARNING:

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains

operated(corded)power tool or battery-operated (cordless)power tool.

Work Area Safety

- Keep work area clean and well lit. Cluttered or dark areas invite accidents.

■Do not operate power tools in explosive atmospheres, such as in the presence of flamma-ble liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

■Always stand and balance correctly. This allows for better control of power to unexpected situations

Personal Safety

■Stay alert, watch what you are doing and use common sense when operating power
tool.Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.A moment of inattention while operating power tools may result in serious personal injury,
■Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
■Prevent unintentional starting.Ensure the switch is in the off-position before connecting to power source and/or battery pack(not include),picking up or carry the tool.Carrying power tools with your finger on the switch or energizing power tools that have the switch invites accidents
■Always stand and balance correctly. This allows for better control of power tools in unexpected situations.
■Dress properly.Do not wear loose clothing or jewelry.Keep your hair,clothing a gloves away from moving parts.Loose clothes,jewelry or longhair can be caught in moving parts.
■Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Operating The Heat Gun

■Install the battery pack(not

include). ■Turn the heat gun on.

■Hold heat gun with one hand.
■Do not wear loose clothing or jewelry.
■Do not use it on a ladder or unstable stand, which can better control the p tool without accidents.

Power Tool Use And Care

■Do not force the power tool. Use the correct power tool for your application. correct power tool will do the job better and safer at the rate for which it designed.

■Do not use the power tool if the switch does not turn it on and off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.

■Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate

the power tool.Power tools are dangerous in the hands of untrained users.

■Maintain power tools and accessories.Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.If damaged,have the power tool repaired before use.Many accidents are caused by poorly maintained power tools.

■Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Heat Gun Safety Warnings

■When battery pack(not include)is not in use,keep it away from other objects,like paper dips, coins,keys,nails,screws or other small metal objects,that can make a connection from one terminal to another.Shorting the battery terminals together may cause burns or a fire

■Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

■Do not use a battery pack(not include)or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury.

■Do not expose a battery pack(not include)or tool to fire or excessive temperature.Exposure to fire or temperature above 265^ F may cause explosion.

Service

■Have your power tool serviced by a qualified repair person using or identical replacement parts. This will ensure that the safety of the pow tool is maintained.
■Never service damaged battery pack(not include).Service of battery pack(not include)should only be performed by the manufacturer or authorized service provider.

Heat Gun Safety Warnings

When using heat guns, basic safety precautions should always be followed:

Read All Instructions

■The nozzle of the heat gun becomes very hot during operation and should not be touched until the tool has cooled. Always hold the tool by the insulat gripping surface to reduce the risk of serious personal injury.
■Heat guns produce very high temperatures and must be used with caution to prevent

combustible material from igniting. Keep tool in constant motion; do not stop or dwell in one spot. Following this rule will reduce the risk of fire or serious personal injury ■ Excessive heat can generate fumes which may be dangerous when inhaled. Wear a dust respirator mask or dual filter respirator mask when using the heat gun. Following this rule will reduce the risk of serious personal injury.

• Keep a fully charged fire extinguisher close at hand for emergency use. Following this rule will reduce the risk of fire or serious injury.
  ■Do not leave the heat gun unattended while running or cooling down. Always set tool on a flat, level surface so nozzle tip is directed upwards, away from supporting surface, while

running or cooling down. Following this rule will reduce the risk of fire or serious injury.

■Know your power tool.Read operator's manual carefully.Learn its applications and limitations,as well as the specific potential hazards related to this tool.Following this rule will reduce the risk of electric shock,fire,or serious injury.

■Always wear eye protection marked to comply with ANSI Z87.1.Following this rule will reduce the risk of serious personal injury.
■Before using, check all parts for proper function and damage to component parts.
■Do not use this torch to heat, mold or bend plastic sheets, molding or tubing.

WARNING

This heat gun generates extremely high temperatures. Hidden areas such as behind walls, ceilings, floors, soft boards and other panels may contain flammable materials that could be ignited by the heat gun when working these locations. The ignition of these materials may not be readily apparent could result in property damage and injury to persons. When working in the locations, keep the torch moving in a back-and-forth motion. Lingering or pausing in one spot could ignite the panel or the material behind it.

Heat Gun Safety Warnings

WARNING

Extreme care should be taken when stripping paint. The peelings, residue a vapors of

paint may contain lead, which is poisonous. Any pre-1977 paint may contain lead and paint applied to homes prior to 1950 is likely to contain lead deposited on surfaces, hand to mouth contact can result in the ingestion lead. Exposure to even low levels of lead

can cause irreversible brain and nervous system damage; young and unll children are particularly vulnerable. Before beginning any paint removal process you should determine whether the paint you are removing cont lead. This can be done by your local health department or by a professional who uses a paint analyzer to check the lead content of tl to be removed. LEAD-BASED PAINT SHOULDONLY BE REMOVED BY A PROFESSION- AL AND SHOULD NOT BE REMOVED USING A TORC

WARNING

DO not direct hot tip or nozzle toward clothing, hands, or other body parts. Intense heat from tip or nozzle can cause serious burns or cause clothing to ignite

Persons Removing Paint Should Follow These Guidelines:

■Move the work piece outdoors. If this is not possible, keep the work area well ventilated.

Open the windows and put an exhaust fan in one of them. Be sure the fan moving the air from inside to outside.

■Please remove any carpets, blankets, furniture, clothing, cooking utensils from the work piece and keep it ventilated.

■Place drop cloths in the work area to catch any paint chips or peelings, Wear protective clothing such as extra work shirts, overalls and hats.

■Work in one room at a time.Furniture should be removed or placed in the centre of the

room and covered. The work area should be sealed off from the rest of the home by sealing the doorway with a rag.

■Children, pregnant or potentially pregnant women and nursing mothers should not be present in the work area until the work is done and all clean up is complete.

■Wear a dust respirator mask or a dual fter (dust and fume)respirator mask which has been aprvedbytho Occupational Safety and Halth Administration (OSHA,the National Institute of

Safety and Health (NIOSH), Or the United States Bureau of Mines. These masks and replace able filters are readily available at major hardware stores. Be sure the mask fits. Beards and facial hair may keep masks from sealing properly. Change filters often. DISPOSABLE PAPER MASKS ARE NOT ADEQUATE.

■Use caution when operating the heat gun. Keep the heat gun moving, as excessive heat will generate fumes, which can be inhaled by the operator.

- Keep food and drink out of the work area. Wash hands, arms and face and rinse mouth before eating or drinking. Do not smoke or chew gum or tobacco in the work area.

■Clean up all removed paint and dust by wet mopping the floors. Use a wet cloth to clean all walls, and other surfaces where paint or dust is clinging. DC NOT SWEEP, DRY DUST

OR VACUUM. Use a high phosphate detergent or trisodium phosphate (TSP) to wash and mop areas

■At the end of each work session put the paint chips and debris in a double plastic bag.close it with tape or twist ties and dispose of properly

■Remove protective clothing and work shoes in the work area to avoid carrying dust into the rest of the dwelling.Wash work clothes separately.Wipe shoes of with a wet rag that is then washed with the work clothes.Wash hair and body thoroughly with soap and water.

Symbols

The following signal words and meanings are intended to explain the le associated with this product.SYMBOL SIGNAL MEANING
	DANGER:	Indicates a hazardous situation which,if not avoided,will result in death or serious injury.
	WARNING:	Indicates a hazardous situation which,if not avoide result in death or serious injury.
	CAUTION:	Indicates a hazardous situation thatif not avoide result in minor or moderate injury.
	NOTICE:	Without Safety Alert Symbol)Indicates information con important,but not related to a potential injury (e.g. relating to property damage).

Some of the following symbols may be used on this product.Please and learn their meaning.Proper interpretation of these symbols will allow you to product better and safer SYMBOL NAME DESIGNATION/EXPL ANATION
	Safety Alert	Indicates a potential personal injury hazard.
	Read Operator's Manual	To reduce the risk of injury,user must read understand operator's manual before using the product.
	Eye Protection	Always wear eye protection with side shields marked to comply with ANSI Z87.1.
	Wet Conditions Alert	Donot expose to rain or use in damp location
	Hot Surface	To reduce the risk of injury or damage,avo contact with any hot surface.
	Recycle Symbol	This product uses lthium-ion(Liion)batteries.Loc state or federal laws may prohibit disposal batteries in ordinary trash.Consult your local waste authority for information regarding avail recycling and/or disposal options.
V	Volts	Voltage
min	minute	Time
	Direct Current	Type or a characteristic of current
.../min	Per Minute	Revolutions, strokes, surface speed, orbits etc., per minute

Features

Product Specifications
Maximum Temperature	1022°F(550°C)
Power Source	18V/20V Battery Pack(not include)

WARNING

Do not use this product if it is not completely assembled or if any parts appear to be missing or damaged. Use of a product that is not properly and completely assembled or with damaged or missing parts could result in serious personal injury

WARNING

Do not attempt to modify this product or create accessories or attachments not recommended for use with this product. Any such alteration or modification misuse and could result in a hazardous condition leading to possible serious personal injury

WARNING

Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury

WARNING

Always remove battery pack(not include)from the tool when you are assembling parts,makir adjustments,cleaning,or when not in use.Removing battery pack(not include)will prevent accidental starting that could cause serious personal injury.

WARNING

Always wear eye protection with side shields marked to completely with ANSI Z87.1.Failure to do so could result in objects being thrown into your eyes and other possible serious injuries

WARNING

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

Applications

You may use this product for the purposes listed below;

■Soften paint, caulking and putty for easier removal
■ Soften adhesives to help remove stickers, floor tiles, wallpaper, etc.

■Shrink tubing for electrical work
■Shrink plastic film for wrapping or weatherproofing

WARNING

Do not place secondhand on top of tool or near nozzlo at any time. Holding tool on or near the nozzlo can cause serious personal injury

■Move the heat gun until the nozzle is close to the area being heated. NOTE: Experiment with scrap materials to determine the proper amount of heat, distance and time for your project.

WARNING

During heating, move the tool back-and-forth. Avoid lingering or pausing in one as this could overheat or potentially ignite the material being heated.

■Allow the heat gun and heating surface to cool completely before storing th

Maintenance

WARNING

When servicing.use only identical replacement parts.Useof any other parts could create a hazard or cause.product damage

WARNING

Before inspecting.cleaning.or servicing the unit,stop the heat gun,wait for the heat gun to cool,and remove the battery pack(not include).Failure to follow these instructions canresult in serious personal injury or property damage.

General Maintenance

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible damage from various types of commercial solvents and may be damaged by use. Use clean cloths to remove dirt, dust, oil, grease, etc.

Cleaning The Heat Gun

The heat gun should be kept clean, dry, and free of oil or grease. Only a mild and damp cloth should be used to clean the heat gun. Do not allow liquid to the tool.

The high temperatures of the heat gun will cause the nozzle to turn dark over time. This is normal and will not affect its performance or life.

Ventilation openings must be kept clean and free of foreign matter. The most effective

method of cleaning the vents is with compressed air. Do not attempt to clean inserting pointed objects through the openings.

Storage

Always allow the heat gun to cool to room temperature before storing. Store the heat gun out of reach of children and untrained individuals.

WARNING

The nozzle of the heat gun will stay hot for several minutes after use. Always allow heat gun to cool before storage Following this rule will re the risk of serious personal injury or property damage.

Disposal

Disposal Of The Product

Under no circumstances should you dispose of this product in normal domestic waste

Dispose of this product via an approved disposal company or your municipal waste facility. Please observe currently applicable regulations.

Please contact your waste disposal center if you need any further information.

This product's packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Disclaimer

Unless specifically agreed to in writing:

A. We makes no warranty as to the accuracy, sufficiency or suitability of any technical or other information provided in its manuals or other documentation.

B.We assumes no responsibility o liability for loss or damage,whether direct,indirect,consequential or incidental,which might arise out of the use of s information.The use of any such information will be entirely at the user's ris

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a handheld electric shaver device (no text or symbols)

BATTERIE NICHT INBEGRIFFEN

www.vevor.com/support

Installing Operation

Operating The Heat Gun

Einschalten

Diagram of a device with numbered components and a power button, likely for electrical or mechanical control.

SR-R005C

1022°F 18 V low voltage

D C

Attachment Installation

General Safety Warnings

WARNUNG :

Heat Gun Safety Warnings

Heat Gun Safety Warnings

Heat Gun Safety Warnings

WARNING

Extreme care should be taken when stripping paint. The peelings, residue a vapors of

paint may contain lead, which is poisonous. Any pre-1977 paint may contain lead and paint applied to homes prior to 1950 is likely to contain lead deposited on surfaces, hand to mouth contact can result in the ingestion lead. Exposure to even low levels of lead

can cause irreversible brain and nervous system damage;young and unl children are particularly vulnerable.Before beginning any paint removal process you should determine whether the paint you are removing cont lead.This can be done by your local health department or by a professional who uses a paint analyzer to check the lead content of th to be removed.LEAD-BASED PAINT SHOULDONLY BE REMOVED BY A PROFESSION- AL AND SHOULD NOT BE REMOVED USING A TORC

WARNUNG

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a handheld electric shaver device (no text or symbols)

BATERIA NIE ZAWIERA

Installing Operation

Operating The Heat Gun

Włączanie

Diagram of a device with numbered components and a power button, likely for electrical or mechanical control.

SR-R005C

1022°F 18 V low voltage

D C

Attachment Installation

General Safety Warnings

OSTRZEŻENIE :

Heat Gun Safety Warnings

Heat Gun Safety Warnings

Heat Gun Safety Warnings

WARNING

Extreme care should be taken when stripping paint. The peelings, residue a vapors of

paint may contain lead, which is poisonous. Any pre-1977 paint may contain lead and paint applied to homes prior to 1950 is likely to contain lead deposited on surfaces, hand to mouth contact can result in the ingestion lead. Exposure to even low levels of lead

can cause irreversible brain and nervous system damage;young and unll children are particularly vulnerable.Before beginning any paint removal process you should determine whether the paint you are removing cont lead.This can be done by your local health department or by a professional who uses a paint analyzer to check the lead content of tl to be removed.LEAD-BASED PAINT SHOULDONLY BE REMOVED BY A PROFESSION- AL AND SHOULD NOT BE REMOVED USING A TORC

OSTRZEŻENIE

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

PISTOLET THERMIQUE SANS FIL

MODÈLE: SR-R005A SR-R005C

Line drawing of a handheld electric shaver device (no text or symbols)

BATTERIE NON INCLUS

Installing Operation

Operating The Heat Gun

Mise en marche

Diagram of a device with numbered components and a power button, likely for electrical or mechanical control.

SR-R005C

1022°F 18 V low voltage

D C

Attachment Installation

General Safety Warnings

AVERTISSEMENT :

Heat Gun Safety Warnings

Heat Gun Safety Warnings

Heat Gun Safety Warnings

WARNING

Extreme care should be taken when stripping paint. The peelings, residue a vapors of

paint may contain lead, which is poisonous. Any pre-1977 paint may contain lead and paint applied to homes prior to 1950 is likely to contain lead deposited on surfaces, hand to mouth contact can result in the ingestion lead. Exposure to even low levels of lead

can cause irreversible brain and nervous system damage;young and unll children are particularly vulnerable.Before beginning any paint removal process you should determine whether the paint you are removing cont lead.This can be done by your local health department or by a professional who uses a paint analyzer to check the lead content of tl to be removed.LEAD-BASED PAINT SHOULDONLY BE REMOVED BY A PROFESSION- AL AND SHOULD NOT BE REMOVED USING A TORC

AVERTISSEMENT

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a handheld electric shaver device (no text or symbols)

BATTERIJ NIET INBEGREPEN

HULP NODIG? NEEM CONTACT MET ONS OP!

Installing Operation

Operating The Heat Gun

Inschakelen

Diagram of a device or connector with numbered pins and a power button, likely for electrical or mechanical labeling.

SR-R005C

1022°F 18 V low voltage

Technical diagram of a handheld device with labeled parts D, C, and directional arrows indicating assembly or component.

Attachment Installation

General Safety Warnings

WAARSCHUWING :

Heat Gun Safety Warnings

Heat Gun Safety Warnings

Heat Gun Safety Warnings

WARNING

Extreme care should be taken when stripping paint. The peelings, residue a vapors of

paint may contain lead, which is poisonous. Any pre-1977 paint may contain lead and paint applied to homes prior to 1950 is likely to contain lead deposited on surfaces, hand to mouth contact can result in the ingestion lead. Exposure to even low levels of lead

can cause irreversible brain and nervous system damage; young and unll children are particularly vulnerable. Before beginning any paint removal process you should determine whether the paint you are removing cont lead. This can be done by your local health department or by a professional who uses a paint analyzer to check the lead content of th to be removed. LEAD-BASED PAINT SHOULDONLY BE REMOVED BY A PROFESSION- AL AND SHOULD NOT BE REMOVED USING A TORC

WAARSCHUWING

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a handheld electric shaver device (no text or symbols)

BATTERI INGÅR INTE

www.vevor.com/support

Installing Operation

Operating The Heat Gun

Slår på

Diagram of a device or connector with numbered pins and a power button, likely for electrical or mechanical labeling.

SR-R005C

1022°F 18 V low voltage

Technical diagram of a handheld device with labeled parts D, C, and an unlabeled internal component

Attachment Installation

General Safety Warnings

WARNING :

Heat Gun Safety Warnings

Heat Gun Safety Warnings

Heat Gun Safety Warnings

WARNING

Extreme care should be taken when stripping paint. The peelings, residue a vapors of

paint may contain lead, which is poisonous. Any pre-1977 paint may contain lead and paint applied to homes prior to 1950 is likely to contain lead deposited on surfaces, hand to mouth contact can result in the ingestion lead. Exposure to even low levels of lead

can cause irreversible brain and nervous system damage; young and unll children are particularly vulnerable. Before beginning any paint removal process you should determine whether the paint you are removing cont lead. This can be done by your local health department or by a professional who uses a paint analyzer to check the lead content of tl to be removed. LEAD-BASED PAINT SHOULDONLY BE REMOVED BY A PROFESSION- AL AND SHOULD NOT BE REMOVED USING A TORCH

WARNING

Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a handheld electric shaver device (no text or symbols)

BATERÍA NO INCLUIDO

www.vevor.com/support

Diagram of a biological cell or organelle with numbered components and directional arrows indicating specific regions.

1022°F 18 V low voltage 5 2 1 4 6 3

Installing Operation

Operating The Heat Gun

Encendiendo

Diagram of a device with numbered components and a power button, likely for electrical or mechanical control.

SR-R005C

1022°F 18 V low voltage

D C

Attachment Installation

General Safety Warnings

ADVERTENCIA :

Heat Gun Safety Warnings

Heat Gun Safety Warnings

Heat Gun Safety Warnings

WARNING

Extreme care should be taken when stripping paint. The peelings, residue a vapors of

paint may contain lead, which is poisonous. Any pre-1977 paint may contain lead and paint applied to homes prior to 1950 is likely to contain lead deposited on surfaces, hand to mouth contact can result in the ingestion lead. Exposure to even low levels of lead

can cause irreversible brain and nervous system damage;young and unll children are particularly vulnerable.Before beginning any paint removal process you should determine whether the paint you are removing cont lead.This can be done by your local health department or by a professional who uses a paint analyzer to check the lead content of tl to be removed.LEAD-BASED PAINT SHOULDONLY BE REMOVED BY A PROFESSION- AL AND SHOULD NOT BE REMOVED USING A TORC

ADVERTENCIA

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a handheld electric shaver device (no text or symbols)

BATTERIA NON INCLUSO

www.vevor.com/support

Installing Operation

Operating The Heat Gun

Accensione

Diagram of a device with numbered components and a power button, likely for electrical or mechanical control.

Modello SR-R005C

1022°F 18 V low voltage

D C

Attachment Installation

General Safety Warnings

AVVERTIMENTO :

Heat Gun Safety Warnings

Heat Gun Safety Warnings

Heat Gun Safety Warnings

WARNING

Extreme care should be taken when stripping paint. The peelings, residue a vapors of

paint may contain lead, which is poisonous. Any pre-1977 paint may contain lead and paint applied to homes prior to 1950 is likely to contain lead deposited on surfaces, hand to mouth contact can result in the ingestion lead. Exposure to even low levels of lead

can cause irreversible brain and nervous system damage;young and unll children are particularly vulnerable.Before beginning any paint removal process you should determine whether the paint you are removing cont lead.This can be done by your local health department or by a professional who uses a paint analyzer to check the lead content of tl to be removed.LEAD-BASED PAINT SHOULDONLY BE REMOVED BY A PROFESSION- AL AND SHOULD NOT BE REMOVED USING A TORC

AVVERTIMENTO

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Luogo, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
