BOAT TRAILER DOLLY

USER MANUAL

MODEL:CY420-B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:CY420-B

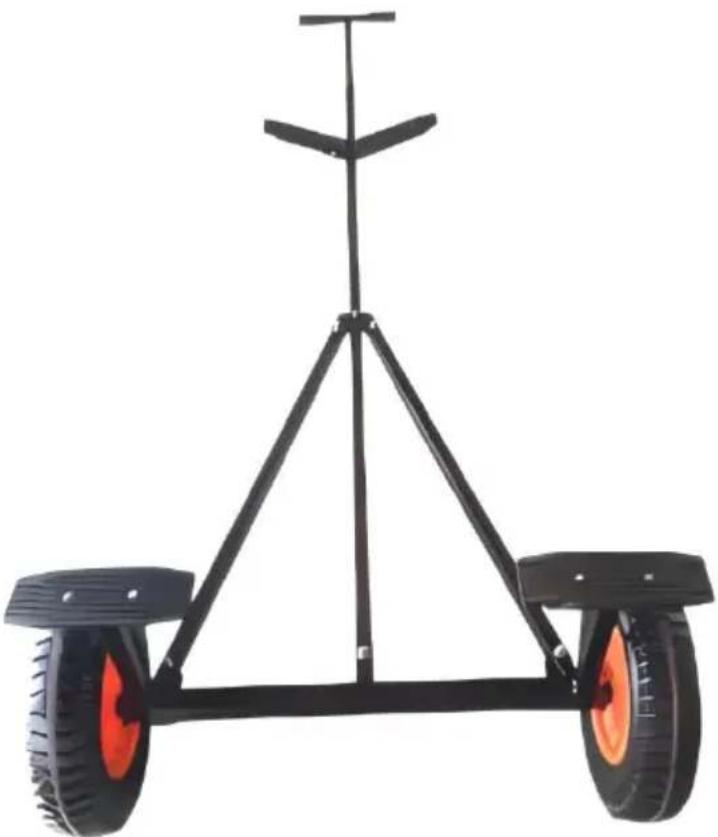

Exterior view of a black wheeled utility vehicle with orange wheels and a vertical support structure (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING: Read and understand all instructions. Failure to follow a instructions listed below may result in serious injury.

1. Check whether the tire has enough gas before use. If the tire gas is re enough, please inflate the tire before use.

2. Check whether the screw part is loose, if yes, please tighten it. 3. Do r overload.

CAUTION: Please read the instructions for safe operation carefully.

Assembly Precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.

6. Weight capacity and other product capabilities apply to properly and completely assembled product only.

Use Precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING: 1.Do no sit, stand or climb on this item.

1. This product is not a toy. Do not allow children to play with or near the item.

3.Do not lift while loaded.

1. To prevent tipping, push/pul using supplied handle only. 5. Use as intended only.

2. Inspect before every use. Do not use it if parts are loose or damaged.

3. After use, please dry before storage to avoid rusting of bolts affecting use.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	CY420-B
Max. Gross Trailer WT	420 lbs
Product Size(Max.)	LxWxH= 300x108x48 cm
Handle Adjustable Length	87.8 / 98 / 108.2 inch
Wheel	16"
Material	Steel

STRUCTURE DIAGRAM

1 2 3 4 2 5

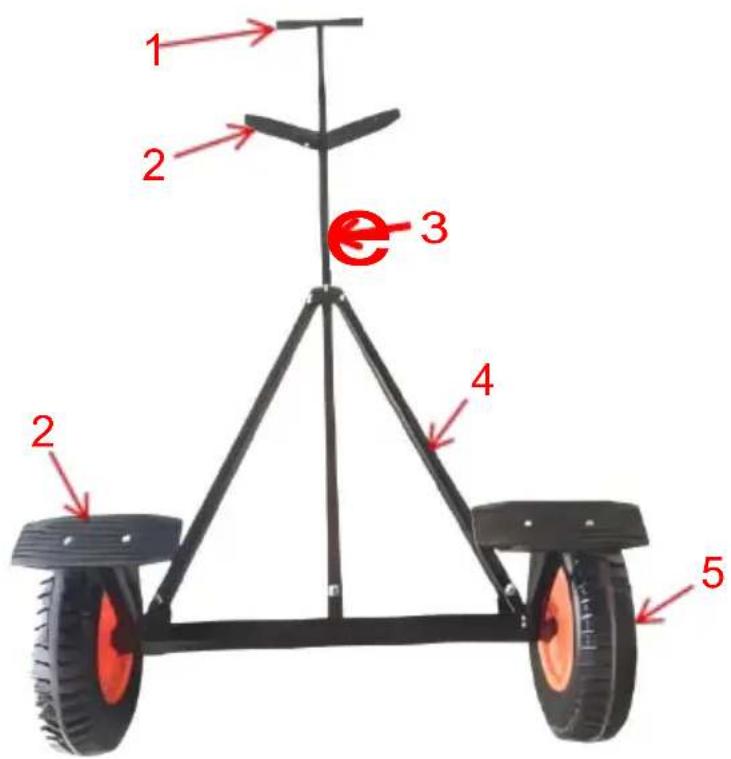

1. Handle 2. Supporting Plate 3. Main Rod 4. Reinforcing Rod 5. Pneumatic Tire

COMPONENTS

A ×1	B ×3	C ×1
D ×1	E ×1	F ×2
G ×2	H ×2	I×1
J (M8*20)×4	K (M8)×12	L (M10*45) ×9
M (M10) ×10	N ×1	O (M20) ×2
P (M10*50) ×1	Q×2	R×1

ASSEMBLY

Tools needed

Socket Wrench

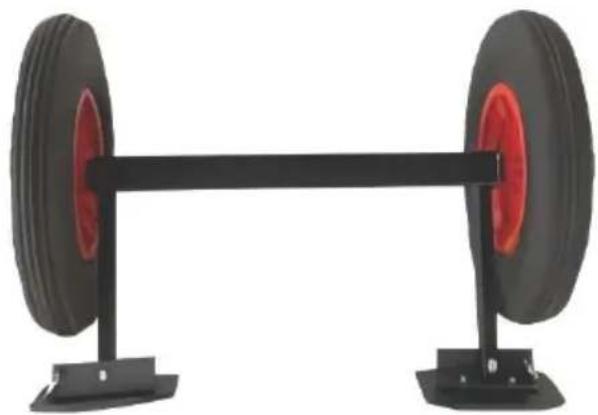

Step 1: Connect G with M+L and install it on A.

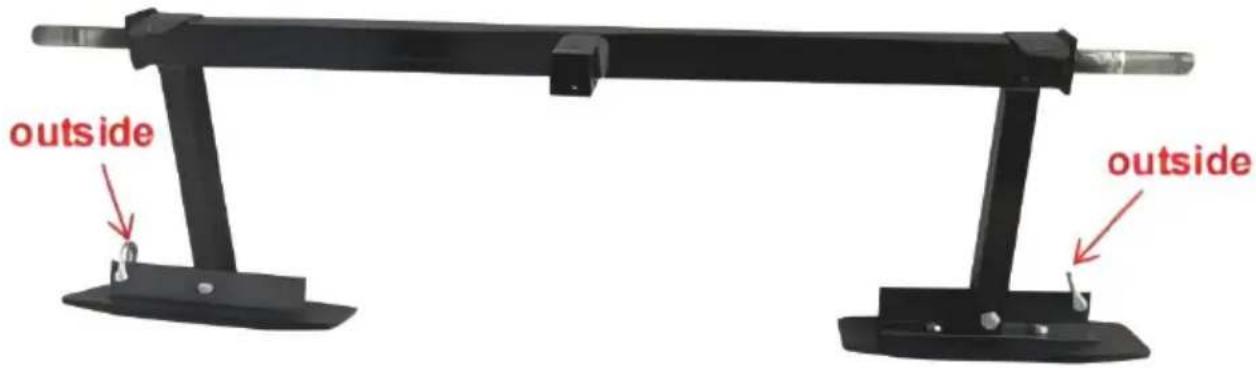

outside outside

Step 2: Connect H with O and install it on A.

Mechanical support frame with two black wheels and red rim, mounted on a black base (no text or symbols visible)

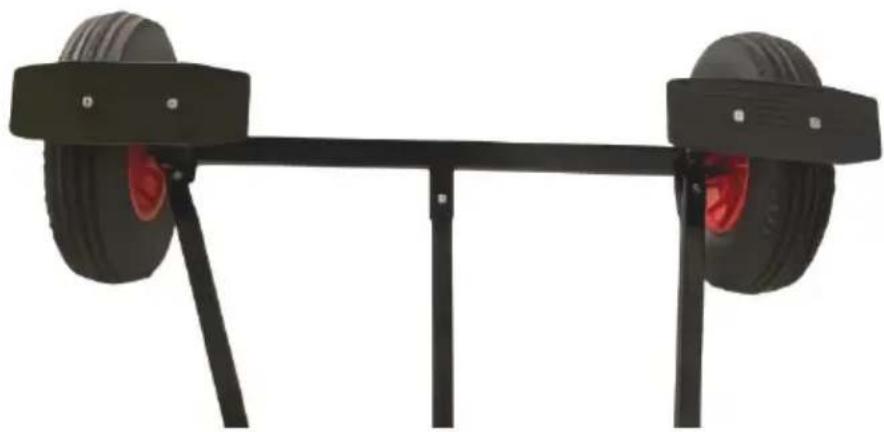

Step 3: Connect B with M+L and install it on A.

Black wheeled vehicle with two wheels mounted on a stand (no text or symbols visible)

Step 4: Connect B with M+L and install it on D.

Pure electrical circuit lines without any symbols

Step 5: Connect F with J +K and install it on E.

Black wooden object with two side handles and a vertical rod, no text or symbols visible

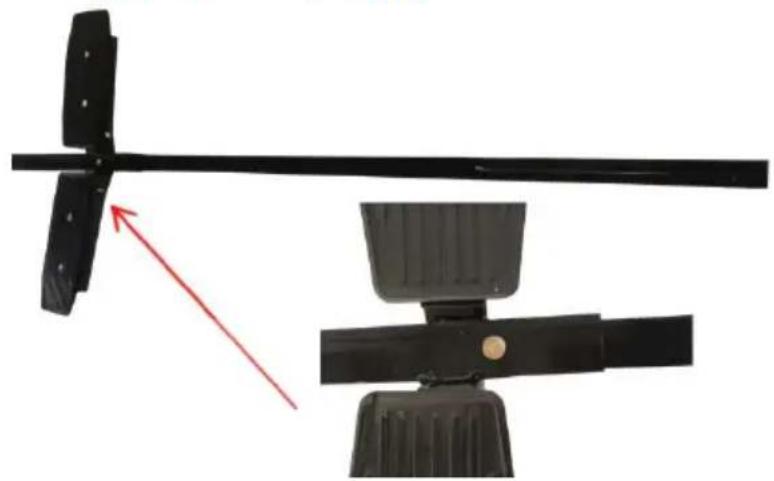

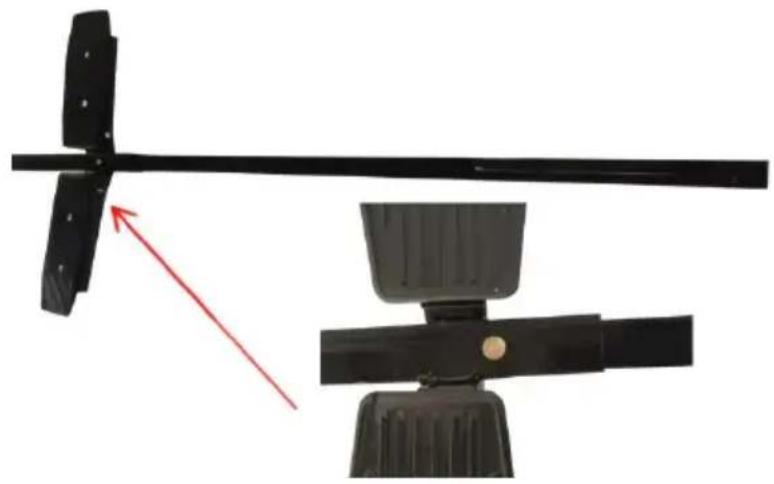

Step 6: Connect E to D with P+M.

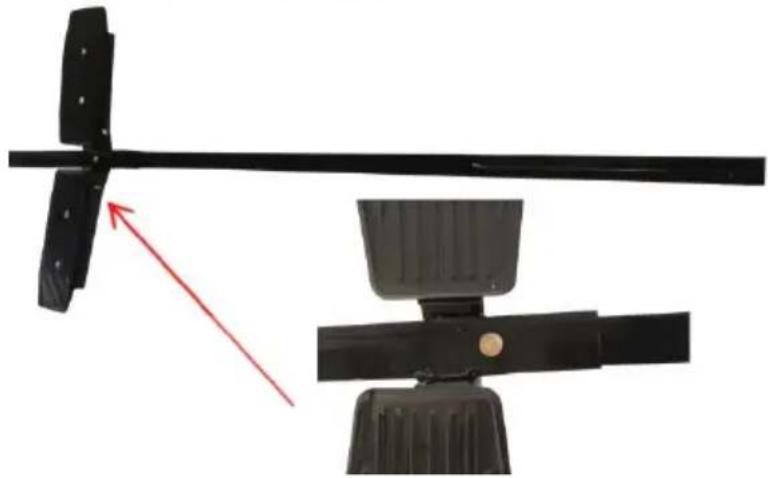

Close-up of a black mechanical device with a red arrow pointing to a component, no visible text or symbols.

Step 7 : Connect C to I with N

Step 8 : Re-confirm that all parts are locked, and then properly inflate thetires, and the maximum of tire pressure should not exceed 24PSI, and it's ready to go.

NOTE: That do not exceed the prescribed tire pressure to avoid bursting.

MAINTENANCE

• Do not overload.
  ● After use, please dry before storage to avoid rusting of bolts affecting use.
• Check bolts regularly for looseness.

Close-up of a orange push truck wheel with visible tire, no text or symbols present

Close-up of a red and black striped wheel with a small inset showing a mechanical component (no text or symbols visible)

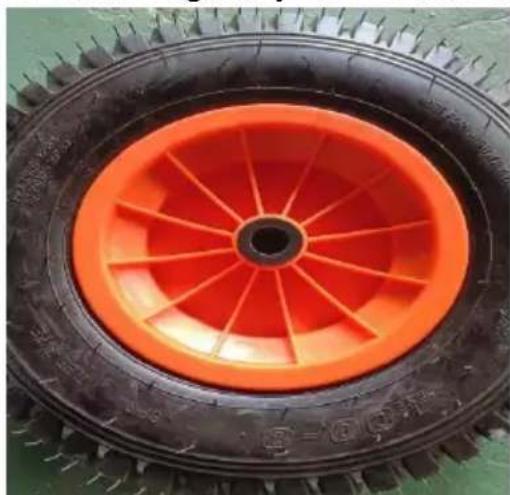

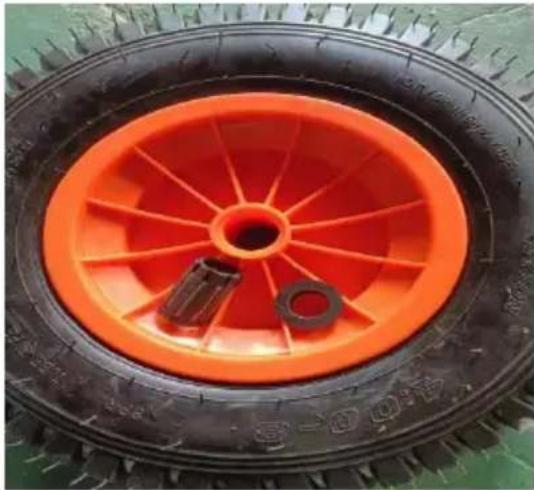

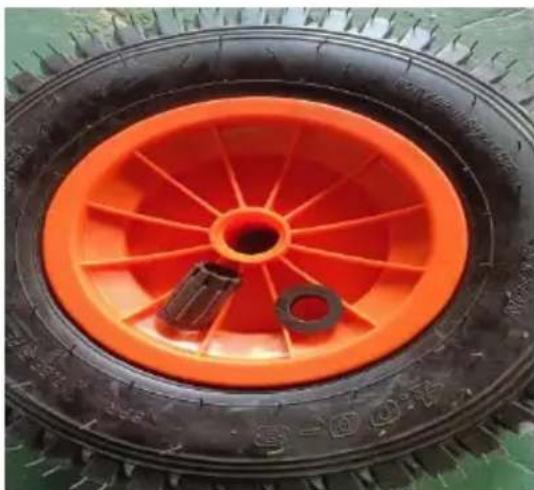

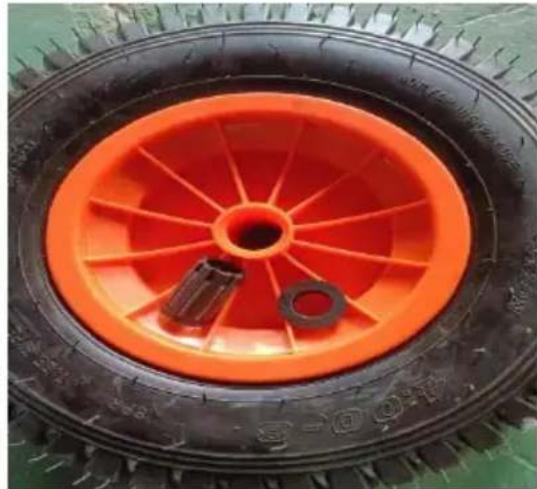

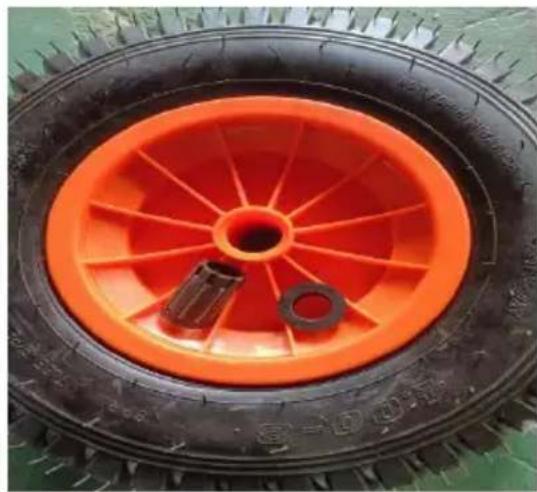

NOTE: Simply manually open the cover, remove the bearing, and add lubricating oil after cleaning the bearing or replace it with a new one.

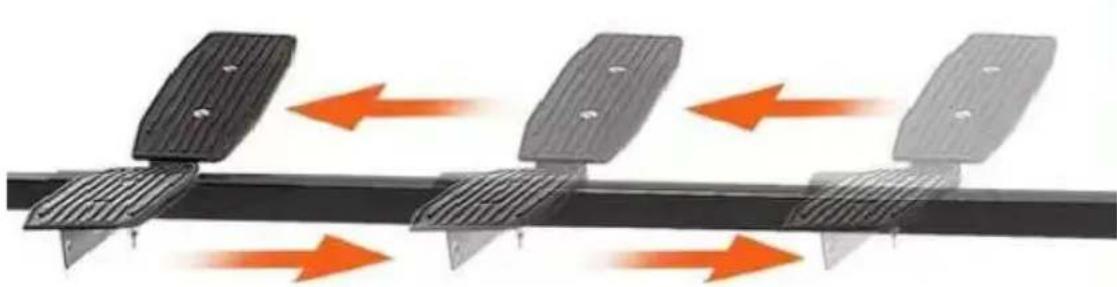

Length and the foot pad adjustment:

Diagram showing three identical mechanical components with orange arrows indicating motion or force direction (no text or symbols)

Sliding the foot pad forward and backward and pulling the adjustment ro to achieve length adjustment.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
