USER MANUAL OPX-BNLS-4T-N Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RATTAN BOOKSHELVES

USER MANUAL

MODEL NO.: OPX-BNLS-4T-N

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rattan Bookshelves

MODEL NO.: OPX-BNLS-4T-N

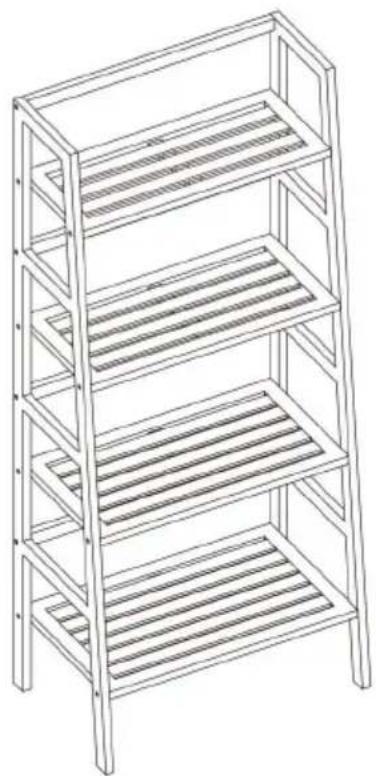

Line drawing of a multi-tiered shelving unit (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

Please read and observe carefully all the assembly instructions before beginning assembly.

Unit should be assembled by two or more people.

DO NOT CLIMB

Please do not let your child climb on the product. If y kids or animals who like to climb, we highly recommend using the wall anchors and brackets/straps that come the package.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Rattan Bookshelves.

8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Rattan Bookshelves.
4. Use as intended only.

Inspect before every use; do not use if parts are loose or damaged.

TECHNICAL SPECIFICATIONS

Model	OPX-BNLS-4T-N
Product Dimensions (LxWxH)(mm)	530*320*1250
Net Weight(kg)	About 5.75

*Products such as specifications, appearance, and design are subject to modification without prior notice.

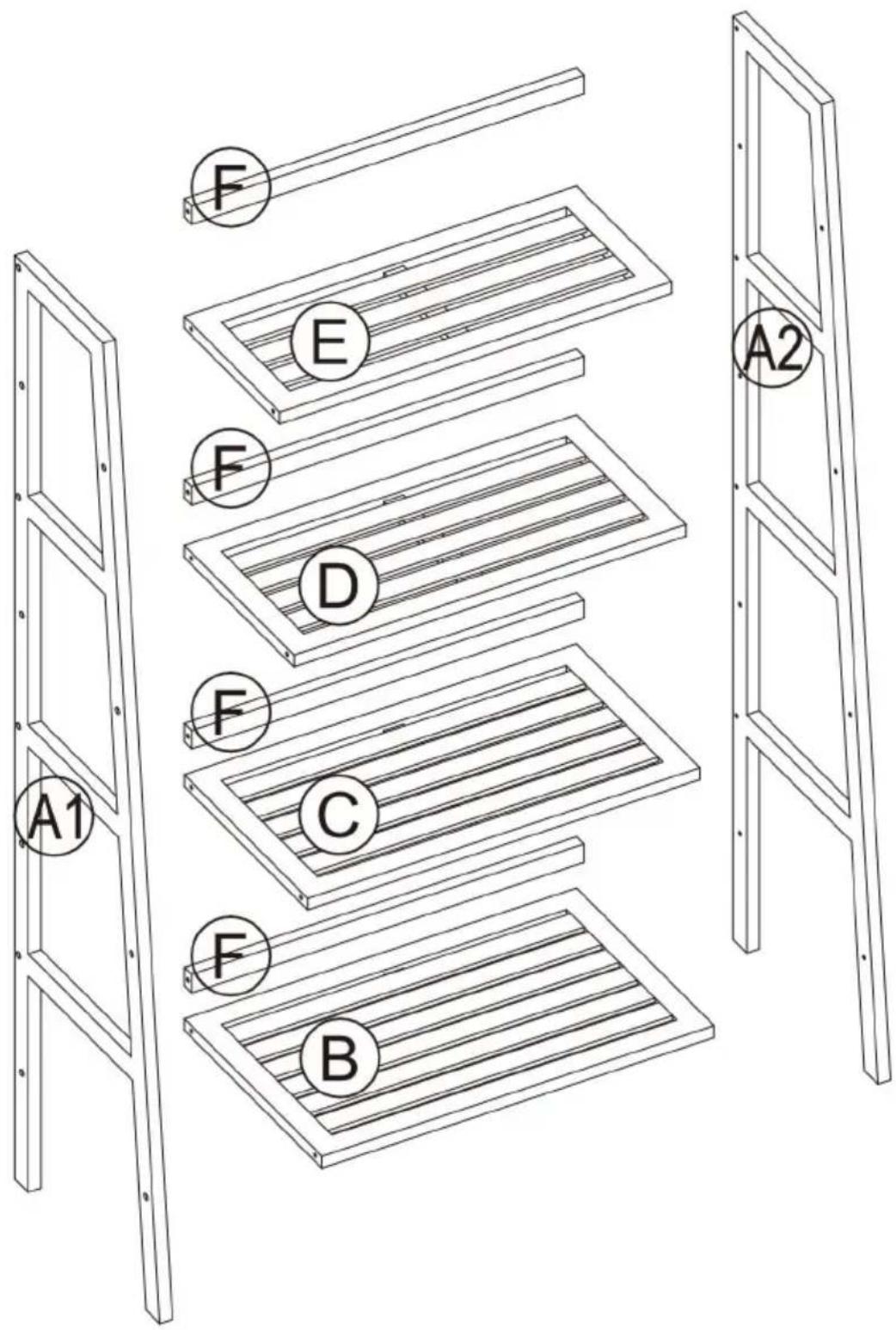

F E F D A2 A1 C F B

A11pc	A21pc	B1pc
C1pc	D1pc	E1pc
F4pcs	G24pcs	Hanti-tilt strap 2pcs
Iwall anchor 2pcs	J2pcs	K1pc

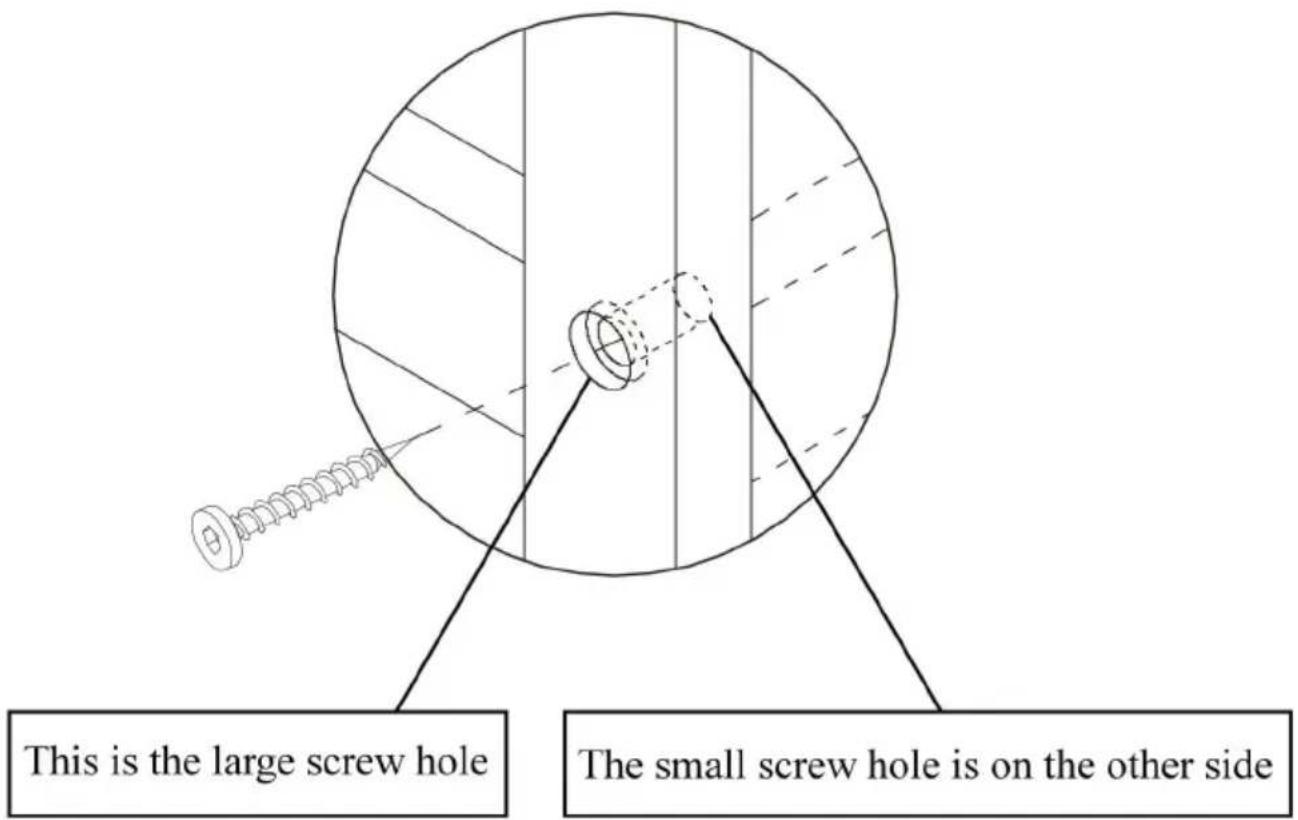

This is the large screw hole The small screw hole is on the other side

TIPS

The screw hole on the bamboo piece come in 2 sizes, one large and one small. The screw should enter and lock from the larger side. Bamboo piece may split if screwed in from the side with the smaller hole.

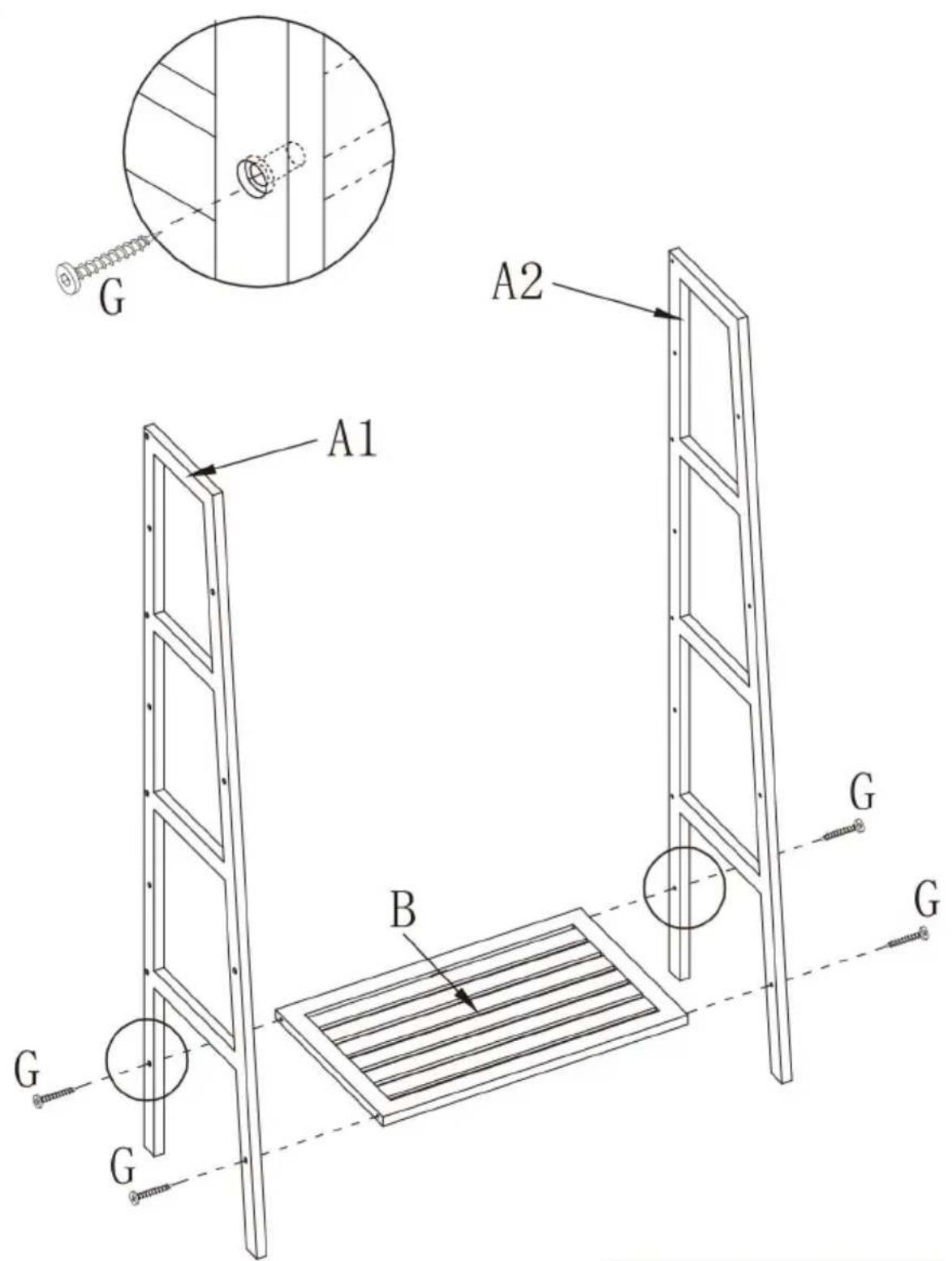

1

G A1 A2 B G G G G

G 4pcs

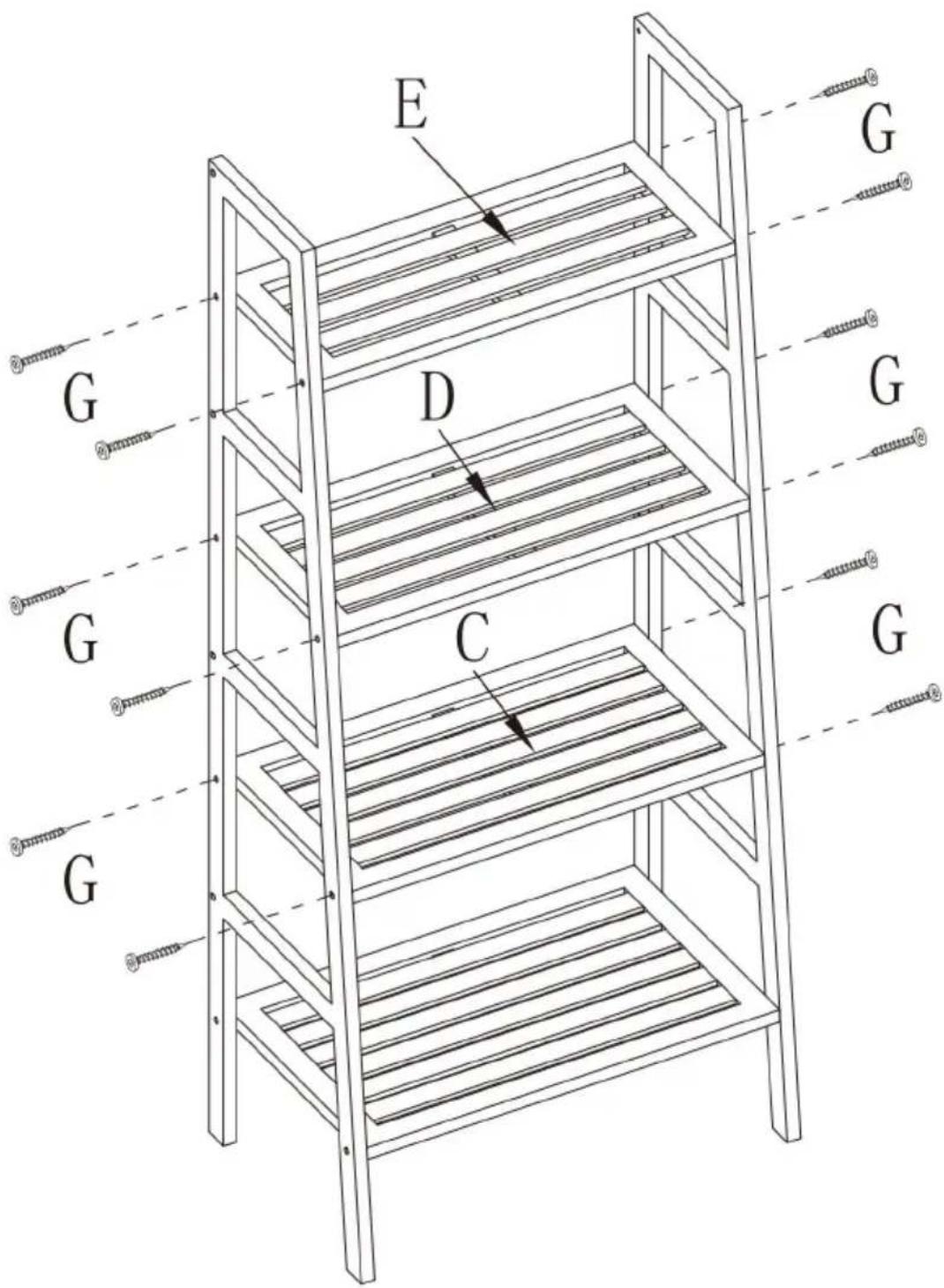

2

E G D C G G G G G G

G 12pcs

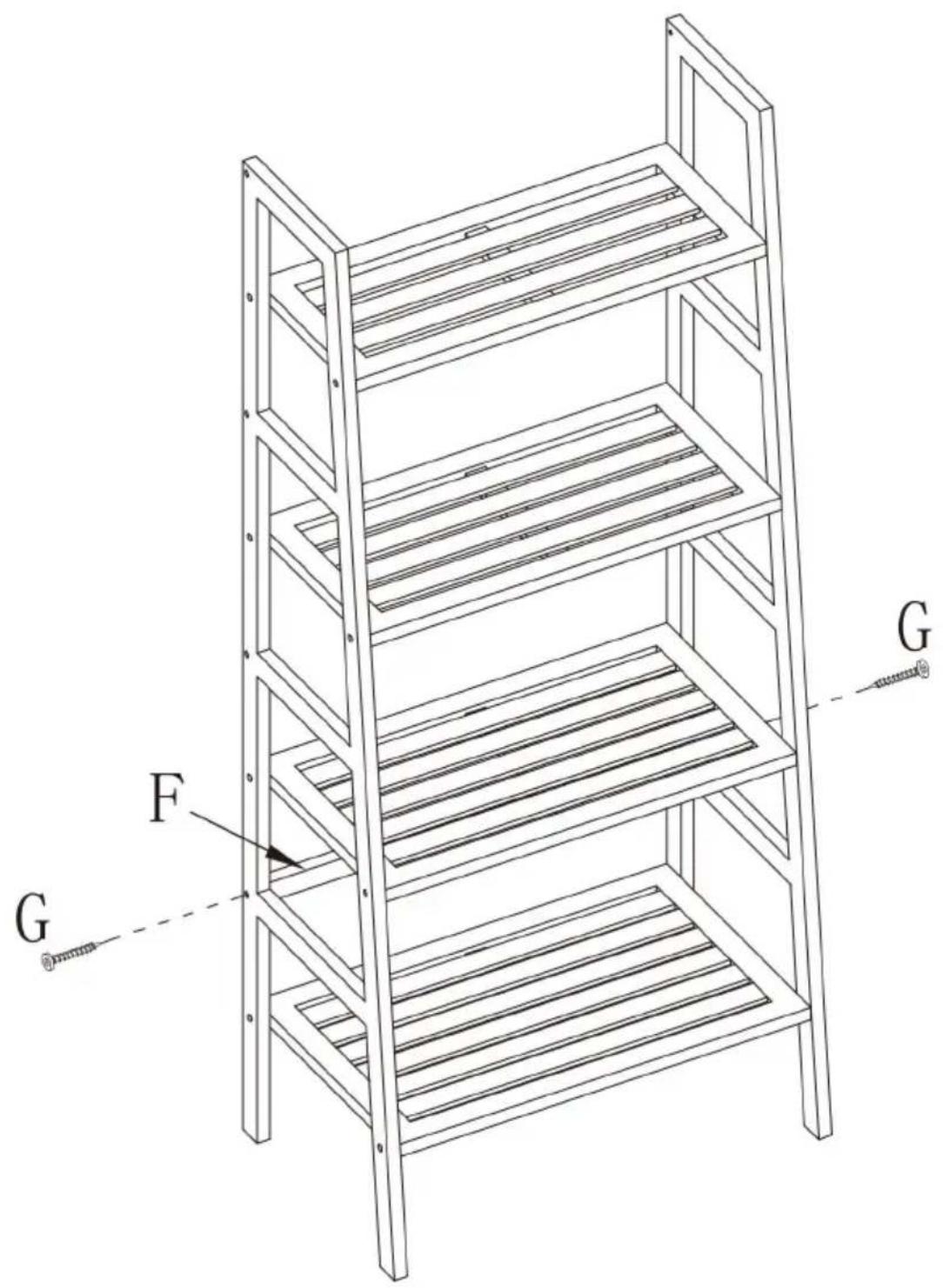

3

G F G

G

2pcs

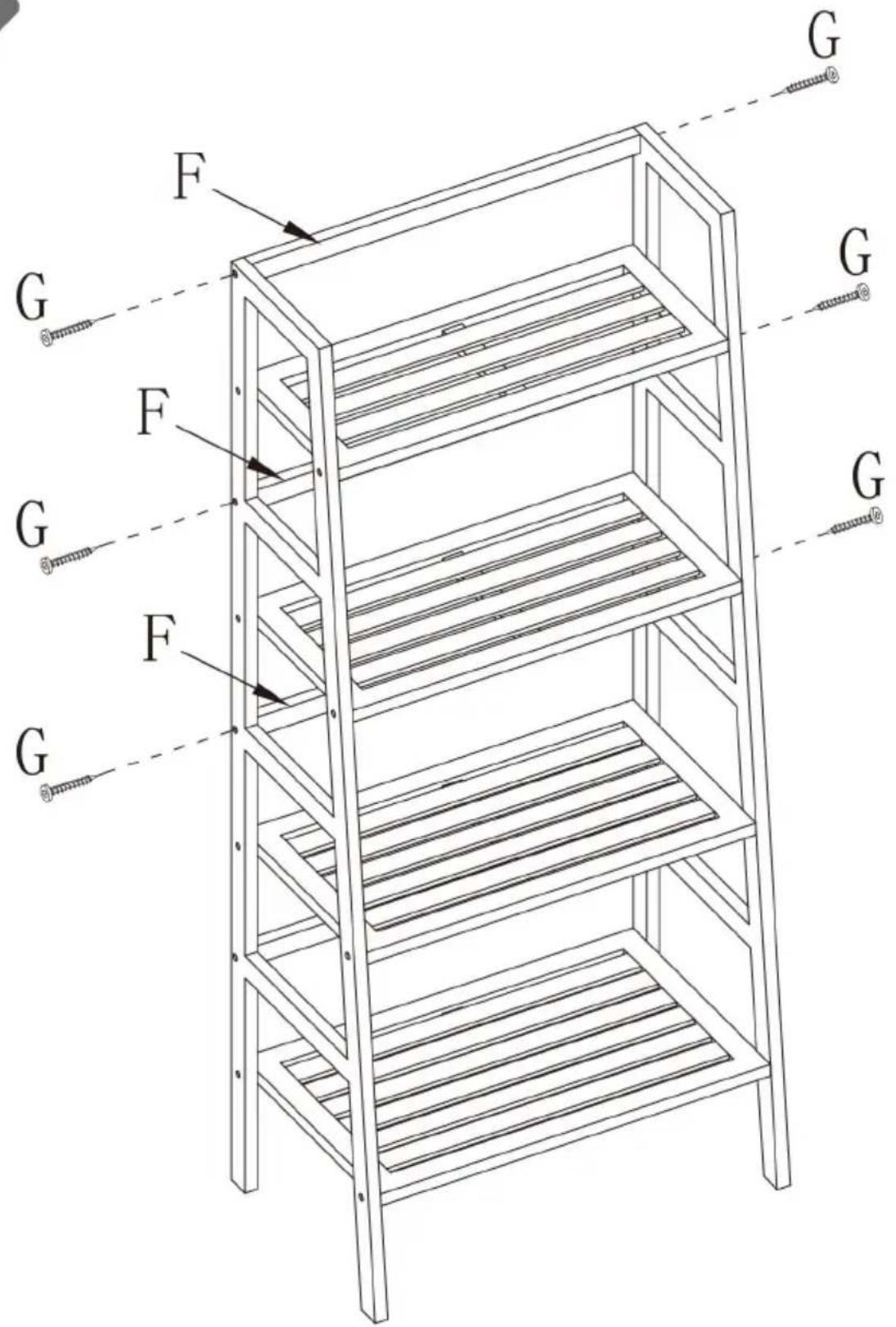

4

G F G F G F G G

G

6pcs

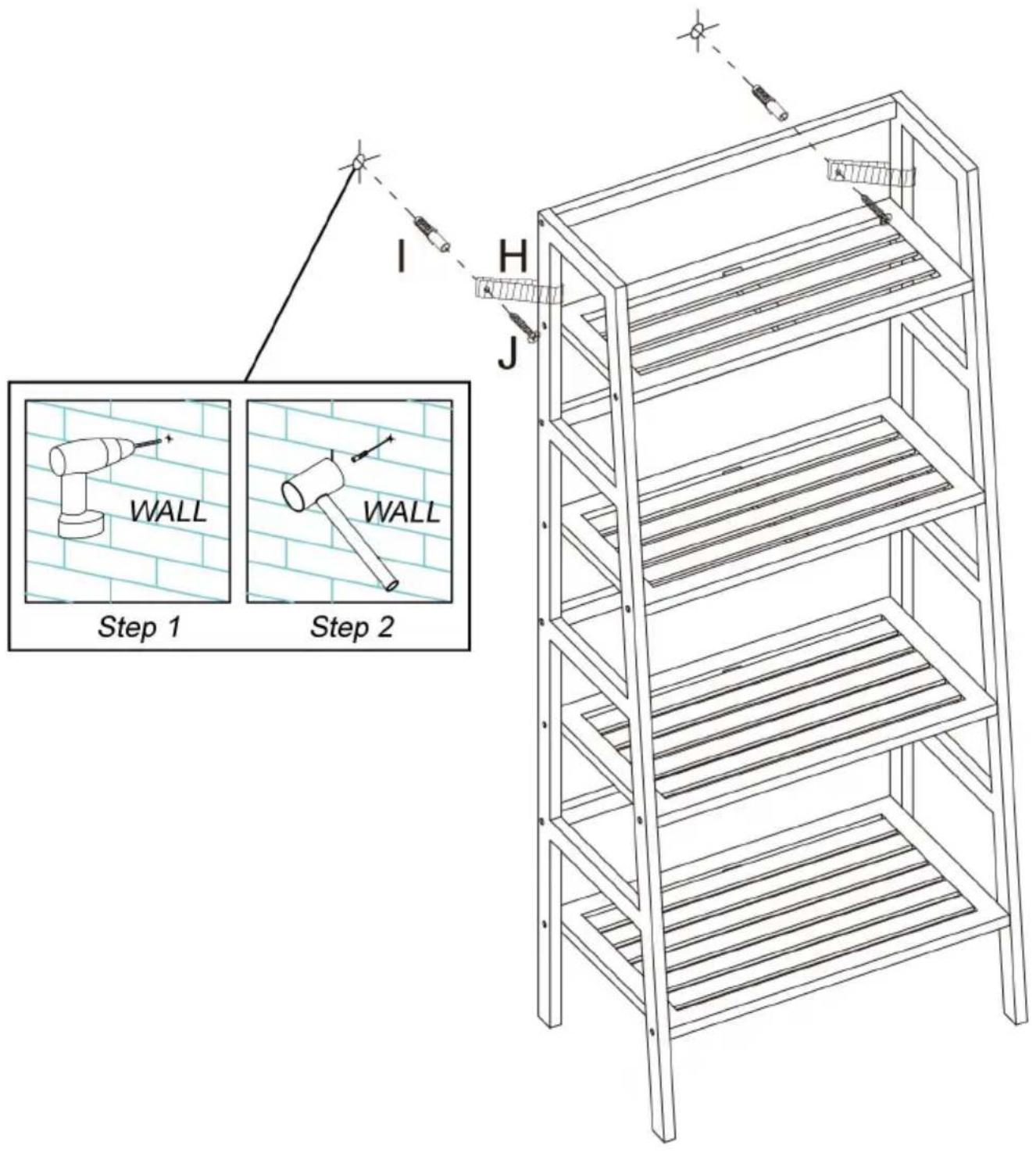

5

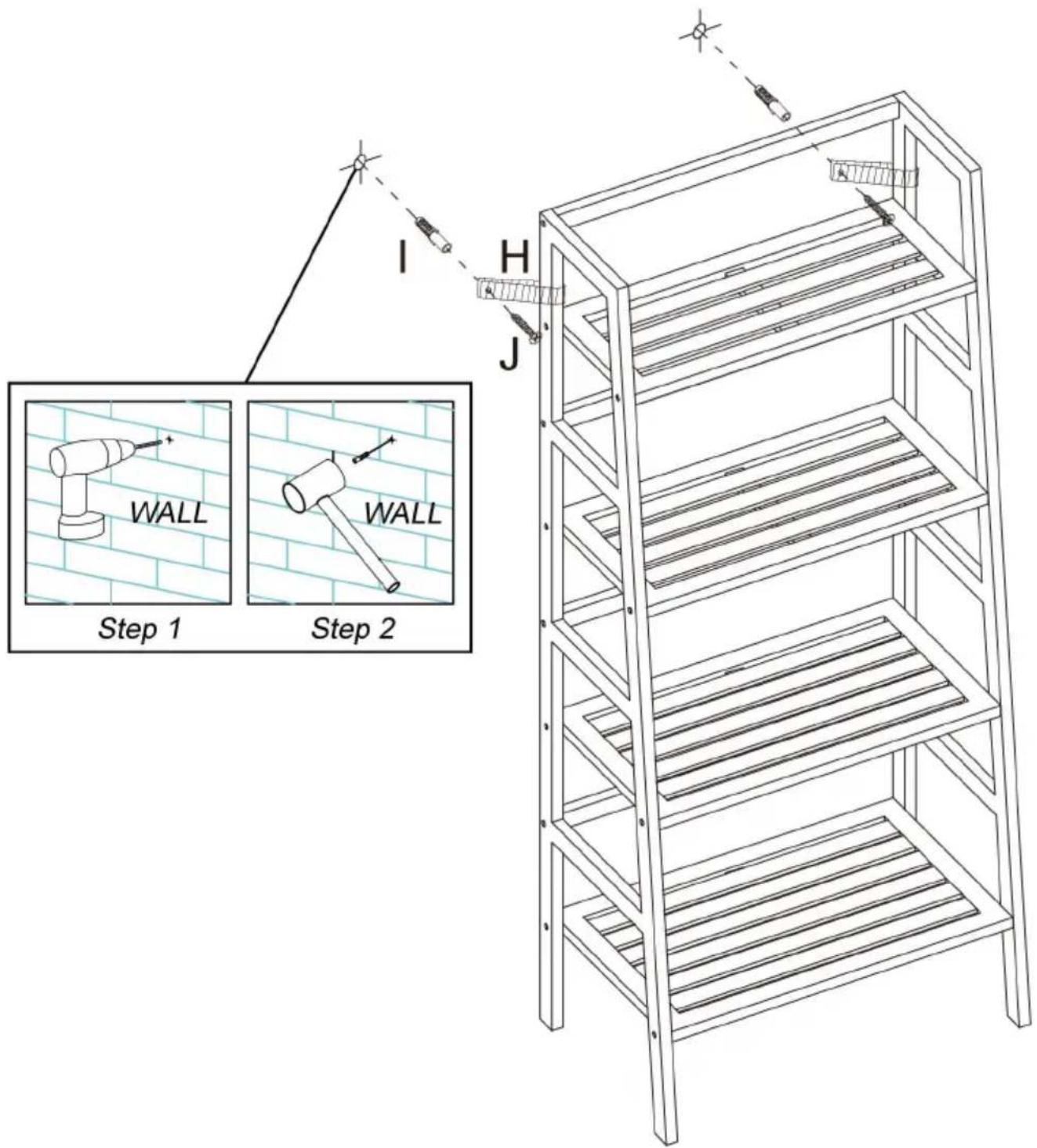

I H J WALL WALL Step 1 Step 2

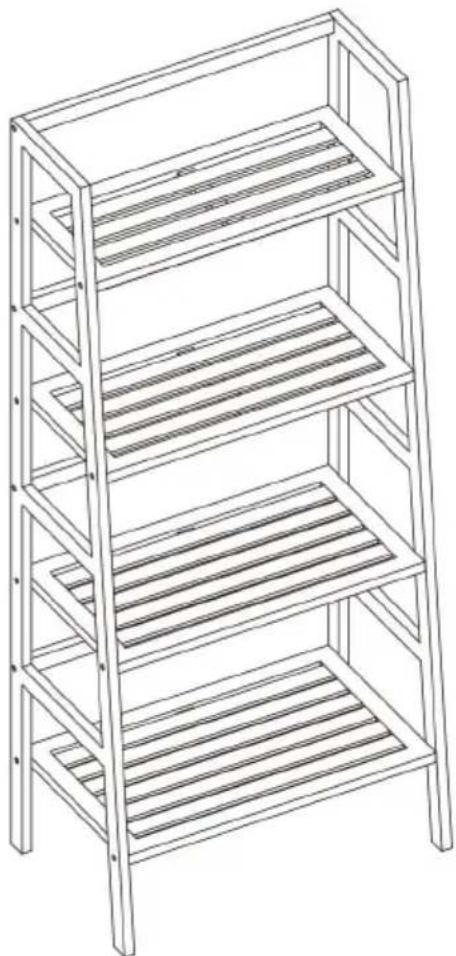

COMPLETION

Line drawing of a multi-tiered wooden shelf rack structure (no text or symbols)

WARNING

Symbol of a person climbing a slope with a diagonal line, enclosed in a circle (no text or numbers present)

Children have died from furniture tipover. To reduce the risk of furniture tipover:

• ALWAYS install tipover restraint provided.
• NEVER put a TV on this product.
• NEVER allow children to stand, climb or hang on drawers, doors, or shelves.
• NEVER open more than one drawer at a time.
• Place heaviest items in the lowest drawers.

TV

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
