Product type	Stainless steel cable railing post
Model	HR-004G (compatible with HR-001 to HR-023 series)
Brand	Vevor
Main material	Stainless steel
Intended use	Installation of cable railings for indoor and outdoor (not recommended in coastal areas)
Package contents	Post, anchor screws, self-tapping screws, brackets
Approximate height	91 cm (36 inches)
Approximate weight	2 kg
Required drilling diameter	12 mm
Fixing type	Mechanical anchoring (anchor screws) for concrete or wood floor
Handrail compatibility	Wood, with included brackets
Installation angle	Horizontal or inclined (up to bracket adjustment)
Key features	Rust and corrosion resistant, low maintenance, long service life
Safety instructions	Read the manual before use; keep small parts away from children; do not exceed capacities
Maintenance and cleaning	Clean with a damp cloth; avoid abrasive products; regular inspection
Spare parts	Available via Vevor (online technical support)
Repairability	Technical support and electronic warranty certificate at www.vevor.com/support
General information	Product sold by Vevor; imported into the United States by Sanven Technology Ltd.

Frequently Asked Questions - HR-004G Vevor

Is the HR-004G post compatible with all cable railing cables?

The post is designed for use with standard metal cables. However, it is recommended to use a compatible cable railing kit. The product does not include cables or fittings.

What type of floor is needed for installation?

Installation can be done on concrete or wood floor. Use a hammer drill to make a 12 mm hole and insert the provided anchor screws.

Can the post be installed on an existing handrail?

Yes, the post is compatible with wooden handrails. Attach the bracket to the handrail using the provided self-tapping screws.

Is the post resistant to seawater?

The post is made of stainless steel, which gives it good rust resistance. However, it is not recommended for coastal projects due to the corrosive effect of salt.

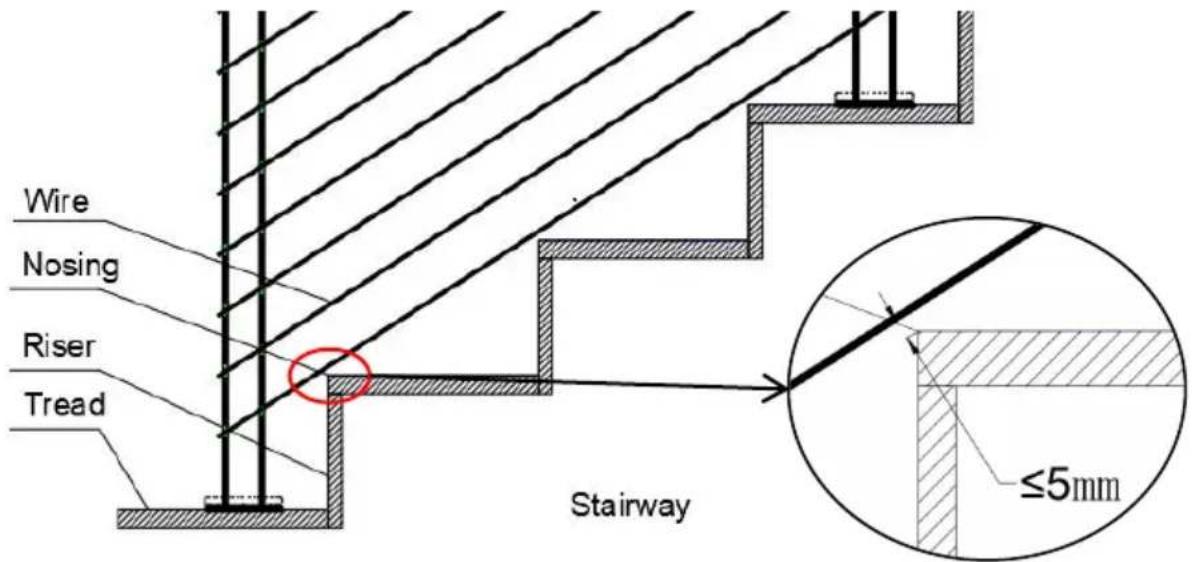

What spacing between cables is recommended?

The recommended spacing between cables is less than 5 mm from the nosing of the step. Adjust the post position to maintain this distance.

Is the product delivered with an instruction manual?

Yes, an instruction manual is included. You can also download it free of charge in PDF format on the Vevor website.

How to clean the post?

Clean it with a damp cloth and a mild detergent. Avoid abrasive products that could scratch the stainless steel surface.

Can the post be used alone or do I need to buy other accessories?

The post is sold alone with its fixings. For a complete railing, you need to purchase cables, fittings, and the handrail separately.

What is the warranty of this product?

Vevor offers an electronic warranty. For more information and to obtain a warranty certificate, go to www.vevor.com/support.

Is the post easy to install for a DIY enthusiast?

Yes, installation is simple if you follow the steps in the manual. You will need a drill, a level, and basic tools. Vevor technical support is available if needed.

USER MANUAL HR-004G Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CABLE RAILING POST

MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014/HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014/HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

1. The warning indicates that appropriate action should be taken to avoid the potential danger of personal injury.
2. Product capabilities apply to properly and completely assembled product only.
3. Please keep small spare parts out of children's reach. It is not a toy; do not allow children to play with it.
4. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

MAIN FEATURES

This product is mainly used for column installation of wire functions and decorative accessories.

VEVOR's Cable Railing Post is made of all stainless steel materials, has great resistance to rust and corrosion. It will work for long life in interior and exterior railings with low maintenance. Please note that it is recommended for coastal projects.

We work with every effort to provide quality products and professional service, and make VEVOR a reliable brand.

INSTALLATION INSTRUCTION

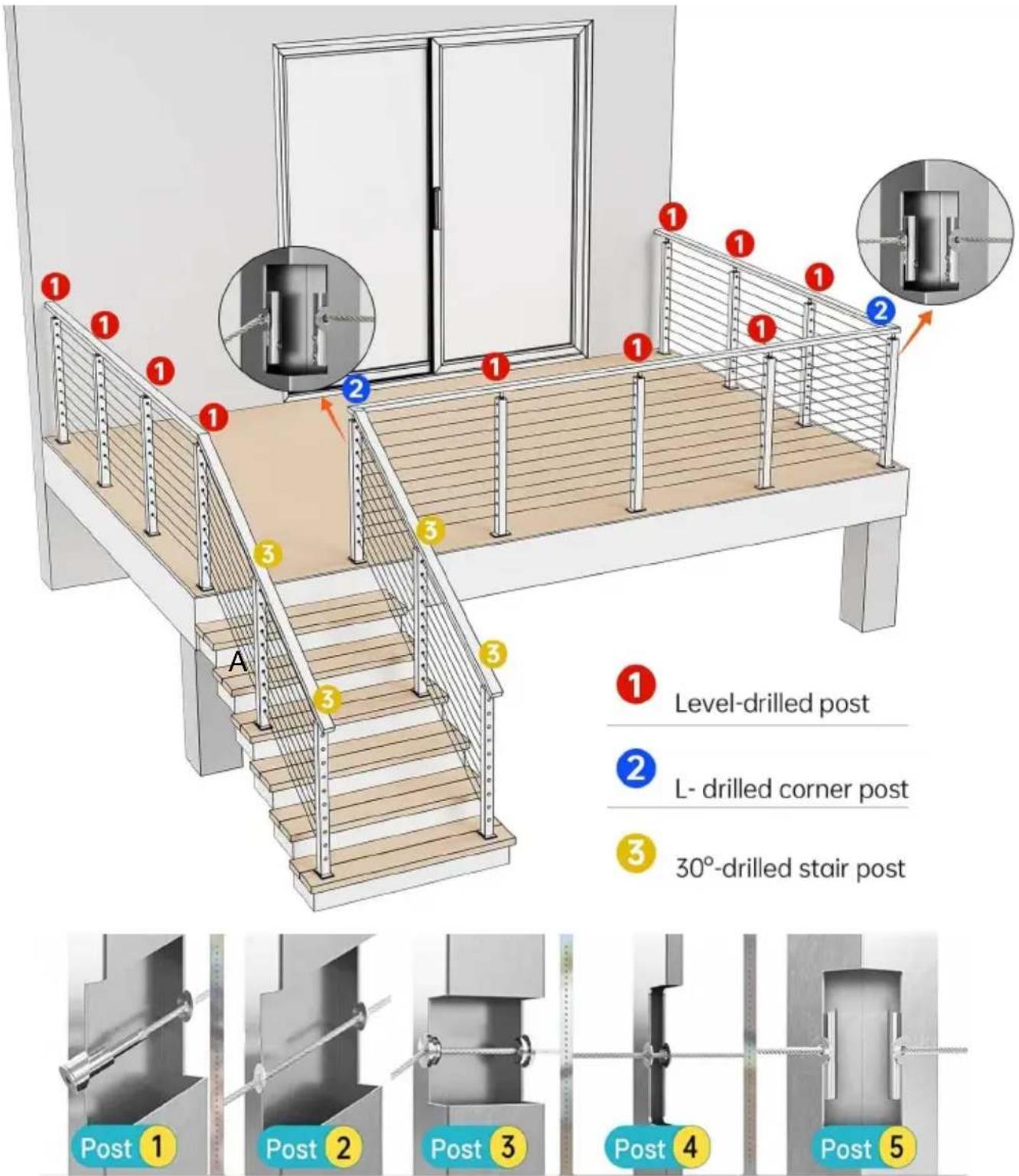

Installation indication and applicable post

Applicable to all engineering installation scenarios.

Note: This product only includes the column and its installation fasteners, excluding wire rope, Cable Railing Kit, handrail.

Note: The above figure is only an example of the installation layout display. Users need to layout according to their actual needs, matching the structure of the column and wire rope, Cable Railing, handrail and other accessories.

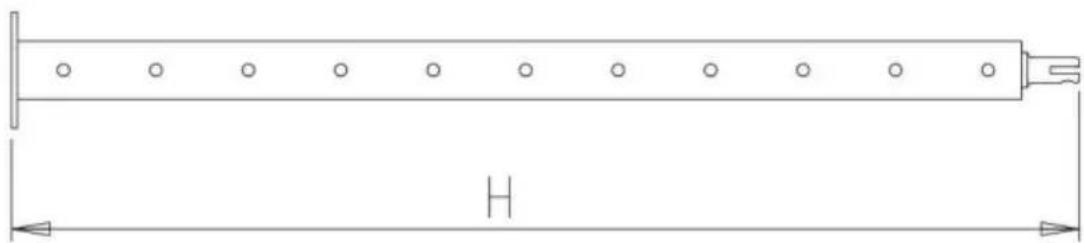

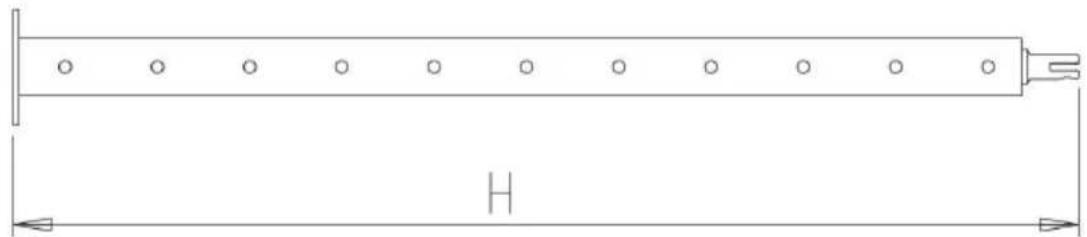

PRODUCT INFORMATION

Model	Drilled	H(mm)	Drilled number	Hole diameter (mm)	Pitch of holes (mm)	Section size (mm)	Color	Include (pcs)
HR-001	level	1067	12	φ10.5	84	50*50	Black	4
HR-002	level	914	10	φ10.5	84	50*50	Black	4
HR-003	level	1067	12	φ10.5	84	30*50	Black	4
HR-004	level	914	10	φ10.5	84	30*50	Black	4
HR-005	30°	1067	12	10.5×12	84	50*50	Silver	1
HR-006	30°	1067	12	10.5×12	84	50*50	Black	1
HR-007	L	1067	12	φ10.5	84	50*50	Black	1
HR-008	Non	914	/	/	/	50*50	Black	1
HR-009	level	914	10	φ10.5	84	50*50	Black	1
HR-010	30°	914	10	10.5×12	84	50*50	Black	1
HR-011	L	914	10	φ10.5	84	50*50	Black	1
HR-012	level	914	10	φ10.5	84	50*50	Silver	1
HR-013	30°	1067	12	10.5×12	84	30*50	Black	1
HR-014	L	1067	12	φ10.5	84	30*50	Black	1
HR-015	30°	914	10	10.5×12	84	30*50	Black	1
HR-016	L	914	10	φ10.5	84	30*50	Black	1
HR-017	Non	914	/	/	/	38*38	Black	1
HR-018	level	1067	12	φ10.5	84	30*50	Black	1
HR-019	Non	1067	/	/	/	50*50	Black	1
HR-020	level	914	10	φ10.5	84	30*50	Black	1
HR-021	level	1067	12	φ10.5	84	50*50	Black	1
HR-022	level	914	10	φ10.5	84	30*50	Silver	1
HR-023	level	1067	12	φ10.5	84	50*50	Silver	1

PACKAGE INCLUDE

No	Components	Picture	QTY
			Fit model
			HR-001/ HR-002	HR005~HR0 12/HR-019/H R-021/HR-02 3/	HR-003/ HR-004	HR-013~ HR-016/ HR-018/ HR-020/ HR-022/	HR-0 17
1	post		4	1	4	1	/
			/	/	/	/	1
2	Square cover		4	1	/	/	/
3	Rectangular cover		/	/	4	1	/
4	anchor bolt		16	4	16	4	4
5	Curved bracket		4	1	4	1	/
6	Horizontal bracket		4	1	4	1	/
7	hex wrench		4	1	4	1	1
8	Open end wrench		4	1	4	1	1
9	Tapping screw		8	2	8	2	4
10	Plastic cover		/	/	/	/	1

INSTALLATION

For concrete or wood floor

Step 1. Mark the drilling points at the appropriate installation locations.

Step 2: Use a hammer drill to make a hole for the marked points.

Step 3: Hammer the anchor screw into the drilled hole.

Step 4: Tighten the screws.

Step 5: Close the lid and finish fixing the post.

Note: Ensure that the column is upright when fixing the bottom of the post.

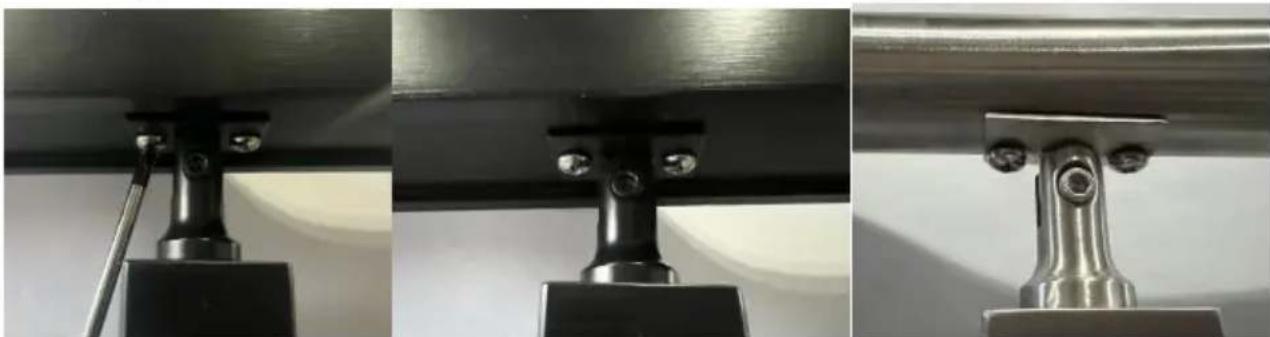

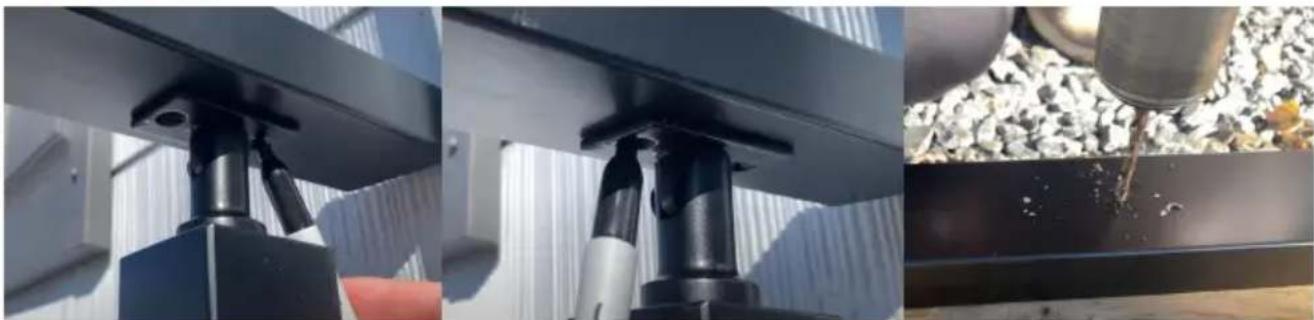

Mount with handrail (horizontal)

Step 1: Fixed bracket.

Step 2: Determine the installation position of the handrail, and then mark the position under the handrail and bracket holes, then drill holes.

★If the installation is a wooden handrail, you can directly screw tapping screws.

Step 3: Use the self-tapping screws in the accessory to fix the handrail to the support.

It is also suitable for the installation of arc handrails and brackets.

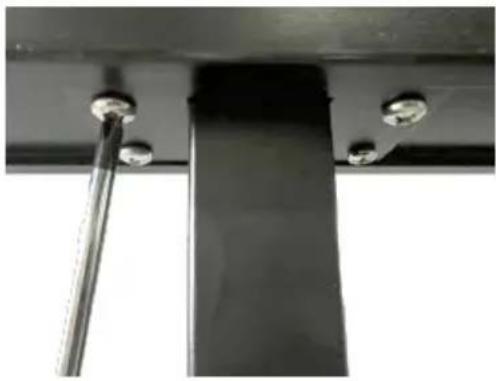

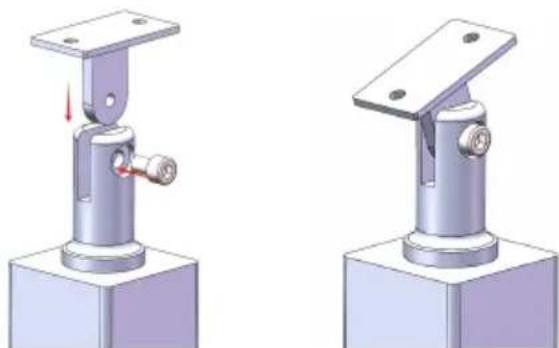

Mount with handrail (gradient)

Step 1: Fixed bracket.

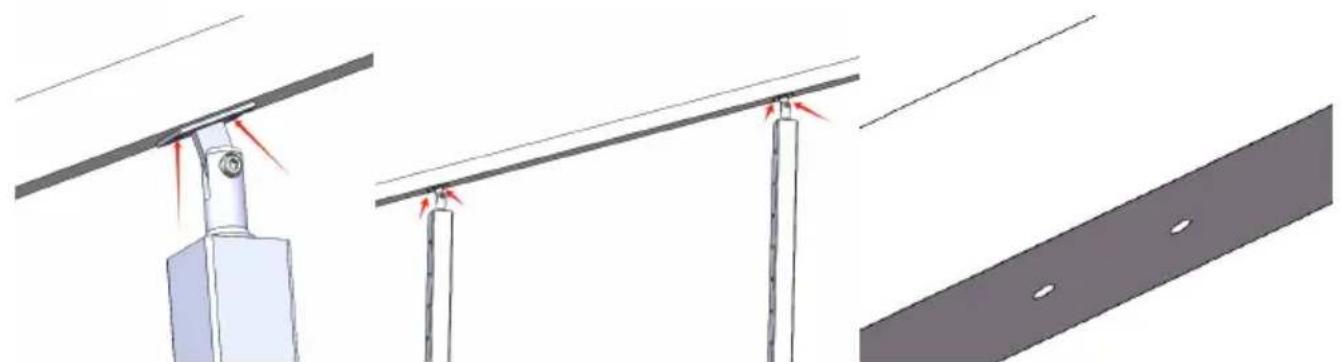

Step 2: Adjust the angle of the bracket to fit the underside of the handrail. Determine the installation position of the handrail, and then mark the position under the handrail and bracket holes, then drill holes.

★If the installation is a wooden handrail, you can directly screw tapping screws.

Note: The handrail and bracket can be pre-fixed with the help of clamping tools, so that multiple bracket installation points can be marked and positioned at the same time.

Step 3: Remove the bracket from the post and then use the self-tapping screws in the accessory to fix the bracket to the handrail. Fix the post and bracket again.

It is also suitable for the instal of arc handrails and brackets	For model HR-017

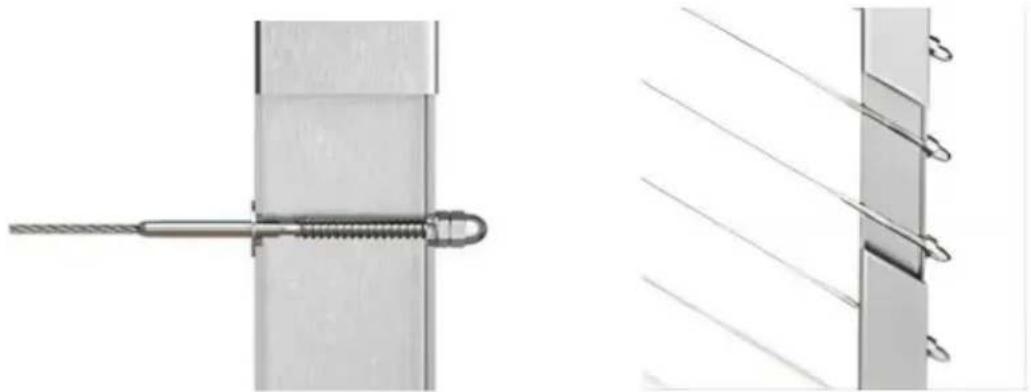

Install with wire rope and fittings

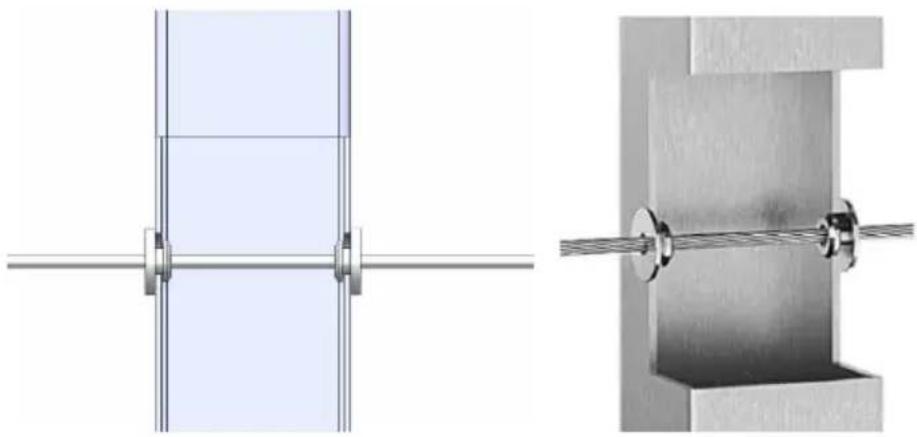

For Level Wheel Protector Sleeve

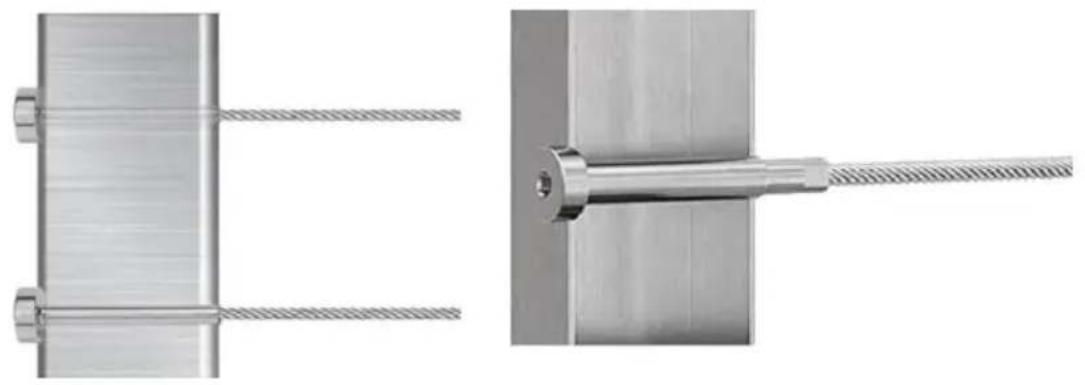

For Stud Tensioner Horizontal mounting and Angle

Caution: When installing the posts, adjust the position of the posts on the step's tread, so that the wire is close to the position of the and it is generally recommended that the spacing is less than 5m. As shown below.

For Turnbuckle Tensioner and Fixed Terminal

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Shuangcheng Road 803 Nong 11 Hao 1602A-1609 Shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

PRODUCT INFORMATION

Modèle percé		H(mm)	Foré nombre	Trou diamètre(mm)	Hauteur de trous(mm)	Section taille(mm)	Couleur	Inclure(pièces)
HR-001 niveau 1067			12	10,5	84	50*50 Noir		4
HR-002 niveau 914			10	10,5	84	50*50 Noir		4
HR-003 niveau 1067			12	10,5	84	30*50 Noir		4
HR-004 niveau 914			10	10,5	84	30*50 Noir		4
HR-005 30°	1067		12	10,5×12 84		50*50 Argent		1
HR-006 30°	1067		12	10,5×12 84		50*50 Noir		1
HR-007	L	1067	12	10,5	84	50*50 Noir		1
HR-008 Non 914			/	/	/	50*50 Noir		1
HR-009 niveau 914			10	10,5	84	50*50 Noir		1
HR-010 30°		914	10	10,5×12 84		50*50 Noir		1
HR-011	L	914	10	10,5	84	50*50 Noir		1
			10	10,5	84	50*50 ArgentHR-012 niveau 91
HR-013 30°	1067		12	10,5×12 84		30*50 Noir		1
HR-014	L	1067	12	10,5	84	30*50 Noir		1
HR-015 30°		914	10	10,5×12 84		30*50 Noir		1
HR-016	L	914	10	10,5	84	30*50 Noir		1
HR-017 Non 914			/	/	/	38*38 Noir		1
HR-018 niveau 1067			12	10,5	84	30*50 Noir		1
HR-019 Non 1067			/	/	/	50*50 Noir		1
HR-020 niveau 914			10	10,5	84	30*50 Noir		1
HR-021 niveau 1067			12	10,5	84	50*50 Noir		1
HR-022 niveau 914			10	10,5	84	30*50 Argent		1
HR-023 niveau 1067			12	10,5	84	50*50 Argent		1

PACKAGE INCLUDES

Non	II compose nts	Image	Qté
			Modèle d'ajustement
			HR-001/ HR-002	HR005~HR0 12/HR-019/H R-021/HR-02 3/	HR-003/ HR-004	HR-013~ HR-016/ HR-018/ HR-020/ HR-022/	HR-0 17
1	poste		4	1	4	1	/
			/	/	/	/	1
2	Carré couverture		4	1	/	/	/
3	Le rectangle couverture ar		/	/	4	1	/
4	ancre boulon		16	4	16	4	4
5	Courbé support		4	1	4	1	/
6	Horizontal support		4	1	4	1	/
7	hexagone clé		4	1	4	1	1
8	Extrémilé ouverte clé		4	1	4	1	1
9	Tapotement vis		8	2	8	2	4
10	Plastique couverture		/	/	/	/	1

INSTALLATION

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported into Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

PRODUCT INFORMATION

Modell gebohrt		H(mm)	Gebohrt Nummer	Loch Durchmesser(mm)	Tonhöhe von Löcher(mm)	AbschnittGröße(mm)	Farbe	Enthalten(Stück)
HR-001	Ebene 1067		12	ÿ10,5	84	50*50 Schwarz	Schwarz	4
HR-002	Ebene 914		10	ÿ10,5	84	50*50 Schwarz	Schwarz	4
HR-003	Ebene 1067		12	ÿ10,5	84	30*50 Schwarz	Schwarz	4
HR-004	Ebene 914		10	ÿ10,5	84	30*50 Schwarz	Schwarz	4
HR-005	30° 1067		12	10,5×12 84		50*50 Silber	Silber	1
HR-006	30° 1067		12	10,5×12 84		50*50 Schwarz	Schwarz	1
HR-007	M	1067	12	ÿ10,5	84	50*50 Schwarz	Schwarz	1
HR-008	N9 914		/	/	/	50*50 Schwarz	Schwarz	1
HR-009	Ebene 914		10	ÿ10,5	84	50*50 Schwarz	Schwarz	1
HR-010	30°	914	10	10,5×12 84		50*50 Schwarz	Schwarz	1
HR-011	M	914	10	ÿ10,5	84	50*50 Schwarz	Schwarz	1
			10	ÿ10,5	84	50*50 SilberHR-012 Ebene	SilberHR-012 Ebene	914
HR-013	30° 1067		12	10,5×12 84		30*50 Schwarz	Schwarz	1
HR-014	M	1067	12	ÿ10,5	84	30*50 Schwarz	Schwarz	1
HR-015	30°	914	10	10,5×12 84		30*50 Schwarz	Schwarz	1
HR-016	M	914	10	ÿ10,5	84	30*50 Schwarz	Schwarz	1
HR-017	N9 914		/	/	/	38*38 Schwarz	Schwarz	1
HR-018	Ebene 1067		12	ÿ10,5	84	30*50 Schwarz	Schwarz	1
HR-019	N9 1067		/	/	/	50*50 Schwarz	Schwarz	1
HR-020	Ebene 914		10	ÿ10,5	84	30*50 Schwarz	Schwarz	1
HR-021	Ebene 1067		12	ÿ10,5	84	50*50 Schwarz	Schwarz	1
HR-022	Ebene 914		10	ÿ10,5	84	30*50 Silber	Silber	1
HR-023	Ebene 1067		12	ÿ10,5	84	50*50 Silber	Silber	1

PACKAGE INCLUDES

NEIN	Es komponiert nts	Bild	Menge
			Modell anpassen
			HR-001/ HR-002	HR005~HR0 12/HR-019/H R-021/HR-02 3/	HR-003/ HR-004	HR-013~ HR-016/ HR-018/ HR-020/ HR-022/	HR-0 17
1	Post		4	1	4	1	/
			/	/	/	/	1
2	Quadrat Abdeckung		4	1	/	/	/
3	Das Rechteck AR-Abdeckung		/	/	4	1	/
4	Anker Bolzen		16	4	16	4	4
5	Gebogen Halterung		4	1	4	1	/
6	Horizontal Halterung		4	1	4	1	/
7	verhexen Schlüssel		4	1	4	1	1
8	Offenes Ende Schlüssel		4	1	4	1	1
9	Tippen schrauben		8	2	8	2	4
10	Plastik Abdeckung		/	/	/	/	1

INSTALLATION

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported into Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported into the USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

PACKAGE INCLUDES

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported into the USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

PACKAGE INCLUDES

No	Se component	Imagen	CANTIDAD
			Modelo de ajuste
			HR-001/ HR-002	HR005 ~ HR0 12/HR-019/H R-021/HR-02 3/	HR-003/ HR-004	HR-013~ HR-016/ HR-018/ HR-020/ HR-022/	HR-0 17
1	correo		4	1	4	1	/
			/	/	/	/	1
2	Cuadrado cubrir		4	1	/	/	/
3	El rectángulo cubierta de ar		/	/	4	1	/
4	ancla tornillo		16	4	16	4	4
5	Curvo soporte		4	1	4	1	/
6	Horizontal soporte		4	1	4	1	/
7	maleficio llave inglesa		4	1	4	1	1
8	Extremo abierto llave inglesa		4	1	4	1	1
9	Tocando tornillo		8	2	8	2	4
10	Plástico cubrir		/	/	/	/	1

INSTALLATION

Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

NEED HELP? CONTACT US!

PACKAGE CONTENTS

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported into USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP WIELKIEJ BRYTANII

YH CONSULTING LIMITED. C/O YH Consulting Limited Office

147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

www.vevor.com/support

PACKAGE INCLUDED

Nee	Het componeert nt's	Afbeelding	Hoeveelheid
			Pasmodel
			HR-001/ HR-002	HR005~HR0 12/UUR-019/U R-021/HR-02 3/	HR-003/ HR-004	HR-013~ HR-016/ HR-018/ HR-020/ HR-022/	HR-0 17
1	na		4	1	4	1	/
			/	/	/	/	1
2	Vierkant omslag		4	1	/	/	/
3	De rechthoek ar-cover		/	/	4	1	/
4	anker bout		16	4	16	4	4
5	Gebogen beugel		4	1	4	1	/
6	Horizontaal beugel		4	1	4	1	/
7	zeshoek moersleutel		4	1	4	1	1
8	Open einde moersleutel		4	1	4	1	1
9	Tikken schroef		8	2	8	2	4
10	Plastic omslag		/	/	/	/	1

INSTALLATION

For horizontal mounting of the tensioner and angle mounting

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

NEED HELP? CONTACT US!

PACKAGE INCLUDED

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

www.vevor.com/support
