Shallow Well Pumpwith Tank

MODEL: FSGP1200Cinox-2

FSGP1000Cinox-2

FSGP1200-2

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: FSGP1200Cino-2 ; FSGP1000Cino-2 ; FSGP1200-2

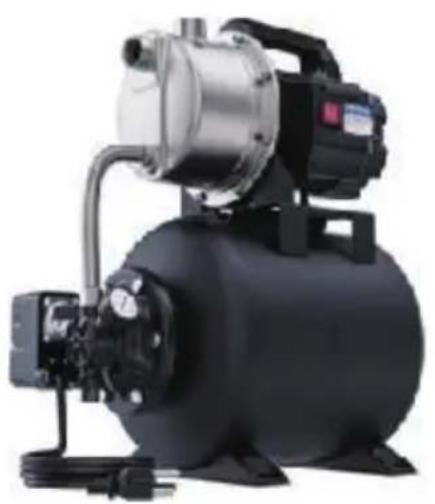

Industrial pressure vessel with motor and control panel (no visible text or symbols)

FSGP1200Cino-2 ; FSGP1000Cino-2

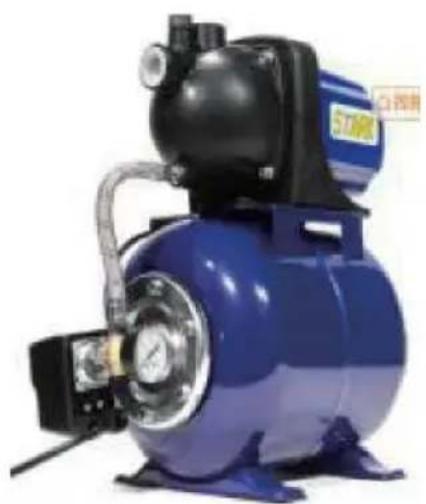

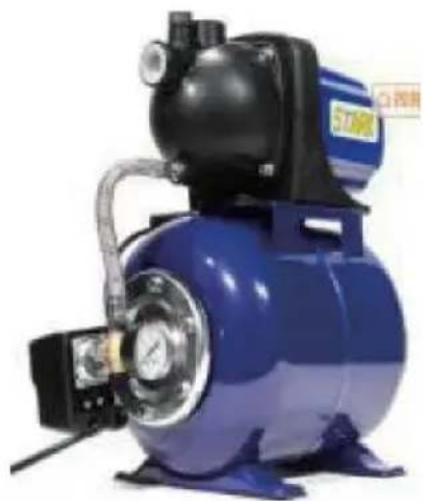

Blue industrial air purifier with black pump and control panel (no visible text or symbols)

FSGP1200-2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

Safety information

Please read the instructions for use very carefully and observe the information they contain. By referring to these instructions, familiarize yourself with the appliance, learn how to use it correctly, and note the safety precautions to be taken.

• Take the appropriate steps to ensure that children have no access to the appliance.

- The user of the appliance is responsible for any third parties in the work area.

• Before using the appliance for the first time, an electrician must check that the necessary electrical protection measures have been taken.

- Inspect the appliance before each use. Do not use the appliance if the safety devices are damaged or worn. Never deactivate the safety devices.

- Use the appliance only for the purposes specified in these instructions for use.

- You are responsible for safety in the work area.

- Your mains supply must comply with the voltage of 230 V alternating voltage specified on the type plate.

- Never lift, transport or secure the pump by its power cable.

• Make sure the appliance is plugged into a socket in a place where there is no risk of flooding and which is protected against moisture.

• Always remove the plug from the socket before doing any work on the pump.

- Avoid exposing the pump to a direct jet of water.

- The operator is responsible for any local safety and installation regulations. (Ask your electrician for advice.)

- Rule out any indirect damage caused by the flooding of rooms following the failure of the pump by adopting the appropriate measures (e.g. the installation of an alarm system, a reserve pump or the like).

- If the pump fails, any repair work necessary must be performed only by an electrician.

- Use only original spare parts.

• Never let the pump run dry and never operate it with fully closed intake power.

- The pump must not be used when people are in the water.

- The pump must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

• If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard

Durability

The maximum temperature of the liquid to be pumped in continuous operation should not exceed +35°C. This pump is not to be used to pump combustible, gaseous or explosive fluids.

The pumping of aggressive fluids (acids, alkalis, silo seepage etc) and abrasive substances (sand) should also be avoided

PRODUCT PARAMETER

Model	FSGP1200C inox-2	FSGP1000C inox-2	FSGP1200-2
Input	AC220-240V 50/60 Hz
Max power	1176W	735W 750W
Q max 5600L/H 3785L/H 3700L/H
H max	50m	39.6m	50m
pressure switch (IPX4)	30-50PSI	20-40PSI	20-40PSI

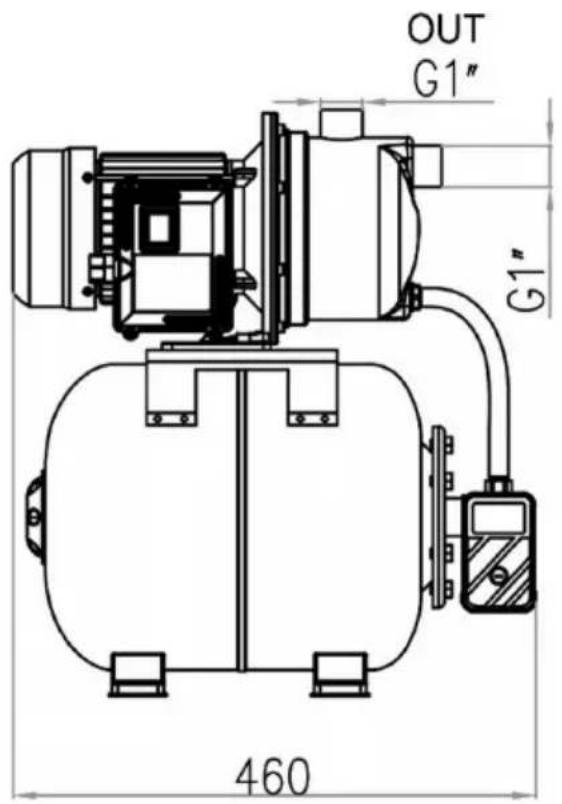

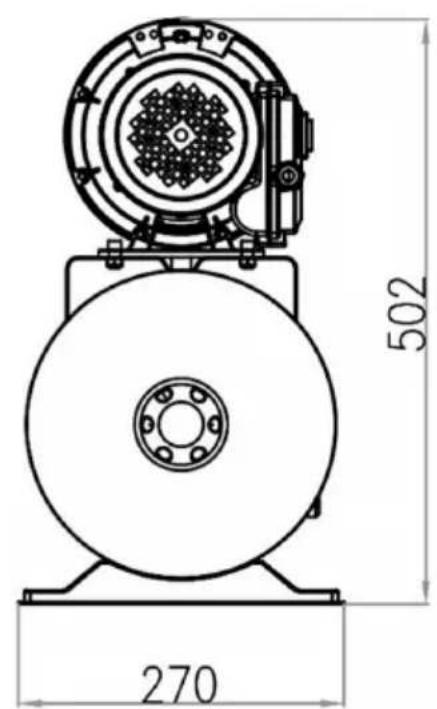

Inlet/outlet caliber: FSGP1200Cinox-2; FSGP1000Cinox-2

OUT G1" G1" 460

502 270

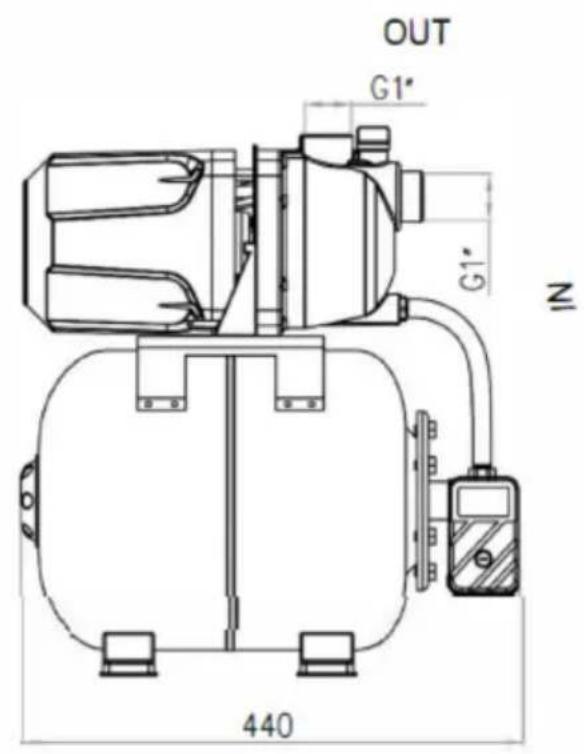

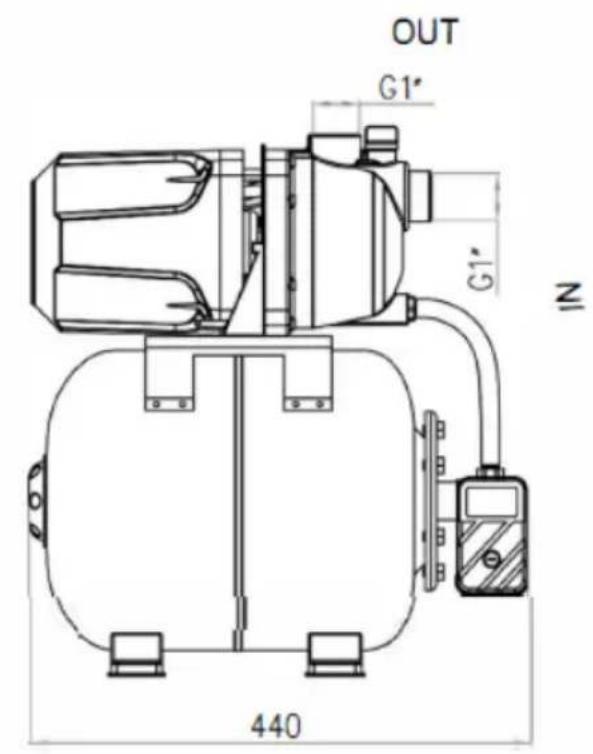

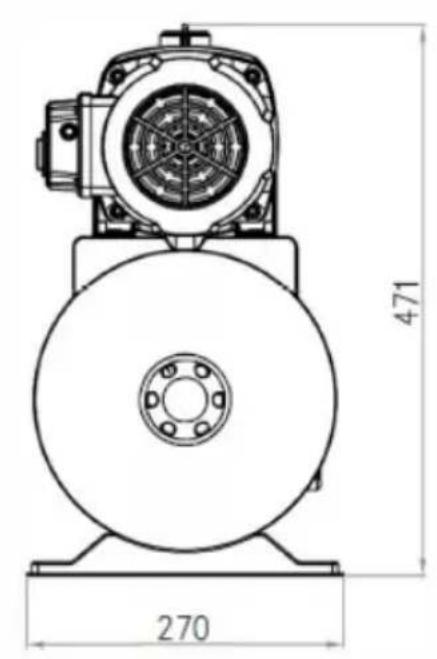

Inlet/outlet caliber: FSGP1200-2

OUT G1" G1" 440

471 270

Applications

Areas of use:

• For irrigating and watering parks, vegetable patches and gardens.
• For operating lawn sprinklers.
• With a pre-filter for drawing water from ponds, streams, rain-butts, rain-water cisterns and wells.

Liquid which can be pumped:

For the pumping of clear water (fresh water), rain water or mild suds/dirty water.

Operating instructions

Basically, we recommend the use of a pre-filter and an intake set with an intake hose, an intake strainer and check valve in order to prevent long re-pumping times and any unnecessary damage to the pump caused by stones and hard foreign bodies.

Electrical connections

• Connect the power cable to a 230V 50 Hz earthed, 10 amp fuse minimum.
• The appliance is switched on and off using the integrated ON/OFF switch. The pilot lamp inside the switch lights up when the motor is switched on.
• The motor is protected against overloading or blocking by an integrated thermal motor protector. In the event of overheating, the thermal motor protector switches off the pump automatically. The pump will start up again automatically after it has cooled down.

Intake line

• Screw an intake hose (min. 3/4" plastic hose with spiral reinforcement) either directly or with a threaded adapter to the pump's intake connection (1" IG).
• The intake hose used should have an intake valve. If the intake valve cannot be used, a check valve should be installed in the intake line.
• The intake hose should rise from the water pick-up point to the pump. Always avoid laying the intake line higher than the pump. Air bubbles in the intake line delay and hinder suction.
• The intake and pressure lines must be attached in such a way that they do not place the pump under any mechanical strain.
• The intake valve should be so far immersed in the water that the pump cannot run dry even if the water level falls.
• If the intake line is not air-tight, the intake of air will hinder the intake of water.
• Avoid drawing in foreign bodies (sand etc.). If necessary, install a pre-filter for this purpose

Pressure line connection

The pressure line (should be at least 3/4") must be connected to the pump's pressure line connection (1" IG) either directly or via a threaded adapter.

• A 1/2" pressure hose can also be used with the appropriate screw connections, of course, but this will reduce the delivery rate.
• All shut-off devices (spray nozzles, valves etc.) in the pressure line must be fully opened when priming so that any air in the intake line can escape

Starting up

• Set up the pump on flat and firm ground.
• Attach the intake line ready for use.
• Plug into the mains.
• Fill the pump with water at the pressure connection.
• All shut-off devices in the pressure line (spray nozzles, valves etc.) must be fully opened when priming so that any air in the intake line can escape.
• Depending on the suction height and the amount of air in the intake line, priming can take anywhere between 30 seconds and 5 minutes. If it takes longer than this, the pump should be refilled with water.
• If the pump is removed again after use, it must always be refilled with water whenever it is connected up and used again.

Maintenance instructions

- The pump is basically maintenance free. To ensure a long service life, however, we recommend regular checks and care.

Warning!

Before every servicing, switch off the pump and remove the plug from the socket.

• If the pump is not going to be used for a long time or has to be removed for the winter months, rinse it out with water, empty it completely by unscrewing both vent plugs and allow it to dry.
  • If there is a risk of frost, the pump must be emptied complete.
  • After long stoppages, make sure the rotor turns correctly by briefly switching the pump on and off.
• If the pump becomes blocked, connect the pressure line to the water line and remove the intake hose. Open the water line, Switch on the pump several times for approx 2 seconds, Most blockages can be removed in this way.

Fault

Motor fail to start up

Cause Remedies
No mains vol tage Check vol tage
Pump rotor blocked-thermostat switched off Dismande and clean pump

No intake

Cause Remedies
Intake valve not in water Innerse intake valve in water
Pump chamber without water connection	Fill water into intake
Air in intake line air-tight M ake sure the intake line is tightened
Intake valve leaks Clean intake valve
Strainer (intake valve) blocked Clean strainer
M ax. Suction height exceeded Check suction height

Inadequate delivery rate

Cause Remedies
Suction height too high Check suction height
Strainer dirty Clean strainer
Water level falling rapidly	Immerse intake valve deeper
Pump performance reduced by contaminants part	Clean pump and replace wearing

Thermostat switches pump off

Cause Remedies
M otor overloaded - friction caused by substances too high	Dismantle and clean pump. Prevent intake of foreign bodz substances (filter).

Correct Disposal

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to acollection point for recycling electrical and electronic devices.
