Product Type	Rear wing spoiler (spoiler)
Brand	Vevor
Model	JG-127
Material	Aluminum
Color	Black
Length	1106 mm
Weight	Approximately 2.5 kg (estimate)
Package Contents	Assembled spoiler, brackets, rods, screws, nuts, manual
Installation	Mounting by drilling and fixing with brackets and rods
Compatibility	Vevor models JG-125-2, JG-127, JG-137, JG-109
Usage	Aerodynamic and aesthetic improvement of the vehicle
Maintenance and Cleaning	Clean with a soft cloth and mild detergent; avoid abrasive products
Safety	Read the manual before use; wear safety glasses and gloves during installation; keep out of reach of children
Spare parts and repairability	Parts available via Vevor support; user repair not recommended
Warranty	Electronic warranty certificate available at www.vevor.com/support
Manufacturing	Made in China; imported by Sanven Technology Ltd. (United States)

Frequently Asked Questions - JG-127 Vevor

Is the JG-127 spoiler compatible with all vehicles?

No, the spoiler is designed to be mounted on the rear hood of most cars but requires prior measurement and drilling. Check the dimensions and shape of the trunk before purchase.

Does installation require drilling into the bodywork?

Yes, mounting involves drilling 6.2 mm holes in the rear hood to attach the brackets. Make sure there are no cables or components under the drilling area.

What is the weight of the JG-127 spoiler?

The approximate weight is 2.5 kg, but it may vary slightly depending on the finish. It is made of lightweight aluminum.

Can I paint the spoiler to match my car color?

Yes, the spoiler is aluminum and can be painted. We recommend using a suitable metal paint and priming the surface beforehand.

Are instructions provided in French?

Yes, the user manual is available in French on the Vevor website. You can download it for free.

How to adjust the spoiler angle after installation?

The brackets have slotted holes to loosen the nuts and adjust the angle. Make sure to tighten securely after adjustment.

Is there a warranty on the product?

Yes, Vevor offers an electronic warranty certificate. Register your product at www.vevor.com/support to activate the warranty.

Does the spoiler affect fuel consumption?

A spoiler can improve aerodynamics at high speed, which may slightly reduce consumption. However, the effect depends on the vehicle and speed.

Can I install the spoiler myself?

Yes, installation is feasible for an experienced DIYer. Follow the steps in the manual carefully and wear safety equipment (goggles, gloves).

How to clean and maintain the spoiler?

Clean with a soft cloth and soapy water. Avoid harsh chemicals. Regularly check the tightness of the screws.

USER MANUAL JG-127 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

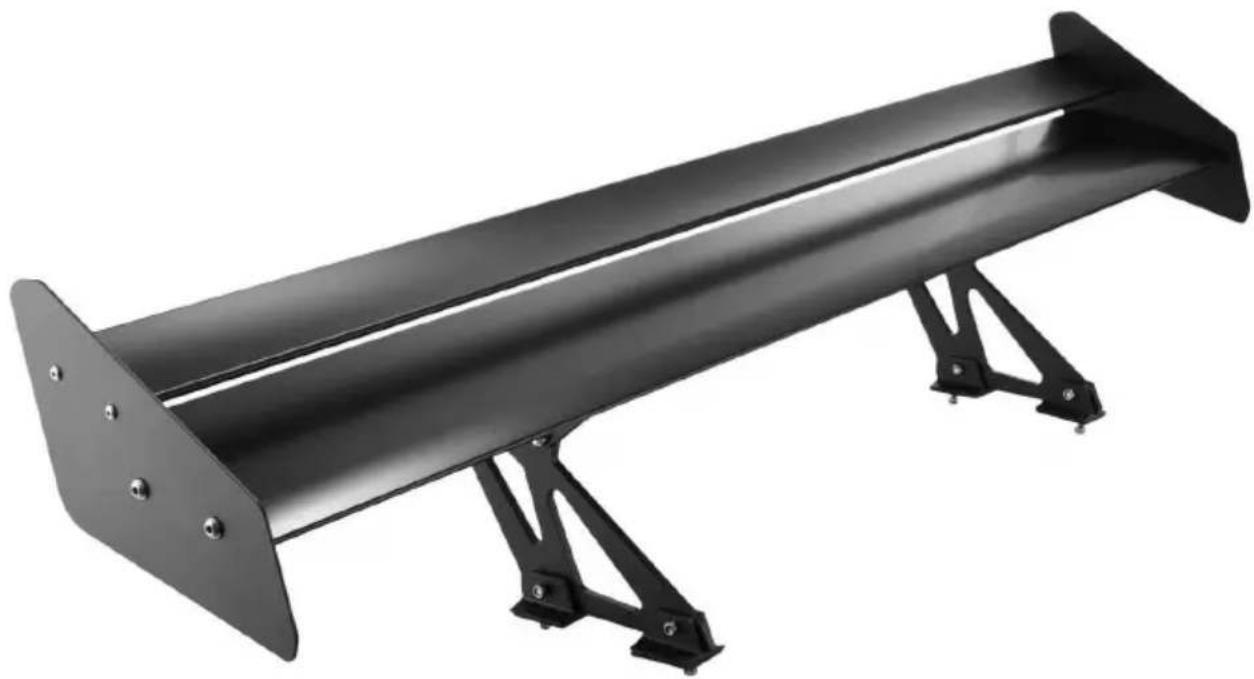

WING SPOILER

MODEL:JG-125-2/JG127/JG-137/JG-109

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: JG-125-2/JG127/JG-137/JG-109

Metal mechanical support bracket with mounting brackets and mounting holes (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

- Avoid children using the product. And this product is not a toy. Do allow children to play.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly and use.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

SPECIFICATION

Model	JG-125-2	JG-127
Material	Aluminium
Color	Black	Black
Length(mm)	1106	1106
Model	JG-137	JG-109
Material	Aluminium
Color	Black	Black
Length(mm)	1106	1356

PACKAGE LIST

No.	Name	Picture	Qty
			Fit model
			JG-125-2	JG-127	JG-137	JG-109
1	Wing Spoiler assembly		1	/	1	1
	Wing Spoiler assembly		/	1	/	/
2	Flap		/	/	/	1
3	Bracket assy		2	/	2	2
4	Connecting roo (including screws &nut)		4	/	4	4
5	Side spoiler		/	/	/	2
	Side spoiler		/	/	2	/
	Side spoiler		2	2	/	/
6	Manual		1	1	1	1

INSTALLATION

STEP 1: Install bracket and spoiler (Except Model JG-127)

Mechanical assembly diagram showing a black robotic arm with red wiring and a close-up of internal components (no text or symbols visible)

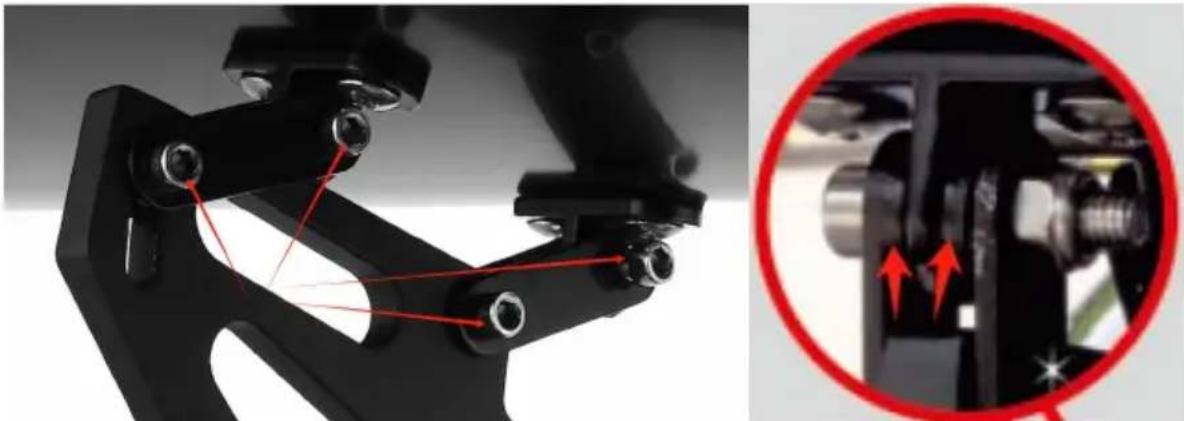

Assemble the bracket with the spoiler using the connecting rod in the package, tighten the 4 screws and nuts (don't worry about the spoiler at this time).

CAUTION: The two small circular gaskets are placed on the inside o top of the connecting piece!

Use the same method to assemble the bracket and spoiler on the side.

Rear Front Rear Front Rear

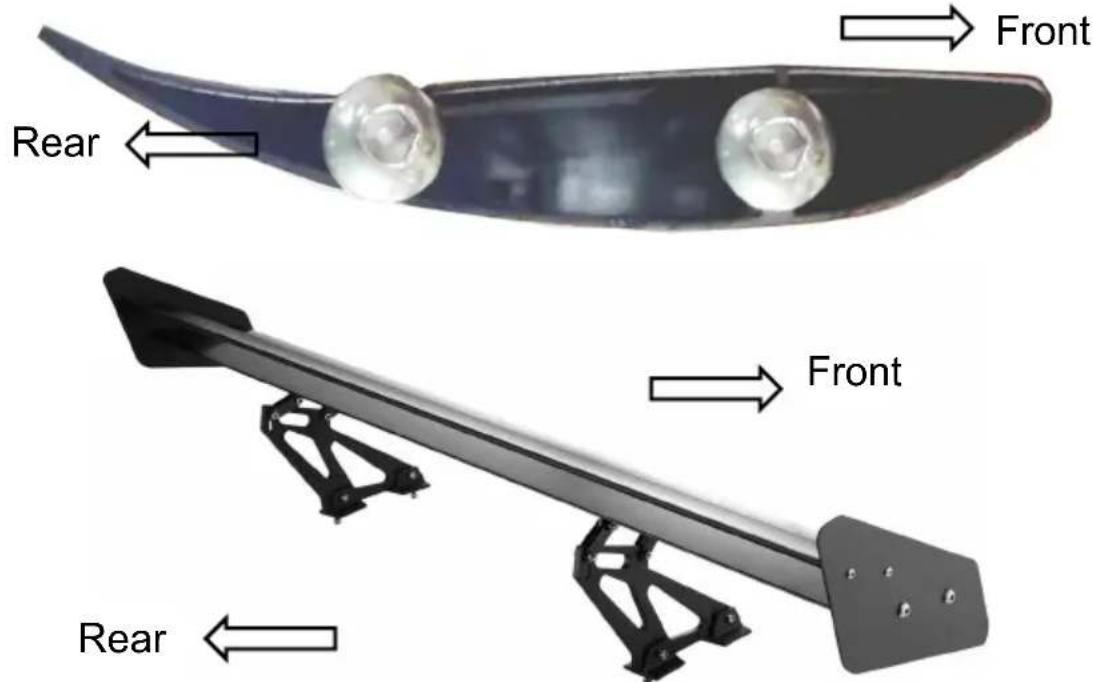

Note the orientation of the bracket as shown.

STEP 2: Measure the perforated mounting point.

Technical diagram showing two mechanical components with labeled dimensions L and W (no text or symbols beyond labels)

(2.1). Measure the outer distance of the support L&W.

Two-panel photo showing hands measuring a yellow tape measure on a dark surface; no text or symbols visible.

(2.2). Find the center position of size L on the rear cover of the ca determine the position of the front and rear, and mark with a marker

Two views of a metal bracket assembly: one showing a V-shaped structure with mounting holes, the other showing a black triangular frame with a handle (no text or symbols visible)

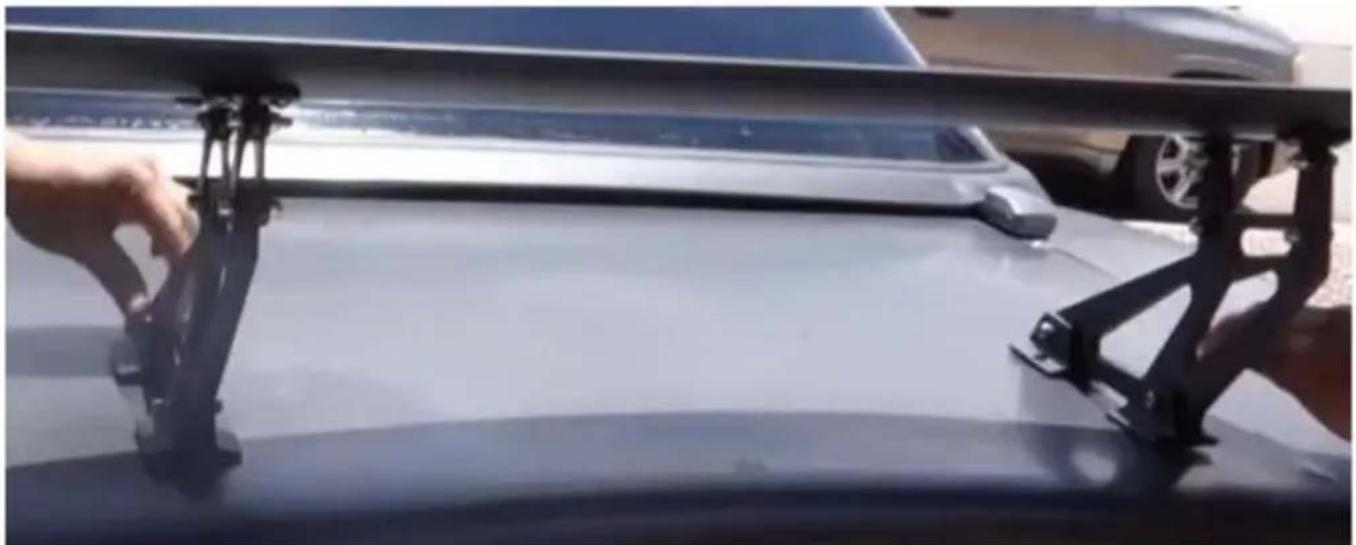

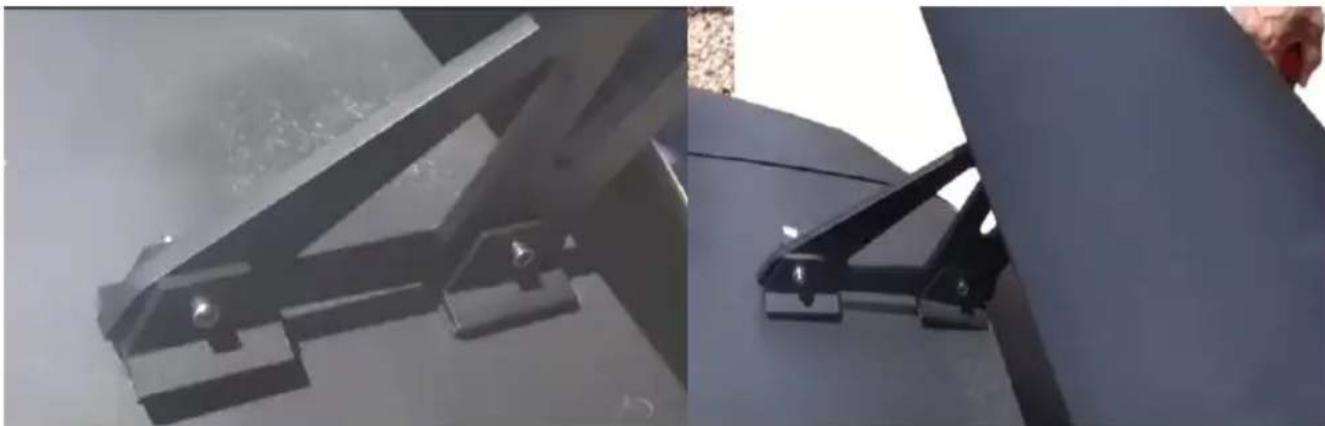

(2.3). Place the whole tail on the marked anchor point, and use the again to confirm whether the tail is left and right, and confirm that the installation position is appropriate.

STEP 3: Drill hole.

Three-panel image showing a black 3D block being cut off, with one being held by a hand holding a tool (no text or symbols visible)

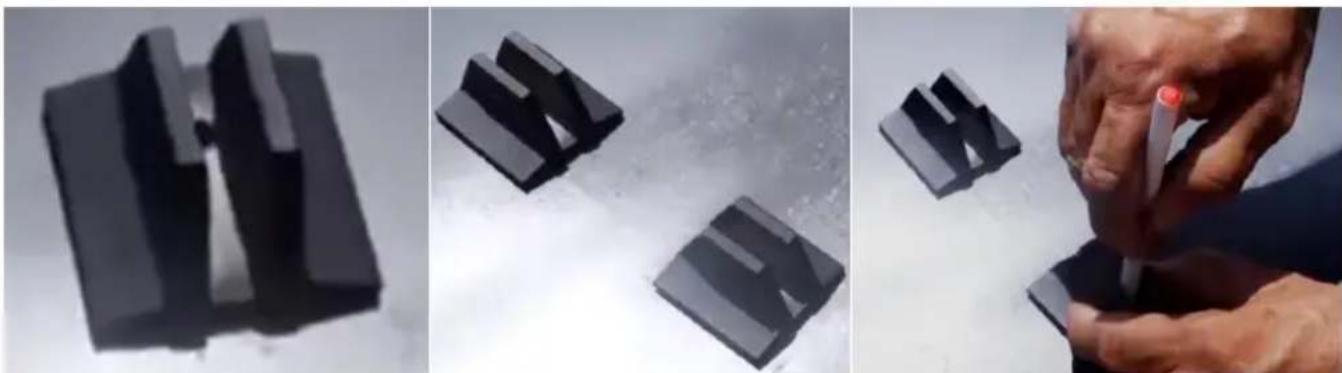

(3.1). Remove the base of the bracket and place it in the position in the previous step, and then mark the drilling point with a marker per

Close-up of a white wall with a metallic fixture and a small dark object, no visible text or symbols

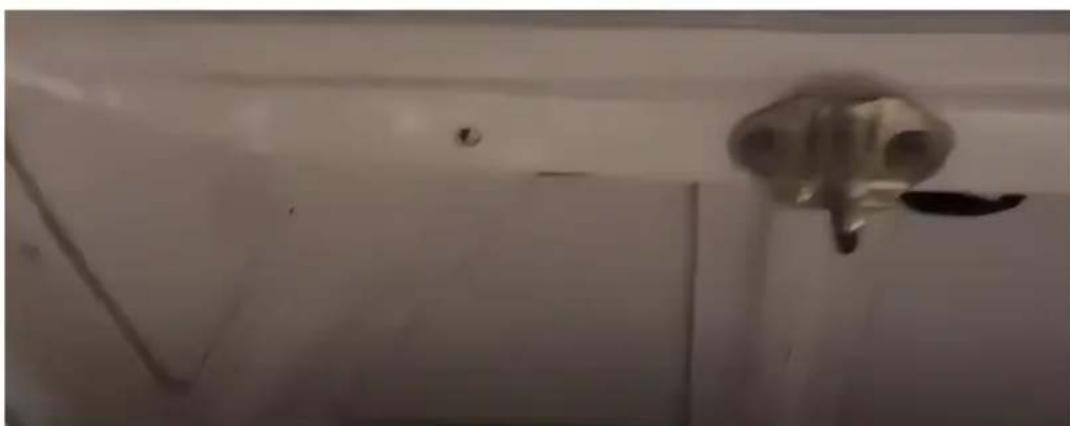

Note: Before drilling, make sure that the drilling position is on the inside of the tail cover without protection or anything to avoid

Close-up of a precision drilling tool tip and a close-up of a circular hole with red arrows indicating features (no text or symbols present)

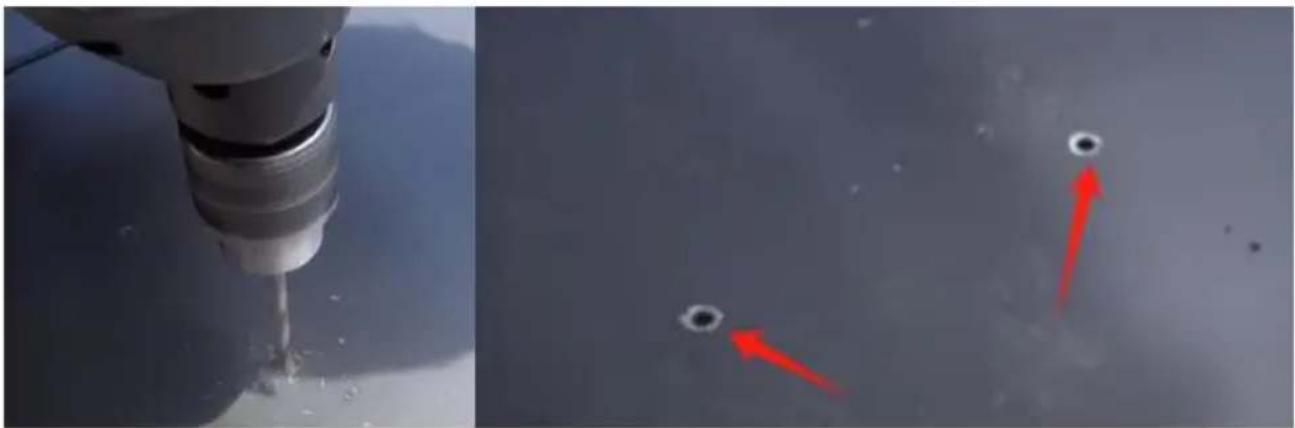

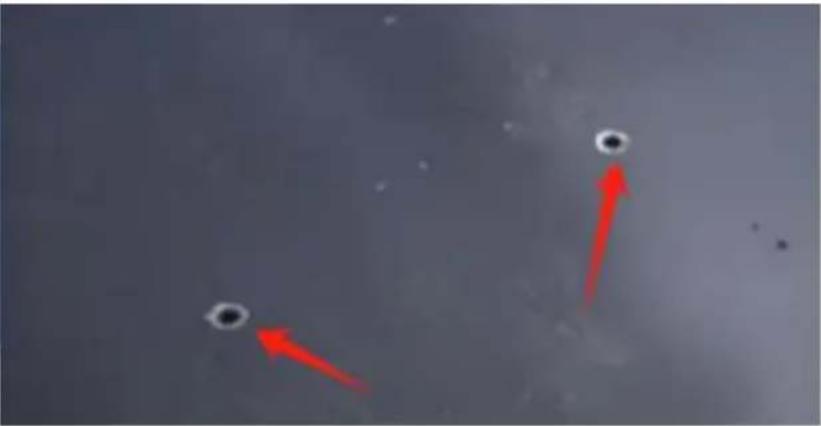

(3.2). Drill holes with a 6.2mm diameter drill bit, two on each side.

STEP 4: Installation.

Close-up of a car's front bumper with hand adjusting the hood, next to a car wheel (no visible text or symbols)

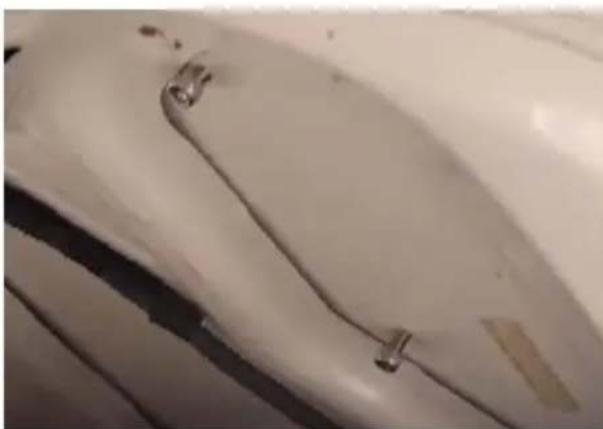

(4.1). Insert the mounting screws for the bracket base through the recover.

Close-up of a white car door handle with metal clips and a curved cable (no visible text or symbols)

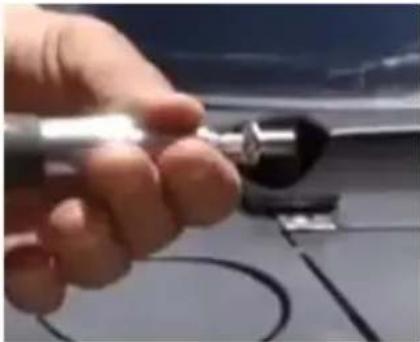

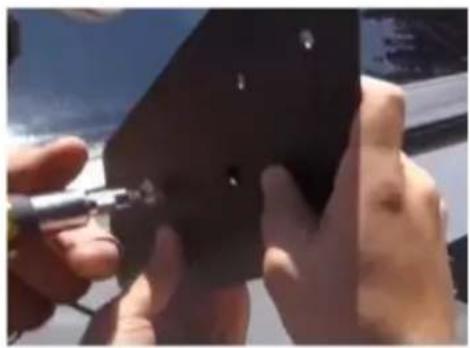

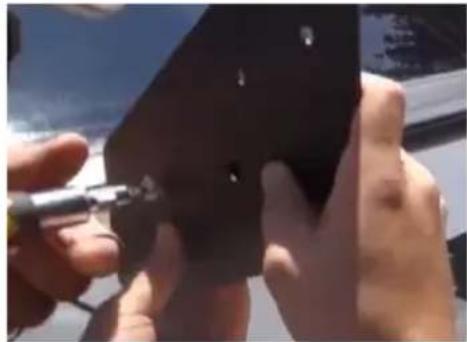

(4.2). Install locking screws on the inside of the rear cover.

Close-up of a hand holding a small metallic tool, next to a car engine socket (no visible text or symbols)

Close-up of hands using a tool to adjust or install a dark object, no visible text or symbols

Close-up of a black metal bracket with four circular holes, mounted on a white surface (no visible text or symbols)

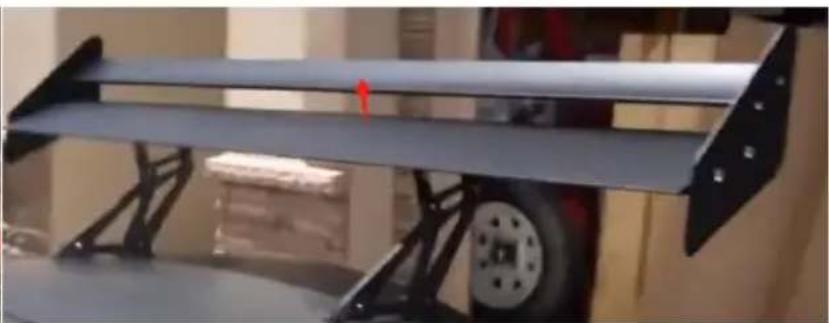

(4.3). Install flank panels.

Note that the mounting screws need to be removed before the flanking panels can be installed.

Close-up of a black fabric garment with two red arrows pointing to small circular features (no text or symbols visible)

Close-up of a black metal frame with a red arrow pointing to a specific layer, next to a vehicle wheel (no visible text or symbols)

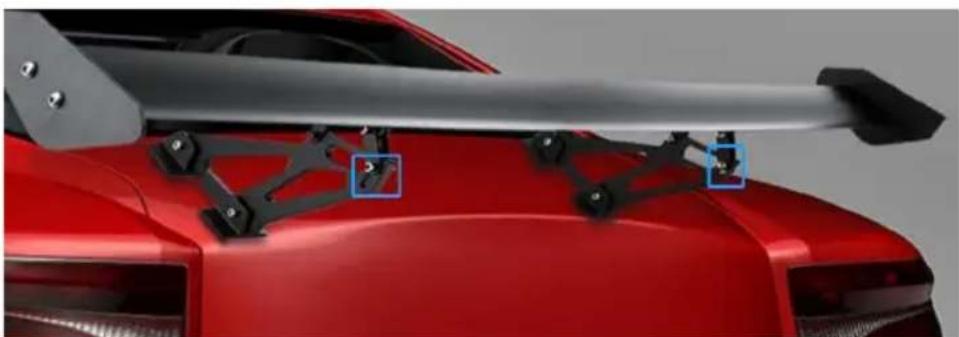

(4.4). Install the second wing(for model only: JG-109).

Red car front bumper with mechanical arms and a mounted tool (no visible text or symbols)

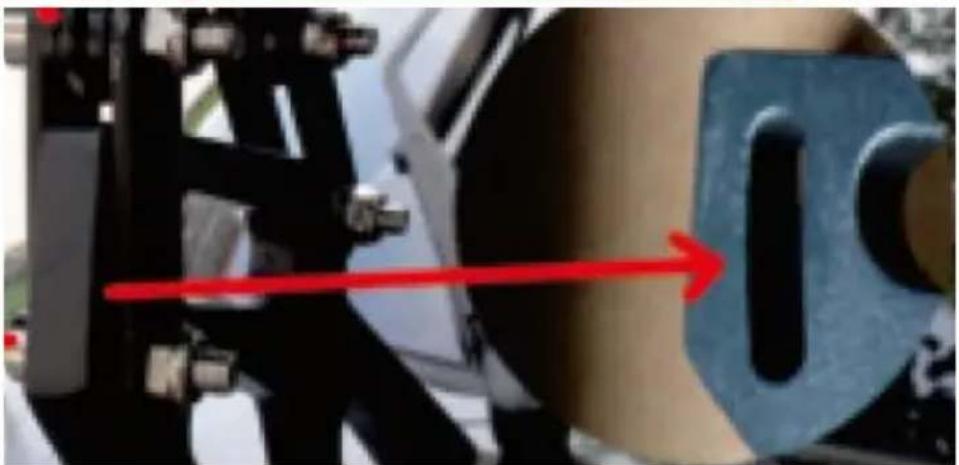

Tips: The brack joint has a waist-shaped hole to loosen mounting nut to adjust the spoile Angle.

Close-up of mechanical components with a red arrow pointing to a blue component (no visible text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC REP SHUNSHUN GmbH.

Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany

UK REP: Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom Made in china
