IMPORTANT SAFETY INSTRUCTIONS

WARNING :

Read all safety warnings, instructions, illustrations and specifications provided with this product. Failure to follow all instructions listed below result in product damage or serious injury.

Basic Safety Information:

1. This product is for trimming leaves only.
2. The blade is very sharp, beware of injury when using the trimmer work or replace the blade.
3. Put on the sheath for the blade if you are ready not to use the for a long time.
4. Make sure the lid is on before use.
5. Be gentle with the trimmer when using it. Violent use can result in accidental injury and damage to the trimmer.
6. Never place your fingers, gloves or any other body part in contact the grill or the blade.
7. Do not use scissors, knives or any instrument above the grill.
8. This product is not a toy. Do not allow children to play with or item.

Please Note:

The manufacturer does not accept any responsibility for damages cause to or by the trimmers resulting from inadequate use or assembly. Please use the trimmers in accordance with existing laws and regulations.

SAVE THESE INSTRUCTIONS

Basic parameters

Package size (mm)	430×420×290
Size (inch)	16
N.W (kg)	6.4
G.W (kg)	7.3
Operating mode	manual
Blade	420 Stainless steel/straight edge
Container	304 Stainless steel
Transmission ratio	1:24
Service life	1-year warranty

OPERATION

1. Machine assembly

This trimming machine is assembled and only needs to be put into the handle for use.

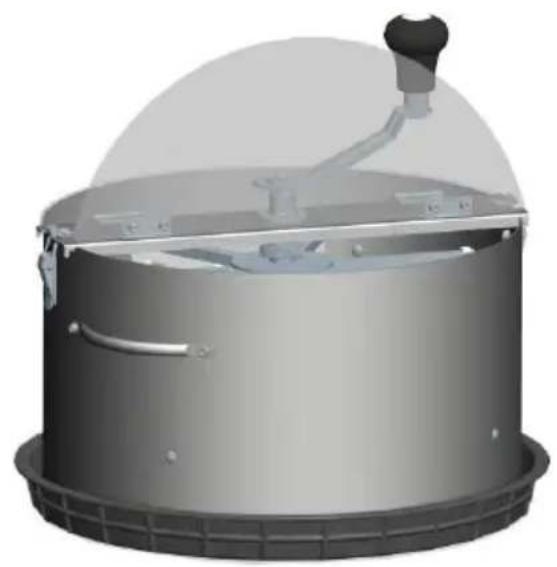

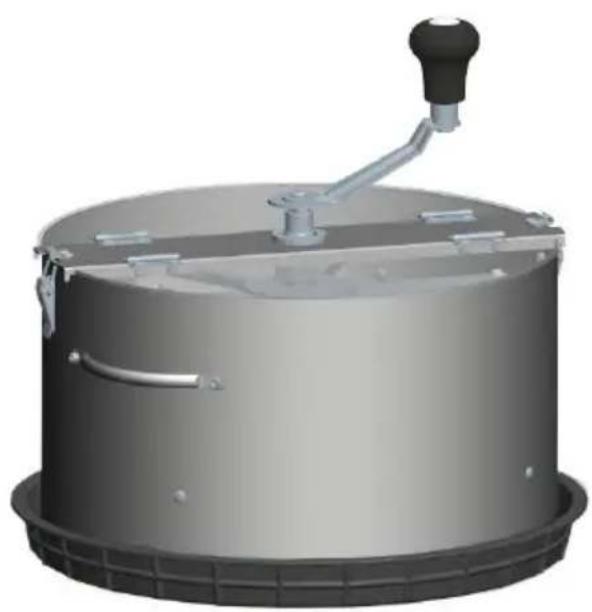

3D rendering of a cylindrical industrial container with a handle and internal components (no text or symbols visible)

1. User instructions

3D rendering of a metallic cylindrical device with a handle and internal components, no visible text or symbols

a. For trimming, separate the fresh or dry flowers from the branches, put them into the upper container of the trimmer (Do not overload). b. For dry trimming, insert the dry trim grate(provided)on top of the grate (wet trim grate) and lower the cutting blade; for wet trim, simple remove the dry trimming grate.

c. Turn the handle clockwise for 15 to 20 times and counterclockwise 15 to 20 times or until the desired cut is obtained. Always start up and adjust your desired spinning speed.

d. Lift up the plexiglass lid and reaches into the upper container to trimmed plants or flowers, or you can remove the top bridge by unla

the latches for easier removal of trimmed plants or flowers. The cutter blade is built adjustable for optimistic trim.

e. We highly recommend cleaning the trimming machine thoroughly aft each use.

f. Sharpen the blade when necessary.

1. How to install and adjust the cutting blade.

Caution: the blade is extremely sharp

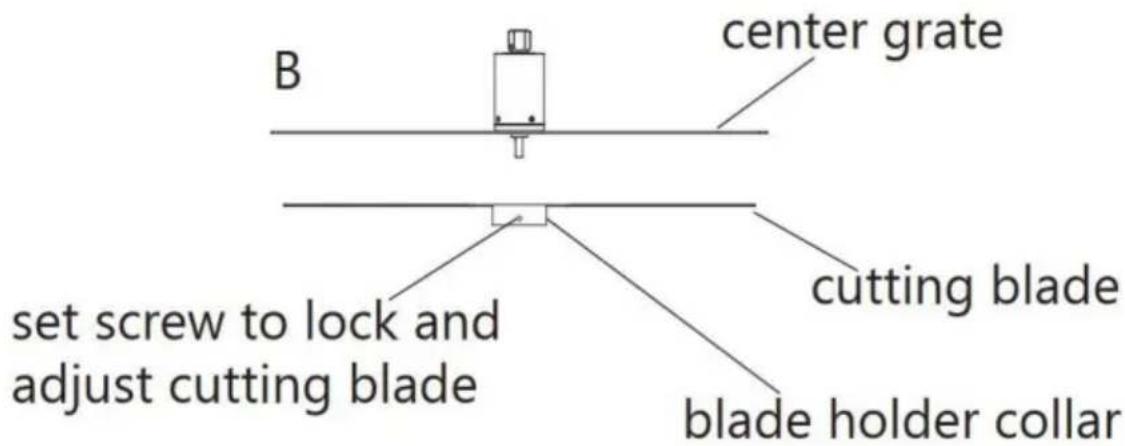

A B center grate set screw to lock and adjust cutting blade cutting blade blade holder collar

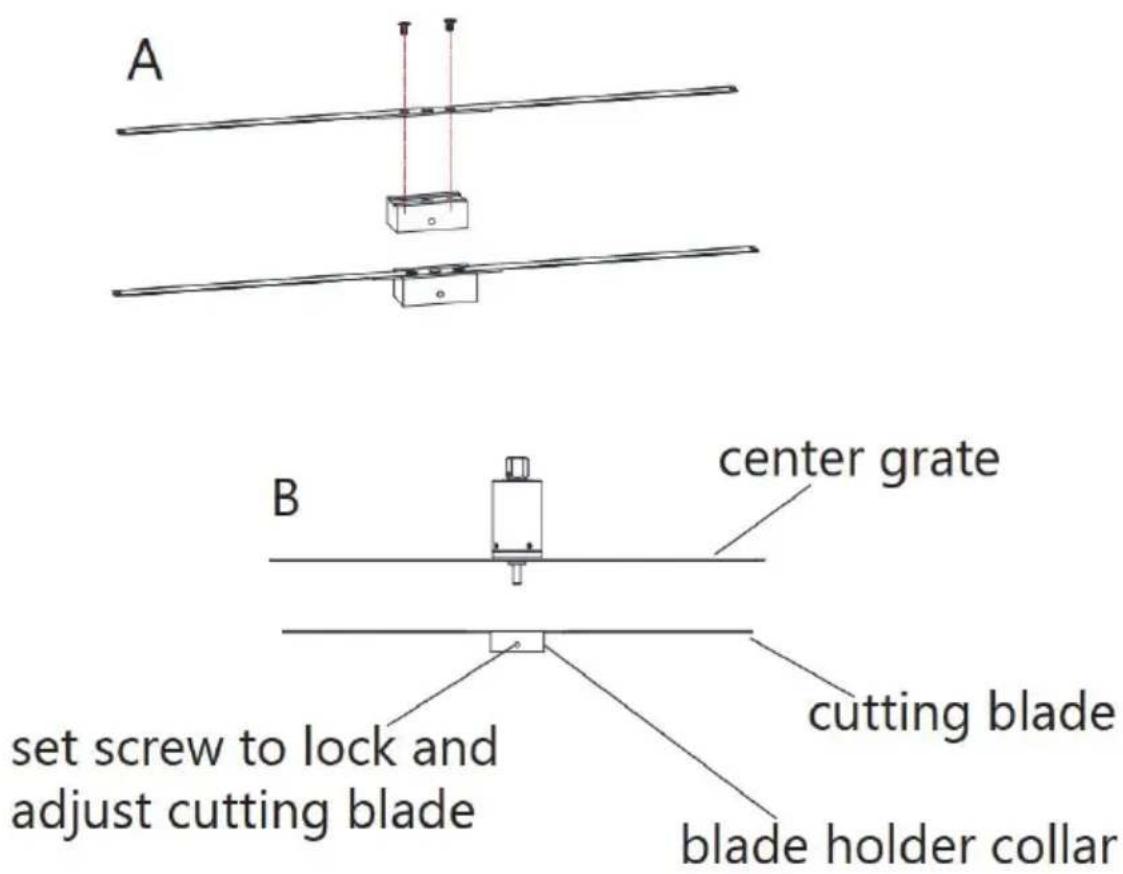

A: To install the cutting blade, first place the blade on the blade coll (the beveled side faces down against the holder collar) and tighten the two-set screw see diagram A.

B: To install the cutting blade into the gearbox shaft, first insert the blade(Note: Do not set the cutting blade to touch the center grate with could cause stiffness spinning). To adjust the cutting blade, use the p Allen key size provided to loosen the set screw on the blade holder adjust the desired gap between the center grate and cutting blade for

precision trim.
